Runway

Specification

Construction

Housing: Extruded aluminium
Finish: Polyester powder painted RAL 9016 textura matt white
Finish: Polyester powder painted RAL 9006 textura matt grey
Finish: Polyester powder painted RAL 9005 textura matt black
Endcaps: High pressure die cast aluminium
Diffuser: 2mm co-extruded high transmission opal polycarbonate
Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
IP20

Performance

Part L2 compliant
BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
3SDCM Three step Macadams ellipse
TM21: L90>60K Hours / L80>100K Hours

Environmental

Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
All critical components are mounted on a single tray for simple end of life repair or upgrade.
Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
Contains no single use plastics or polystyrene packaging.
Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
Designed to allow simple disassembly for end of life recycling.
UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Optional DEXNet wireless emergency for automated centralised reporting.
Optional Reacta-Link wireless emergency for automated centralised reporting.
Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
Optional Integral R44 presence and daylight sensor
Optional integral DEXNet for integration with DEXNet wireless installations
Optional Integral Reacta-Air wireless presence and daylight regulations sensor
Optional integral Reacta-Link for integration with Reacta-Link wireless installations
Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

Suitable for suspended installation
Suitable for recessed installation
Suitable for surface installation
Suitable for standalone or continuous installation

Variations

Available with a wide range of colour temperatures and renderings
Available in a range of housing sizes and lumen outputs
Available in white, black or grey finishes
Available with opal or microprism diffuser options

Find out more about our 5 year extended warranty

Product Images

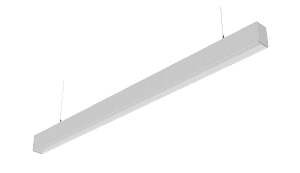

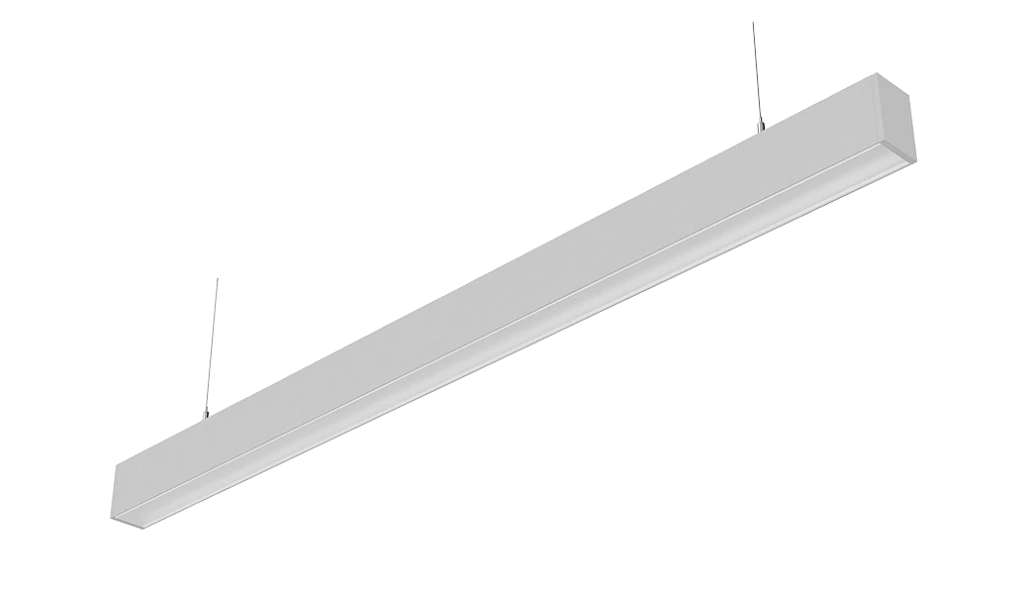

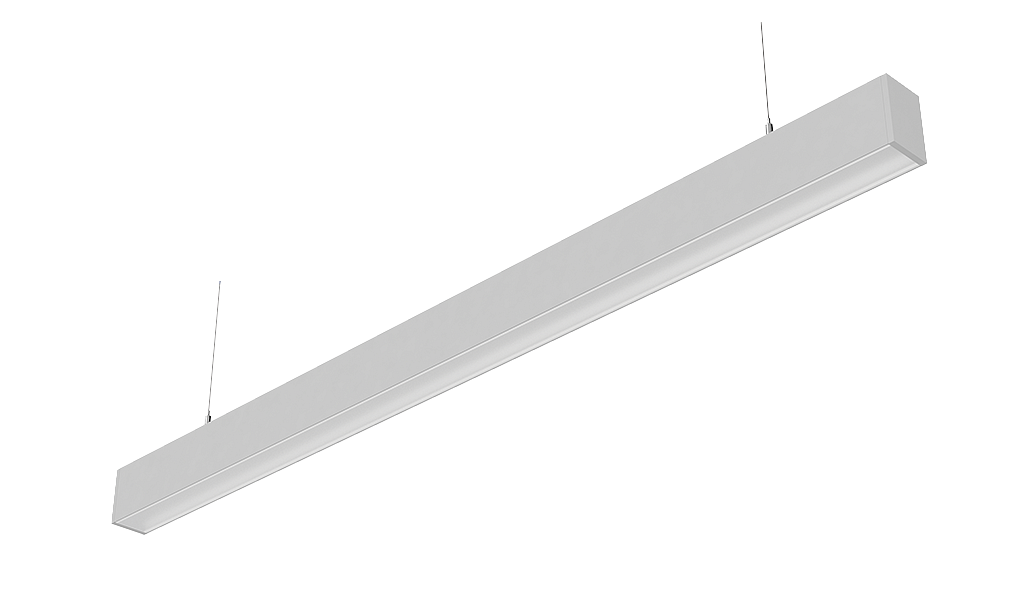

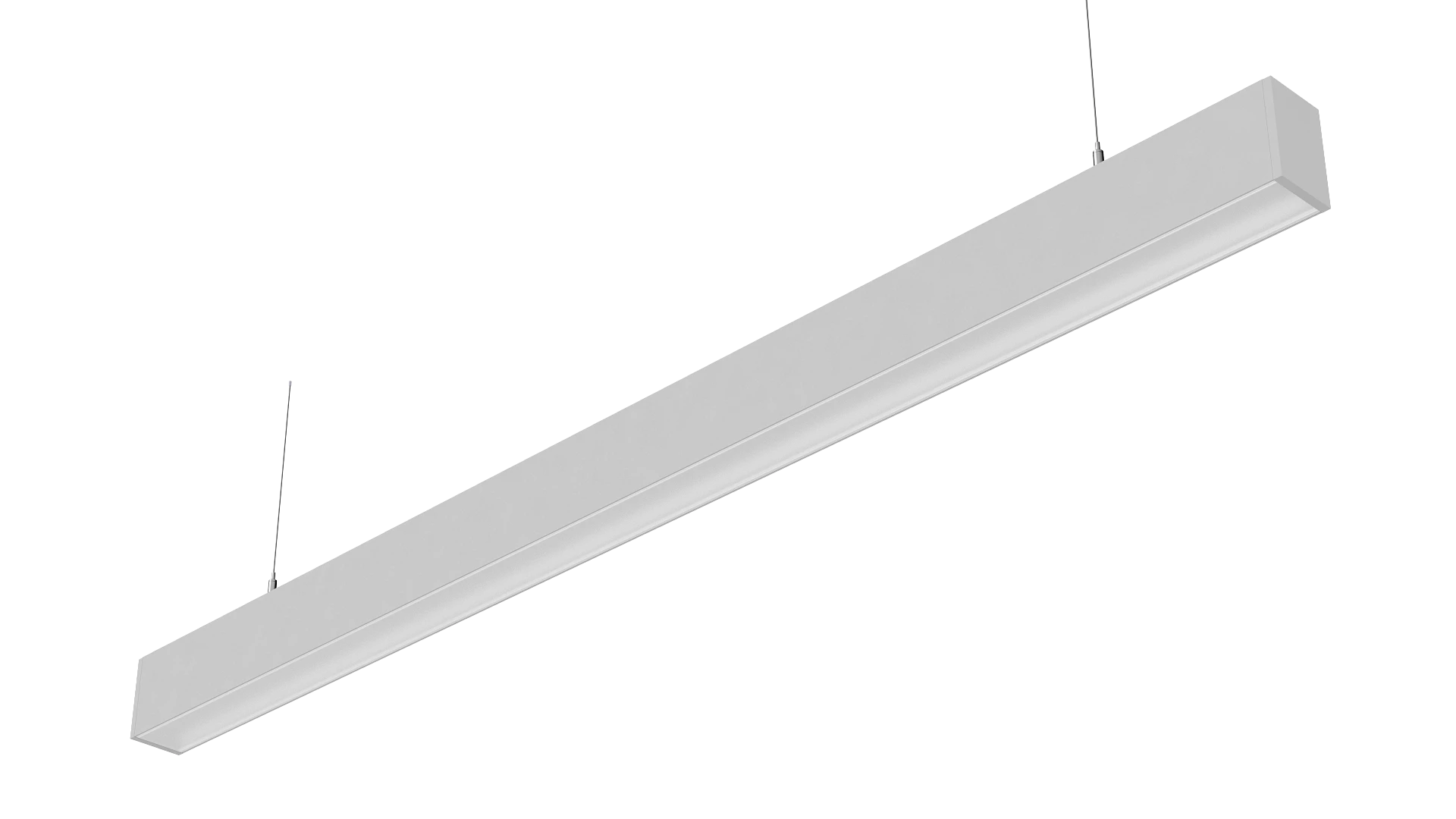

Runway Suspended in Grey

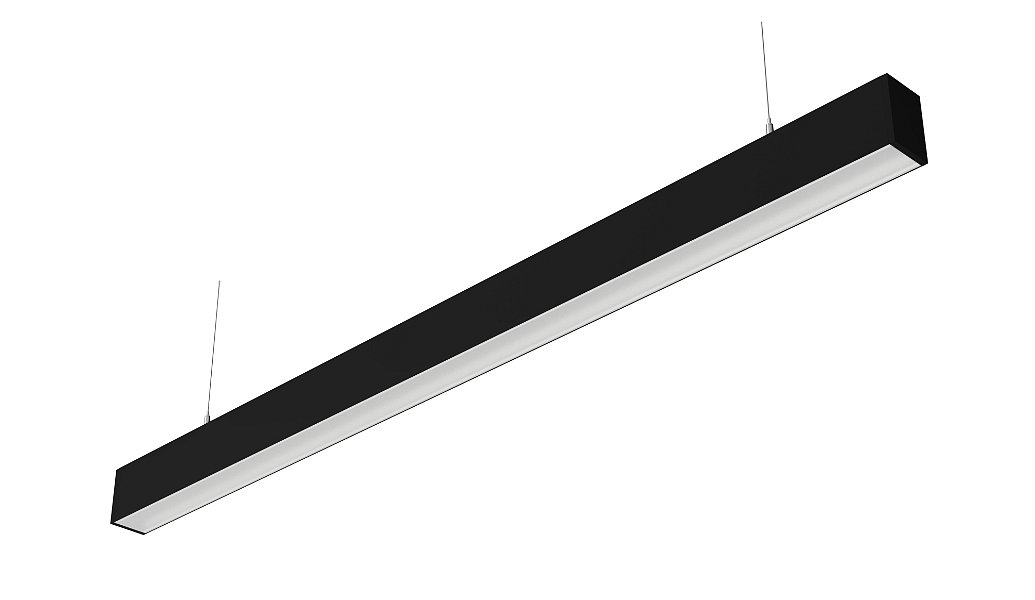

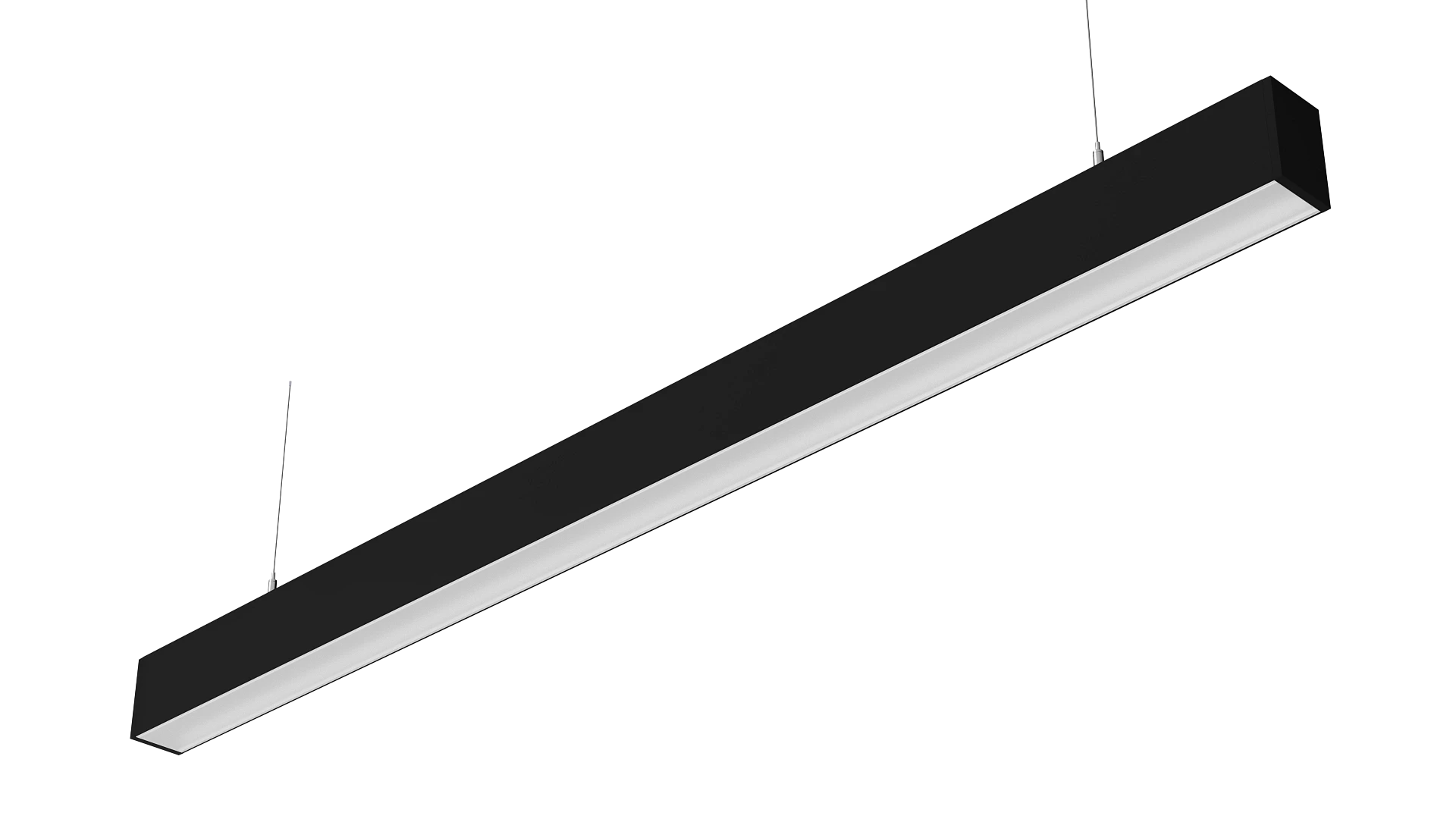

Runway Suspended in Black

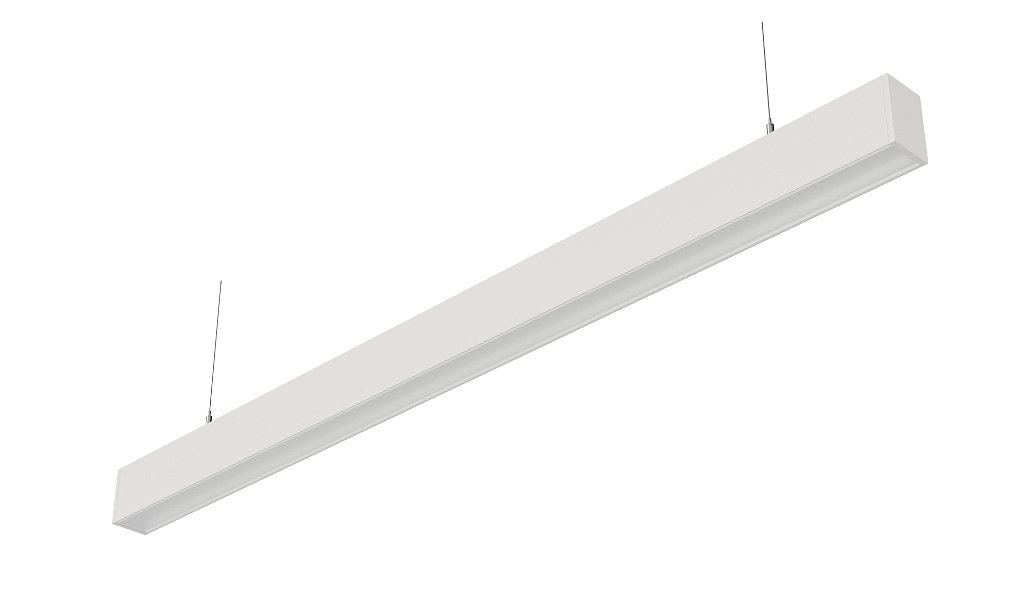

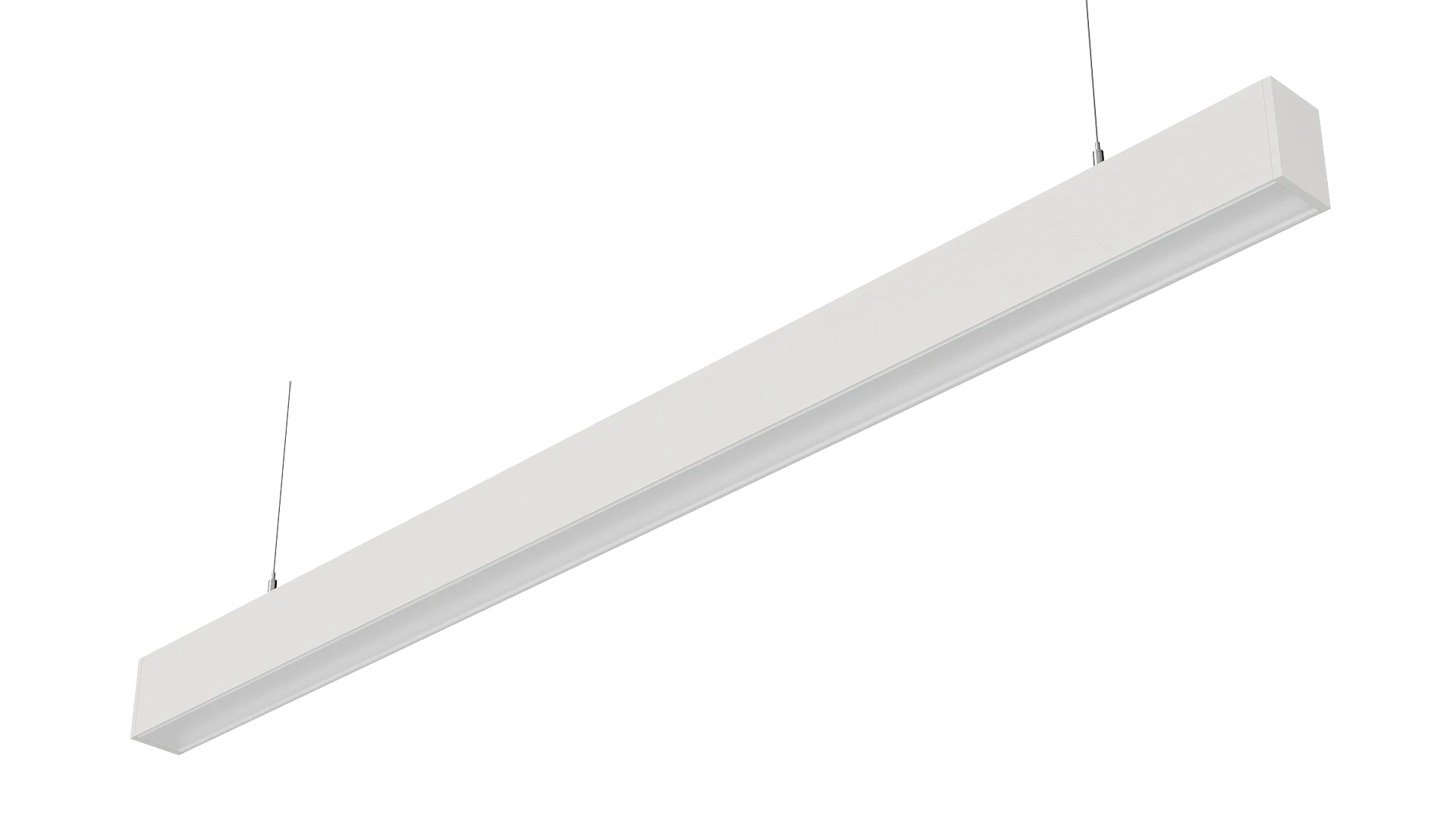

Runway Suspended in White

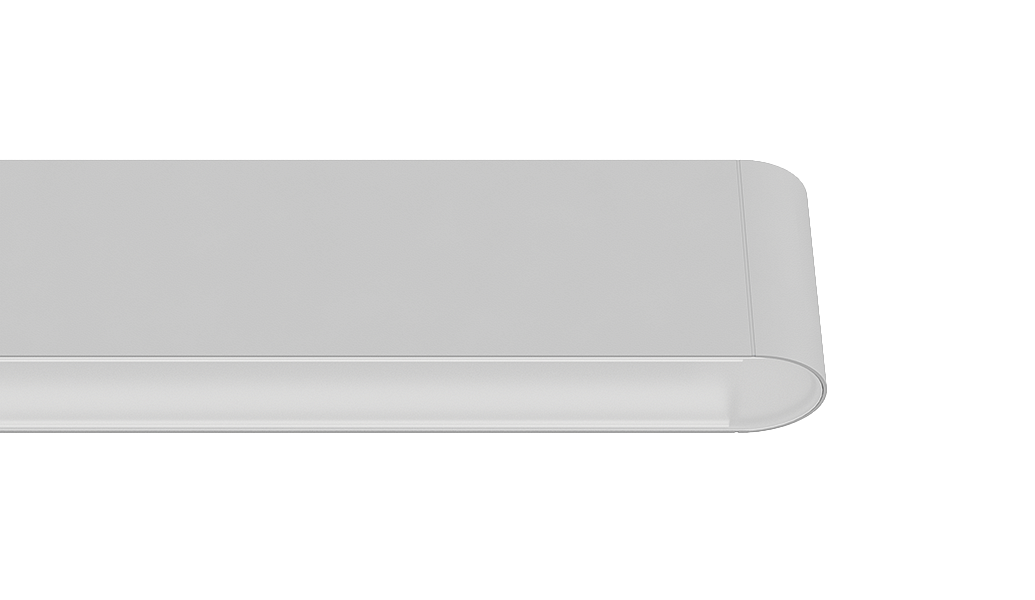

Runway Curve in Grey

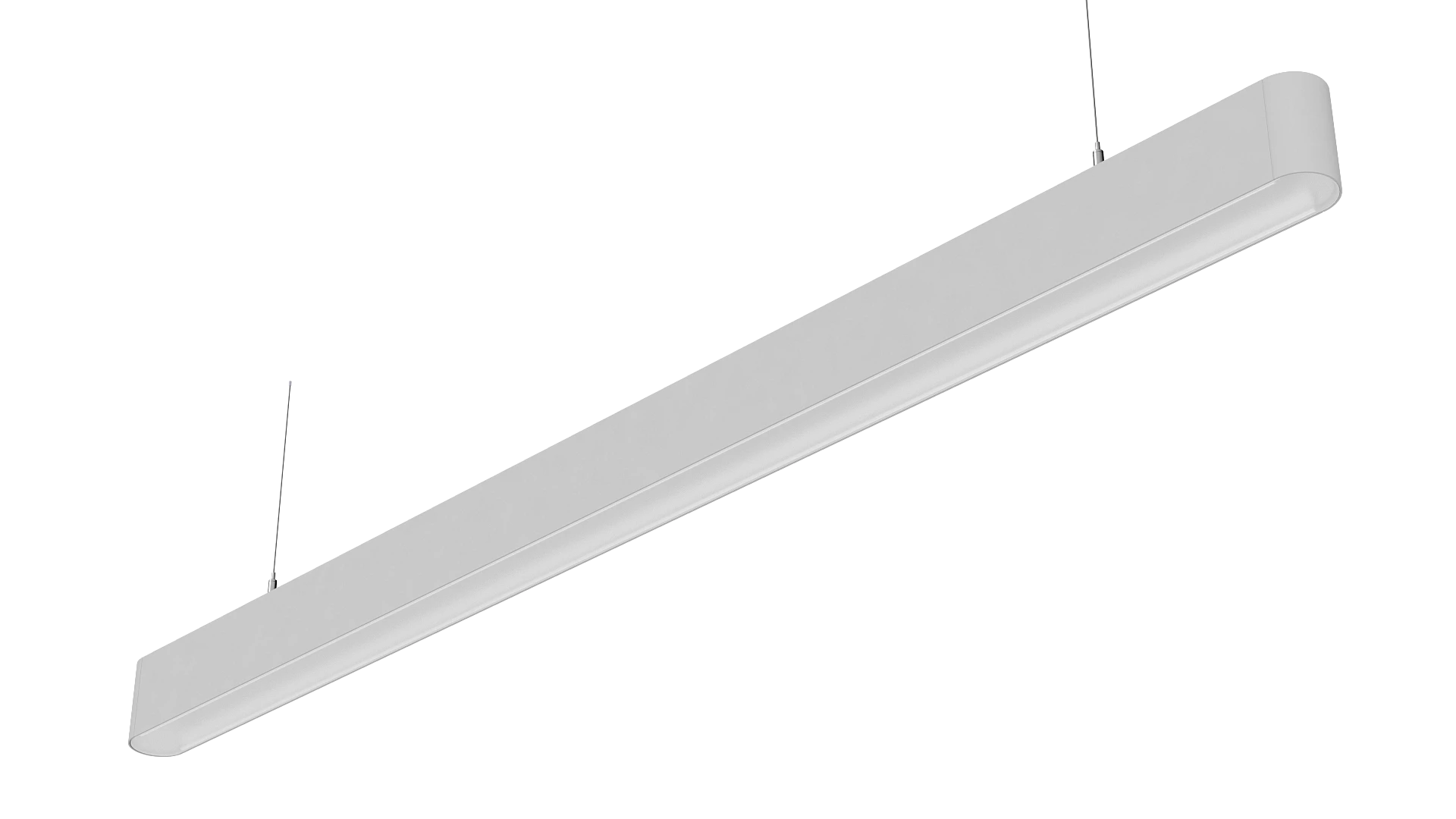

Runway Curve Suspended in Grey

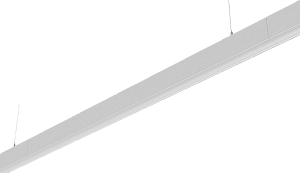

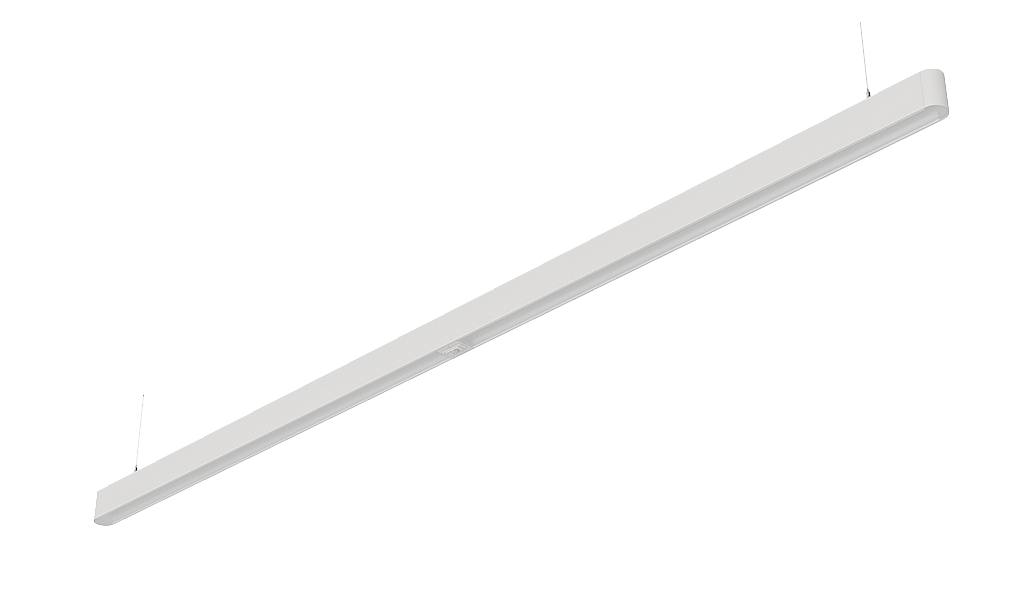

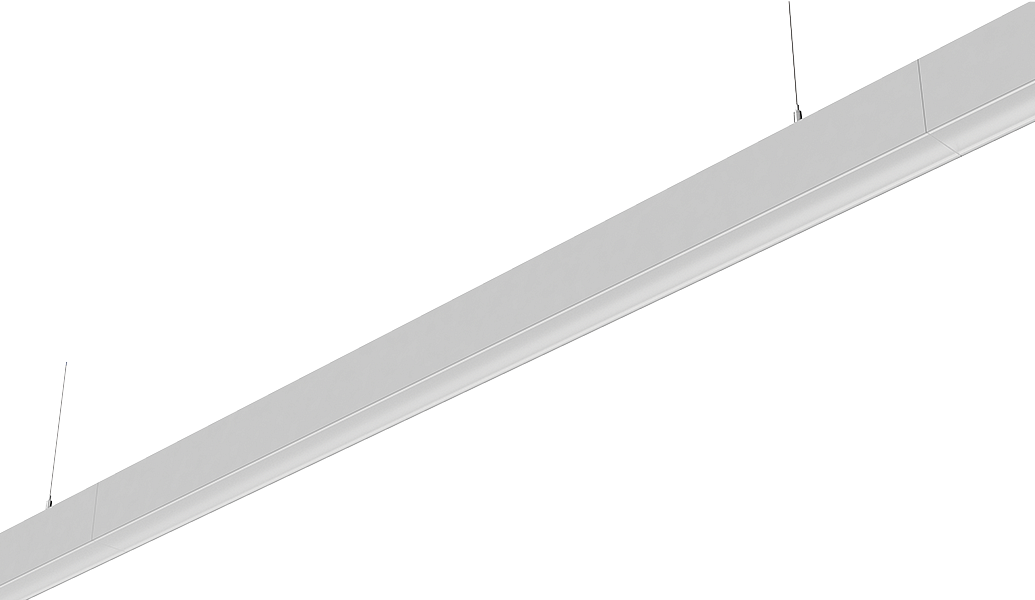

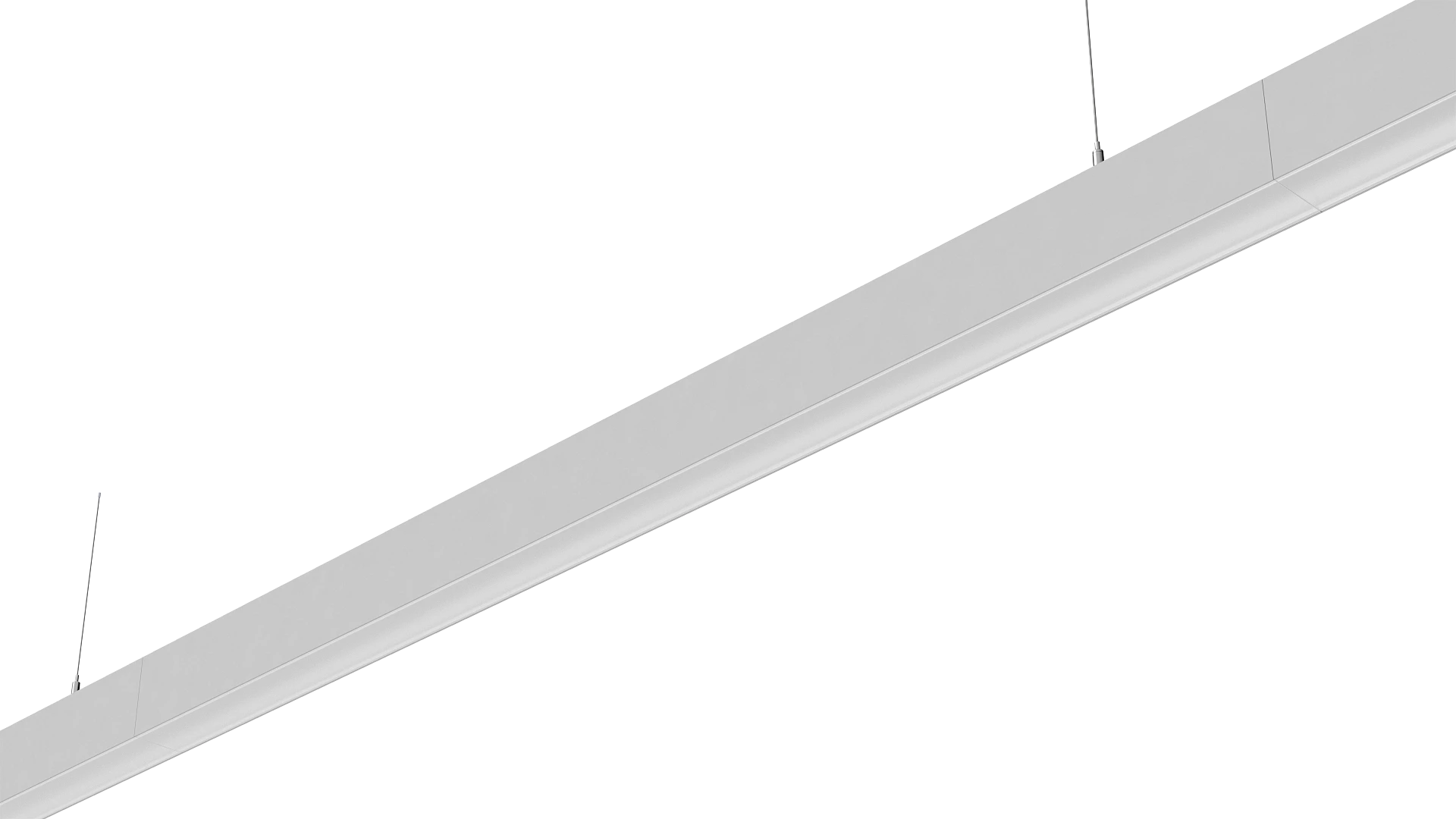

Runway Continuous Suspended in Grey

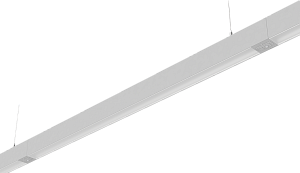

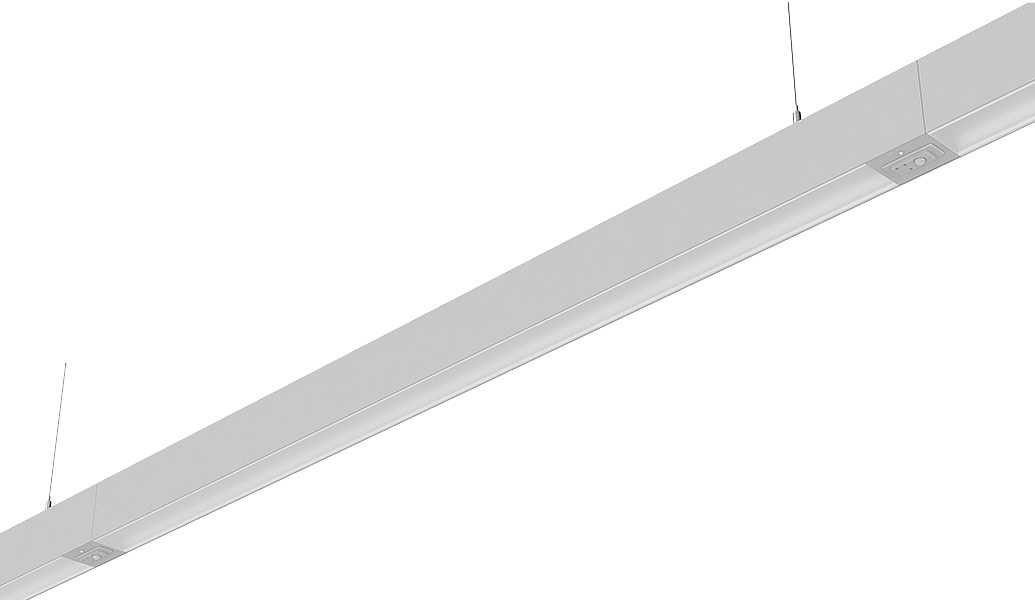

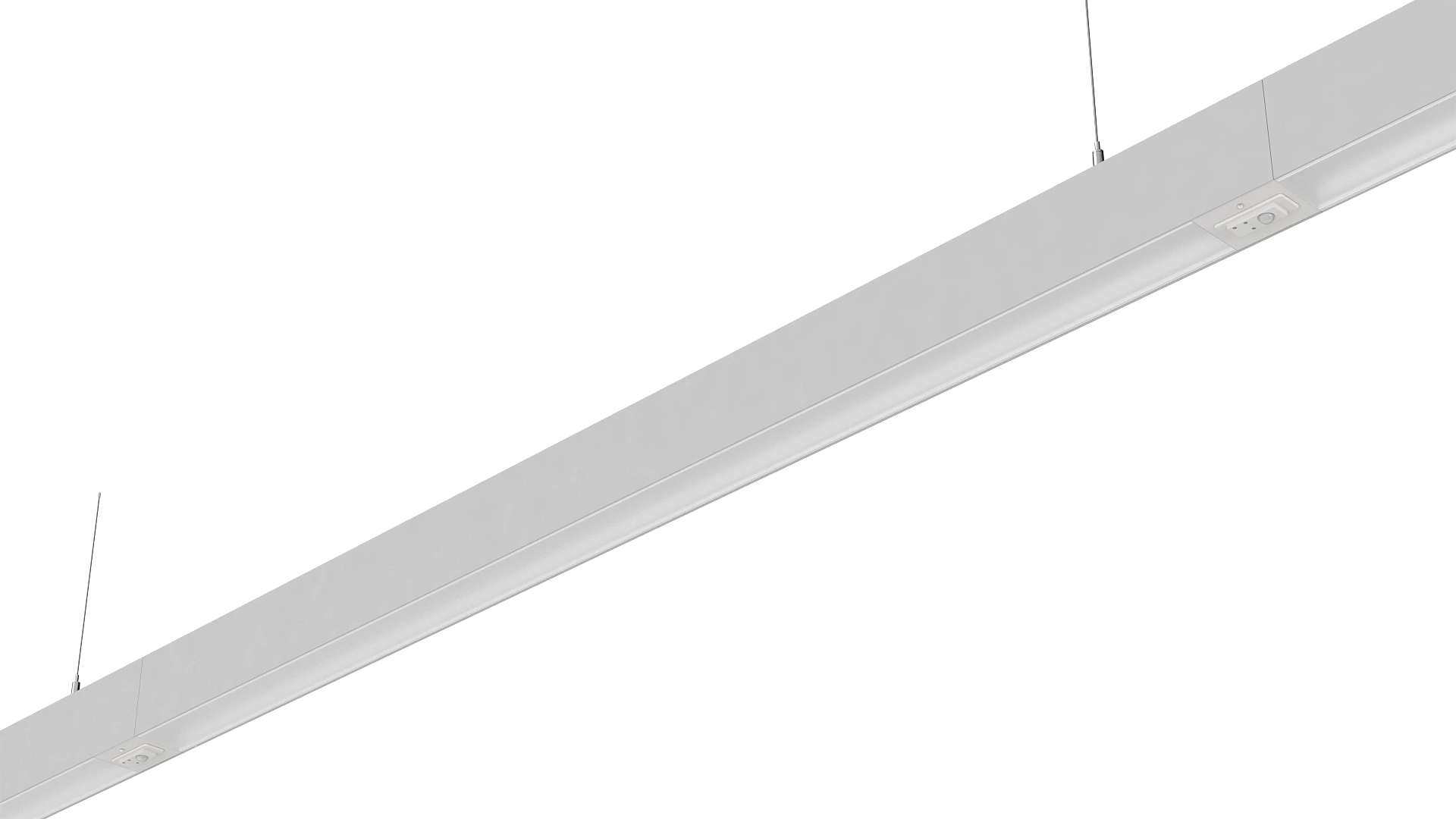

Runway Continuous Suspended in Grey with D44

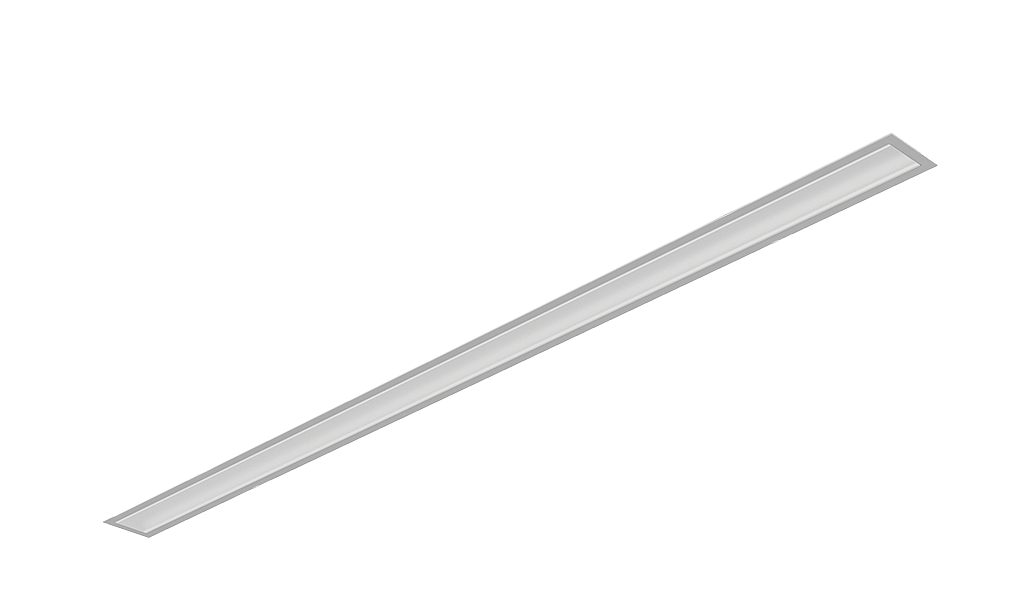

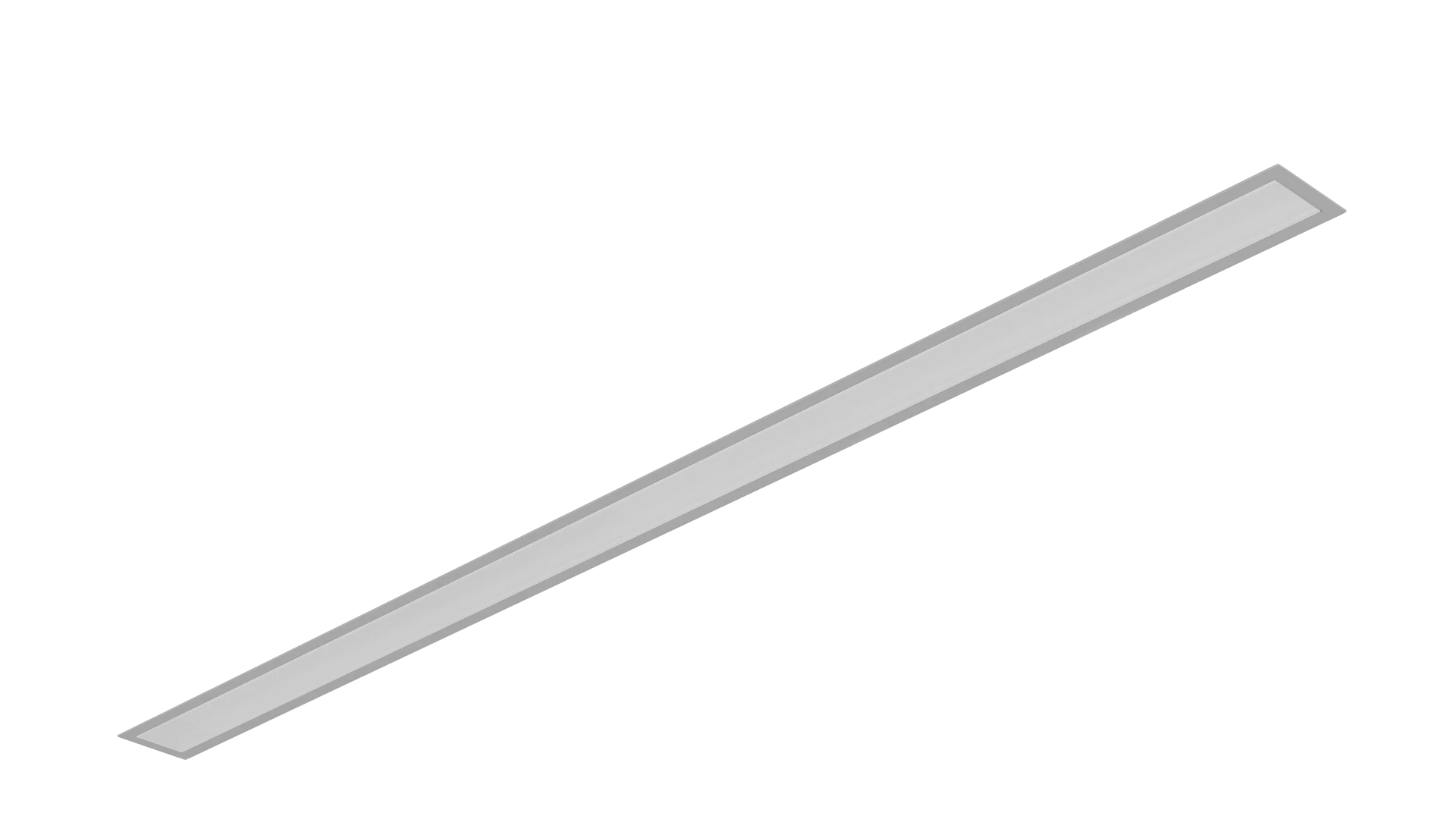

Runway Recessed in Grey

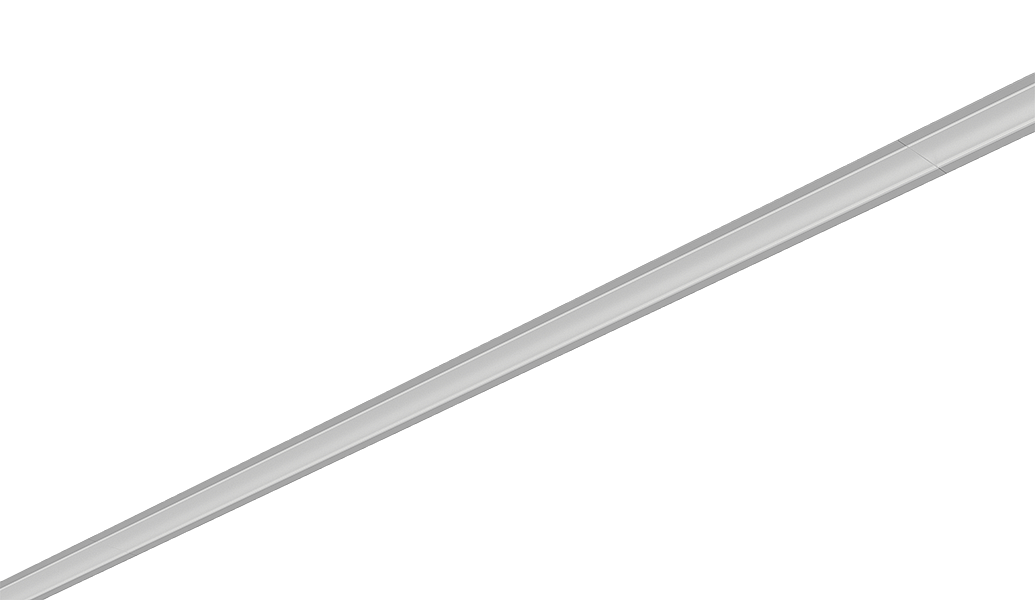

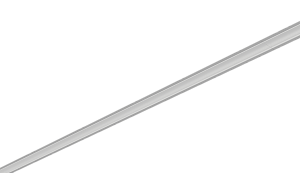

Runway Continuous Recessed in Grey

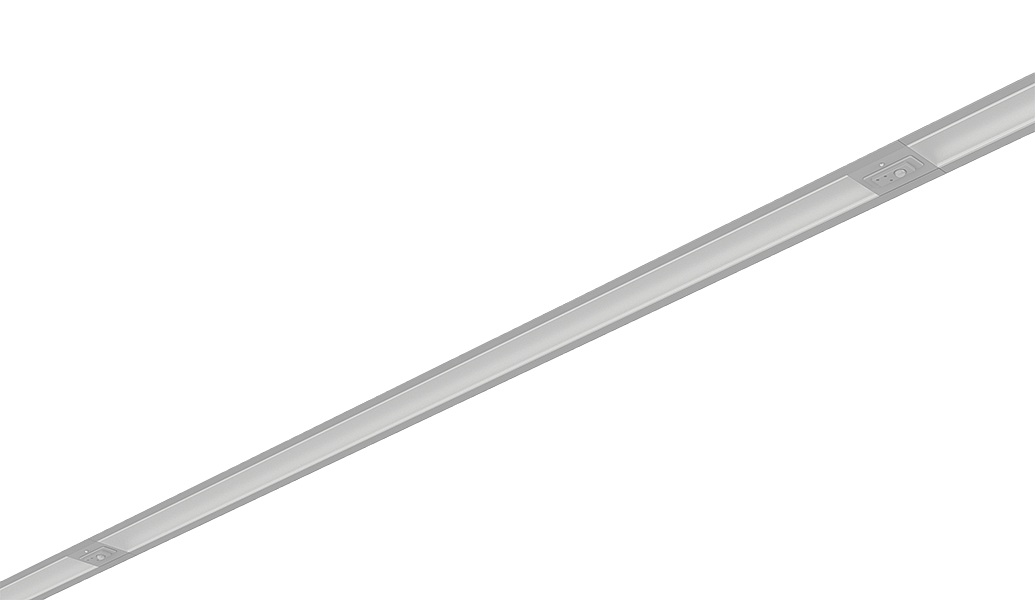

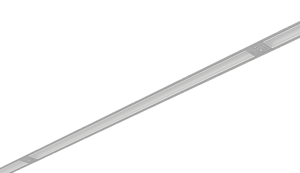

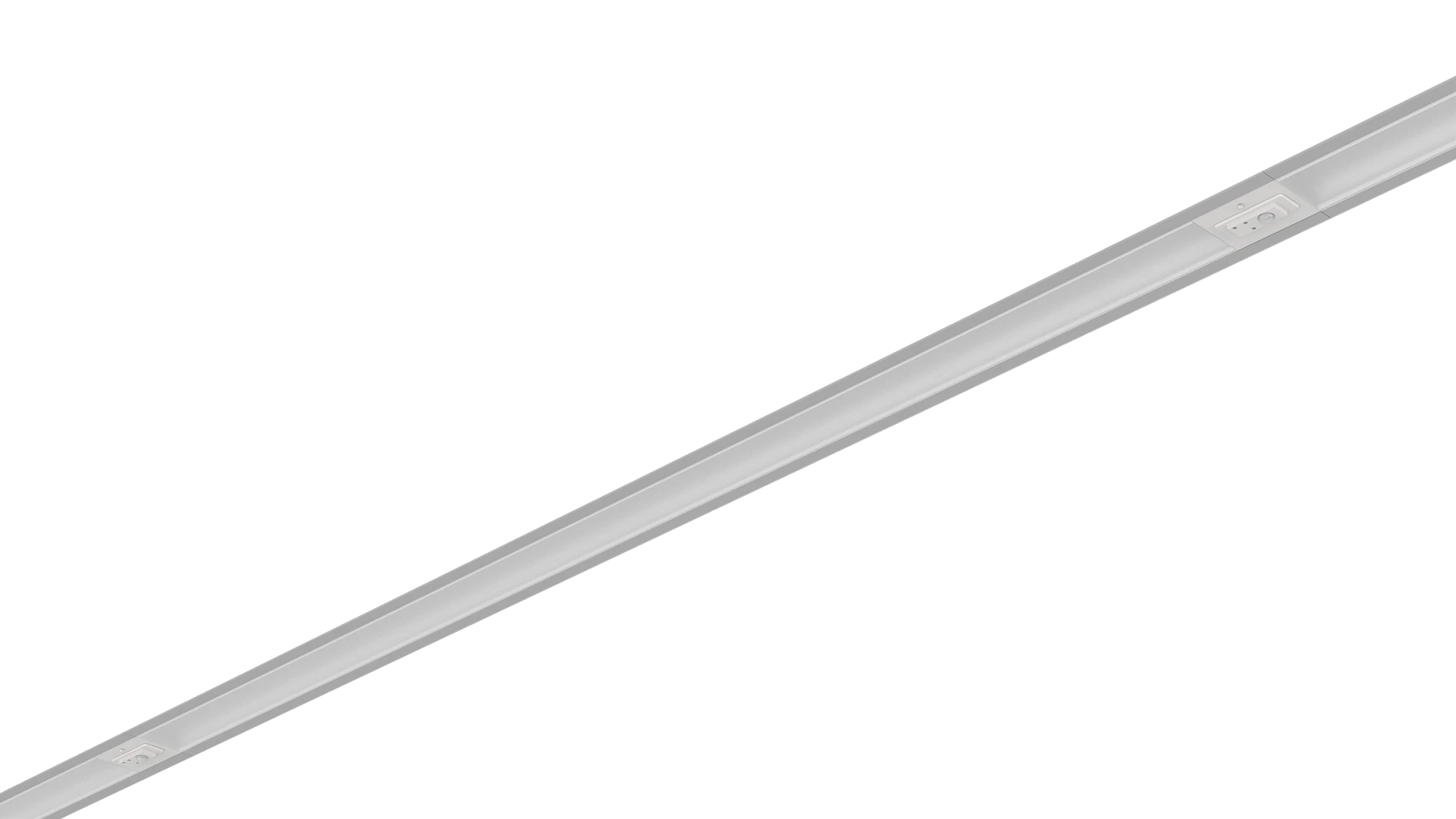

Runway Continuous Recessed in Grey with D44

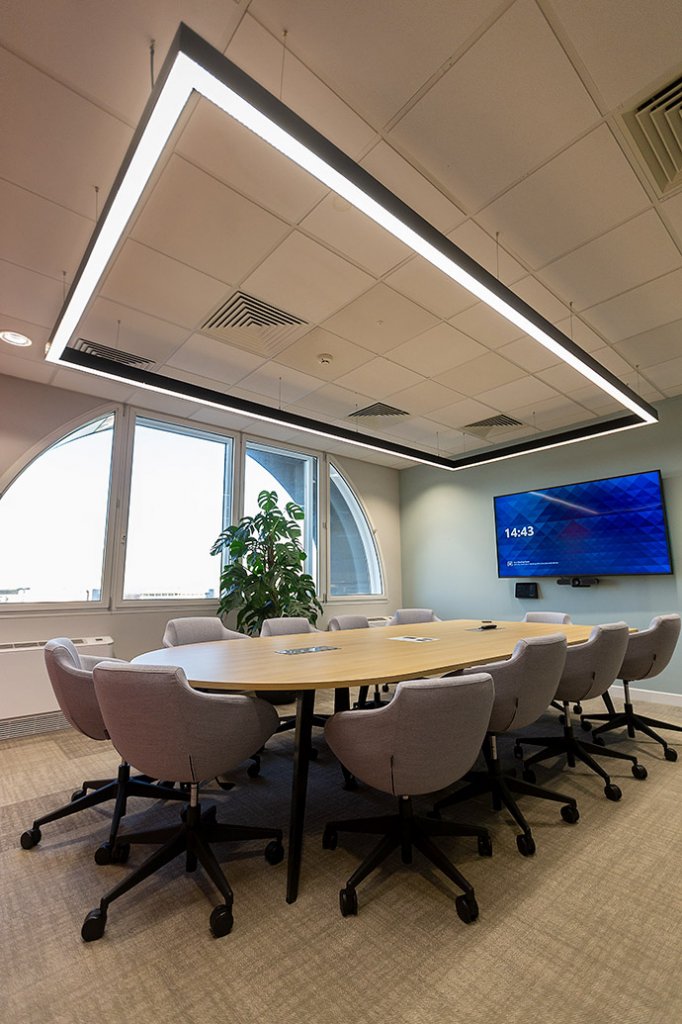

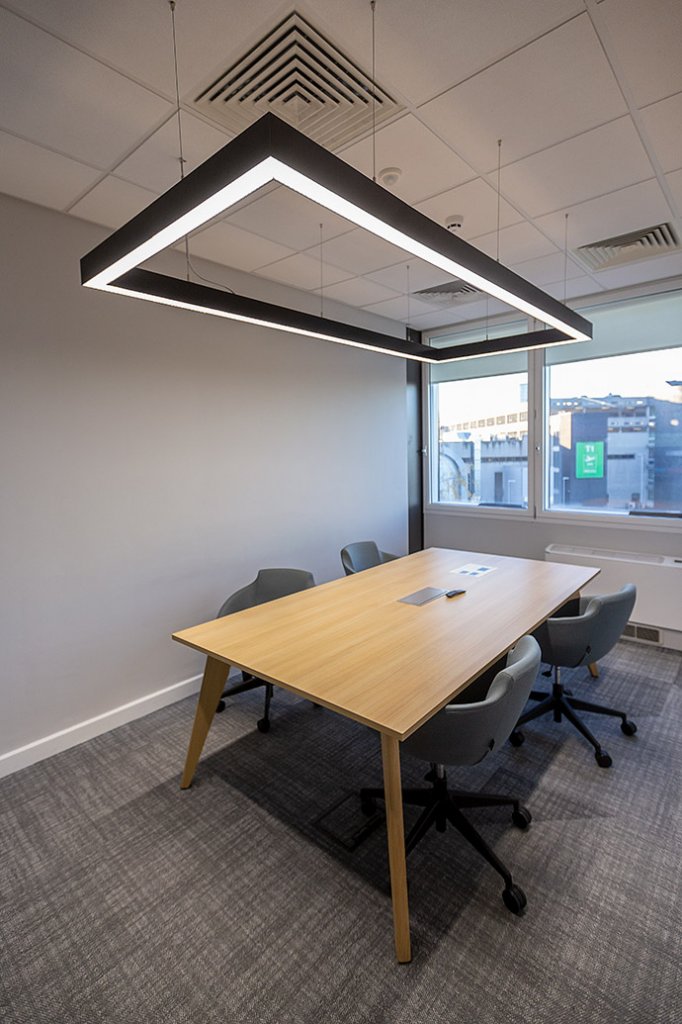

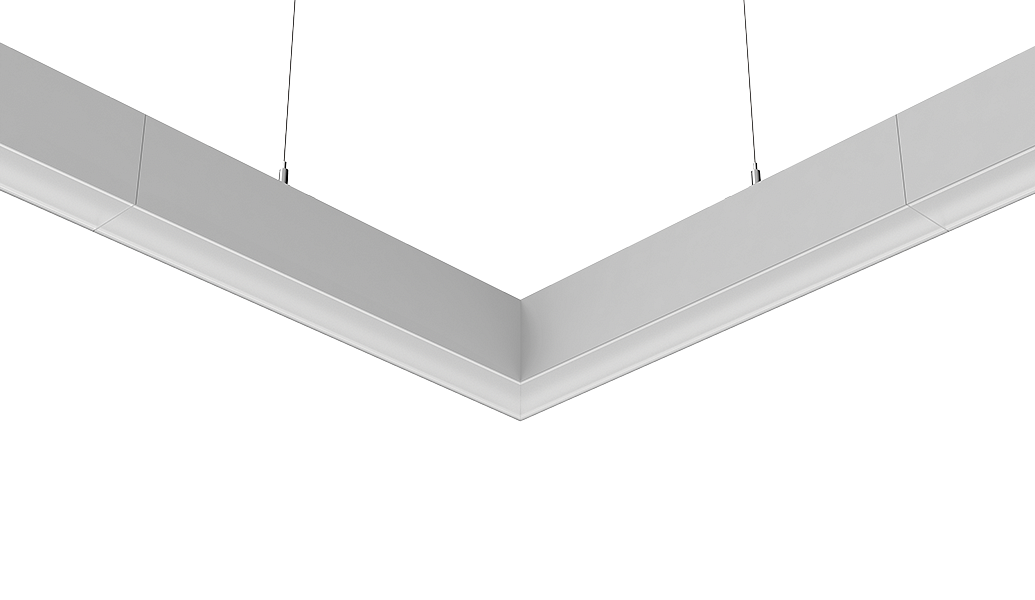

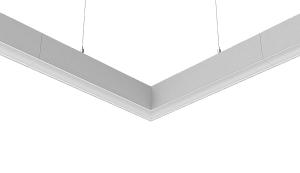

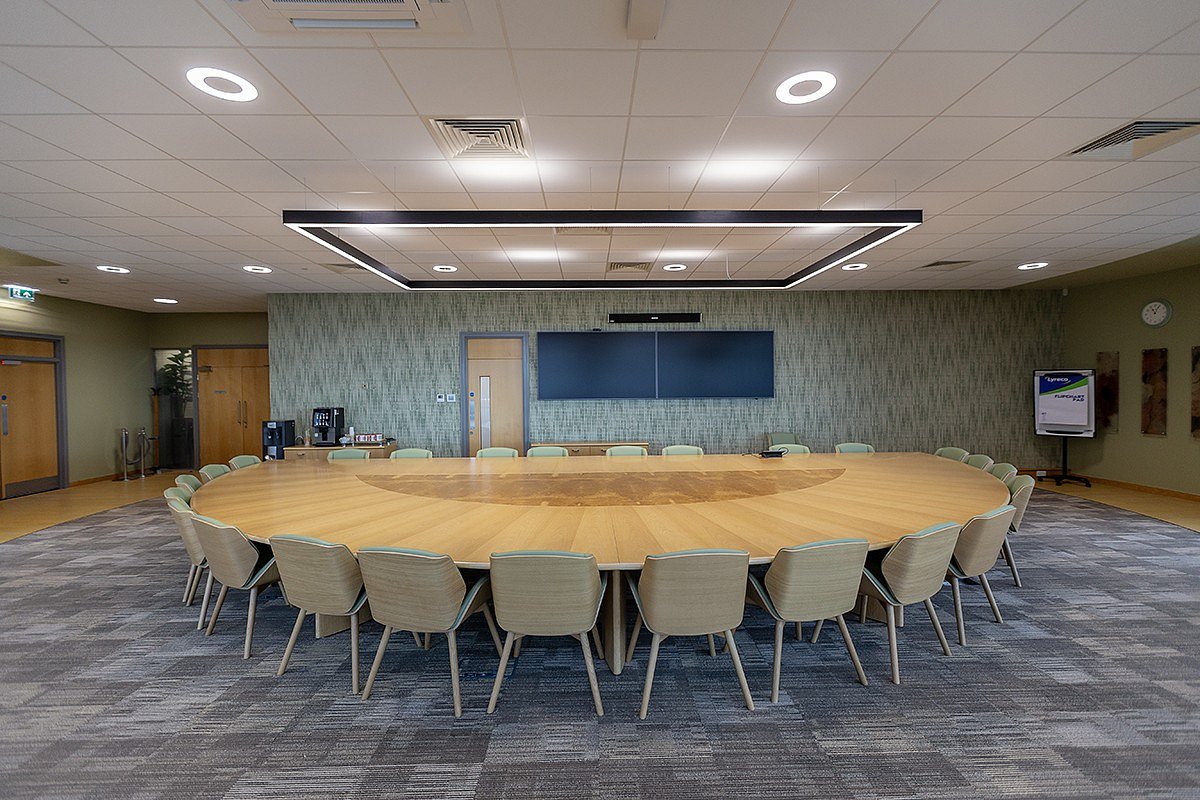

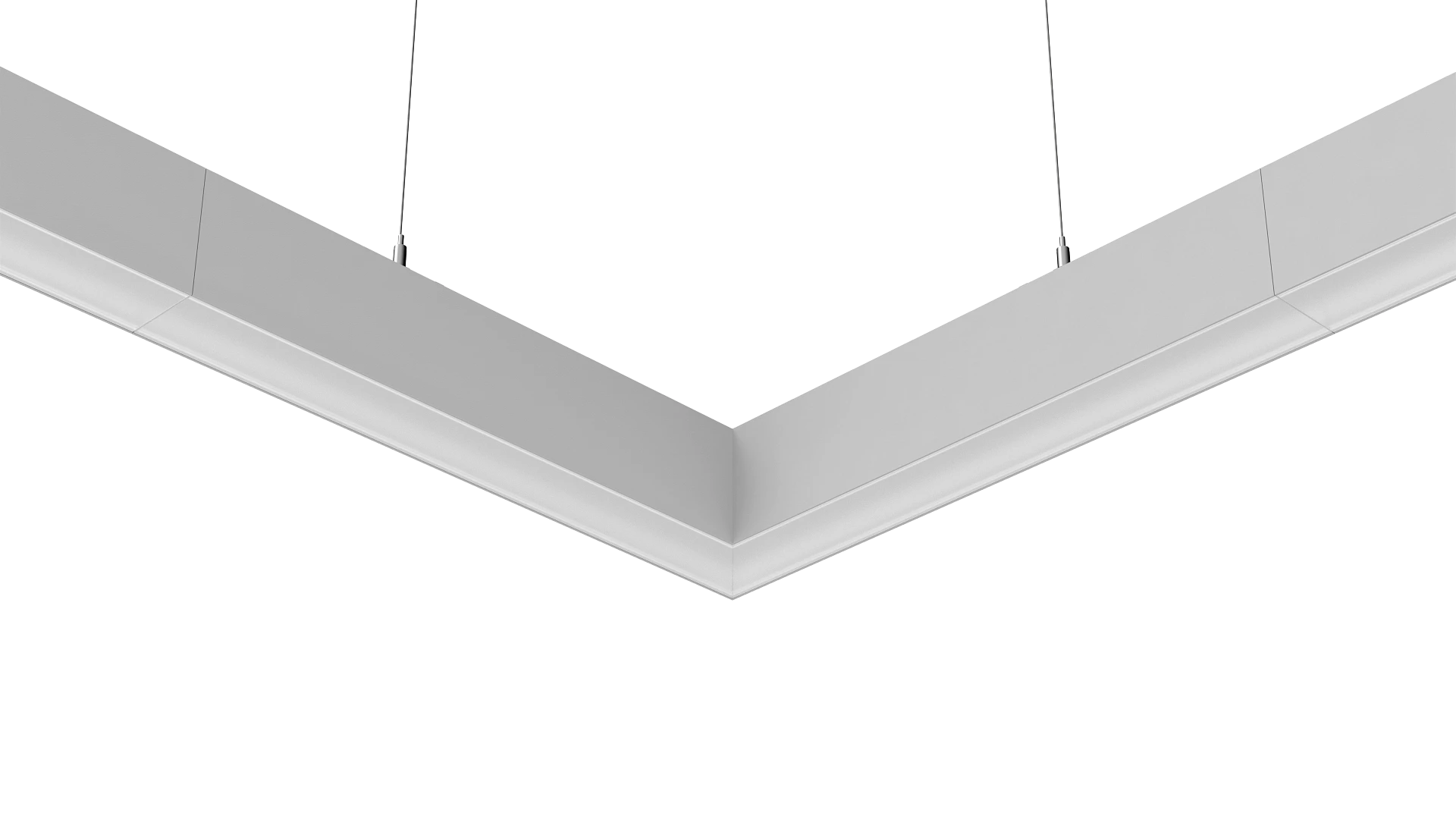

Runway Continuous Corner Suspended in Grey

Runway Continuous Recessed in Grey

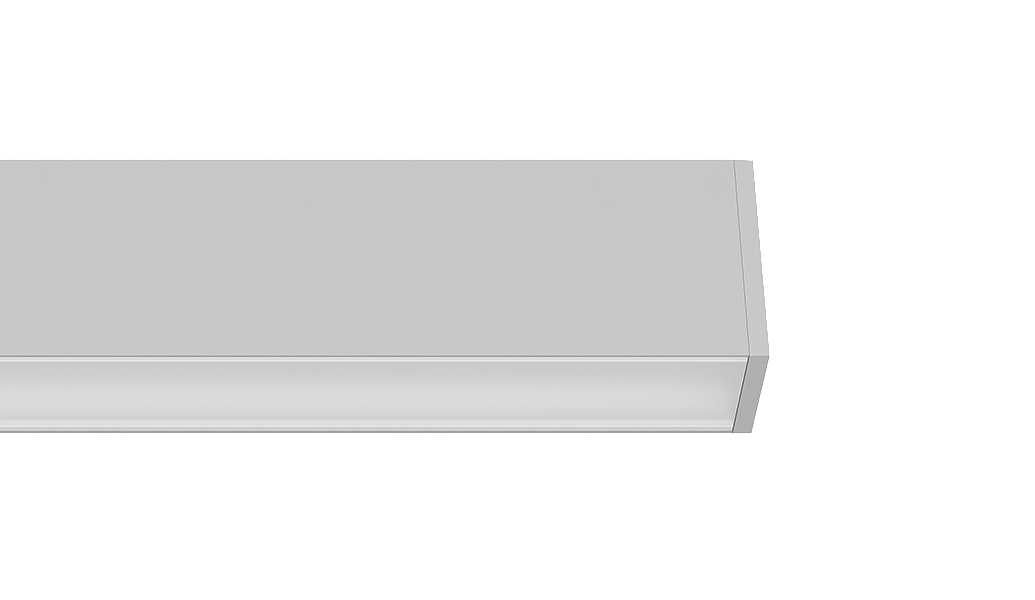

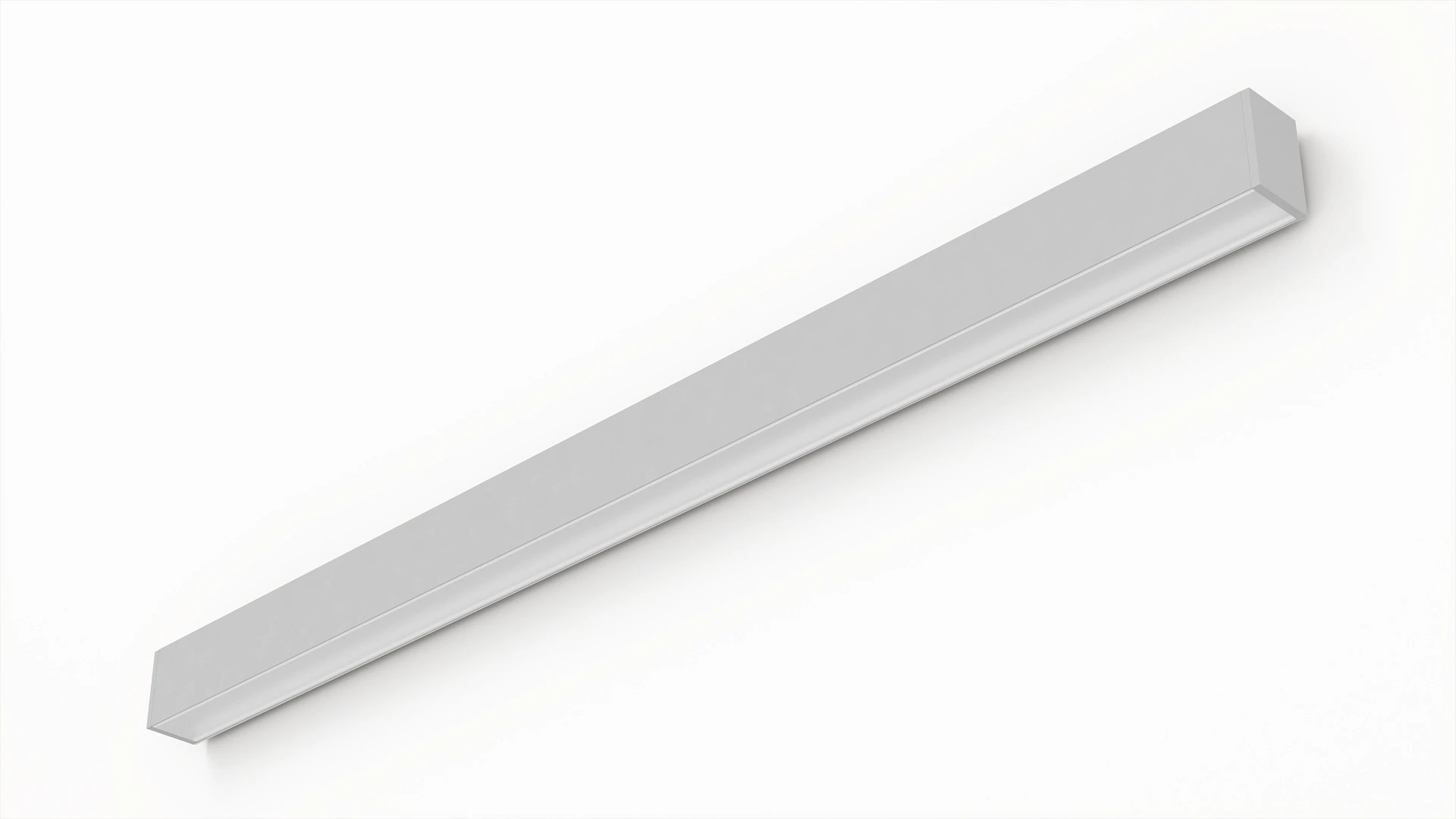

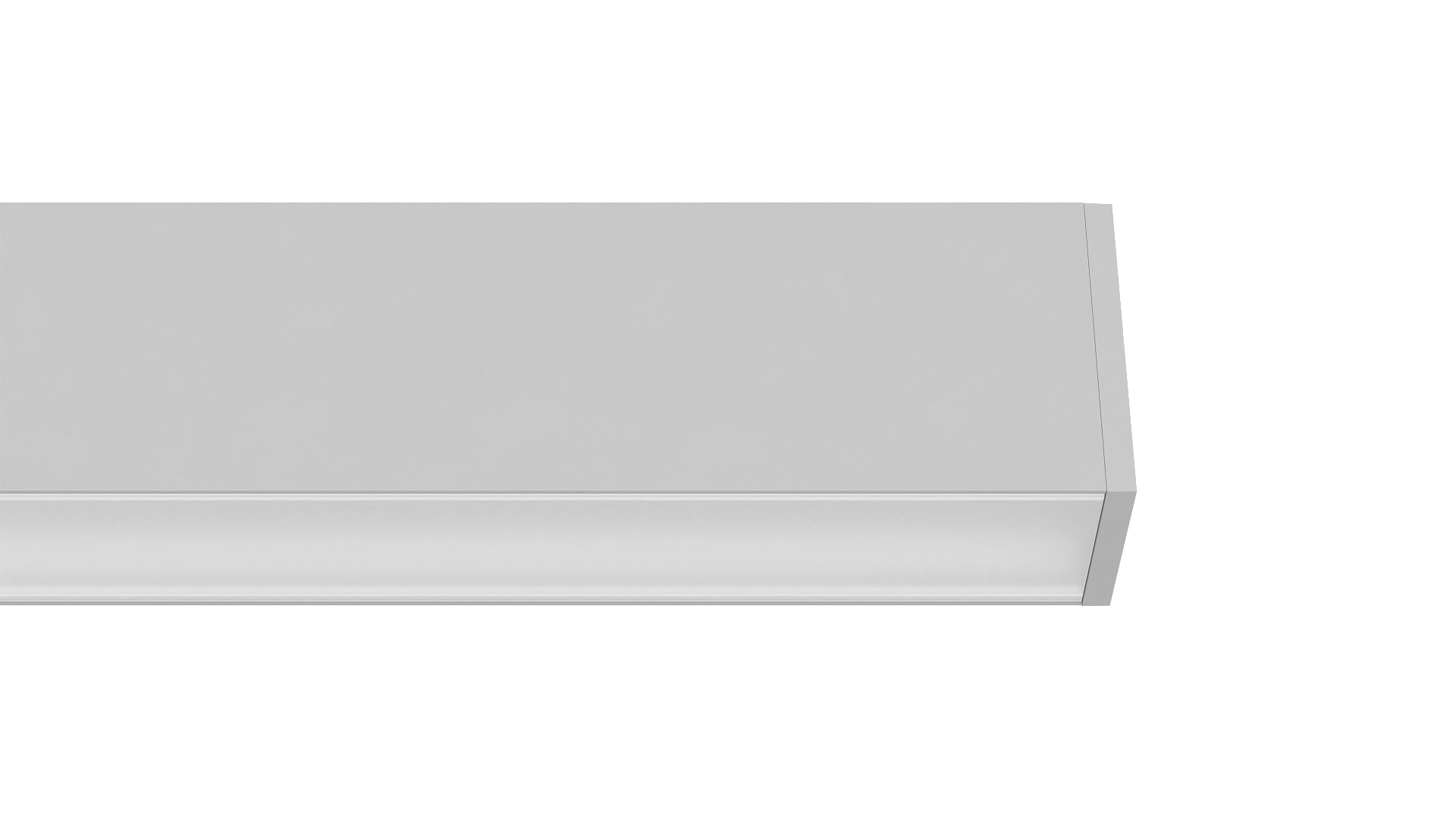

Runway in Grey

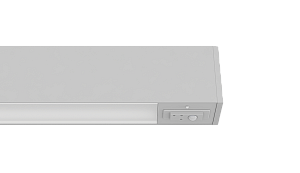

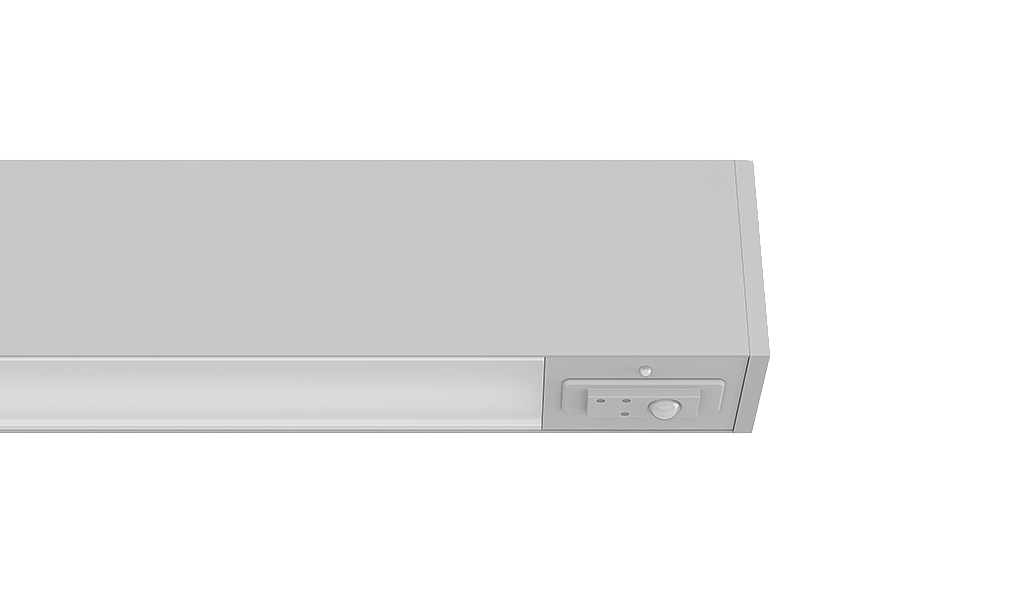

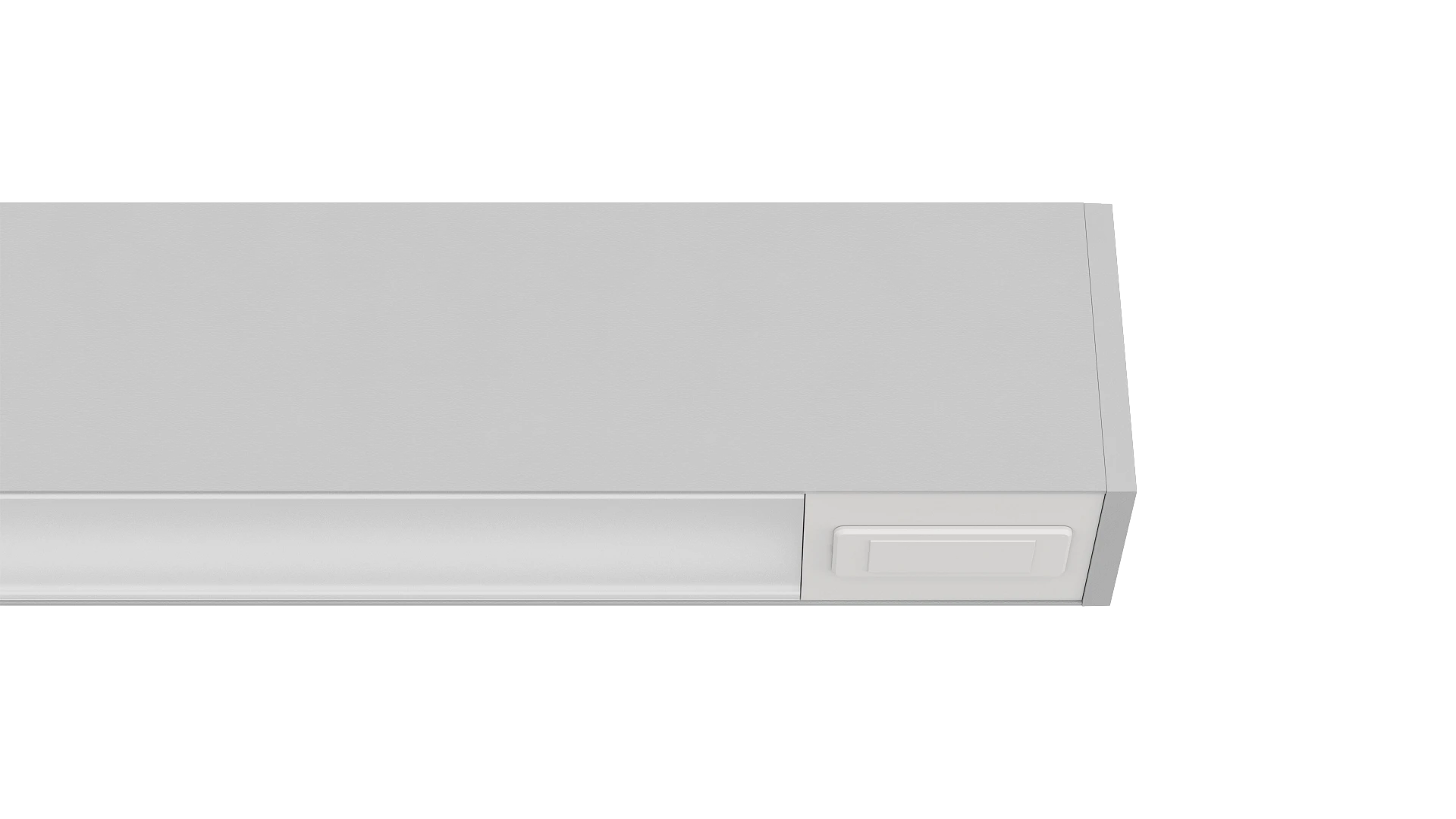

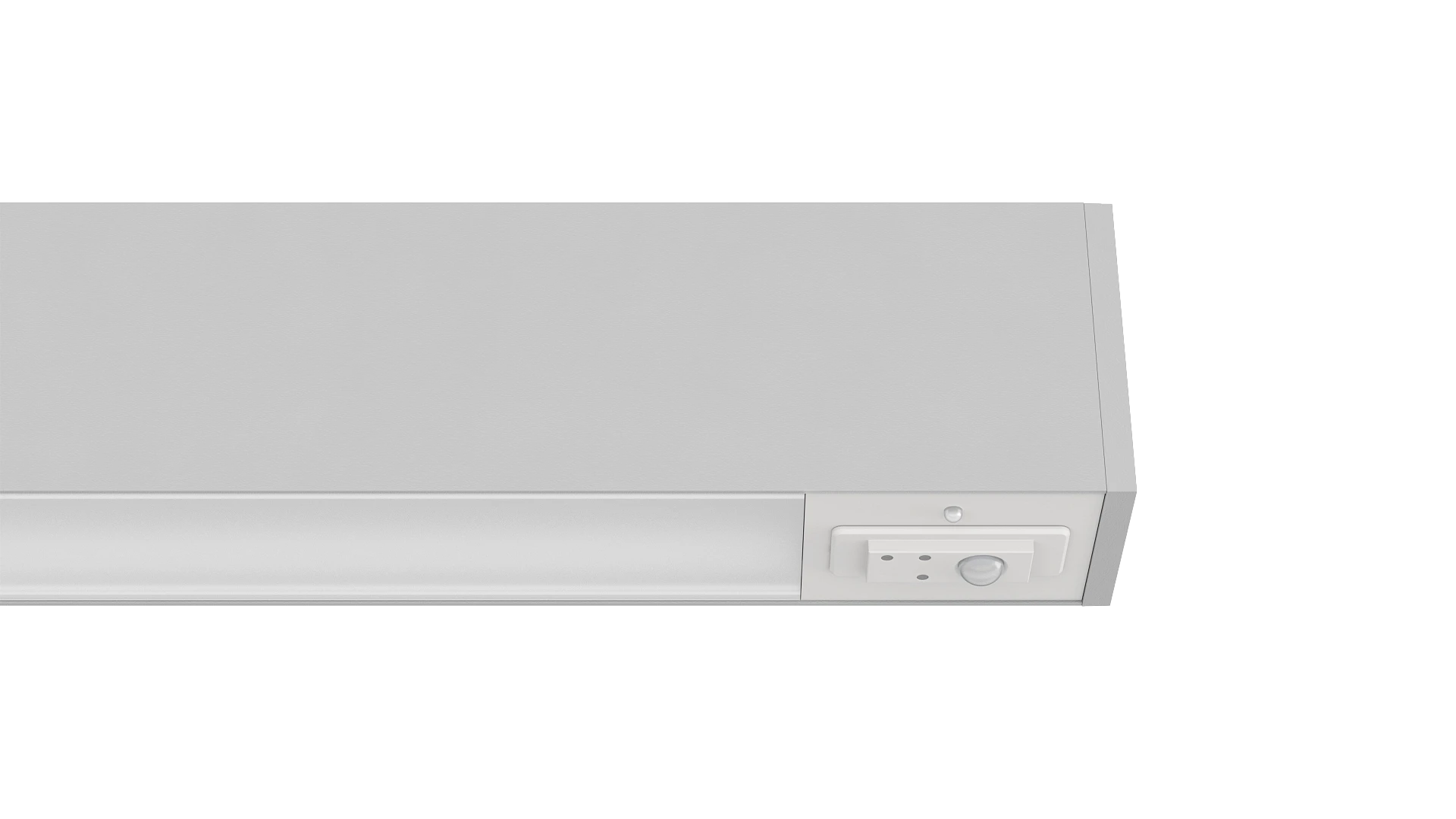

Runway in Grey with D44

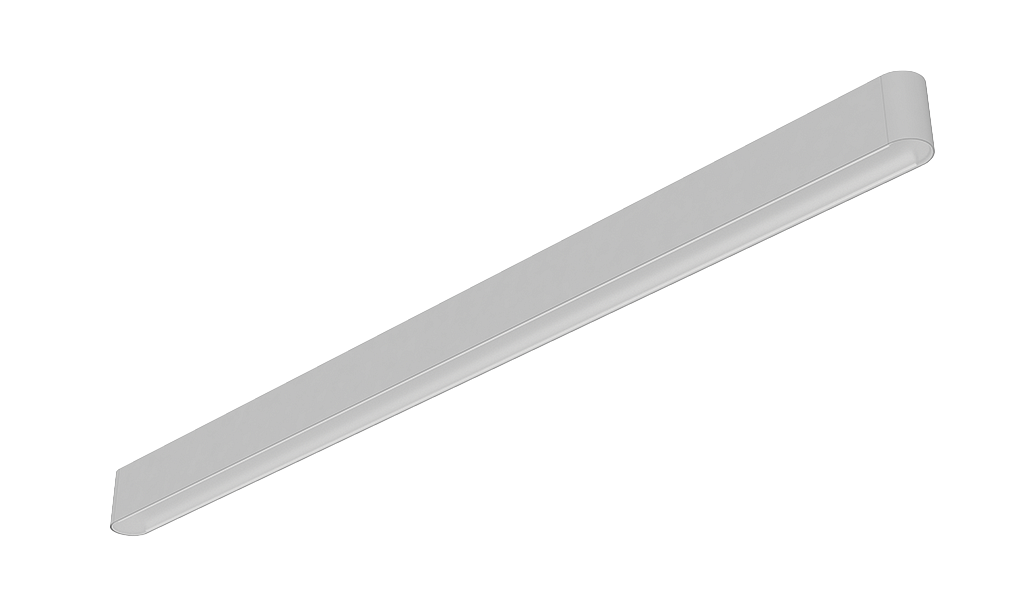

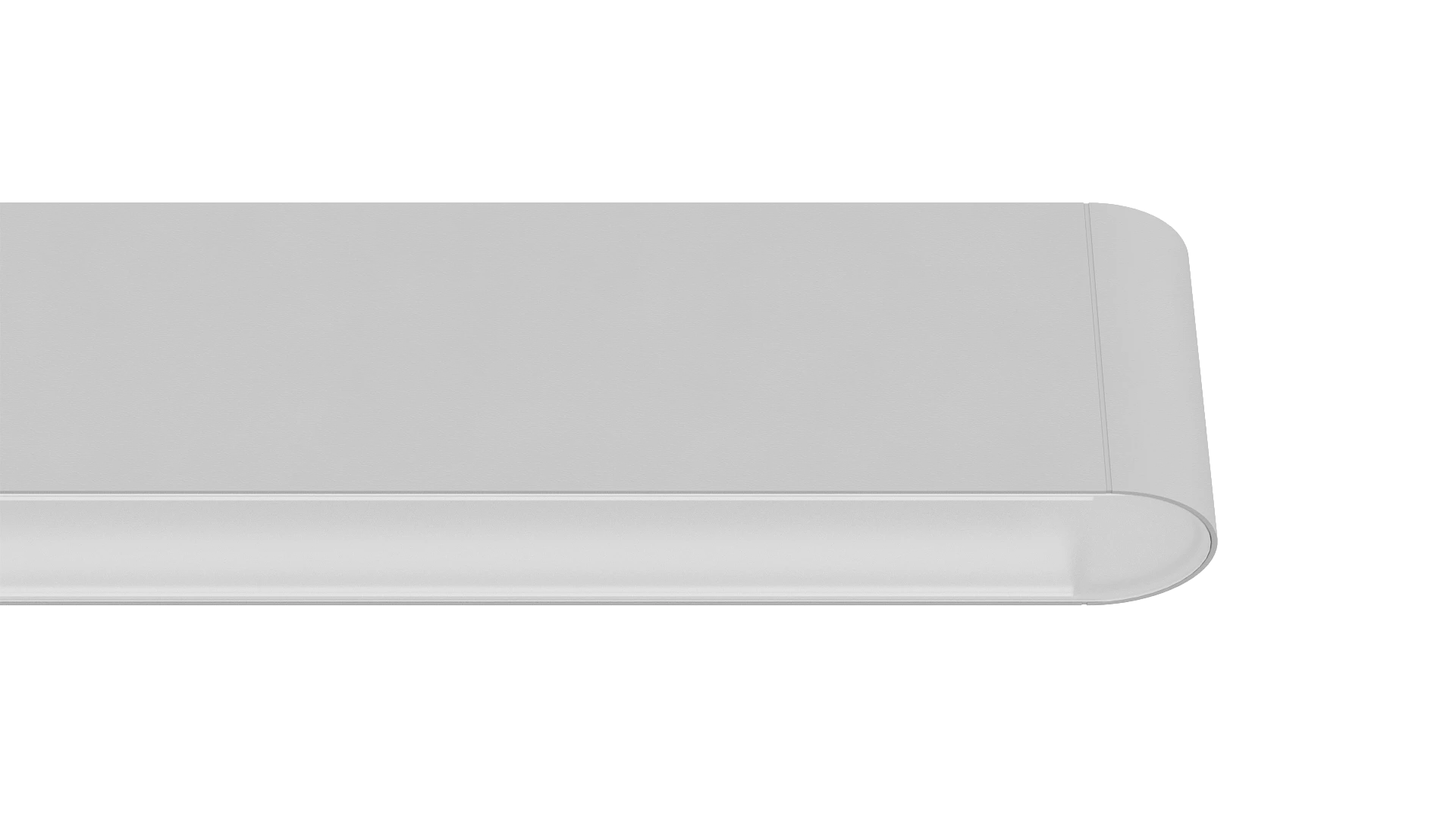

Runway Curve in Grey

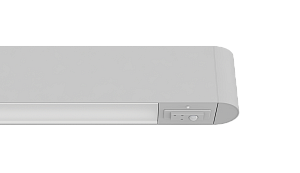

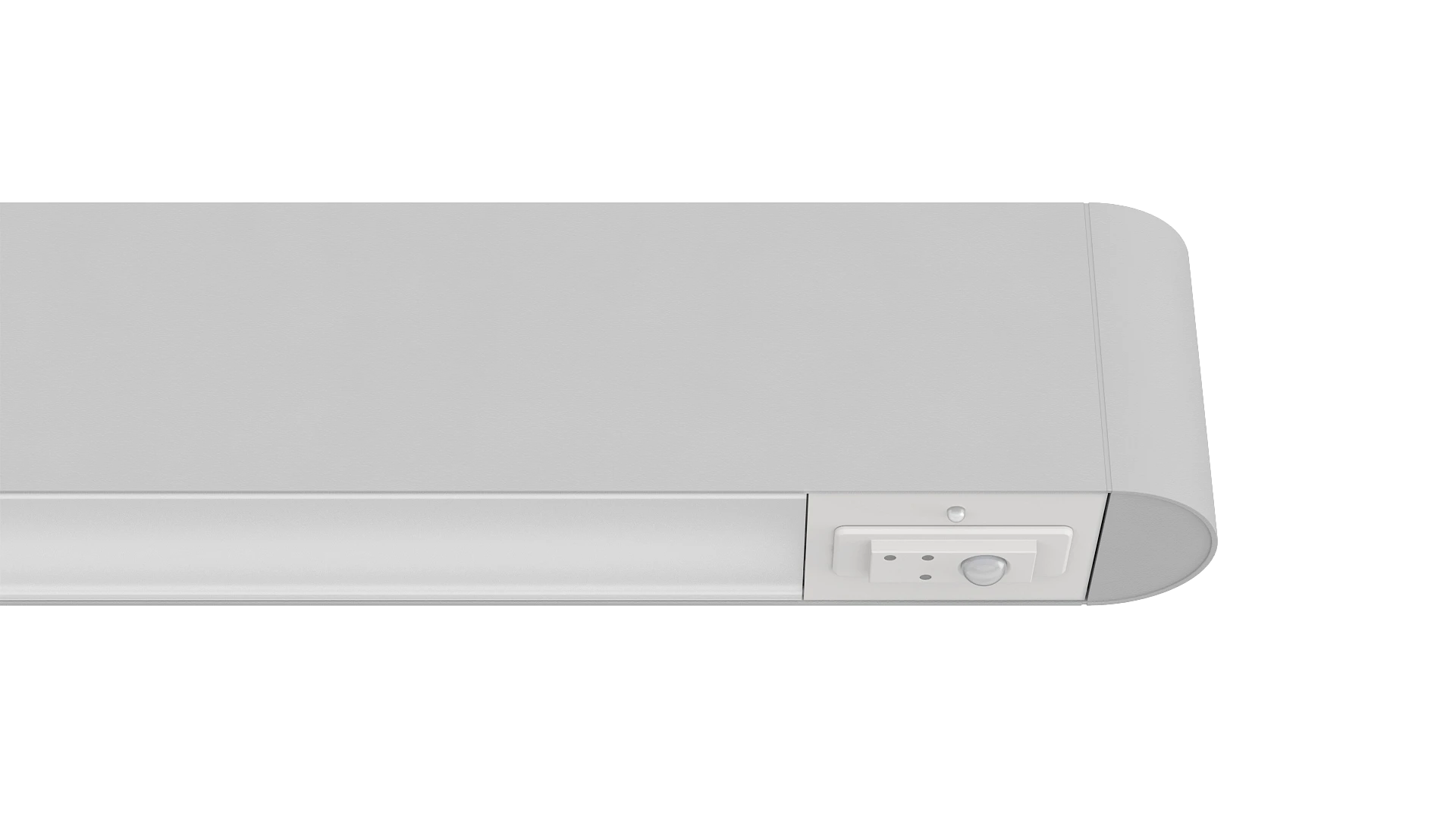

Runway Curve in Grey with D44

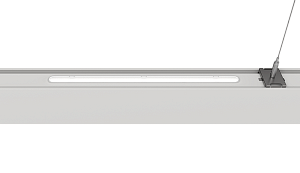

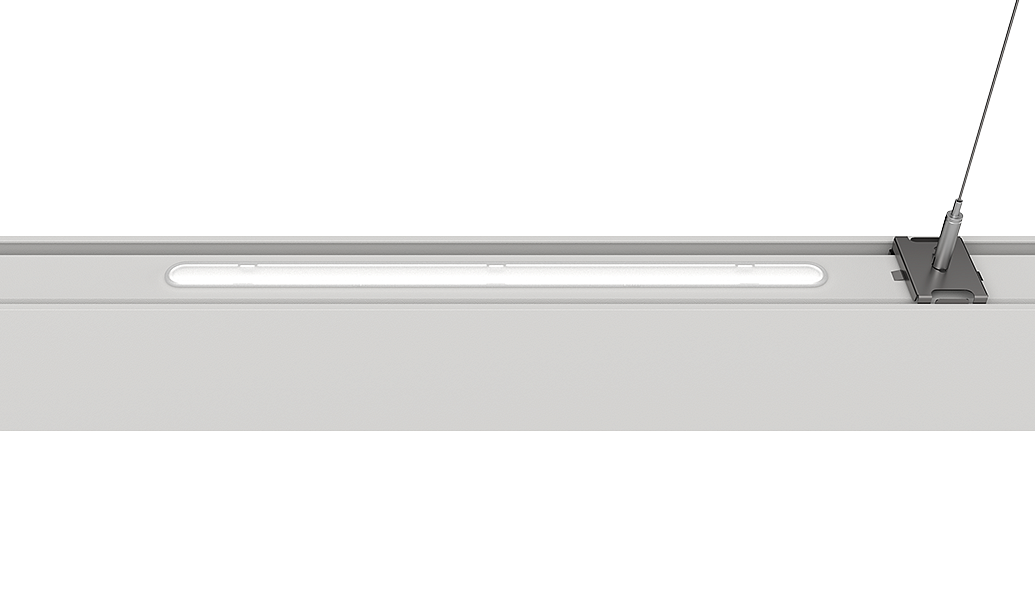

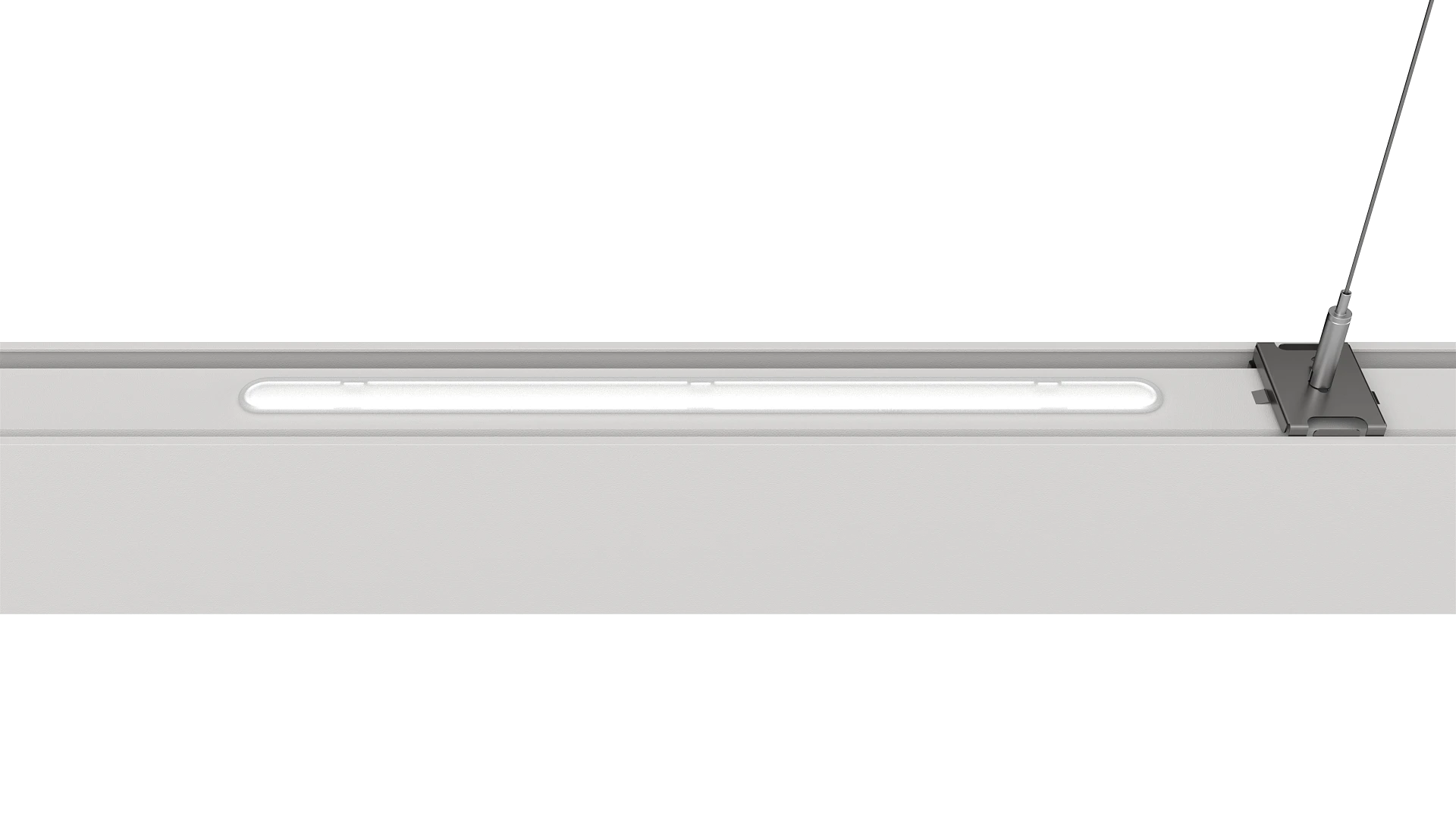

Runway Uplight

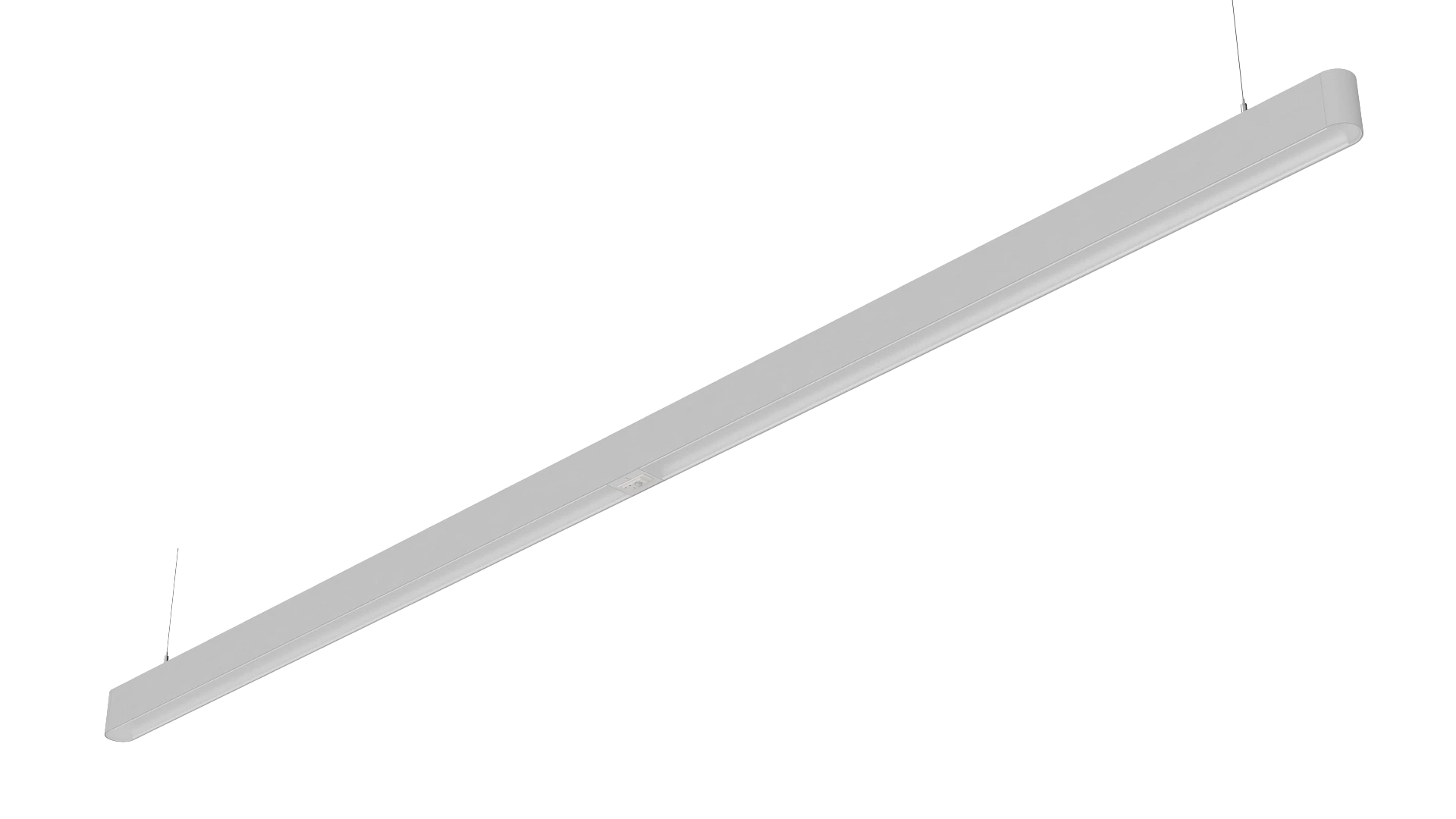

Runway Curve 3M D44

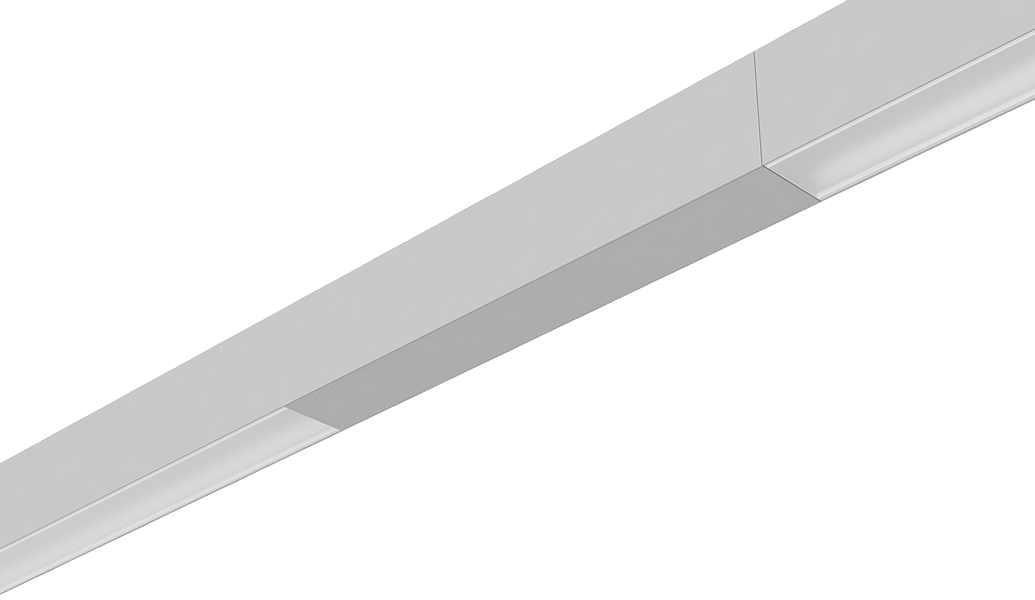

Runway 500mm Infill

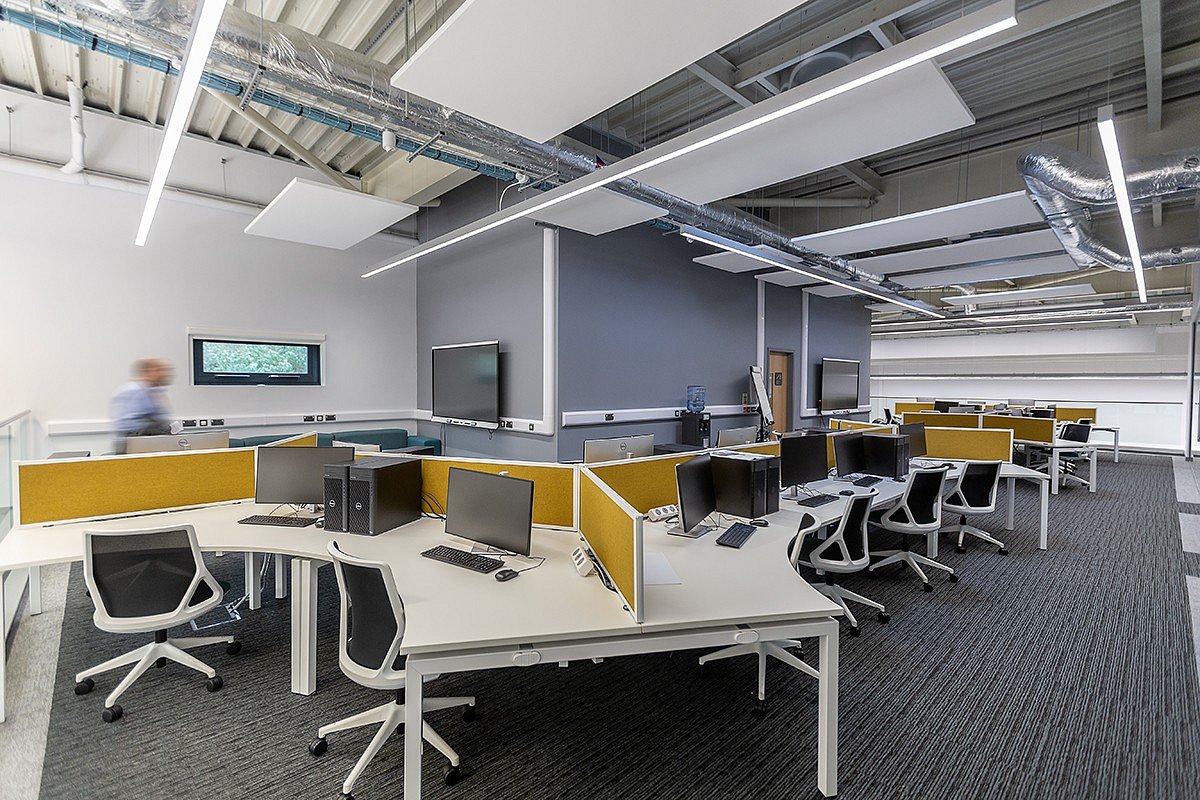

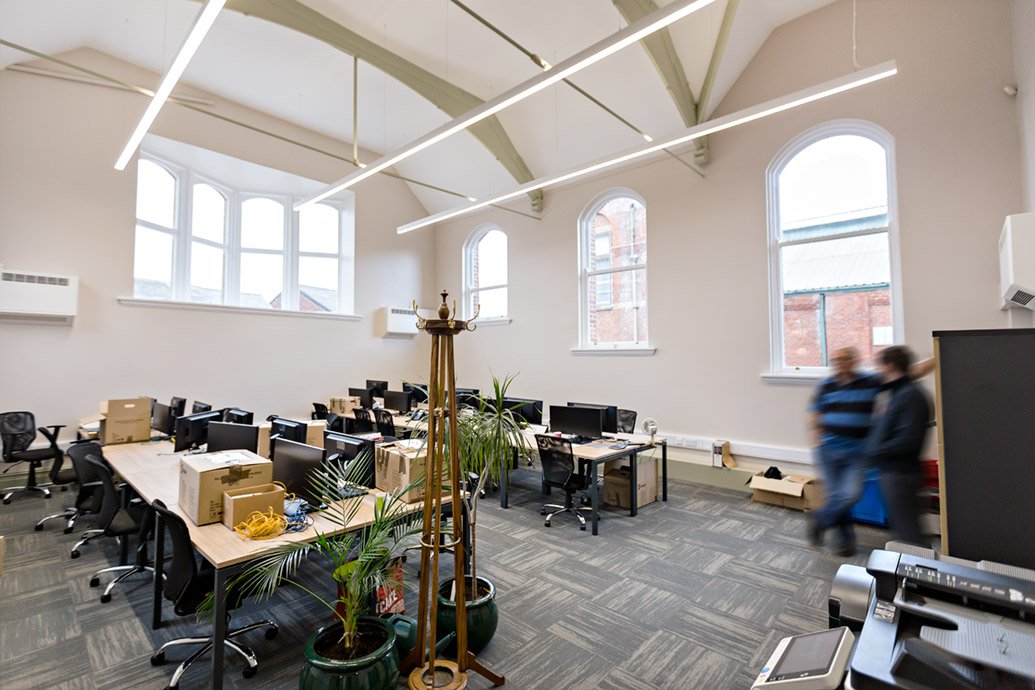

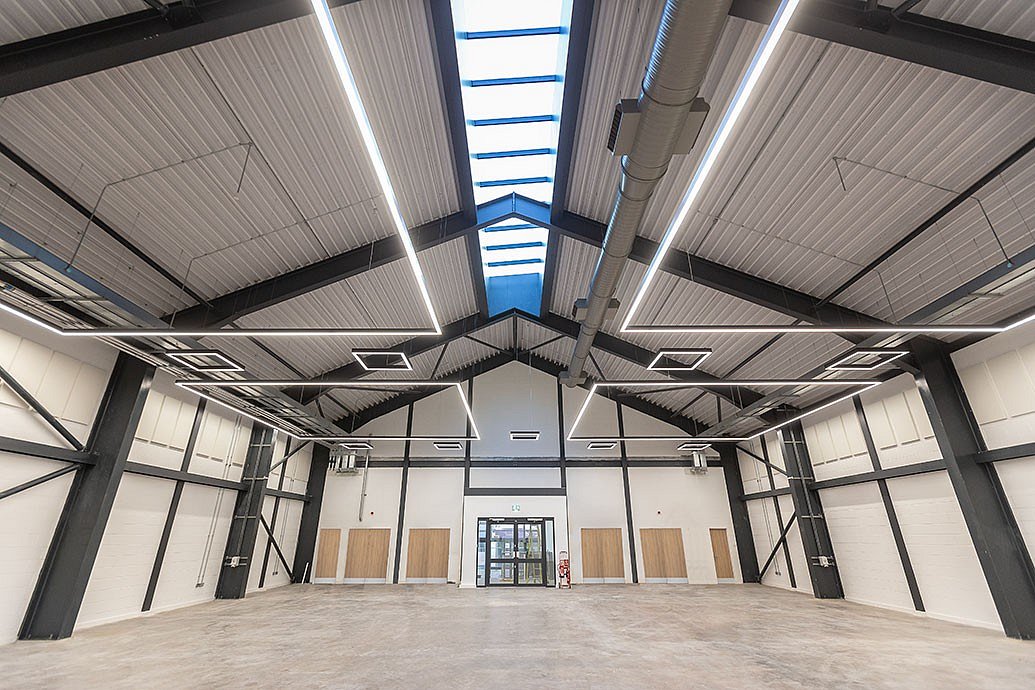

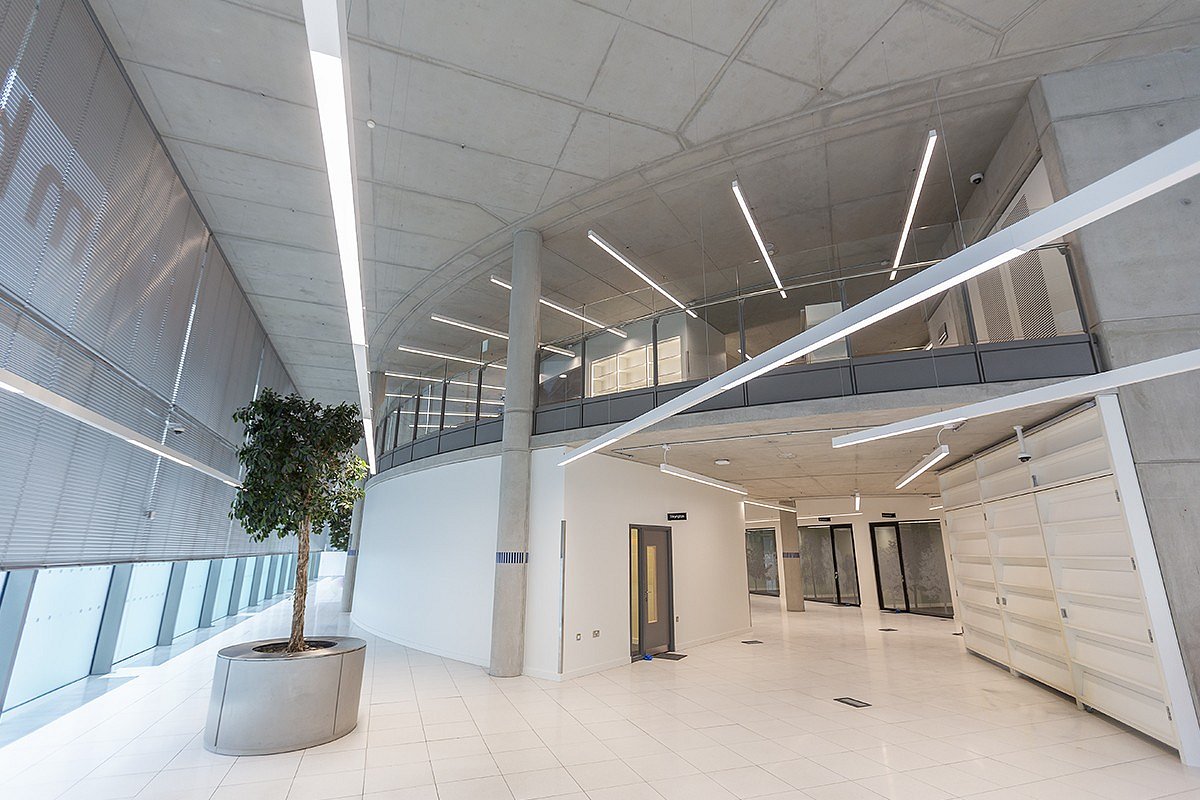

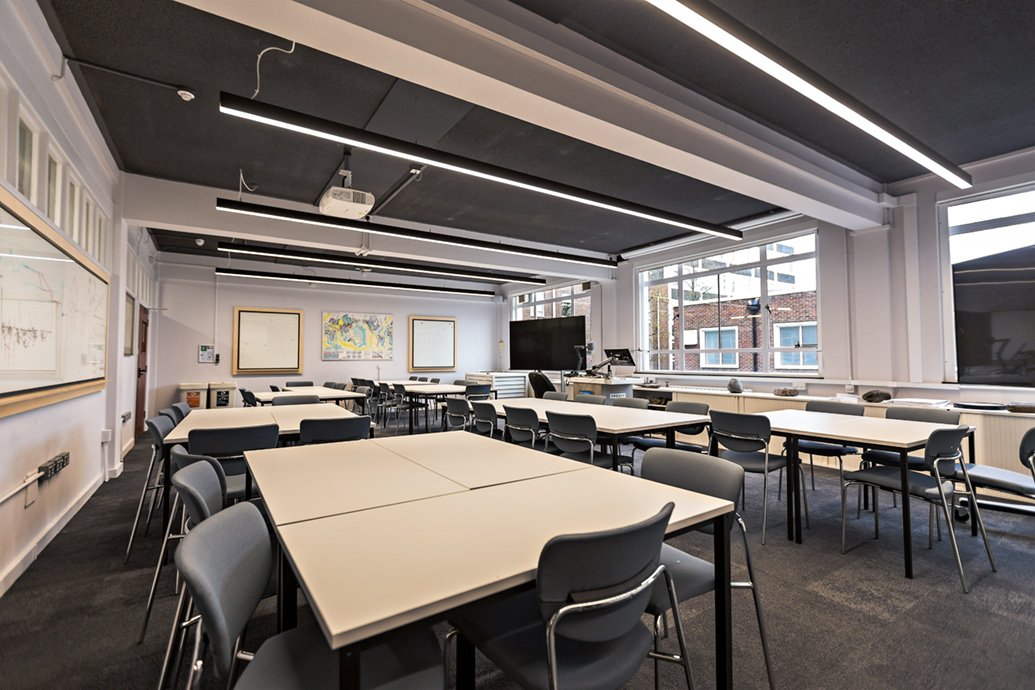

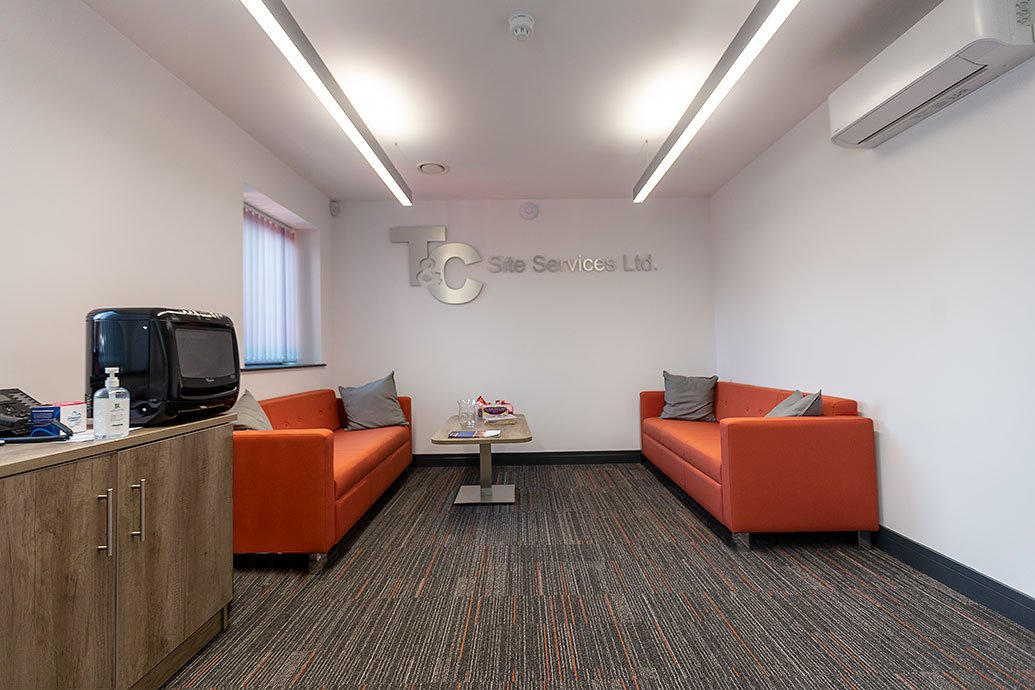

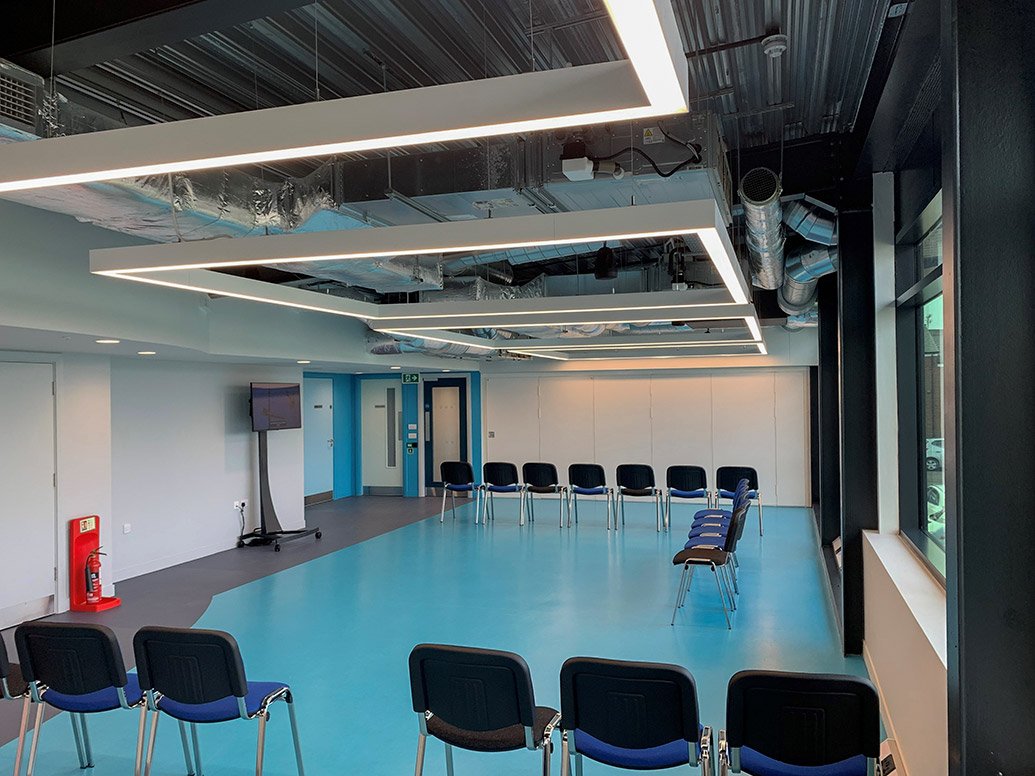

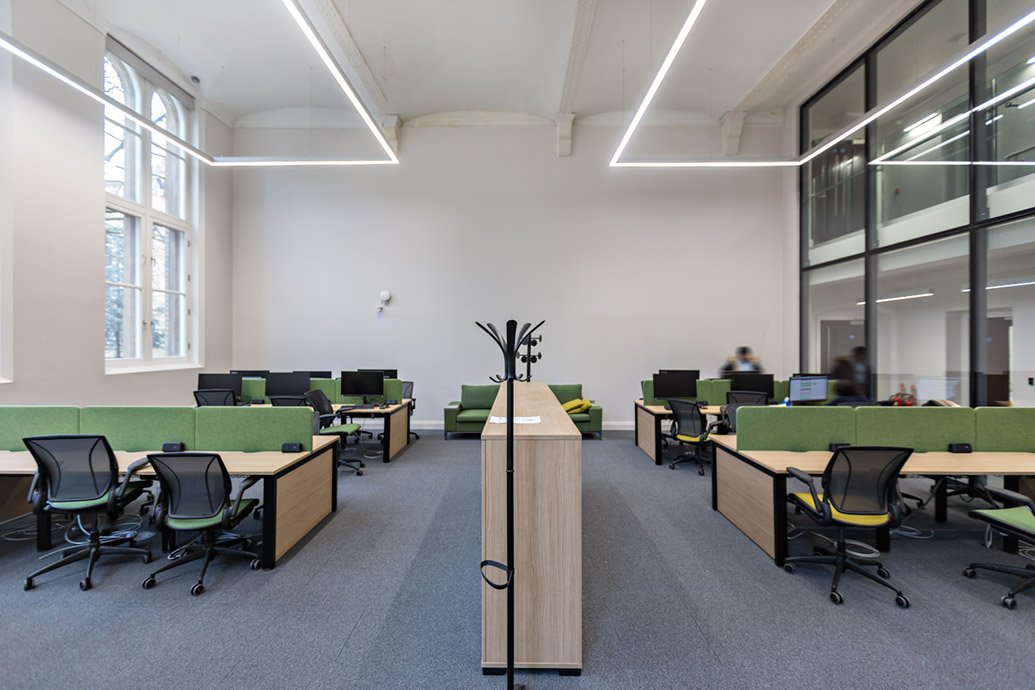

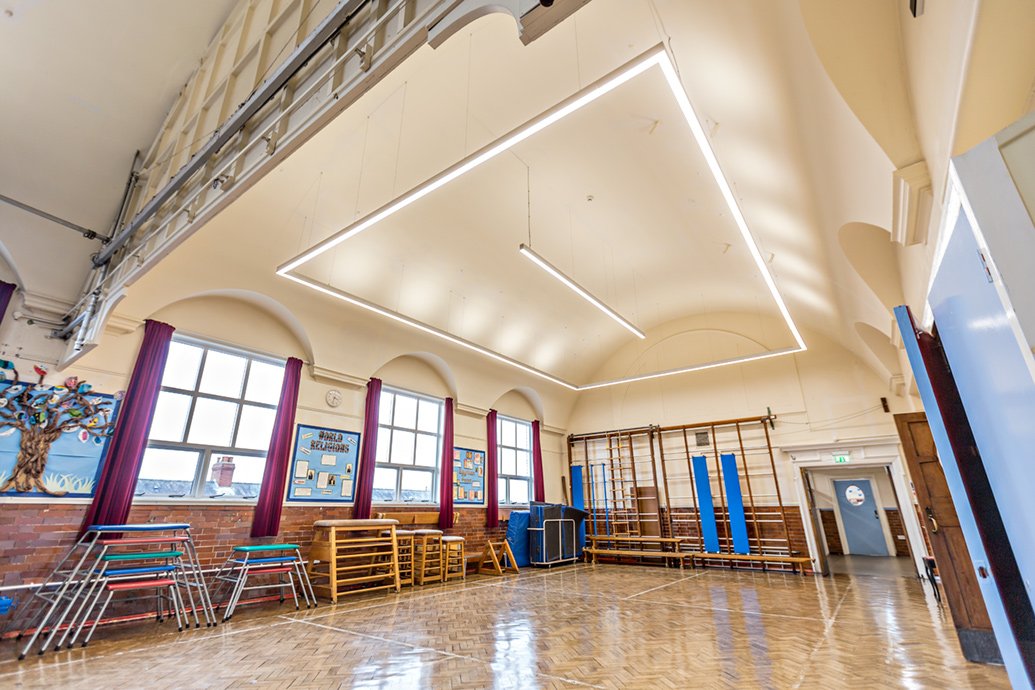

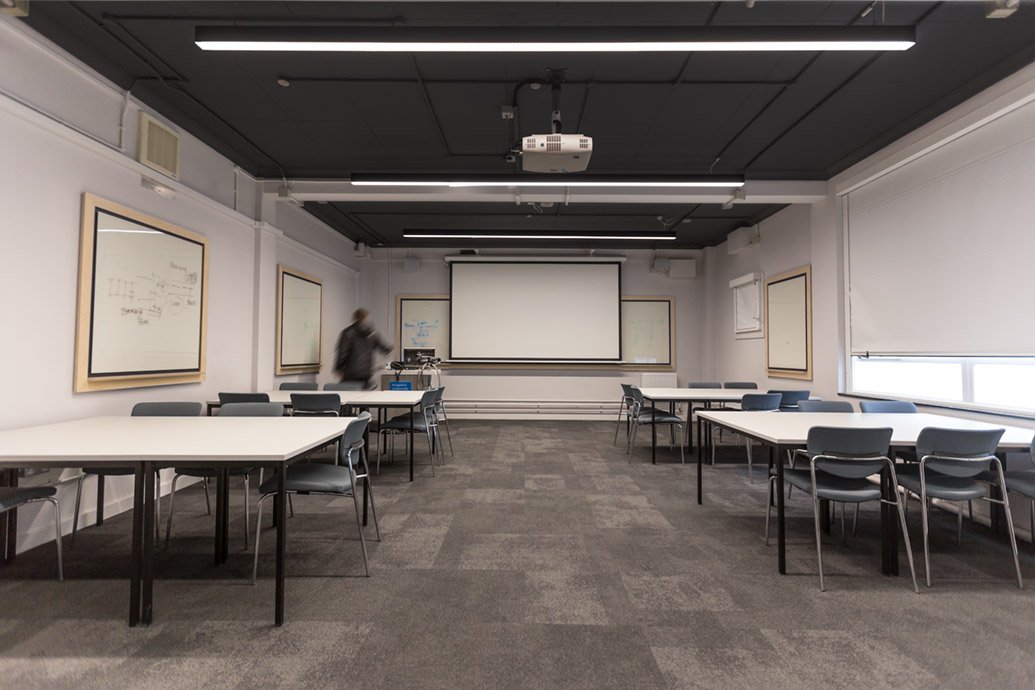

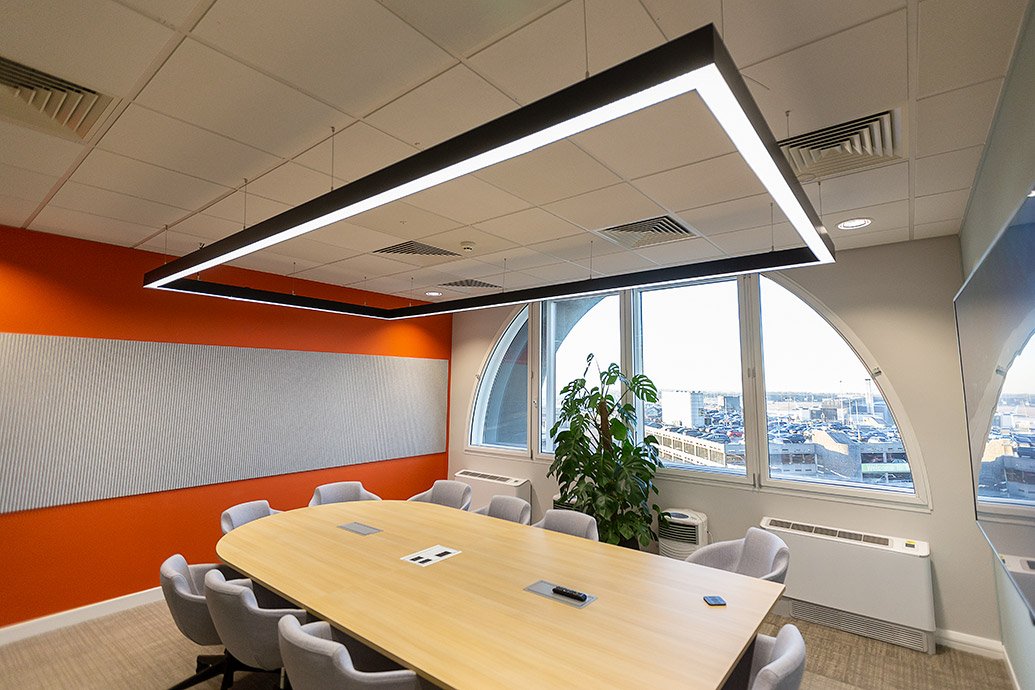

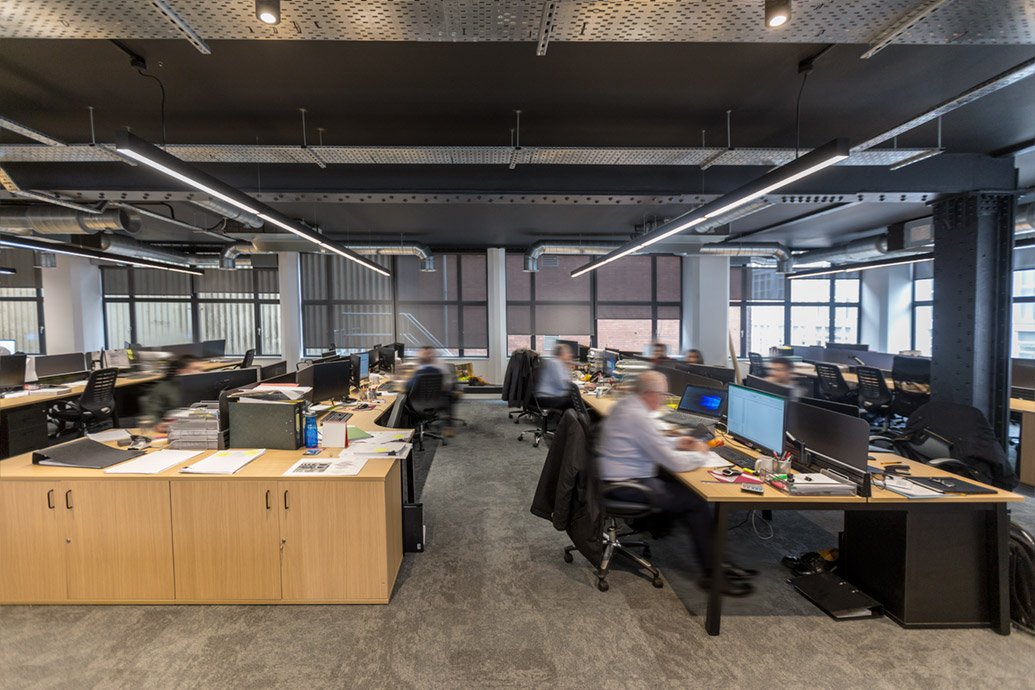

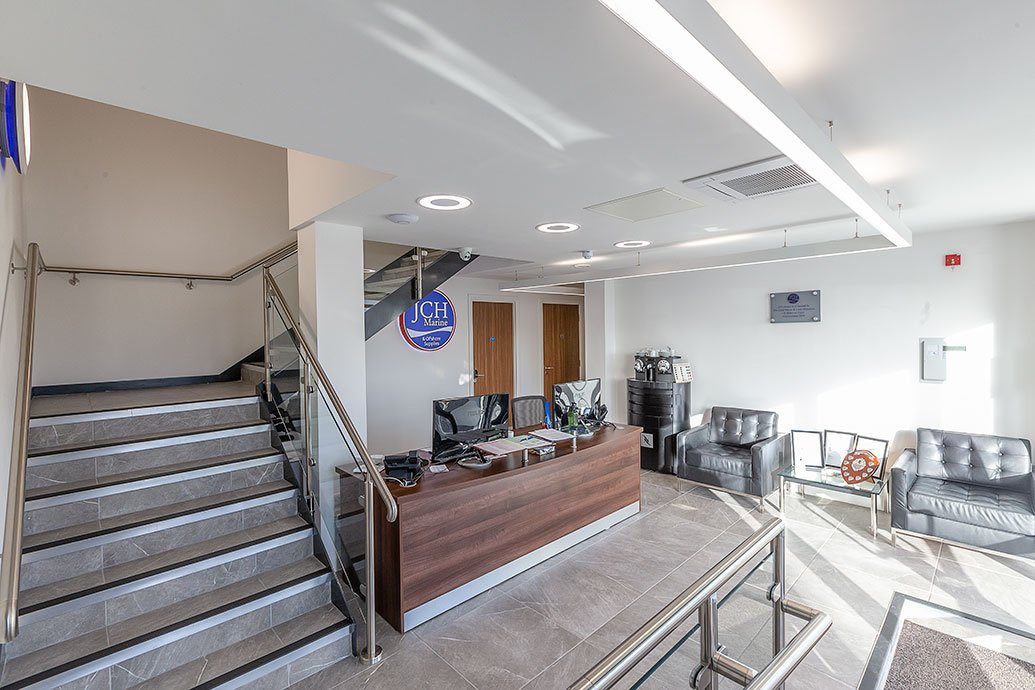

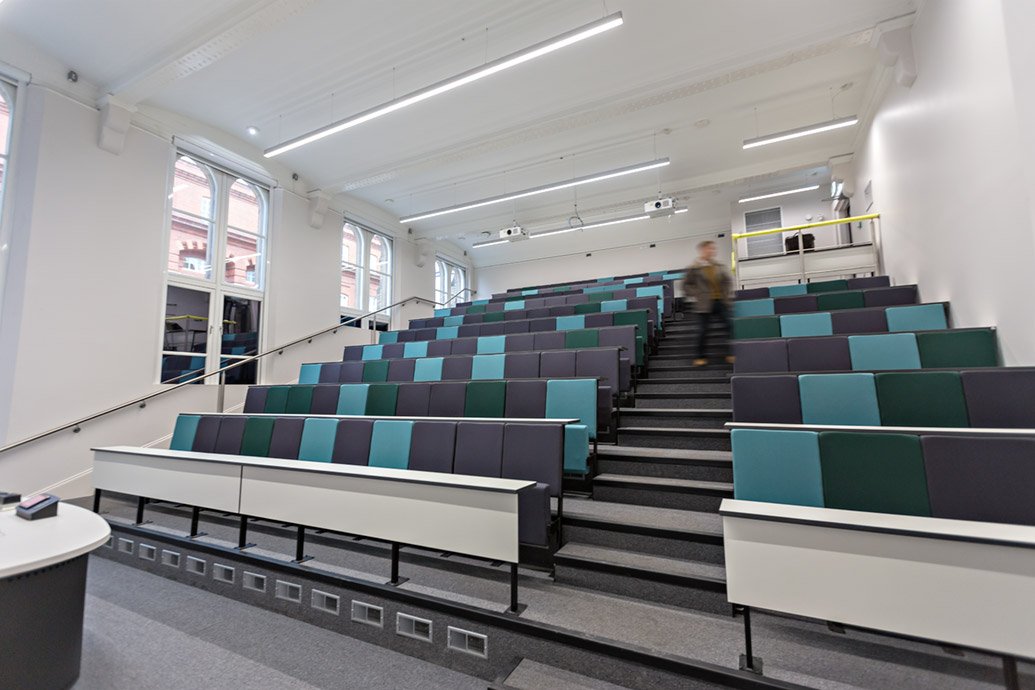

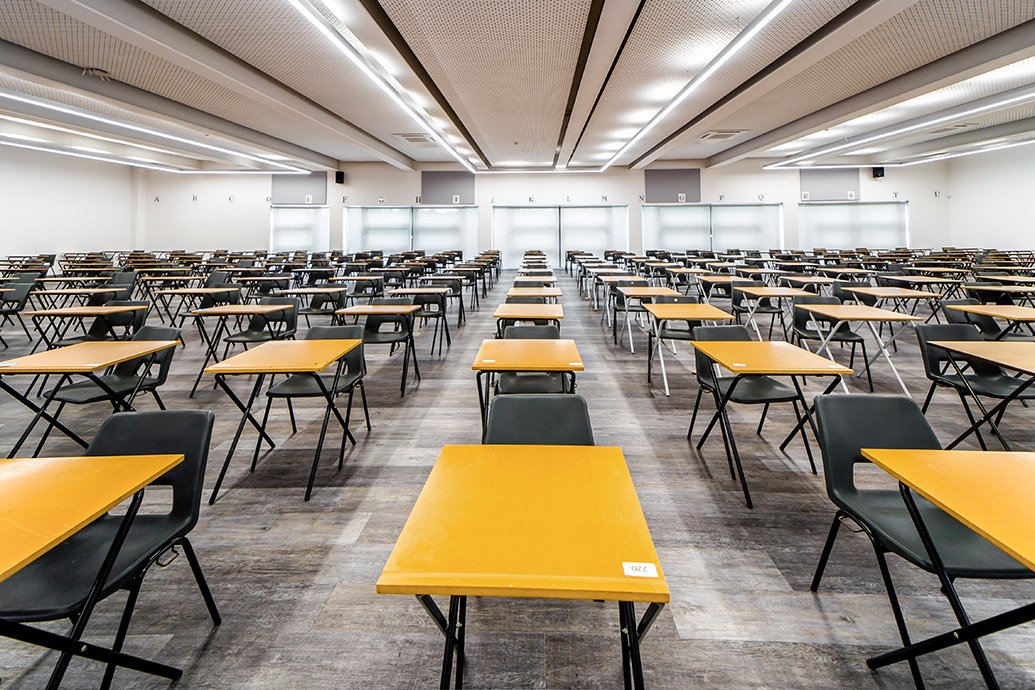

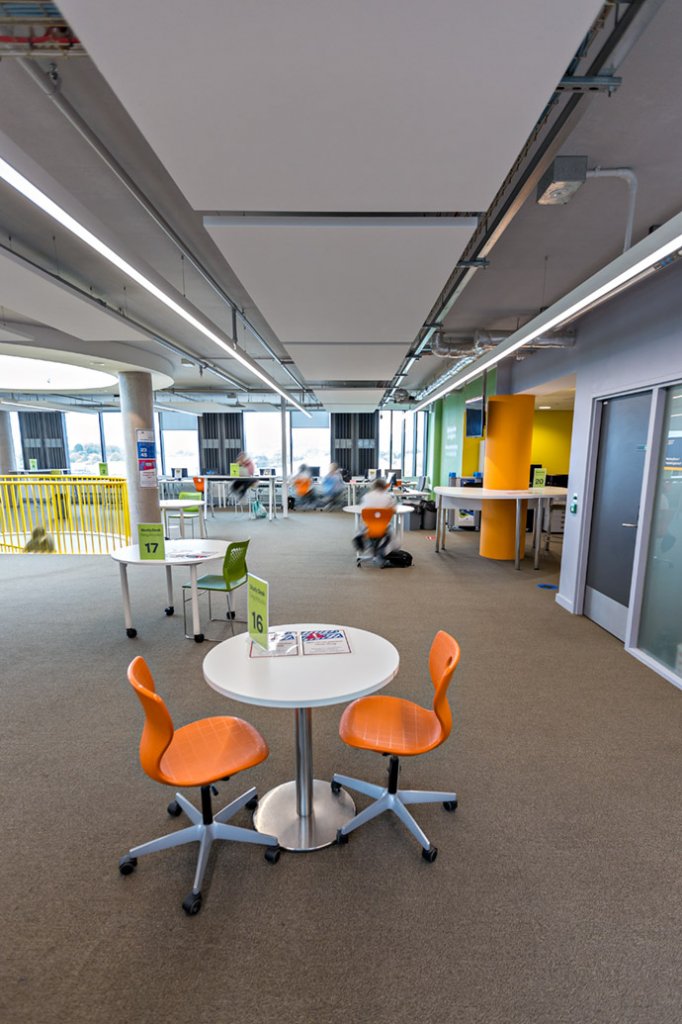

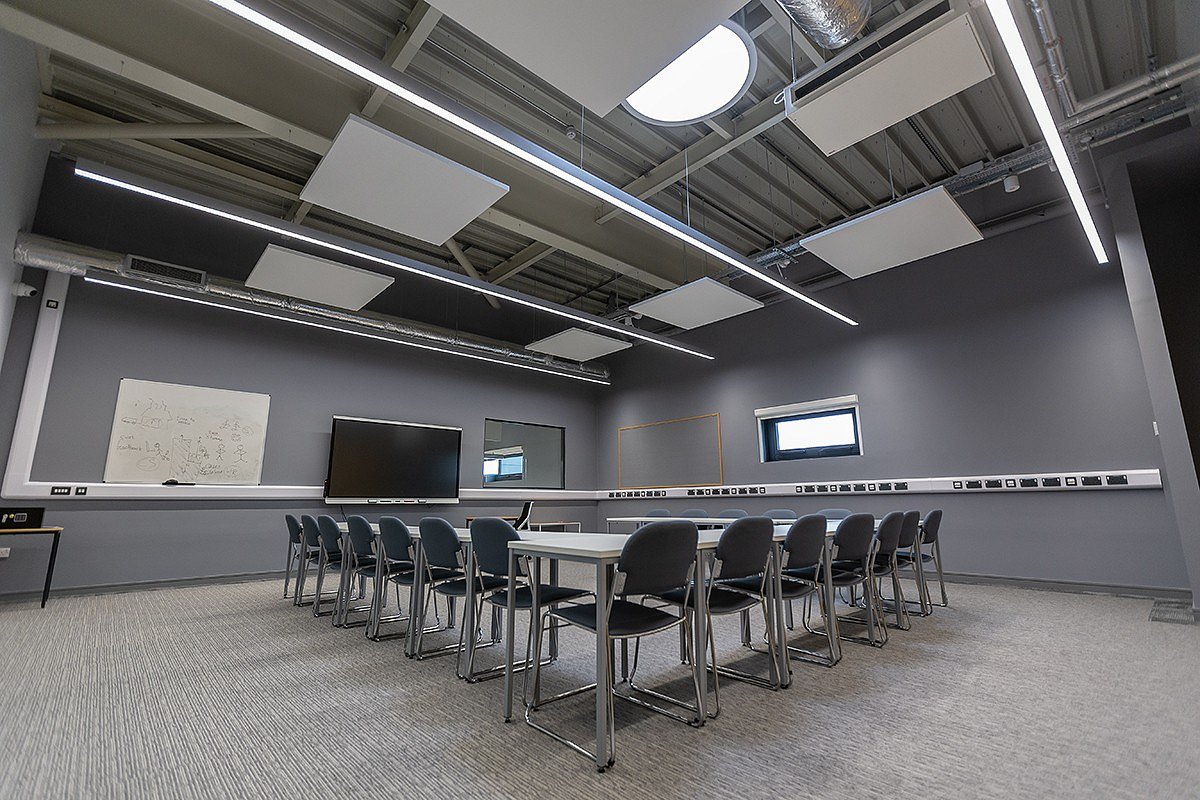

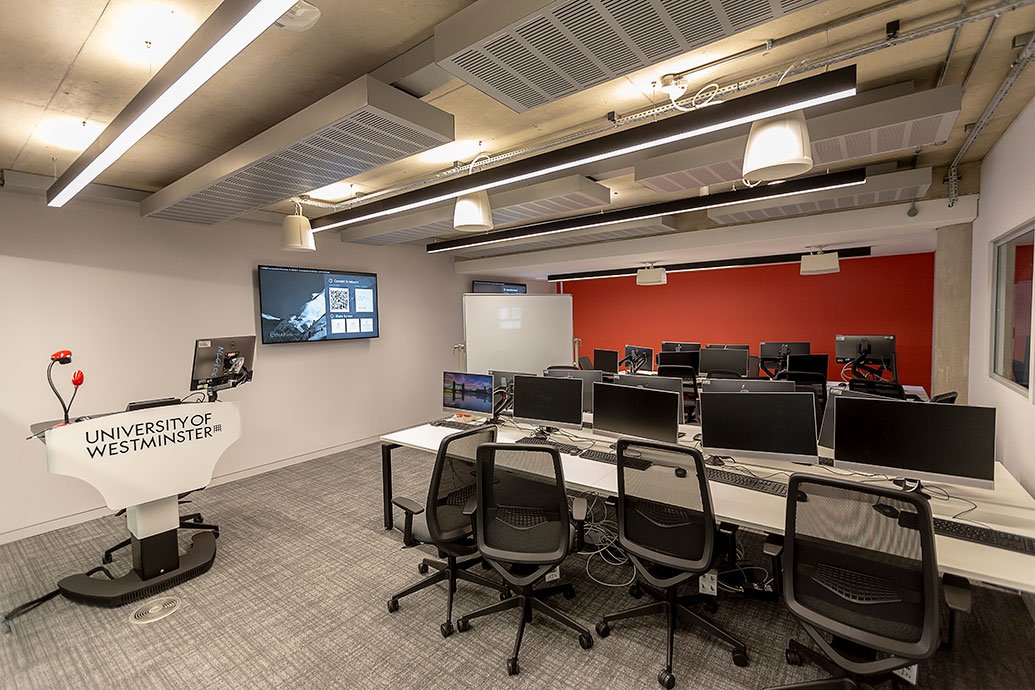

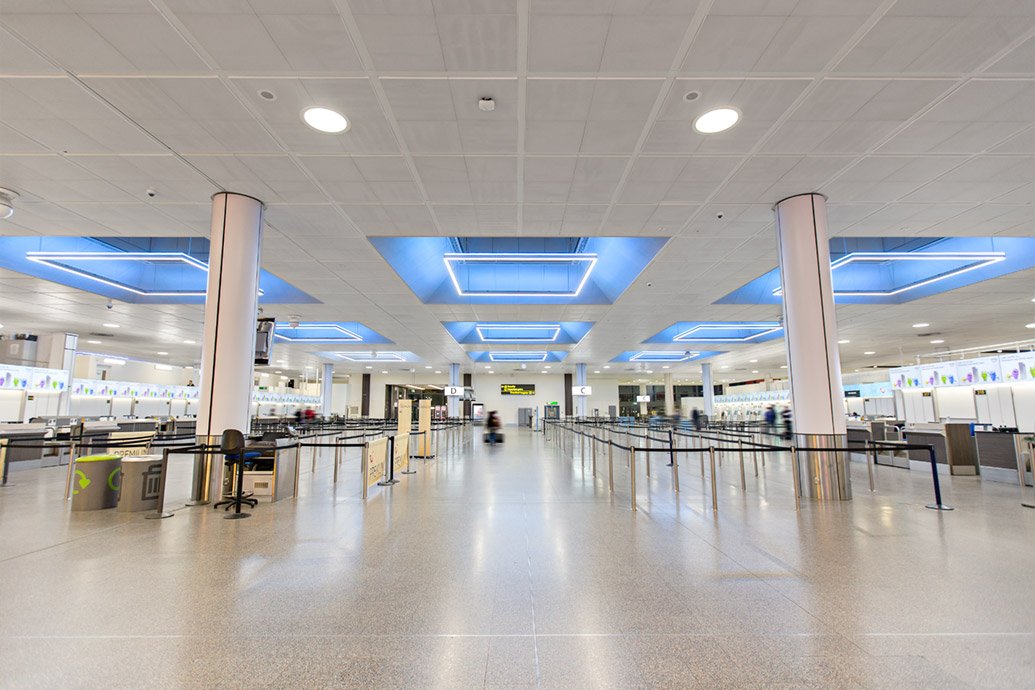

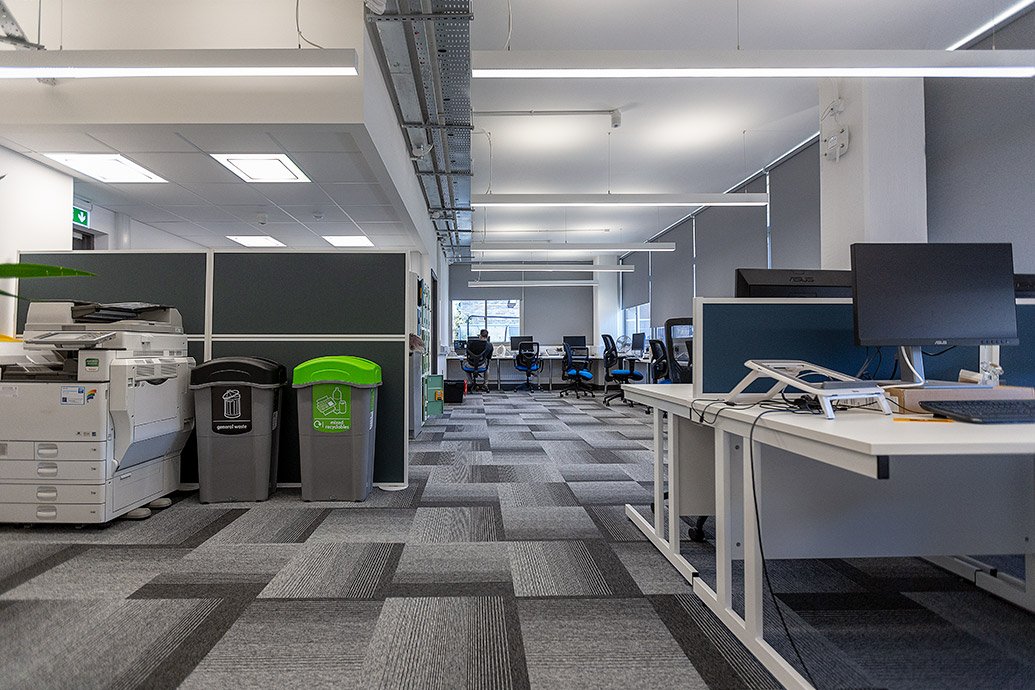

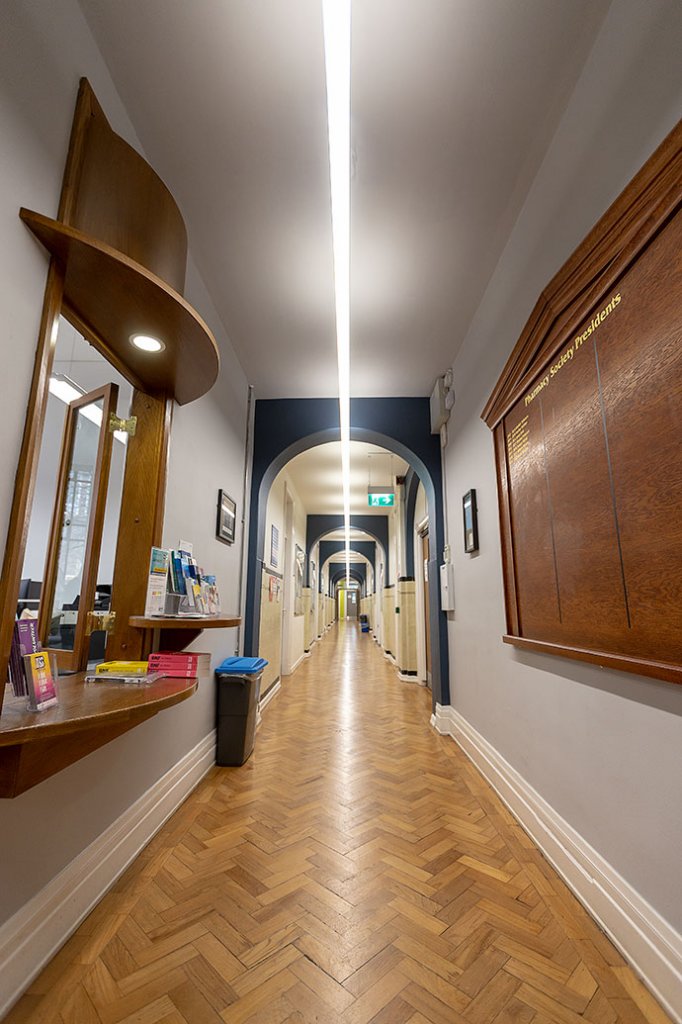

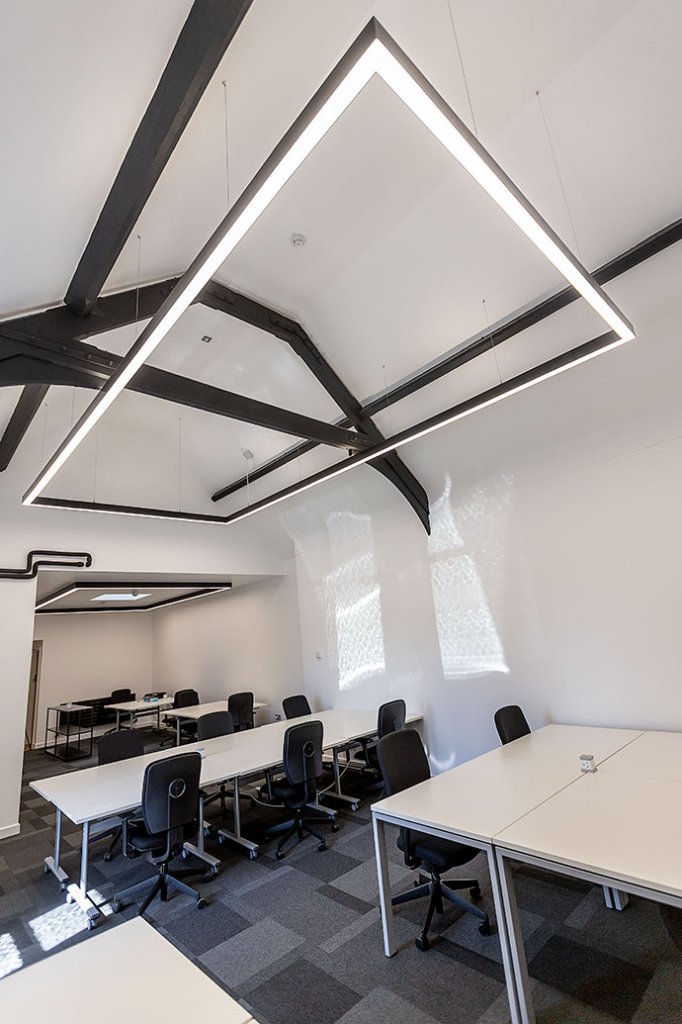

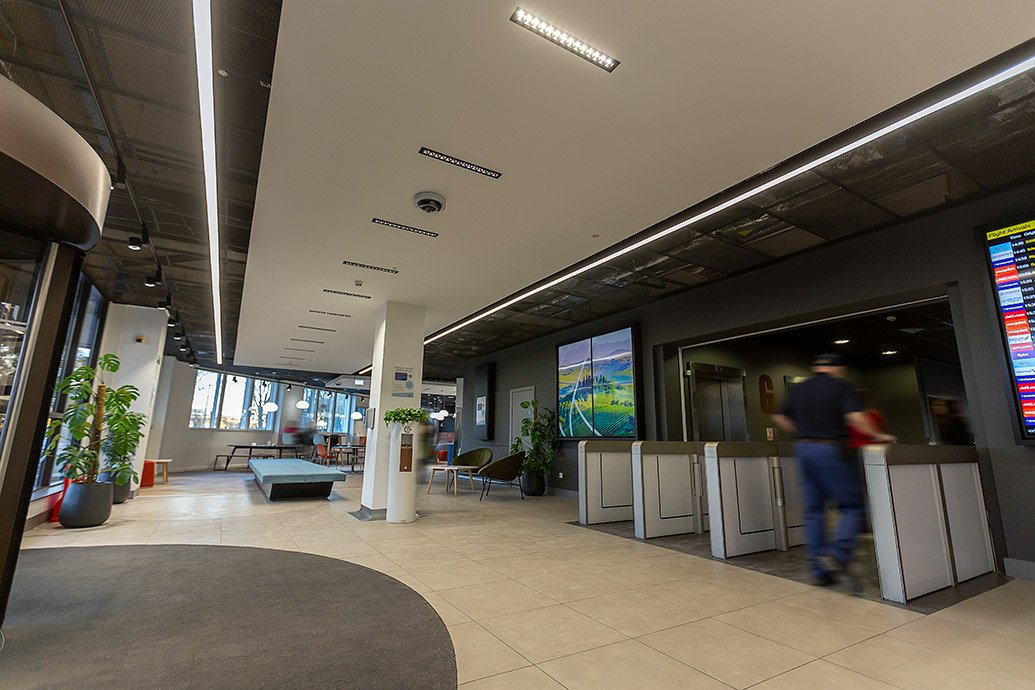

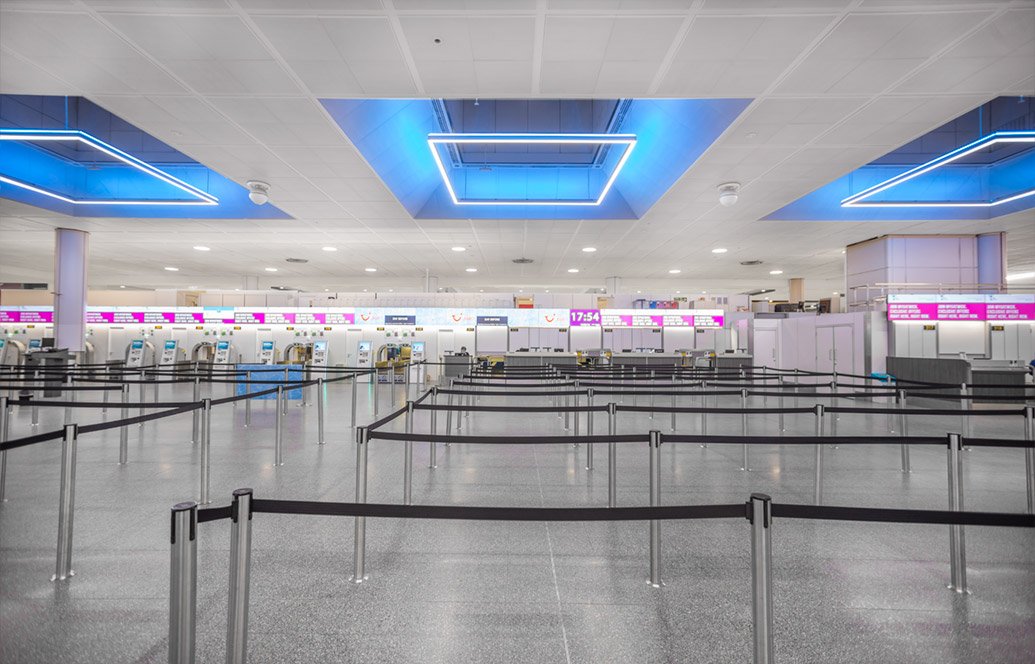

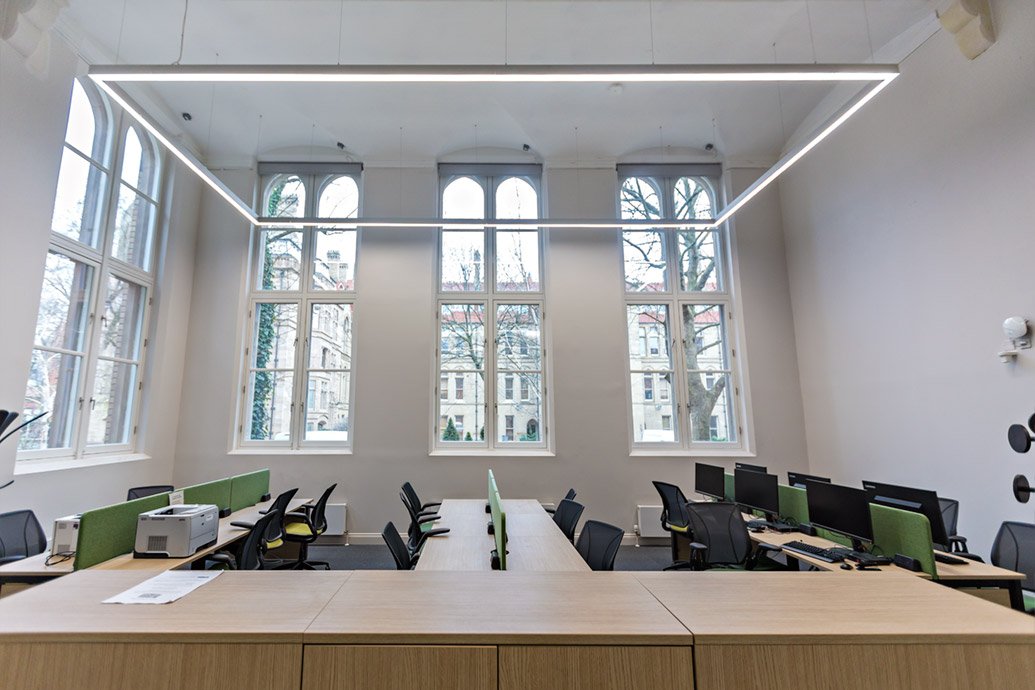

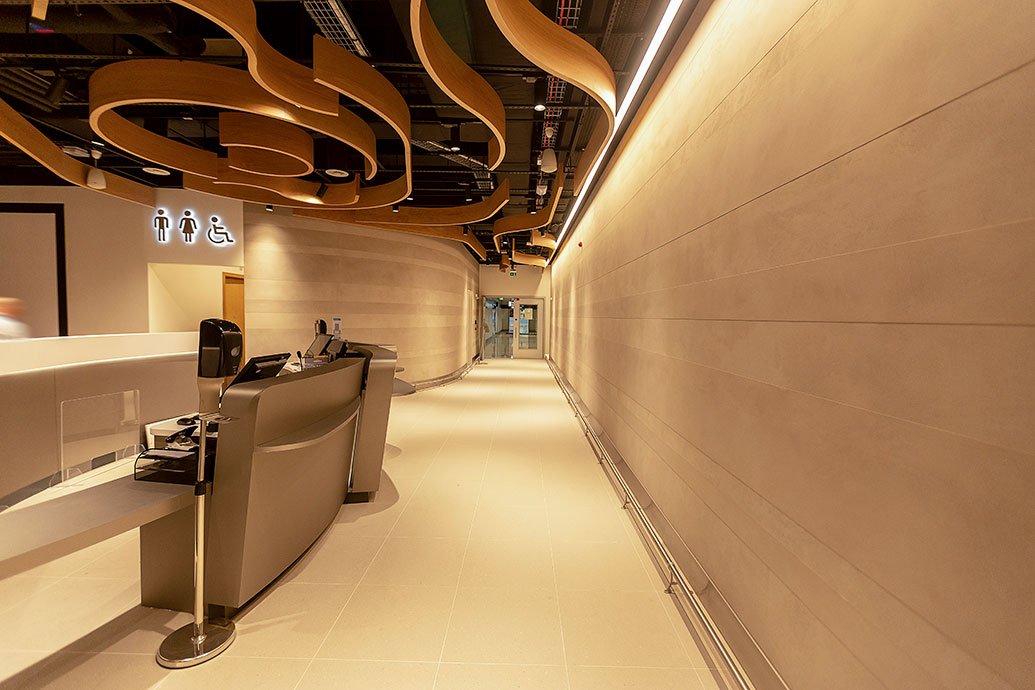

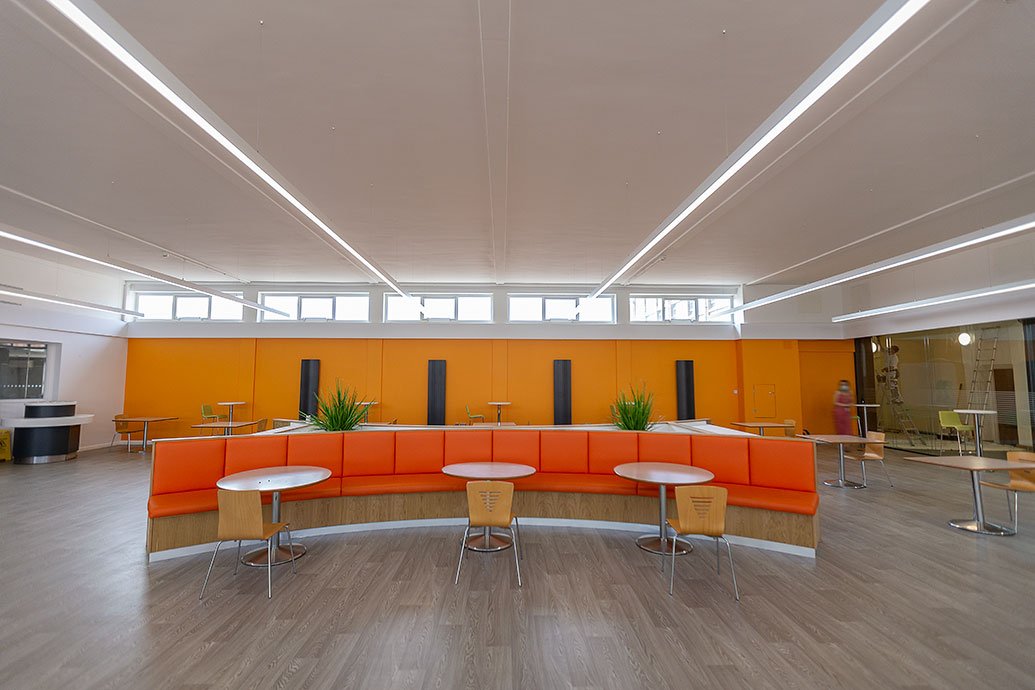

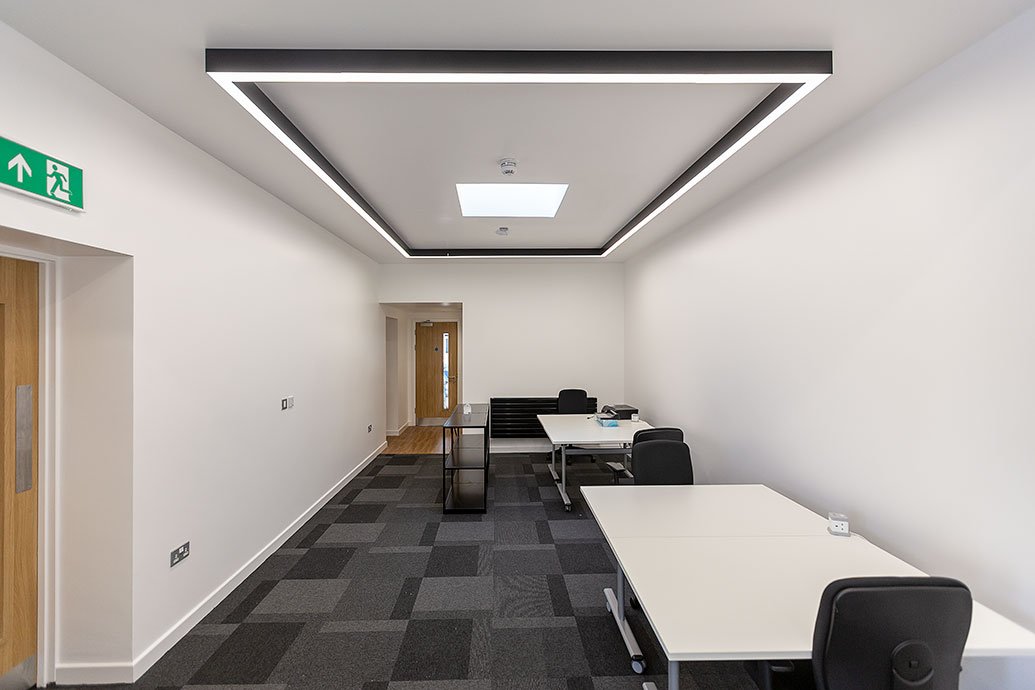

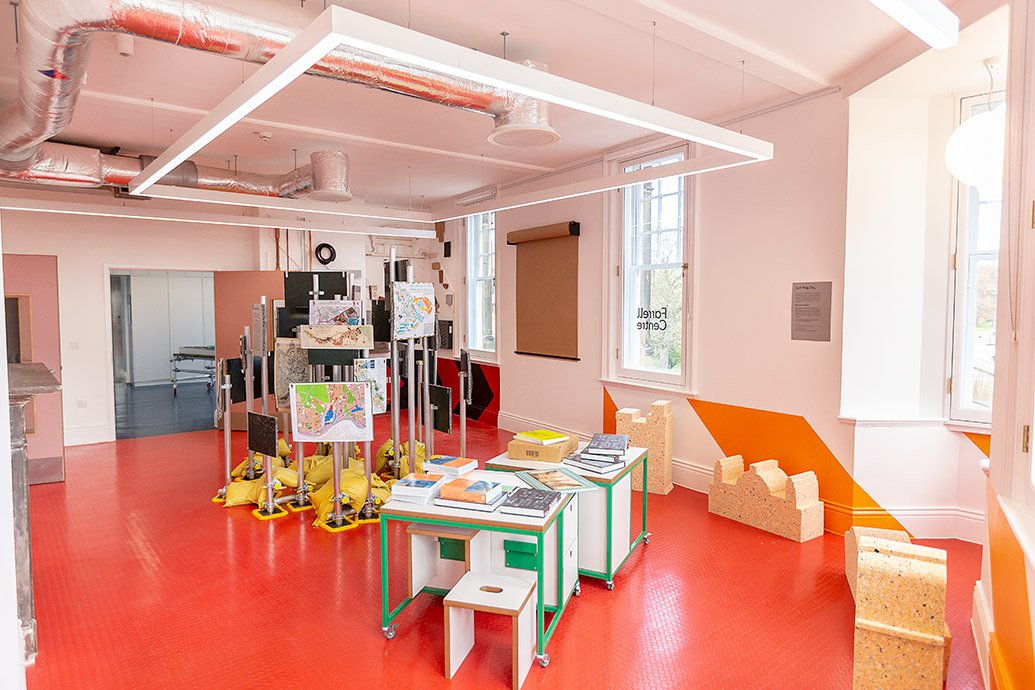

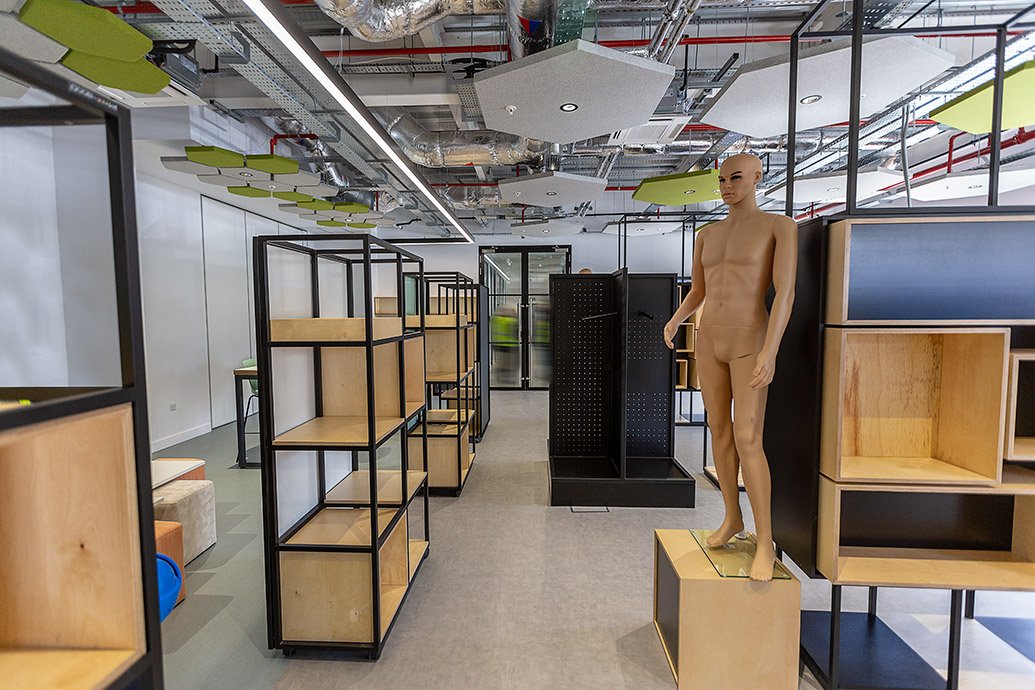

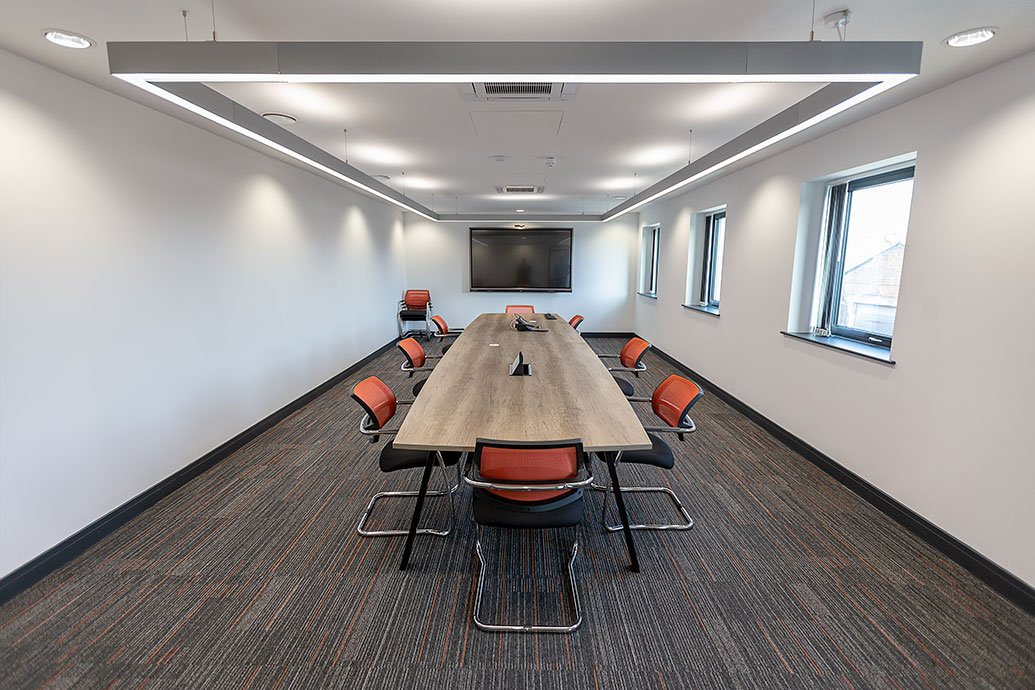

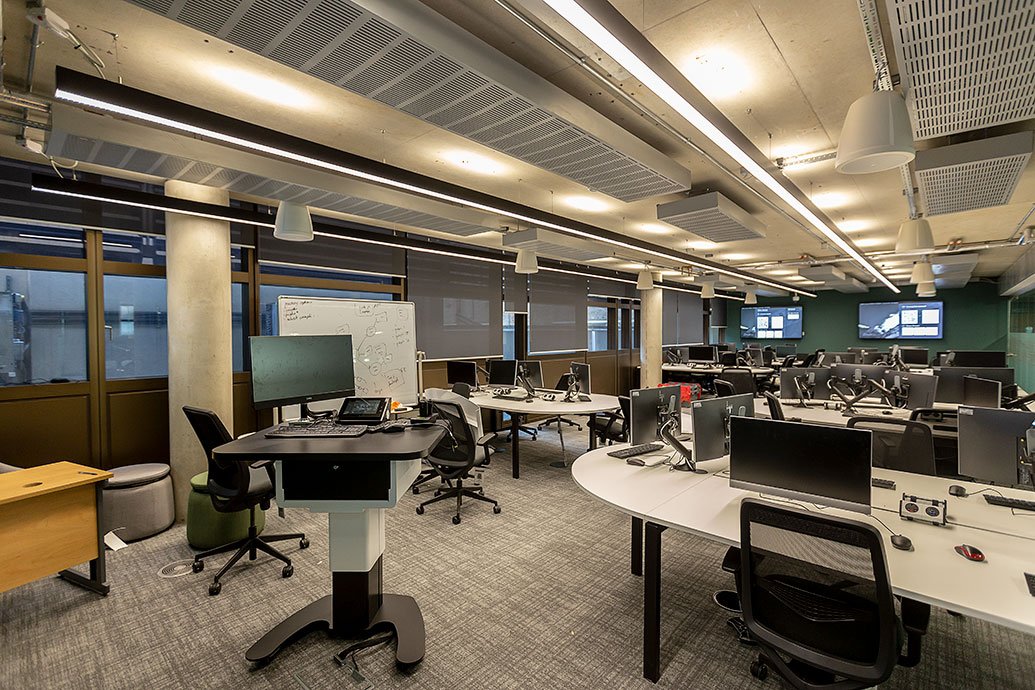

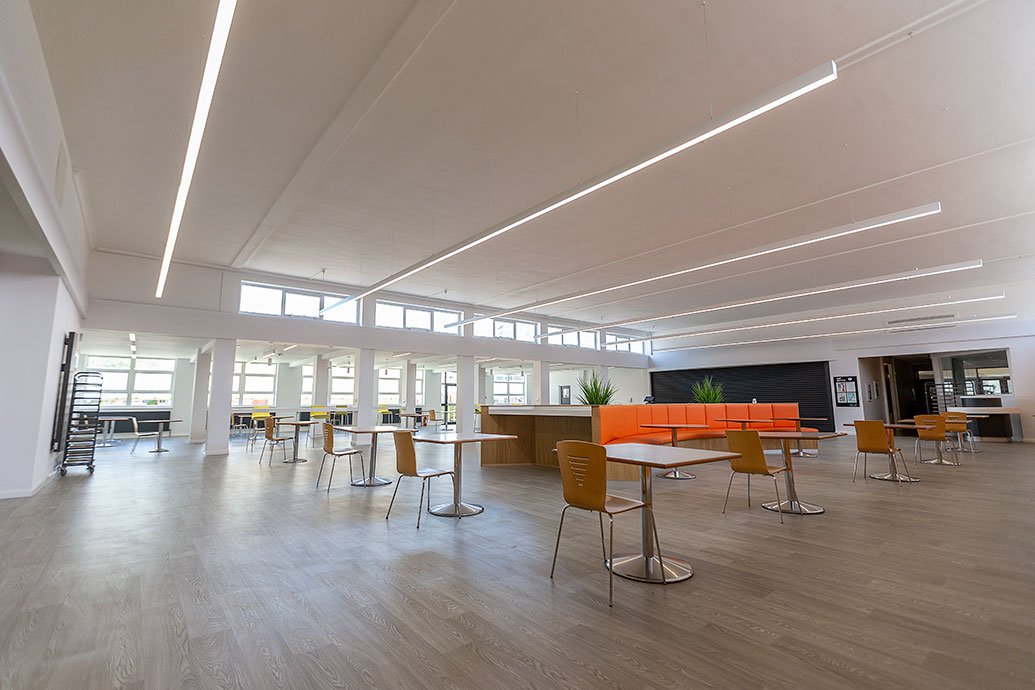

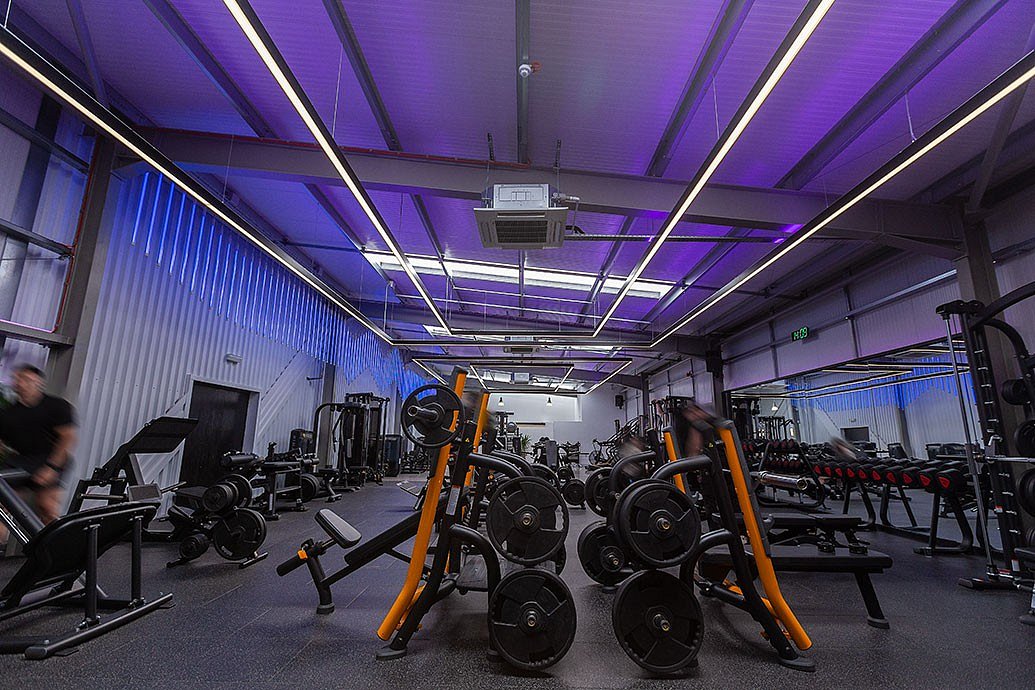

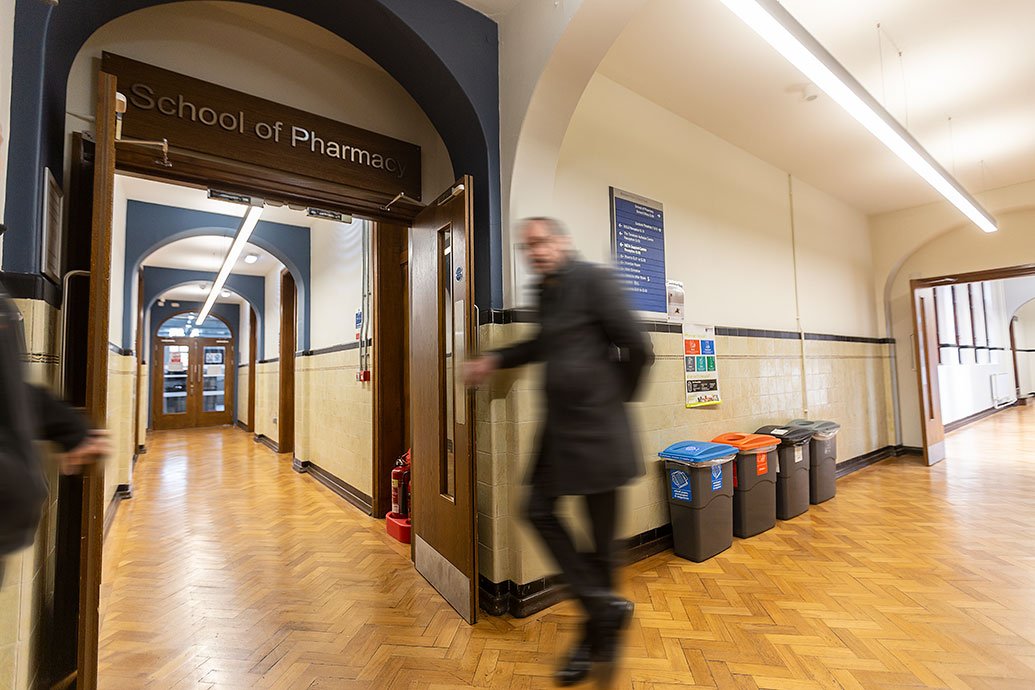

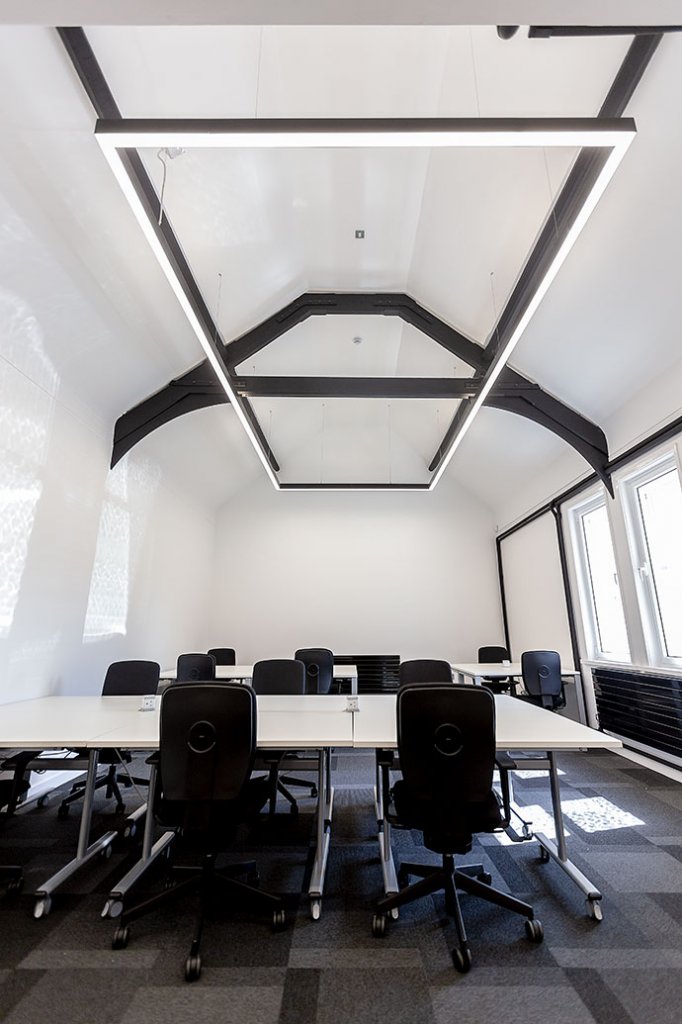

Runway in action

Case studies

Technical

Runway Design Considerations:

L15, L18, L22, L25 and L30 variants comply with BSEN 12464 3000 candela limit when used with MP diffuser.
Bi-Directional is available in all lengths and should only be used when suspended.
Autotest LA3 emergency and DALI Dimming will use common DALI BUS Cable. LA3 emergency can not be combined with other dimming types.
Where luminaire lumen and lumen per watt figures are published these relate to the opal diffuser variants.
Two suspension kits are required for the first trunking section in the run and one in each consecutive trunking section.
All Bi-Directional versions provide approximately 75% down light and 25% up light.
Emergency is not available in 1000mm variants. Emergency and sensor can not be combined in 1250mm versions.
Bi-Directional variants have differing spaces between up-light optics between different lengths, care should be taken when they are mixed in the same area to ensure up-light distribution is even. A suspension length of 500mm or greater will result in even light distribution on the ceiling even where trunking lengths differ.

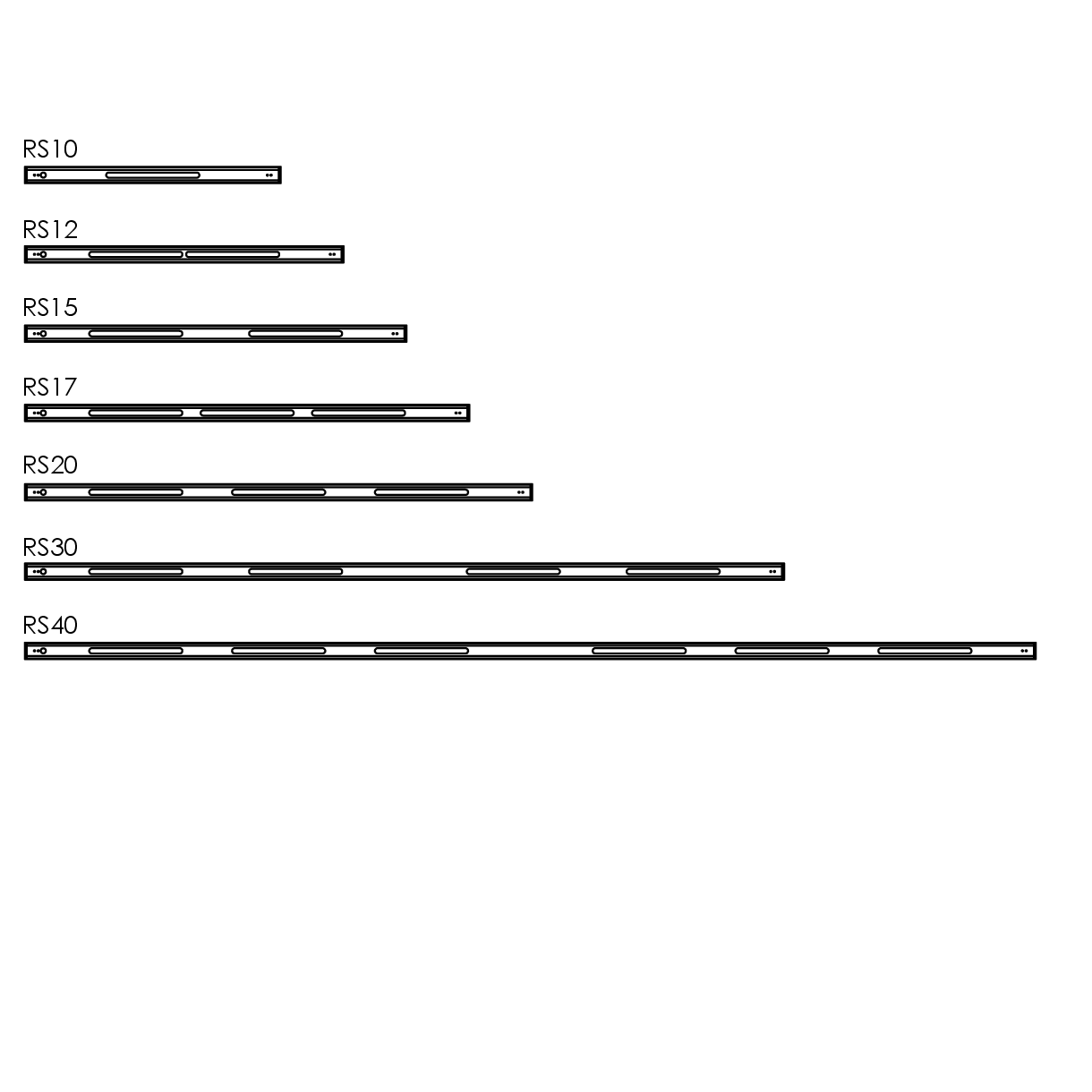

Gear trays must be matched to the trunking length, 1000mm, 1250mm, 1500mm, 1750mm and 2000mm trunking will only accept the corresponding sized tray. Use 2X 1500mm trays with 3000mm trunking and 2X 2000mm trays with 4000mm trunking.
When using longer trunking lengths please ensure that there is suitable access to the building to allow the trunking to be taken to the installation location.

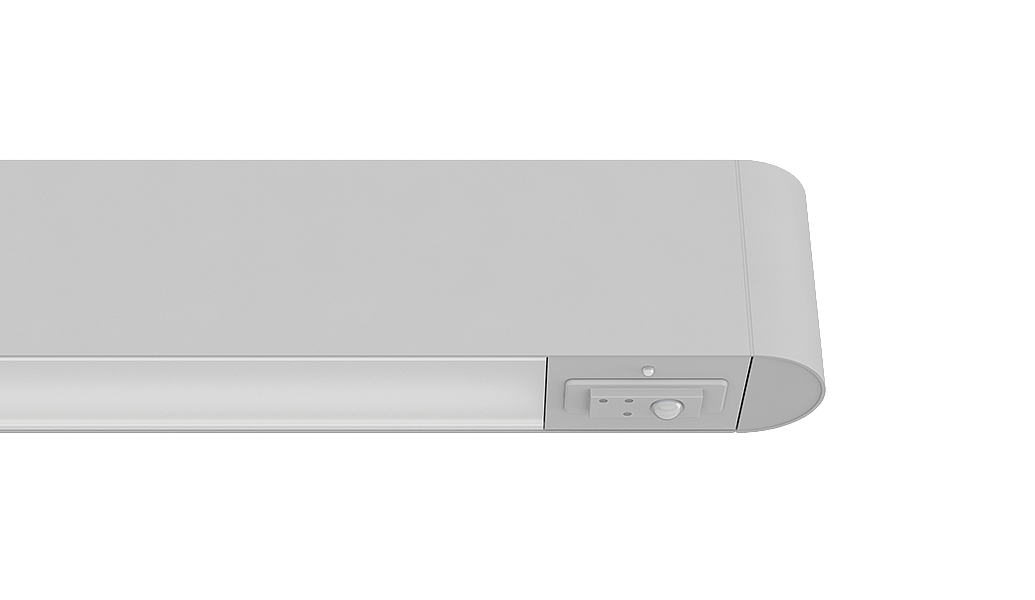

Please note that in sensor variants of the Runway Curve the diffuser is only curved at one end.
No LSTR available in 1250mm.
Wireless emergency can only be offered when combined with the appropriate wireless sensor with the exception of LA3D. LSTR must be combined with RLS. LA3RC must be combined with RCS. LA3D can be alone, or with D44.

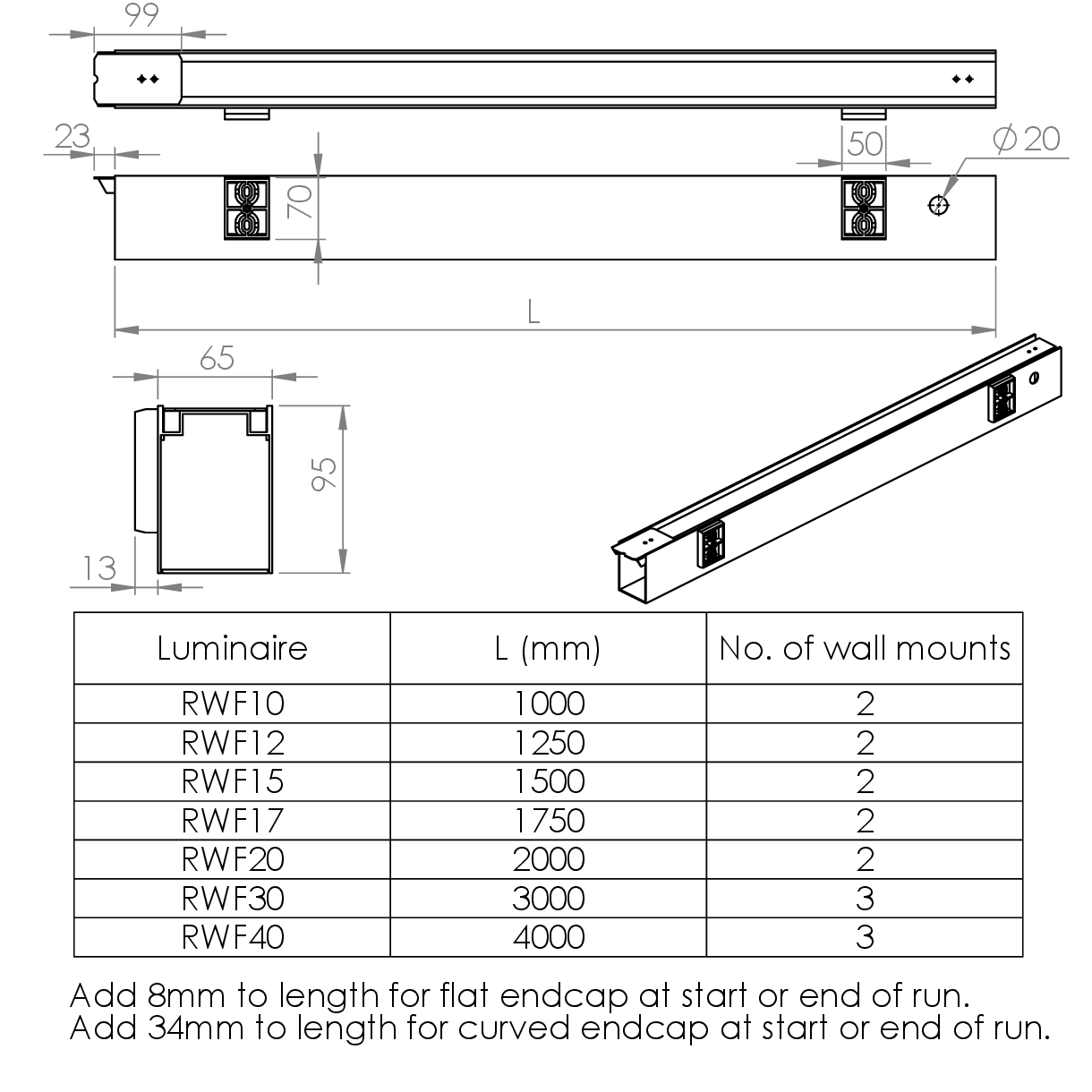

Runway Surface & Suspended Continuous

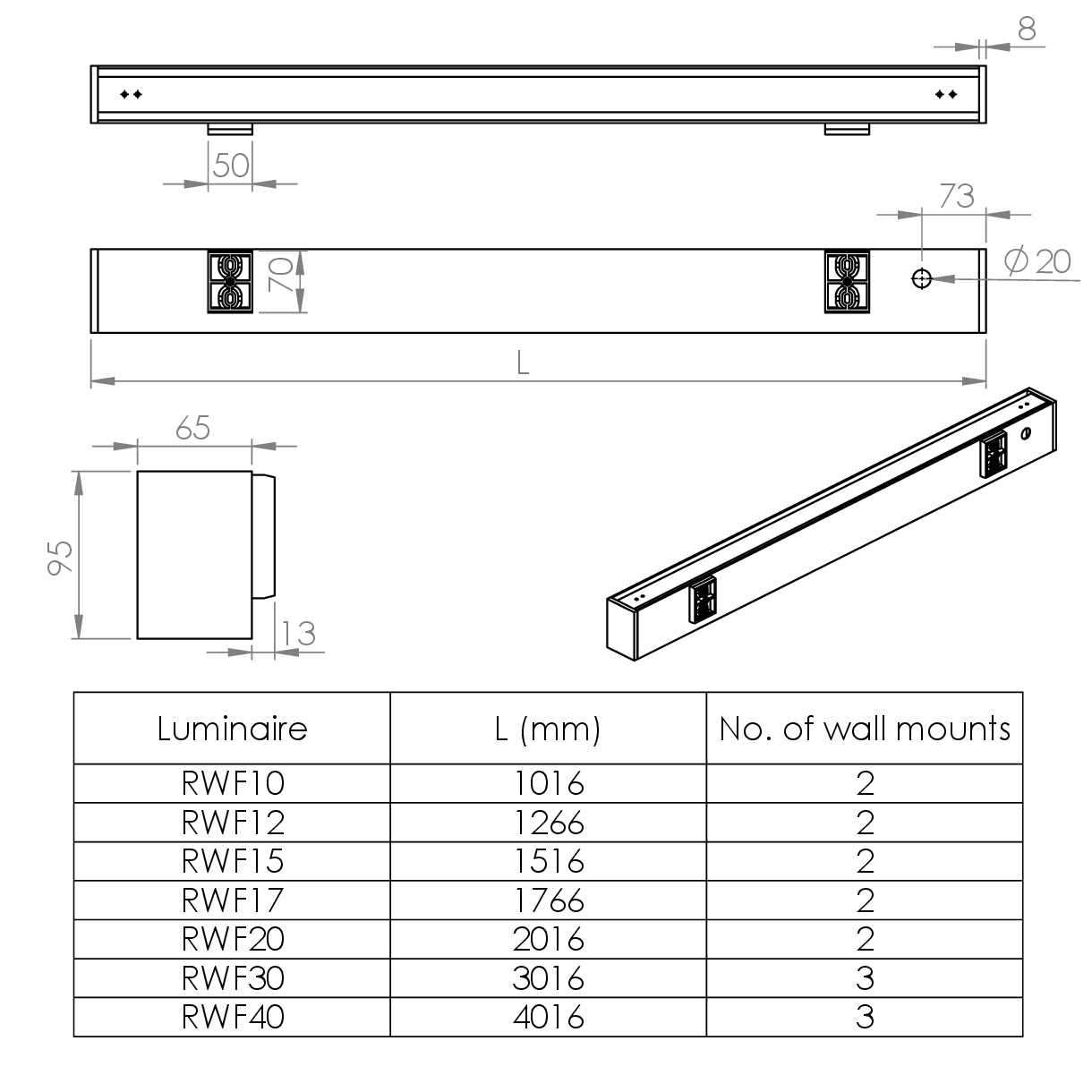

Runway Surface & Suspended

Runway Recessed Continuous

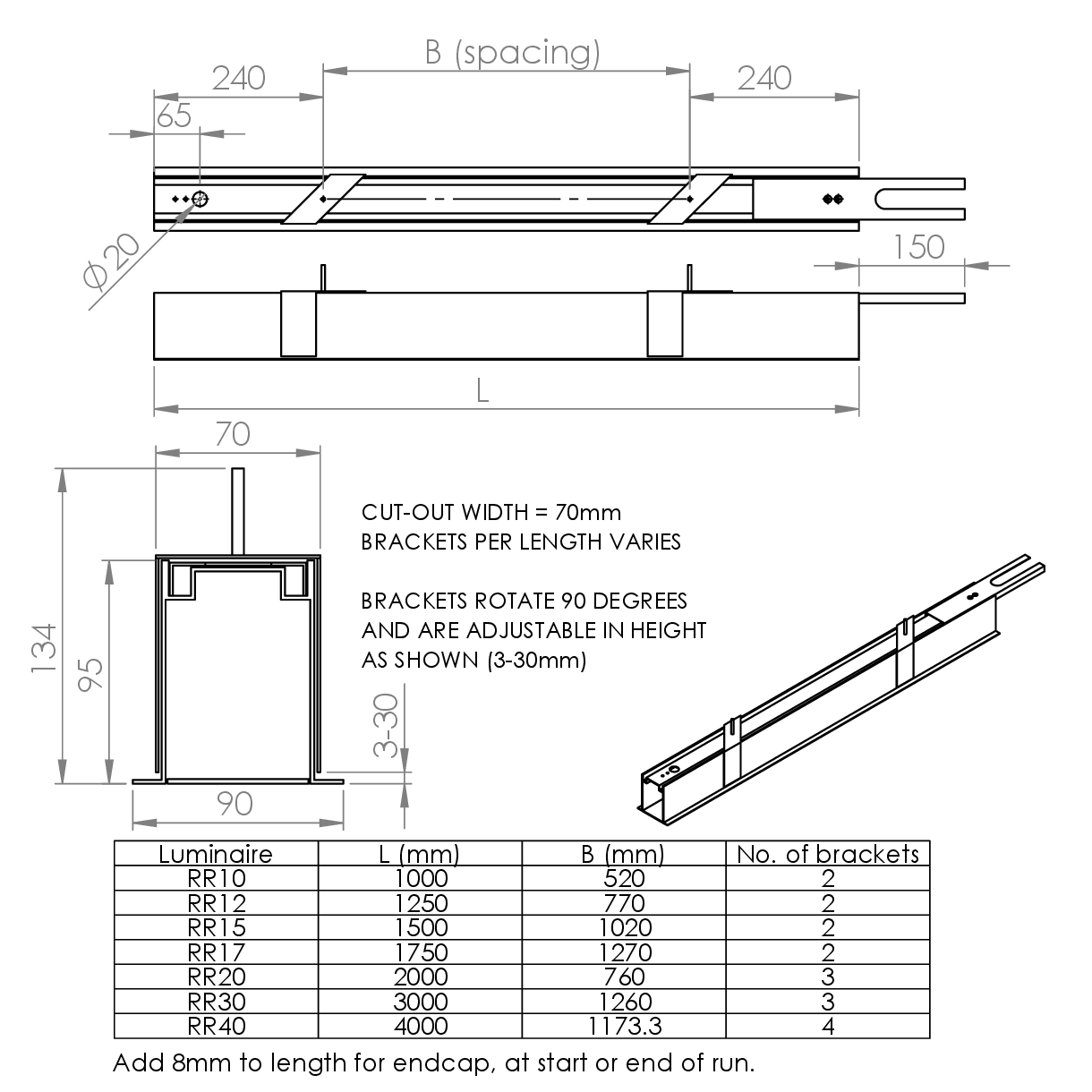

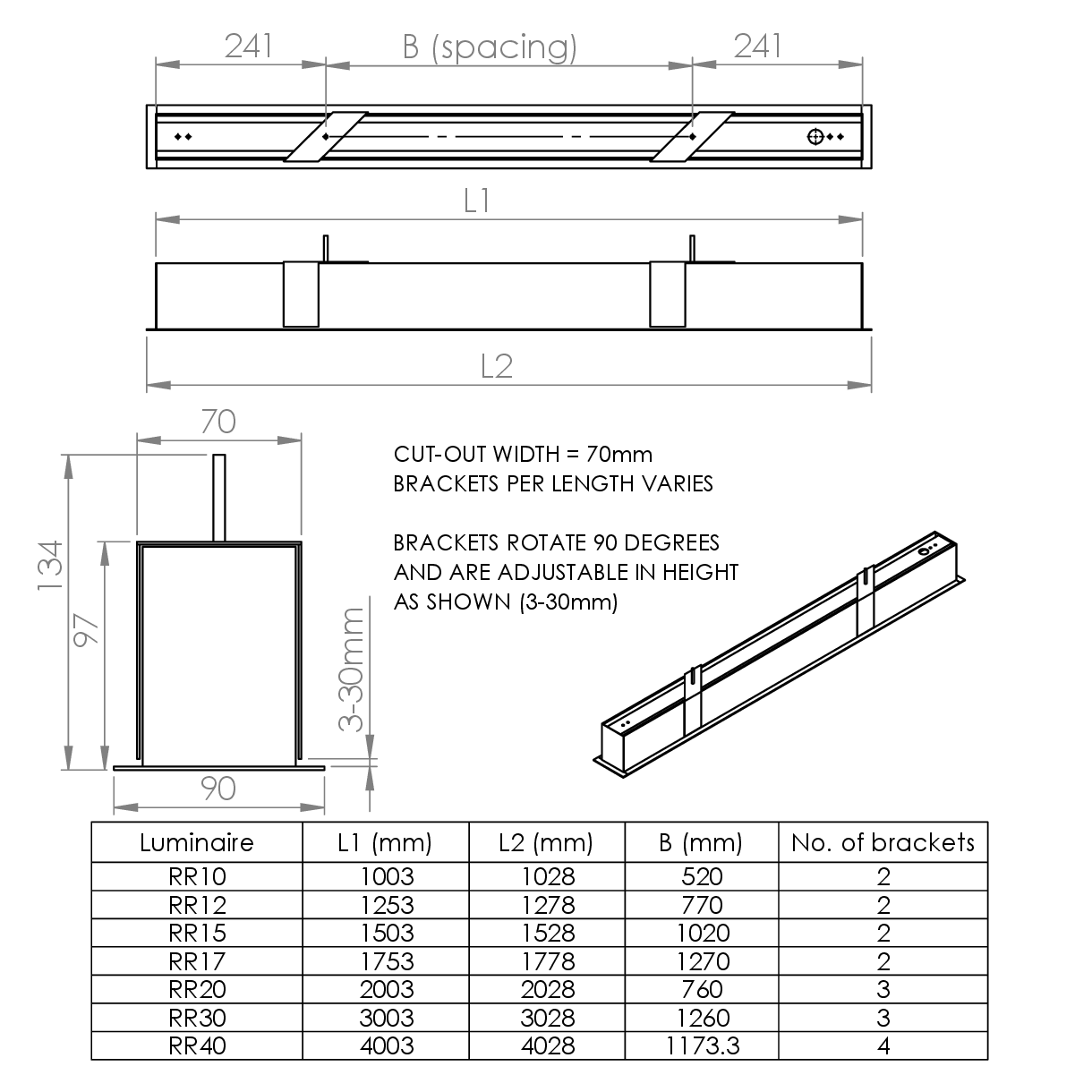

Runway Recessed

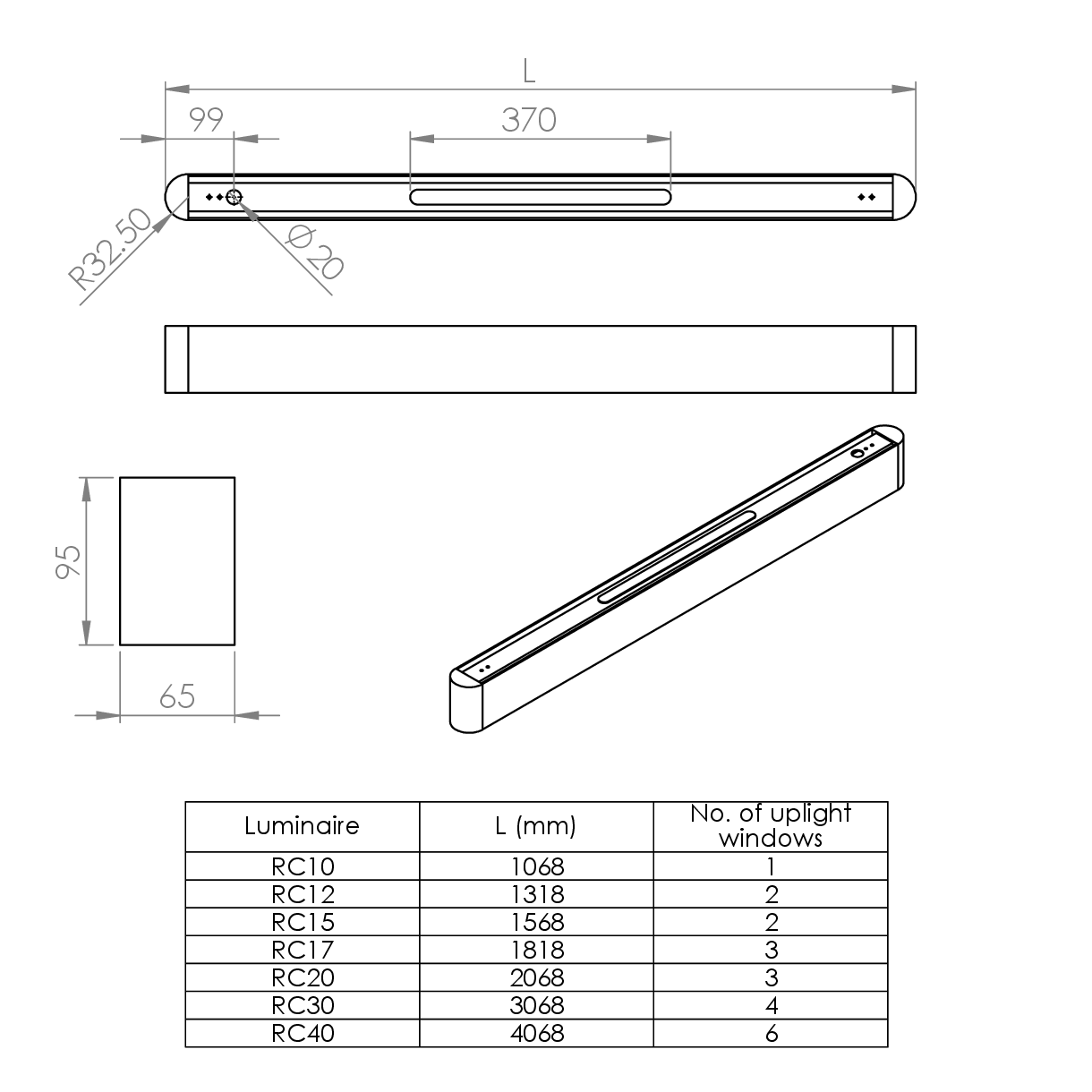

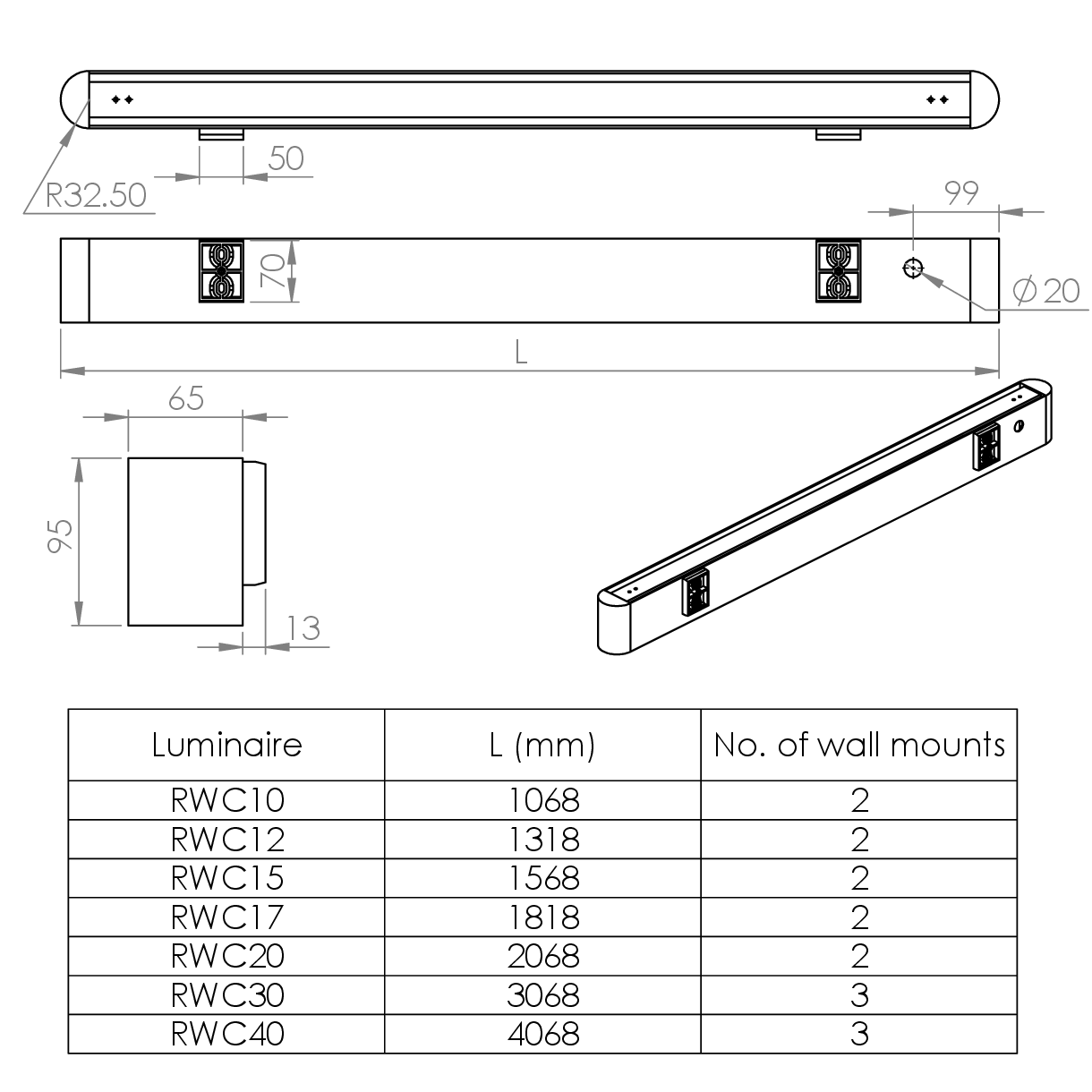

Runway Curve

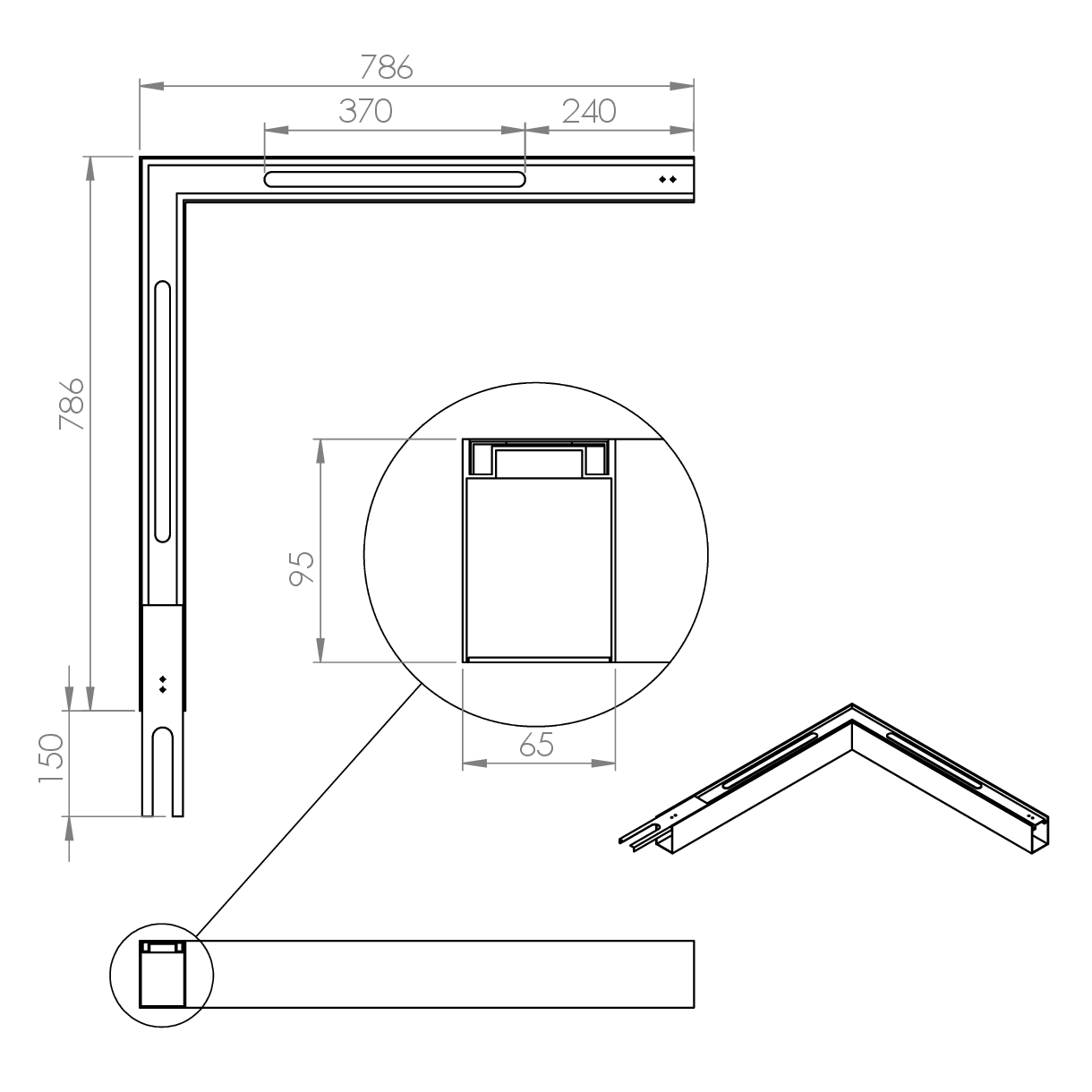

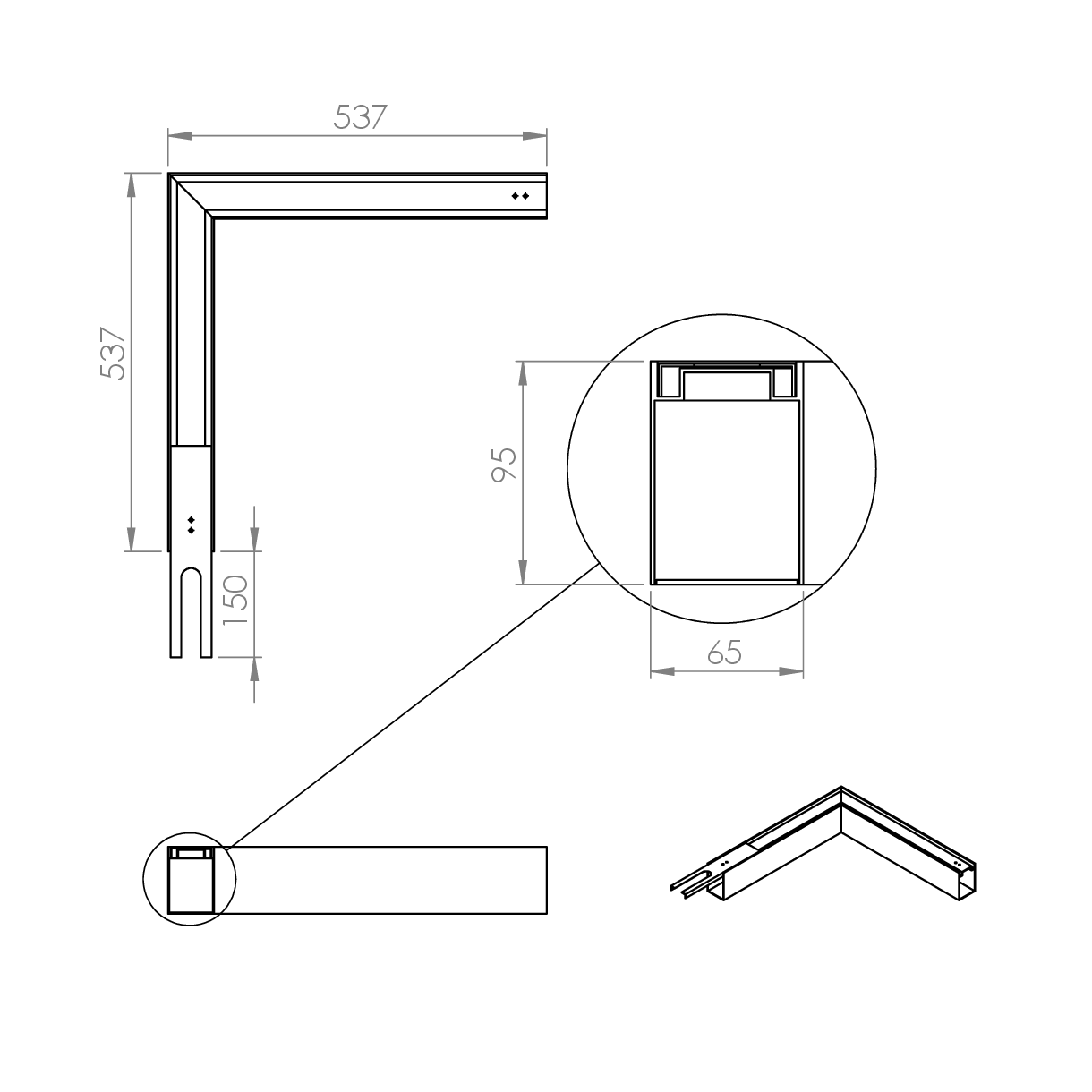

Runway Surface & Suspended Continuous corner

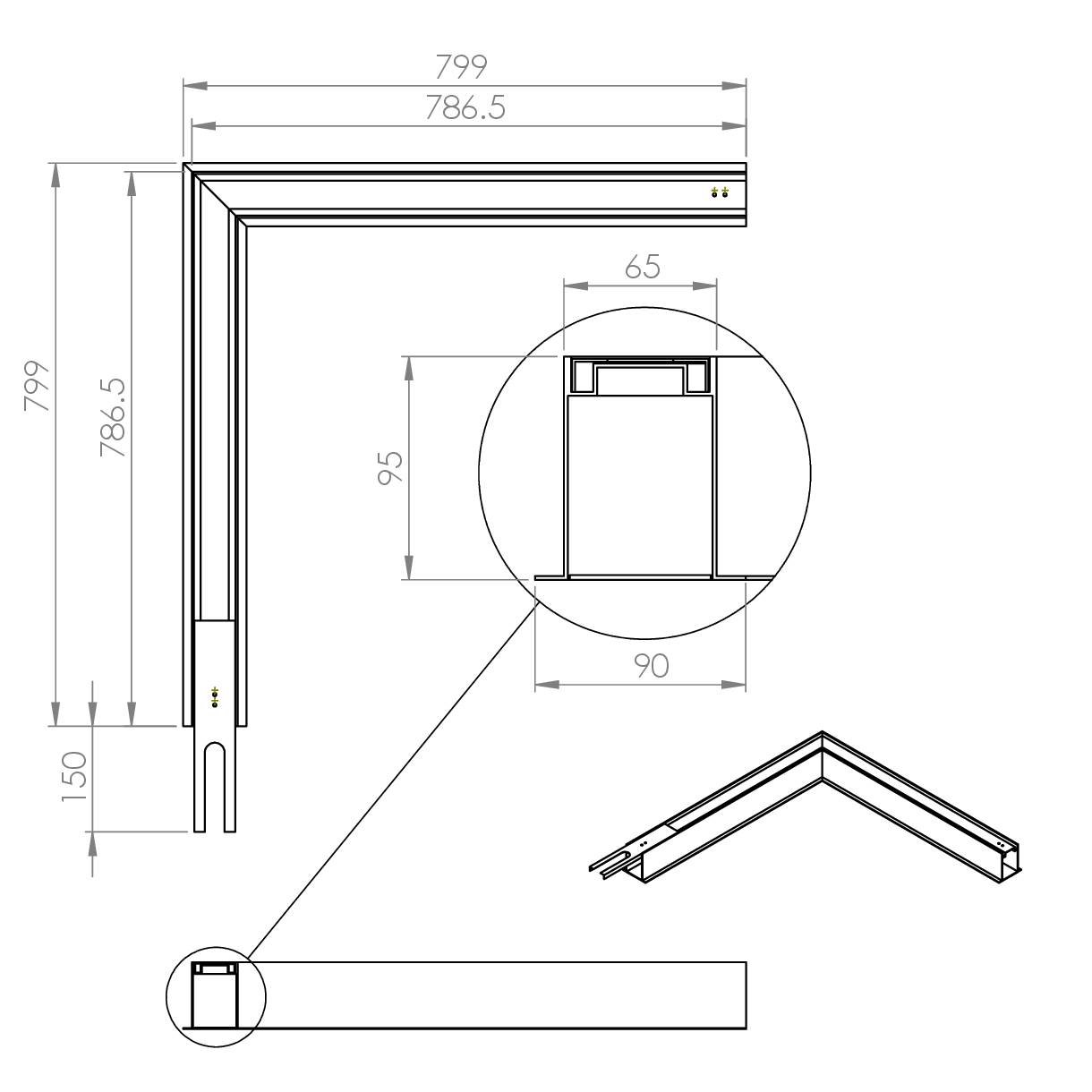

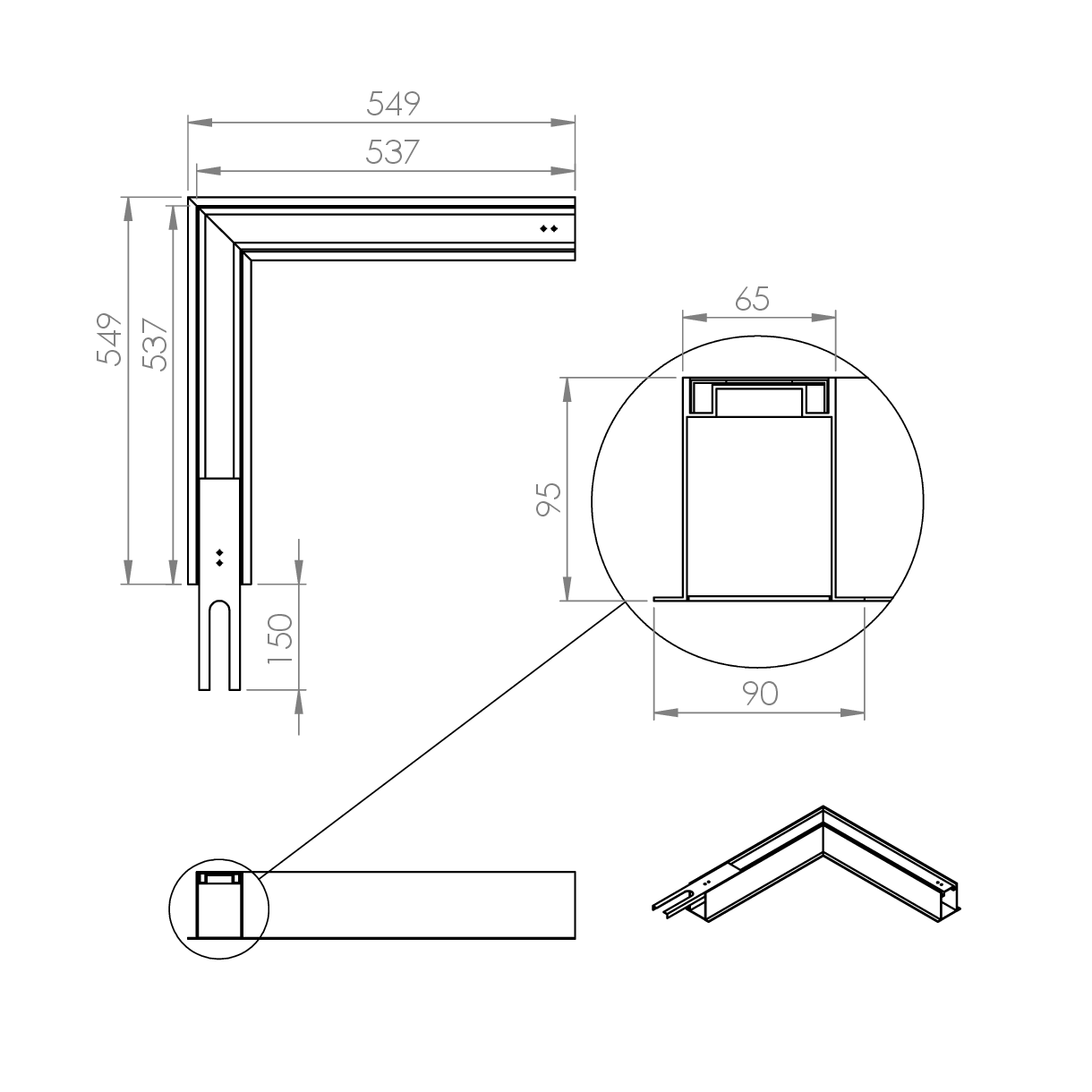

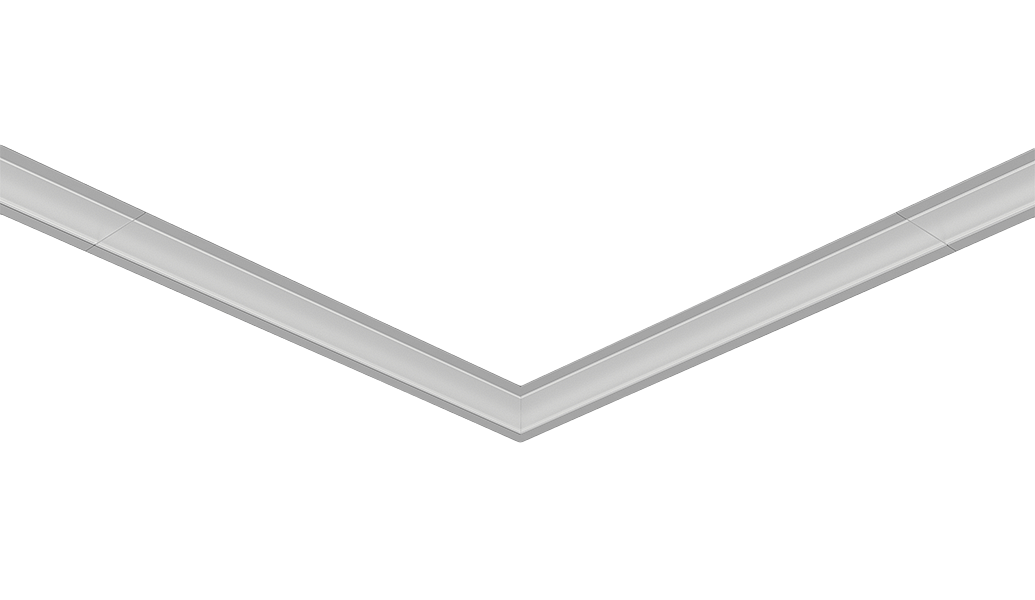

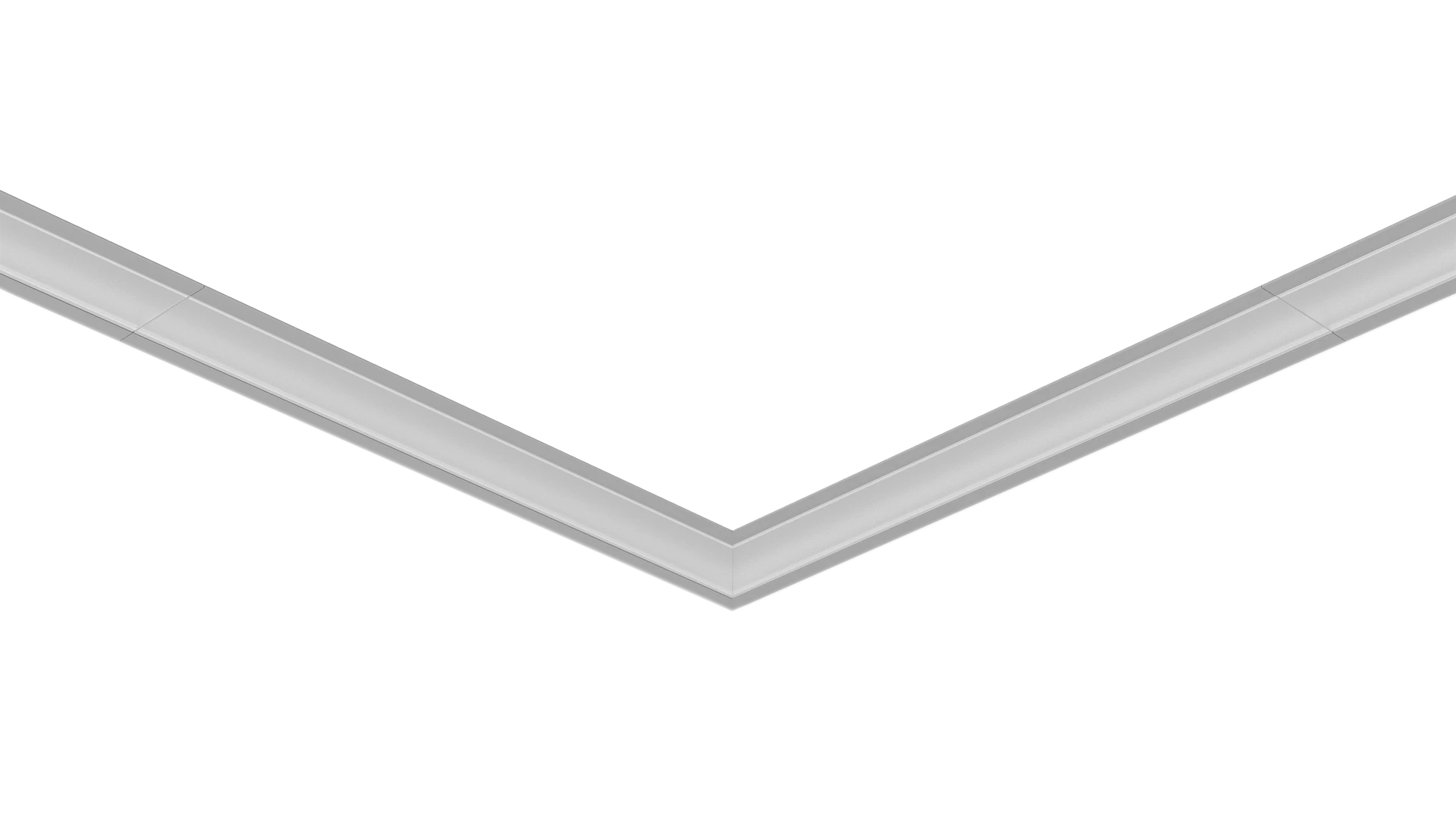

Runway Recessed Continuous corner

Runway RGBW Surface & Suspended Continuous corner

Runway RGBW Recessed Continuous corner

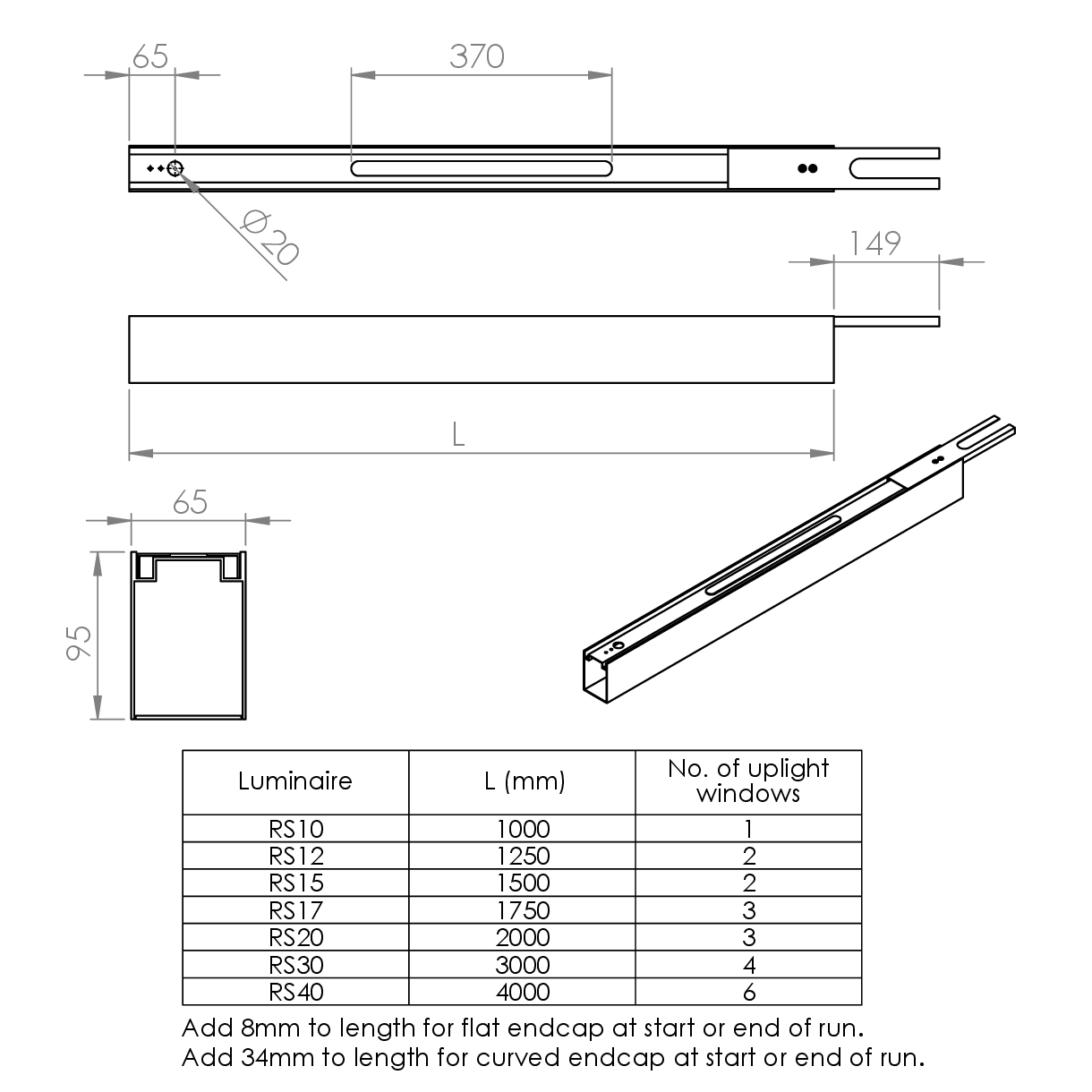

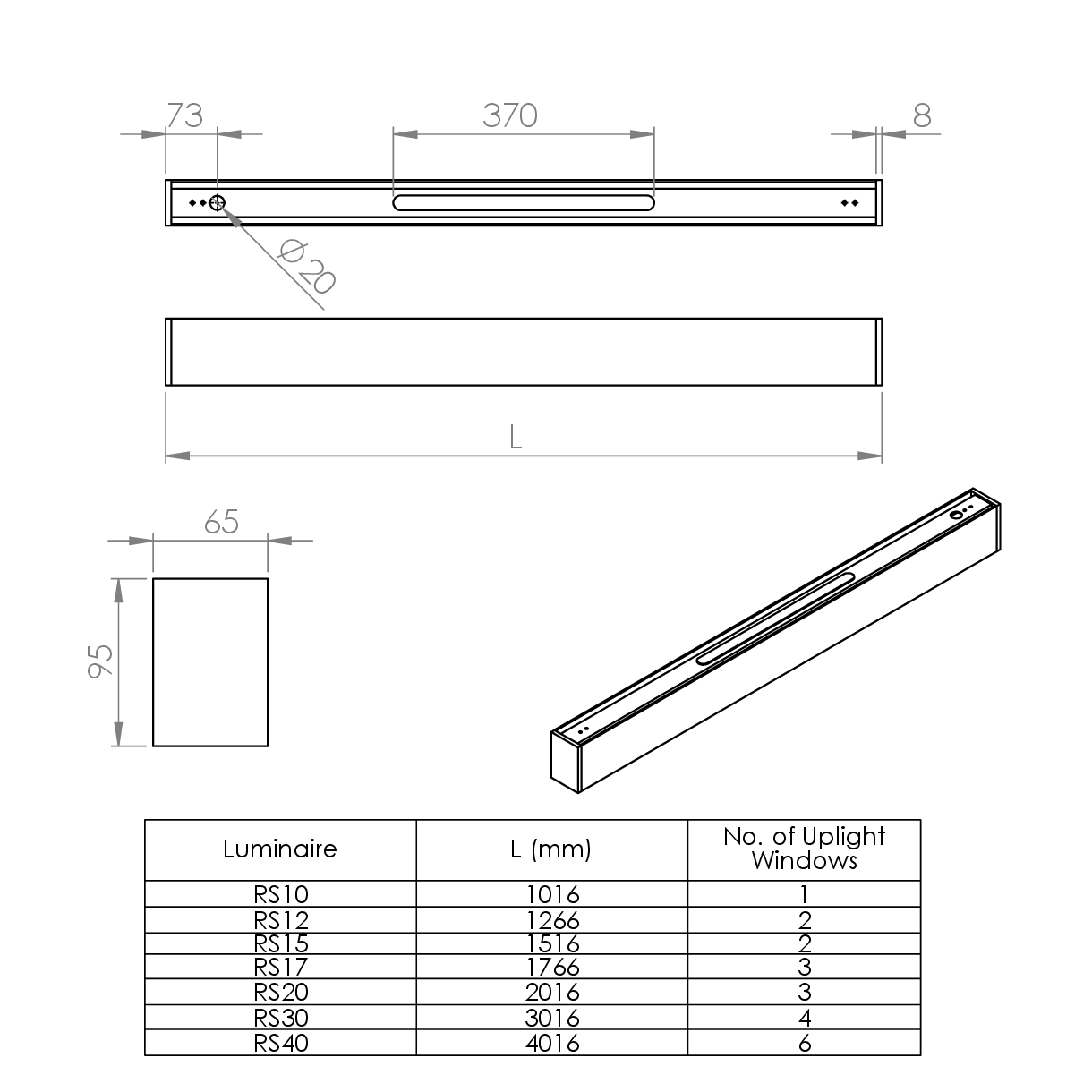

Runway Bi-Directional Uplight

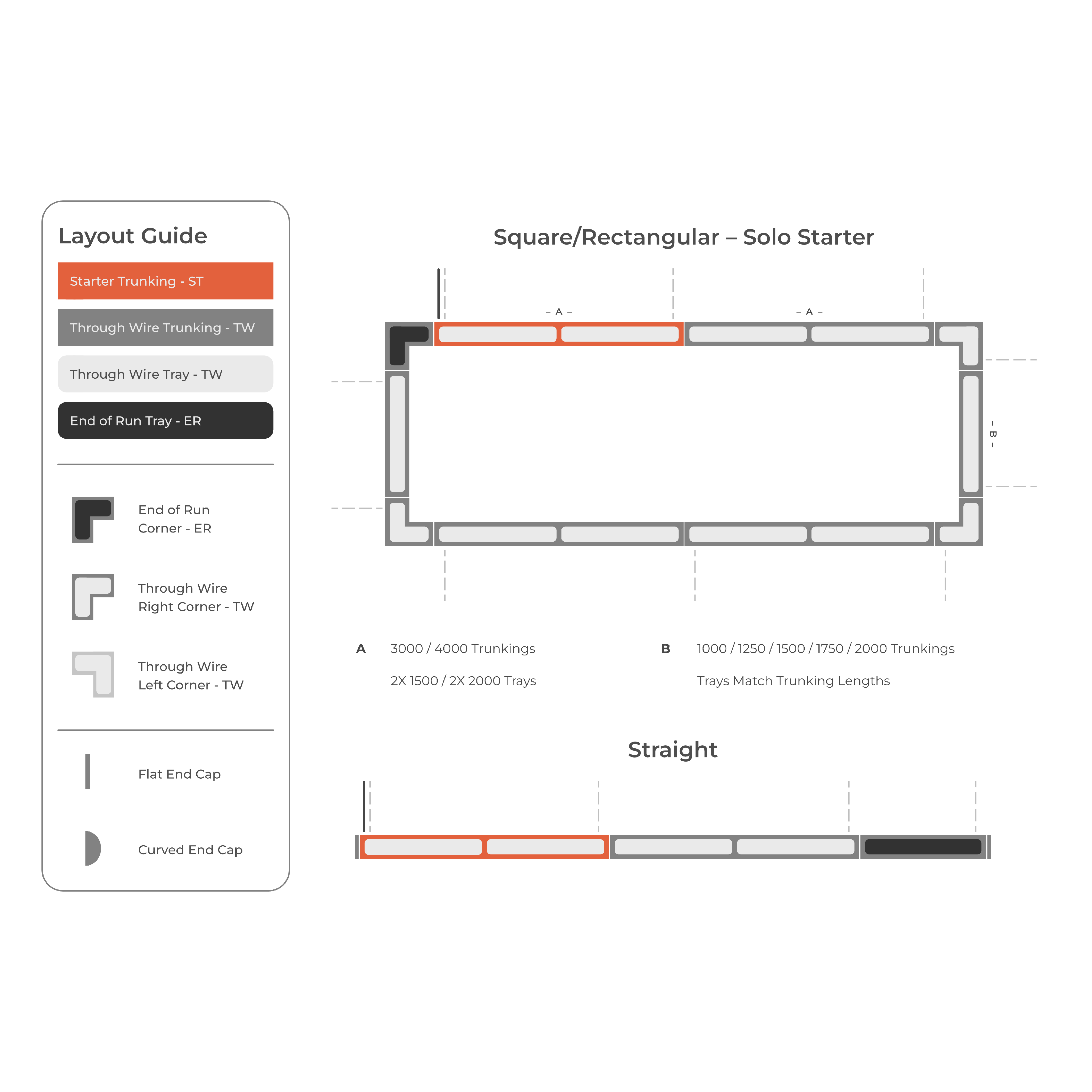

Runway 2026 Layout Diagram A

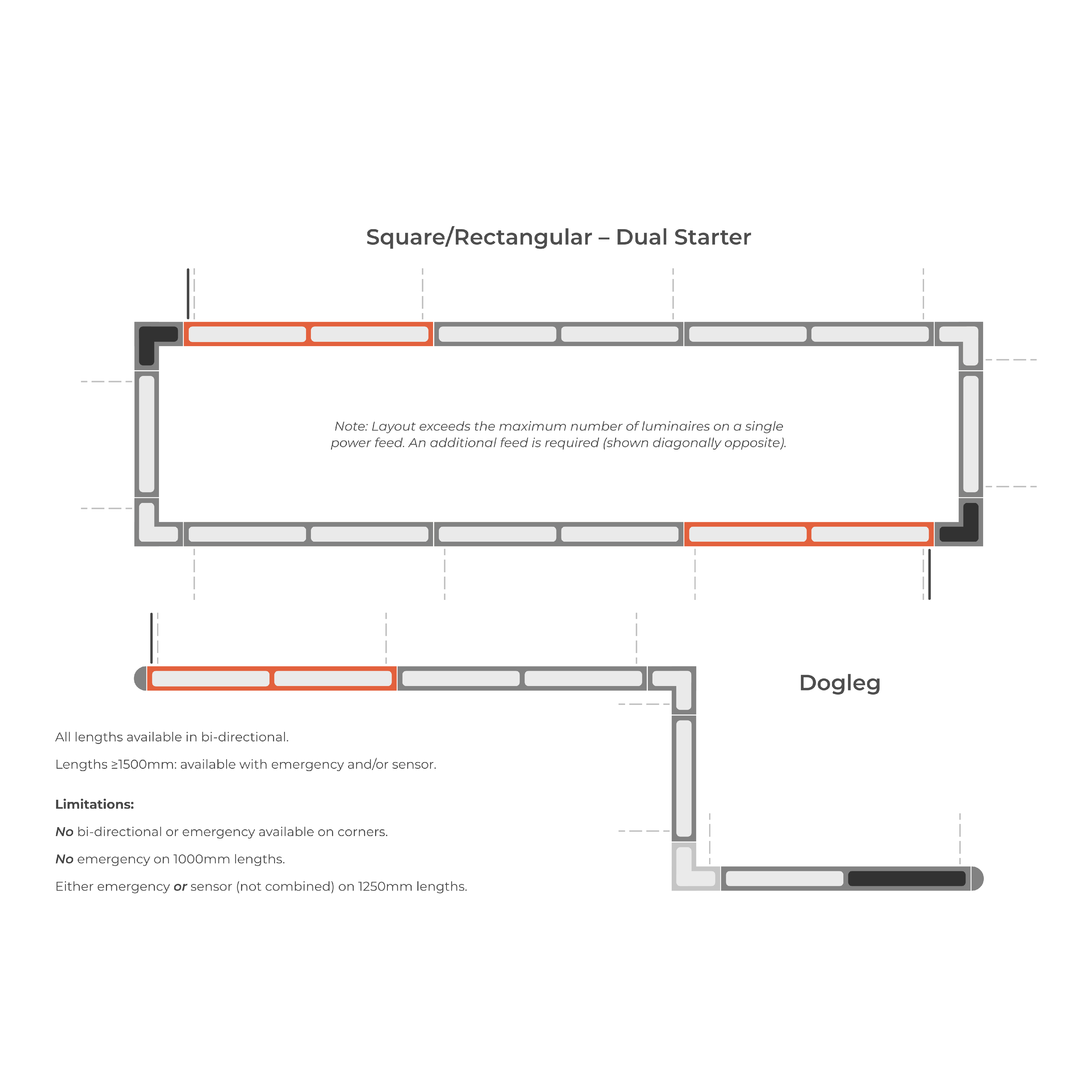

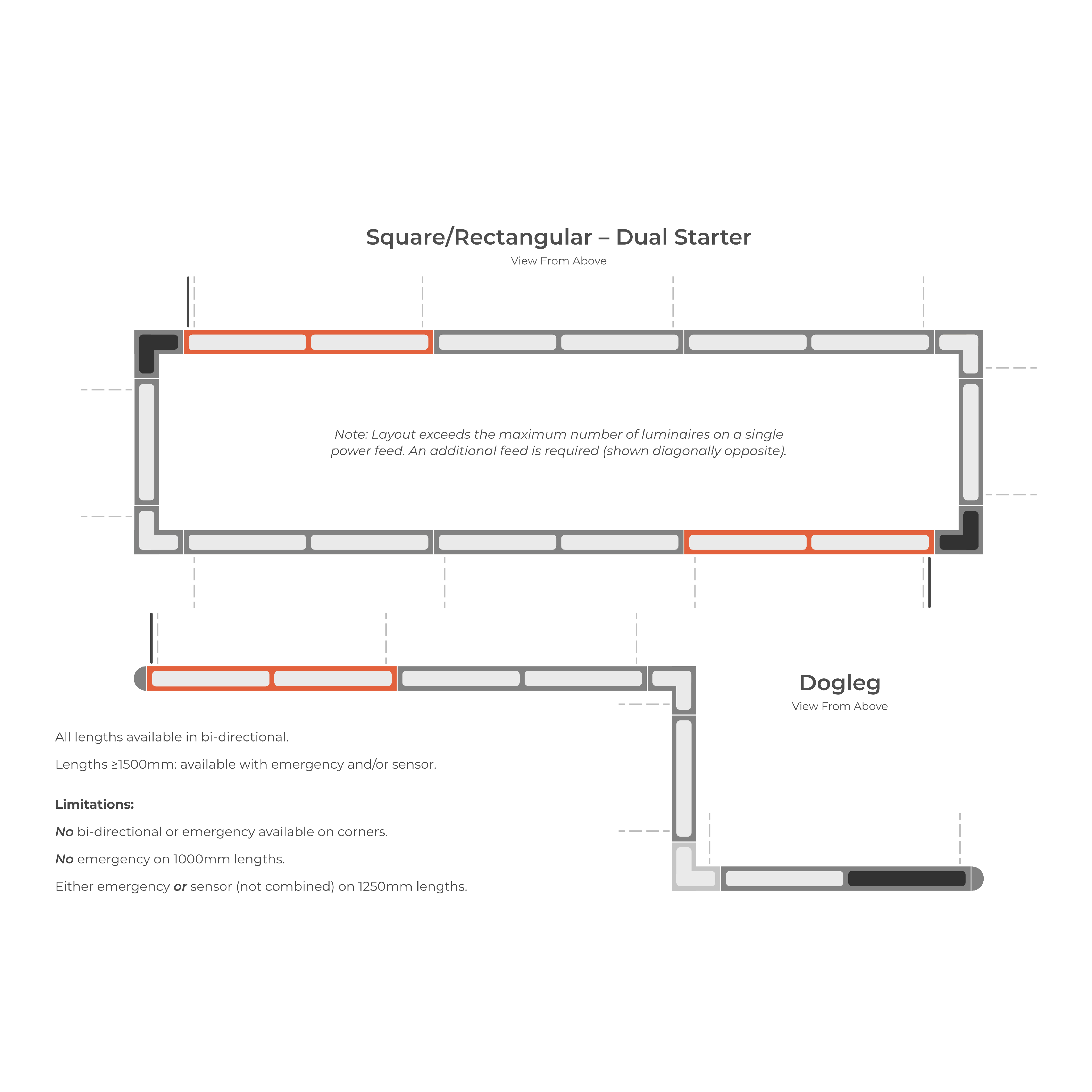

Runway 2026 Layout Diagram B

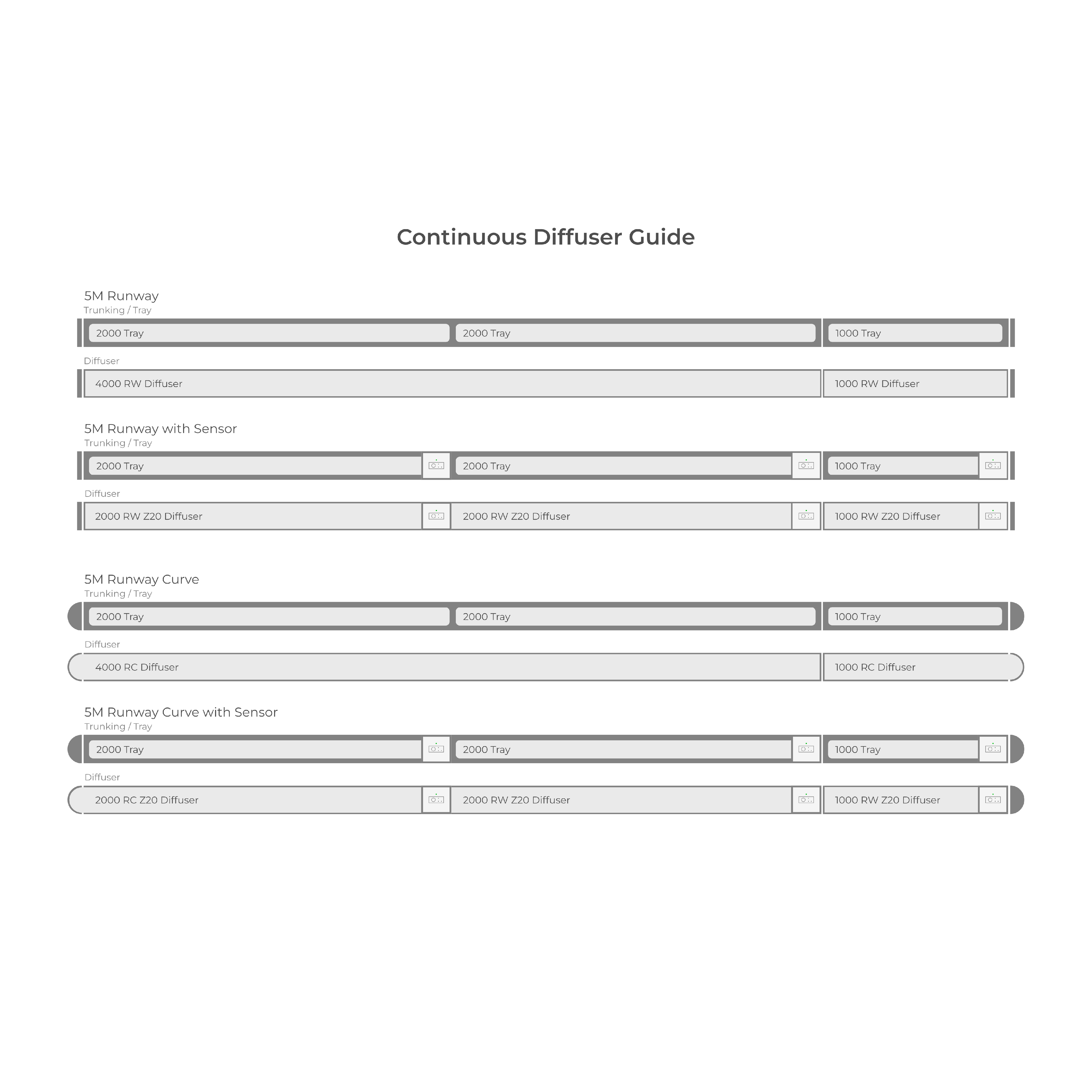

Runway 2026 Layout Diagram C

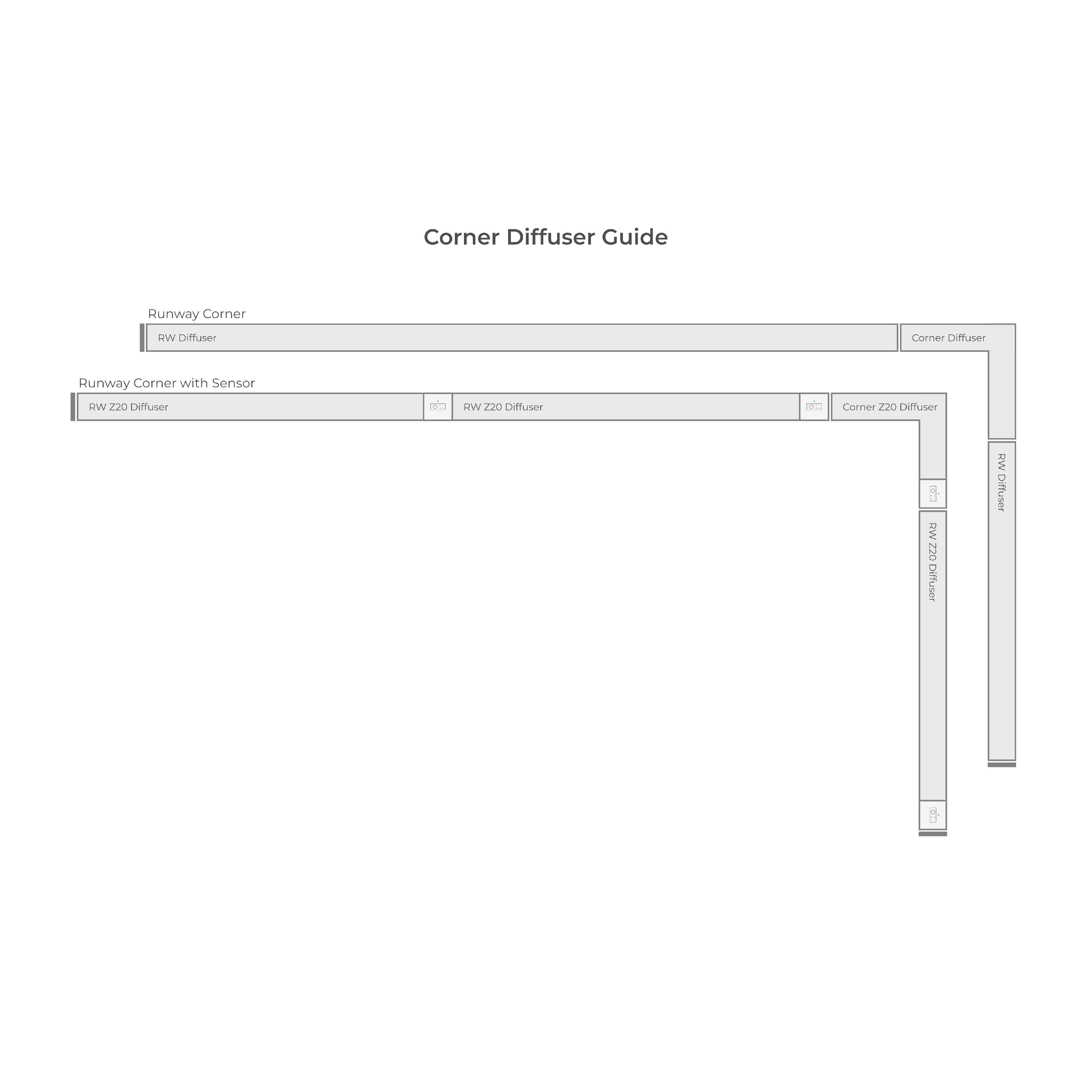

Runway 2026 Layout Diagram D

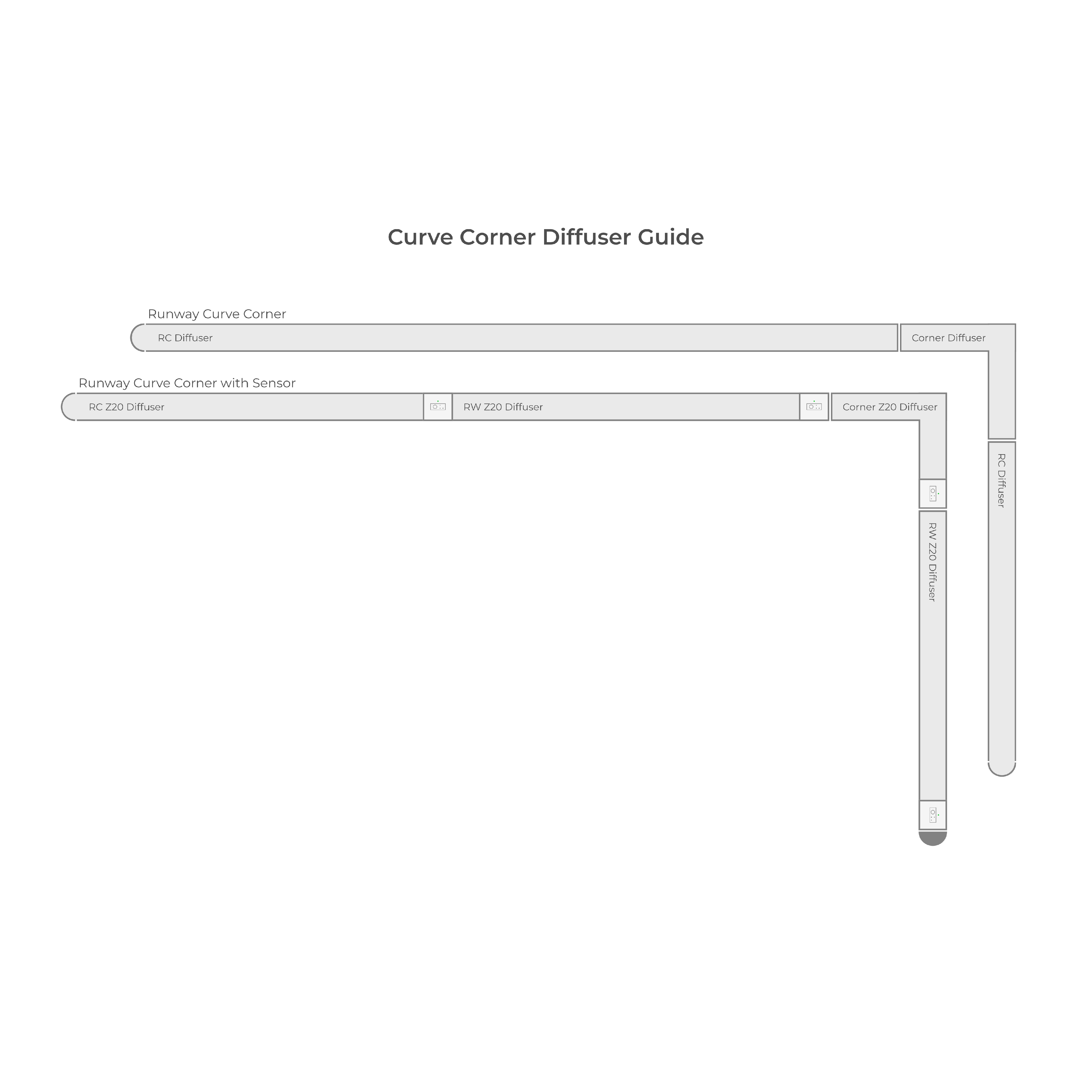

Runway 2026 Layout Diagram E

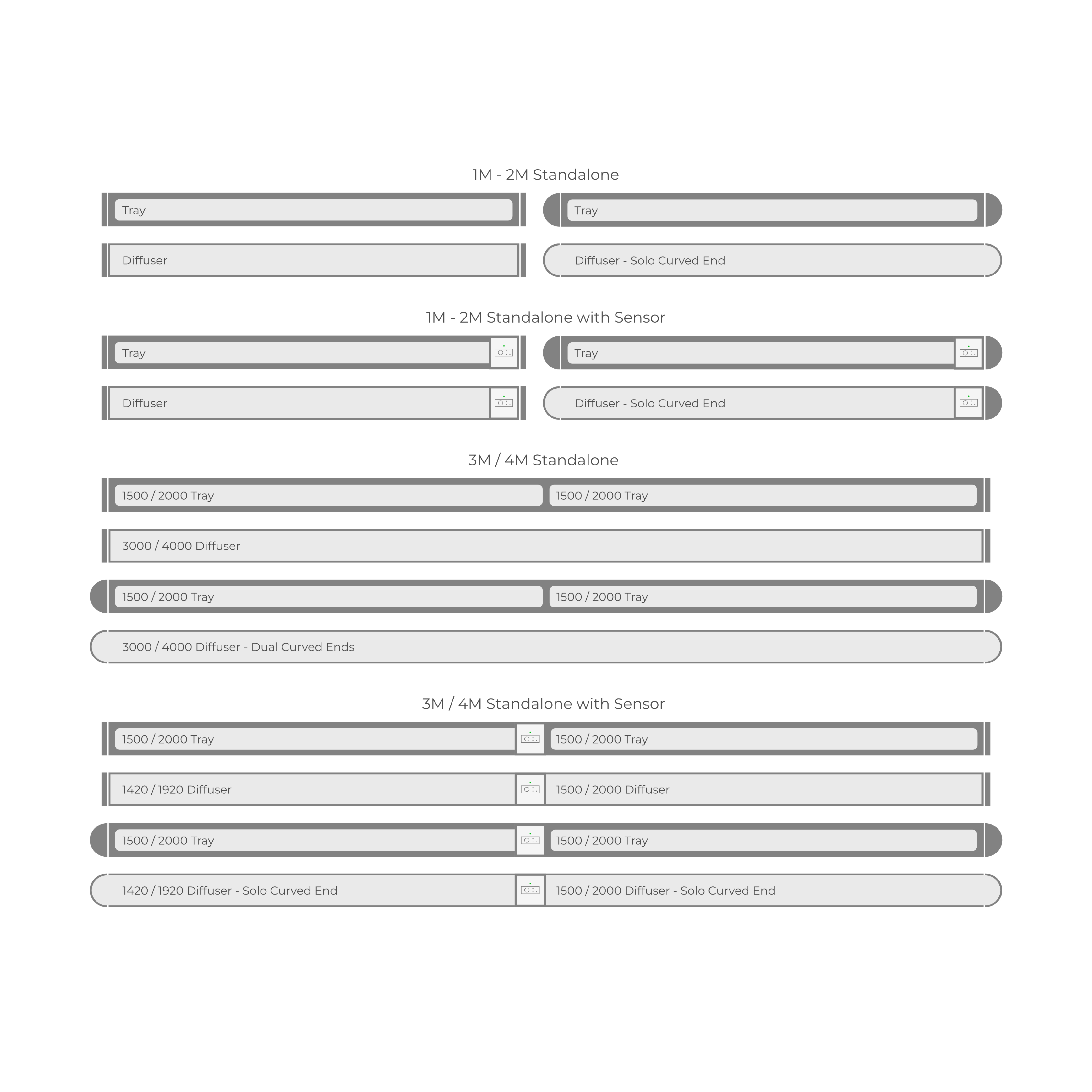

Runway 2026 Layout Diagram F

Ordering.

To order this product simply select the code from each section to build your desired product.

Luminaires

SURFACE & SUSPENDED

Code	Description	Power	Llm/W
RS10 L15 ** GY	Runway, 1000mm, 943llm, ** Select Diffuser, Grey, Colour 84	9.7W	97
RS10 L20 ** GY	Runway, 1000mm, 1,293llm, ** Select Diffuser, Grey, Colour 84	12.3W	105
RS10 L30 ** GY	Runway, 1000mm, 1,938llm, ** Select Diffuser, Grey, Colour 84	16.9W	115
RS10 L18 BD ** GY	Runway, 1000mm, 1,098llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	11.0W	100
RS10 L25 BD ** GY	Runway, 1000mm, 1,525llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	14.4W	106
RS10 L37 BD ** GY	Runway, 1000mm, 2,253llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	19.5W	116
RS12 L18 ** GY	Runway, 1250mm, 1,178llm, ** Select Diffuser, Grey, Colour 84	11.1W	106
RS12 L25 ** GY	Runway, 1250mm, 1,604llm, ** Select Diffuser, Grey, Colour 84	13.7W	117
RS12 L37 ** GY	Runway, 1250mm, 2,421llm, ** Select Diffuser, Grey, Colour 84	19.5W	124
RS12 L26 BD ** GY	Runway, 1250mm, 1,635llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	13.7W	119
RS12 L35 BD ** GY	Runway, 1250mm, 2.226llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	18.7W	119
RS12 L53 BD ** GY	Runway, 1250mm, 3,360llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	27.1W	124
RS15 L22 ** GY	Runway, 1500mm, 1,428llm, ** Select Diffuser, Grey, Colour 84	12.4W	115
RS15 L30 ** GY	Runway, 1500mm, 1,925llm, ** Select Diffuser, Grey, Colour 84	15.5W	124
RS15 L45 ** GY	Runway, 1500mm, 2,920llm, ** Select Diffuser, Grey, Colour 84	22.5W	130
RS15 L29 BD ** GY	Runway, 1500mm, 1,835llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	15.1W	122
RS15 L40 BD ** GY	Runway, 1500mm, 2,502llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	20.8W	120
RS15 L60 BD ** GY	Runway, 1500mm, 3,796llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	30.6W	124
RS17 L26 ** GY	Runway, 1750mm, 1,688llm, ** Select Diffuser, Grey, Colour 84	13.7W	123
RS17 L35 ** GY	Runway, 1750mm, 2,312llm, ** Select Diffuser, Grey, Colour 84	18.7W	124
RS17 L53 ** GY	Runway, 1750mm, 3,469llm, ** Select Diffuser, Grey, Colour 84	27.1W	128
RS17 L37 BD ** GY	Runway, 1750mm, 2,208llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	18.1W	122
RS17 L50 BD ** GY	Runway, 1750mm, 3,024llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	25.3W	120
RS17 L75 BD ** GY	Runway, 1750mm, 4,530llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	37.1W	122
RS20 L30 ** GY	Runway, 2000mm, 1,965llm, ** Select Diffuser, Grey, Colour 84	15.1W	130
RS20 L40 ** GY	Runway, 2000mm, 2,691llm, ** Select Diffuser, Grey, Colour 84	20.8W	129
RS20 L60 ** GY	Runway, 2000mm, 4,036llm, ** Select Diffuser, Grey, Colour 84	30.5W	132
RS20 L40 BD ** GY	Runway, 2000mm, 2,504llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	19.7W	127
RS20 L55 BD ** GY	Runway, 2000mm, 3,442llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	27.9W	123
RS20 L83 BD ** GY	Runway, 2000mm, 5,620llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	41.0W	137
RS30 L44 ** GY	Runway, 3000mm, 4,400lm, ** Select Diffuser, Grey, Colour 84
RS30 L60 ** GY	Runway, 3000mm, 6,000lm, ** Select Diffuser, Grey, Colour 84
RS30 L90 ** GY	Runway, 3000mm, 9,000lm, ** Select Diffuser, Grey, Colour 84
RS30 L60 BD ** GY	Runway, 3000mm, 6,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RS30 L80 BD ** GY	Runway, 3000mm, 8,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RS30 L120 BD ** GY	Runway, 3000mm, 12,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RS40 L60 ** GY	Runway, 4000mm, 6,000lm, ** Select Diffuser, Grey, Colour 84
RS40 L80 ** GY	Runway, 4000mm, 8,000lm, ** Select Diffuser, Grey, Colour 84
RS40 L120 ** GY	Runway, 4000mm, 12,000lm, ** Select Diffuser, Grey, Colour 84
RS40 L80 BD ** GY	Runway, 4000mm, 8,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RS40 L110 BD ** GY	Runway, 4000mm, 11,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RS40 L166 BD ** GY	Runway, 4000mm, 16,600lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Dimming

Code	Description
A	DALI Digital Addressable Lighting Interface
S	Switch Dimming
D	DSI Digital Dimming
H	HFR Analogue 1-10v
C	Bi-Level Dimming For Standalone Switched Sensor
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Control

Code	Description
D44	DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN	DexNET Node, Wireless Node only.
RAS	Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS	Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
LA3D	Lithium DexNET Emergency 3 Hour
LSTR	Lithium Reacta-Link Emergency 3 Hour
LA3RC	Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK STANDALONE	Runway Standalone Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Luminaires

SURFACE & SUSPENDED CONTINUOUS

Code	Description
RS10 ST GY	Runway Trunking 1000mm, Surface / Suspended, Downlight, Start, Grey
RS10 TW GY	Runway Trunking 1000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS12 ST GY	Runway Trunking 1250mm, Surface / Suspended, Downlight, Start, Grey
RS12 TW GY	Runway Trunking 1250mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS15 ST GY	Runway Trunking 1500mm, Surface / Suspended, Downlight, Start, Grey
RS15 TW GY	Runway Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS17 ST GY	Runway Trunking 1750mm, Surface / Suspended, Downlight, Start, Grey
RS17 TW GY	Runway Trunking 1750mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS20 ST GY	Runway Trunking 2000mm, Surface / Suspended, Downlight, Start, Grey
RS20 TW GY	Runway Trunking 2000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS30 ST GY	Runway Trunking 3000mm, Surface / Suspended, Downlight, Start, Grey
RS30 TW GY	Runway Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS40 ST GY	Runway Trunking 4000mm, Surface / Suspended, Downlight, Start, Grey
RS40 TW GY	Runway Trunking 4000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS10 ST BD GY	Runway Trunking 1000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS10 TW BD GY	Runway Trunking 1000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS12 ST BD GY	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Start, Grey
RS12 TW BD GY	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS15 ST BD GY	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Start, Grey
RS15 TW BD GY	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS17 ST BD GY	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Start, Grey
RS17 TW BD GY	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS20 ST BD GY	Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS20 TW BD GY	Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS30 ST BD GY	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS30 TW BD GY	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS40 ST BD GY	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS40 TW BD GY	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey

CONTINUOUS RUN GEAR TRAY - Low Output

Code	Description
RW10 L15 TW	Runway Tray, 1000mm, 1,500lm, Through Wire, Colour 84
RW10 L15 ER	Runway Tray, 1000mm, 1,500lm, End of Run, Colour 84
RW10 L18 TW BD	Runway Tray, 1000mm, 1,800lm, Through Wire, Bi-Directional, Colour 84
RW10 L18 ER BD	Runway Tray, 1000mm, 1,800lm, End of Run, Bi-Directional, Colour 84
RW12 L18 TW	Runway Tray, 1250mm, 1,800lm, Through Wire, Colour 84
RW12 L18 ER	Runway Tray, 1250mm, 1,800lm, End of Run, Colour 84
RW12 L26 TW BD	Runway Tray, 1250mm, 2,600lm, Through Wire, Bi-Directional, Colour 84
RW12 L26 ER BD	Runway Tray, 1250mm, 2,600lm, End of Run, Bi-Directional, Colour 84
RW15 L22 TW	Runway Tray, 1500mm, 2,200lm, Through Wire, Colour 84
RW15 L22 ER	Runway Tray, 1500mm, 2,200lm, End of Run, Colour 84
RW15 L29 TW BD	Runway Tray, 1500mm, 2,900lm, Through Wire, Bi-Directional, Colour 84
RW15 L29 ER BD	Runway Tray, 1500mm, 2,900lm, End of Run, Bi-Directional, Colour 84
RW17 L26 TW	Runway Tray, 1750mm, 2,600lm, Through Wire, Colour 84
RW17 L26 ER	Runway Tray, 1750mm, 2,600lm, End of Run, Colour 84
RW17 L37 TW BD	Runway Tray, 1750mm, 3,700lm, Through Wire, Bi-Directional, Colour 84
RW17 L37 ER BD	Runway Tray, 1750mm, 3,700llm, End of Run, Bi-Directional, Colour 84
RW20 L30 TW	Runway Tray, 2000mm, 3,000lm, Through Wire, Colour 84
RW20 L30 ER	Runway Tray, 2000mm, 3,000lm, End of Run, Colour 84
RW20 L40 TW BD	Runway Tray, 2000mm, 4,000lm, Through Wire, Bi-Directional, Colour 84
RW20 L40 ER BD	Runway Tray, 2000mm, 4,000lm, End of Run, Bi-Directional, Colour 84
RSCO L15 TW ** L GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RSCO L15 ER ** L GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RSCO L15 TW ** R GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RSCO L15 ER ** R GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - Medium Output

Code	Description
RW10 L20 TW	Runway Tray, 1000mm, 2,000lm, Through Wire, Colour 84
RW10 L20 ER	Runway Tray, 1000mm, 2,000lm, End of Run, Colour 84
RW10 L25 TW BD	Runway Tray, 1000mm, 2,500lm, Through Wire, Bi-Directional, Colour 84
RW10 L25 ER BD	Runway Tray, 1000mm, 2,500lm, End of Run, Bi-Directional, Colour 84
RW12 L25 TW	Runway Tray, 1250mm, 2,500lm, Through Wire, Colour 84
RW12 L25 ER	Runway Tray, 1250mm, 2,500lm, End of Run, Colour 84
RW12 L35 TW BD	Runway Tray, 1250mm, 3,500lm, Through Wire, Bi-Directional, Colour 84
RW12 L35 ER BD	Runway Tray, 1250mm, 3,500lm, End of Run, Bi-Directional, Colour 84
RW15 L30 TW	Runway Tray, 1500mm, 3,000lm, Through Wire, Colour 84
RW15 L30 ER	Runway Tray, 1500mm, 3,000lm, End of Run, Colour 84
RW15 L40 TW BD	Runway Tray, 1500mm, 4,000lm, Through Wire, Bi-Directional, Colour 84
RW15 L40 ER BD	Runway Tray, 1500mm, 4,000lm, End of Run, Bi-Directional, Colour 84
RW17 L35 TW	Runway Tray, 1750mm, 3,500lm, Through Wire, Colour 84
RW17 L35 ER	Runway Tray, 1750mm, 3,500lm, End of Run, Colour 84
RW17 L50 TW BD	Runway Tray, 1750mm, 5,000lm, Through Wire, Bi-Directional, Colour 84
RW17 L50 ER BD	Runway Tray, 1750mm, 5,000lm, End of Run, Bi-Directional, Colour 84
RW20 L40 TW	Runway Tray, 2000mm, 4,000lm, Through Wire, Colour 84
RW20 L40 ER	Runway Tray, 2000mm, 4,000lm, End of Run, Colour 84
RW20 L55 TW BD	Runway Tray, 2000mm, 5,500lm, Through Wire, Bi-Directional, Colour 84
RW20 L55 ER BD	Runway Tray, 2000mm, 5,500lm, End of Run, Bi-Directional, Colour 84
RSCO L20 TW ** L GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RSCO L20 ER ** L GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RSCO L20 TW ** R GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RSCO L20 ER ** R GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - High Output

Code	Description
RW10 L30 TW	Runway Tray, 1000mm, 3,000lm, Through Wire, Colour 84
RW10 L30 ER	Runway Tray, 1000mm, 3,000lm, End of Run, Colour 84
RW10 L37 TW BD	Runway Tray, 1000mm, 3,700lm, Through Wire, Bi-Directional, Colour 84
RW10 L37 ER BD	Runway Tray, 1000mm, 3,700lm, End of Run, Bi-Directional, Colour 84
RW12 L37 TW	Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 L37 ER	Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW12 L53 TW BD	Runway Tray, 1250mm, 5,300lm, Through Wire, Bi-Directional, Colour 84
RW12 L53 ER BD	Runway Tray, 1250mm, 5,300lm, End of Run, Bi-Directional, Colour 84
RW15 L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW15 L60 TW BD	Runway Tray, 1500mm, 6,000lm, Through Wire, Bi-Directional, Colour 84
RW15 L60 ER BD	Runway Tray, 1500mm, 6,000lm, End of Run, Bi-Directional, Colour 84
RW17 L53 TW	Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 L53 ER	Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RW17 L75 TW BD	Runway Tray, 1750mm, 7,500lm, Through Wire, Bi-Directional, Colour 84
RW17 L75 ER BD	Runway Tray, 1750mm, 7,500lm, End of Run, Bi-Directional, Colour 84
RW20 L60 TW	Runway Tray, 2000mm, 6,000lm, Through Wire, Colour 84
RW20 L60 ER	Runway Tray, 2000mm, 6,000lm, End of Run, Colour 84
RW20 L83 TW BD	Runway Tray, 2000mm, 8,300lm, Through Wire, Bi-Directional, Colour 84
RW20 L83 ER BD	Runway Tray, 2000mm, 8,300lm, End of Run, Bi-Directional, Colour 84
RSCO L30 TW ** L GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RSCO L30 ER ** L GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RSCO L30 TW ** R GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RSCO L30 ER ** R GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Optic

Code	Description
RW10 OP	Runway 1000mm Diffuser, Opal
RW10 MP	Runway 1000mm Diffuser, Microprism
RW10 Z20 OP	Runway 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW10 Z20 MP	Runway 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW10 INFILL TW **	Runway 1000mm Infill, Through Wire
RW12 OP	Runway 1250mm Diffuser, Opal
RW12 MP	Runway 1250mm Diffuser, Microprism
RW12 Z20 OP	Runway 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW12 Z20 MP	Runway 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW12 INFILL TW **	Runway 1250mm Infill, Through Wire
RW15 OP	Runway 1500mm Diffuser, Opal
RW15 MP	Runway 1500mm Diffuser, Microprism
RW15 Z20 OP	Runway 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW15 Z20 MP	Runway 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW15 INFILL TW **	Runway 1500mm Infill, Through Wire
RW17 OP	Runway 1750mm Diffuser, Opal
RW17 MP	Runway 1750mm Diffuser, Microprism
RW17 Z20 OP	Runway 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW17 Z20 MP	Runway 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW17 INFILL TW **	Runway 1750mm Infill, Through Wire
RW20 OP	Runway 2000mm Diffuser, Opal
RW20 MP	Runway 2000mm Diffuser, Microprism
RW20 Z20 OP	Runway 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW20 Z20 MP	Runway 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW20 INFILL TW **	Runway 2000mm Infill, Through Wire
RW30 OP	Runway 3000mm Diffuser, Opal
RW30 MP	Runway 3000mm Diffuser, Microprism
RW40 OP	Runway 4000mm Diffuser, Opal
RW40 MP	Runway 4000mm Diffuser, Microprism
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Dimming

Code	Description
A	DALI Digital Addressable Lighting Interface
S	Switch Dimming
D	DSI Digital Dimming
H	HFR Analogue 1-10v
C	Bi-Level Dimming For Standalone Switched Sensor
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code	Description
D44	DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN	DexNET Node, Wireless Node only.
RAS	Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS	Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
LA3D	Lithium DexNET Emergency 3 Hour
LSTR	Lithium Reacta-Link Emergency 3 Hour
LA3RC	Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK CONTINUOUS	Runway Continuous Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
RS EC **	Runway End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Luminaires

CURVE

Code	Description	Power	Llm/W
RC10 L15 ** GY	Runway Curve, 1000mm, 943llm, ** Select Diffuser, Grey, Colour 84	9.7W	97
RC10 L20 ** GY	Runway Curve, 1000mm, 1,293llm, ** Select Diffuser, Grey, Colour 84	12.3W	105
RC10 L30 ** GY	Runway Curve, 1000mm, 1,938llm, ** Select Diffuser, Grey, Colour 84	16.9W	115
RC10 L18 BD ** GY	Runway Curve, 1000mm, 1,098llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	11.0W	100
RC10 L25 BD ** GY	Runway Curve, 1000mm, 1,525llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	14.4W	106
RC10 L37 BD ** GY	Runway Curve, 1000mm, 2,253llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	19.5W	116
RC12 L18 ** GY	Runway Curve, 1250mm, 1,178llm, ** Select Diffuser, Grey, Colour 84	11.1W	106
RC12 L25 ** GY	Runway Curve, 1250mm, 1,604llm, ** Select Diffuser, Grey, Colour 84	13.7W	117
RC12 L37 ** GY	Runway Curve, 1250mm, 2,241llm , ** Select Diffuser, Grey, Colour 84	19.5W	115
RC12 L26 BD ** GY	Runway Curve, 1250mm, 1,635llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	13.7W	119
RC12 L35 BD ** GY	Runway Curve, 1250mm, 2,226llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	18.7W	119
RC12 L53 BD ** GY	Runway Curve, 1250mm, 3,360llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	27.1W	124
RC15 L22 ** GY	Runway Curve, 1500mm, 1,428llm, ** Select Diffuser, Grey, Colour 84	12.4W	115
RC15 L30 ** GY	Runway Curve, 1500mm, 1,925llm, ** Select Diffuser, Grey, Colour 84	15.5W	124
RC15 L45 ** GY	Runway Curve, 1500mm, 2,920llm, ** Select Diffuser, Grey, Colour 84	22.5W	130
RC15 L29 BD ** GY	Runway Curve, 1500mm, 1,835llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	15.1W	122
RC15 L40 BD ** GY	Runway Curve, 1500mm, 2,502llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	20.8W	120
RC15 L60 BD ** GY	Runway Curve, 1500mm, 3,796llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	30.6W	124
RC17 L26 ** GY	Runway Curve, 1750mm, 1,688llm, ** Select Diffuser, Grey, Colour 84	13.7W	123
RC17 L35 ** GY	Runway Curve, 1750mm, 2,312llm, ** Select Diffuser, Grey, Colour 84	18.7W	124
RC17 L53 ** GY	Runway Curve, 1750mm, 3,469llm, ** Select Diffuser, Grey, Colour 84	27.1W	128
RC17 L37 BD ** GY	Runway Curve, 1750mm, 2,208llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	18.1W	122
RC17 L50 BD ** GY	Runway Curve, 1750mm, 3,024llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	25.3W	120
RC17 L75 BD ** GY	Runway Curve, 1750mm, 4,530llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	37.1W	122
RC20 L30 ** GY	Runway Curve, 2000mm, 1,965llm, ** Select Diffuser, Grey, Colour 84	15.1W	130
RC20 L40 ** GY	Runway Curve, 2000mm, 2,691llm, ** Select Diffuser, Grey, Colour 84	20.8W	129
RC20 L60 ** GY	Runway Curve, 2000mm, 4,036llm, ** Select Diffuser, Grey, Colour 84	30.5W	132
RC20 L40 BD ** GY	Runway Curve, 2000mm, 2,540llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	19.7W	127
RC20 L55 BD ** GY	Runway Curve, 2000mm, 3,442llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	27.9W	123
RC20 L83 BD ** GY	Runway Curve, 2000mm, 5,163llm, Bi-Directional, ** Select Diffuser, Grey, Colour 84	41.0W	126
RC30 L44 ** GY	Runway Curve, 3000mm, 4,300lm, ** Select Diffuser, Grey, Colour 84
RC30 L60 ** GY	Runway Curve, 3000mm, 6,000lm, ** Select Diffuser, Grey, Colour 84
RC30 L90 ** GY	Runway Curve, 3000mm, 9,000lm, ** Select Diffuser, Grey, Colour 84
RC30 L60 BD ** GY	Runway Curve, 3000mm, 6,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RC30 L80 BD ** GY	Runway Curve, 3000mm, 8,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RC30 L120 BD ** GY	Runway Curve, 3000mm, 12,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RC40 L60 ** GY	Runway Curve, 4000mm, 6,000lm, ** Select Diffuser, Grey, Colour 84
RC40 L80 ** GY	Runway Curve, 4000mm, 8,000lm, ** Select Diffuser, Grey, Colour 84
RC40 L120 ** GY	Runway Curve, 4000mm, 12,000lm, ** Select Diffuser, Grey, Colour 84
RC40 L80 BD ** GY	Runway Curve, 4000mm, 8,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RC40 L110 BD ** GY	Runway Curve, 4000mm, 11,000lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84
RC40 L166 BD ** GY	Runway Curve, 4000mm, 16,600lm, Bi-Directional, ** Select Diffuser, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Dimming

Code	Description
A	DALI Digital Addressable Lighting Interface
S	Switch Dimming
D	DSI Digital Dimming
H	HFR Analogue 1-10v
C	Bi-Level Dimming For Standalone Switched Sensor
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code	Description
D44	DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN	DexNET Node, Wireless Node only.
RAS	Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS	Reacta-Link Wireless, Presence, 2.5M-5M
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
LA3D	Lithium DexNET Emergency 3 Hour
LSTR	Lithium Reacta-Link Emergency 3 Hour
LA3RC	Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C84, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK STANDALONE	Runway Standalone Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Luminaires

CURVE CONTINUOUS

Code	Description
RS10 ST GY	Runway Trunking 1000mm, Surface / Suspended, Downlight, Start, Grey
RS10 ST BD GY	Runway Trunking 1000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS10 TW GY	Runway Trunking 1000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS10 TW BD GY	Runway Trunking 1000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS12 ST GY	Runway Trunking 1250mm, Surface / Suspended, Downlight, Start, Grey
RS12 ST BD GY	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Start, Grey
RS12 TW GY	Runway Trunking 1250mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS12 TW BD GY	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS15 ST GY	Runway Trunking 1500mm, Surface / Suspended, Downlight, Start, Grey
RS15 ST BD GY	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Start, Grey
RS15 TW GY	Runway Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS15 TW BD GY	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS17 ST GY	Runway Trunking 1750mm, Surface / Suspended, Downlight, Start, Grey
RS17 ST BD GY	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Start, Grey
RS17 TW GY	Runway Trunking 1750mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS17 TW BD GY	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS20 ST GY	Runway Trunking 2000mm, Surface / Suspended, Downlight, Start, Grey
RS20 ST BD GY	Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS20 TW GY	Runway Trunking 2000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS20 TW BD GY	Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS30 ST GY	Runway Trunking 3000mm, Surface / Suspended, Downlight, Start, Grey
RS30 ST BD GY	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS30 TW GY	Runway Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS30 TW BD GY	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey
RS40 ST GY	Runway Trunking 4000mm, Surface / Suspended, Downlight, Start, Grey
RS40 ST BD GY	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Start, Grey
RS40 TW GY	Runway Trunking 4000mm, Surface / Suspended, Downlight, Through Wire and End of Run, Grey
RS40 TW BD GY	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run, Grey

CONTINUOUS RUN GEAR TRAY - Low Output

Code	Description
RW10 L15 ER	Runway Tray, 1000mm, 1,500lm, End of Run, Colour 84
RW10 L15 TW	Runway Tray, 1000mm, 1,500lm, Through Wire, Colour 84
RW10 L18 ER BD	Runway Tray, 1000mm, 1,800lm, End of Run, Bi-Directional, Colour 84
RW10 L18 TW BD	Runway Tray, 1000mm, 1,800lm, Through Wire, Bi-Directional, Colour 84
RW12 L18 ER	Runway Tray, 1250mm, 1,800lm, End of Run, Colour 84
RW12 L18 TW	Runway Tray, 1250mm, 1,800lm, Through Wire, Colour 84
RW12 L26 ER BD	Runway Tray, 1250mm, 2,600lm, End of Run, Bi-Directional, Colour 84
RW12 L26 TW BD	Runway Tray, 1250mm, 2,600lm, Through Wire, Bi-Directional, Colour 84
RW15 L22 ER	Runway Tray, 1500mm, 2,200lm, End of Run, Colour 84
RW15 L22 TW	Runway Tray, 1500mm, 2,200lm, Through Wire, Colour 84
RW15 L29 ER BD	Runway Tray, 1500mm, 2,900lm, End of Run, Bi-Directional, Colour 84
RW15 L29 TW BD	Runway Tray, 1500mm, 2,900lm, Through Wire, Bi-Directional, Colour 84
RW17 L26 ER	Runway Tray, 1750mm, 2,600lm, End of Run, Colour 84
RW17 L26 TW	Runway Tray, 1750mm, 2,600lm, Through Wire, Colour 84
RW17 L37 ER BD	Runway Tray, 1750mm, 3,700lm, End of Run, Bi-Directional, Colour 84
RW17 L37 TW BD	Runway Tray, 1750mm, 3,700lm, Through Wire, Bi-Directional, Colour 84
RW20 L30 ER	Runway Tray, 2000mm, 3,000lm, End of Run, Colour 84
RW20 L30 TW	Runway Tray, 2000mm, 3,000lm, Through Wire, Colour 84
RW20 L40 ER BD	Runway Tray, 2000mm, 4,000lm, End of Run, Bi-Directional, Colour 84
RW20 L40 TW BD	Runway Tray, 2000mm, 4,000lm, Through Wire, Bi-Directional, Grey, Colour 84
RSCO L15 TW ** L GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RSCO L15 ER ** L GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RSCO L15 TW ** R GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RSCO L15 ER ** R GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - Medium Output

Code	Description
RW10 L20 TW	Runway Tray, 1000mm, 2,000lm, Through Wire, Colour 84
RW10 L20 ER	Runway Tray, 1000mm, 2,000lm, End of Run, Colour 84
RW10 L25 TW BD	Runway Tray, 1000mm, 2,500lm, Through Wire, Bi-Directional, Colour 84
RW10 L25 ER BD	Runway Tray, 1000mm, 2,500lm, End of Run, Bi-Directional, Colour 84
RW12 L25 TW	Runway Tray, 1250mm, 2,500lm, Through Wire, Colour 84
RW12 L25 ER	Runway Tray, 1250mm, 2,500lm, End of Run, Colour 84
RW12 L35 TW BD	Runway Tray, 1250mm, 3,500lm, Through Wire, Bi-Directional, Colour 84
RW12 L35 ER BD	Runway Tray, 1250mm, 3,500lm, End of Run, Bi-Directional, Colour 84
RW15 L30 TW	Runway Tray, 1500mm, 3,000lm, Through Wire, Colour 84
RW15 L30 ER	Runway Tray, 1500mm, 3,000lm, End of Run, Colour 84
RW15 L40 TW BD	Runway Tray, 1500mm, 4,000lm, Through Wire, Bi-Directional, Colour 84
RW15 L40 ER BD	Runway Tray, 1500mm, 4,000lm, End of Run, Bi-Directional, Colour 84
RW17 L35 TW	Runway Tray, 1750mm, 3,500lm, Through Wire, Colour 84
RW17 L35 ER	Runway Tray, 1750mm, 3,500lm, End of Run, Colour 84
RW17 L50 TW BD	Runway Tray, 1750mm, 5,000lm, Through Wire, Bi-Directional, Colour 84
RW17 L50 ER BD	Runway Tray, 1750mm, 5,000lm, End of Run, Bi-Directional, Colour 84
RW20 L40 TW	Runway Tray, 2000mm, 4,000lm, Through Wire, Colour 84
RW20 L40 ER	Runway Tray, 2000mm, 4,000lm, End of Run, Colour 84
RW20 L55 TW BD	Runway Tray, 2000mm, 5,500lm, Through Wire, Bi-Directional, Colour 84
RW20 L55 ER BD	Runway Tray, 2000mm, 5,500lm, End of Run, Bi-Directional, Colour 84
RSCO L20 TW ** L GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RSCO L20 ER ** L GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RSCO L20 TW ** R GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RSCO L20 ER ** R GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - High Output

Code	Description
RW10 L30 TW	Runway Tray, 1000mm, 3,000lm, Through Wire, Colour 84
RW10 L30 ER	Runway Tray, 1000mm, 3,000lm, End of Run, Colour 84
RW10 L37 TW BD	Runway Tray, 1000mm, 3,700lm, Through Wire, Bi-Directional, Colour 84
RW10 L37 ER BD	Runway Tray, 1000mm, 3,700lm, End of Run, Bi-Directional, Colour 84
RW12 L37 TW	Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 L37 ER	Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW12 L53 TW BD	Runway Tray, 1250mm, 5,300lm, Through Wire, Bi-Directional, Colour 84
RW12 L53 ER BD	Runway Tray, 1250mm, 5,300lm, End of Run, Bi-Directional, Colour 84
RW15 L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW15 L60 TW BD	Runway Tray, 1500mm, 6,000lm, Through Wire, Bi-Directional, Colour 84
RW15 L60 ER BD	Runway Tray, 1500mm, 6,000lm, End of Run, Bi-Directional, Colour 84
RW17 L53 TW	Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 L53 ER	Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RW17 L75 TW BD	Runway Tray, 1750mm, 7,500lm, Through Wire, Bi-Directional, Colour 84
RW17 L75 ER BD	Runway Tray, 1750mm, 7,500lm, End of Run, Bi-Directional, Colour 84
RW20 L60 TW	Runway Tray, 2000mm, 6,000lm, Through Wire, Colour 84
RW20 L60 ER	Runway Tray, 2000mm, 6,000lm, End of Run, Colour 84
RW20 L83 TW BD	Runway Tray, 2000mm, 8,300lm, Through Wire, Bi-Directional, Colour 84
RW20 L83 ER BD	Runway Tray, 2000mm, 8,300lm, End of Run, Bi-Directional, Colour 84
RSCO L30 TW ** L GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, Through Wire, Left, Colour 84
RSCO L30 ER ** L GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, End of Run, Left, Colour 84
RSCO L30 TW ** R GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, Through Wire, Right, Colour 84
RSCO L30 ER ** R GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, End of Run, Right, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Optic

Code	Description
RW10 OP	Runway 1000mm Diffuser, Opal, for mid run
RW10 MP	Runway 1000mm Diffuser, Microprism, for mid run
RC10 OP	Runway Curve 1000mm Diffuser, Opal, for end of run
RC10 MP	Runway Curve1000mm Diffuser, Microprism, for end of run
RW10 Z20 OP	Runway 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal mid run
RW10 Z20 MP	Runway 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism mid run
RC10 Z20 OP	Runway Curve1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal end of run
RC10 Z20 MP	Runway Curve 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism end of run
RW10 INFILL TW **	Runway 1000mm Infill, Through Wire
RW12 OP	Runway 1250mm Diffuser, Opal, for mid run
RW12 MP	Runway 1250mm Diffuser, Microprism, for mid run
RC12 OP	Runway Curve 1250mm Diffuser, Opal, for end of run
RC12 MP	Runway Curve 1250mm Diffuser, Microprism, for end of run
RW12 Z20 OP	Runway 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal mid run
RW12 Z20 MP	Runway 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism mid run
RC12 Z20 OP	Runway Curve 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal end of run
RC12 Z20 MP	Runway Curve 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism end of run
RW12 INFILL TW **	Runway 1250mm Infill, Through Wire
RW15 OP	Runway 1500mm Diffuser, Opal, for mid run
RW15 MP	Runway 1500mm Diffuser, Microprism, for mid run
RC15 OP	Runway Curve 1500mm Diffuser, Opal, for end of run
RC15 MP	Runway Curve 1500mm Diffuser, Microprism, for end of run
RW15 Z20 OP	Runway 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal mid run
RW15 Z20 MP	Runway 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism mid run
RC15 Z20 OP	Runway Curve 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal end of run
RC15 Z20 MP	Runway Curve 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism end of run
RW15 INFILL TW **	Runway 1500mm Infill, Through Wire
RW17 OP	Runway 1750mm Diffuser, Opal, for mid run
RW17 MP	Runway 1750mm Diffuser, Microprism, for mid run
RC17 OP	Runway Curve 1750mm Diffuser, Opal, for end of run
RC17 MP	Runway Curve 1750mm Diffuser, Microprism, for end of run
RW17 Z20 OP	Runway 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal mid run
RW17 Z20 MP	Runway 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism mid run
RC17 Z20 OP	Runway Curve 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal end of run
RC17 Z20 MP	Runway Curve 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism end of run
RW17 INFILL TW **	Runway 1750mm Infill, Through Wire
RW20 OP	Runway 2000mm Diffuser, Opal, for mid run
RW20 MP	Runway 2000mm Diffuser, Microprism, for mid run
RC20 OP	Runway Curve 2000mm Diffuser, Opal, for end of run
RC20 MP	Runway Curve 2000mm Diffuser, Microprism, for end of run
RW20 Z20 OP	Runway 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal mid run
RW20 Z20 MP	Runway 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism mid run
RC20 Z20 OP	Runway Curve 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal end of run
RC20 Z20 MP	Runway Curve 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism end of run
RW20 INFILL TW **	Runway 2000mm Infill, Through Wire
RW30 OP	Runway 3000mm Diffuser, Opal, for mid run
RW30 MP	Runway 3000mm Diffuser, Microprism, for mid run
RC30 OP	Runway Curve 3000mm Diffuser, Opal, for end of run
RC30 MP	Runway Curve 3000mm Diffuser, Microprism, for end of run
RW40 OP	Runway 4000mm Diffuser, Opal, for mid run
RW40 MP	Runway 4000mm Diffuser, Microprism, for mid run
RC40 OP	Runway Curve 4000mm Diffuser, Opal, for end of run
RC40 MP	Runway Curve 4000mm Diffuser, Microprism, for end of run
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Dimming

Code	Description
A	DALI Digital Addressable Lighting Interface
S	Switch Dimming
D	DSI Digital Dimming
H	HFR Analogue 1-10v
C	Bi-Level Dimming For Standalone Switched Sensor
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code	Description
D44	DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN	DexNET Node, Wireless Node only.
RAS	Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS	Reacta-Link Wireless, Presence, 2.5M-5M
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
LA3D	Lithium DexNET Emergency 3 Hour
LSTR	Lithium Reacta-Link Emergency 3 Hour
LA3RC	Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C84, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RWY SMK CONTINUOUS	Runway Continuous Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
RC EC **	Runway Curve End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Luminaires

RECESSED

Code	Description	Power	Llm/W
RR10 L15 ** GY	Runway, 1000mm, 943llm, ** Select Diffuser, Grey, Colour 84	9.7W	97
RR10 L20 ** GY	Runway, 1000mm, 1,293llm, ** Select Diffuser, Grey, Colour 84	12.3W	105
RR10 L30 ** GY	Runway, 1000mm, 1,938llm, ** Select Diffuser, Grey, Colour 84	16.9W	115
RR12 L18 ** GY	Runway, 1250mm, 1,178llm, ** Select Diffuser, Grey, Colour 84	11.1W	106
RR12 L25 ** GY	Runway, 1250mm, 1,604llm, ** Select Diffuser, Grey, Colour 84	13.7W	117
RR12 L37 ** GY	Runway, 1250mm, 2,421llm, ** Select Diffuser, Grey, Colour 84	19.5W	124
RR15 L22 ** GY	Runway, 1500mm, 1,428llm, ** Select Diffuser, Grey, Colour 84	12.4W	115
RR15 L30 ** GY	Runway, 1500mm, 1,925llm, ** Select Diffuser, Grey, Colour 84	15.5W	124
RR15 L45 ** GY	Runway, 1500mm, 2,920llm, ** Select Diffuser, Grey, Colour 84	22.5W	130
RR17 L26 ** GY	Runway, 1750mm, 1,688llm, ** Select Diffuser, Grey, Colour 84	13.7W	123
RR17 L35 ** GY	Runway, 1750mm, 2,312llm, ** Select Diffuser, Grey, Colour 84	18.7W	124
RR17 L53 ** GY	Runway, 1750mm, 3,469llm, ** Select Diffuser, Grey, Colour 84	27.1W	128
RR20 L30 ** GY	Runway, 2000mm, 1,965llm, ** Select Diffuser, Grey, Colour 84	15.1W	130
RR20 L40 ** GY	Runway, 2000mm, 2,691llm, ** Select Diffuser, Grey, Colour 84	20.8W	129
RR20 L60 ** GY	Runway, 2000mm, 4,036llm, ** Select Diffuser, Grey, Colour 84	30.5W	132
RR30 L44 ** GY	Runway, 3000mm, 4,400lm, ** Select Diffuser, Grey, Colour 84
RR30 L60 ** GY	Runway, 3000mm, 6,000lm, ** Select Diffuser, Grey, Colour 84
RR30 L90 ** GY	Runway, 3000mm, 9,000lm, ** Select Diffuser, Grey, Colour 84
RR40 L60 ** GY	Runway, 4000mm, 6,000lm, ** Select Diffuser, Grey, Colour 84
RR40 L80 ** GY	Runway, 4000mm, 8,000lm, ** Select Diffuser, Grey, Colour 84
RR40 L120 ** GY	Runway, 4000mm, 12,000lm, ** Select Diffuser, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Dimming

Code	Description
A	DALI Digital Addressable Lighting Interface
S	Switch Dimming
D	DSI Digital Dimming
H	HFR Analogue 1-10v
C	Bi-Level Dimming For Standalone Switched Sensor

Control

Code	Description
D44	DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN	DexNET Node, Wireless Node only.
RAS	Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS	Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
LA3D	Lithium DexNET Emergency 3 Hour
LSTR	Lithium Reacta-Link Emergency 3 Hour
LA3RC	Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Luminaires

RECESSED CONTINUOUS

Code	Description
RR10 ST GY	Runway Trunking, 1000mm, Recessed, Start, Grey
RR10 TW GY	Runway Trunking, 1000mm, Recessed, Through Wire and End of Run, Grey
RR12 ST GY	Runway Trunking, 1250mm, Recessed, Start, Grey
RR12 TW GY	Runway Trunking, 1250mm, Recessed, Through Wire and End of Run, Grey
RR15 ST GY	Runway Trunking, 1500mm, Recessed, Start, Grey
RR15 TW GY	Runway Trunking, 1500mm, Recessed, Through Wire and End of Run, Grey
RR17 ST GY	Runway Trunking, 1750mm, Recessed, Start, Grey
RR17 TW GY	Runway Trunking, 1750mm, Recessed, Through Wire and End of Run, Grey
RR20 ST GY	Runway Trunking, 2000mm, Recessed, Start, Grey
RR20 TW GY	Runway Trunking, 2000mm, Recessed, Through Wire and End of Run, Grey
RR30 ST GY	Runway Trunking, 3000mm, Recessed, Start, Grey
RR30 TW GY	Runway Trunking, 3000mm, Recessed, Through Wire and End of Run, Grey
RR40 ST GY	Runway Trunking, 4000mm, Recessed, Start, Grey
RR40 TW GY	Runway Trunking, 4000mm, Recessed, Through Wire and End of Run, Grey

CONTINUOUS RUN GEAR TRAY - Low Output

Code	Description
RW10 L15 TW	Runway Tray, 1000mm, 1,500lm, Through Wire, Colour 84
RW10 L15 ER	Runway Tray, 1000mm, 1,500lm, End of Run, Colour 84
RW12 L18 TW	Runway Tray, 1250mm, 1,800lm, Through Wire, Colour 84
RW12 L18 ER	Runway Tray, 1250mm, 1,800lm, End of Run, Colour 84
RW15 L22 TW	Runway Tray, 1500mm, 2,200lm, Through Wire, Colour 84
RW15 L22 ER	Runway Tray, 1500mm, 2,200lm, End of Run, Colour 84
RW17 L26 TW	Runway Tray, 1750mm, 2,600lm, Through Wire, Colour 84
RW17 L26 ER	Runway Tray, 1750mm, 2,600lm, End of Run, Colour 84
RW20 L30 TW	Runway Tray, 2000mm, 3,000lm, Through Wire, Colour 84
RW20 L30 ER	Runway Tray, 2000mm, 3,000lm, End of Run, Colour 84
RRCO L15 TW ** L GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RRCO L15 ER ** L GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RRCO L15 TW ** R GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RRCO L15 ER ** R GY	Runway Corner 90°, 1,500lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - Medium Output

Code	Description
RW10 L20 TW	Runway Tray, 1000mm, 2,000lm, Through Wire, Colour 84
RW10 L20 ER	Runway Tray, 1000mm, 2,000lm, End of Run, Colour 84
RW12 L25 TW	Runway Tray, 1250mm, 2,500lm, Through Wire, Colour 84
RW12 L25 ER	Runway Tray, 1250mm, 2,500lm, End of Run, Colour 84
RW15 L30 TW	Runway Tray, 1500mm, 3,000lm, Through Wire, Colour 84
RW15 L30 ER	Runway Tray, 1500mm, 3,000lm, End of Run, Colour 84
RW17 L35 TW	Runway Tray, 1750mm, 3,500lm, Through Wire, Colour 84
RW17 L35 ER	Runway Tray, 1750mm, 3,500lm, End of Run, Colour 84
RW20 L40 TW	Runway Tray, 2000mm, 4,000lm, Through Wire, Colour 84
RW20 L40 ER	Runway Tray, 2000mm, 4,000lm, End of Run, Colour 84
RRCO L20 TW ** L GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RRCO L20 ER ** L GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RRCO L20 TW ** R GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RRCO L20 ER ** R GY	Runway Corner 90°, 2,000lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - High Output

Code	Description
RW10 L30 TW	Runway Tray, 1000mm, 3,000lm, Through Wire, Colour 84
RW10 L30 ER	Runway Tray, 1000mm, 3,000lm, End of Run, Colour 84
RW12 L37 TW	Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 L37 ER	Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW15 L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW17 L53 TW	Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 L53 ER	Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RW20 L60 TW	Runway Tray, 2000mm, 6,000lm, Through Wire, Colour 84
RW20 L60 ER	Runway Tray, 2000mm, 6,000lm, End of Run, Colour 84
RRCO L30 TW ** L GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, Through Wire, Left, Grey, Colour 84
RRCO L30 ER ** L GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, End of Run, Left, Grey, Colour 84
RRCO L30 TW ** R GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, Through Wire, Right, Grey, Colour 84
RRCO L30 ER ** R GY	Runway Corner 90°, 3,000lm, ** Select Diffuser, End of Run, Right, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Optic

Code	Description
RW10 OP	Runway 1000mm Diffuser, Opal
RW10 MP	Runway 1000mm Diffuser, Microprism
RW10 Z20 OP	Runway 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW10 Z20 MP	Runway 1000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW10 INFILL TW **	Runway Recessed 1000mm Infill, Through Wire
RW12 OP	Runway 1250mm Diffuser, Opal
RW12 MP	Runway 1250mm Diffuser, Microprism
RW12 Z20 OP	Runway 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW12 Z20 MP	Runway 1250mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW12 INFILL TW **	Runway Recessed 1250mm Infill, Through Wire
RW15 OP	Runway 1500mm Diffuser, Opal
RW15 MP	Runway 1500mm Diffuser, Microprism
RW15 Z20 OP	Runway 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW15 Z20 MP	Runway 1500mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW15 INFILL TW **	Runway Recessed 1500mm Infill, Through Wire
RW17 OP	Runway 1750mm Diffuser, Opal
RW17 MP	Runway 1750mm Diffuser, Microprism
RW17 Z20 OP	Runway 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW17 Z20 MP	Runway 1750mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW17 INFILL TW **	Runway Recessed 1750mm Infill, Through Wire
RW20 OP	Runway 2000mm Diffuser, Opal
RW20 MP	Runway 2000mm Diffuser, Microprism
RW20 Z20 OP	Runway 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Opal
RW20 Z20 MP	Runway 2000mm Diffuser, D44, RAS, RLS, RCS Sensor, Microprism
RW20 INFILL TW **	Runway Recessed 2000mm Infill, Through Wire
RW30 OP	Runway 3000mm Diffuser, Opal
RW30 MP	Runway 3000mm Diffuser, Microprism
RW40 OP	Runway 4000mm Diffuser, Opal
RW40 MP	Runway 4000mm Diffuser, Microprism
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Dimming

Code	Description
A	DALI Digital Addressable Lighting Interface
S	Switch Dimming
D	DSI Digital Dimming
H	HFR Analogue 1-10v
C	Bi-Level Dimming For Standalone Switched Sensor
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Control

Code	Description
D44	DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN	DexNET Node, Wireless Node only.
RAS	Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLS	Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
LA3D	Lithium DexNET Emergency 3 Hour
LSTR	Lithium Reacta-Link Emergency 3 Hour
LA3RC	Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
RR EC **	Runway End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Downloads

Product Datasheet Runway Suspended/Surface Continuous Run Installati Runway Suspended/Surface Standalone Installation Runway Recessed Standalone/Continuous Run Installa Runway Curve Standalone Installation Revit Files Dialux Files Relux Files

Find out more about
Runway

For Sales and Technical Enquires call 01747 858100

Submit enquiry

Runway

Specification

Construction

Performance

Environmental

Emergency

Control

Installation

Variations

Product Images

Runway in action

Case studies

Skopes

Specialized

Campus for Future Living

Technical

Ordering.

Luminaires

Dimming

Control

Emergency

Miscellaneous

Luminaires

Optic

Dimming

Control

Emergency

Miscellaneous

Luminaires

Dimming

Control

Emergency

Miscellaneous

Luminaires

Optic

Dimming

Control

Emergency

Miscellaneous

Luminaires

Dimming

Control

Emergency

Miscellaneous

Luminaires

Optic

Dimming

Control

Emergency

Miscellaneous

Downloads

Find out more about Runway

Find out more about
Runway
