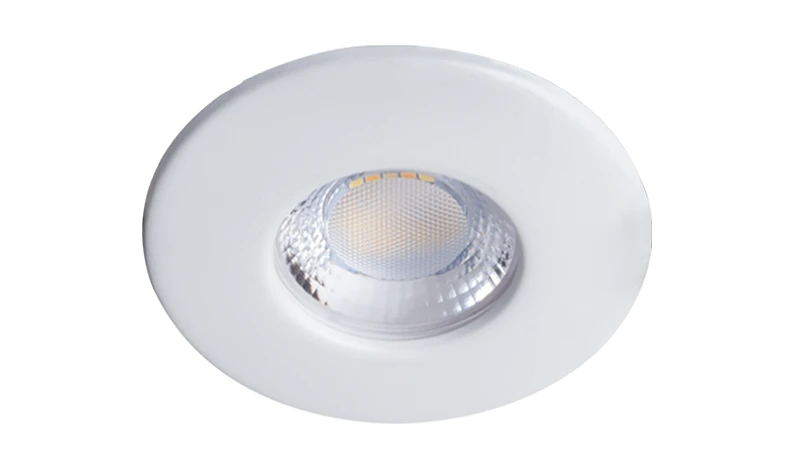

PROTEC FIRE RATED DOWNLIGHT
The Protec Fire Rated Downlight has now been updated to provide maximum flexibility from a single product variant.
Introduction

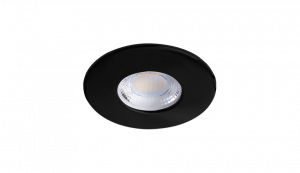

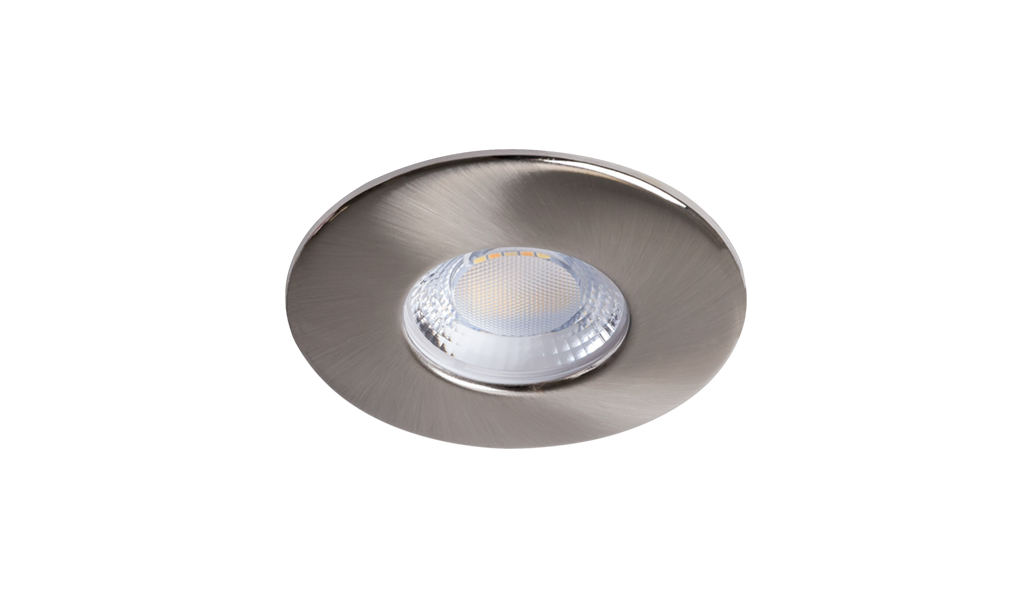

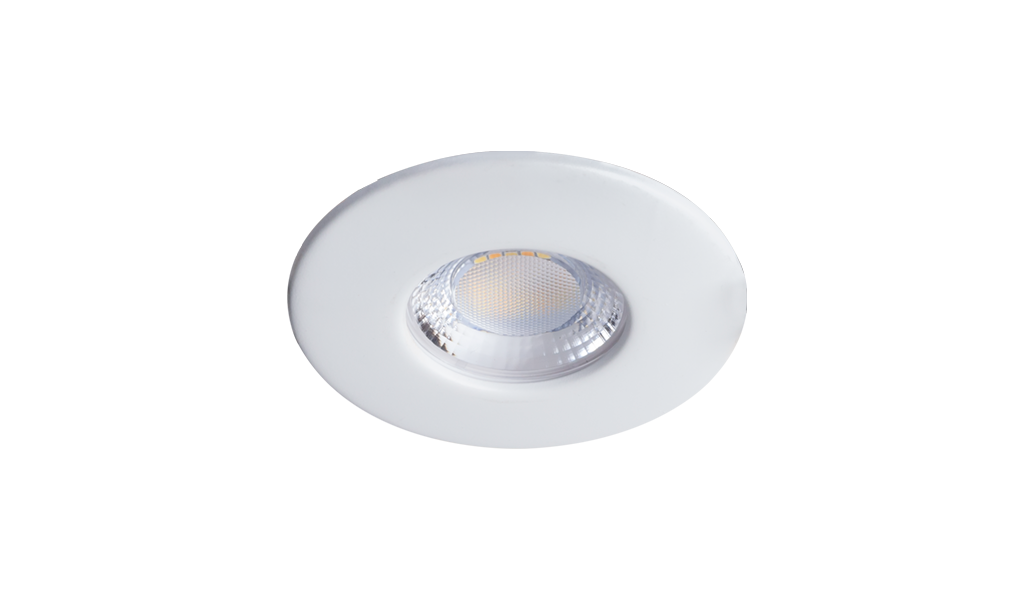

The Protec Fire Rated Downlight offers maximum flexibility from a single luminaire. With a range of snap on bezels in black, white and brushed aluminium supplied complete with each fixture, and adjustable colour temperatures of 3000, 4000 and 5000 kelvin, the Protec Fire Rated Downlight allows a single product to be ordered to suit a wide range of aesthetic requirements, greatly simplifying the ordering and installation process. The Protec is supplied with a phase cut and analogue dimming driver as standard.
The Protect Fire Rated Downlight also offers 90 minute fire rated certification and IP65 dust and water proof protection ensuring suitability for a wide range of applications. Infill rings are available on request for retrofit applications to ensure suitability for existing ceiling cut outs.
Complies with:
UKCA | CE | NEW | IP65
Recommended applications:
Canteen | Commercial / Offices | Corridor | Display Lighting | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Toilet | Transport | Warehousing
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: White, black or brushed chrome bezels
- Lens: Injection moulded PMMA lens
- IP65
- 90 minute fire rating.
Performance
- Part L2 compliant
- Up to 96 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- HFR 1-10V analogue dimming and phase cut dimming
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
- Suitable for metal ceiling tile installation

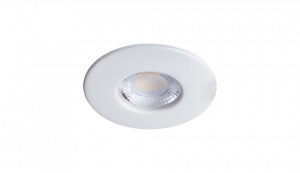

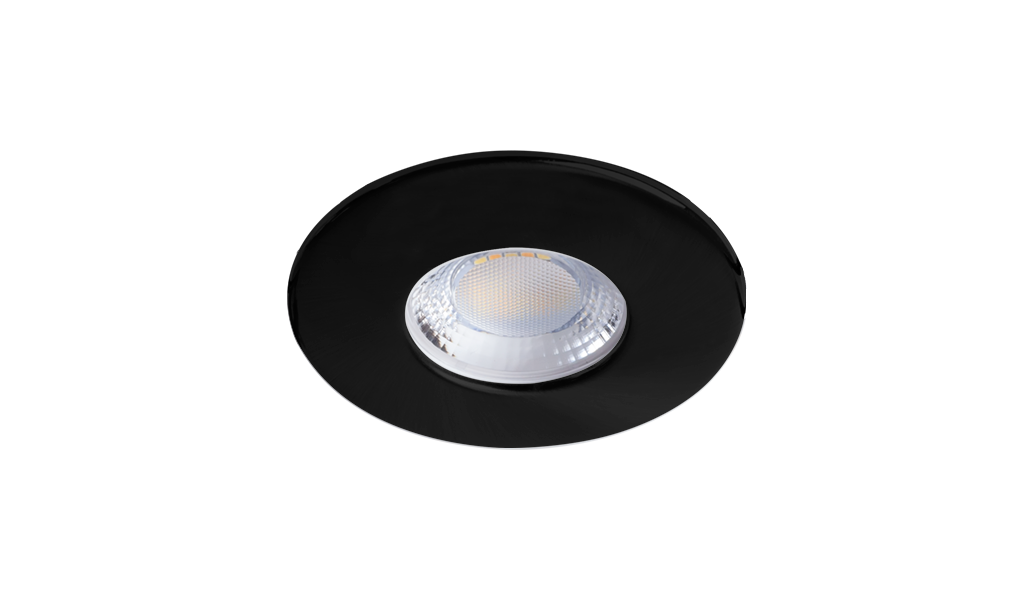

Product Images

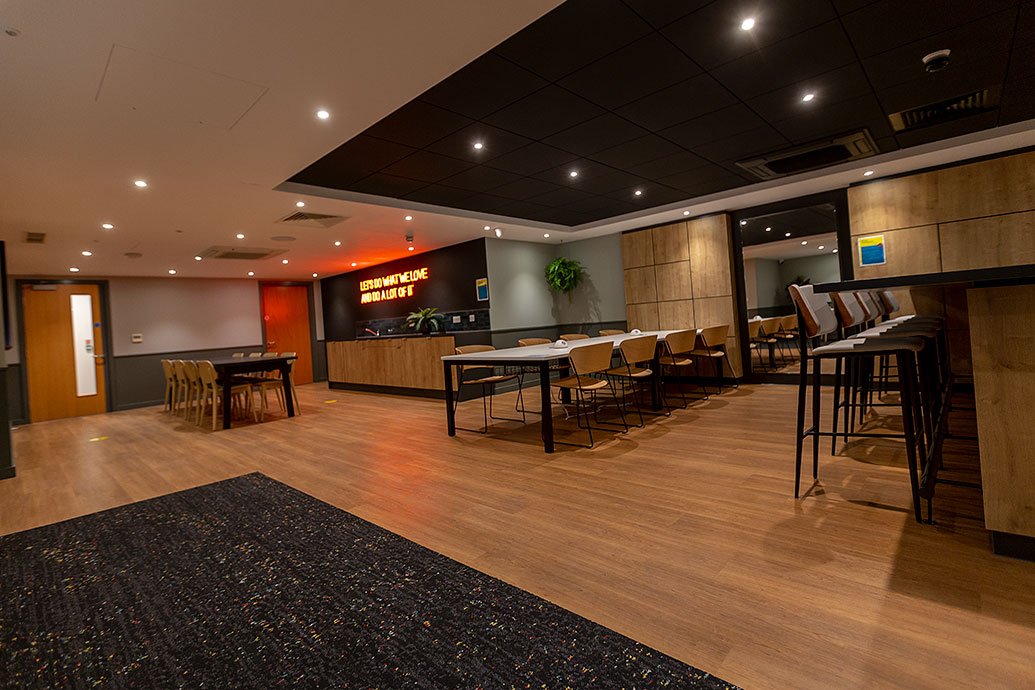

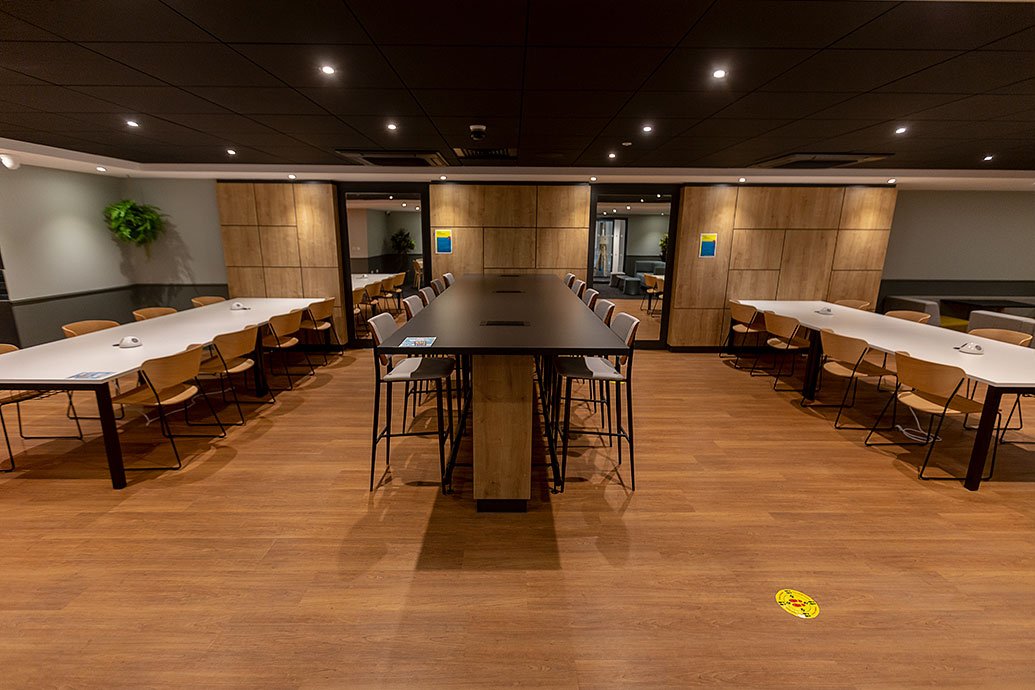

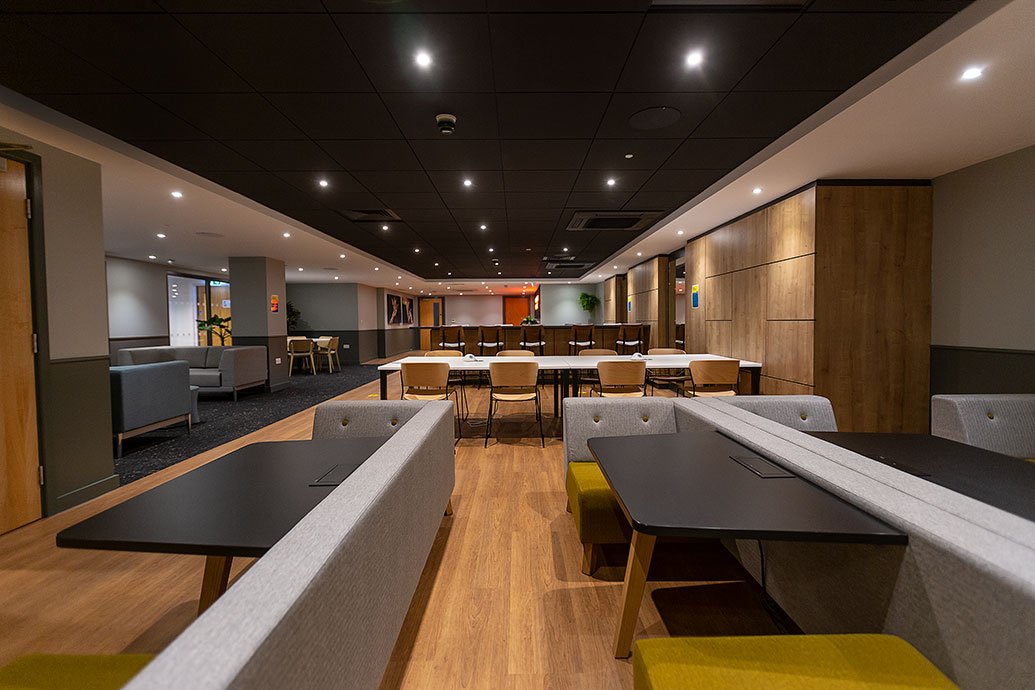

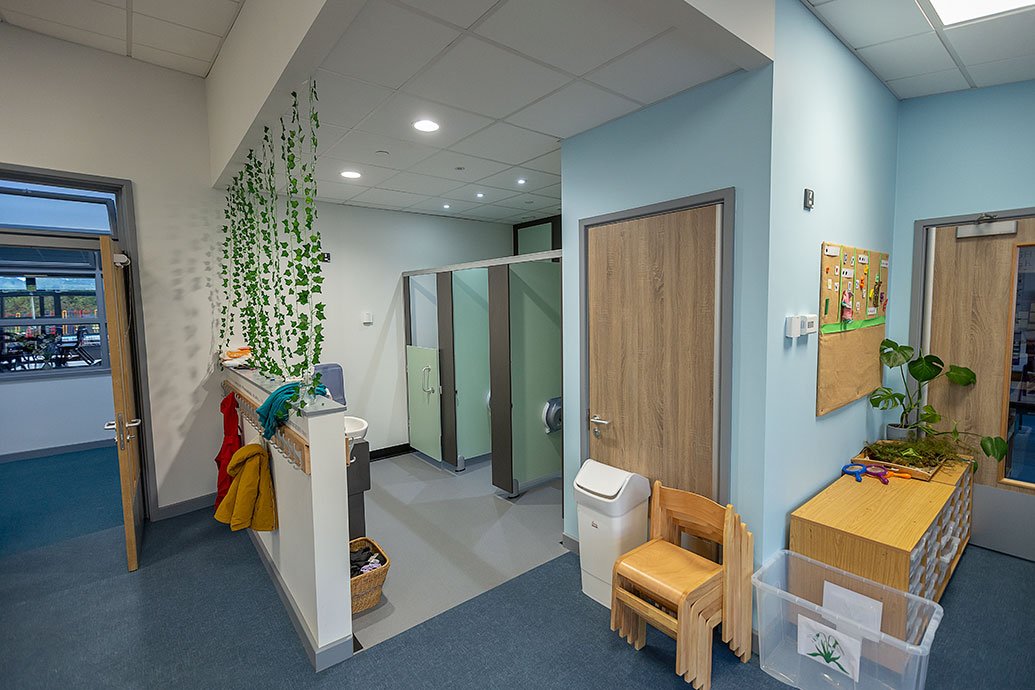

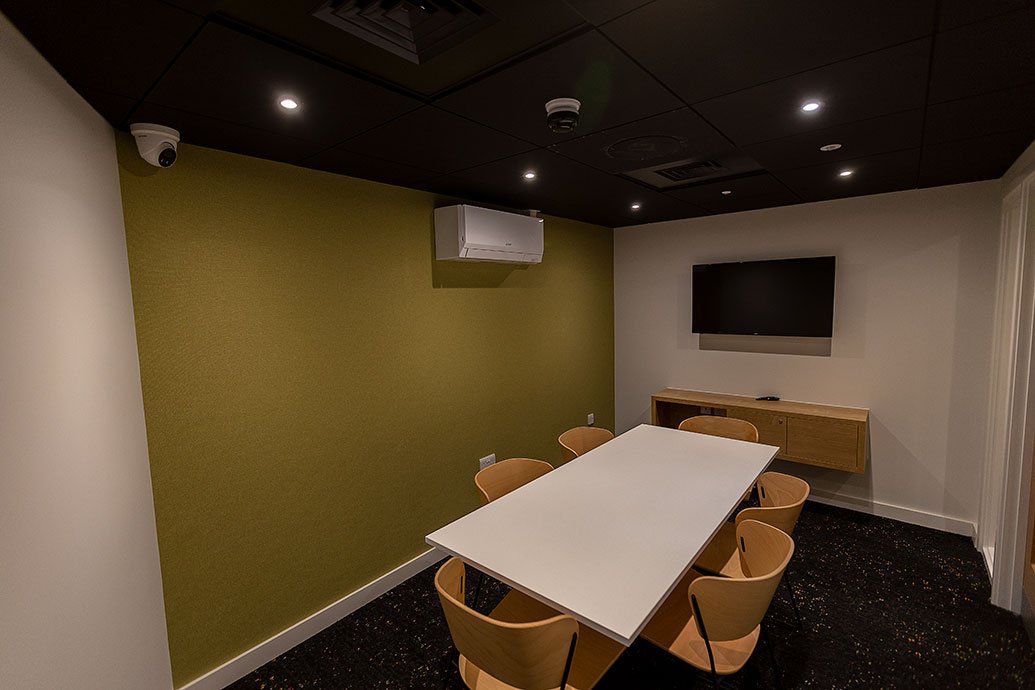

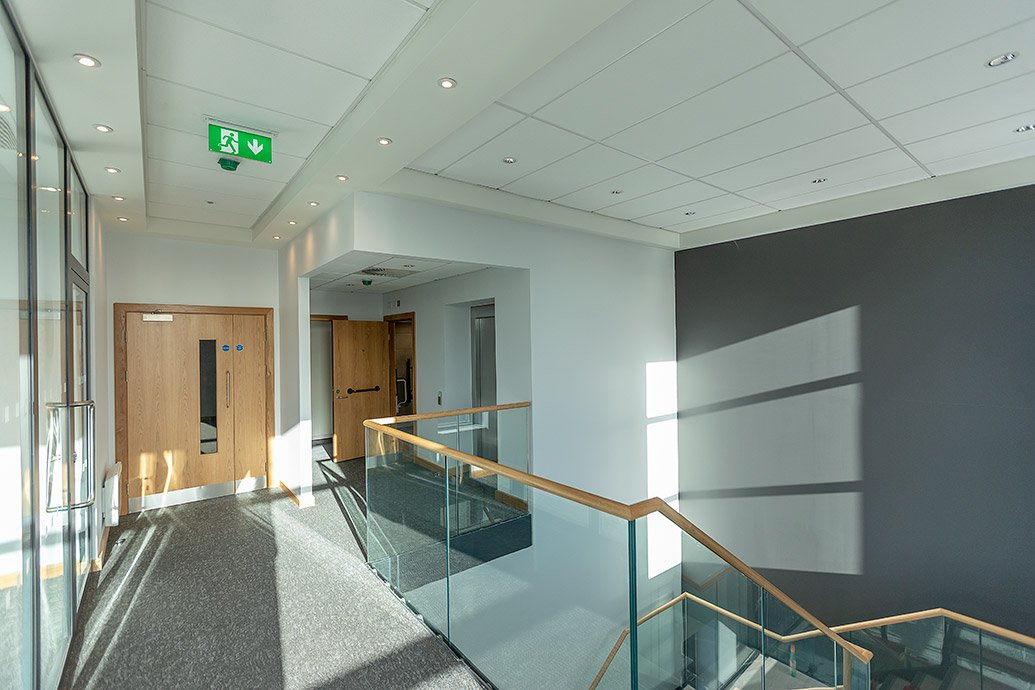

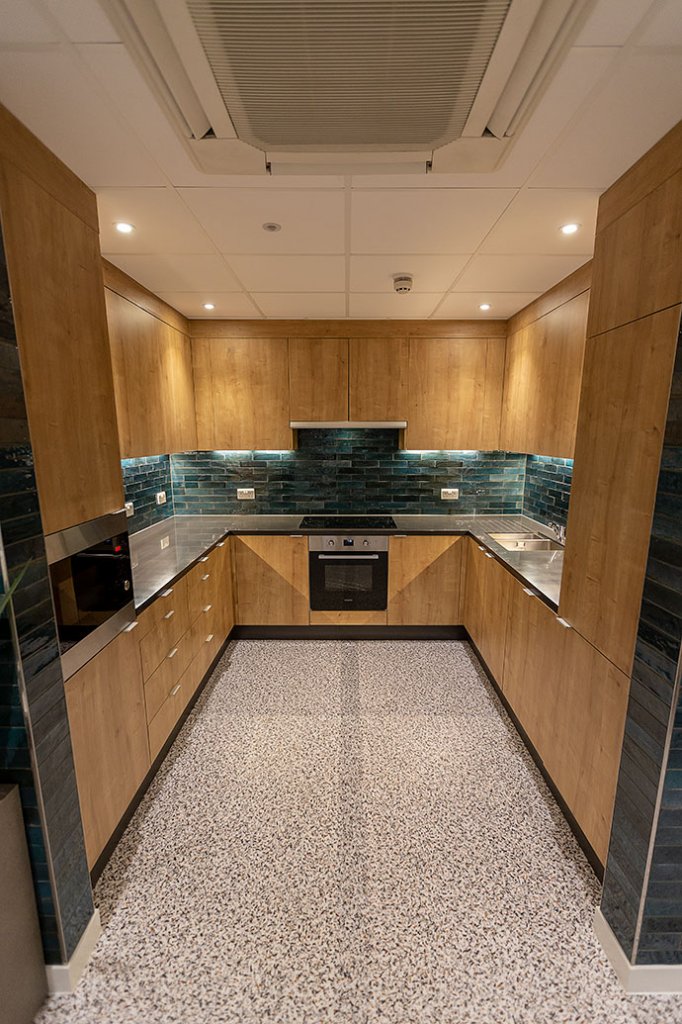

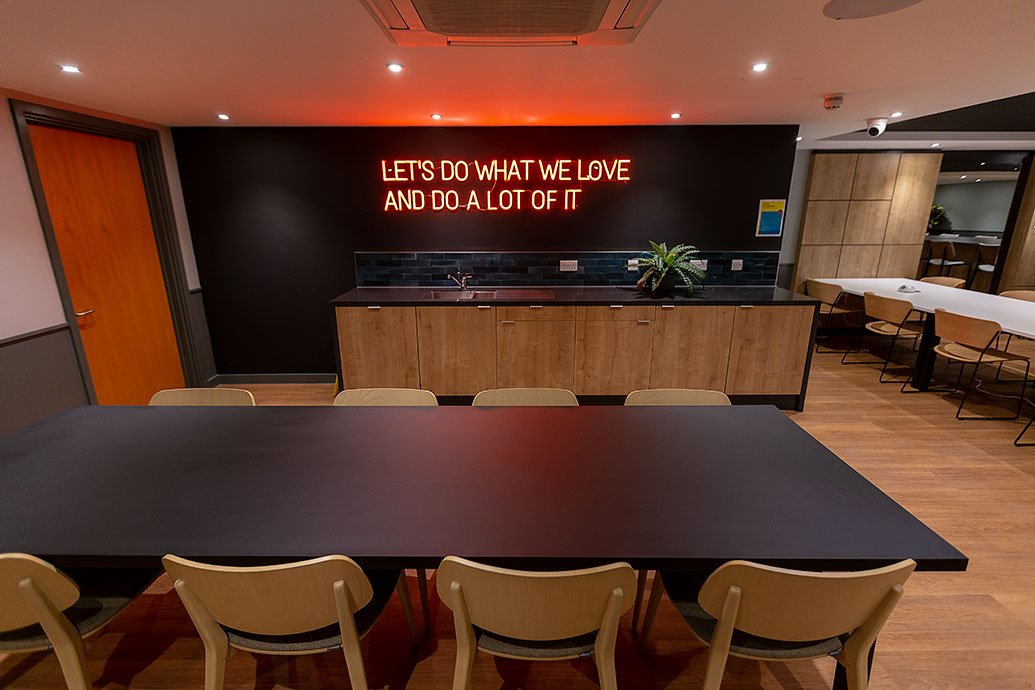

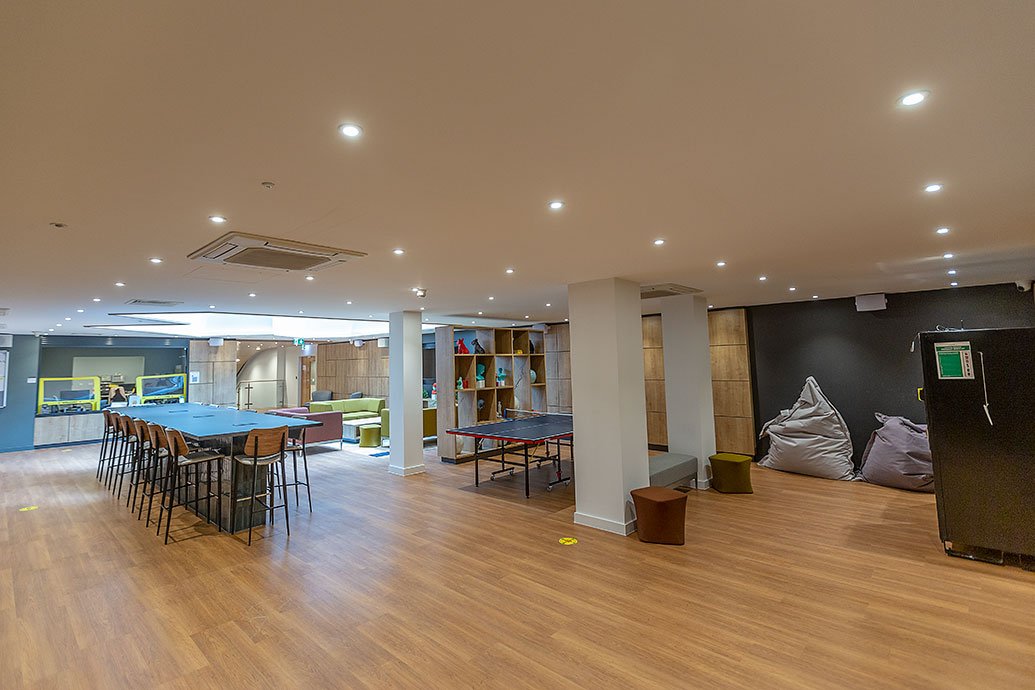

PROTEC FIRE RATED DOWNLIGHT in action

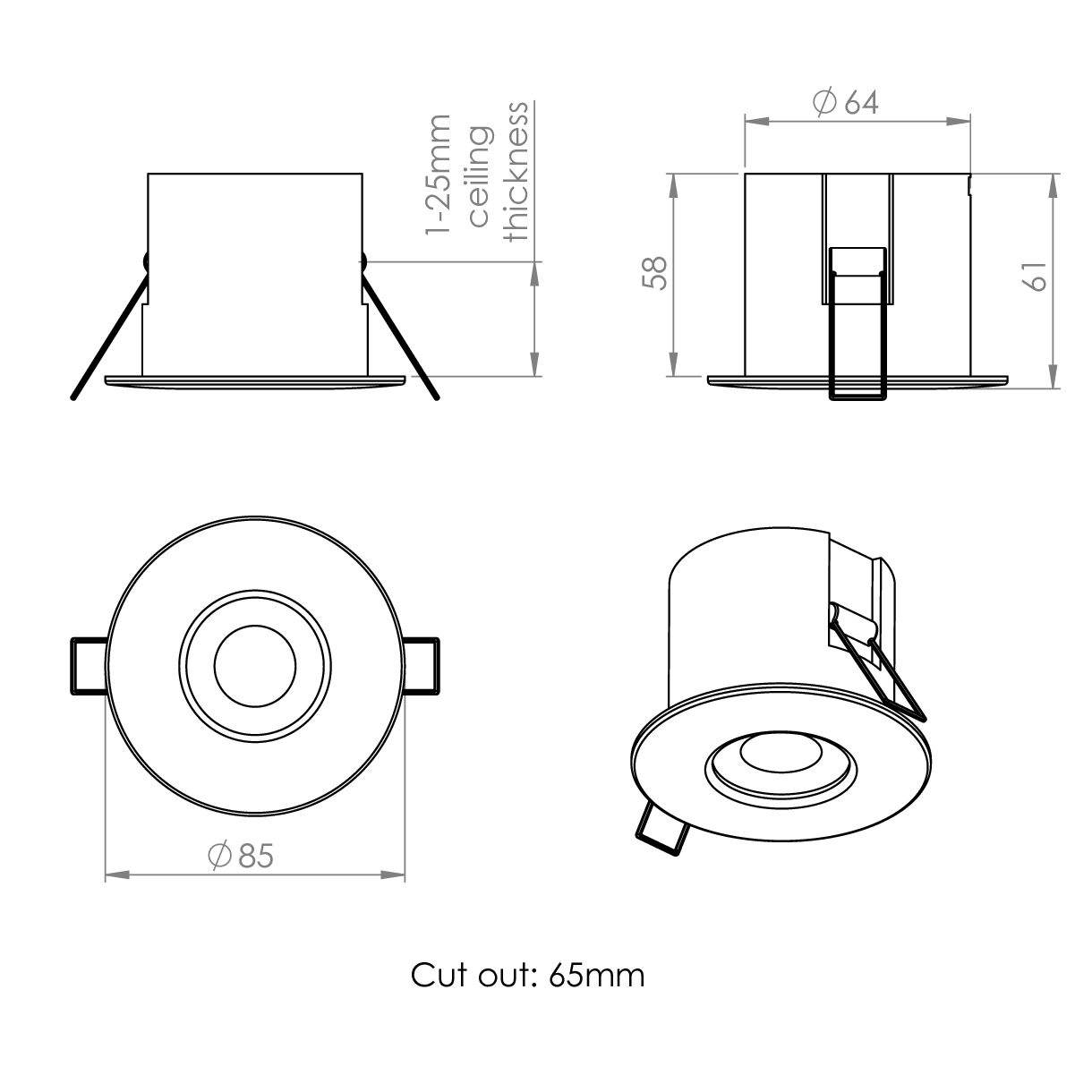

Technical
Protec Fire Rated Downlight
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
Miscellaneous
| Code | Description |
|---|---|
| INFILL | Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering. |
Downloads
Find out more about
PROTEC FIRE RATED DOWNLIGHT
