TWS IP65 L7

The TWS IP65 L7 offers a flexible emergency lighting solution with lithium batteries, in standard, self test, autotest and central battery variants.

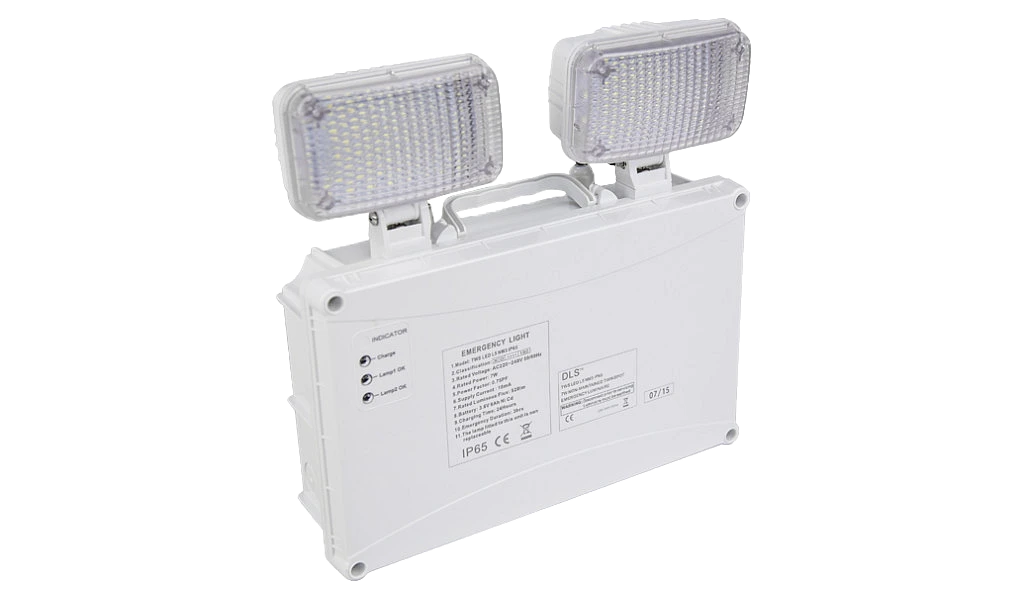

TWS IP65 L7 FEATURED

Introduction

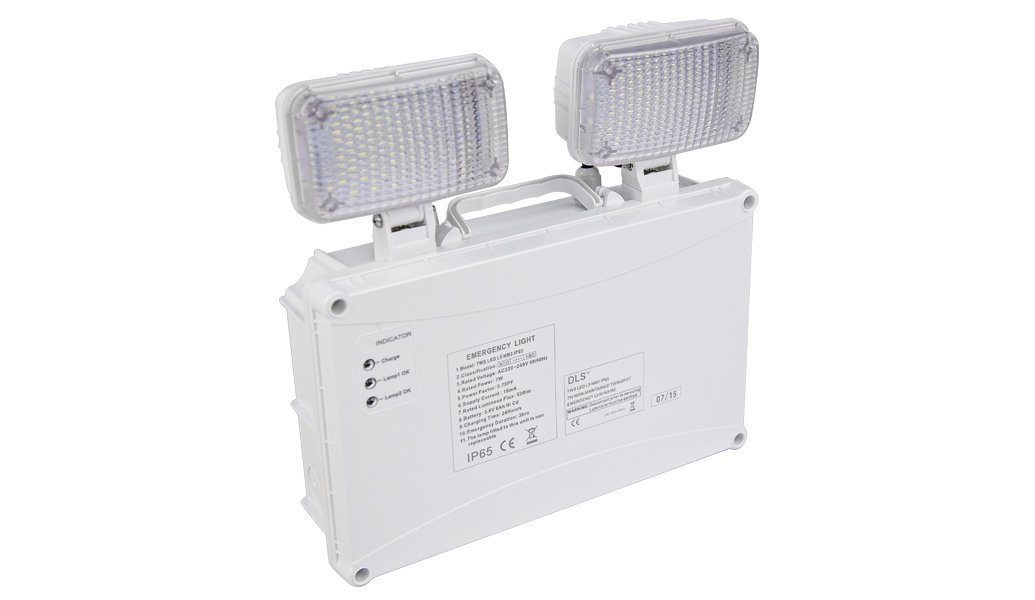

The Twinspot IP65 L7 offers a flexible emergency lighting solution with minimal energy consumption and the reliability of an LED source eliminating the need for lamp replacement. The Twinspot IP65 L7 also incorporates a Lithium battery for extended battery life and reduced maintenance costs. With a polycarbonate IP65 housing the Twinspot IP65 L7 is robust and resistant to dirt, dust and water ensuring it is suited to a wide range of applications such as warehousing, manufacturing and industry. The Twinspot IP65 L7 is also available in standard emergency, self test and autotest DALI variants as well as central battery compatible options.





Complies with:

UKCA | CE | IP65 | IK08

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Exterior | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Parking / Exterior | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate
  • Finish: Matt white
  • Diffuser: Injection moulded clear polycarbonate
  • IK08
  • IP65

Environmental

  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Installation

  • Suitable for trunking installation
  • Suitable for surface installation
Find out more about our 5 year extended warranty
Arrow right

Product Images

Case studies

Technical

TWS IP65 L7

TWS IP65 L7

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power
TWS IP65 L7 NM3 LE3 Twin Spot, IP65, 760llm, Non-Maintained, Lithium Standard Emergency 3 Hour 3.0W
TWS IP65 L7 NM3 LS3 Twin Spot, IP65, 760llm, Non-Maintained Lithium Self Test Emergency 3 Hour 3.0W
TWS IP65 L7 NM3 LA3 Twin Spot, IP65, 760llm, Non Maintained Autotest Emergency 3 Hour 3.0W
TWS IP65 L7 NM3 LE3 5YR Twin Spot, IP65, 760llm, Non-Maintained, Lithium Standard Emergency 3 Hour 3.0W
TWS IP65 L7 NM3 LS3 5YR Twin Spot, IP65, 760llm, Non-Maintained Lithium Self Test Emergency 3 Hour 3.0W
LA3 luminaires and luminaires coded 5YR are supplied with a 5 year battery warranty, others are supplied with a 1 year battery warranty.

Emergency

Code Description
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
LSF Low Smoke Zero Halogen

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
