RUBINI DOWNLIGHT

Rubini Downlight combines the latest LED, lens and baffle design offering optimum efficiency, glare control and the flexibility to incorporate a wide selection of sensors and wireless controls.

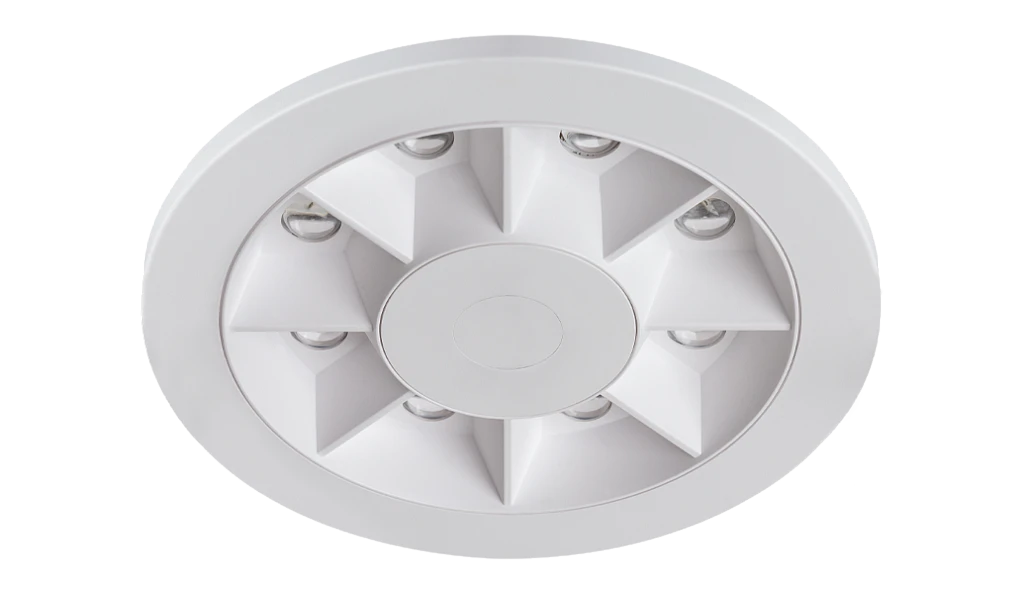

RUBINI DOWNLIGHT FEATURED

Introduction

The Rubini Downlight offers a baffled lensed design optimising beam control and efficiency whilst ensuring that glare is minimised off axis. Premium performance combines with a wide range of options including two sizes, a selection of lumen outputs, integral sensors and either black or white baffles. The Rubini Downlight design ensures excellent glare control offering a UGR as low as 16 in most installations ensuring it is suitable for areas such as offices and academia where monitors are in use.

With an outer perimeter of lensed LEDS, the Rubini Downlight centre is designed to accommodate a range of integral sensors offering presence detection, daylight regulation or wireless options. Whilst most downlights require a sensor to be installed adjacent to the luminaire increasing installation and wiring time, the Rubini Downlight incorporates the sensor into the housing ensuring installation is single point. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored. Integral emergency variants utilise lithium batteries for extended warranty and lifetime, further reducing the lifetime costs of ownership. The Rubini Downlight can also be specified for compatibility with a wide range of dimming systems, colour temperatures ranging from 3000 Kelvin to 6500 Kelvin and colour rendering indexes of either 80 or 90.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate
  • Finish: Matt black
  • Finish: Matt white
  • Lens: Injection moulded polycarbonate lens
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Rubini Large L30 and Rubini Medium L20 variants with white baffle and DALI control gear exceed 140llm/w.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for lay-in installation in exposed T ceilings
  • Suitable for metal ceiling tile installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
Find out more about our 5 year extended warranty
Arrow right

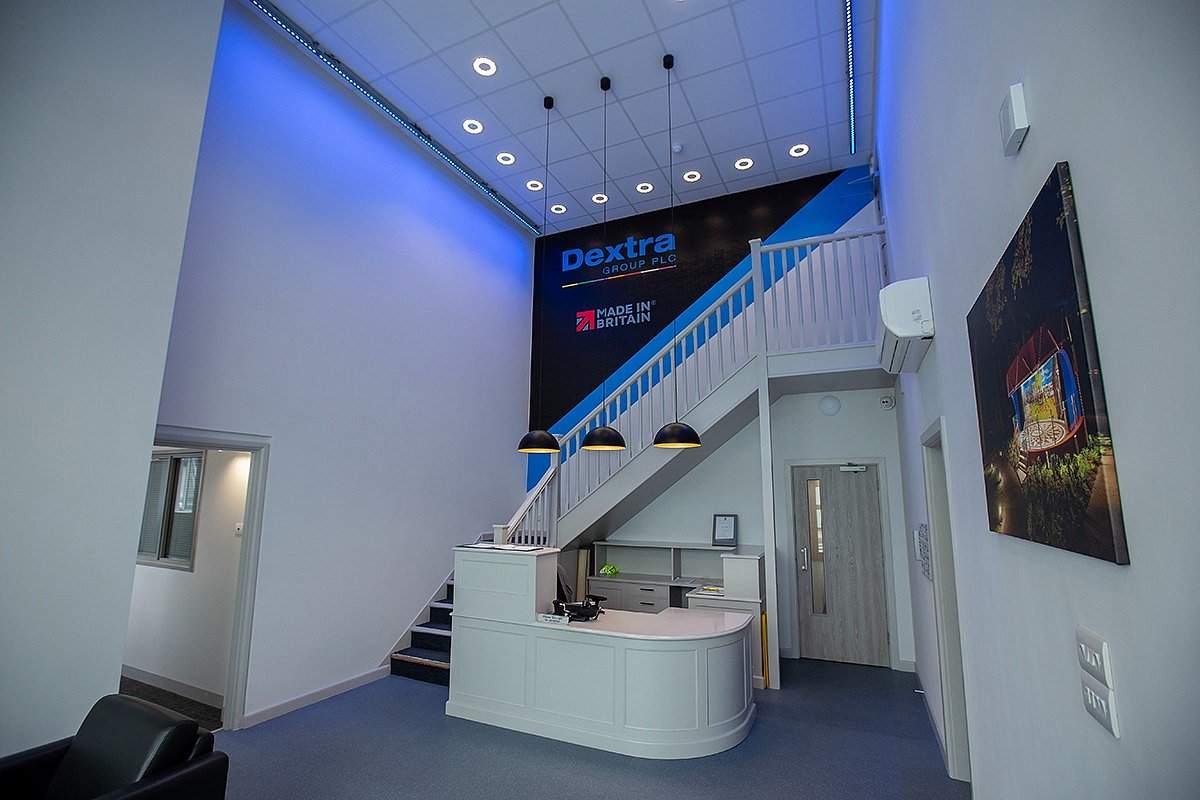

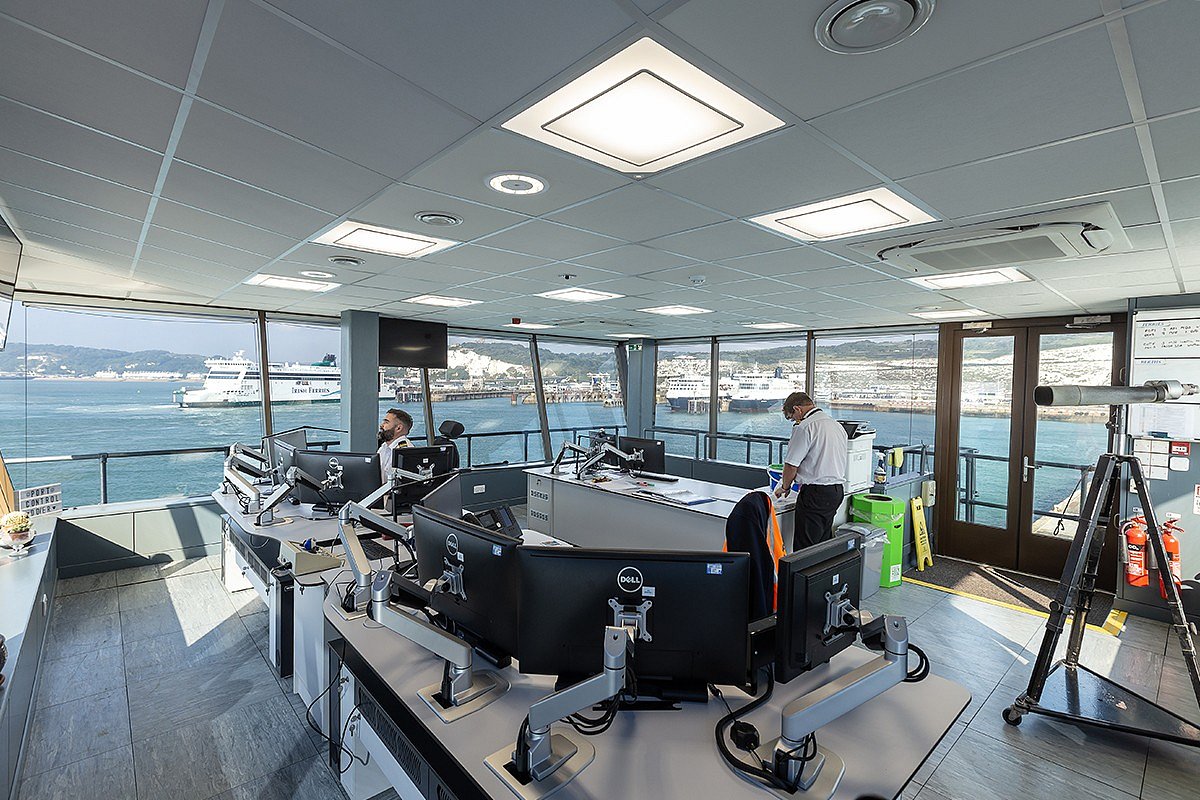

RUBINI DOWNLIGHT in action

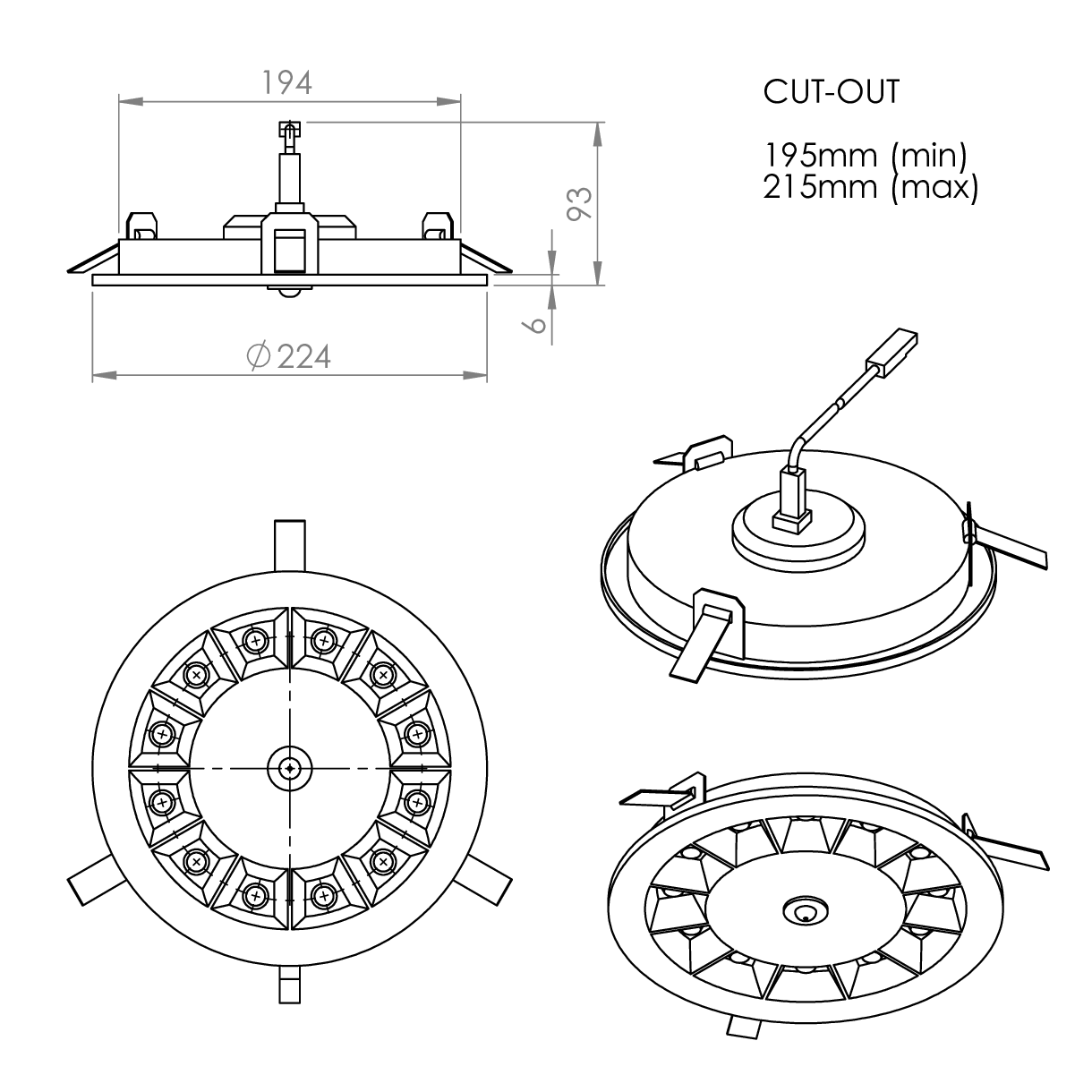

Technical

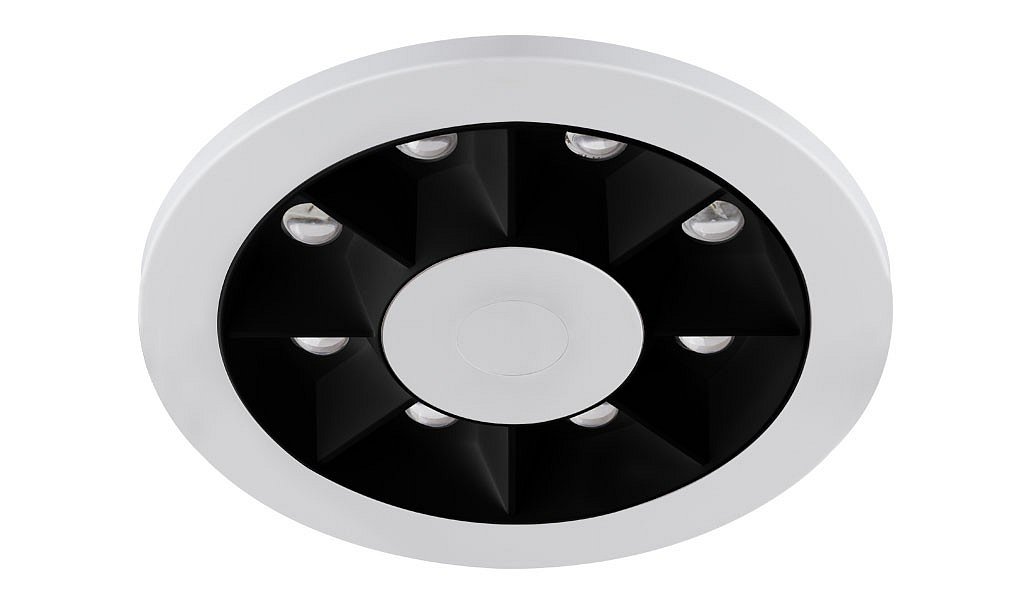

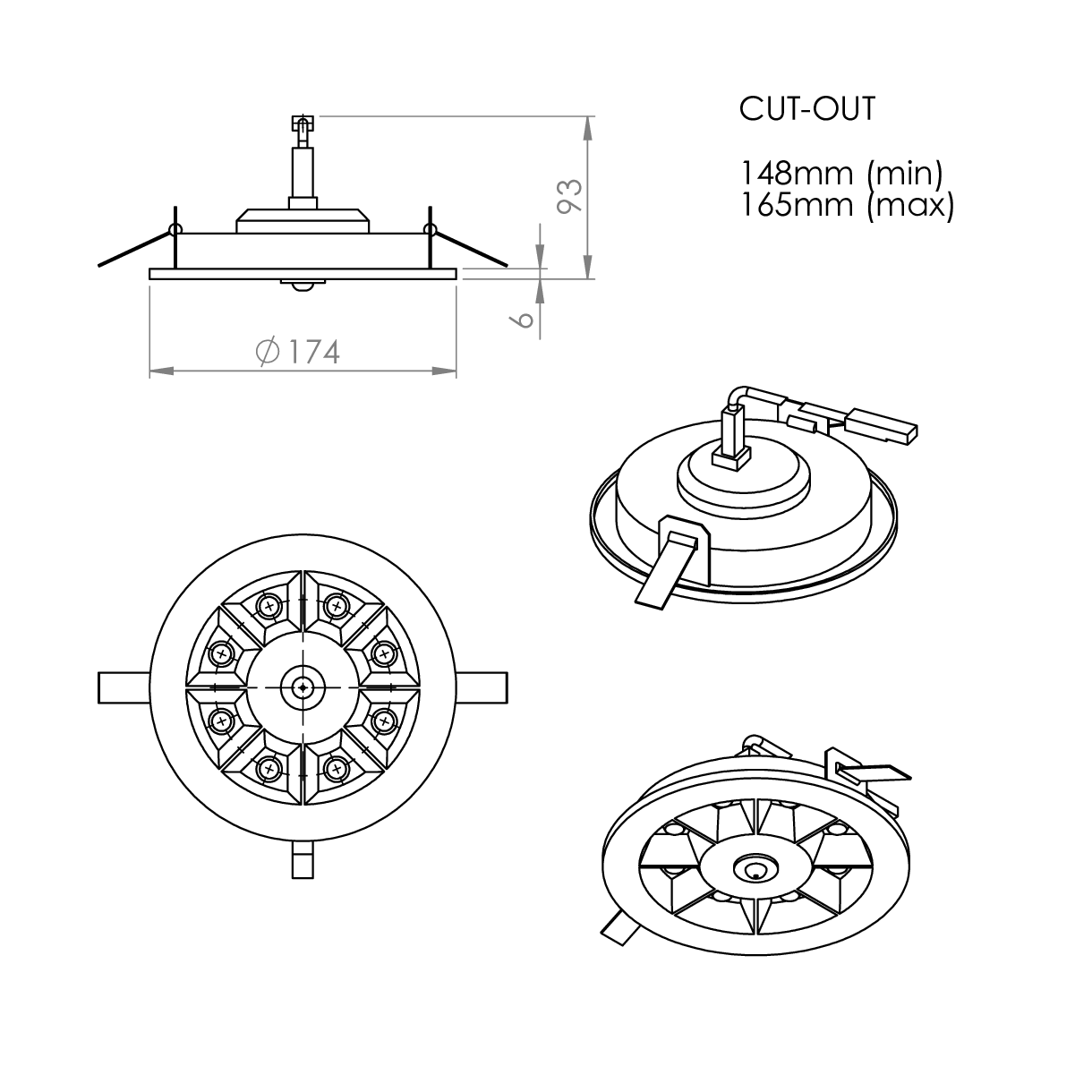

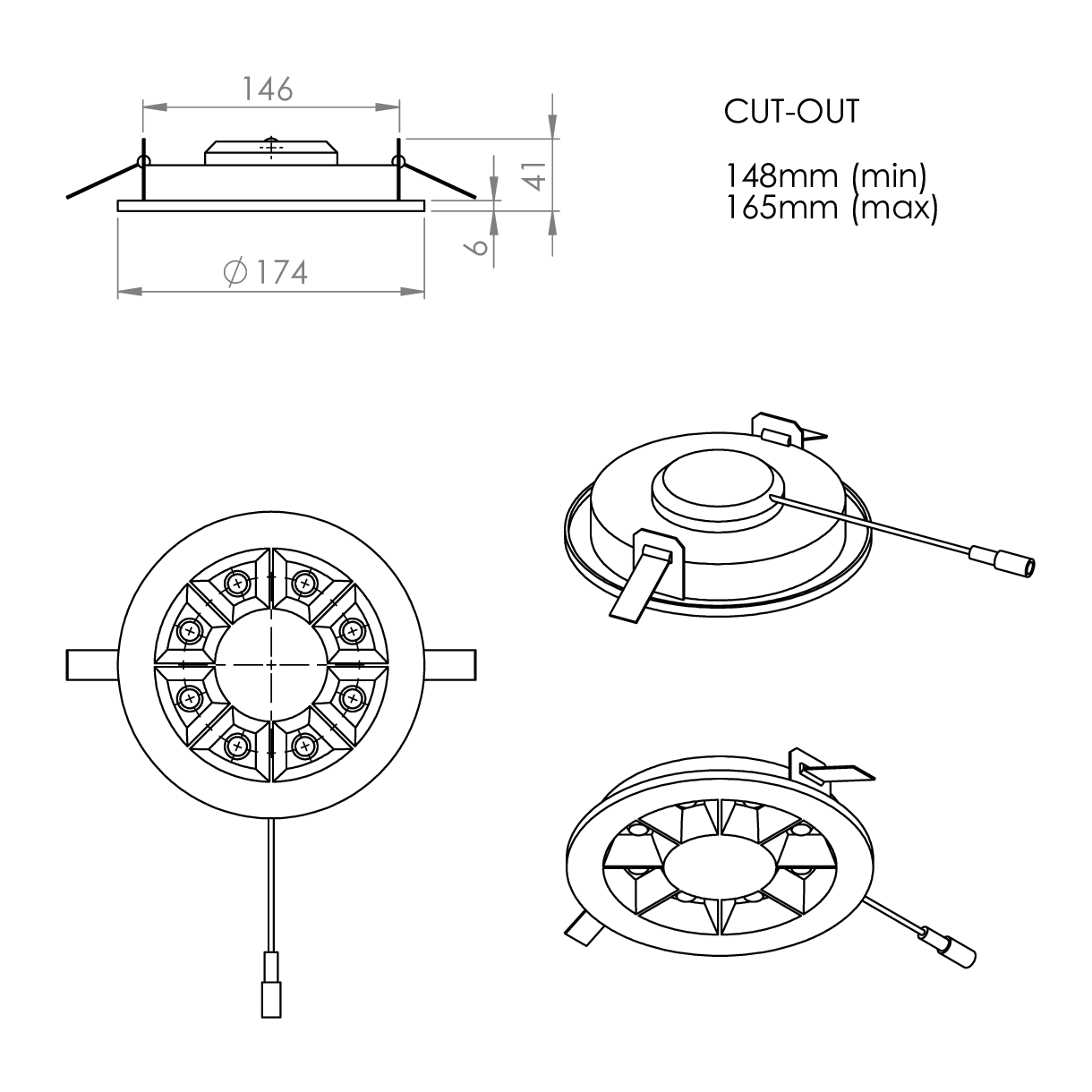

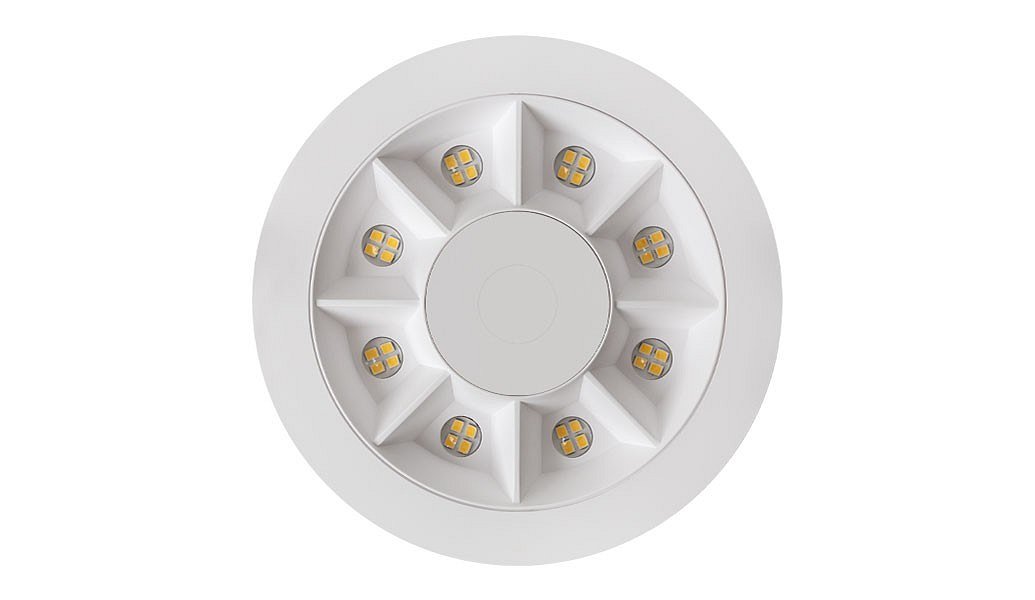

Rubini Downlight Medium

Rubini Downlight Medium

Rubini Downlight Medium R44

Rubini Downlight Medium R44

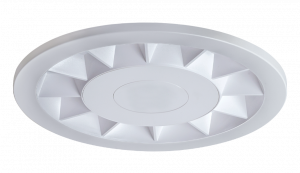

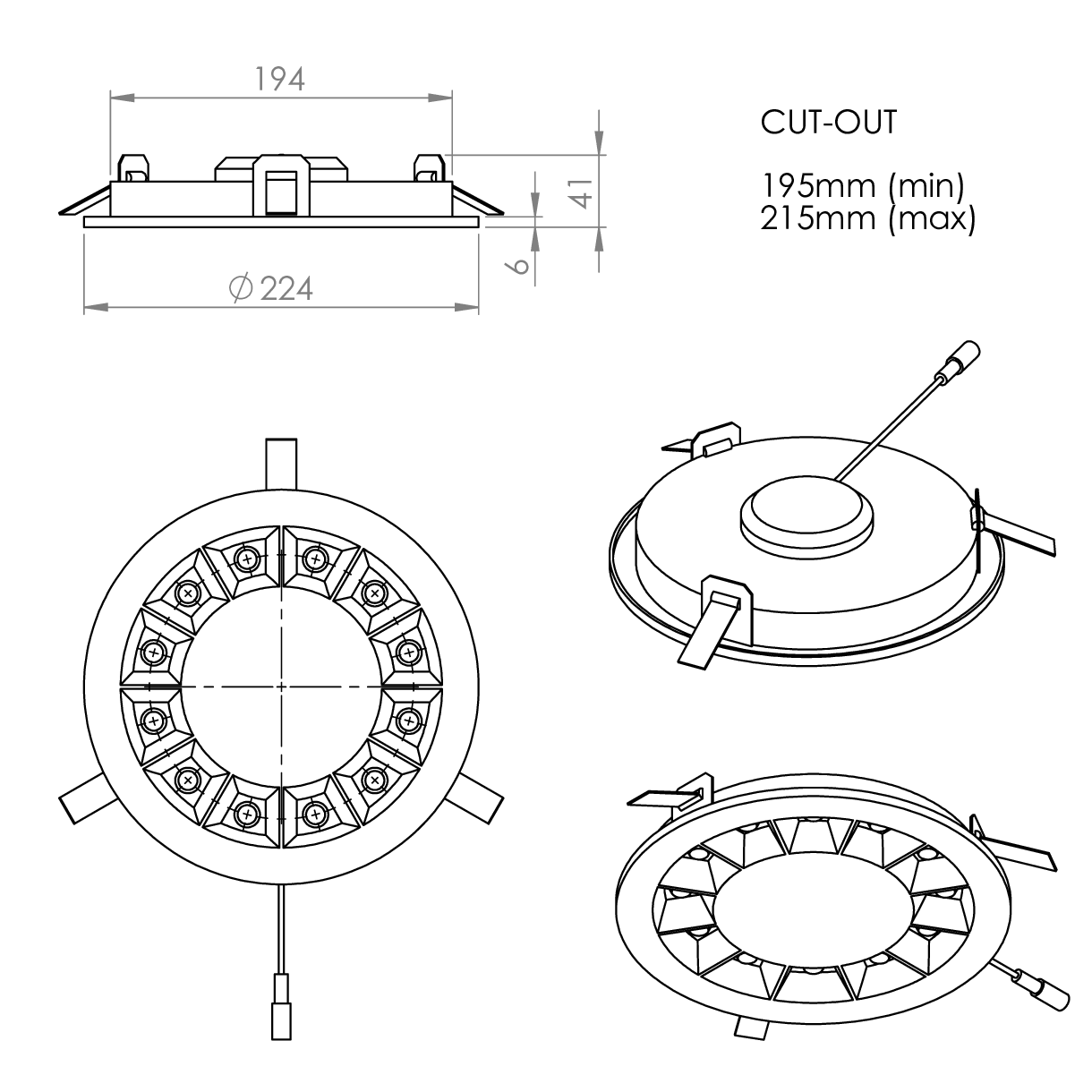

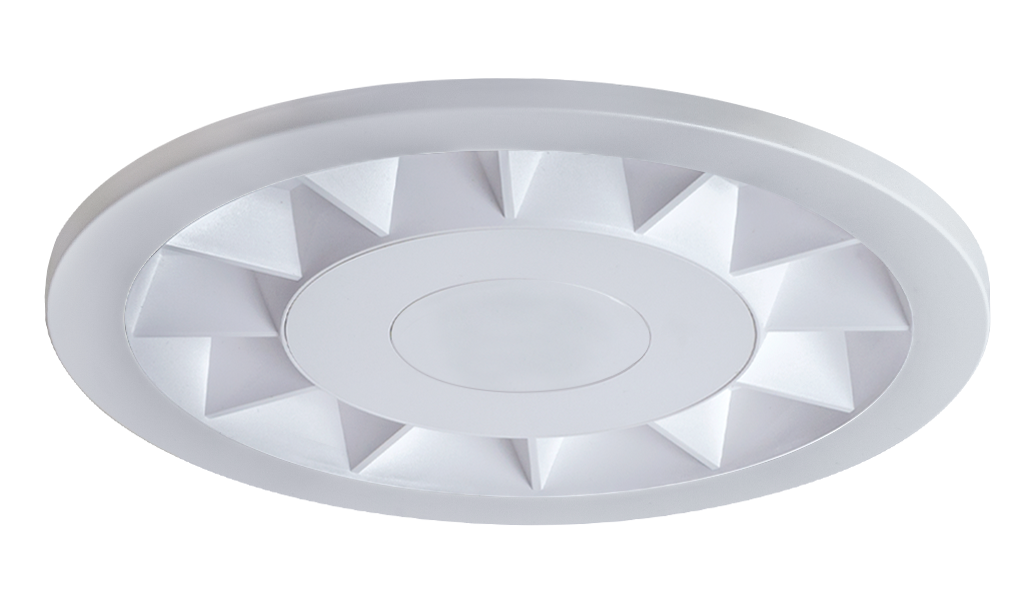

Rubini Downlight Large

Rubini Downlight Large

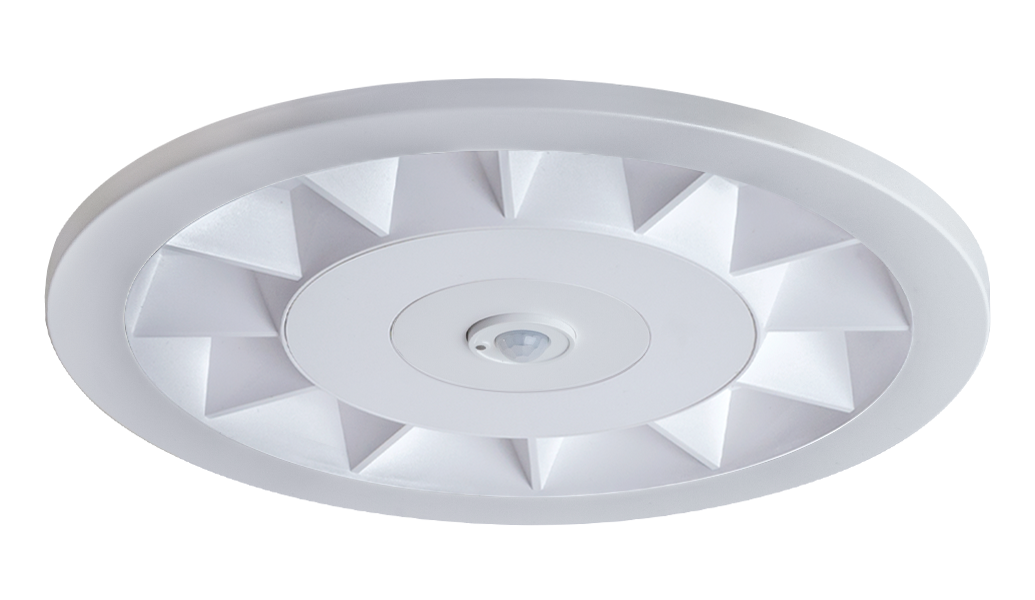

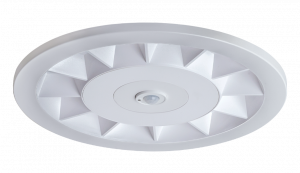

Rubini Downlight Large R44

Rubini Downlight Large R44

Control Gear Enclosure Standard

Control Gear Enclosure Standard

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
RBNDM L11 ** Rubini Downlight Medium, 947llm, Colour 84 7.3W 128
RBNDM L20 ** Rubini Downlight Medium, 1,722llm, Colour 84 11.9W 145
RBNDM L30 ** Rubini Downlight Medium, 2,584llm, Colour 84 18.4W 140
RBNDL L11 ** Rubini Downlight Large, 950llm, Colour 84 7.4W 128
RBNDL L20 ** Rubini Downlight Large, 1,727llm, Colour 84 13.3W 130
RBNDL L30 ** Rubini Downlight Large, 2,591llm, Colour 84 18.6W 139
RBNDL L40 ** Rubini Downlight Large, 3,454llm, Colour 84 25.2W 137
**Select housing and baffle colour from Options

Colour

Code Description
WW White Housing / White Baffle

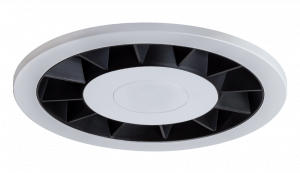

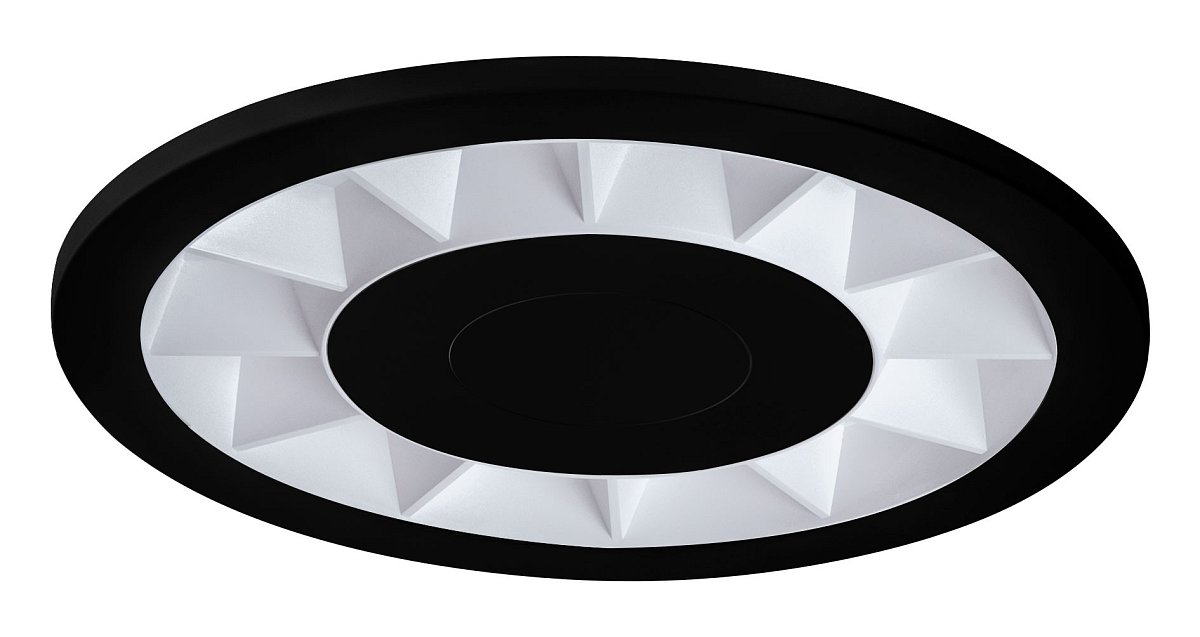

WB White Housing / Black Baffle

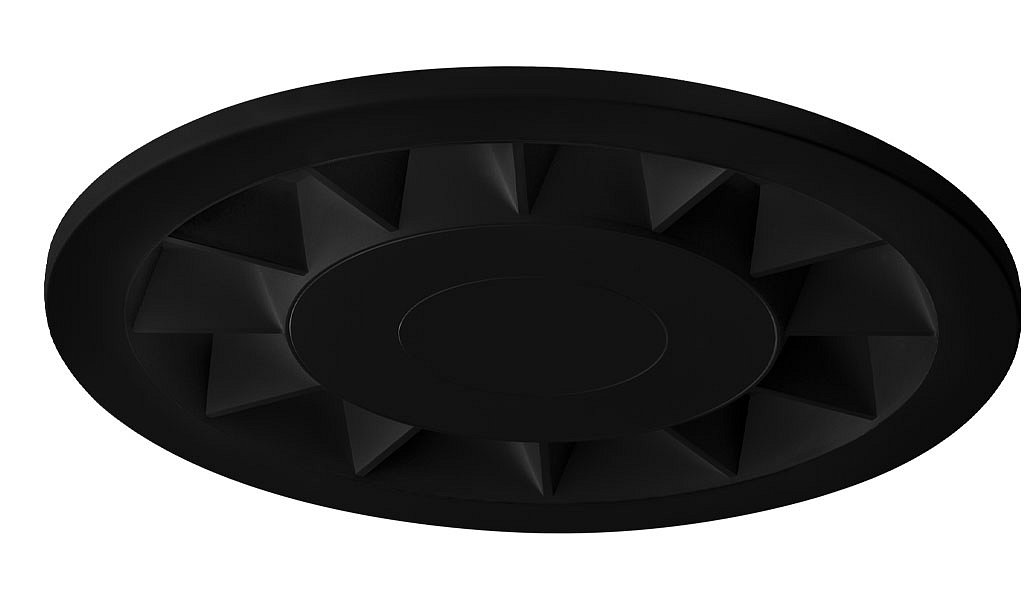

BB Black Housing / Black Baffle
BW Black Housing / White Baffle

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
D44 DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN DexNET Node, Wireless Node only.
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire

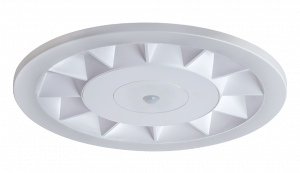

RLS Reacta-Link Wireless, Presence, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen
