LTECA

The LTECA offers an adjustable scoop housing with a highly efficient lens design.

LTECA FEATURED

Introduction

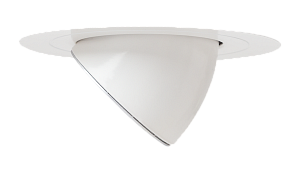

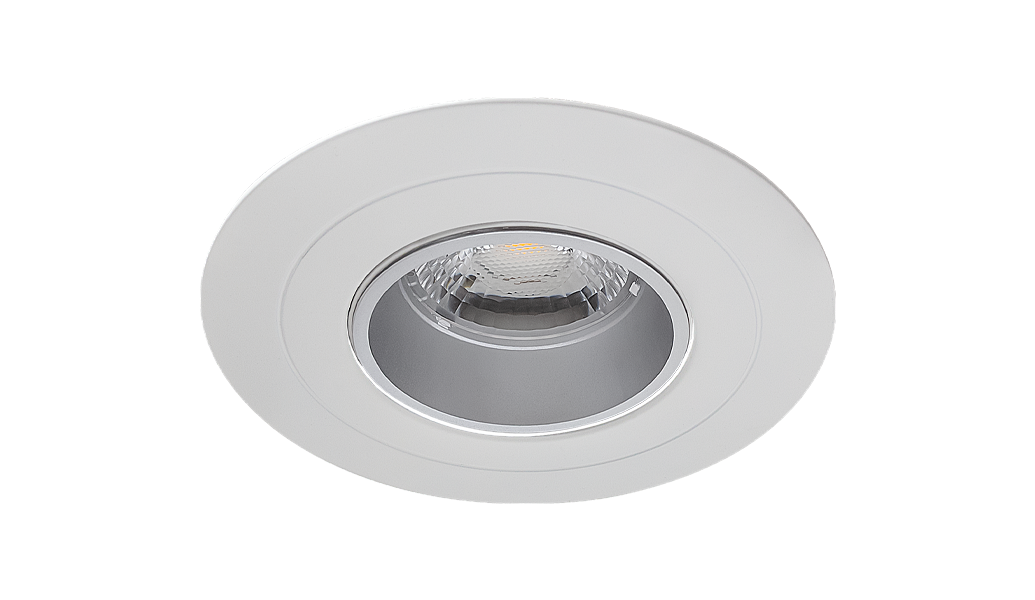

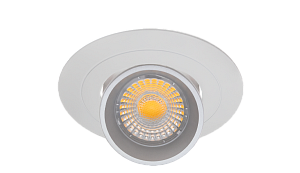

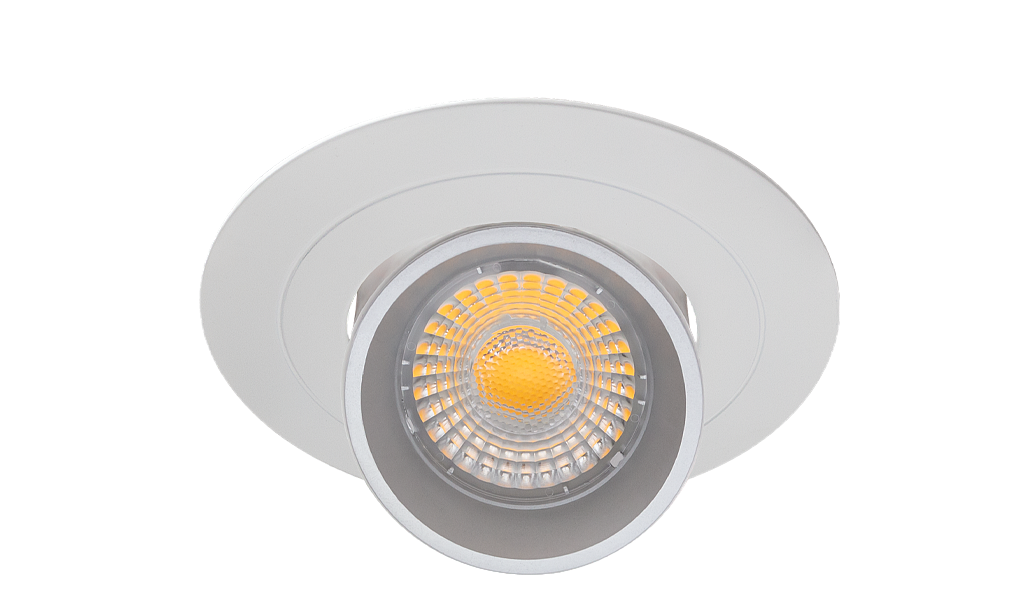

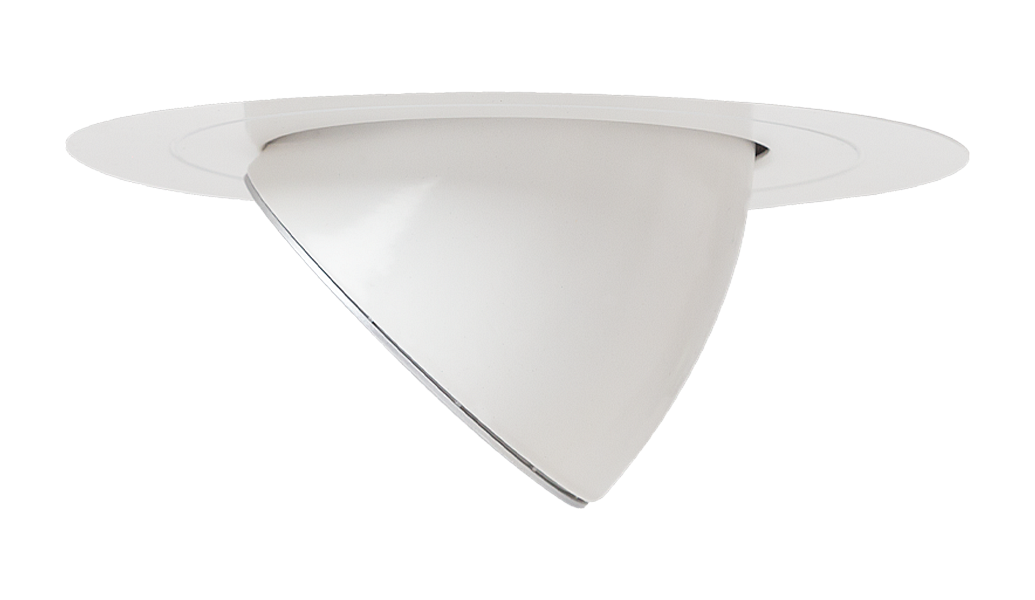

The LTECA has an adjustable scoop housing with a circular bezel and a feature seam line for additional decorative detail. The lensed optic ensures accurate control with a 30° beam angle combined with high light output ratios. The housing is manufactured from die cast aluminium powder painted white with a semi specular reflector and a recessed lens to minimise glare when the luminaire is viewed off axis.

With a wide range of lumen outputs, dimmable options and wireless control, as well as a range of colour temperatures and rendering options the LTECA offers a versatile and highly efficient solution for applications from retail through to circulation and display.

Infill rings are available to ensure that the LTECA can be used in a range of ceiling cut outs.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.4

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Lens: Injection moulded PMMA lens
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for plasterboard installation
  • Suitable for mineral fibre ceiling tile installation
  • Suitable for metal ceiling tile installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
Find out more about our 5 year extended warranty

Product Images

Case studies featuring LTECA

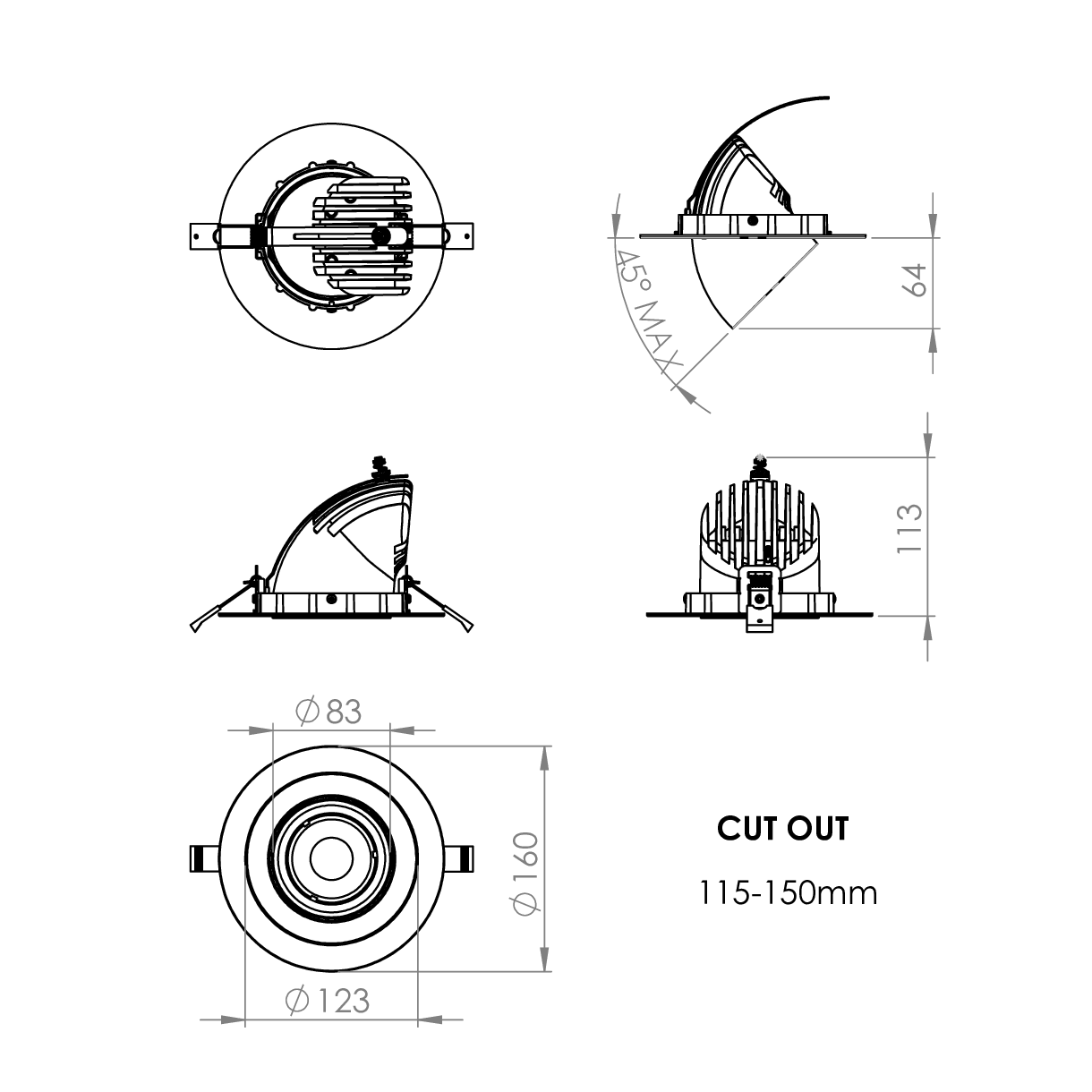

Technical

LTECA

LTECA

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
LTECA L11 30 LTECA Scoop, 929llm, 30° Lens, Colour 84 7.6W 122
LTECA L16 30 LTECA Scoop, 1,351llm, 30° Lens, Colour 84 10.1W 134
LTECA L23 30 LTECA Scoop, 1,942llm, 30° Lens, Colour 84 14.9W 130
LTECA L30 30 LTECA Scoop, 2,534llm, 30° Lens, Colour 84 19.9W 127
LTECA L40 30 LTECA Scoop, 3,378lllm, 30° Lens, Colour 84 26.1W 129

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C83, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
INFILL Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering.
LSF Low Smoke Zero Halogen

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Infill Installation (Download PDF) Revit Files Dialux Files Relux Files
