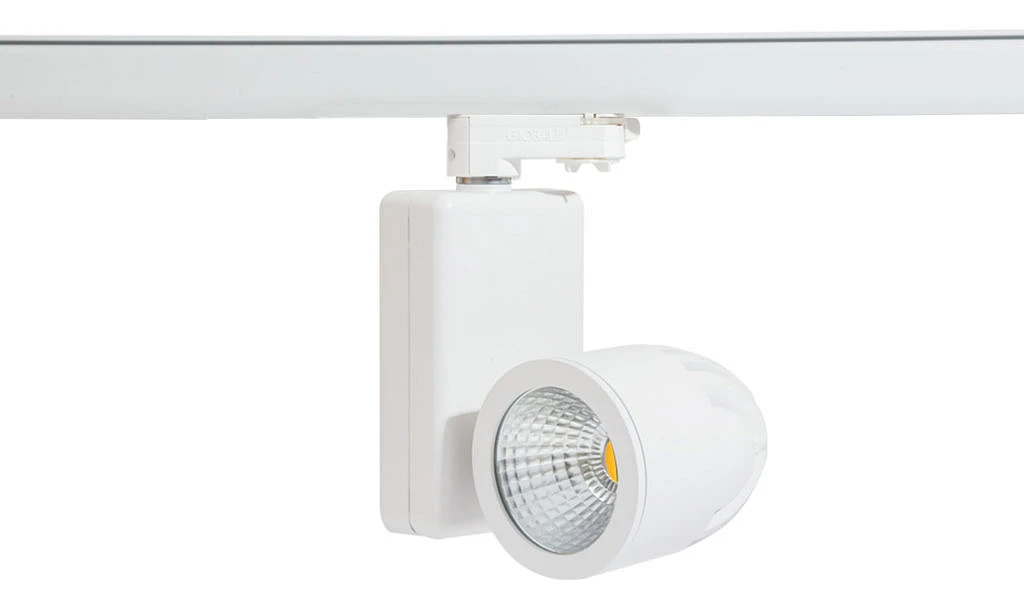

VELOUTÉ
The Velouté is the latest addition to our range of track mounted spot lights.
Introduction
The Velouté track mounted spot lights are manufactured from die cast aluminium and designed with rounded edges and concealed fixings bringing a sculpted feature to your lighting installation. All Velouté luminaires are supplied with a three circuit adaptor with a rotary dial for circuit selection and to allow individual luminaires to be switched on and off. Whilst the three circuit adaptor allows for simple adjustment of luminaire position along the length of the track, all luminaires can also be rotated and pivoted allowing for lighting displays to be quickly and simply adjusted to suit with minimal expense and time. Available in a wide range of lumen outputs and colour temperatures as well as black or white housing colours.
Complies with:
UKCA | CE | IP20 | 3 STEP MACADAM ELLIPSE
Recommended applications:
Accent Lighting | Display Lighting | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9005 textura matt black
- Lens: Injection moulded PMMA lens
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 118 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Optional DALI dimming
Installation
- Suitable for three circuit track installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs

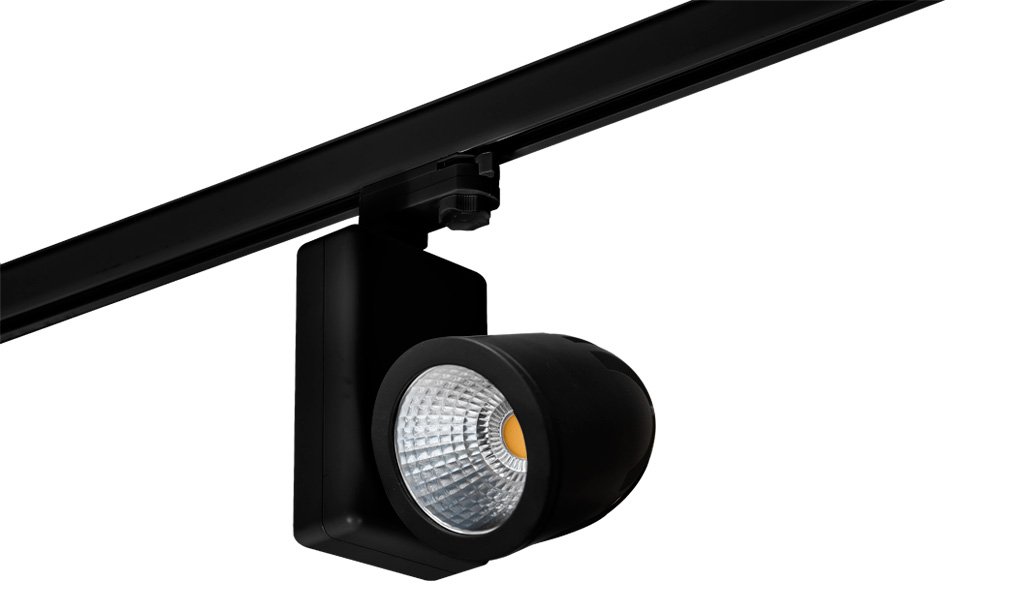

- Available in white or black finishes
- Avaiable with Philips Premium White, Premium Colour, Crisp White, Food Premium Red or Warm White

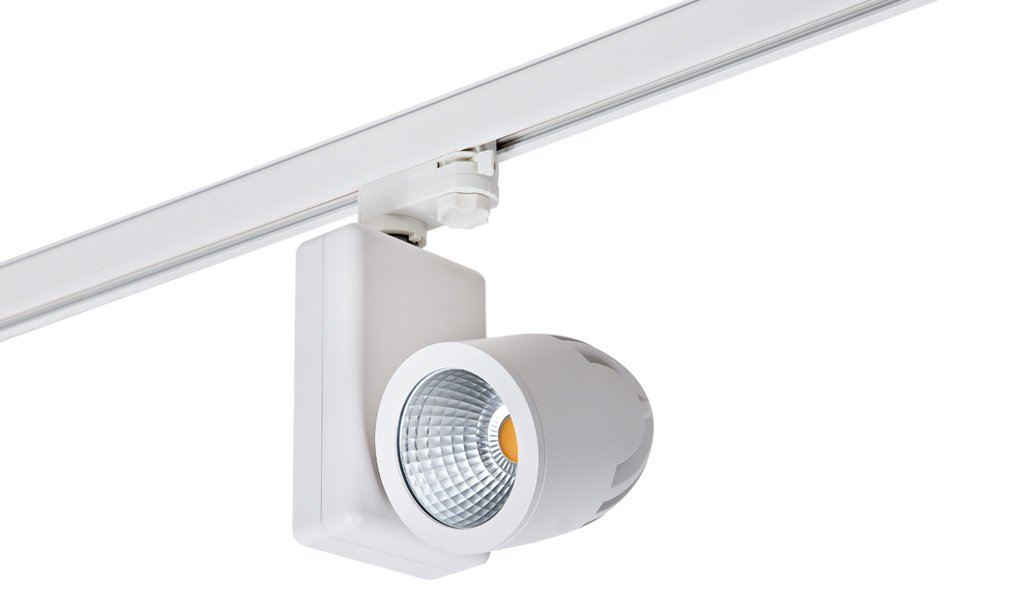

Product Images

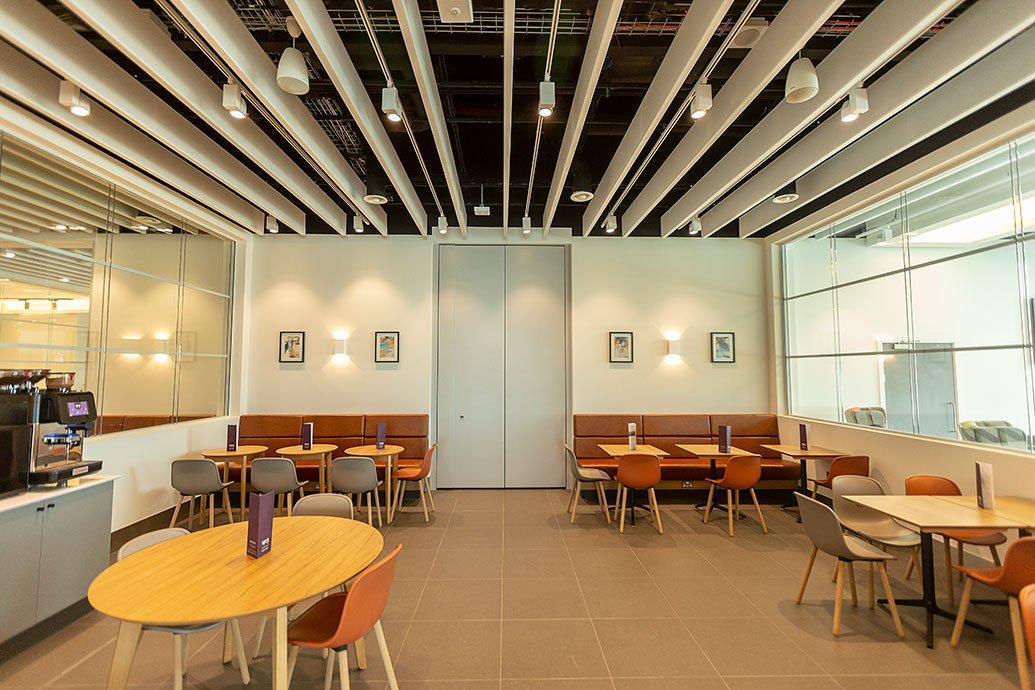

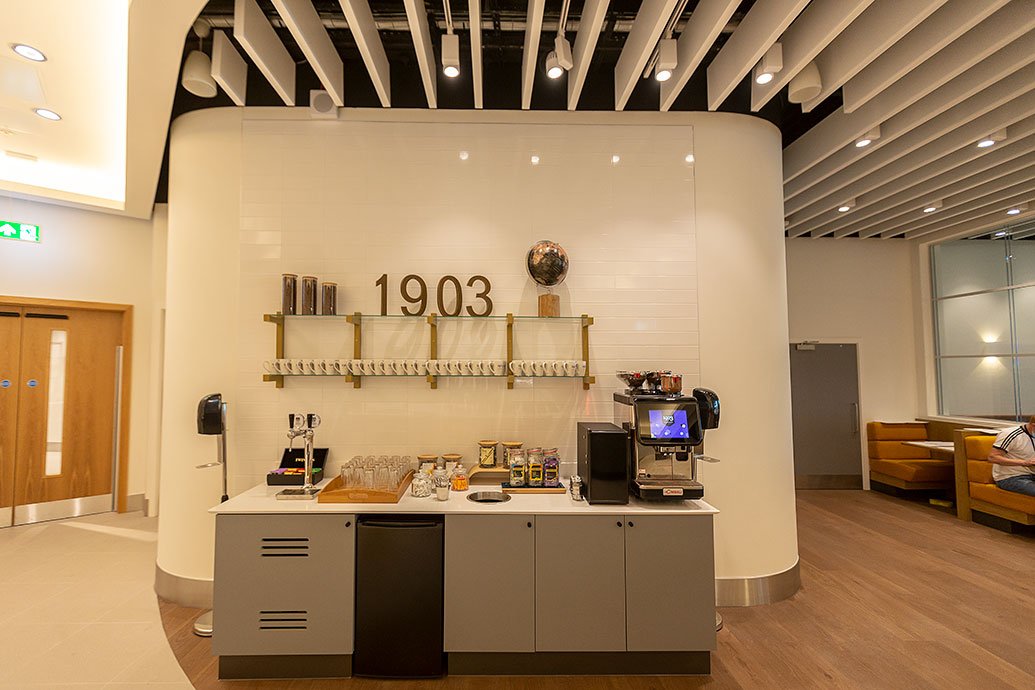

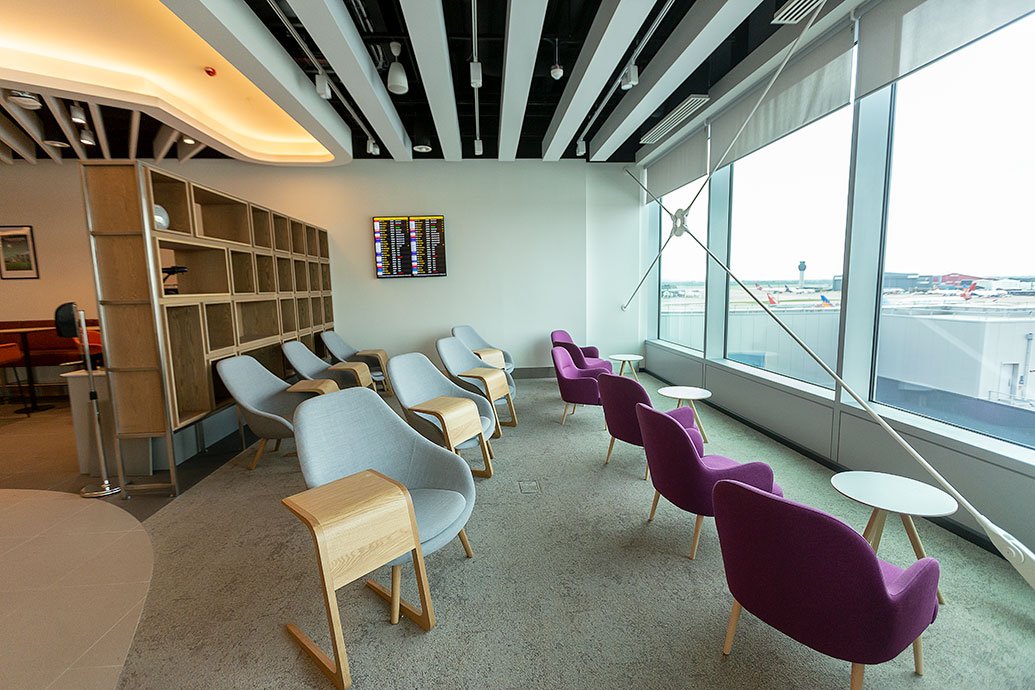

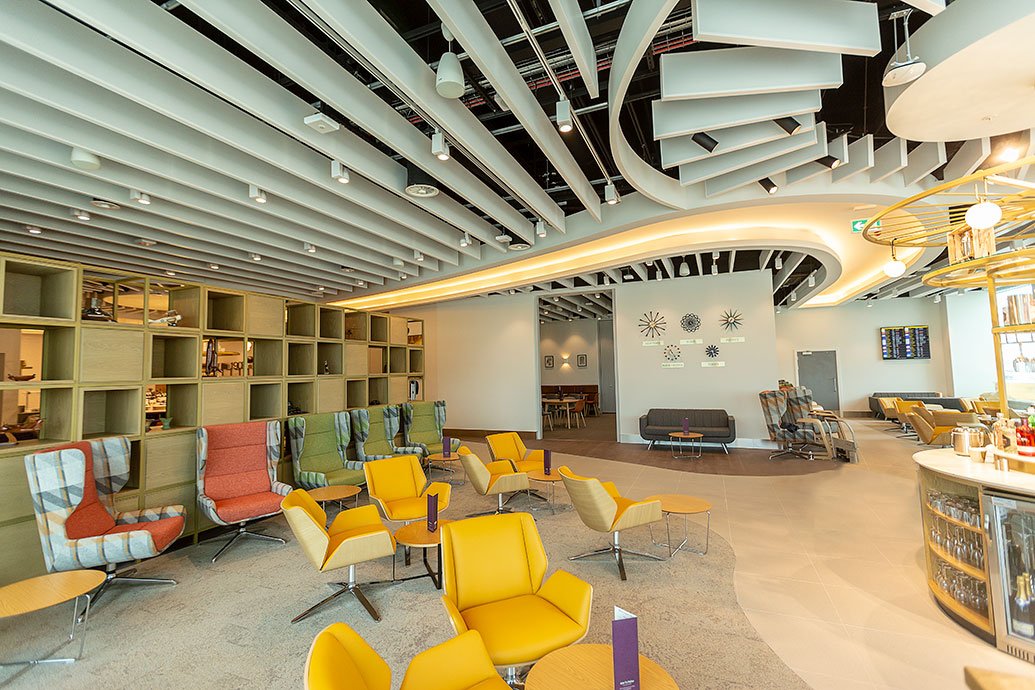

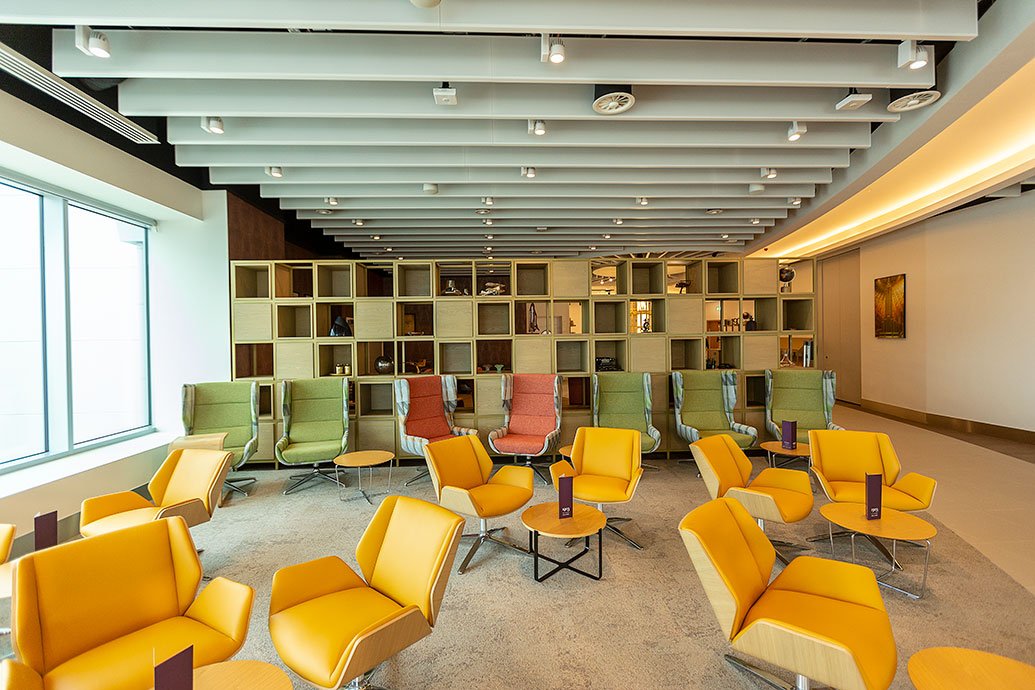

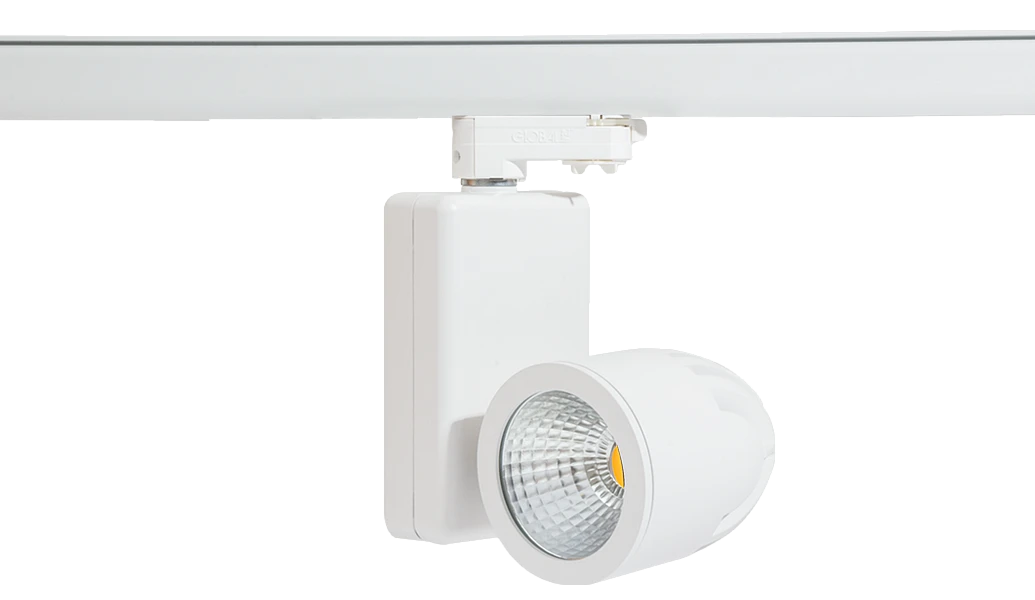

VELOUTÉ in action
Technical

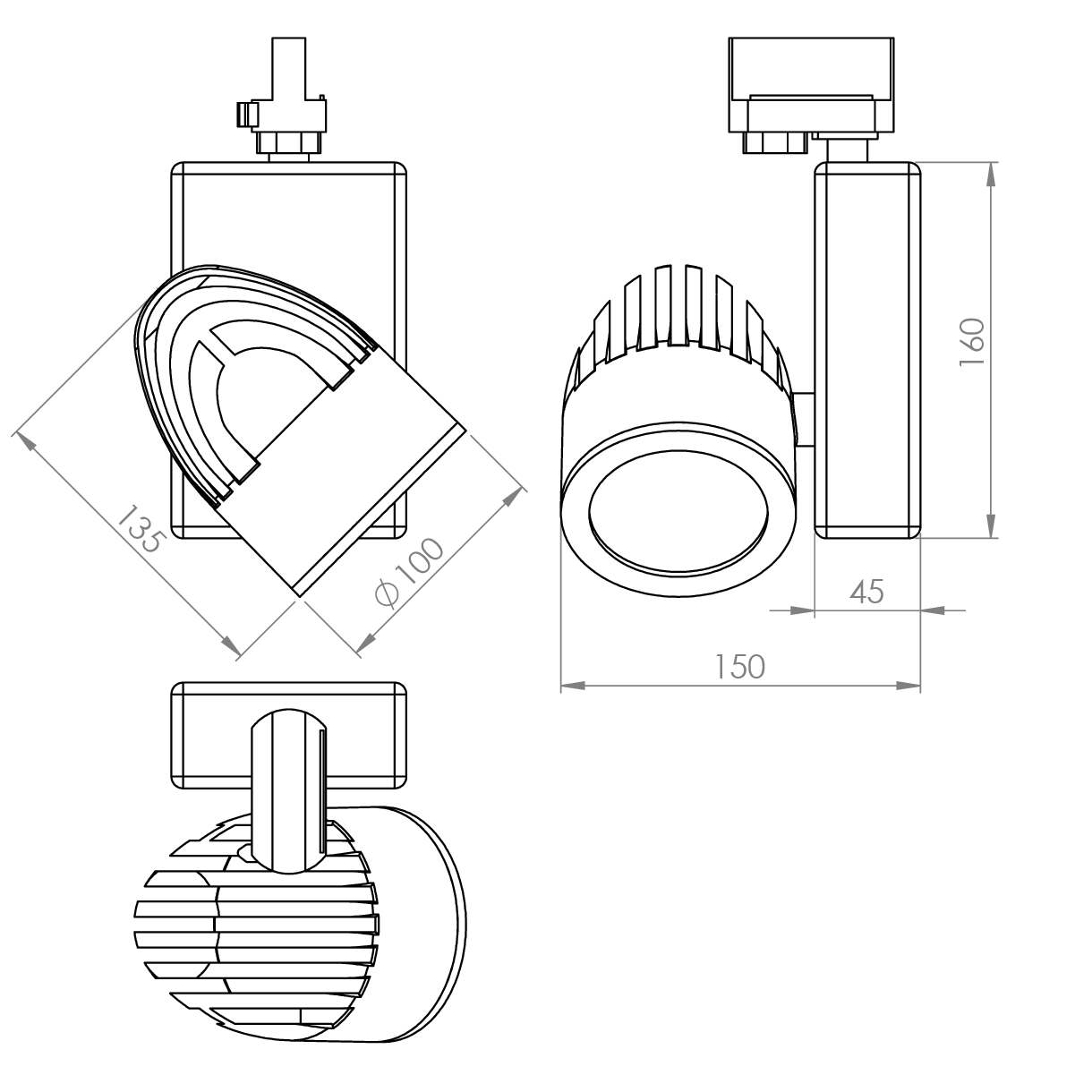

Veloute
Track Configuration
Track Dimensions and Loadings
Track Polarity
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C83, C93, C94 |
| BL | Black Finish |

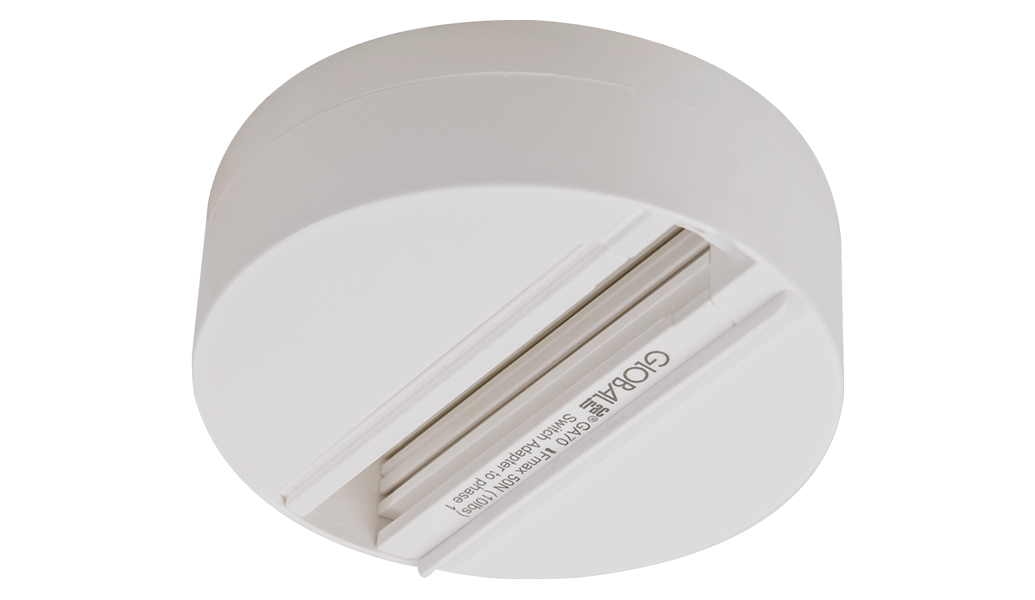

| HT FIX-POINT GLOBAL | Single point surface mount track white fixed output |
| HT BL FIX-POINT GLOBAL | Single point surface mount track black fixed output |
| LSF | Low Smoke Zero Halogen |
