RUBIX OPAL

The Rubix Opal combines a highly efficient cellular optic offering excellent glare control and state of the art efficiency with a traditional opalised diffuser.

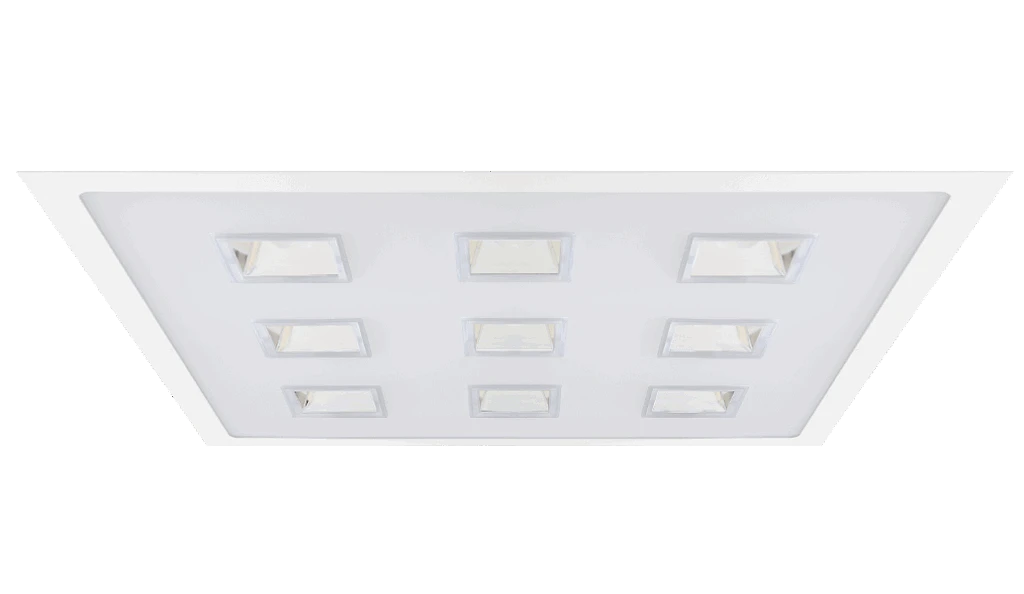

RUBIX OPAL FEATURED

Introduction

The Rubix Opal combines the benefits of a traditional homogenously lit diffuser with an embedded cellular optic, this unique pairing allows us to offer a visually comfortable low glare diffuser with the efficiency of a modern optic design.

The Rubix Opal combines these benefits without compromising versatility and is available in a wide range of variants including 600x600 and 1200x600 sizes suitable for lay in, pull up and plasterboard installations. All variants come in a selection of lumen outputs, optional compatibility with most common dimming systems and integral sensor variants ensuring that energy savings can be maximised. The Rubix Opal is also available with integral lithium emergency offering extended lifetime and warranty compared to traditional battery chemistries reducing life time cost and ongoing maintenance as well as a wide range of wireless control systems providing localised grouping and control allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • Diffuser: Injection moulded high transmission opal polycarbonate cell with miro silver aluminium inserts and injection moulded clip on bezel
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 165 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • HFR 1-10V analogue dimming
  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor

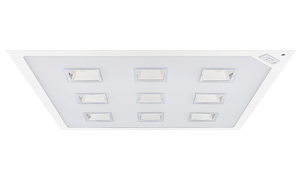

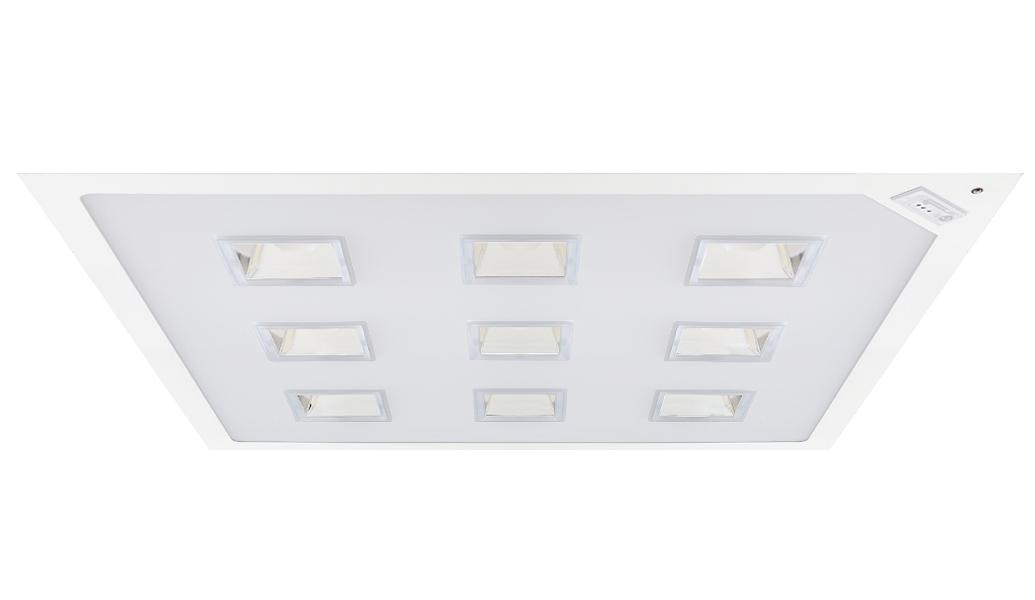

  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for lay-in installation in exposed T ceilings
  • Suitable for pull-up installation in concealed grid ceilings
  • Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
  • Alugrid 08 and 16 compatible options available. Please see miscellaneous ordering codes.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
Find out more about our 5 year extended warranty

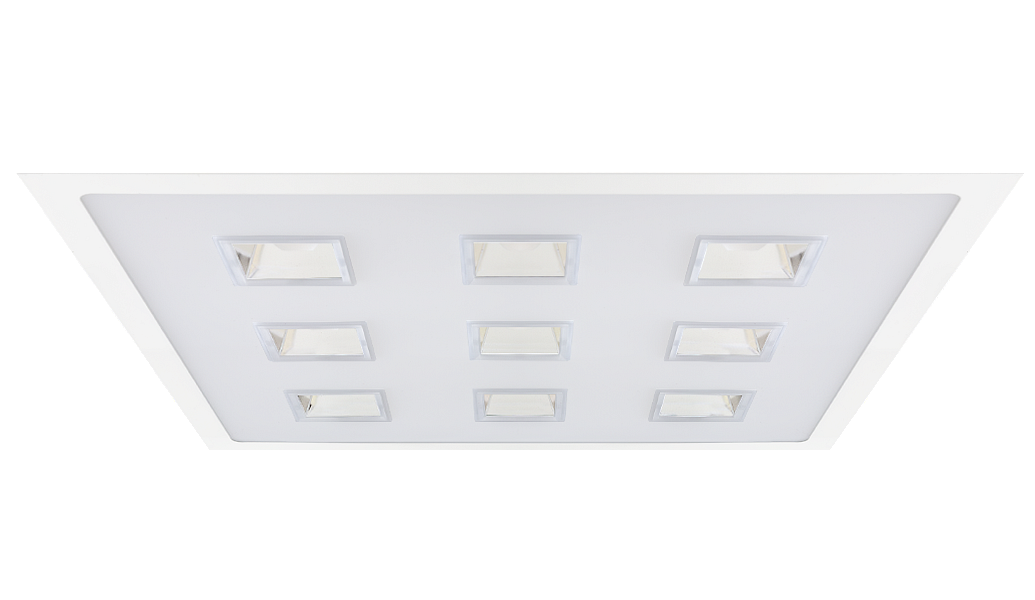

Product Images

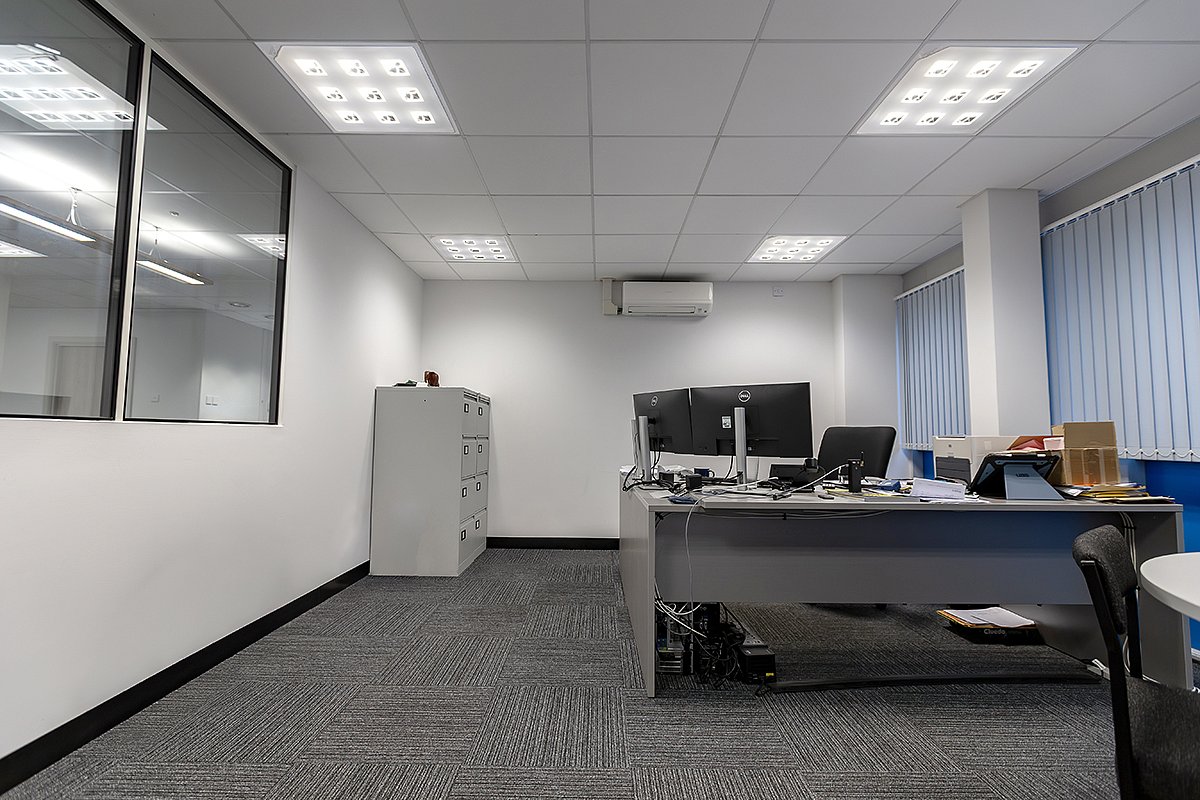

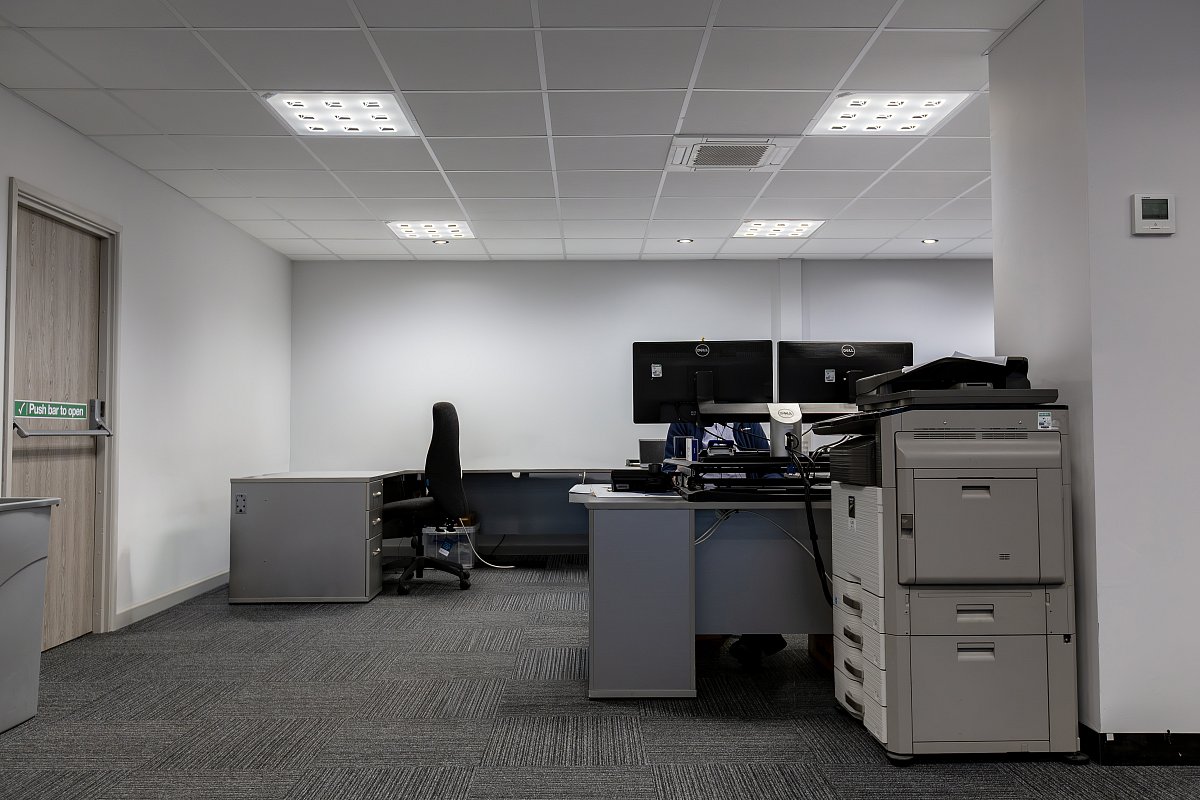

RUBIX OPAL in action

Technical

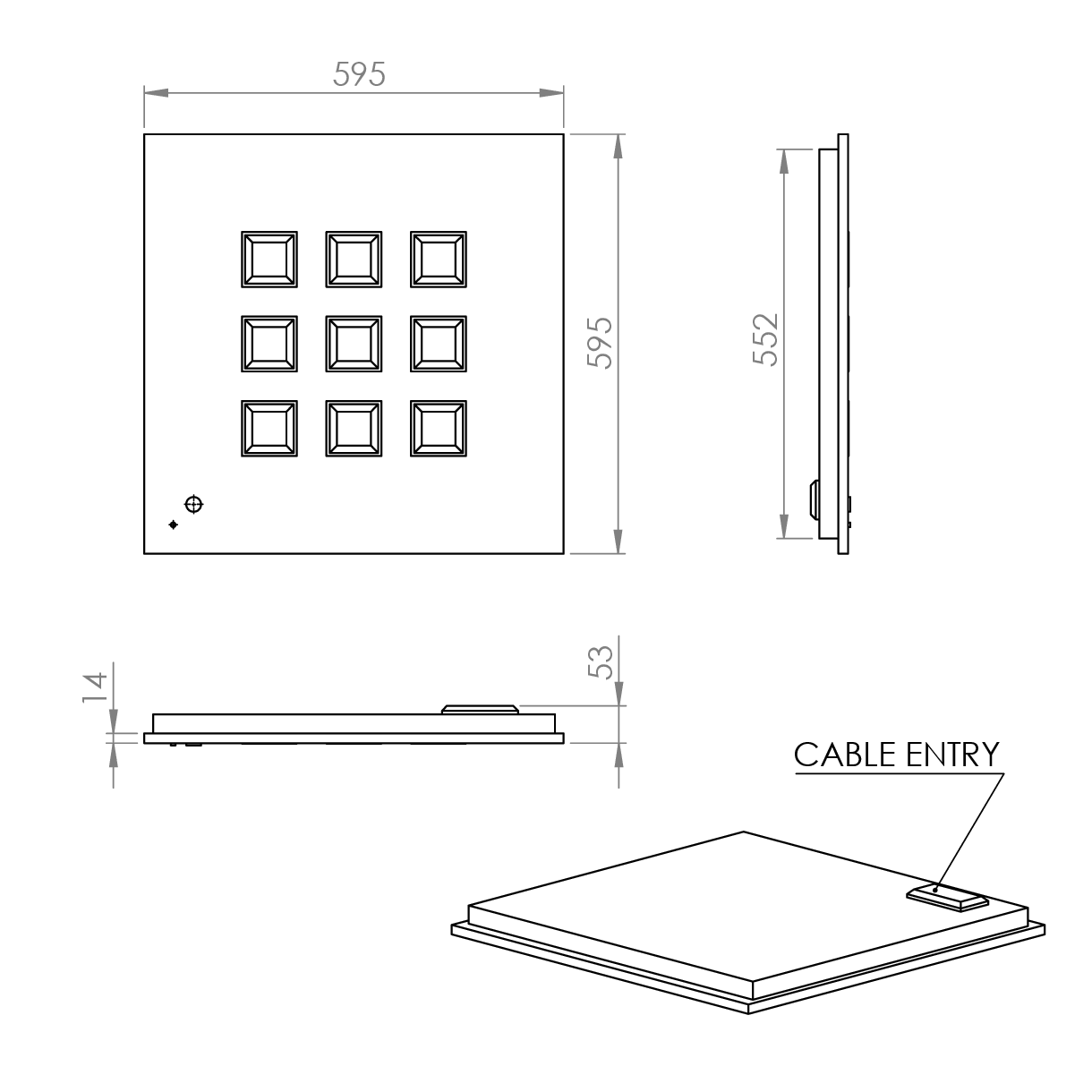

Rubix Flush Lay-In 600x600

Rubix Flush Lay-In 600x600

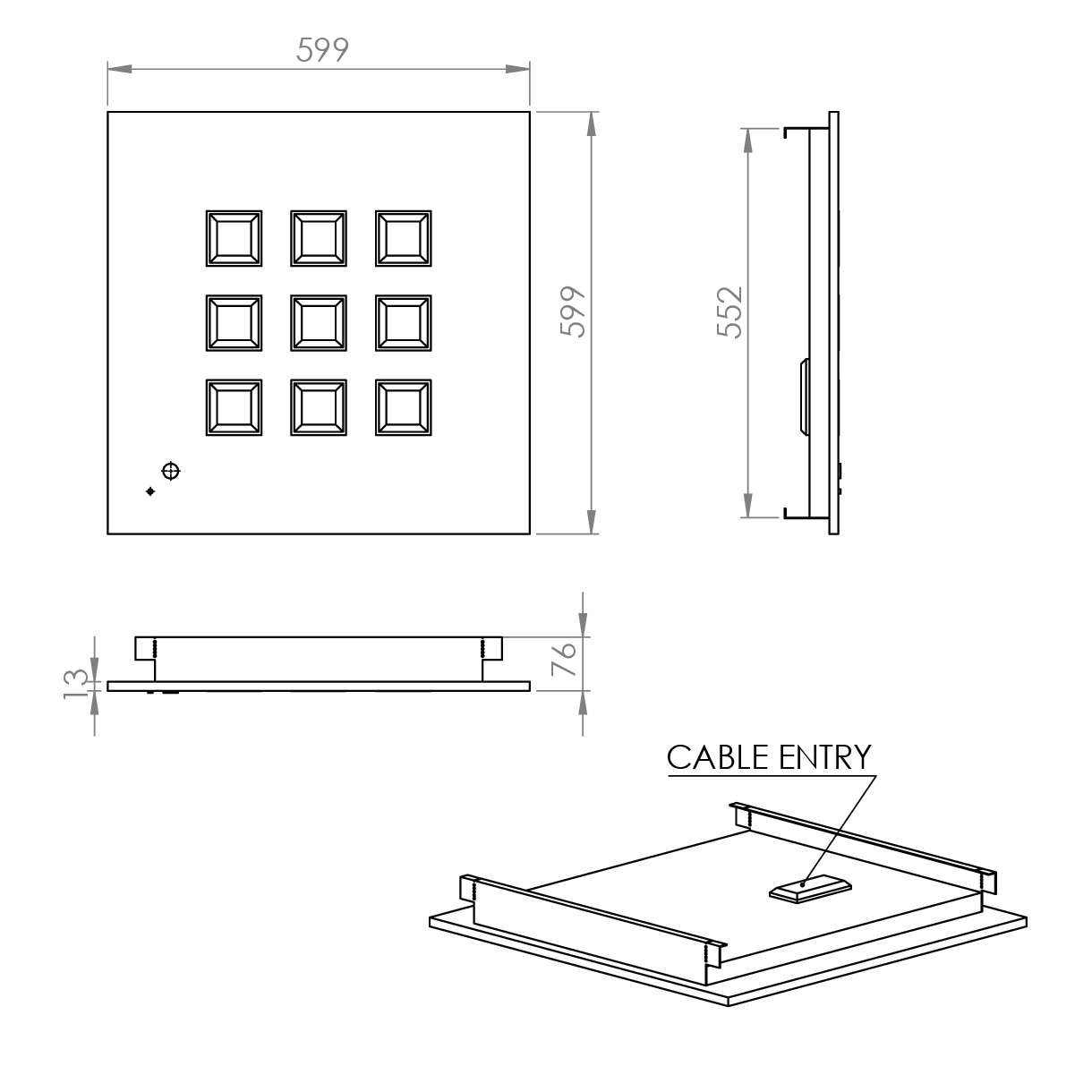

Rubix Flush Pull-Up 600x600

Rubix Flush Pull-Up 600x600

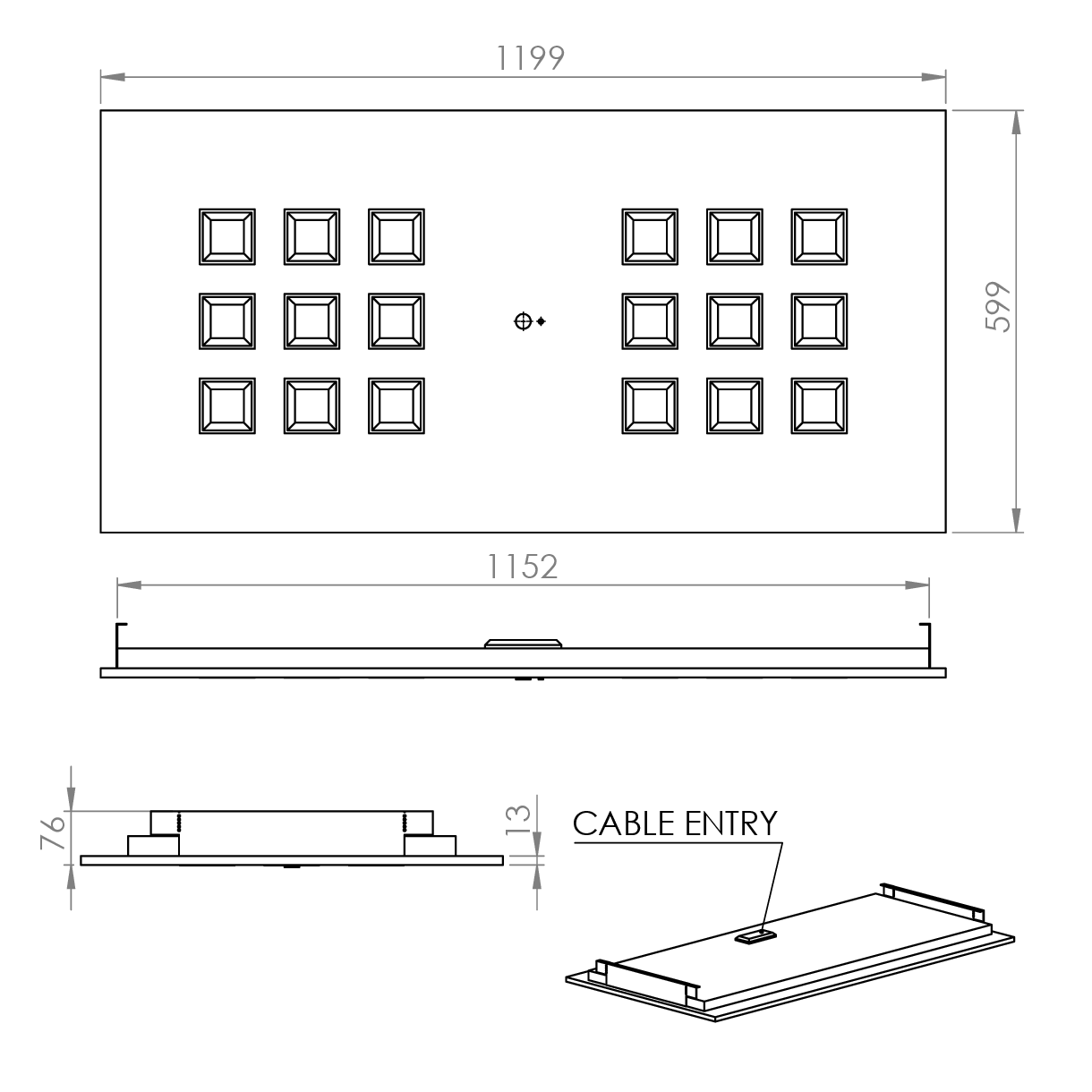

Rubix Flush Lay-In 1200x600

Rubix Flush Lay-In 1200x600

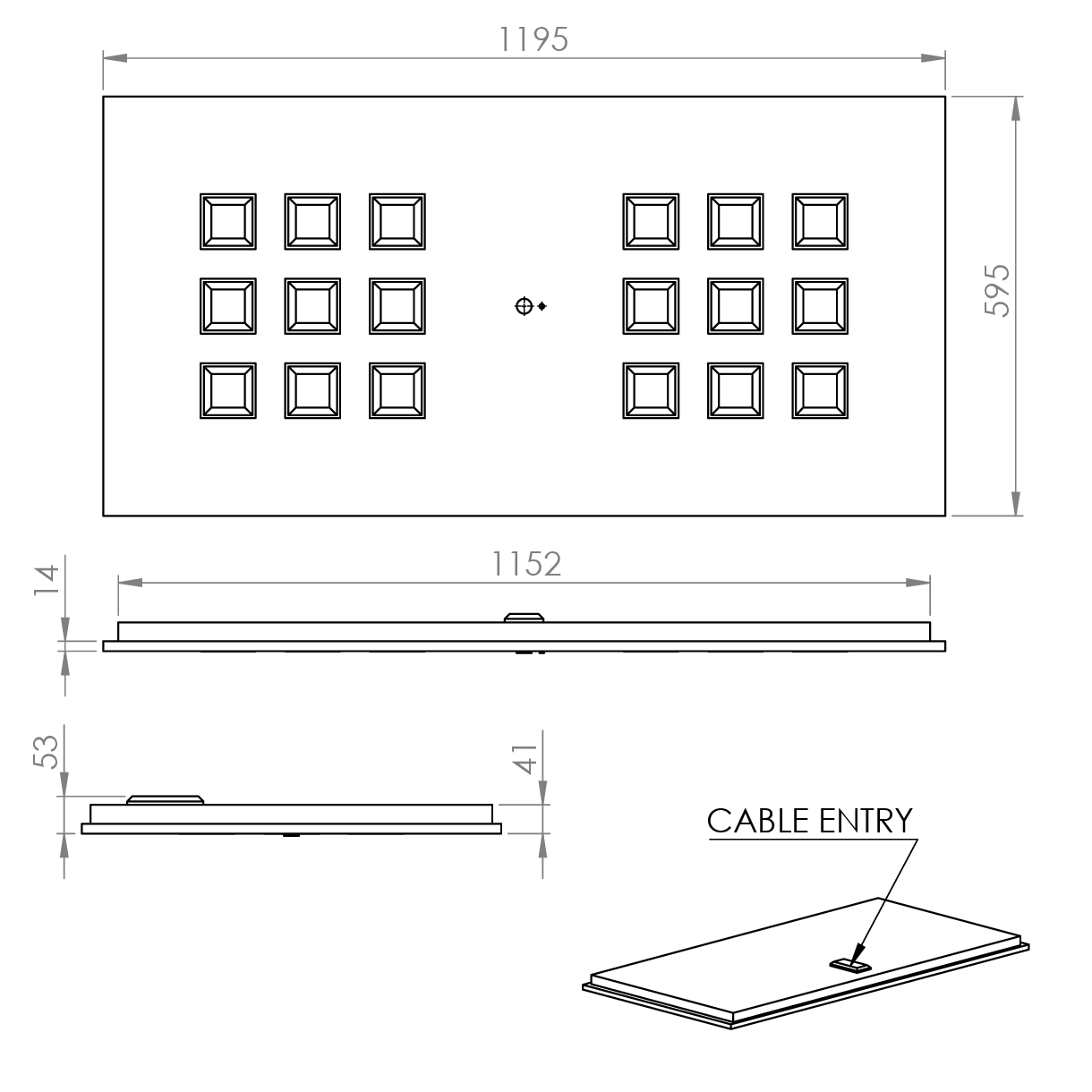

Rubix Flush Pull-Up 1200x600

Rubix Flush Pull-Up 1200x600

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Lay-In
Code Description Power Llm/W
RBXRO L32 Rubix Opal Lay-In, 600x600, 2,673llm, Opal Cell, Colour 84. 17.7W 151
RBXRO L40 Rubix Opal Lay-In, 600x600, 3,348llm, Opal Cell, Colour 84. 27.0w 124
RBXRO L45 Rubix Opal Lay-In, 600x600, 3,762llm, Opal Cell, Colour 84. 25.4W 148
RBXRO 126 L64 Rubix Opal Lay-In, 1200x600, 5,346llm, Opal Cell, Colour 84. 32.4W 165
RBXRO 126 L80 Rubix Opal Lay-In, 1200x600, 6,696llm, Opal Cell, Colour 84. 40.8w 164
RBXRO 126 L90 Rubix Opal Lay-In, 1200x600, 7,524llm, Opal Cell, Colour 84. 45.9w 164
For Alugrid compatible versions please specify lay-in luminaire with correct ALU suffix shown in miscellaneous ordering codes
Pull-Up
Code Description Power Llm/W
RBXPO L32 Rubix Opal Pull-Up, 600x600, 2,673llm, Opal Cell, Colour 84. 17.7w 151
RBXPO 126 L90 Rubix Opal Pull-Up, 1200x600, 7,524llm, Opal Cell, Colour 84. 45.9W 164
RBXPO 126 L80 Rubix Opal Pull-Up, 1200x600, 6,696llm, Opal Cell, Colour 84. 40.8w 164
RBXPO 126 L64 Rubix Opal Pull-Up, 1200x600, 5,346llm, Opal Cell, Colour 84. 32.4w 165
RBXPO L45 Rubix Opal Pull-Up, 600x600, 3,762llm, Opal Cell, Colour 84. 25.4w 148
RBXPO L40 Rubix Opal Pull-Up, 600x600, 3,348llm, Opal Cell, Colour 84. 27.0W 124
For plasterboard ceilings please specify lay-in luminaire and appropriate plasterboard kit.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
D44 DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN DexNET Node, Wireless Node only.
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
ALU16 Alugrid 15/16 Ceiling Compatible
ALU08 Alugrid 15/08 Ceiling Compatible
LSF Low Smoke Zero Halogen

Downloads

Product Datasheet (Download PDF) Installation Guide - Lay In (Download PDF) Installation Guide - Pull Up (Download PDF) Plasterboard Kit Guide (Download PDF) Revit Files Dialux Files Relux Files
