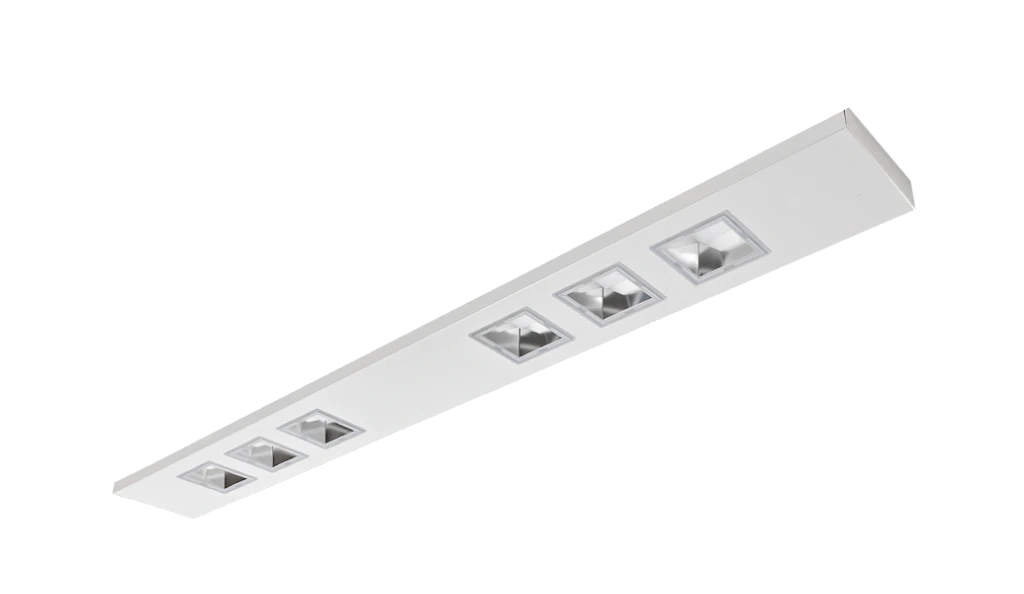

RUBIX LINEAR
Customisable to suit virtually any ceiling or raft system, the Rubix Linear is the most versatile luminaire in our recessed range.
Introduction
The Rubix Linear is ideal for projects where our standard product ranges are not compatible with your ceiling system. The unique design of the Rubix linear allows us to quickly and easily tailor this range project by project to suit most common ceiling systems on the market including any of the following:
- Linear Plank Ceilings
- 500×500, 750×750 ceilings or any other customised ceiling or tile aperture
- All concealed grid systems, SAS, Burgess, Armstrong amongst many others
- Chill beams
- Acoustic Rafts
- Air Handling Systems
The Rubix Linear dimensions, fixing method and ceiling compatibility, cell counts and cell and body colours can all be customised to suit the requirements of your installation and corporate theme. Alongside this versatility further customisation is available through a range of lumen outputs, compatibility with all common dimming systems and a range of integral lithium emergency control gear options. Wireless dimming and control can be offered with our Reacta-Dim system and Reacta-Link options are also available where web based control and reporting of luminaires is required. Simply let us know your requirements and we will be able to supply a Rubix Linear variant to suit.
This versatility does not come at the compromise of quality however. The cellular design of the Rubix Linear gives optimum performance in offices, schools and other applications, allowing maximum spacing of luminaires whilst maintaining compliance with the glare requirements of BSEN 12464 and the optic design gives amongst the most efficient performance in the Dextra recessed range.
Complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9006 textura matt grey
- Finish: Polyester powder painted RAL 9005 textura matt black
- Diffuser: Injection moulded high transmission opal polycarbonate cell with miro silver aluminium inserts and injection moulded clip on bezel
- IP20
- Specify your Rubix Linear to suit virtually any ceiling or raft system, in a wide range of lumen outputs, cell configurations and colour options.
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 132 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- HFR 1-10V analogue dimming
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R44 presence and daylight sensor
- Optional Integral Reacta-Air wireless presence and daylight regulations sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for lay-in installation in exposed T ceilings
- Suitable for pull-up installation in concealed grid ceilings
- Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
- Standard product suitable for lift and tilt installation in exposed T ceiling systems.
- Easily customised to suit a wide range of ceiling types and installation methods such as Linear Plank Ceilings, 500×500, 750×750 ceilings or any other customised ceiling aperture, all concealed ceiling grids, SAS, Burgess, Armstrong amongst many others, Chill Beams and Acoustic Rafts, Air Handling systems.
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
- Available in white, black or grey finishes
- Available with a range of cell colours

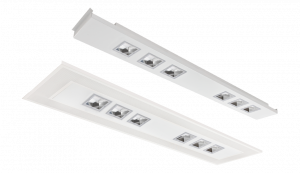

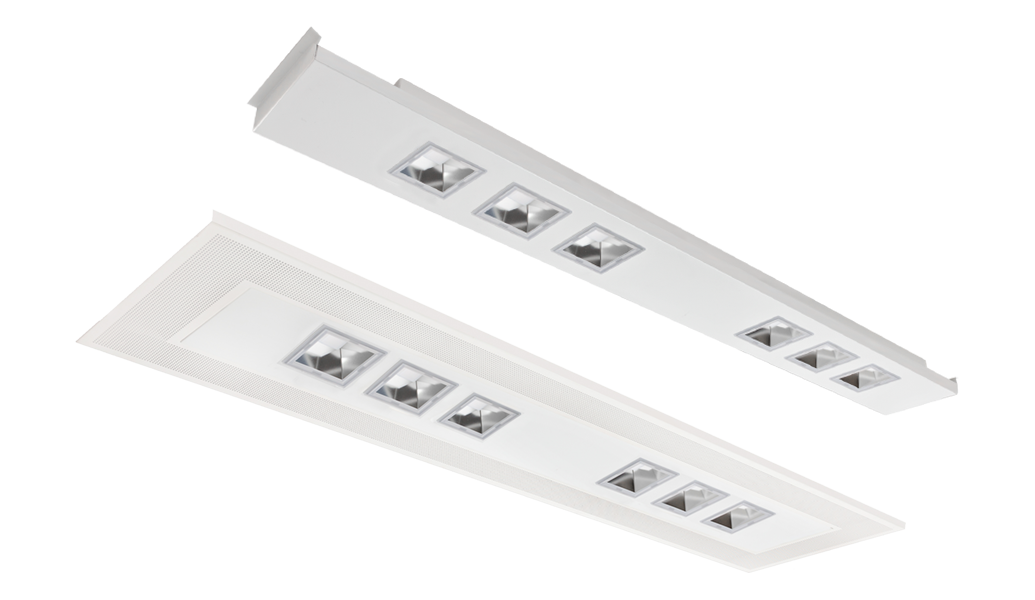

Product Images

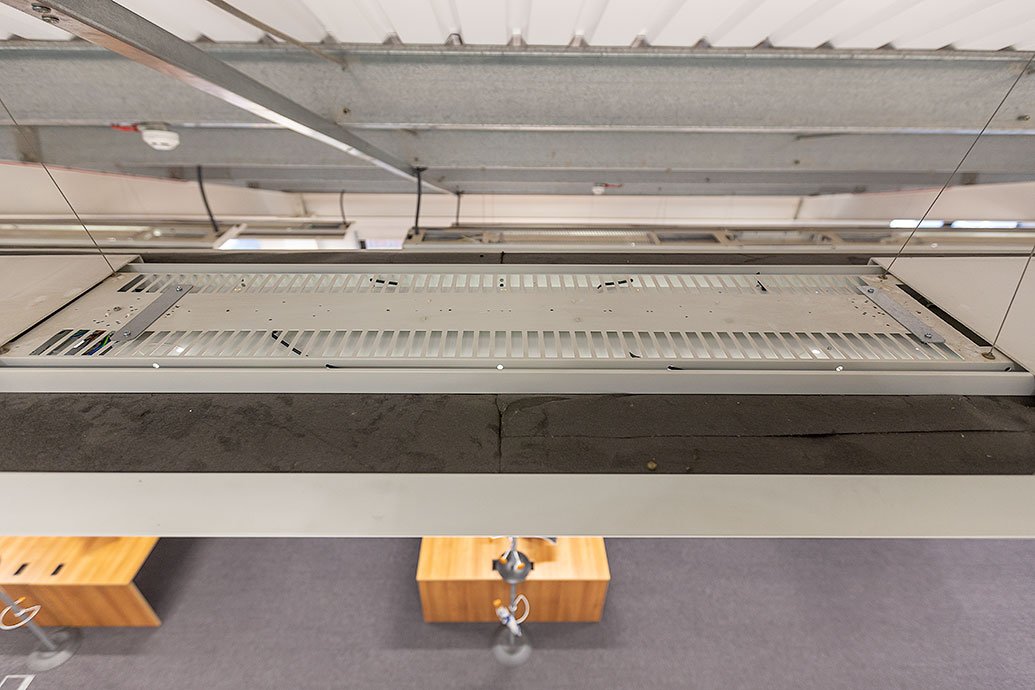

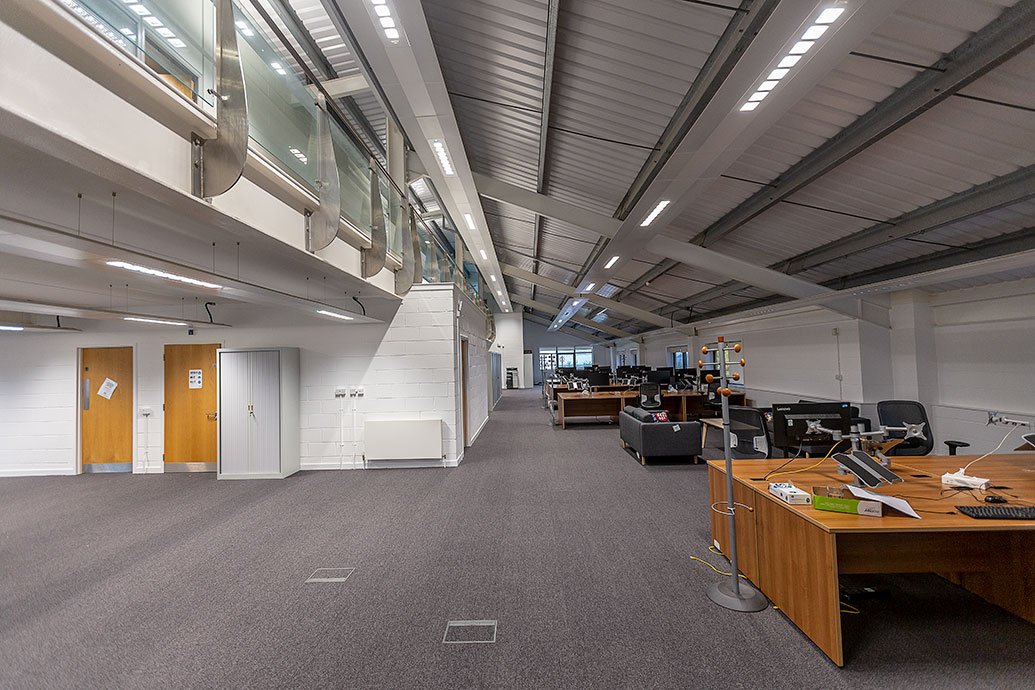

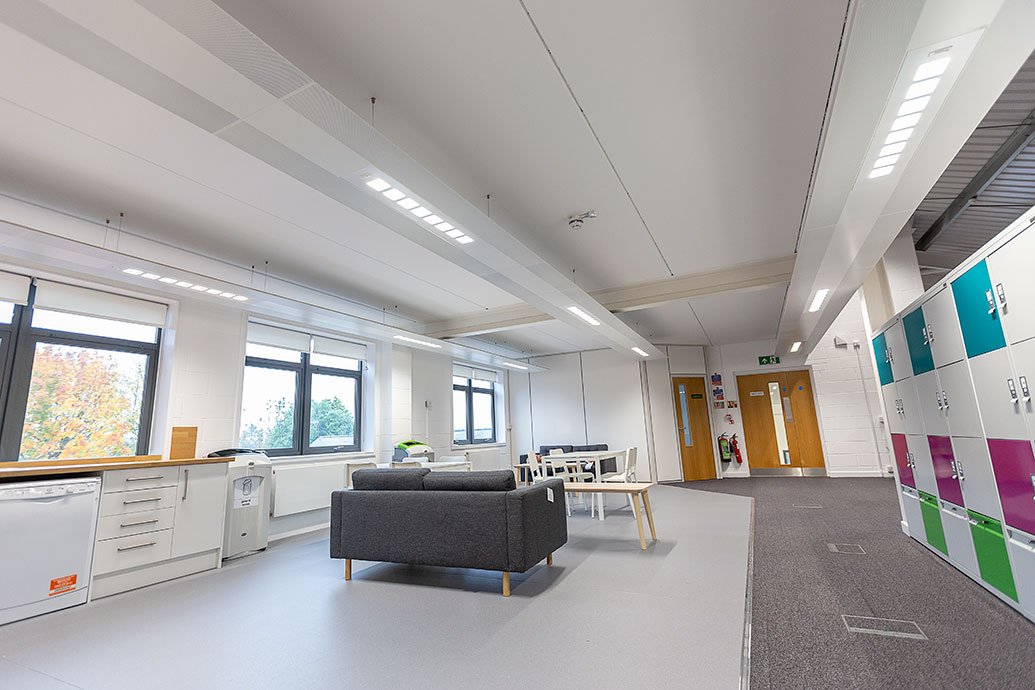

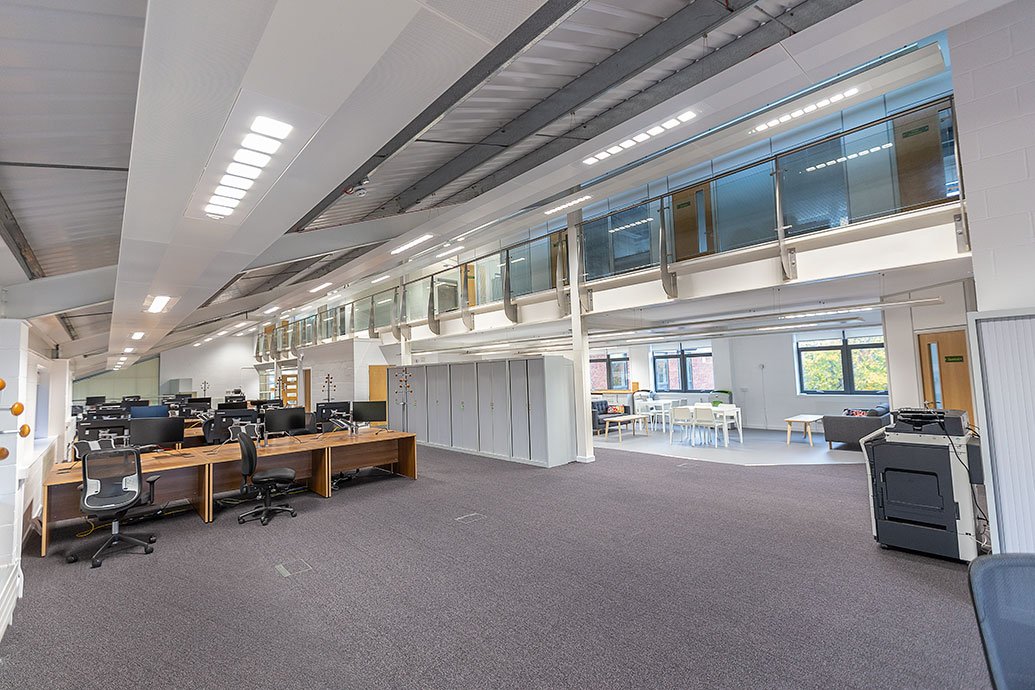

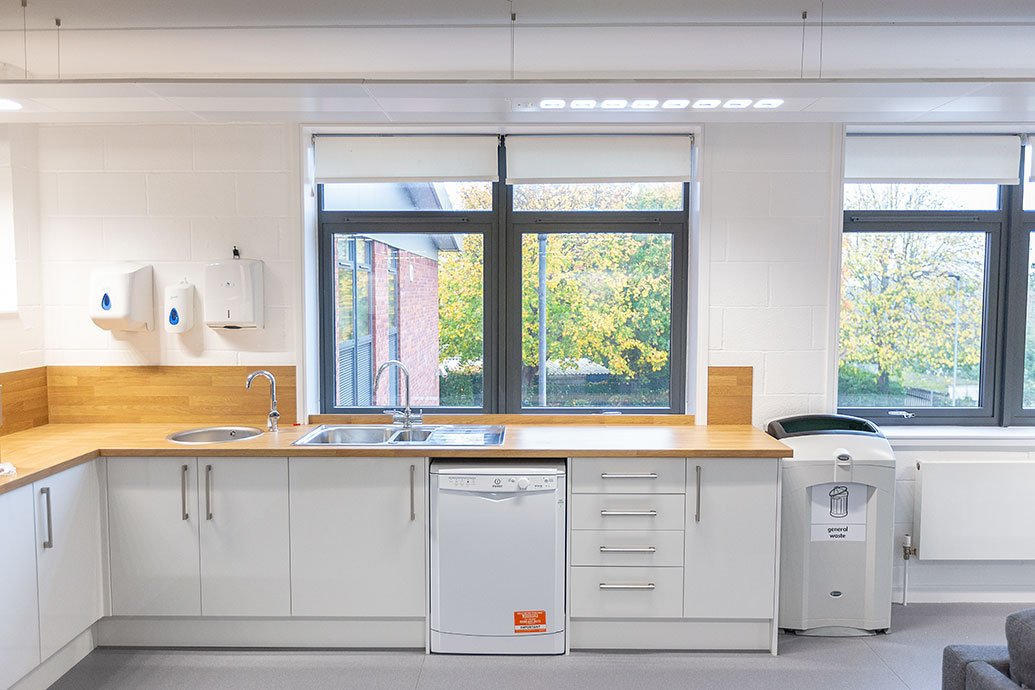

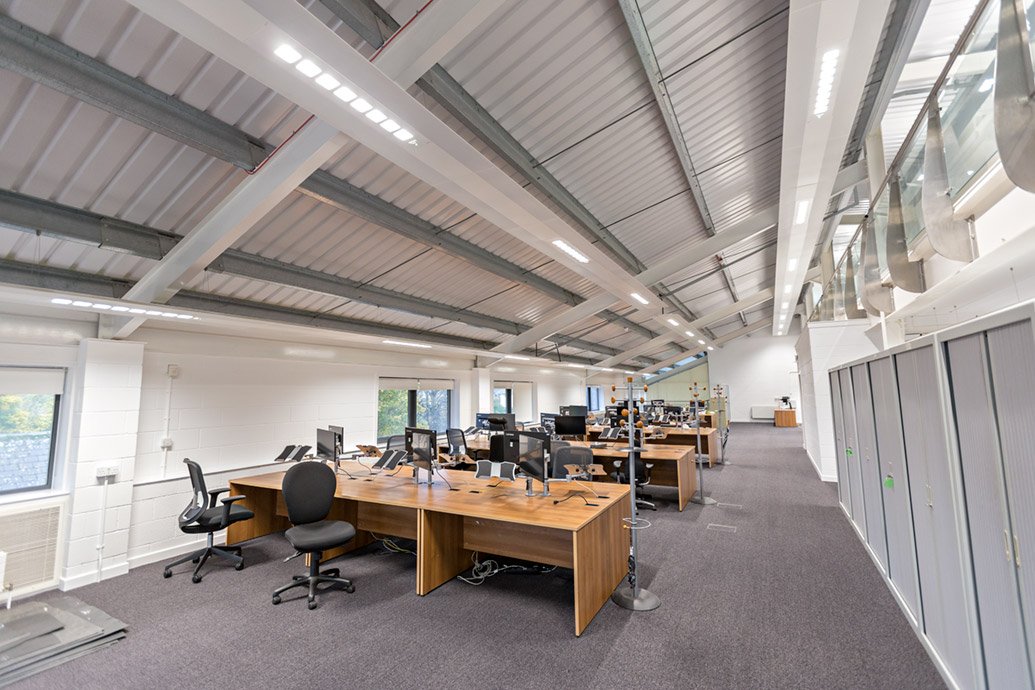

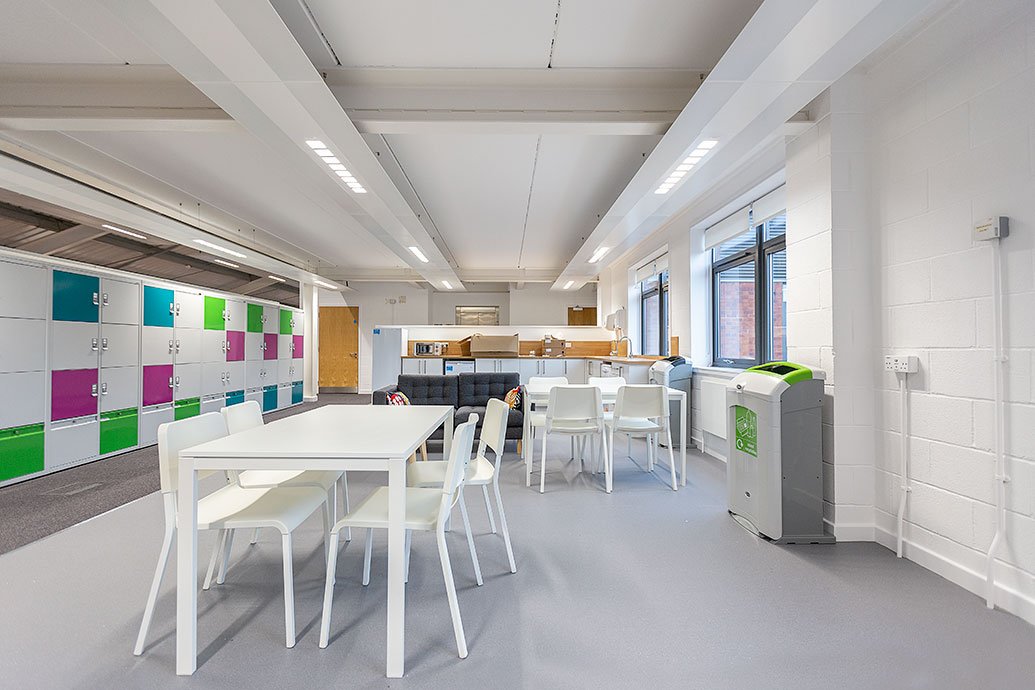

RUBIX LINEAR in action
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||||||||||
Optic
| Code | Description |
|---|---|
| BLK | Black Cell |
| BLE | Blue Cell |
| ORA | Orange Cell |
| RED | Red Cell |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| R44 | Reacta 44, Presence & Daylight, 2.5-7M |
| D44 | DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M |
| DN | DexNET Node, Wireless Node only. |
| RAS | Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLS | Reacta-Link Wireless, Presence & Daylight, 2.5M-5M |
| RCS | Reacta-Control Wireless, Presence & Daylight, 2.5-4M |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| AH25 | Air Handling, 25 litres per second |
| BL | Black Finish |
| GY | Grey Finish |
| LSF | Low Smoke Zero Halogen |
