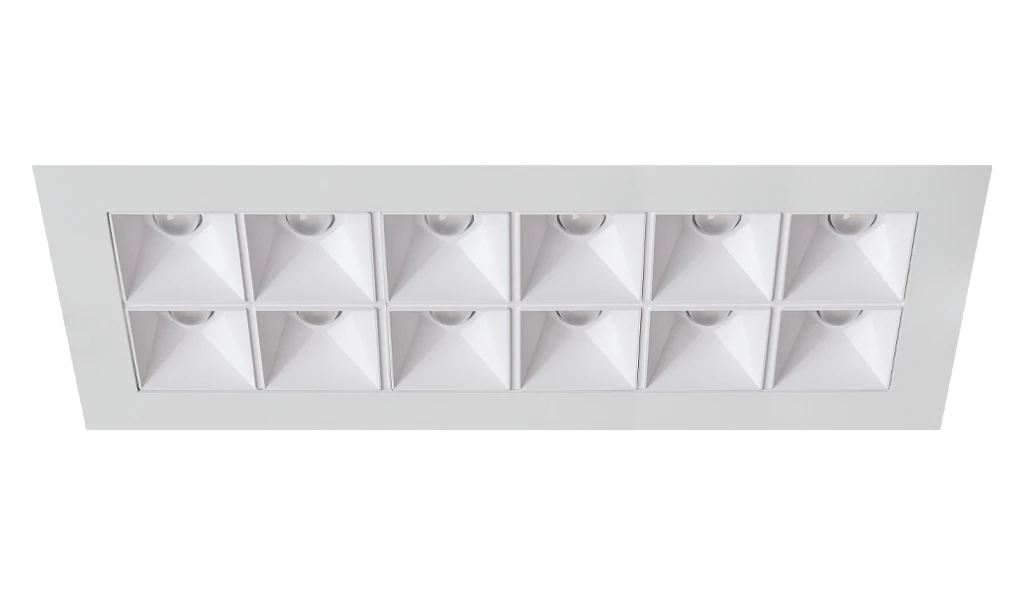

RUBINI RECESSED 12
A discreet yet attractive downlight alternative offering premium efficiency combined with excellent glare control.
Introduction
Where lighting must be both discreet and attractive, the Rubini Recessed 12 provides the optimum solution with its small form factor combined with a modern and attractive cellular design. With excellent glare control as low as UGR 16 and cutting edge efficiency in excess of 145 luminaire lumens per watt, the Rubini Recessed 12 offers superb efficiency and architectural appeal. With a die cast aluminium housing, injection moulded cellular baffle and lensed optic to ensure consistent optical performance with excellent glare control and efficiency the Rubini Recessed 12 has been designed without compromise in materials or performance.
The Rubini Recessed 12 is available in white, black or coppered baffle options, compatibility with all common dimming systems and emergency variants incorporating lithium batteries for extended warranty and lifetime. The Rubini Recessed 12 is also available in Reacta-Control and Reacta-Link compatible variants offering wireless grouping and automated emergency testing and reporting.
Complies with:
UKCA | CE | ECA | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Hotel / Leisure | Office | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9005 textura matt black
- Lens: Injection moulded PMMA 80° with baffle in RAL9005 matt black, RAL 9016 matt white or copper
- IP20
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 143 luminaire lumens per circuit Watt
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- HFR 1-10V analogue dimming
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
- Suitable for metal ceiling tile installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in white or black finishes
Case studies
Technical

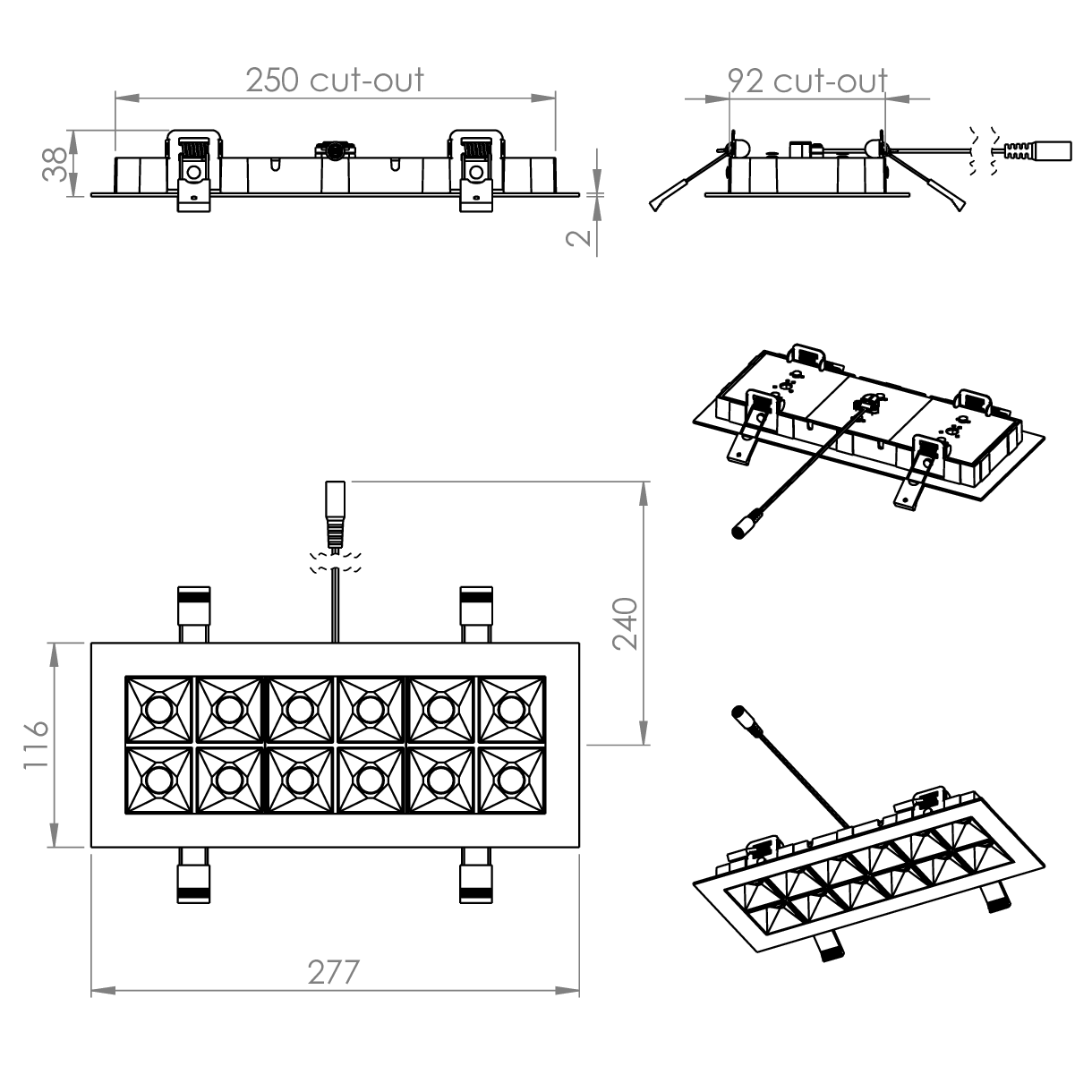

Rubini Recessed 12

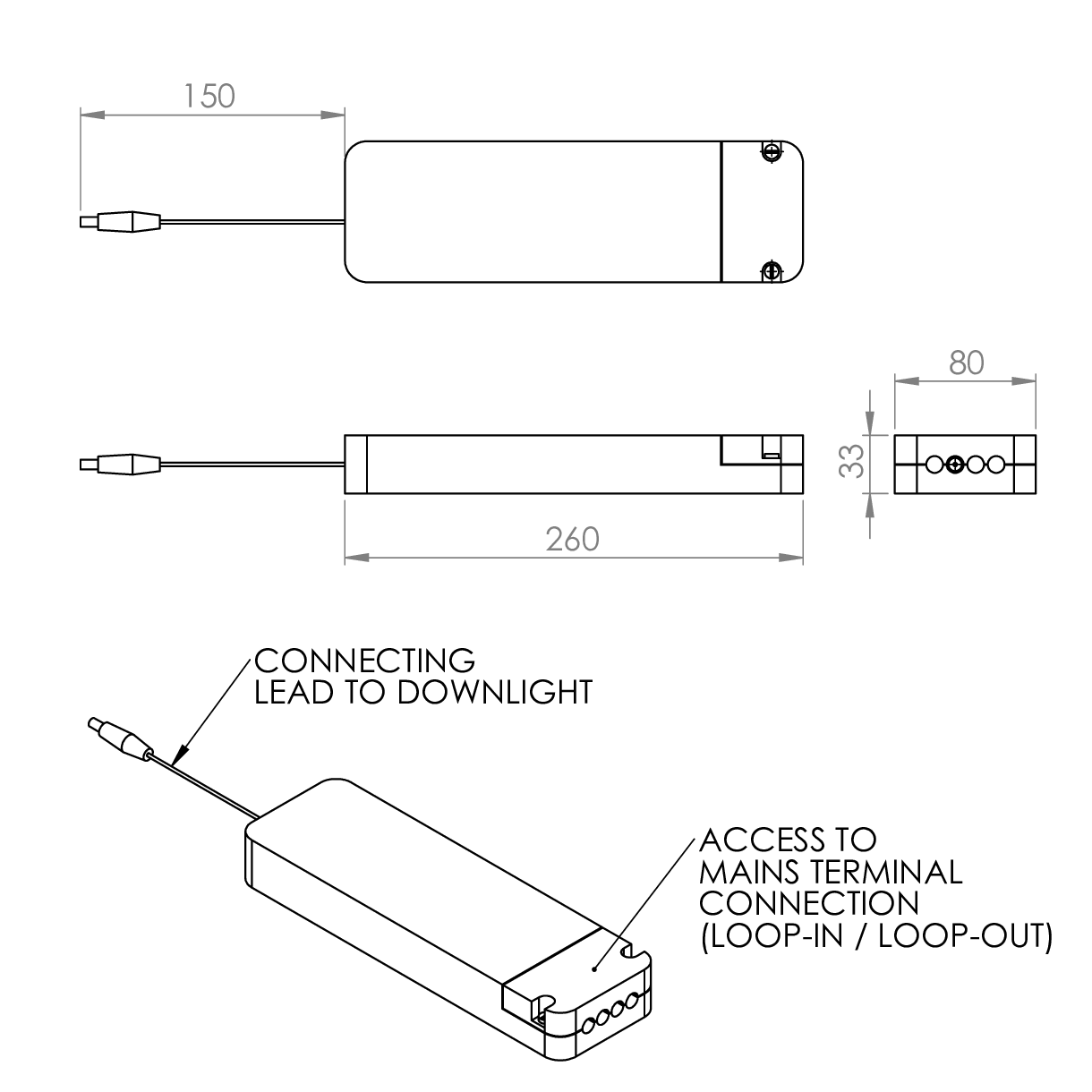

Control Gear Enclosure Standard

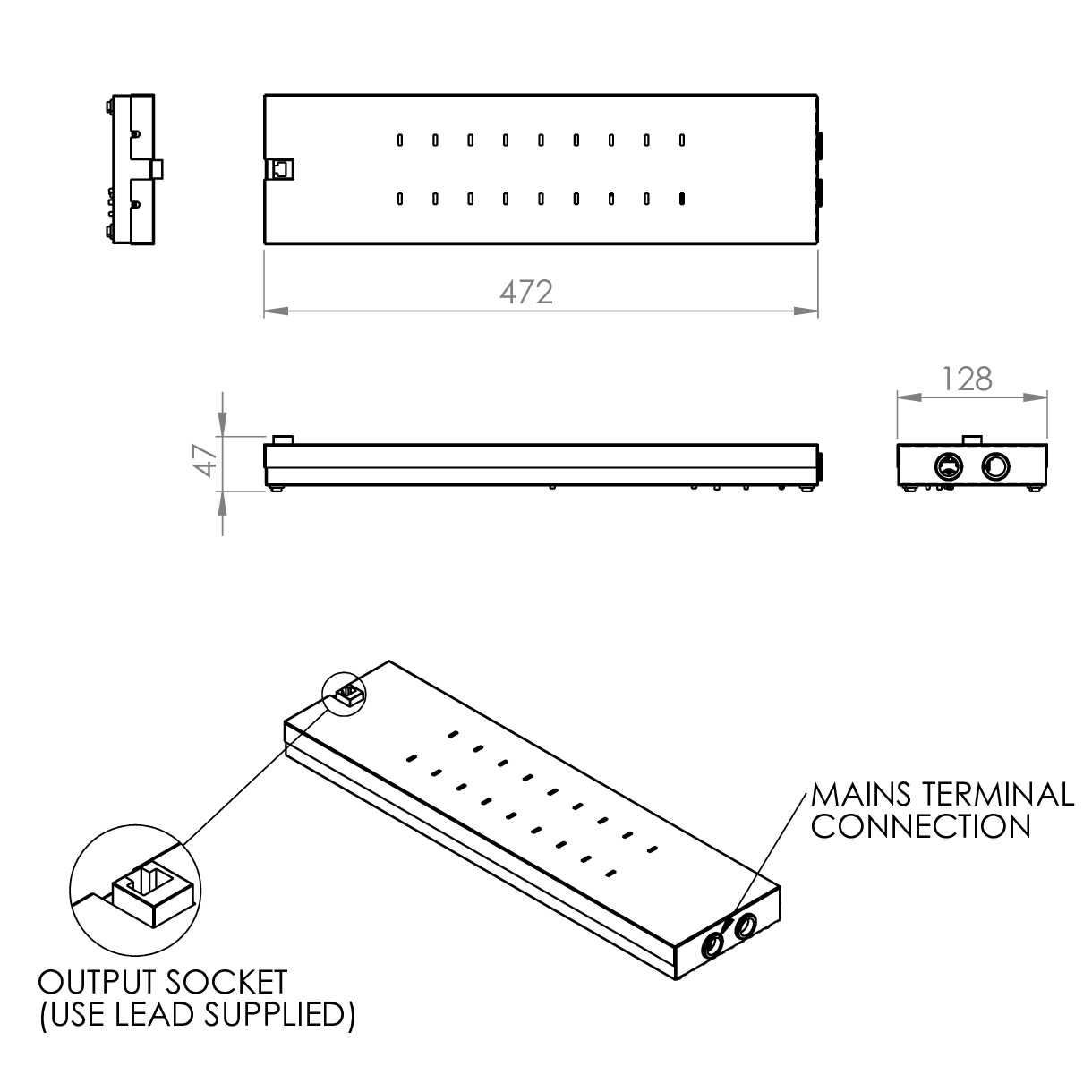

Rubini Gear Enclosure Emergency / Sensor
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||
Colour
| Code | Description |
|---|---|

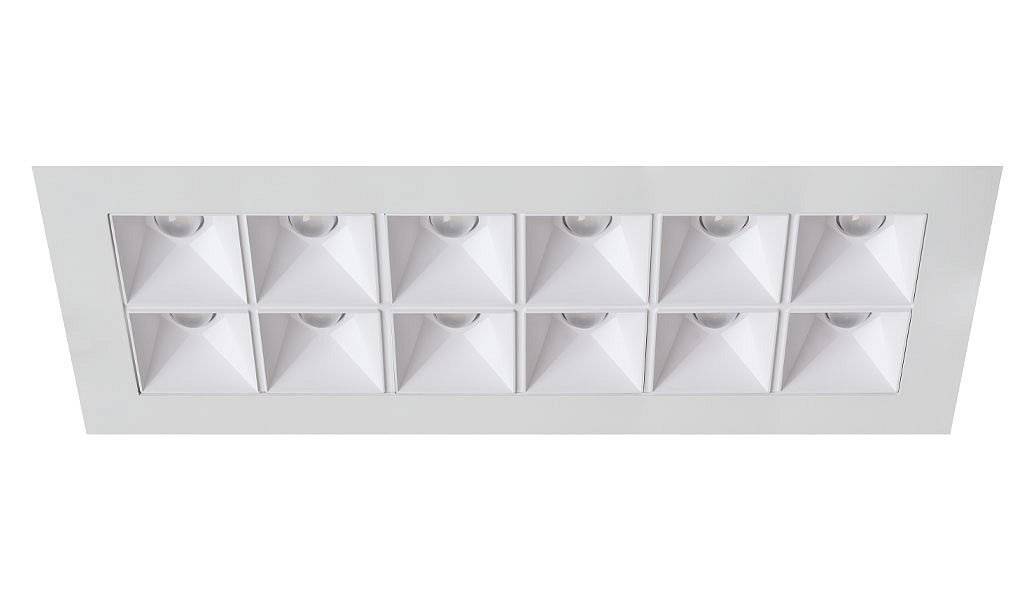

| WW | White Housing / White Baffle |

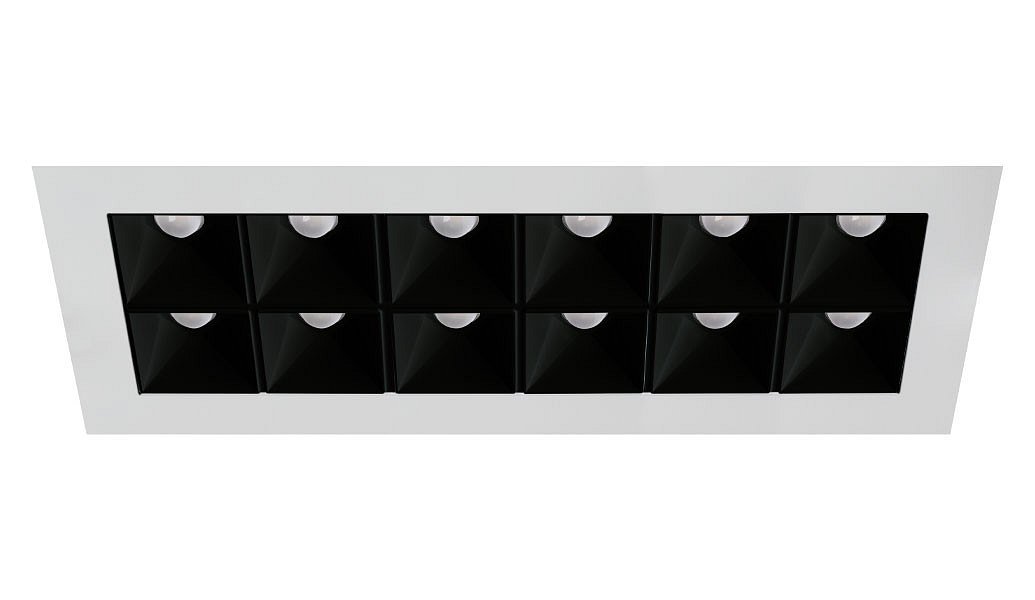

| WB | White Housing / Black Baffle |

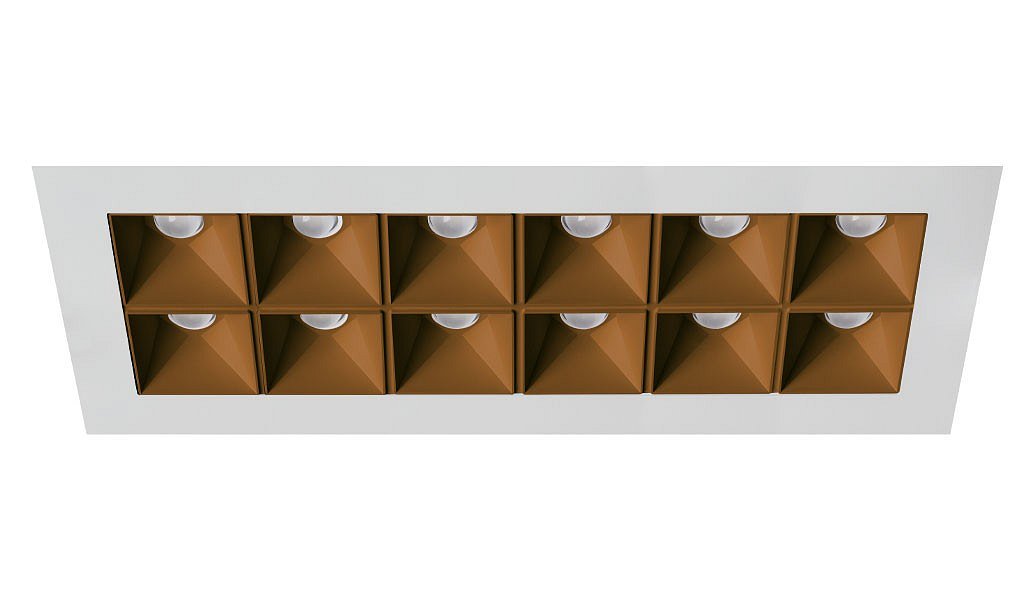

| WC | White Housing / Copper Baffle |

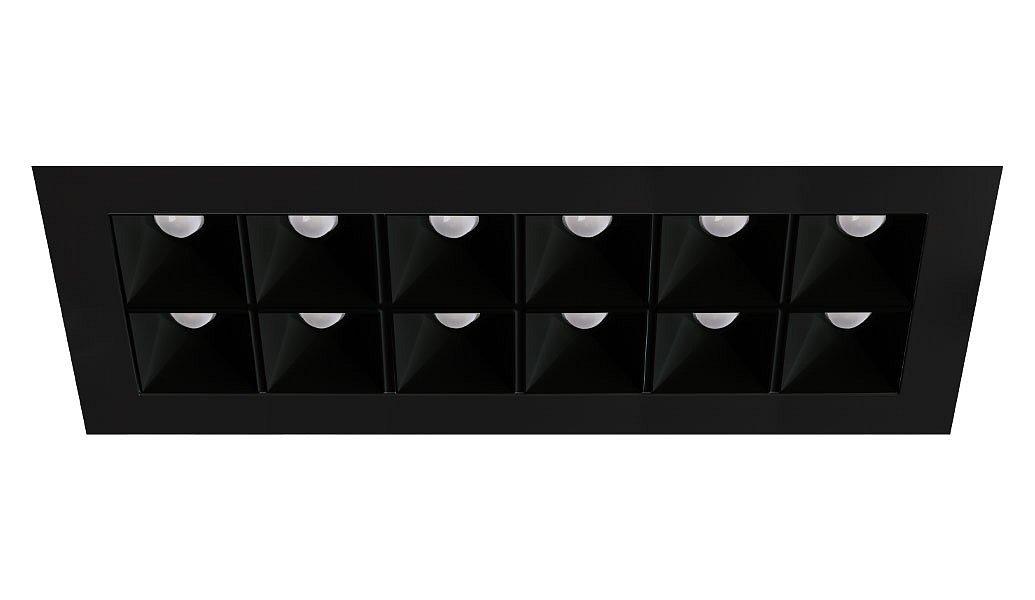

| BB | Black Housing / Black Baffle |

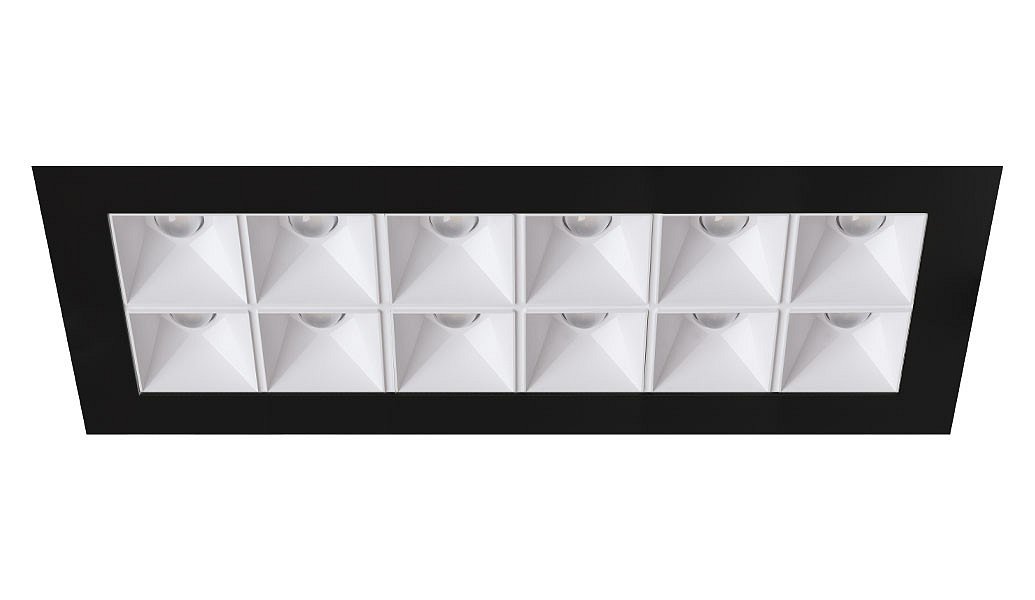

| BW | Black Housing / White Baffle |

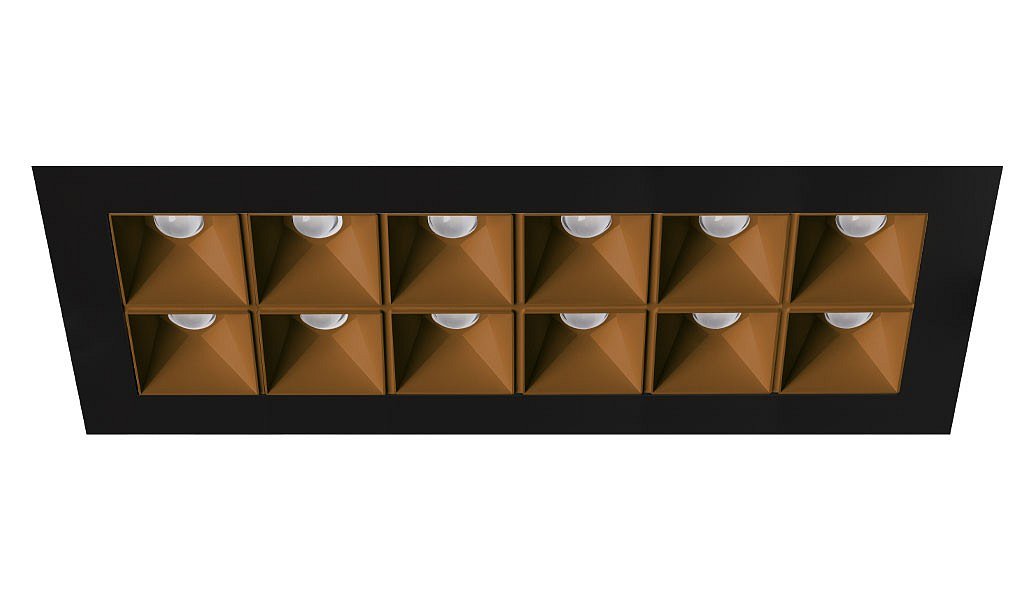

| BC | Black Housing / Copper Baffle |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| LSF | Low Smoke Zero Halogen |
| CRI 90 variants are only available in limited options | |
