INEAL 46 LENS

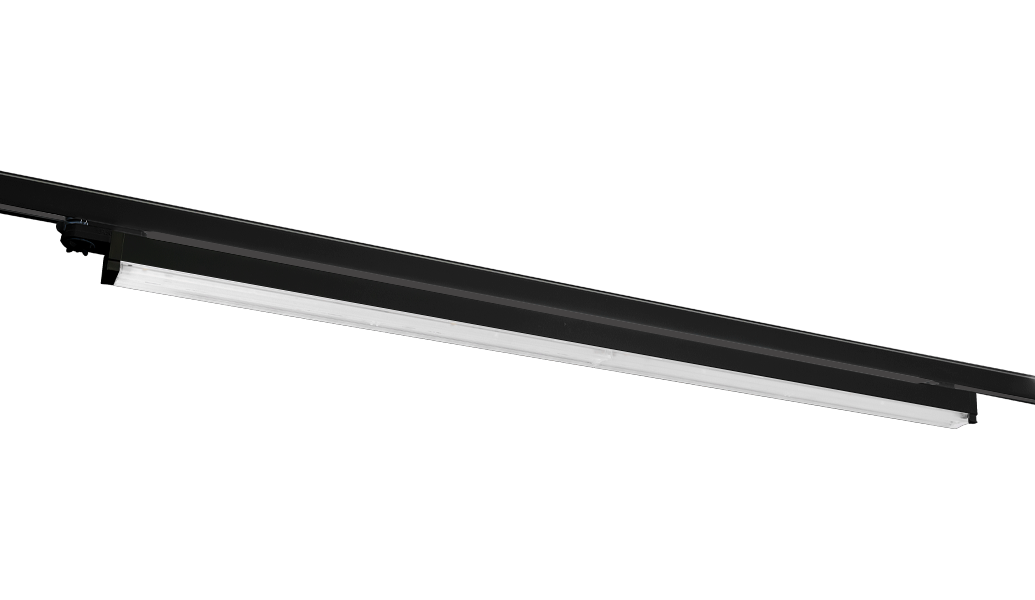

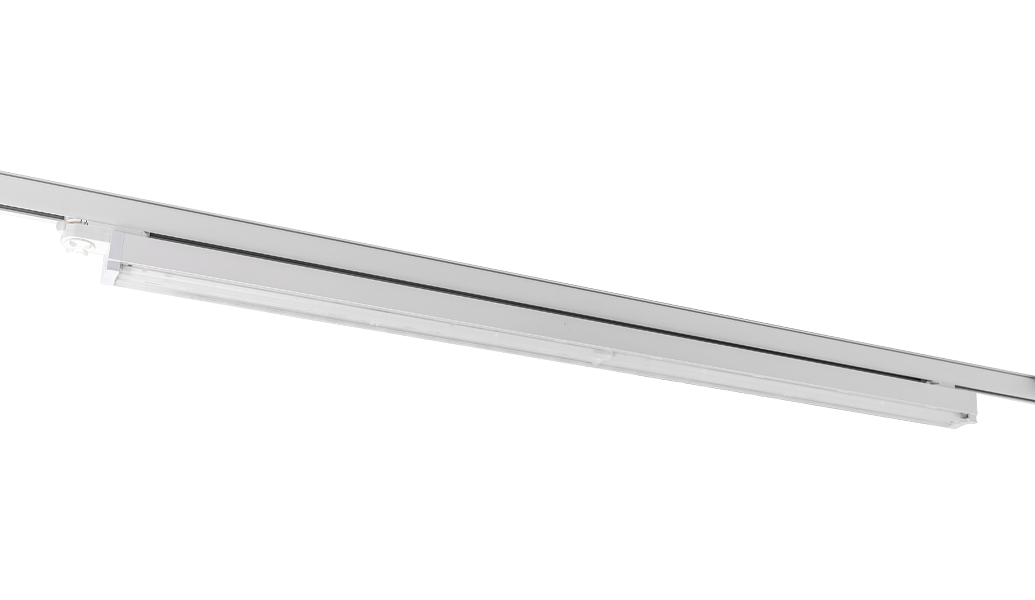

The Ineal 46 family of linear products has been created to offer retailers a discreet low profile solution for their ambient store lighting.

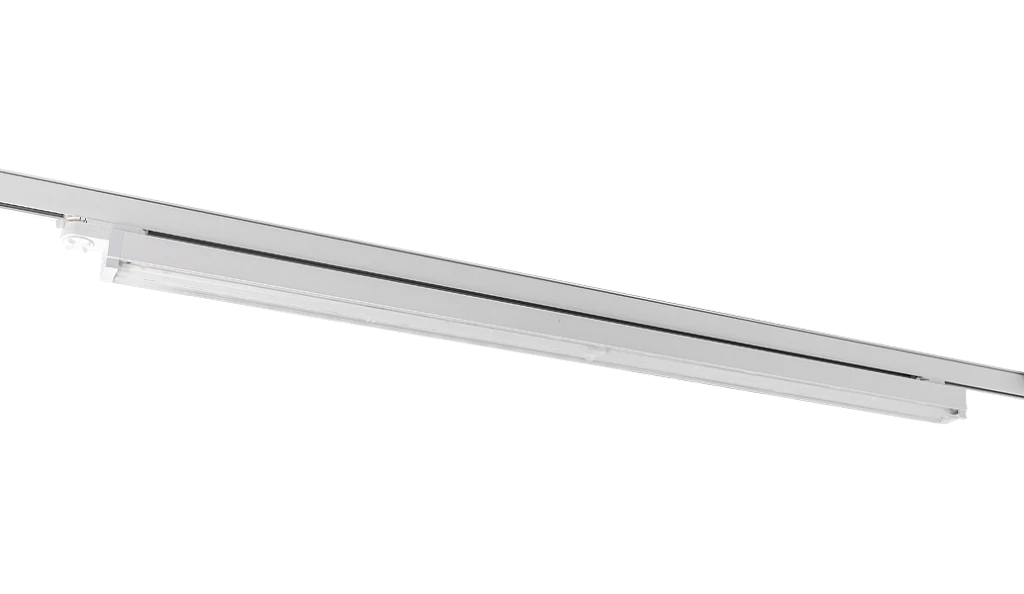

INEAL 46 LENS FEATURED

Introduction

The Ineal 46 family of linear products has been created to offer retailers a discreet low profile solution for their ambient store lighting. Designed to mount directly onto three circuit or DALI lighting track the high quality extruded aluminium body measures just 46mm in width and is offered in matt black or white as standard. This version comes with the choice of a clear open area or retail symmetric custom lens diffuser which provides maximum efficiency with complete optical control, distributing the light effectively and evenly onto merchandise. The flexibility of the track adaptor allows you to re-position the fittings quickly and simply should there be any changes to the store layout further down the line. This unique product range is also available with integral emergency and offered in a wide range of lumen outputs across three luminaire lengths.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Finish: White, grey or black bezels
  • Endcaps: Injection moulded polycarbonate
  • Lens: Injection moulded polycarbonate lens
  • IP20
  • IP40

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 189 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional DALI dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for three circuit track installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
Find out more about our 5 year extended warranty
Arrow right

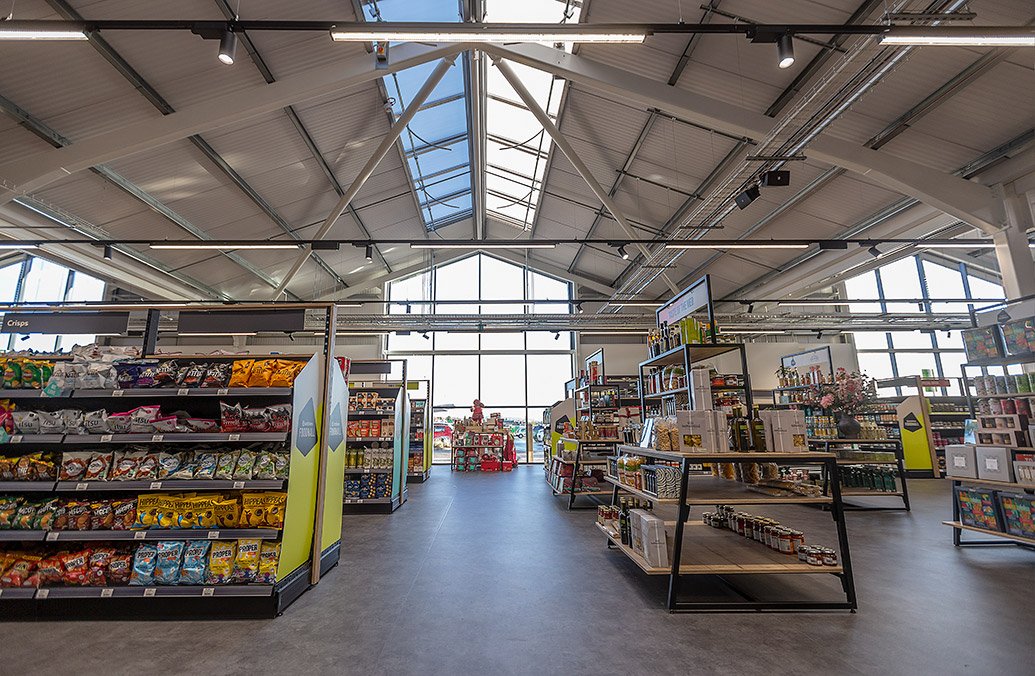

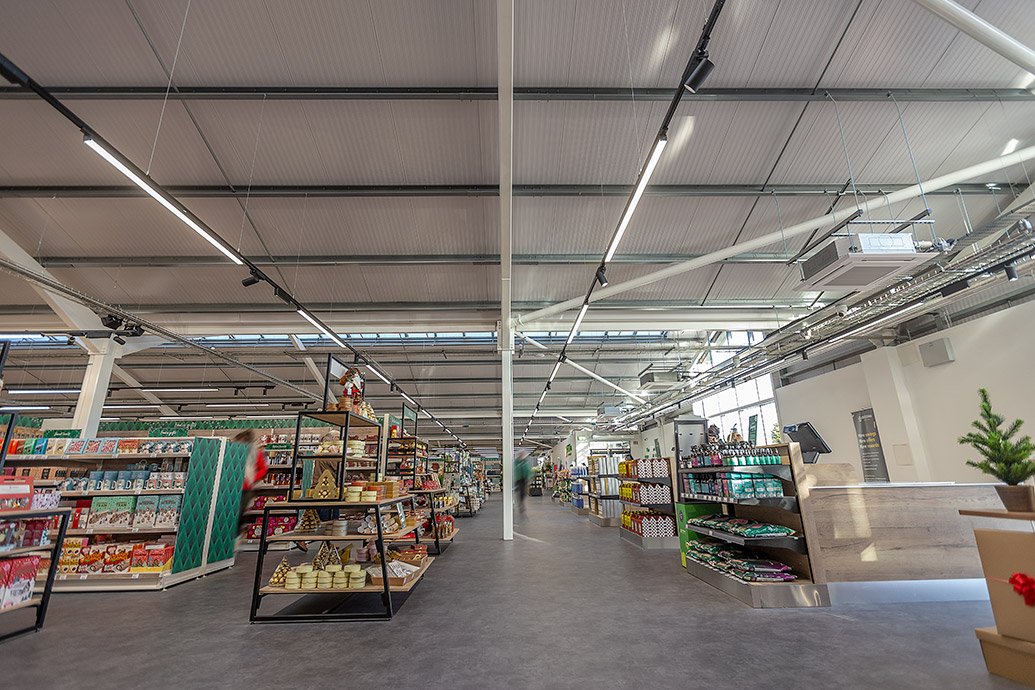

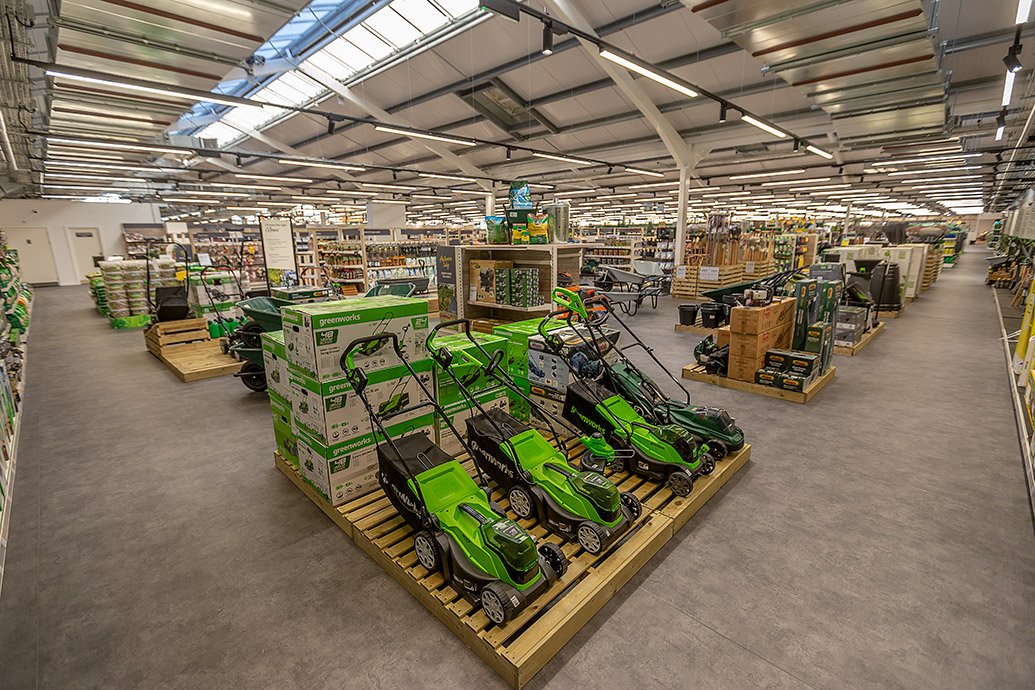

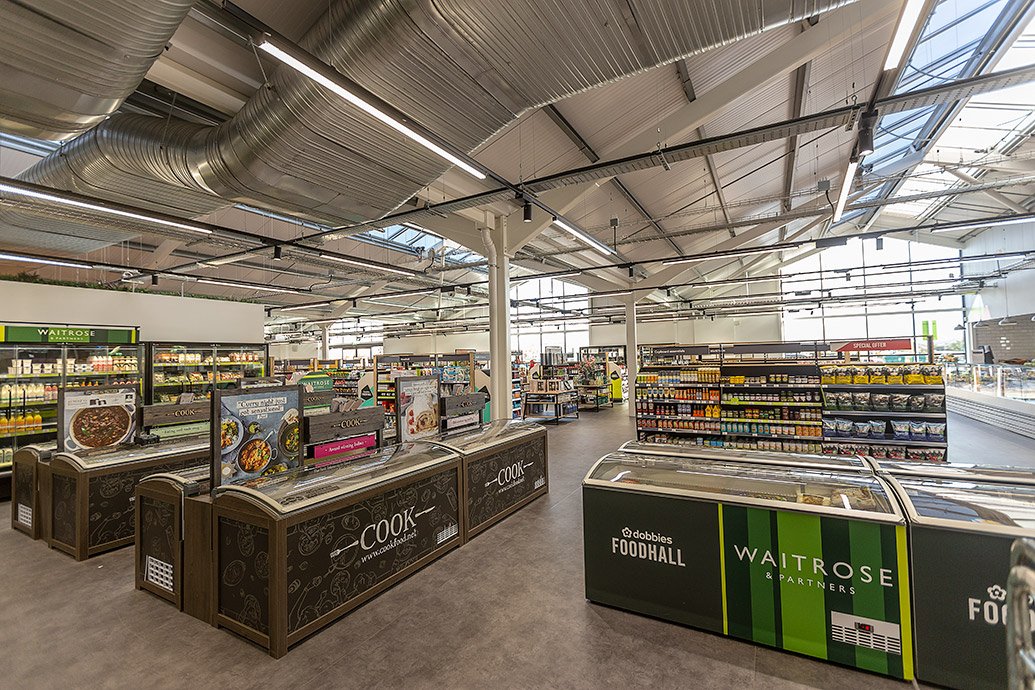

INEAL 46 LENS in action

Technical

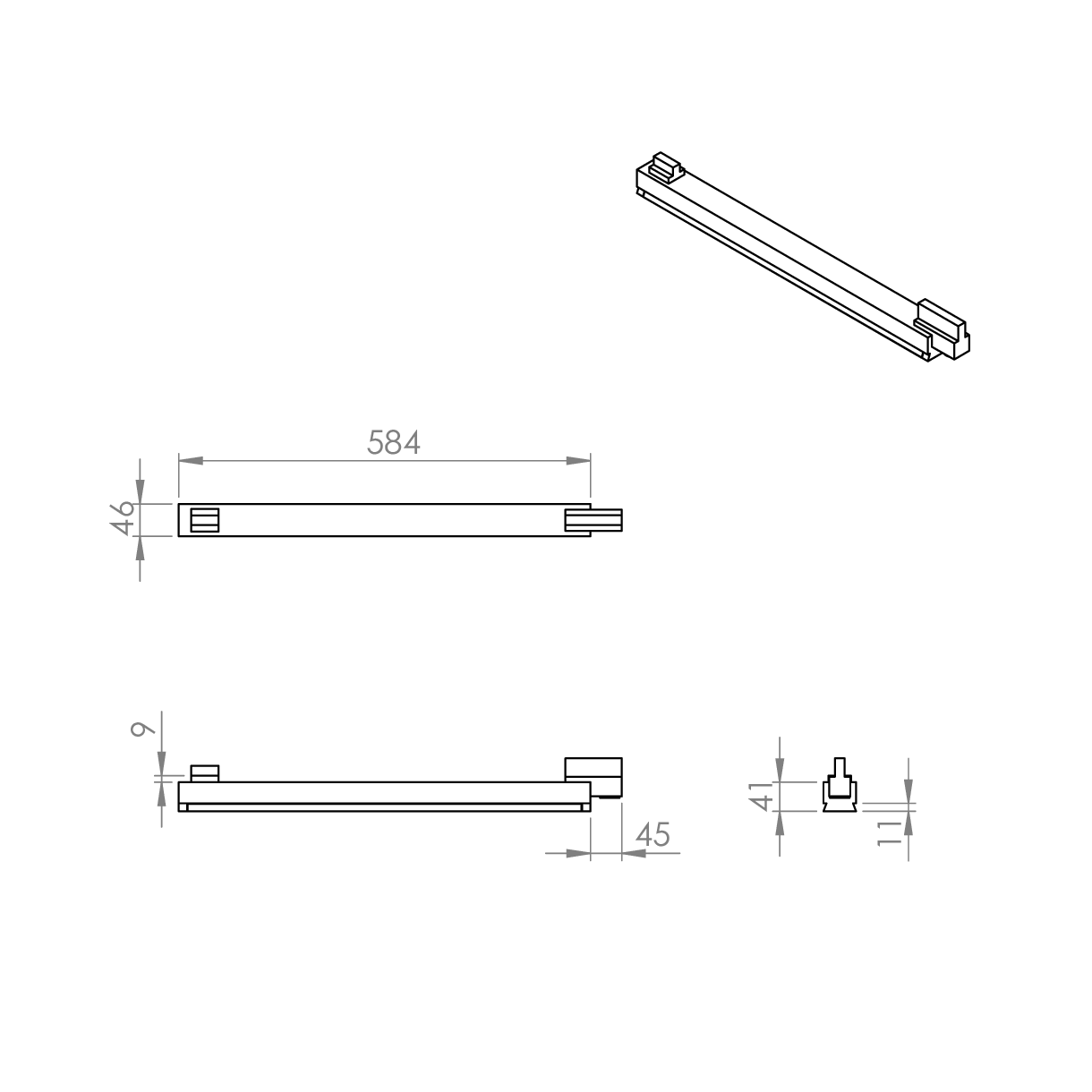

Ineal 46 Lens 584mm

Ineal 46 Lens 584mm

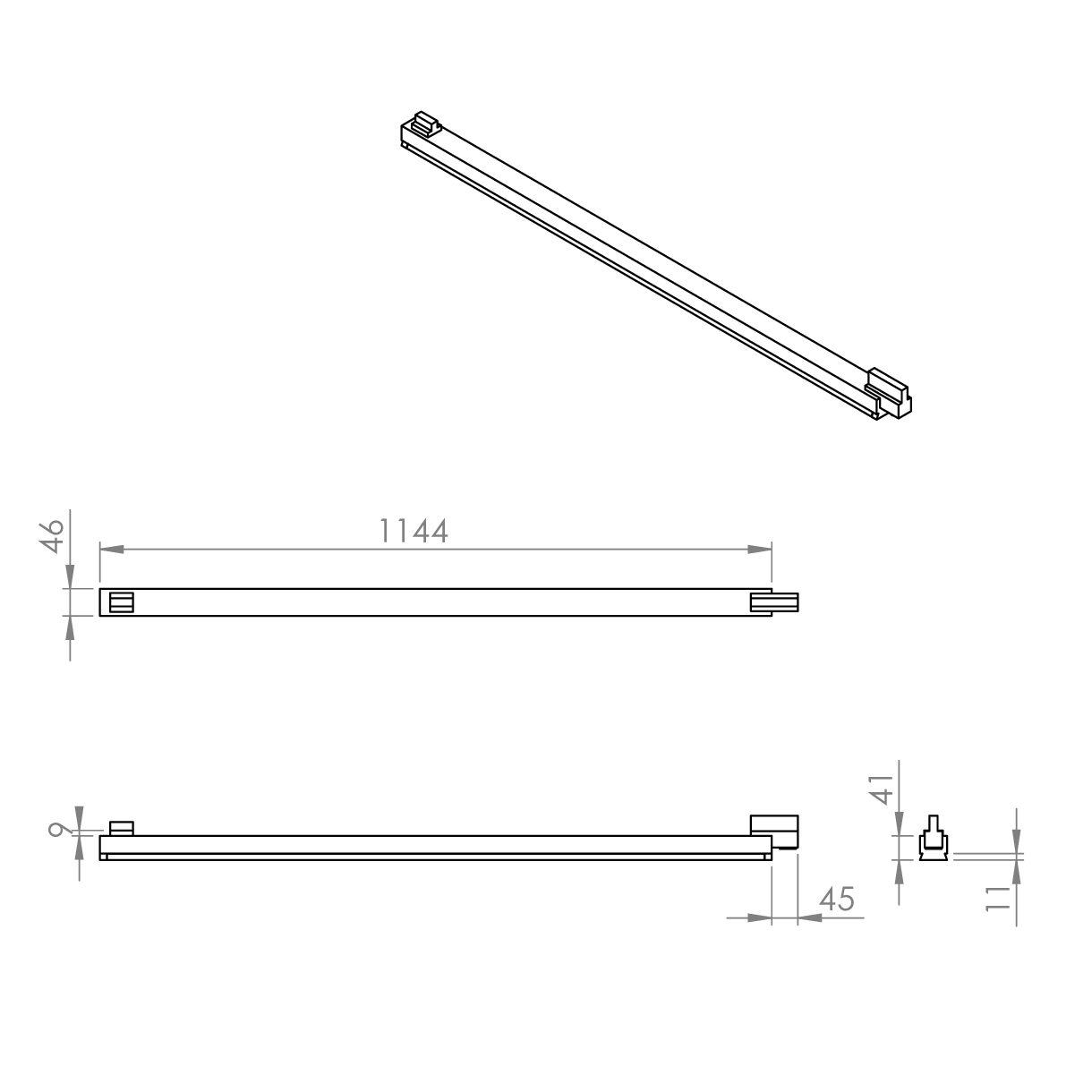

Ineal 46 Lens 1144mm

Ineal 46 Lens 1144mm

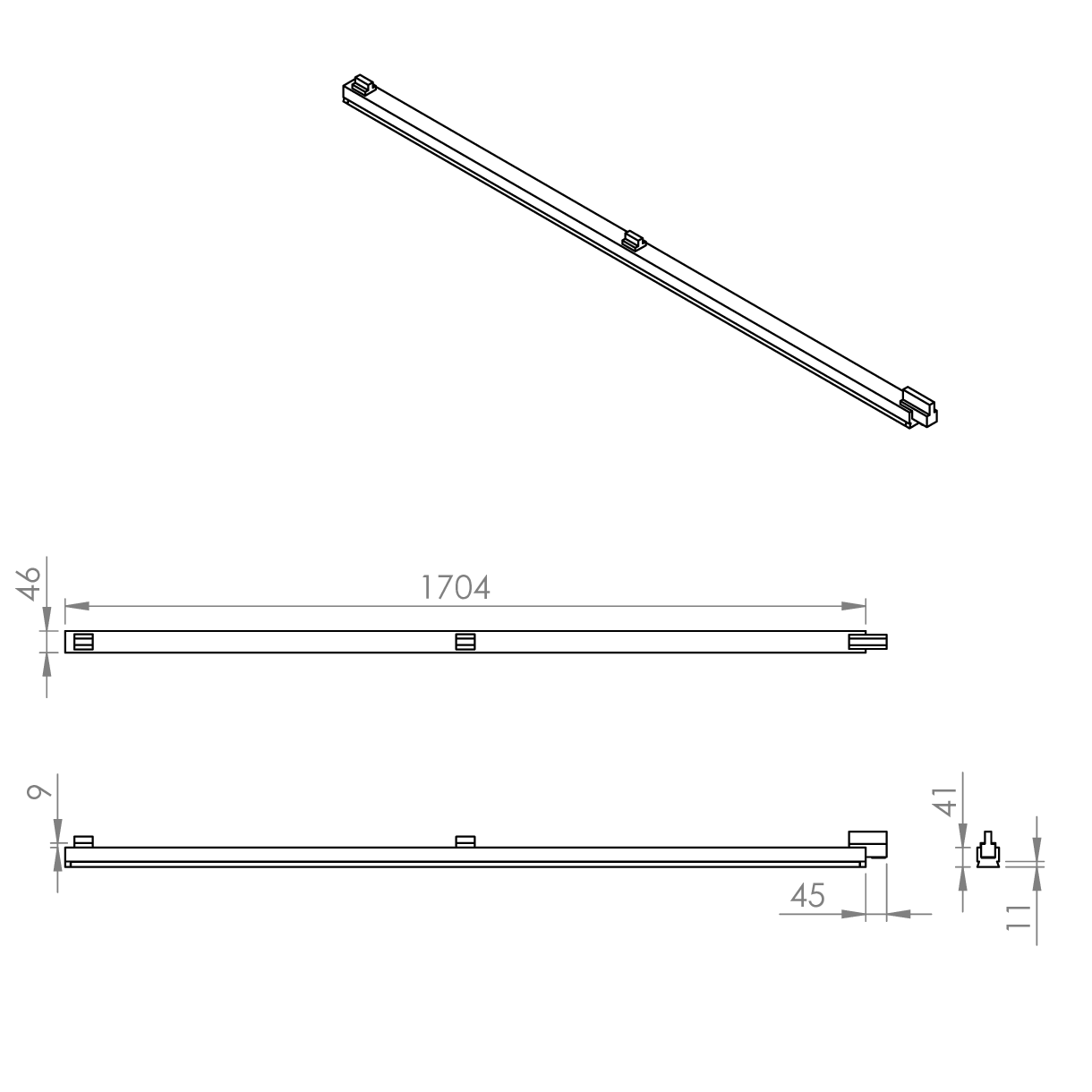

Ineal 46 Lens 1704mm

Ineal 46 Lens 1704mm

Track Polarity

Track Polarity

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
INEL L22 OA GB Ineal 46, 584mm, 2,127llm, Open Area, Colour 84, Global. 13.1W 162
INEL L26 OA GB Ineal 46, 1144mm, 2,515llm, Open Area, Colour 84, Global. 14.5W 173
INEL L38 OA GB Ineal 46, 1144mm, 3,675llm, Open Area, Colour 84, Global. 20.6W 178
INEL L45 OA GB Ineal 46, 1704mm, 4,352llm, Open Area, Colour 84, Global. 23.4W 186
INEL L65 OA GB Ineal 46, 1704mm, 6,286llm, Open Area, Colour 84, Global. 33.3W 189
INEL L90 OA GB Ineal 46, 1704mm, 8,703llm, Open Area, Colour 84, Global. 48.4W 180
INEL L22 RS GB Ineal 46, 584mm, 2,108llm, Symmetrical, Colour 84, Global. 13.1W 161
INEL L26 RS GB Ineal 46, 1144mm, 2,490llm, Symmetrical, Colour 84, Global. 14.5W 172
INEL L38 RS GB Ineal 46, 1144mm, 3,640llm, Symmetrical, Colour 84, Global. 20.6W 177
INEL L45 RS GB Ineal 46, 1704mm, 4,311llm, Symmetrical, Colour 84, Global. 23.4W 184
INEL L65 RS GB Ineal 46, 1704mm, 6,225llm, Symmetrical, Colour 84, Global. 33.3W 187
INEL L90 RS GB Ineal 46, 1704mm, 8,622llm, Symmetrical, Colour 84, Global 48.4W 178

Dimming

Code Description
A DALI Digital Addressable Lighting Interface

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Emergency only available in DALI variants of 1144 and 1704mm length

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
BL Black Finish
LSF Low Smoke Zero Halogen
