HBE3

This highly versatile exit sign is designed to suit nearly all emergency exit applications.

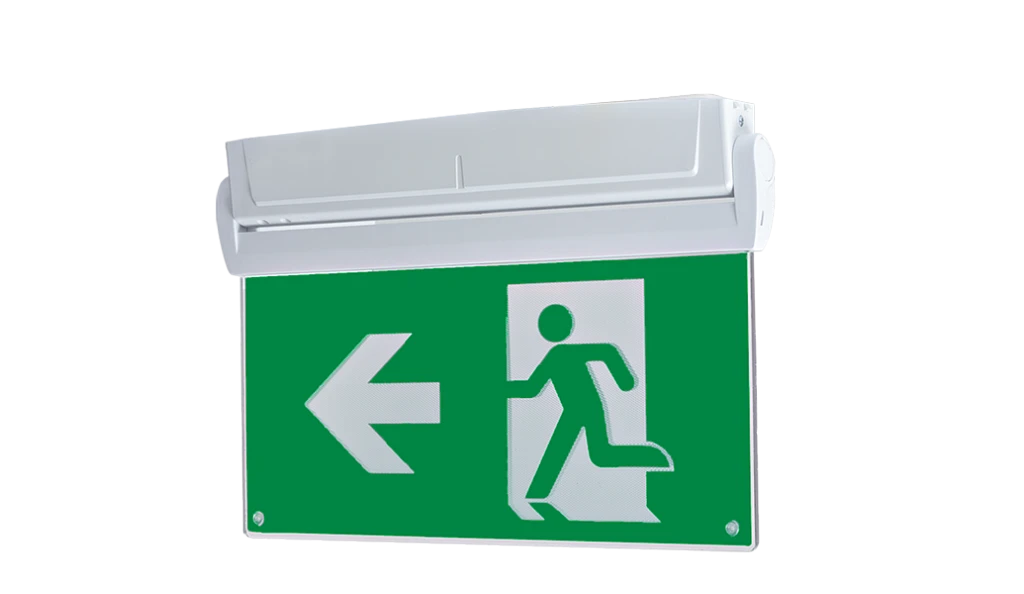

HBE3 FEATURED

Introduction

This highly versatile exit sign is designed to suit nearly all emergency exit applications. The standard product is suitable for both suspension and surface mounting, whilst the blade angle can be pivoted through a range of angles when mounting onto sloped ceilings. In addition to this, recessing kits and wall mounting kits are available as optional extras. The HBE3 is supplied with a Lithium battery as standard for extended battery life.

Operating at just 2.7W, the HBE3 offers excellent energy efficiency and is also available with both standard and self test options. Legends are supplied complete with the luminaire in all four directions in ISO 7010 formats with sufficient legends for double sided left and right applications. For Autotest versions please refer to the HBE, for Reacta-Link enabled wireless versions please refer to the HBE Wireless.

Complies with:

UKCA | CE | IP20 | TM66 CEAM Score: 1.6

Recommended applications:

Canteen | Commercial & Offices | Corridor | Education | Food Production | Healthcare & Social Housing | Hotel & Leisure | Industrial & Manufacturing | Kitchen | Office | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Injection moulded polycarbonate
  • Finish: Matt white
  • ISO 7010 with all directional arrow options.
  • IP20

Environmental

  • Powered by European branded drivers.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with standard or self test emergency with lithium batteries for extended lifetime.

Installation

  • Suitable for suspended installation
  • Suitable for surface installation
Find out more about our 5 year extended warranty

Product Images

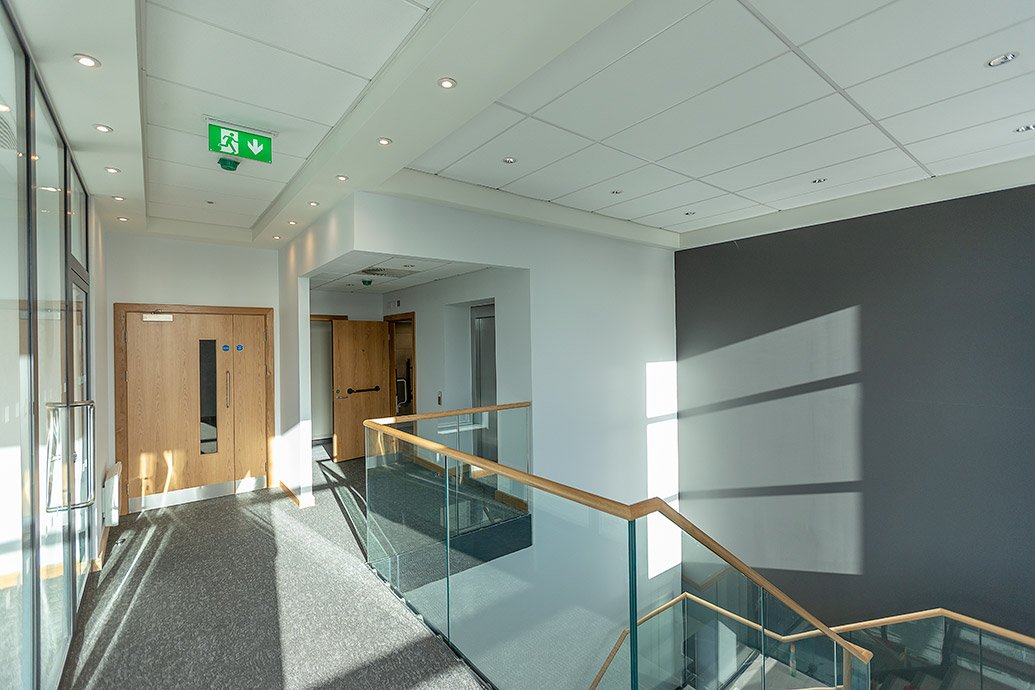

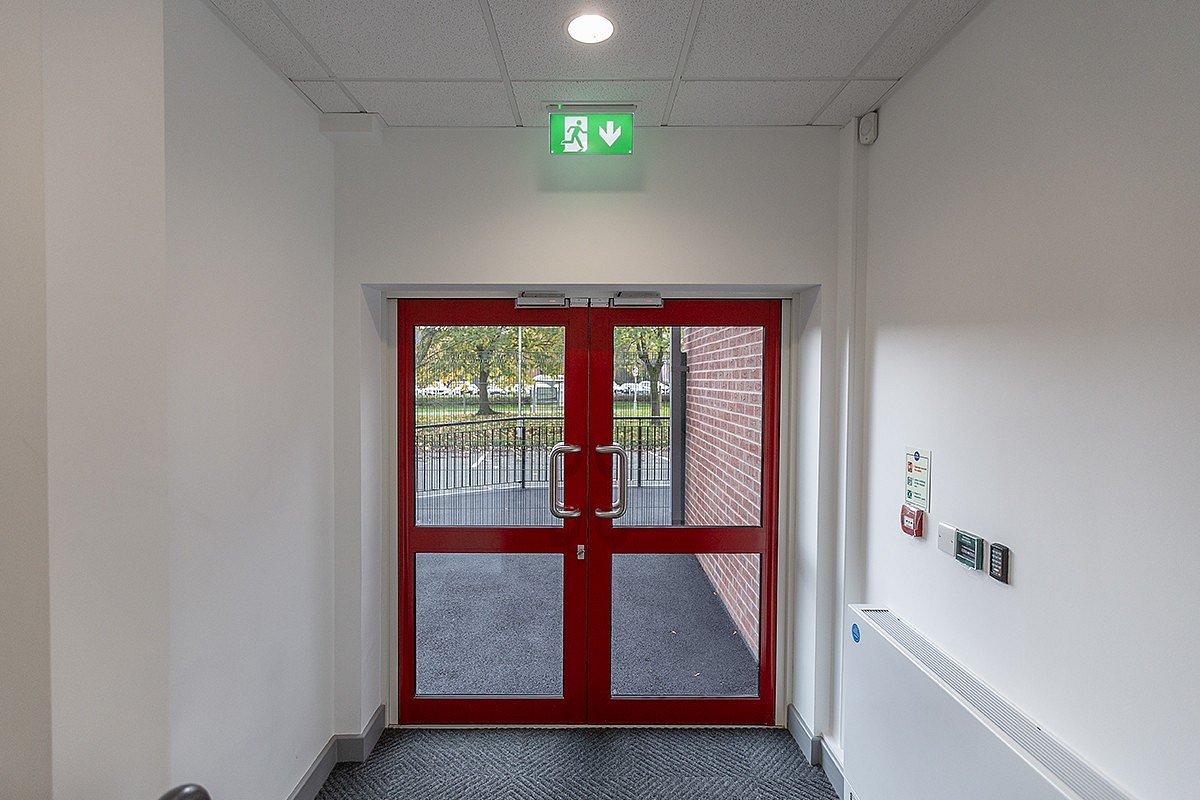

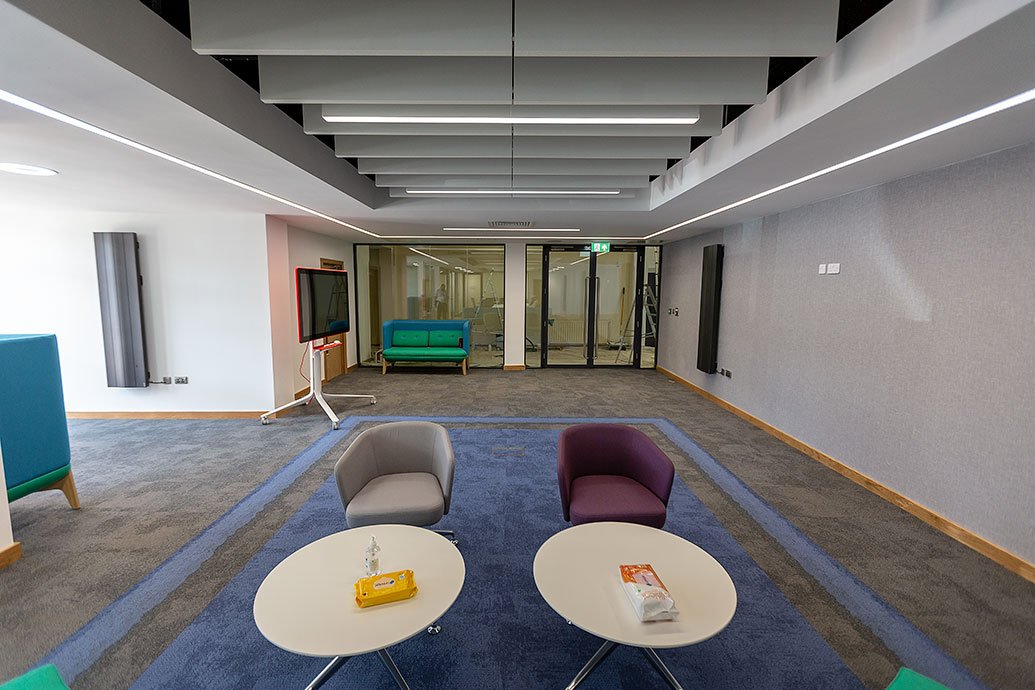

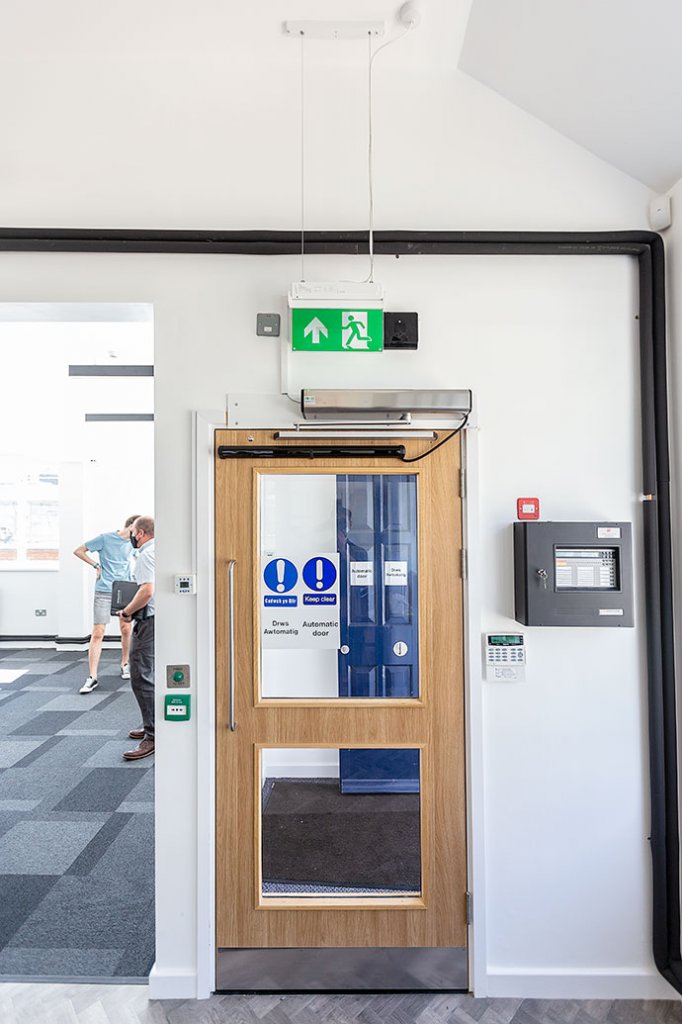

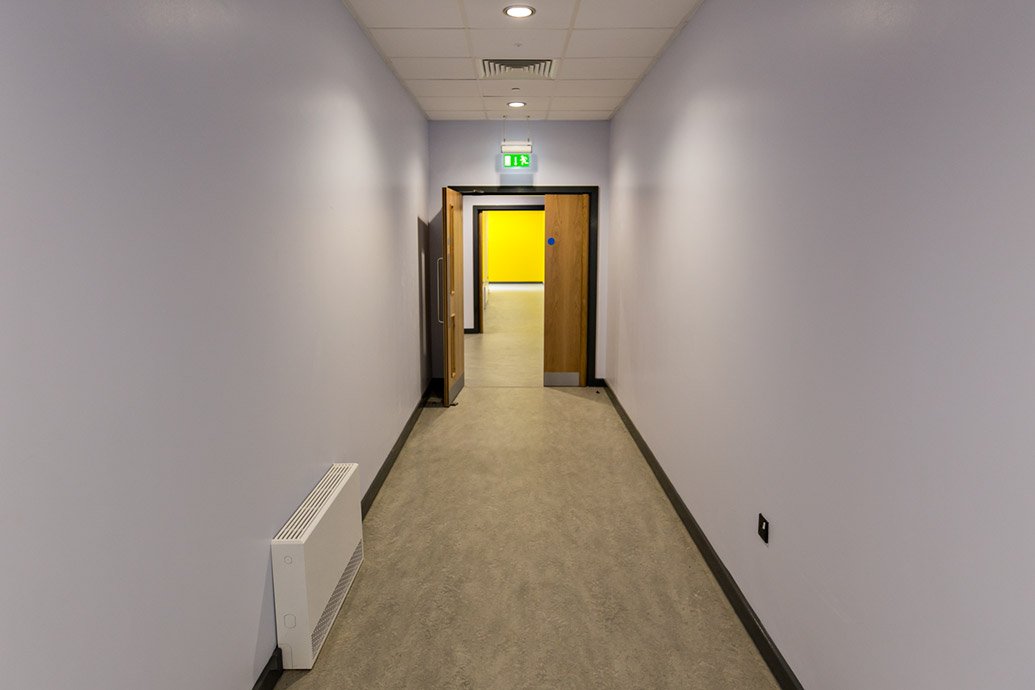

HBE3 in action

Case studies featuring HBE3

Technical

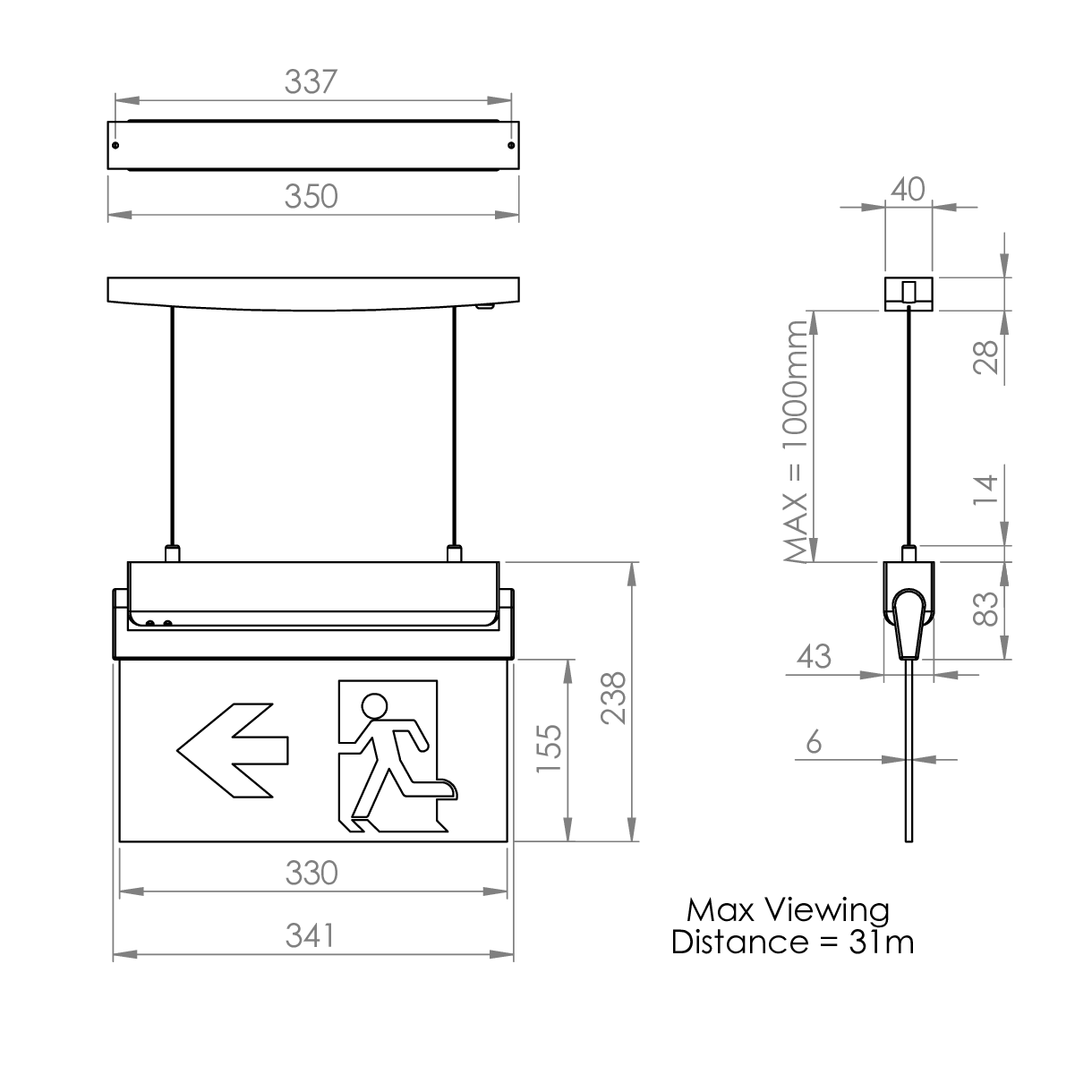

HBE3

HBE3

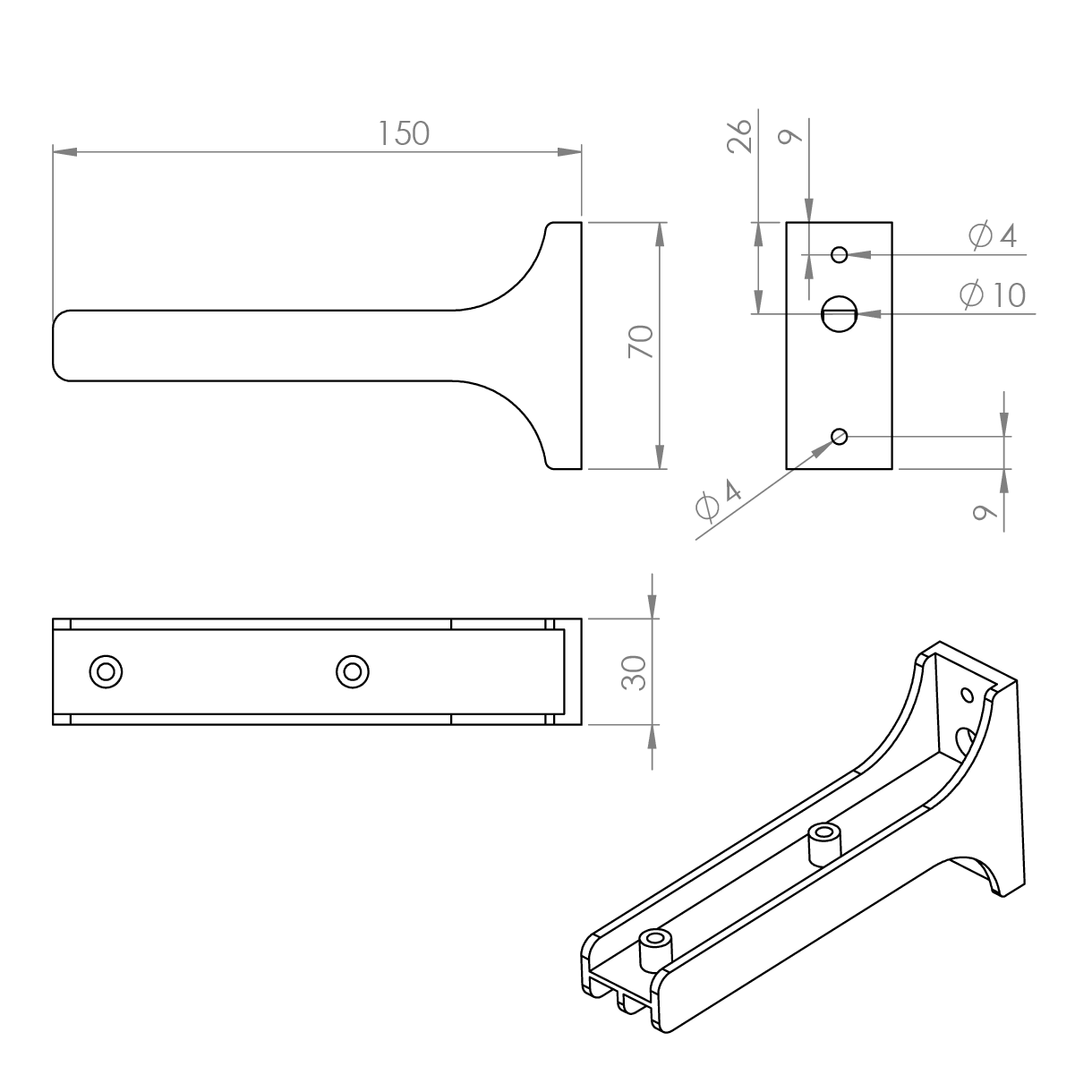

Wall Mount Kit

Wall Mount Kit

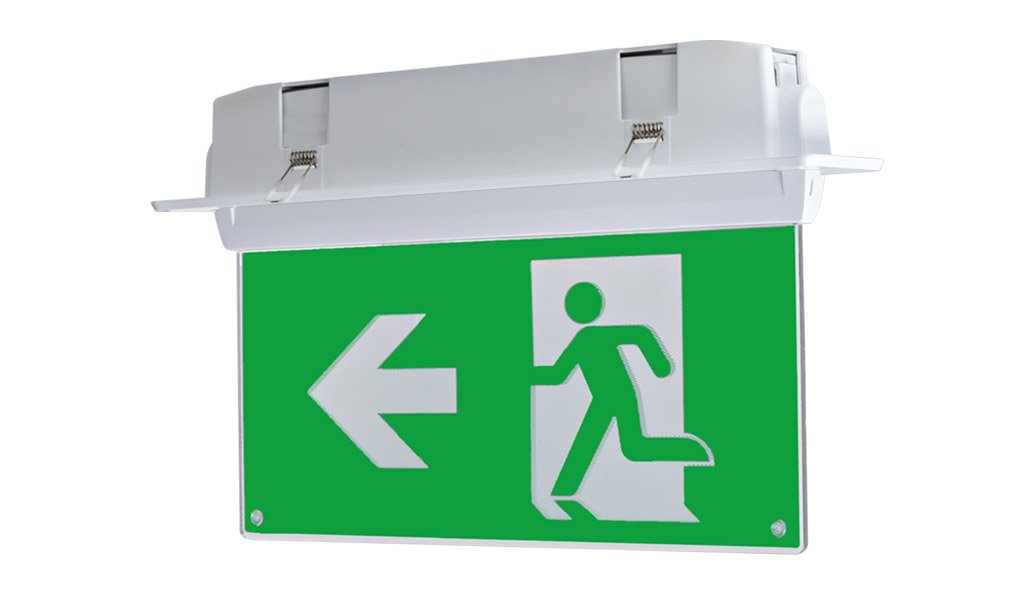

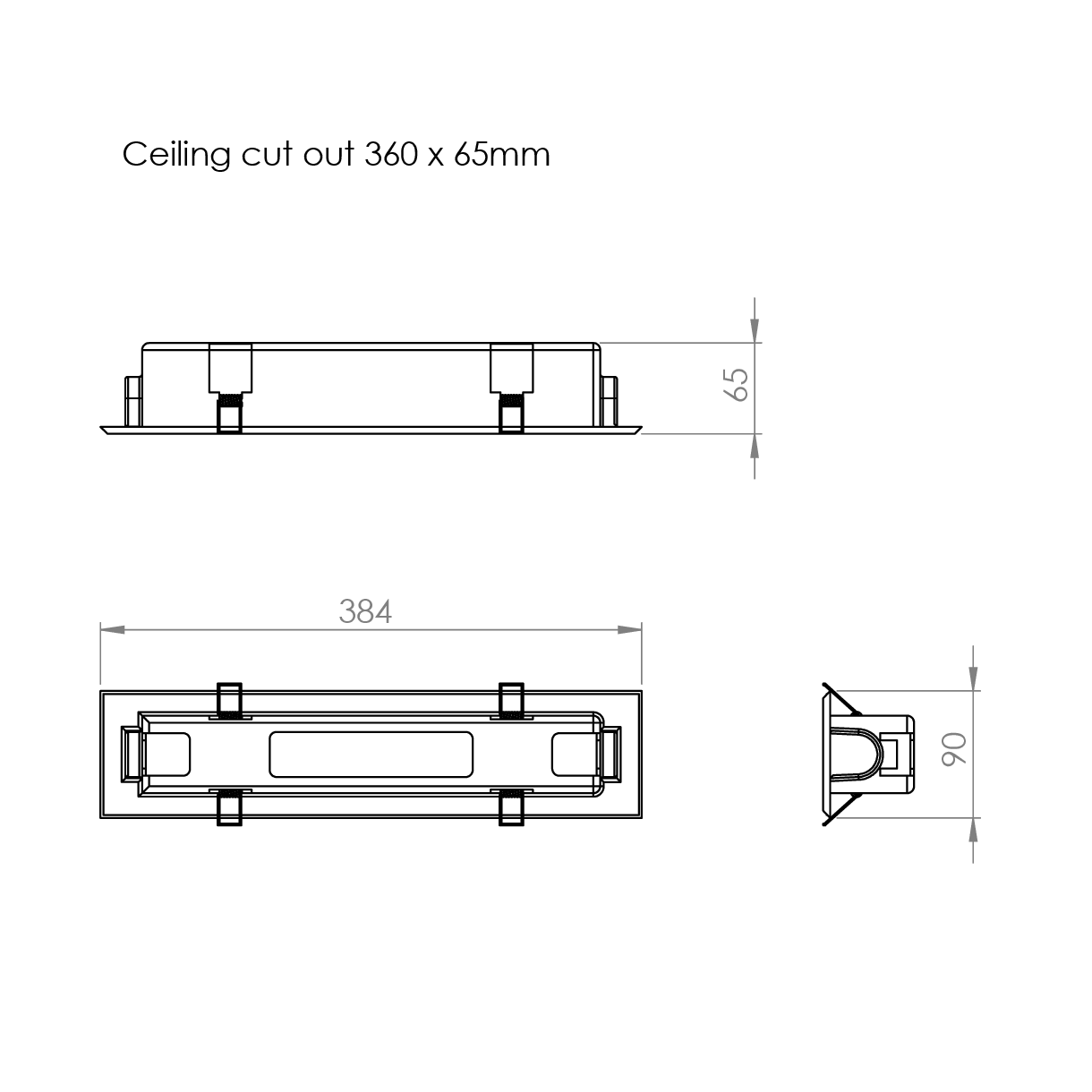

Recessing Kit

Recessing Kit

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power
HBE3 M3 LE3 HBE3, Lithium Maintained, Standard Emergency 3 Hour, 6 Legend Pack 2.7W
HBE3 M3 LS3 HBE3, Lithium Maintained, Selftest Emergency 3 Hour, 6 Legend Pack 2.7W
All products are supplied with a 1 year battery warranty

Miscellaneous

Code Description
HBE3 RK HBE3 Recessing Kit
HBE3 WMK HBE3 Wall Mounting Kit

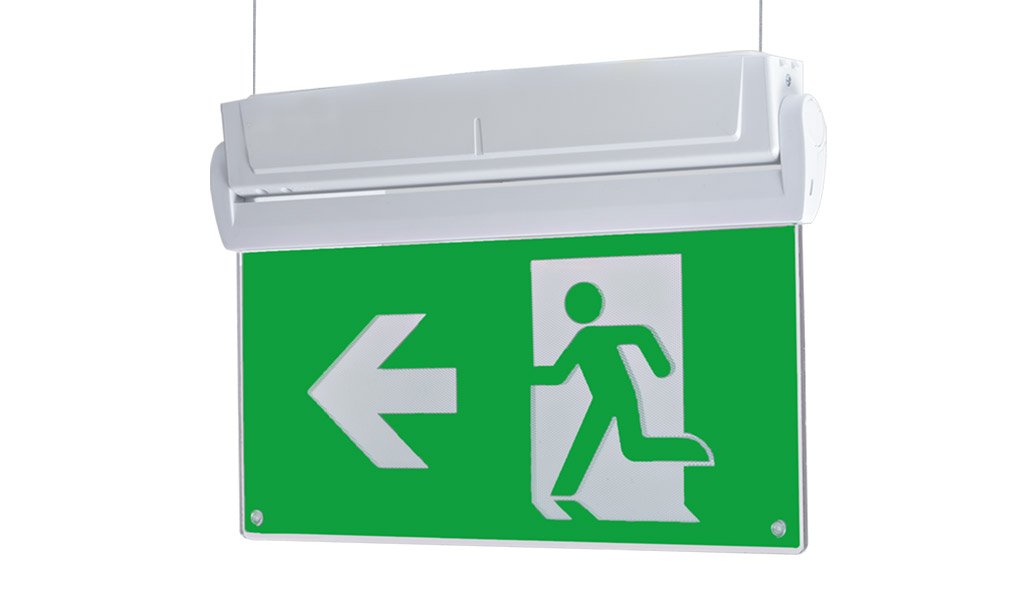

HBE3 LED 5M WIRE KIT HBE3 5M Suspension Kit

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
