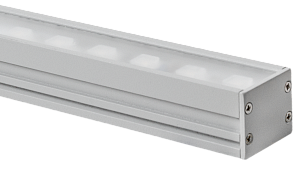

Glide X
The most compact luminaire in our range with a cross sectional size of just 26x21mm.
Introduction
The Glide X offers a linear solution in our most compact housing with a cross sectional area size of just 26x21mm. Manufactured with an extruded aluminium housing powder painted RAL 9006 grey, a semi opal glass diffuser and a beam angle of 100°, the Glide X offers a compact decorative solution for a wide range of applications. The Glide X is supplied complete with plug and socket connectors and mounting brackets for ease of installation.
Complies with:
UKCA | CE | IP44 | 24V
Recommended applications:
Accent Lighting | Canteen | Commercial & Offices | Corridor | Display Lighting | Façade Lighting | Hotel & Leisure | Retail | Shop Front | Stairwell | Toilet
Specification
Construction
- Housing: Extruded aluminium
- IP44
- RAL 9006
Environmental
- Powered by European branded drivers.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Performance
- 50,000 operating hours
Installation
- Supplied complete with spring steel clips. Adjustable fixed backet available on request
Variations
- Available in three lengths, 250mm, 500mm and 1000mm.

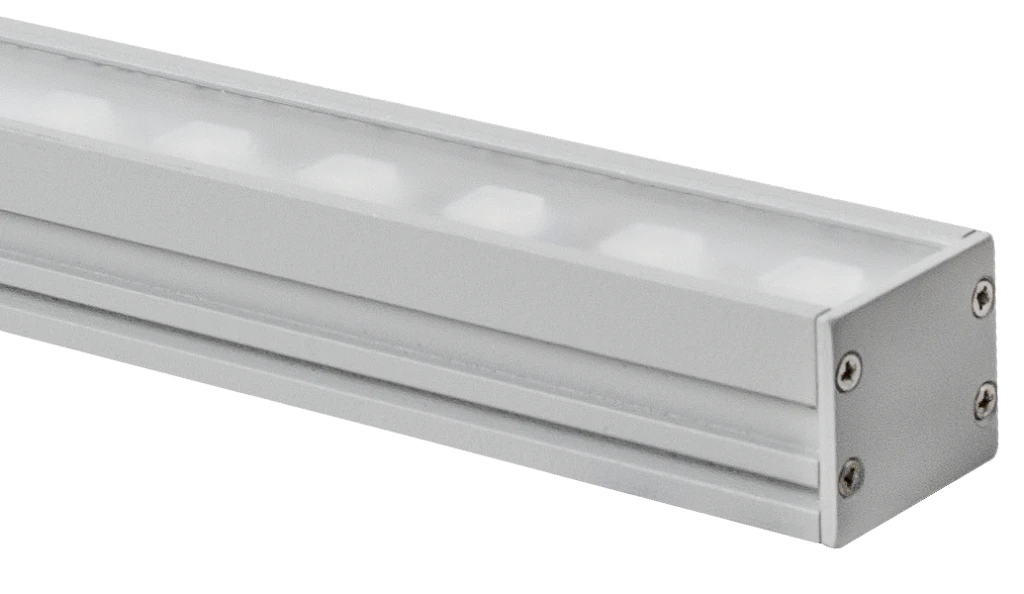

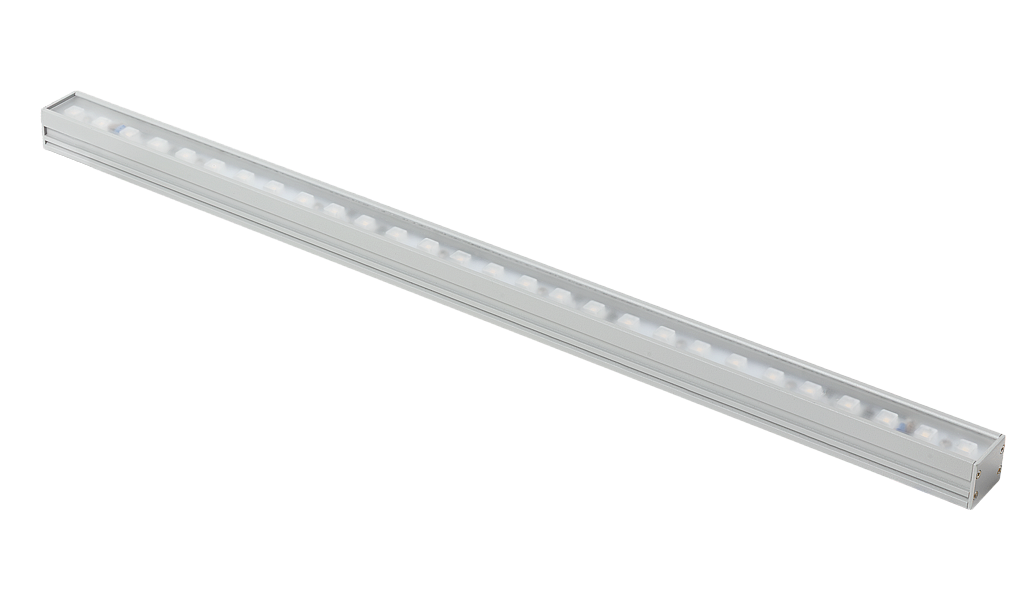

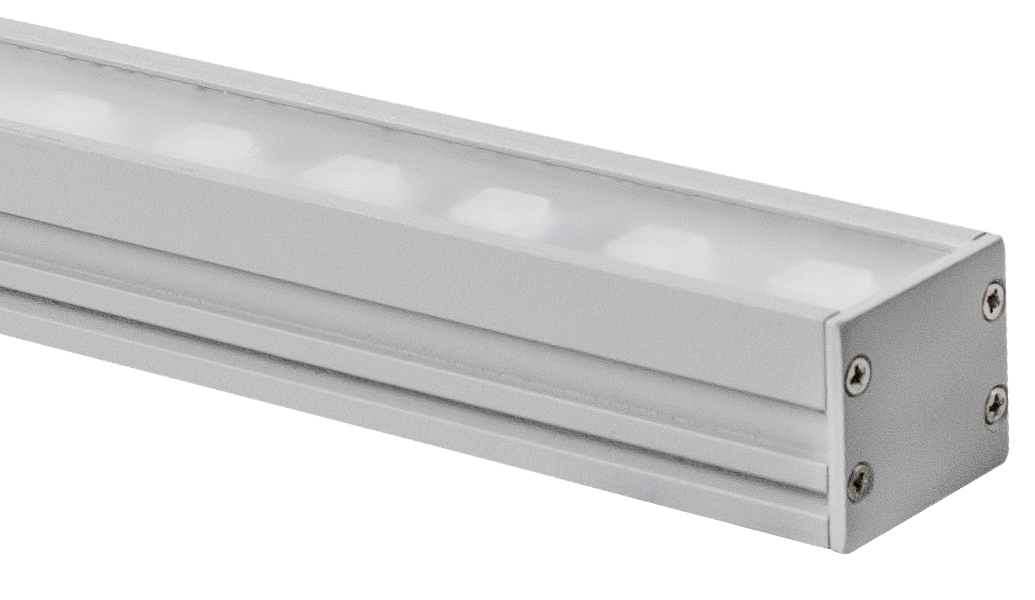

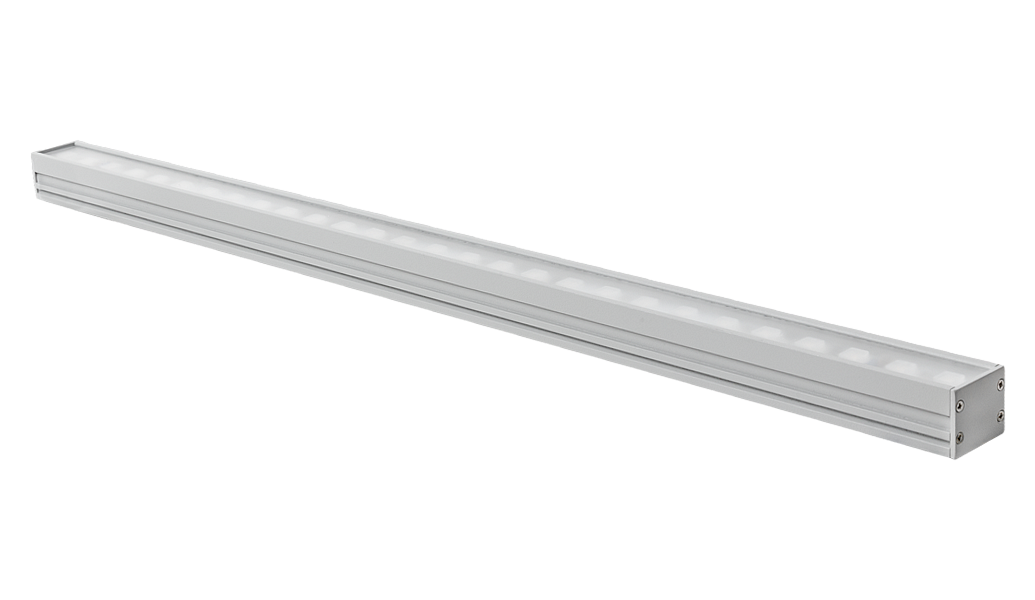

Product Images
.png)

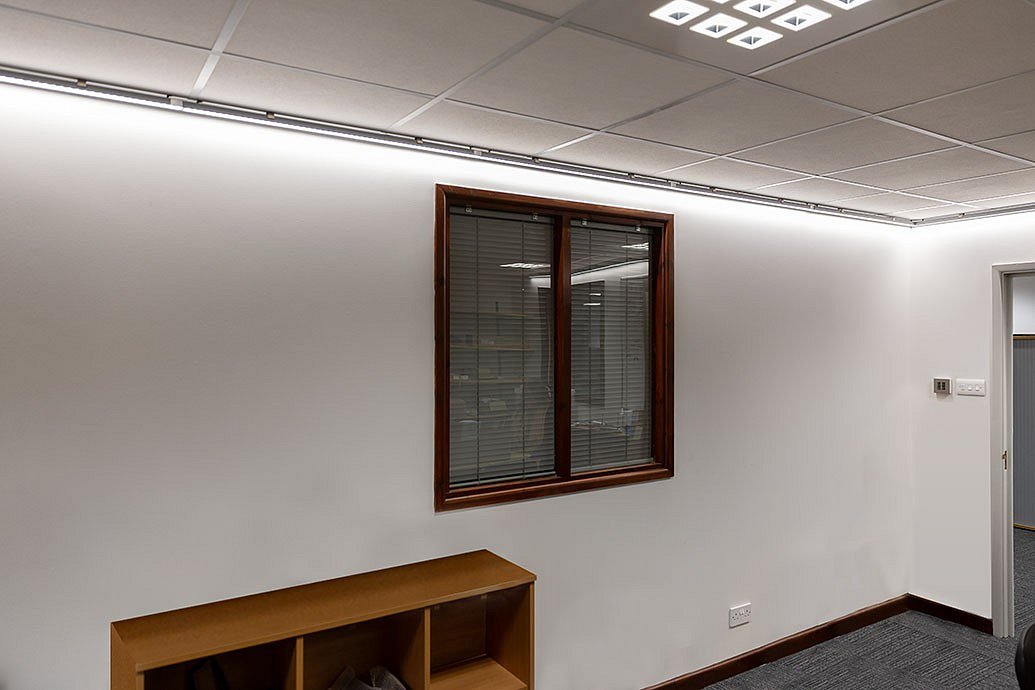

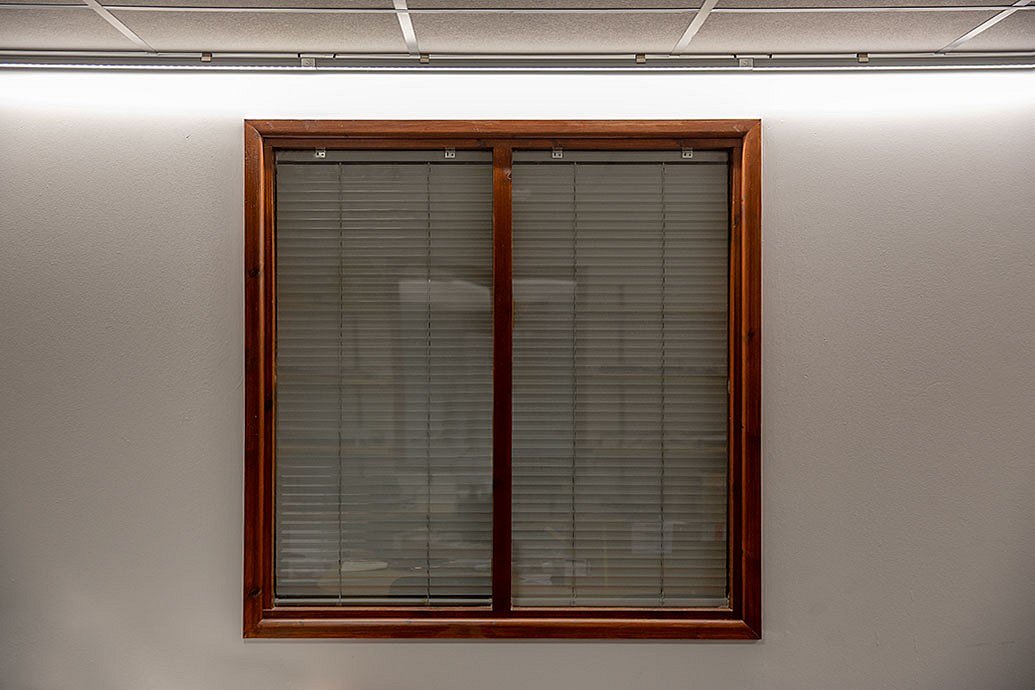

Glide X in action
.jpg)
.jpg)
Case studies featuring Glide X
Technical

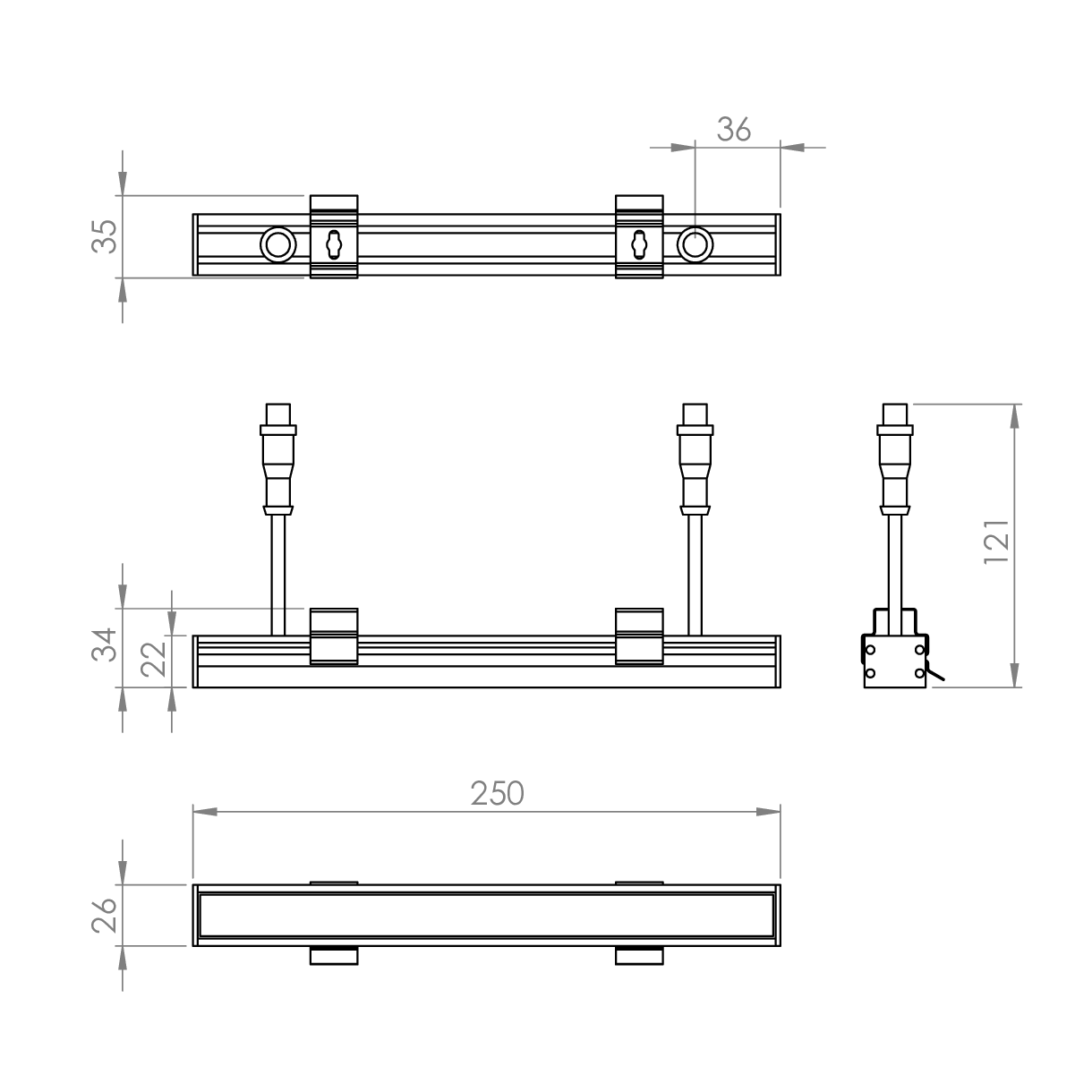

Glide X 250mm

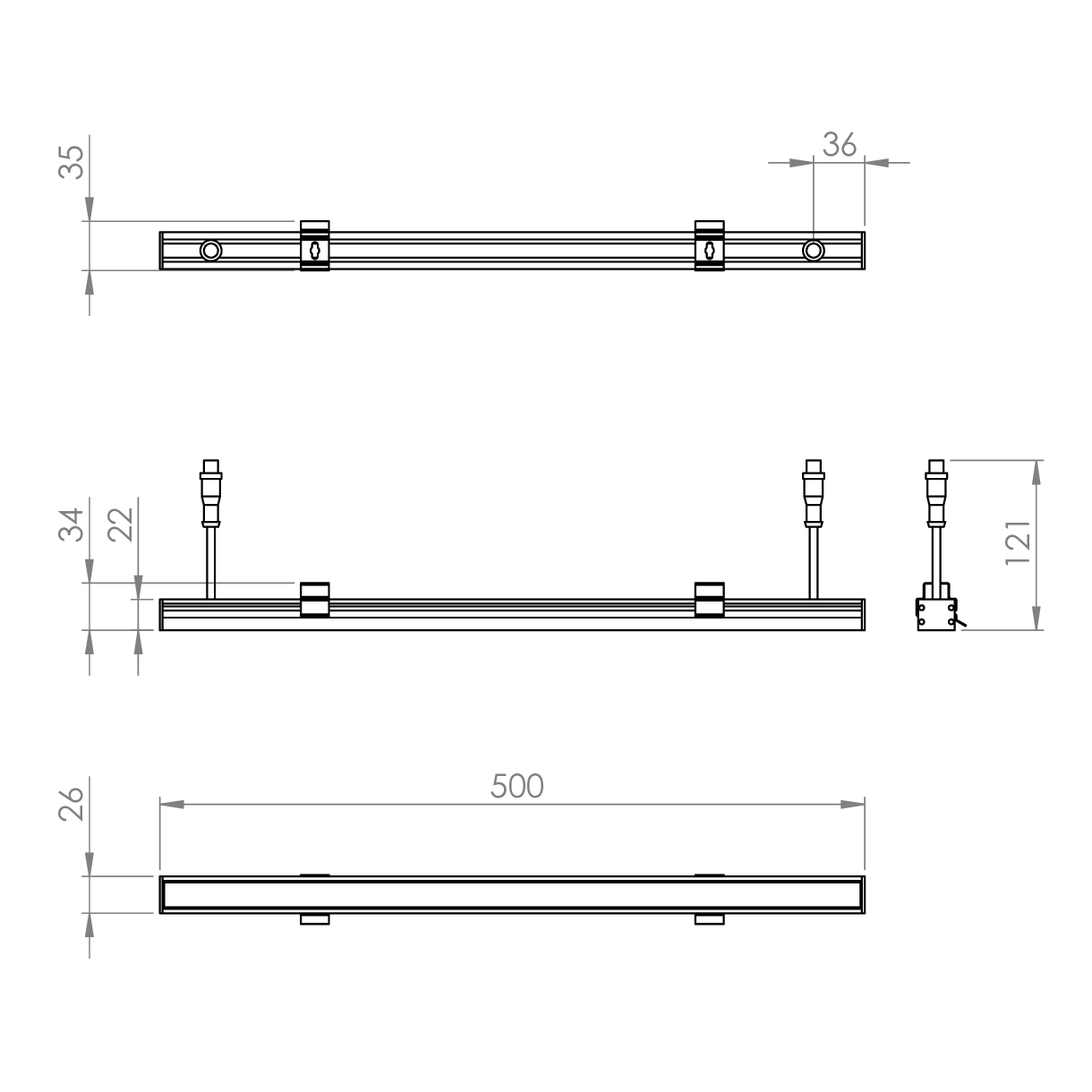

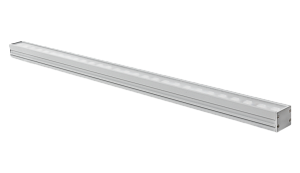

Glide X 500mm

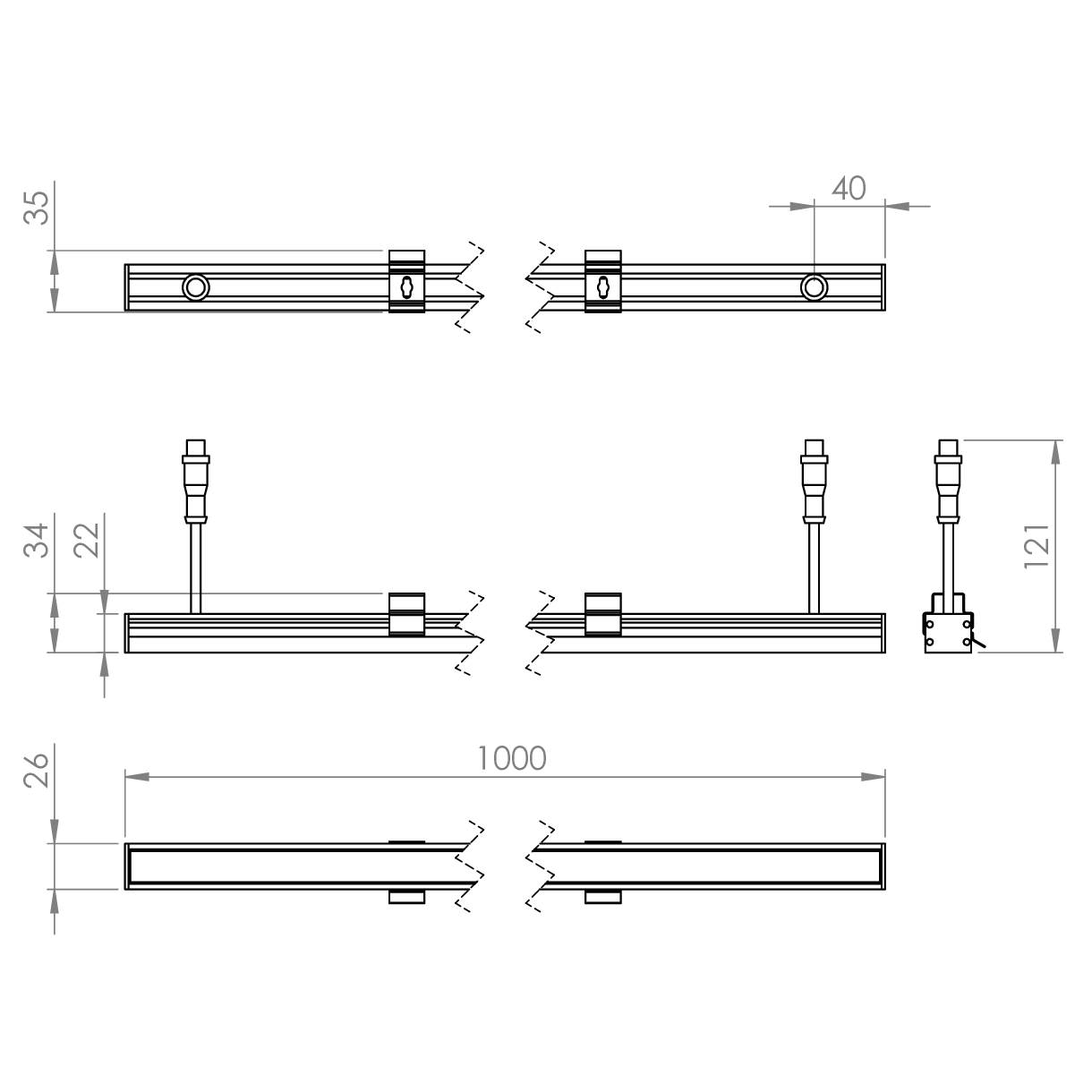

Glide X 1000mm
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Miscellaneous
| Code | Description |
|---|---|
| C83 | Colour 83 |
Downloads
Find out more about
Glide X
For Sales and Technical Enquires call 01747 858100
