Glide RGBW

The Glide RGBW combines dynamic RGBW colour mixing with wall-grazing optics and high lumen output, making it ideally suited to architectural façade and accent lighting applications.

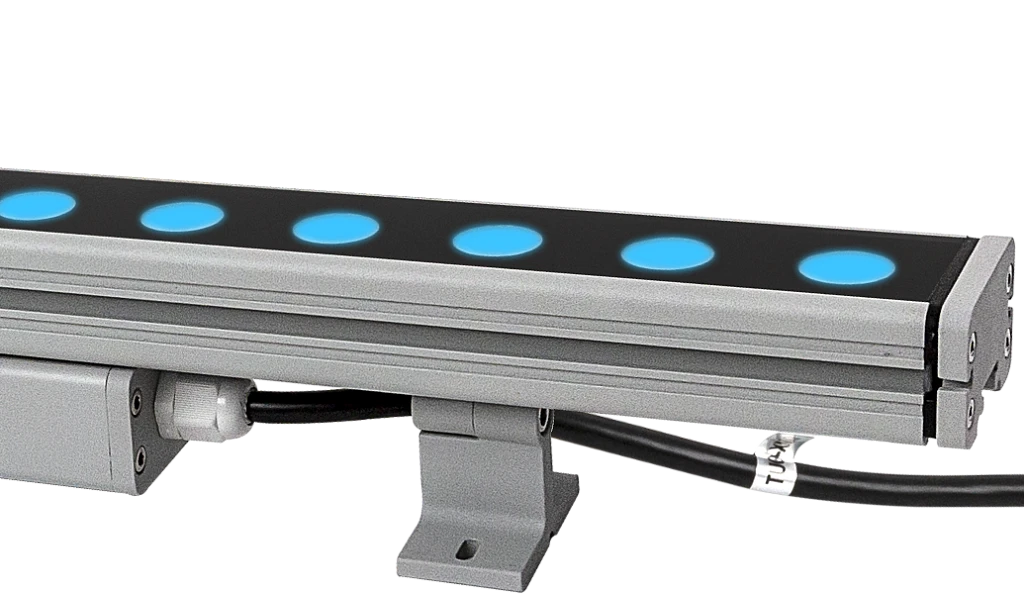

GLIDE RGBW FEATURED

Introduction

The Glide RGBW combines dynamic RGBW colour mixing with wall-grazing optics and high lumen output, making it ideally suited to architectural façade and accent lighting applications.

Constructed from an extruded aluminium housing with a toughened glass cover, fully potted internals, and a weather-resistant RAL 9006 grey finish, the Glide RGBW is engineered for both indoor and outdoor use. Its IP66 rated construction ensures long-term durability while maintaining a discreet and compact appearance that integrates seamlessly into a wide range of architectural environments.

Available as standard with 20° and 50° beam angles, the Glide RGBW is particularly effective for wall grazing applications, with a variety of alternative optics available on request to suit specific project requirements.

For ease of installation, the fixture is supplied complete with IP66 rated plug and socket connectors, with optional wall-mounting brackets also available. To complement bespoke architectural schemes, the Glide RGBW can additionally be specified in custom housing colours.

Complies with:

UKCA | CE | IP66 | IK08 | 230V

Recommended applications:

Façade Lighting | Hotel & Leisure | Parking & Exterior | Retail | Shop Front

Specification

Construction

  • Housing: Extruded aluminium
  • Toughened glass cover
  • IK08
  • IP66 housing and electrical connectors

Environmental

  • Powered by European branded drivers.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Installation

  • Supplied complete with angle adjustable mounting brackets
  • Supplied with prewired leads for rapid low cost installation

Variations

  • Available in a range of lumen outputs and lens options offering multiple beam angles
  • RAL9006 Grey as standard, other colours available on request

Performance

  • Red / Blue / Green / White chip sets with DMX control allowing precise colour control
  • 50,000 operating hours
Find out more about our 5 year extended warranty

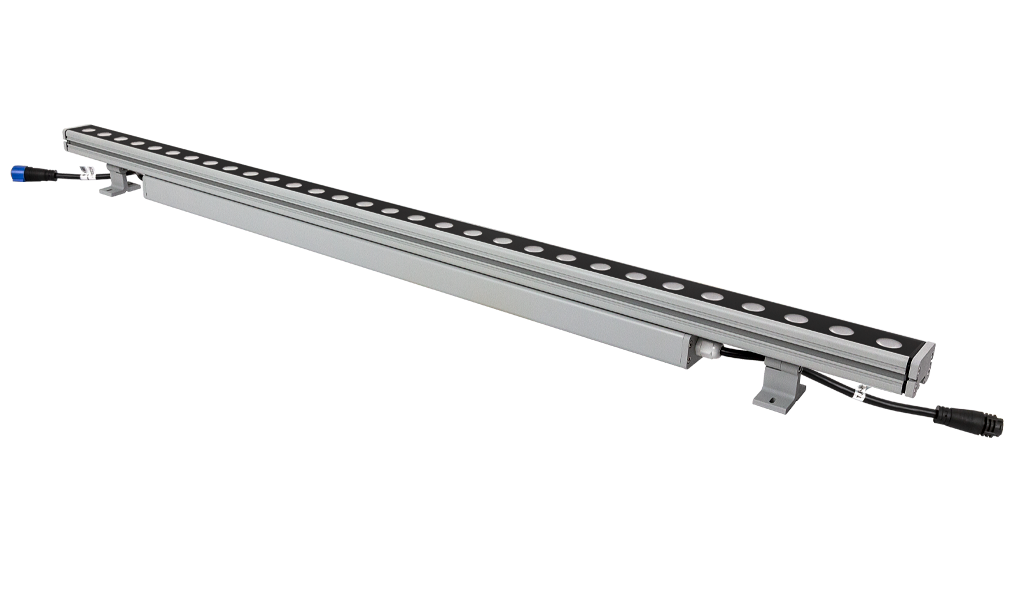

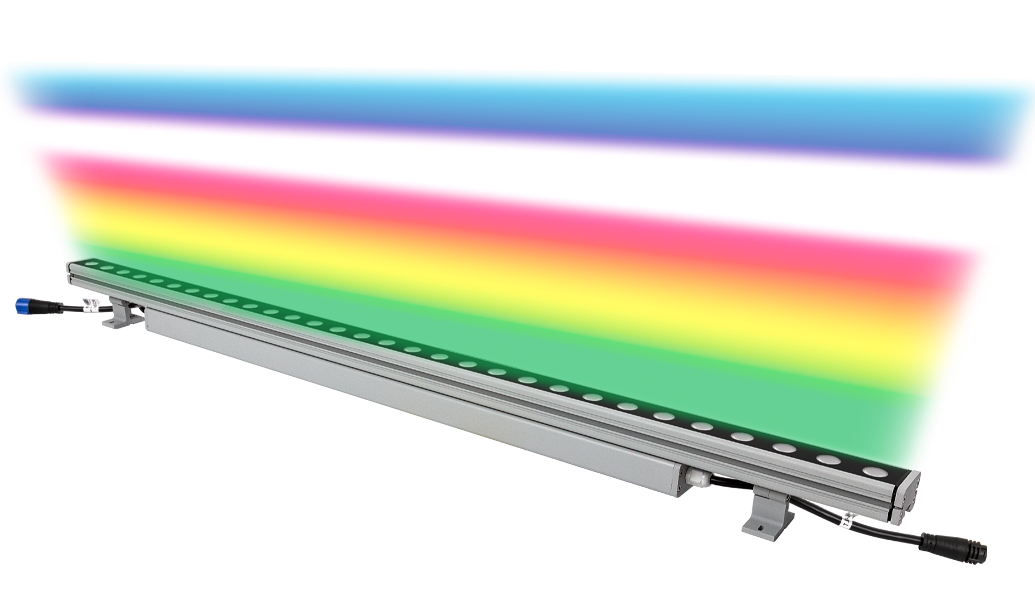

Product Images

Videos

Glide RGBW in action

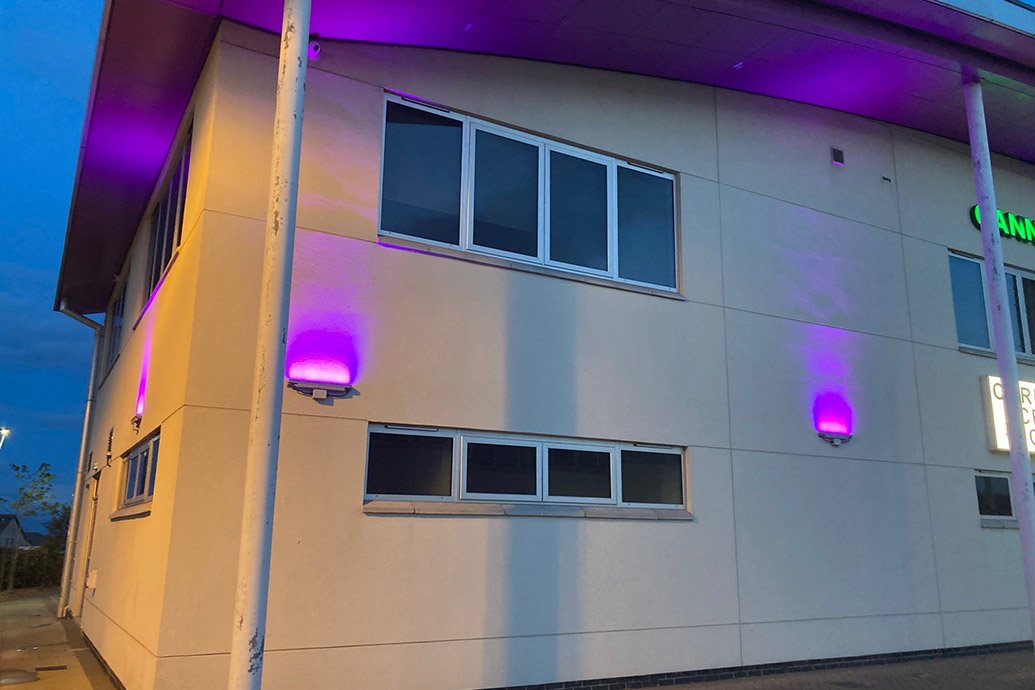

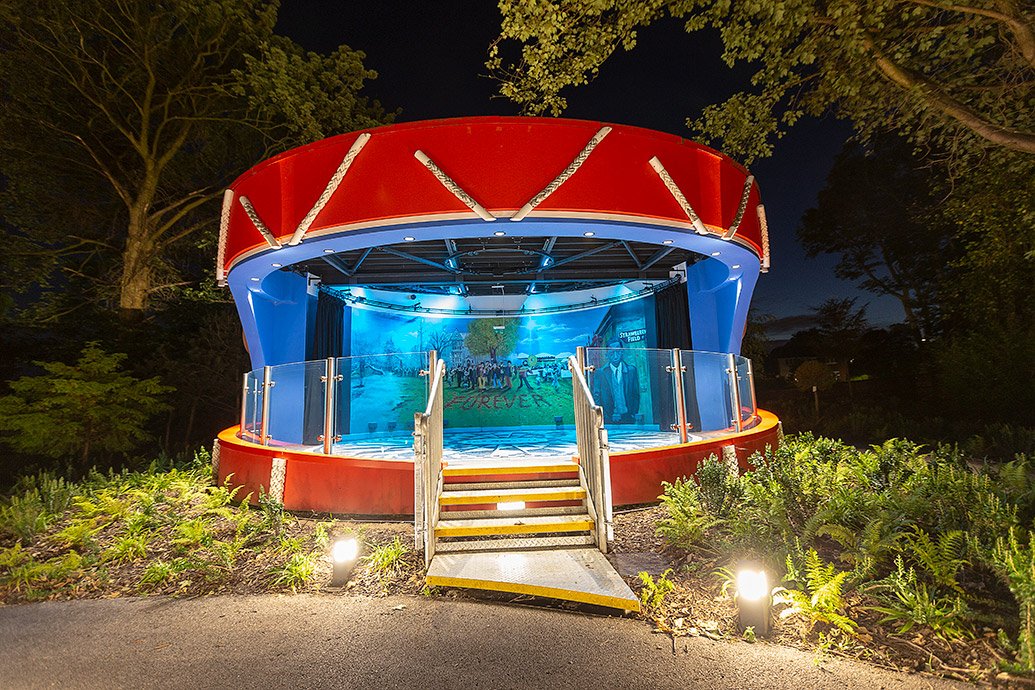

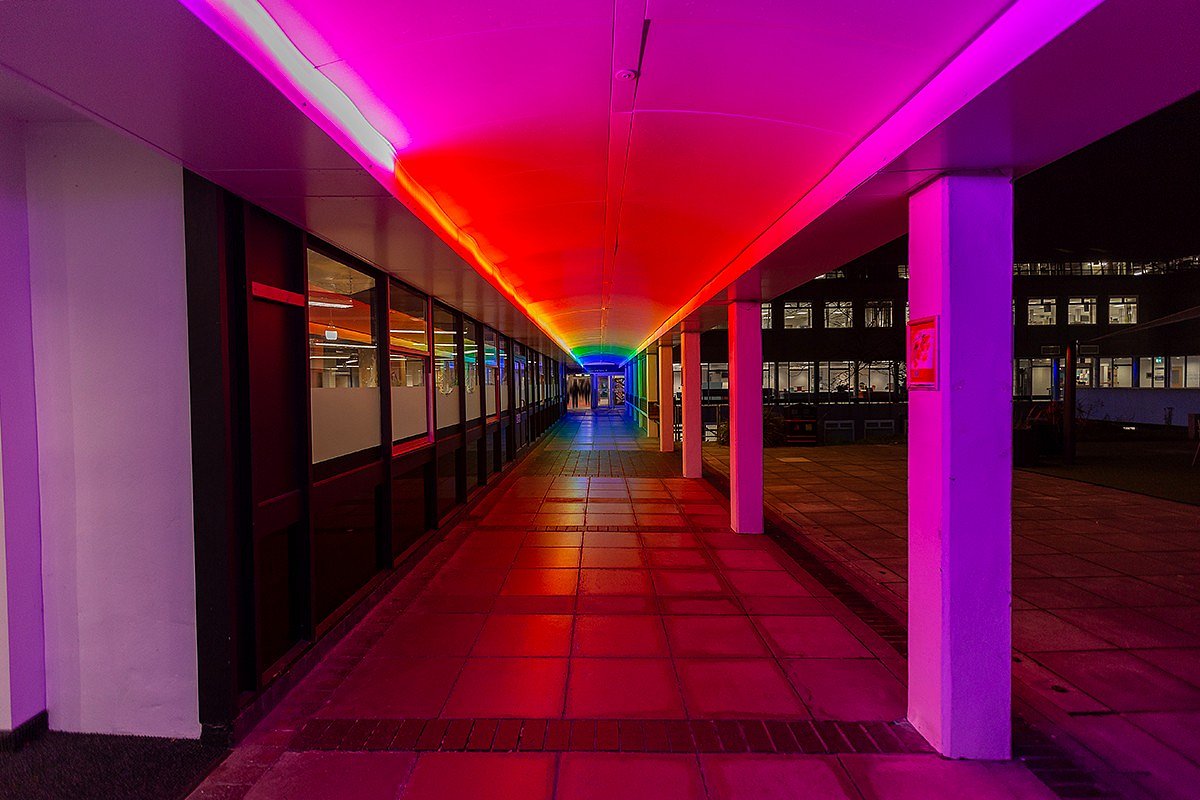

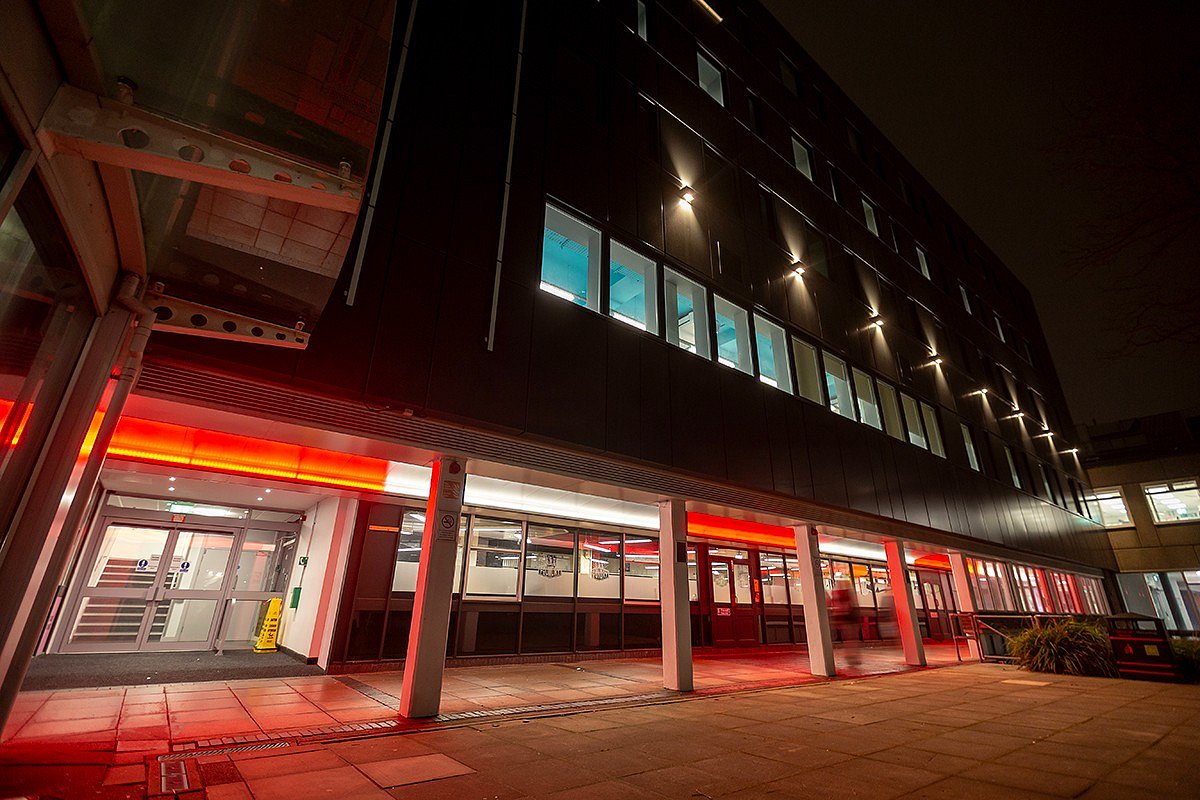

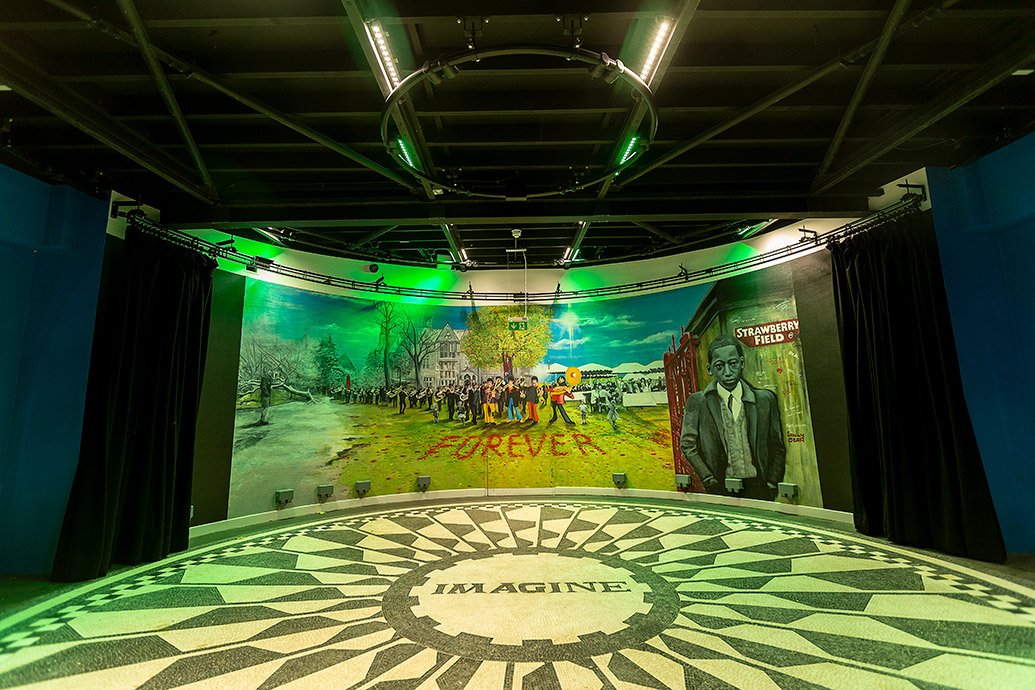

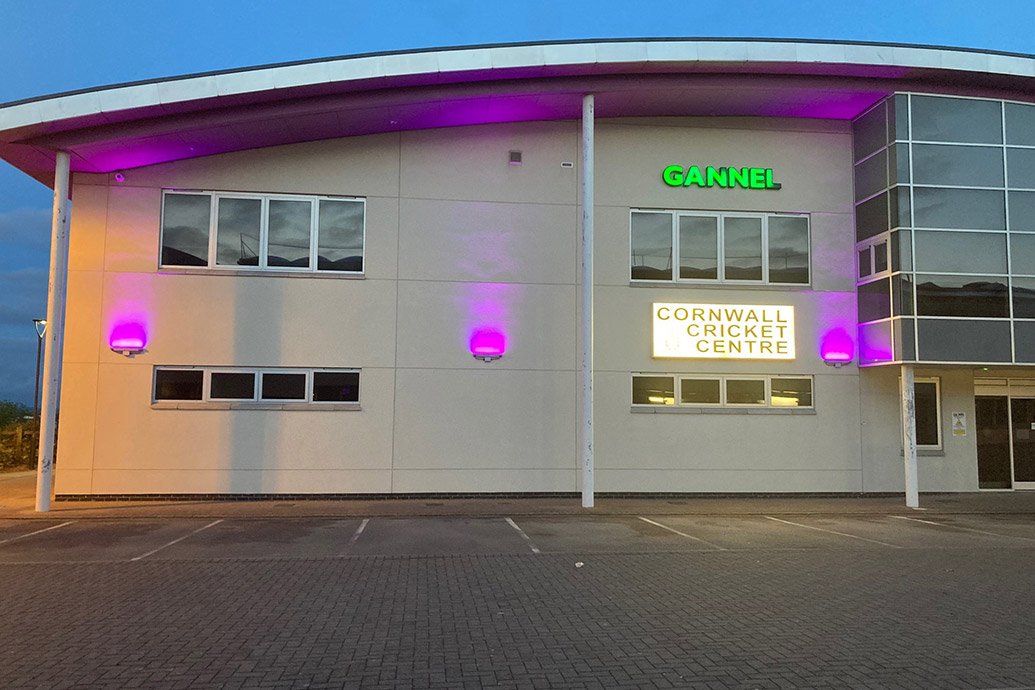

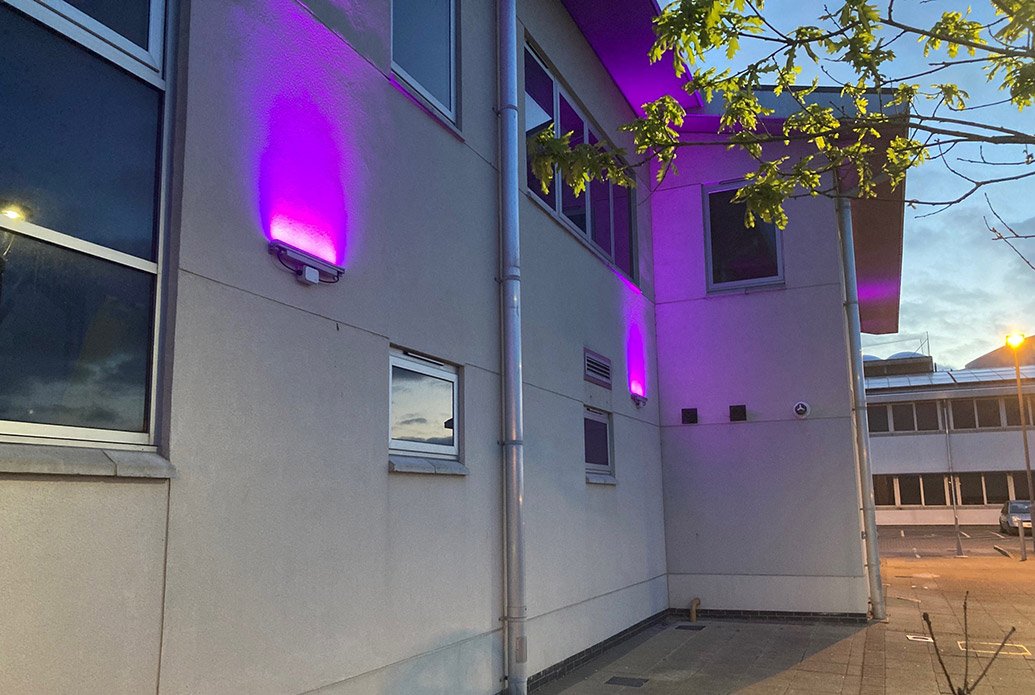

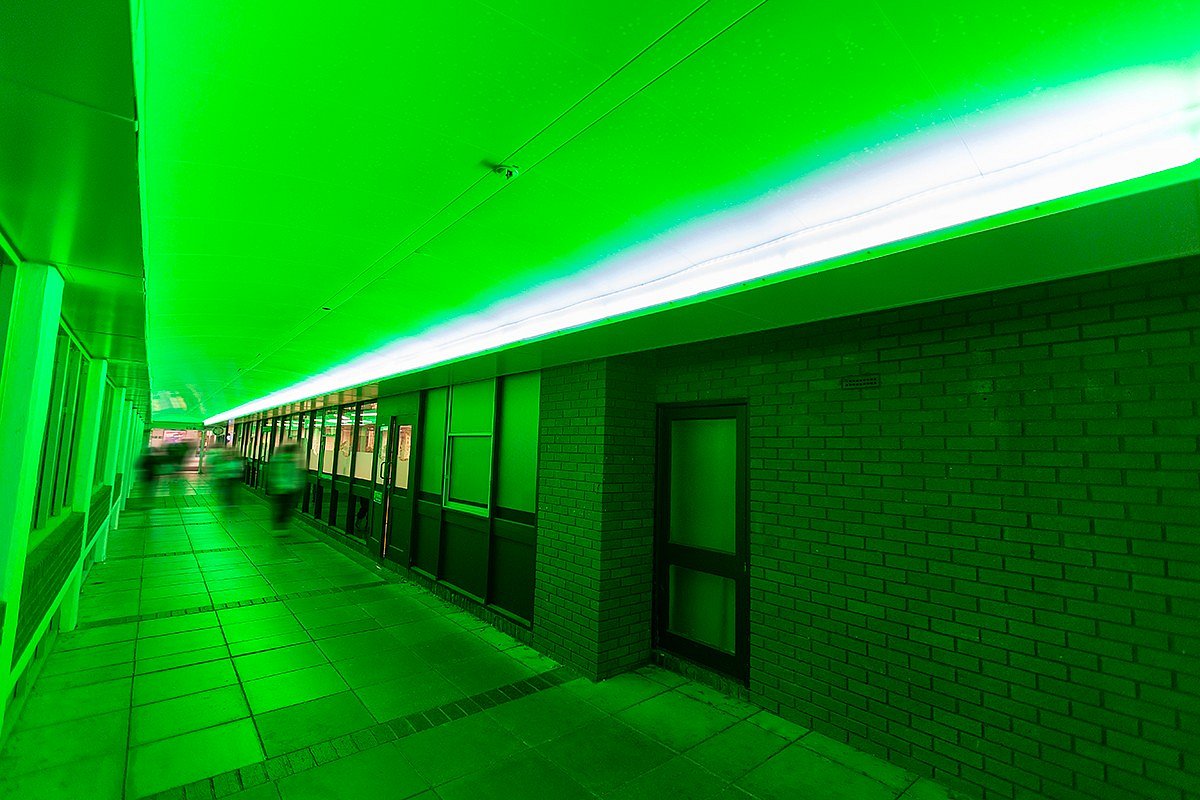

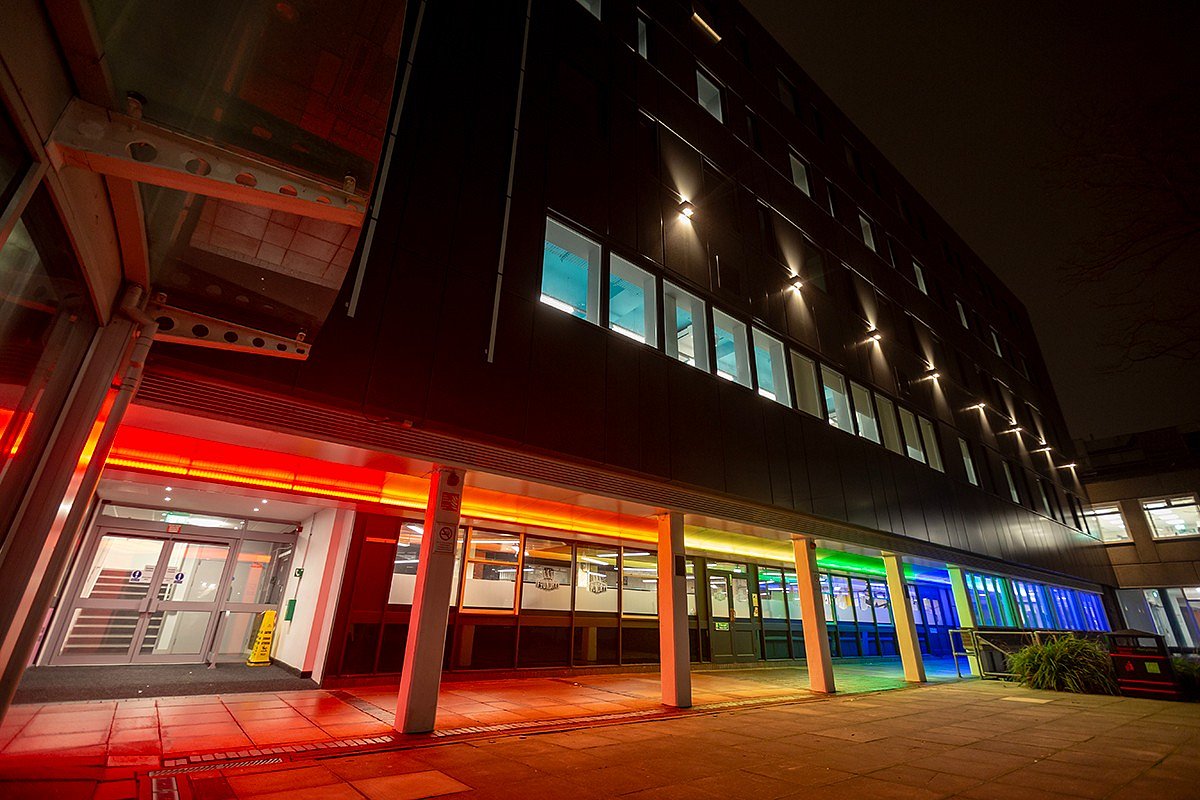

Case studies featuring Glide RGBW

Technical

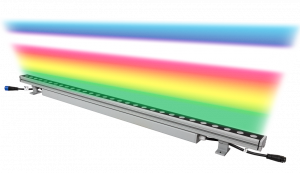

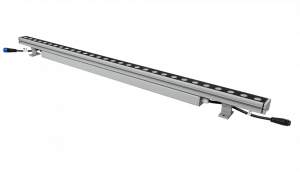

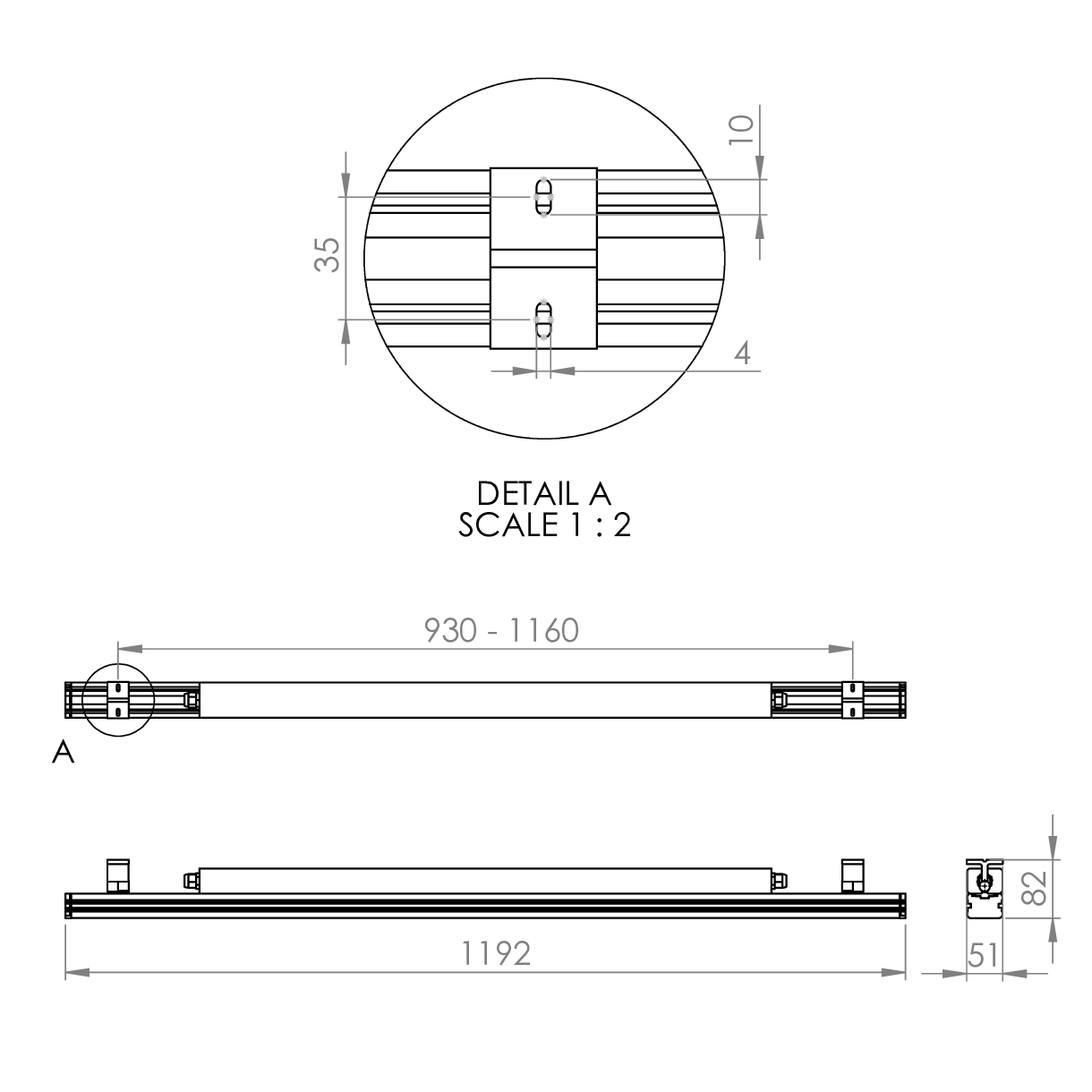

Glide RGBW 1190mm

Glide RGBW 1190mm

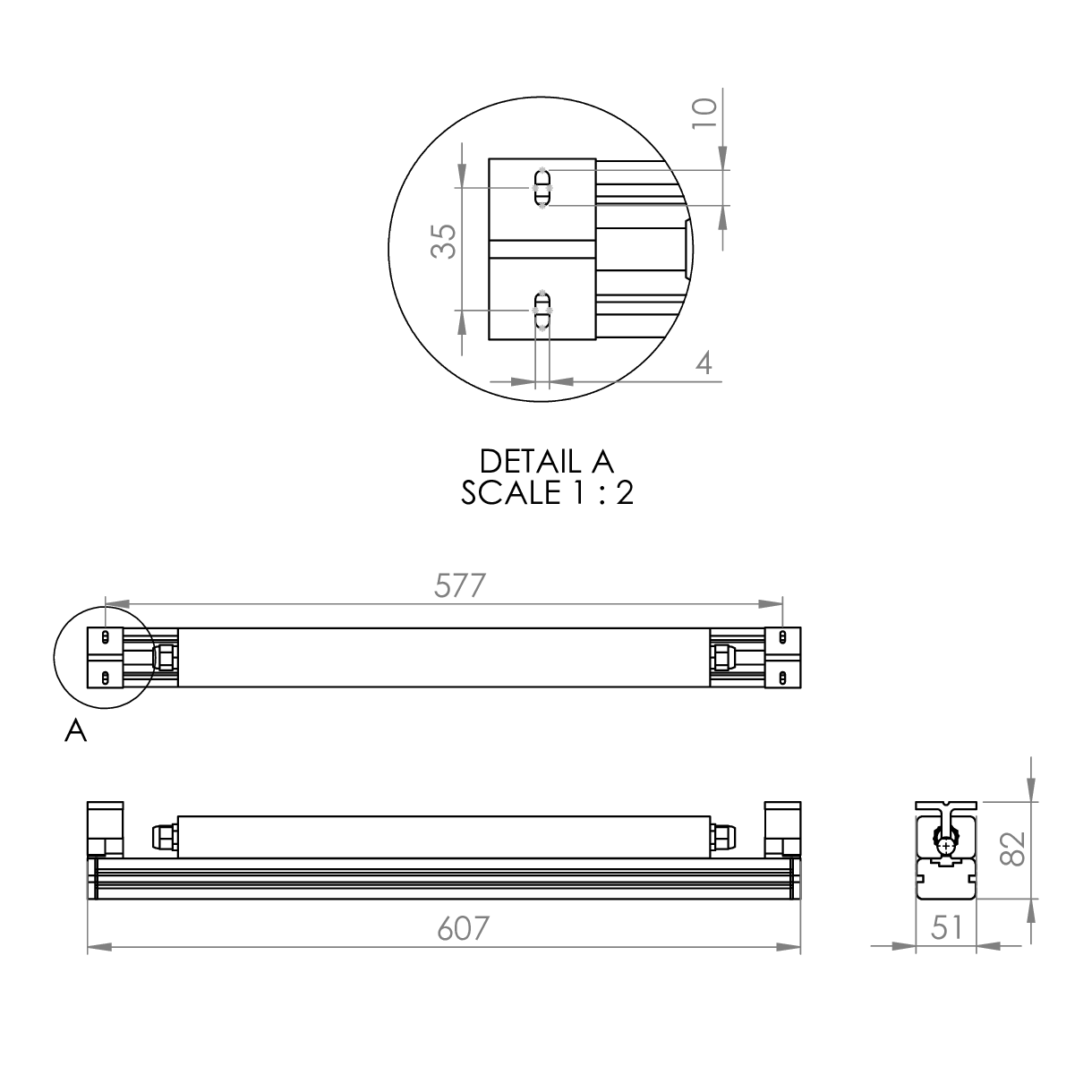

Glide RGBW 605mm

Glide RGBW 605mm

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Luminous Flux - Red Luminous Flux - Green Luminous Flux - Blue Luminous Flux - White Luminous Flux - RGBW
GERGBW L27 5050 Glide RGBW, 605mm, 50x50°, IP66 34.2W 189lm 385lm 111lm 329lm 1,014llm
GERGBW L27 2020 Glide RGBW, 605mm, 20x20°, IP66 34.2W 222lm 452lm 131lm 373lm 1,178llm
GERGBW L54 5050 Glide RGBW, 1190mm, 50x50°, IP66 60.0W 368lm 764lm 226lm 646lm 2,004llm
GERGBW L54 2020 Glide RGBW, 1190mm, 20x20°, IP66 60.0W 466lm 947lm 255lm 811lm 2,479llm

Miscellaneous

Code Description
GLIDE WB Glide Wall Bracket, 350mm - 560mm

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
