DALI TRACK SURFACE / SUSPENDED

Our DALI system offers retailers the ultimate flexibility, enabling them to create and control specific lighting zones to enhance the store environment.

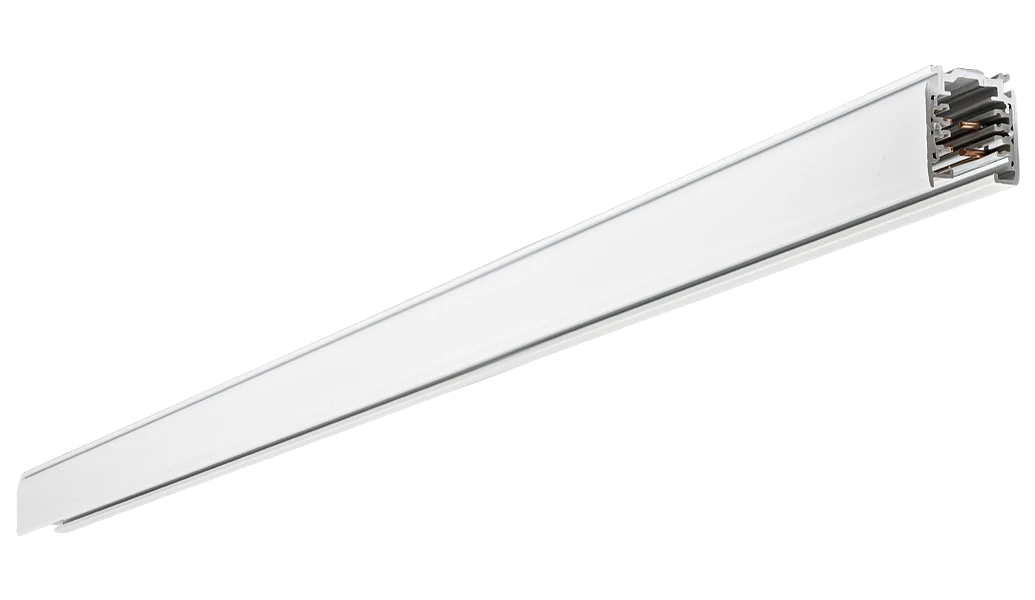

DALI TRACK SURFACE / SUSPENDED FEATURED

Introduction

We offer a comprehensive selection of recessed track and accessories, our three circuit offering has been designed for the professional and is renowned for its reliability, durability and quality finish. The extruded aluminium profiles of this 16 amp three circuit system are available in a choice of three colours and are complimented by a wide array of accessories ensuring complete flexibility in track configurations. This versatility is enhanced with DALI track enabling complete control of luminaires for switching, dimming and scene selection.

Complies with:

UKCA | CE | IP20

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Matt black
  • Finish: Matt white
  • Finish: Matt grey
  • Endcaps: Injection moulded polycarbonate
  • IP20

Environmental

  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Variations

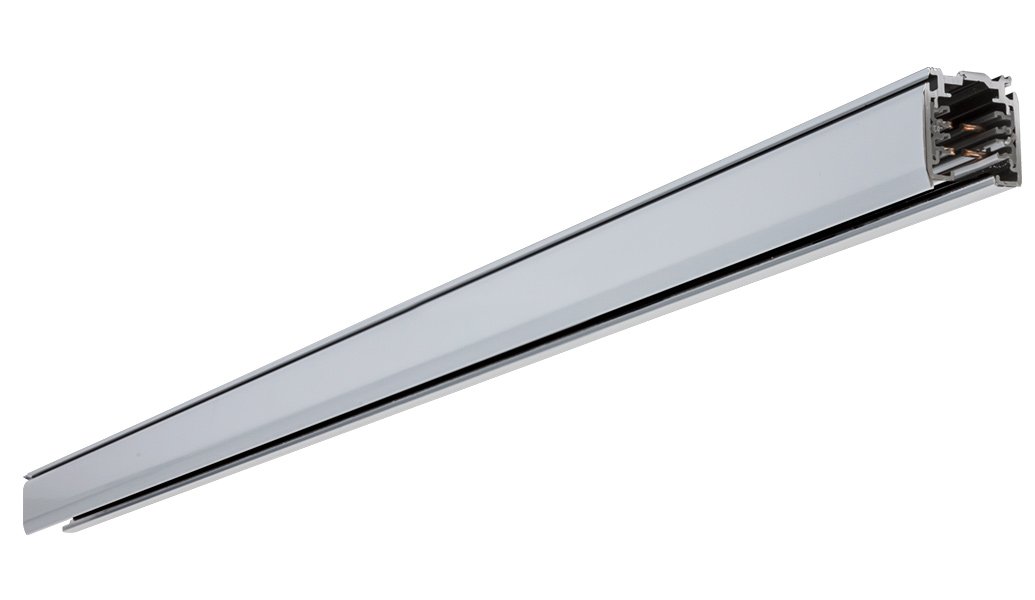

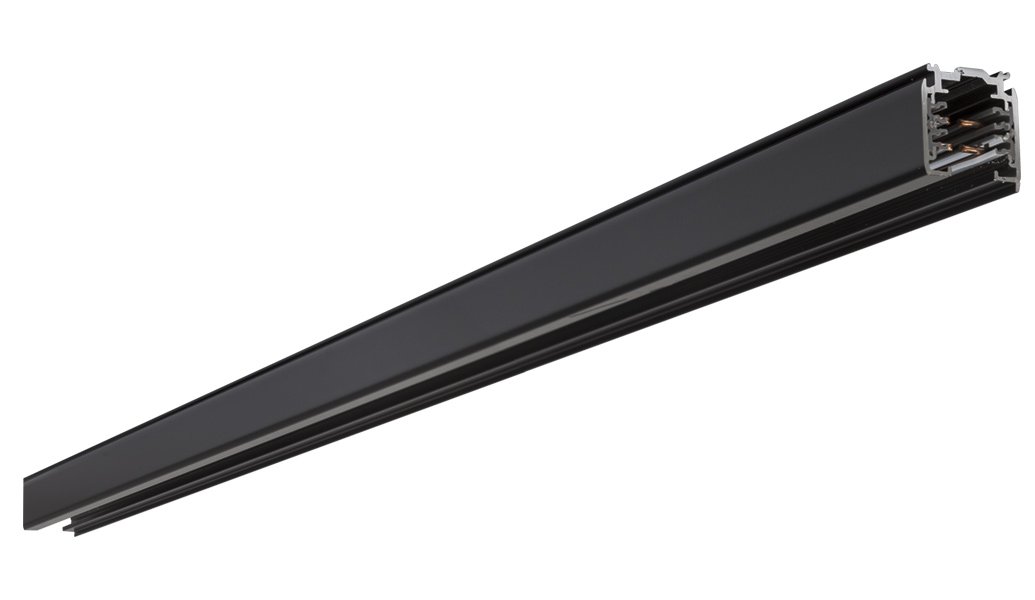

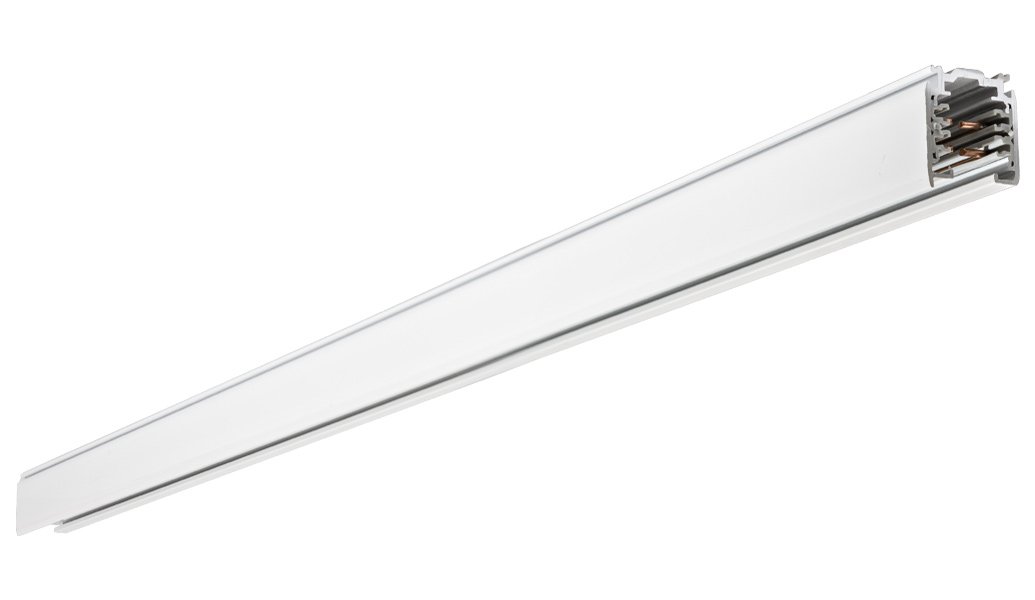

  • Available in white, black or grey finishes
Find out more about our 5 year extended warranty
Arrow right

Product Images

Case studies

Technical

Track Configuration

Track Configuration

Track Dimensions and Loadings

Track Dimensions and Loadings

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description
HT 1M DALI 1m Length 3 Circuit DALI Track White
HT 2M DALI 2m Length 3 Circuit DALI Track White
HT 3M DALI 3m Length 3 Circuit DALI Track White
HT J DALI 3 Circuit DALI Straight Track Joiner White
HT INT J DALI 3 Circuit DALI Internal Track Joiner White
HT FJC DALI 3 Circuit DALI Flexible Track Joiner White
HT DE DALI 3 Circuit DALI Dead End White
HT LE LEFT DALI 3 Circuit DALI Live End Left White
HT LE RIGHT DALI 3 Circuit DALI Live End Right White
HT T LEFT L1 DALI 3 Circuit DALI 3 Way Connector Left L1 White
HT T LEFT L2 DALI 3 Circuit DALI 3 Way Connector Left L2 White
HT T RIGHT L1 DALI 3 Circuit DALI 3 Way Connector Right R1 White
HT T RIGHT L2 DALI 3 Circuit DALI 3 Way Connector Right R2 White
HT COR LEFT DALI 3 Circuit DALI Corner Left White
HT COR RIGHT DALI 3 Circuit DALI Corner Right White
HT CROSS DALI 3 Circuit DALI 4 Way Connector White

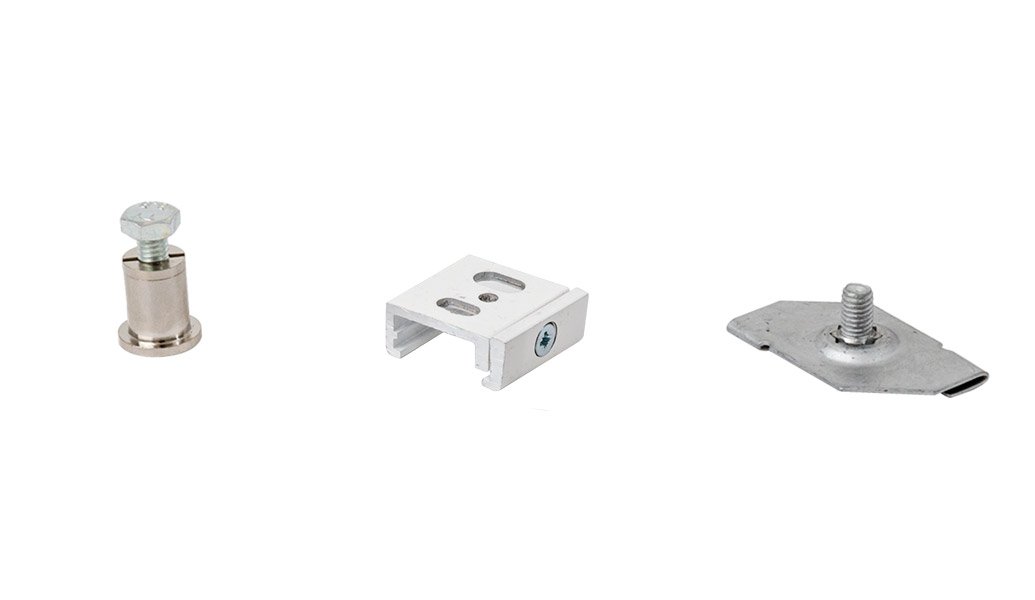

HT SC Suspension Clamp

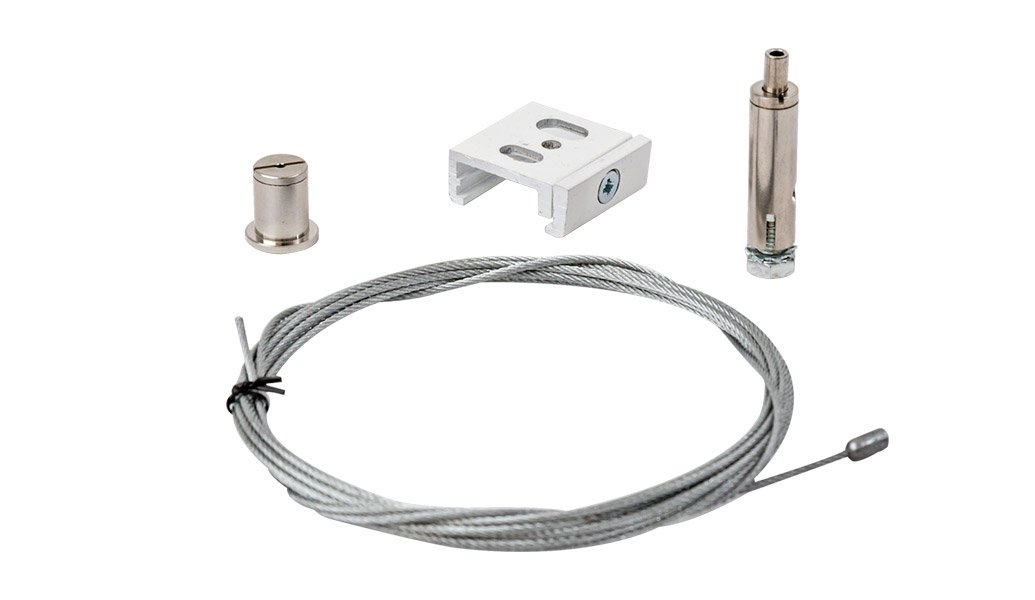

SUSP HT 10M BF X1 BL Suspension Hi-Track, 10M, Barrel Fix, One Drop, Black
SUSP HT 10M BF X1 WH Suspension Hi-Track, 10M, Barrel Fix, One Drop, White
SUSP HT 10M LO X1 BL Suspension Hi-Track, 10M, Loop Over, One Drop, Black
SUSP HT 10M LO X1 WH Suspension Hi-Track, 10M, Loop Over, One Drop, White
SUSP HT 1M DR X1 BL Suspension Hi-Track, 1M 6mm Drop Rod, One Drop, Black
SUSP HT 1M DR X1 WH Suspension Hi-Track, 1M 6mm Drop Rod, One Drop, White
SUSP HT 3M BF X1 BL Suspension Hi-Track, 3M, Barrel Fix, One Drop, Black
SUSP HT 3M BF X1 WH Suspension Hi-Track, 3M, Barrel Fix, One Drop, White
SUSP HT 3M LO X1 BL Suspension Hi-Track, 3M, Loop Over, One Drop, Black
SUSP HT 3M LO X1 WH Suspension Hi-Track, 3M, Loop Over, One Drop, White
SUSP HT 5M BF X1 BL Suspension Hi-Track, 5M, Barrel Fix, One Drop, Black
SUSP HT 5M BF X1 GY Suspension Hi-Track, 5M, Barrel Fix, One Drop, Grey
SUSP HT 5M BF X1 WH Suspension Hi-Track, 5M, Barrel Fix, One Drop, White
SUSP HT 5M LO X1 BL Suspension Hi-Track, 5M, Loop Over, One Drop, Black
SUSP HT 5M LO X1 GY Suspension Hi-Track, 5M, Loop Over, One Drop, Grey
SUSP HT 5M LO X1 WH Suspension Hi-Track, 5M, Loop Over, One Drop, White

Miscellaneous

Code Description
BL Black Finish
GY Grey Finish
HT BENDING TOOL Bending Tool for Cutting Track to Length

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
