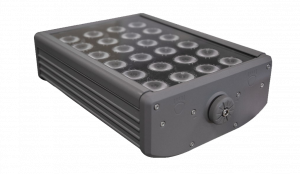

Chromix Flood

High Power RGBW flood light for all large single point source colour applications

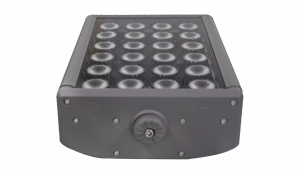

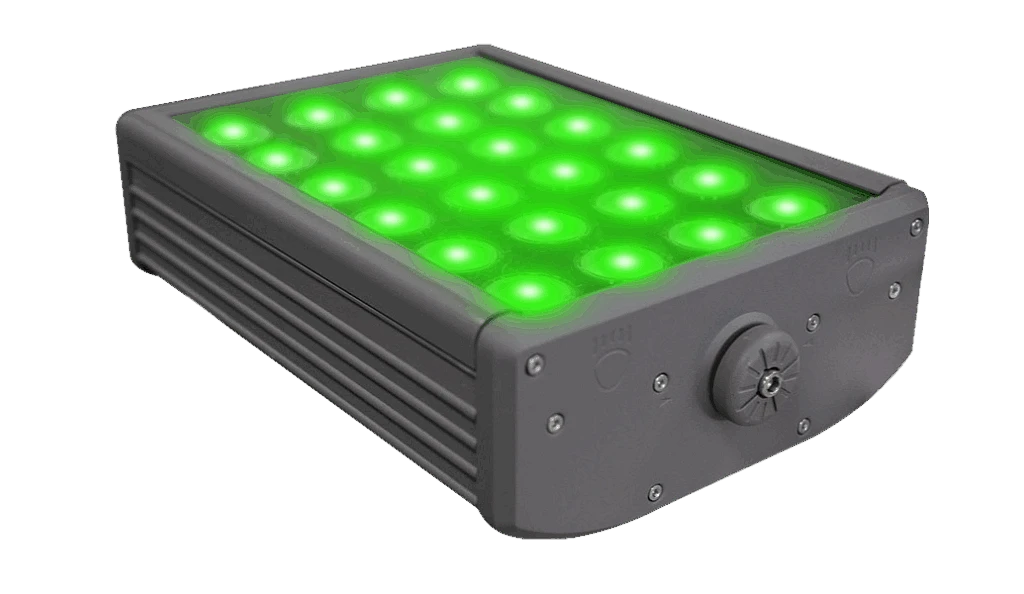

CHROMIX FLOOD FEATURED

Introduction

The Chromix Flood is our second generation high power colour changing RGBW DMX compatible floodlight designed to highlight architectural features both internally and externally with colour washing effects. With a marine grade paint finish the Chromix Flood is suitable for both inland and coastal areas while the lens design ensures accurate light distribution in either 8° or 40° beam angles.

The Chomix Flood incorporates a modular design allowing up to three heads to be mounted on a dedicated bracket, each of which can be individually pivoted providing the versatility to produce multiple directions of light from a single installation point.

Complies with:

UKCA | CE | IP65 | IK06 | 230V

Recommended applications:

Exterior | Parking & Exterior

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted RAL 9006 matt grey, marine grade salt spray tested
  • Endcaps: High pressure die cast aluminium
  • Diffuser: 5mm toughened glass
  • Lens: Injection moulded PMMA lens
  • IP65
  • IK06

Environmental

  • Powered by European branded drivers.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • RGBW Colour Changing
  • DMX dimming only

Installation

  • Suitable for surface installation
  • Suitable for external surface installation

Variations

  • Available in a range of lens options offering multiple beam angles
Find out more about our 5 year extended warranty

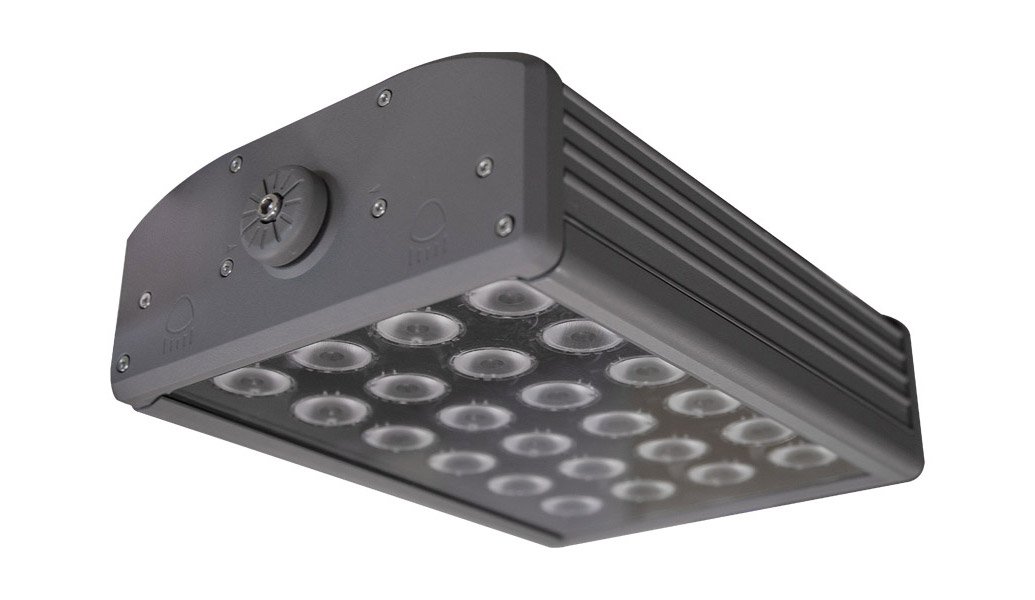

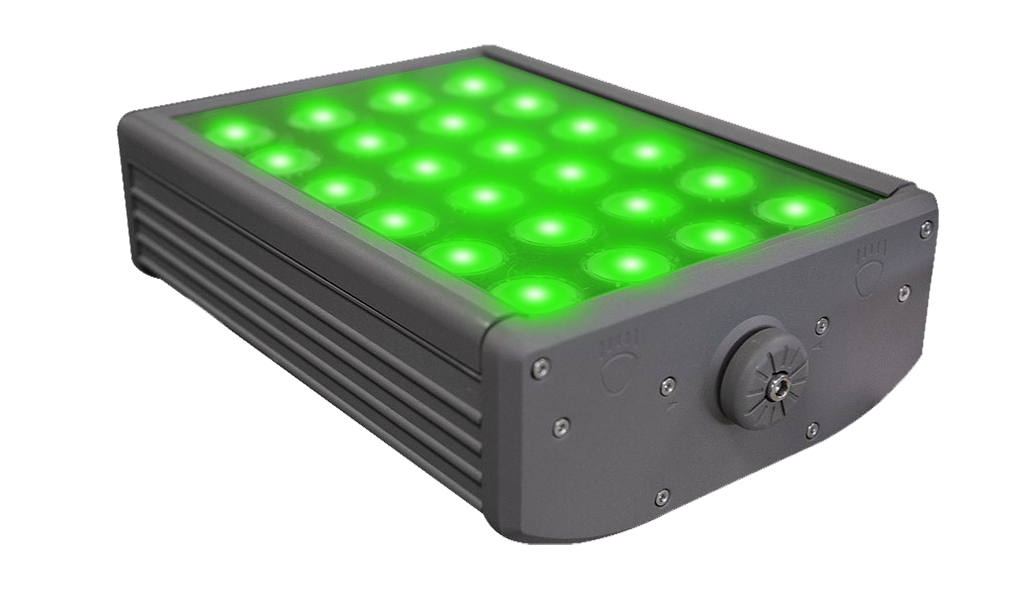

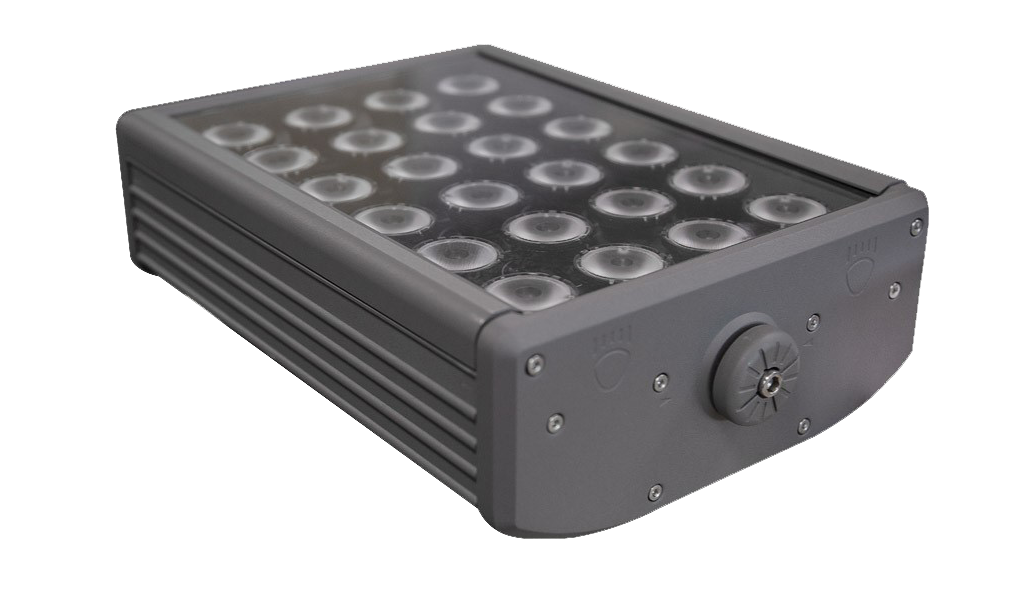

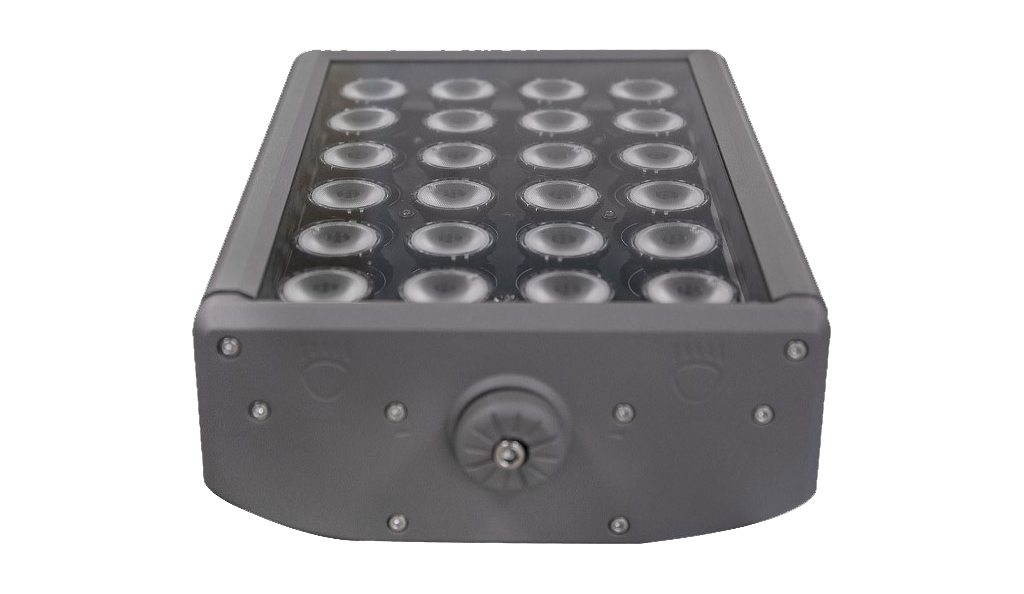

Product Images

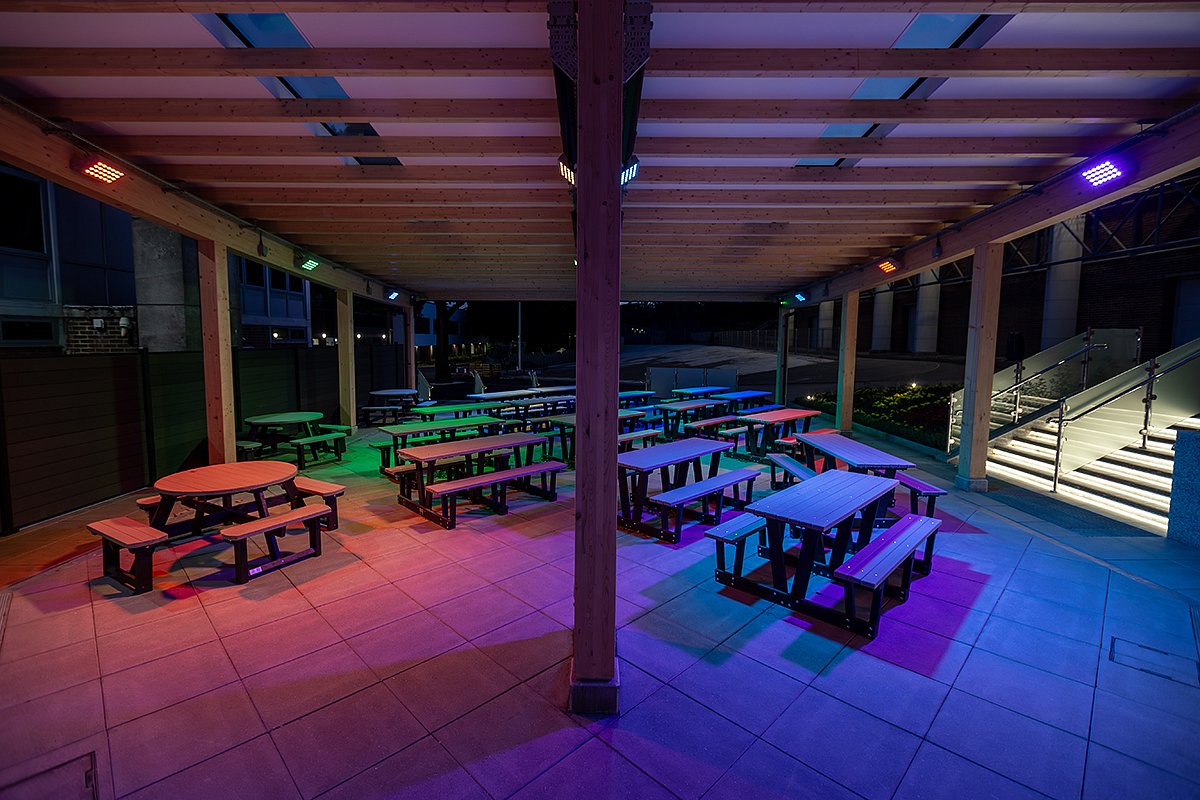

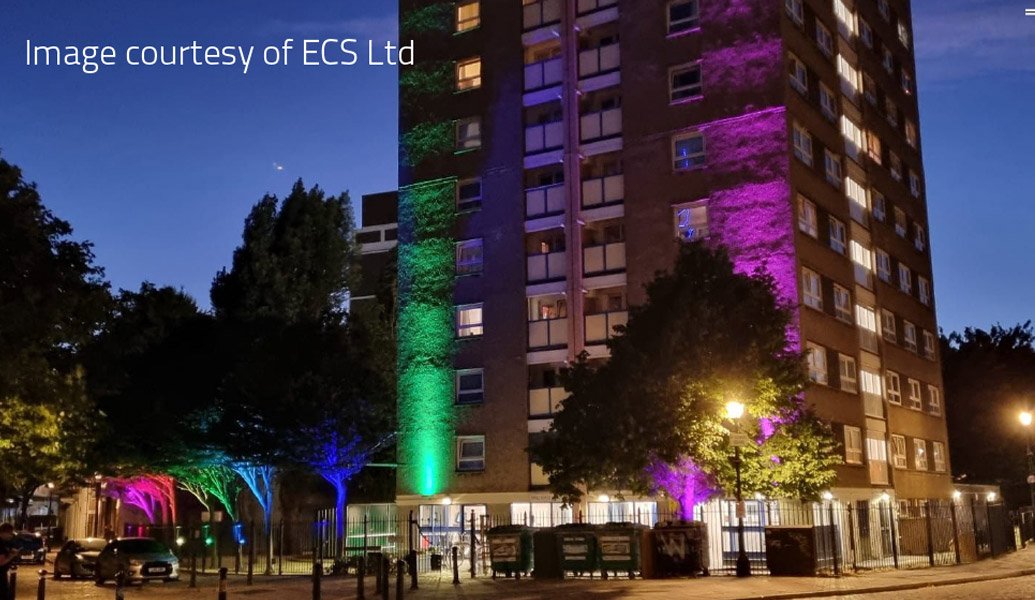

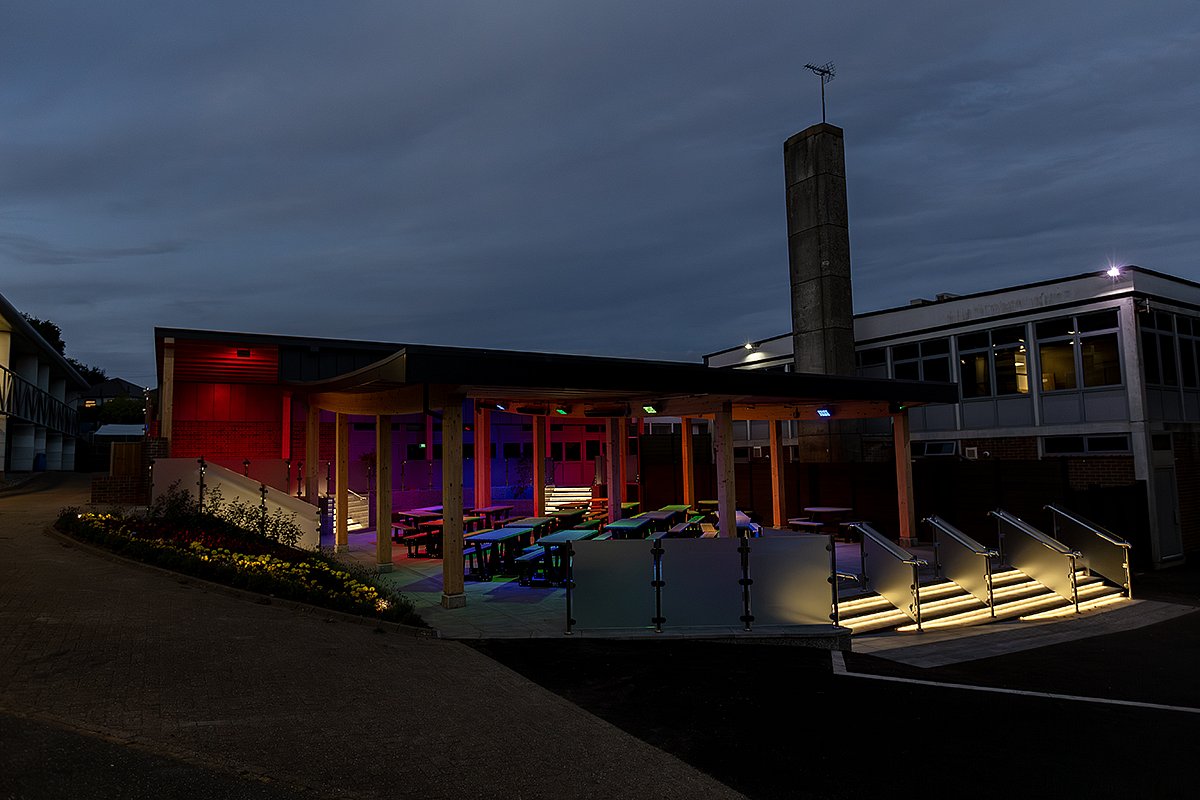

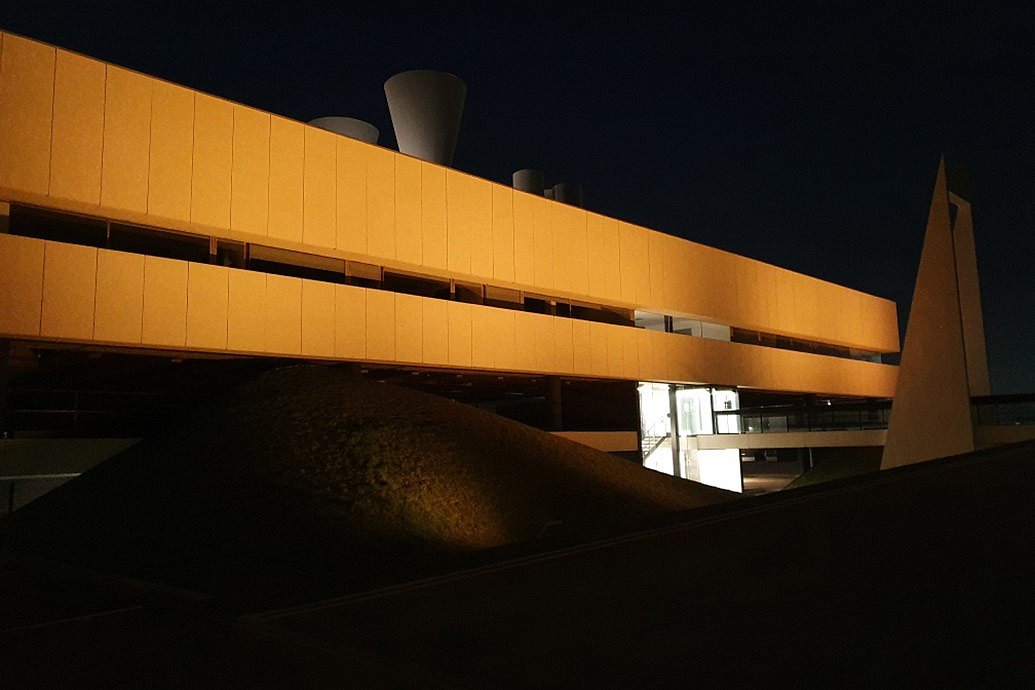

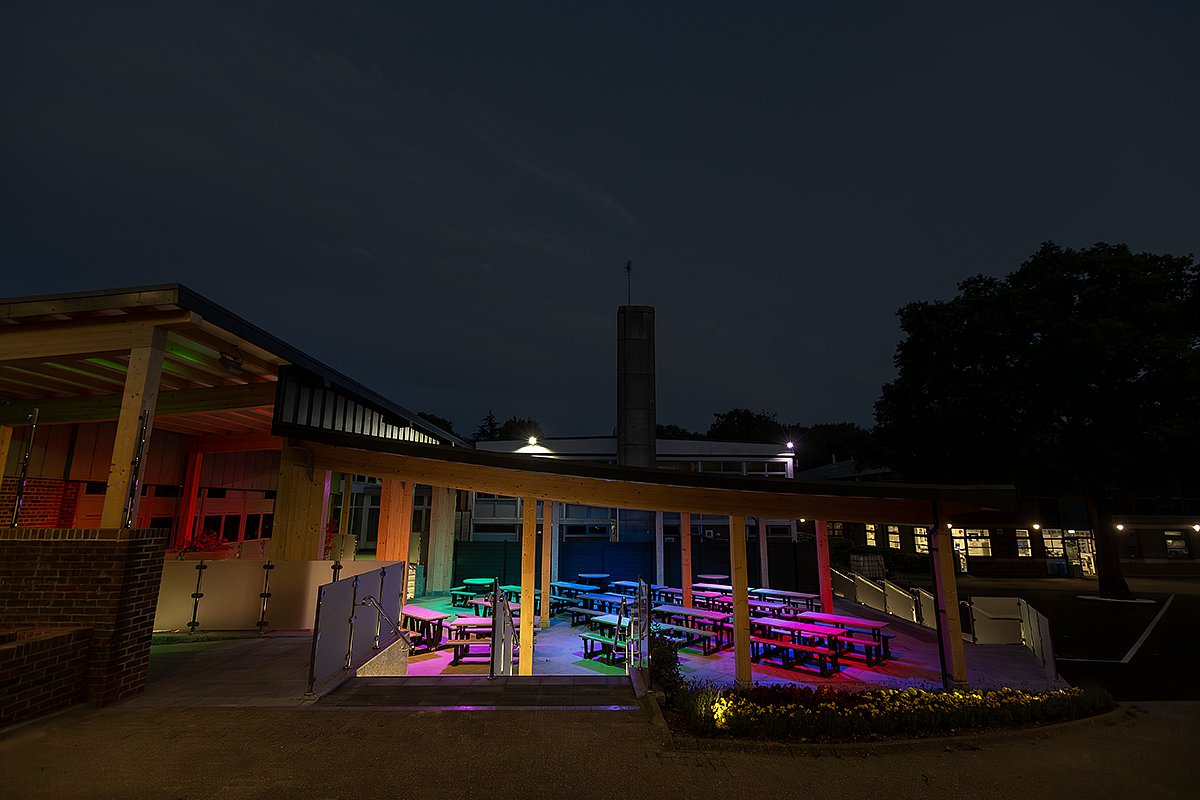

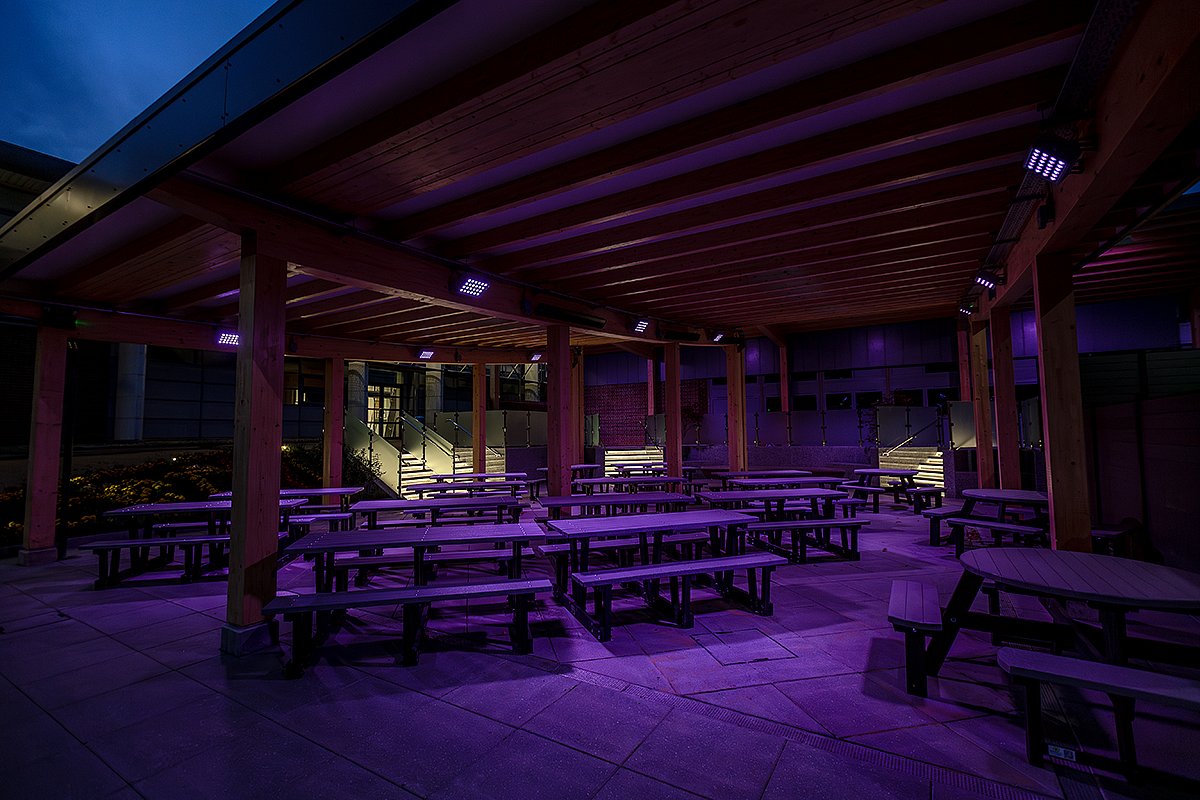

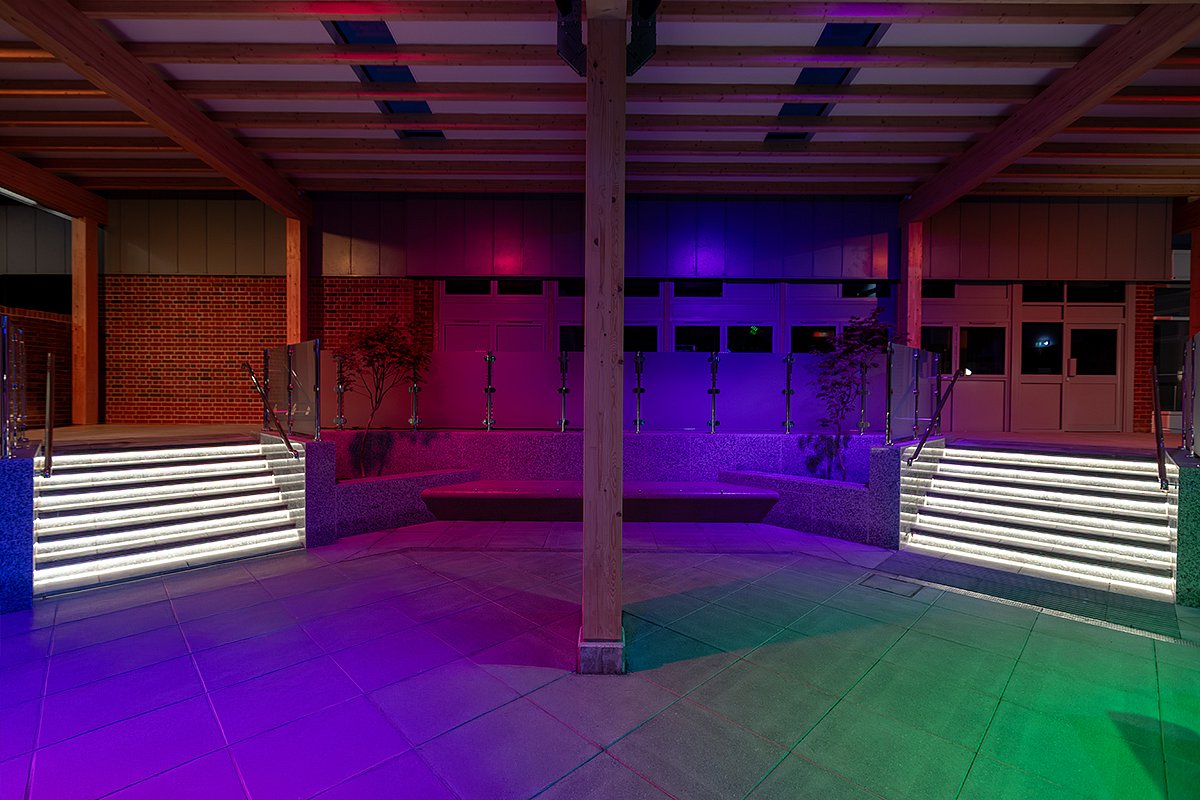

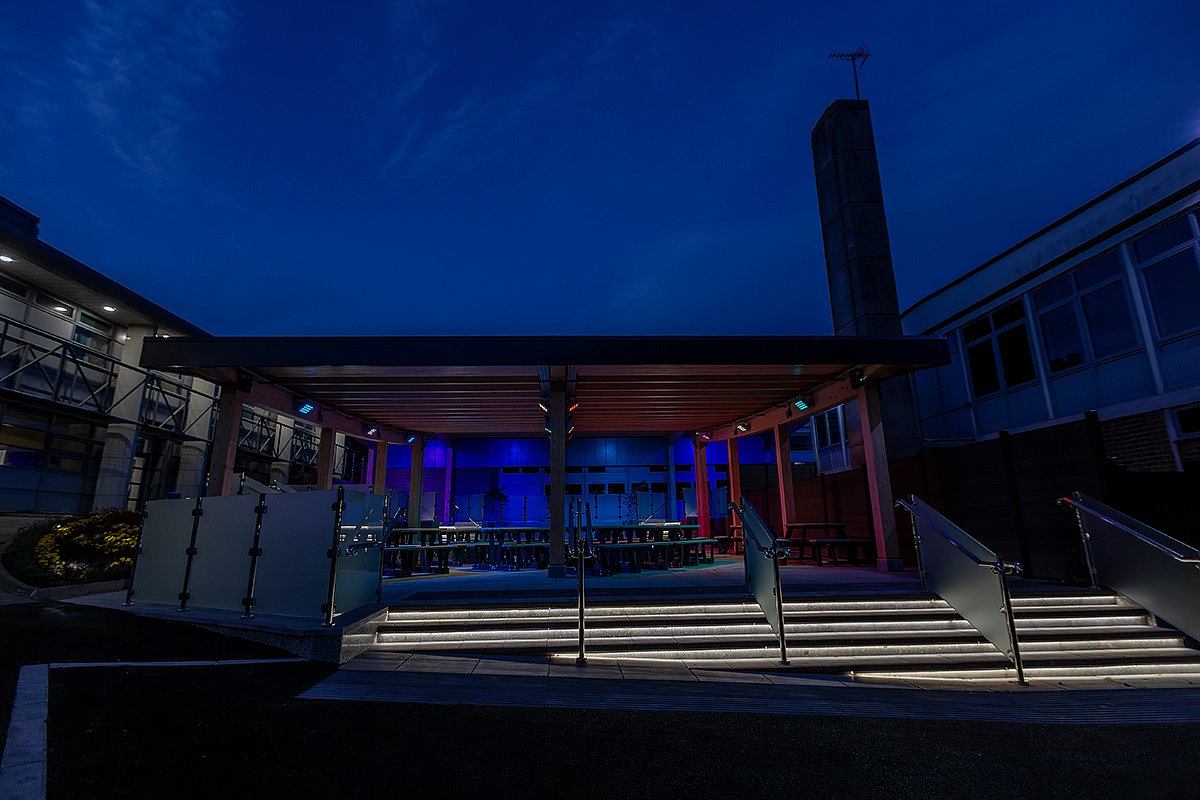

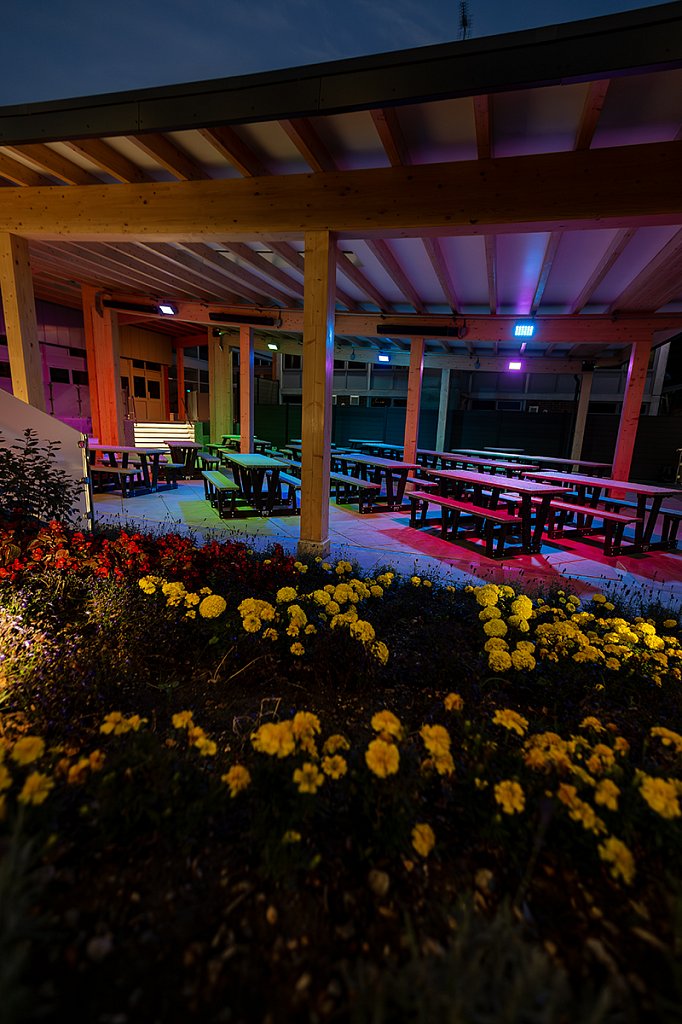

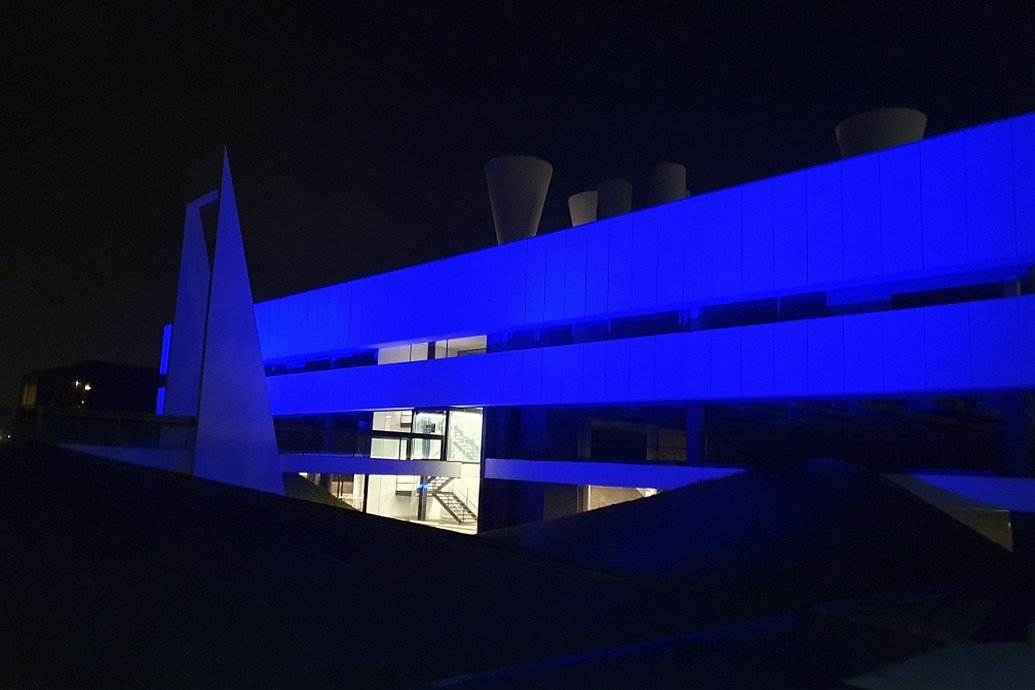

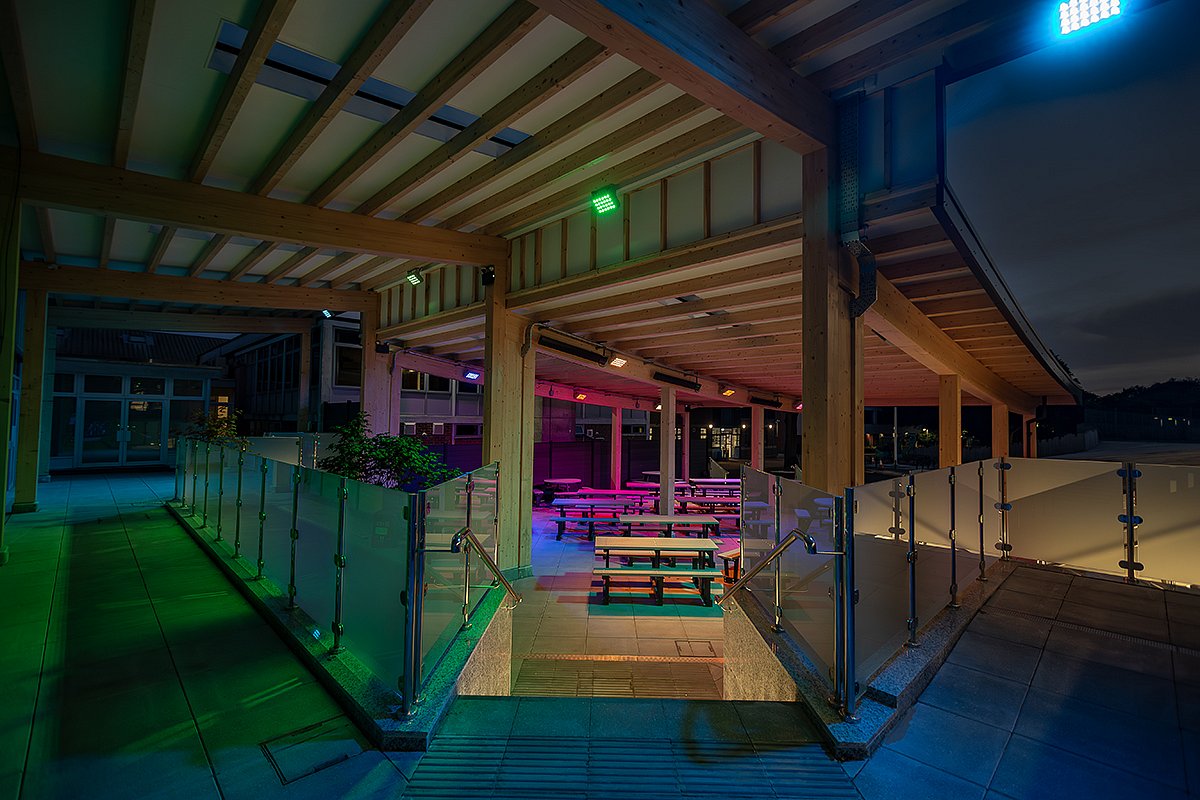

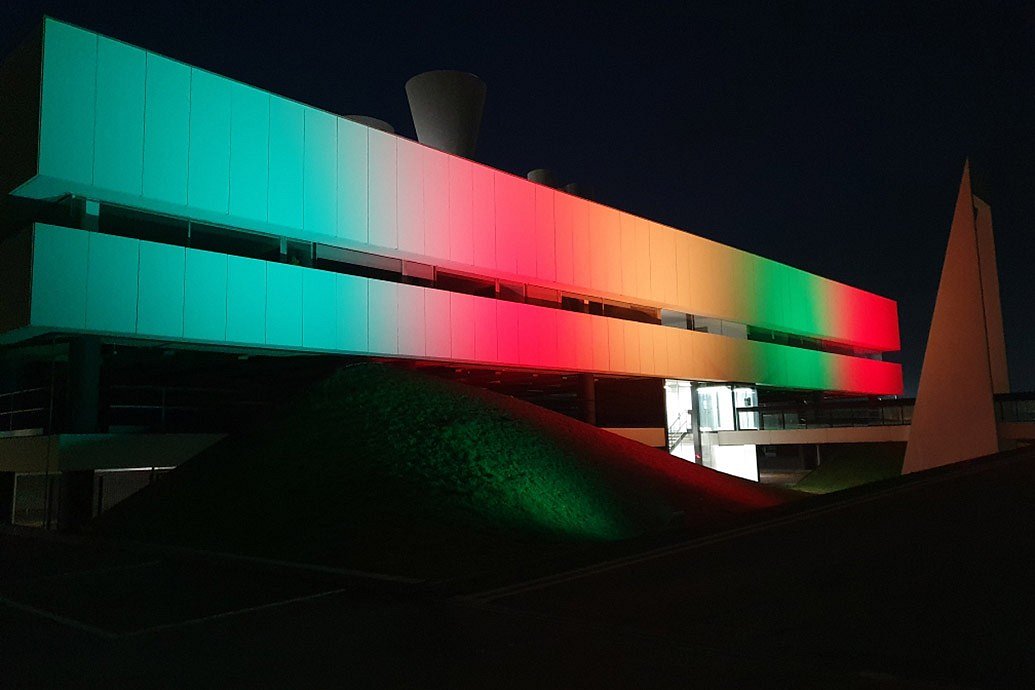

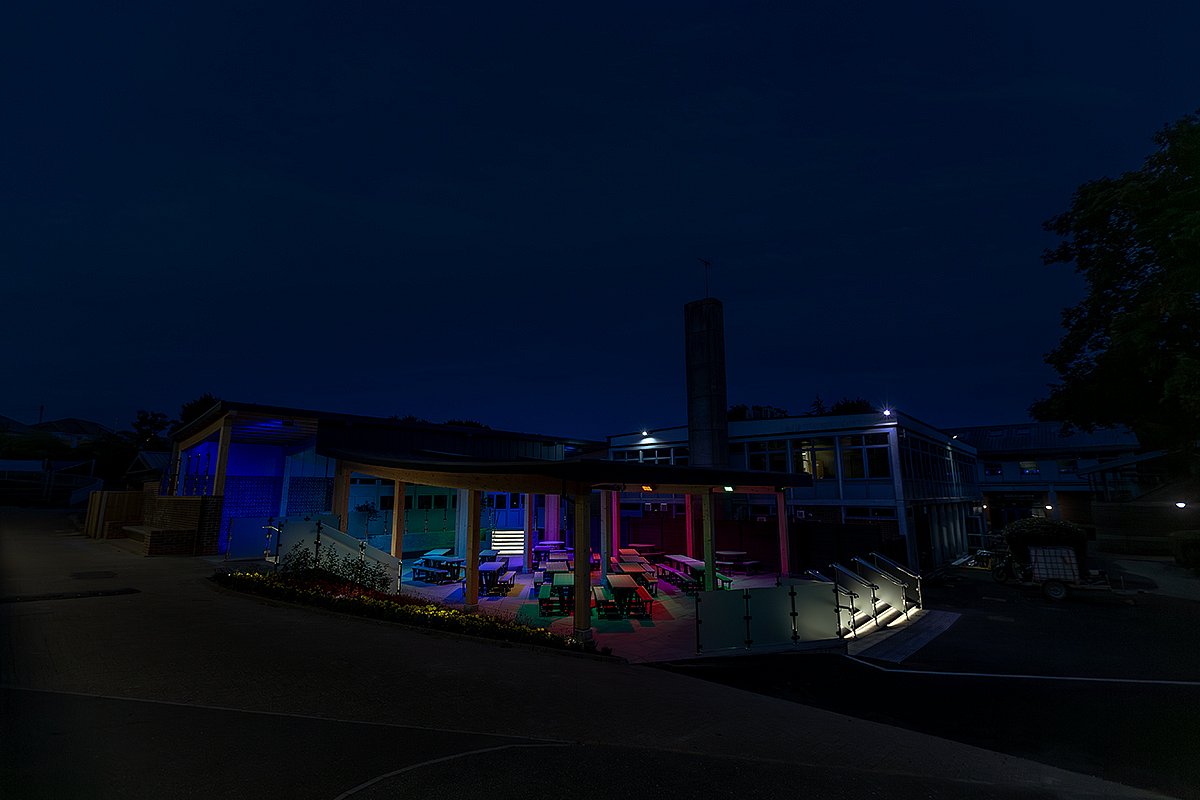

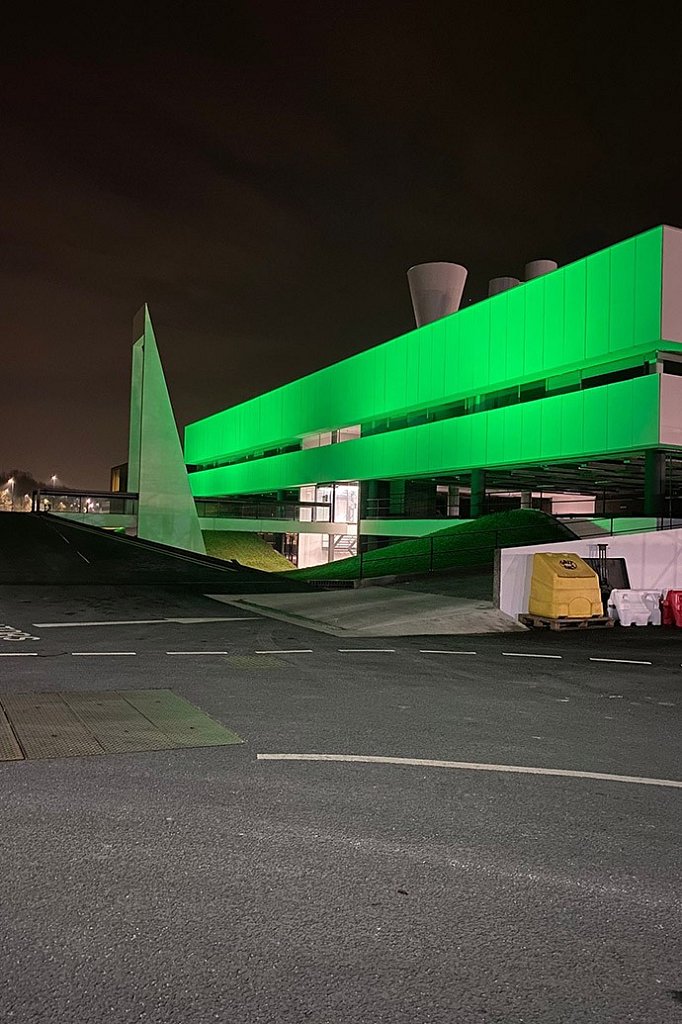

Chromix Flood in action

Case studies featuring Chromix Flood

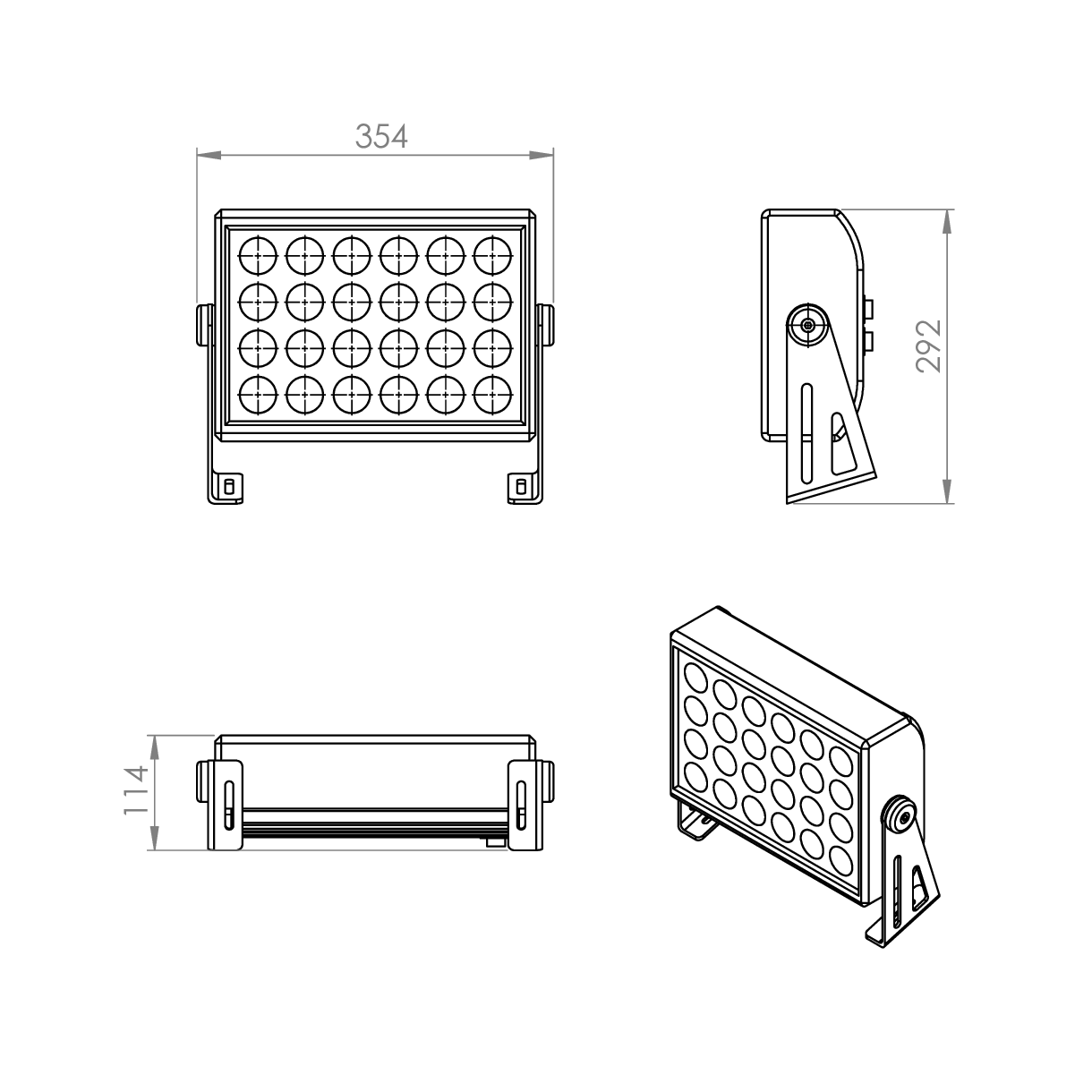

Technical

Chromix Flood

Chromix Flood

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Luminous Flux - Red Luminous Flux - Green Luminous Flux - Blue Luminous Flux - White Luminous Flux - RGBW
CHF 100 0808 RGBW MG Chromix Flood RGBW C84, RDM DMX, Single Bracket, 8 Degree, IP65, IK06, RAL9006 107.9W 781lm 1,235lm 453lm 1,268lm 3,737llm
CHF 100 4040 RGBW MG Chromix Flood RGBW C84, RDM DMX, Single Bracket, 40 Degree, IP65, IK06, RAL9006 108.8W 746lm 1,166lm 437lm 1,202lm 3,551llm
Also available in static white in a range of colour temperatures. Please contact LEDextra for further information.

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
