Torrent 2

The Torrent 2 has been designed in accordance with EC 852/2004 & HACCP for the hygiene of foodstuffs with tolerance to high ambient temperatures, IP66 rating and a housing that eliminates dirt traps

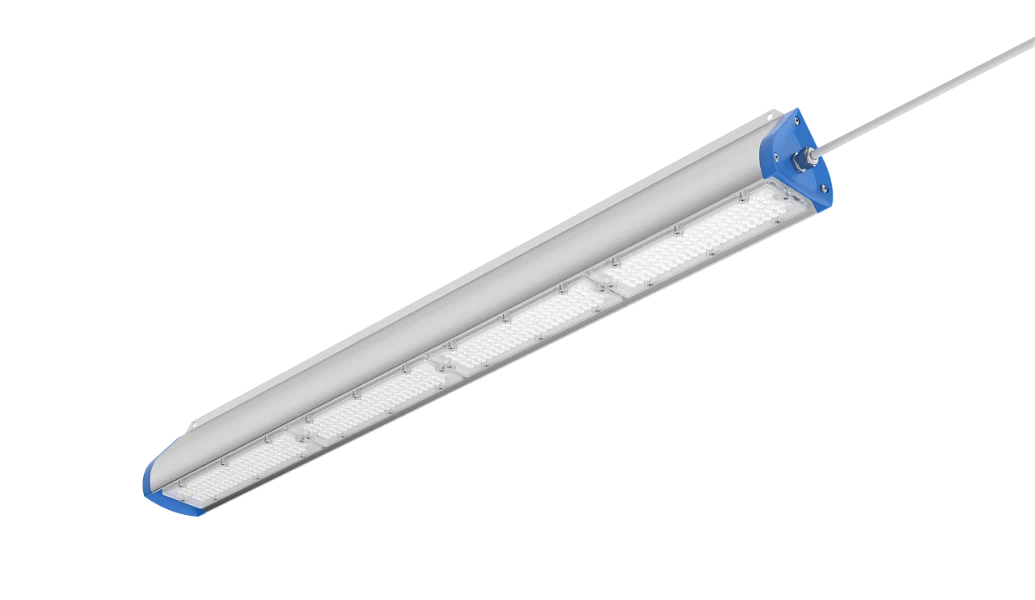

torrent 2 featured

Introduction

The combination of stringent hygiene requirements, high ambient temperatures and the substantial costs associated with production stoppages in food processing applications requires a unique approach to luminaire design. The Torrent 2 has been designed to address these issues to ensure that food production applications can be effectively lit with the minimum of energy whilst also being able to withstand rigorous cleaning, provide excellent thermal management and offer state of the art life expectancy to minimise maintenance.

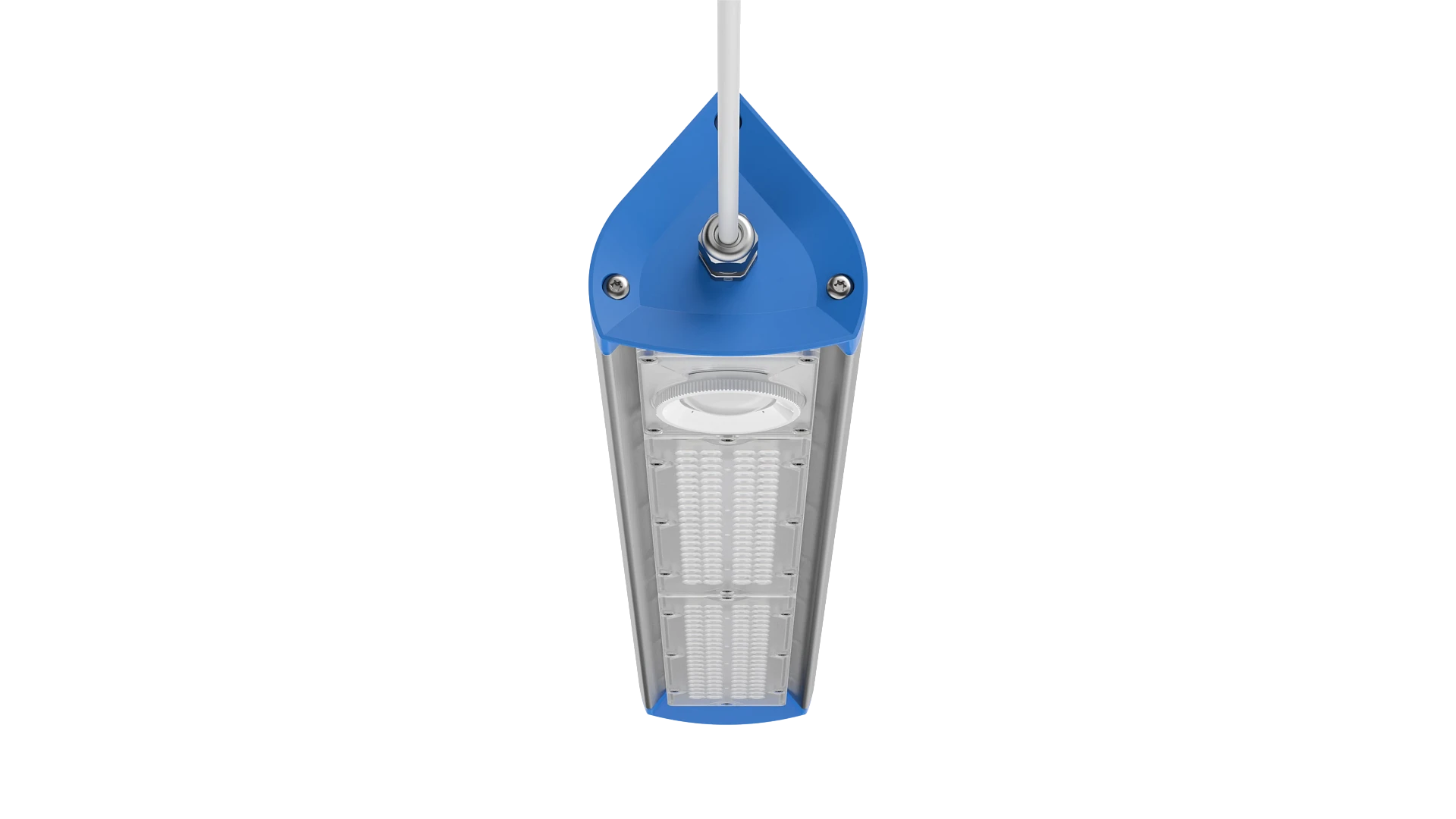

 The Torrent 2 incorporates a tear drop profile extruded aluminium housing with anodised finish to eliminate any potential dirt or dust traps whilst also ensuring that the coating can not flake or peel risking food contamination. With an IP66 rating the Torrent 2 is designed to withstand high pressure cleaning whilst the aluminium profile provides thermal management allowing specific variants to be used in areas with an ambient temperature of up to 50°C. The Torrent 2 uses only our latest mid power LEDs offering in excess of 206llm/W with lumen depreciation of just 20% after 100,000 operating hours, the driver is rated to 100,000 hour lifetime and integral emergency variants use Lithium Iron Phosphate batteries with a five year warranty and greatly extended battery lifetime compared to chemistries such as nickel metal hydride. This combination of premium components ensures that costly shut downs for essential maintenance and repairs are minimised further improving return on investment far beyond energy saving alone.

 With two housing sizes, a wide range of lumen outputs and four lens variants the Torrent 2 can be easily tailored to suit a range of mounting heights and spacings allowing for simple retrofit of existing applications whilst a range of wireless options and integral daylight regulation and presence detection in IP65 variants offer automated emergency testing and reporting and further enhance energy savings.

Complies with:

UKCA | CE | IP66 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Food Production | Industrial & Manufacturing | Warehousing

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Anodised aluminium
  • Endcaps: Injection moulded polycarbonate
  • Lens: Injection moulded polycarbonate lens
  • IK09 (Non sensor variants)
  • IP66

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 206 luminaire lumens per circuit Watt

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming

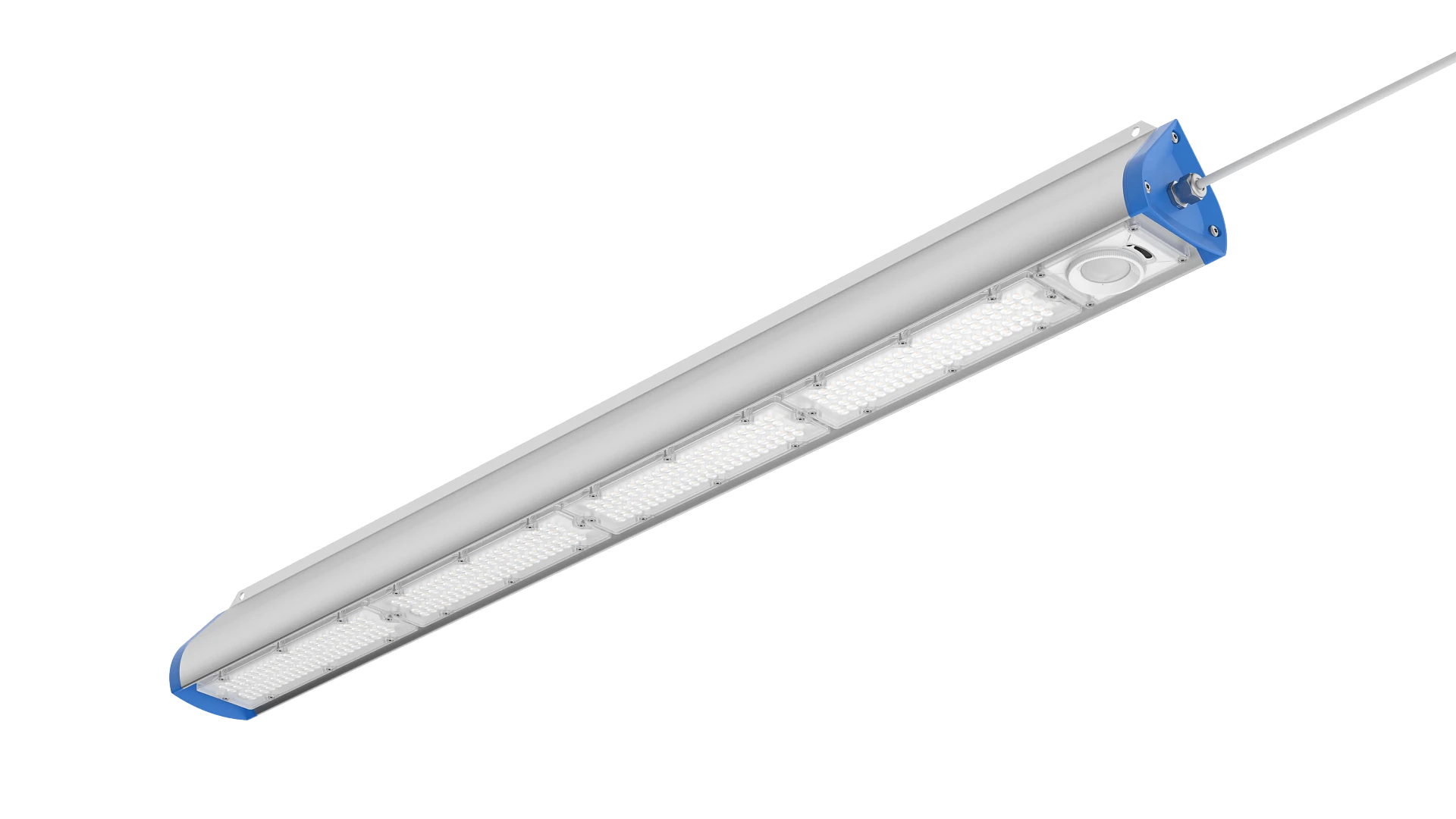

  • Optional Integral R18 presence and daylight sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations

Installation

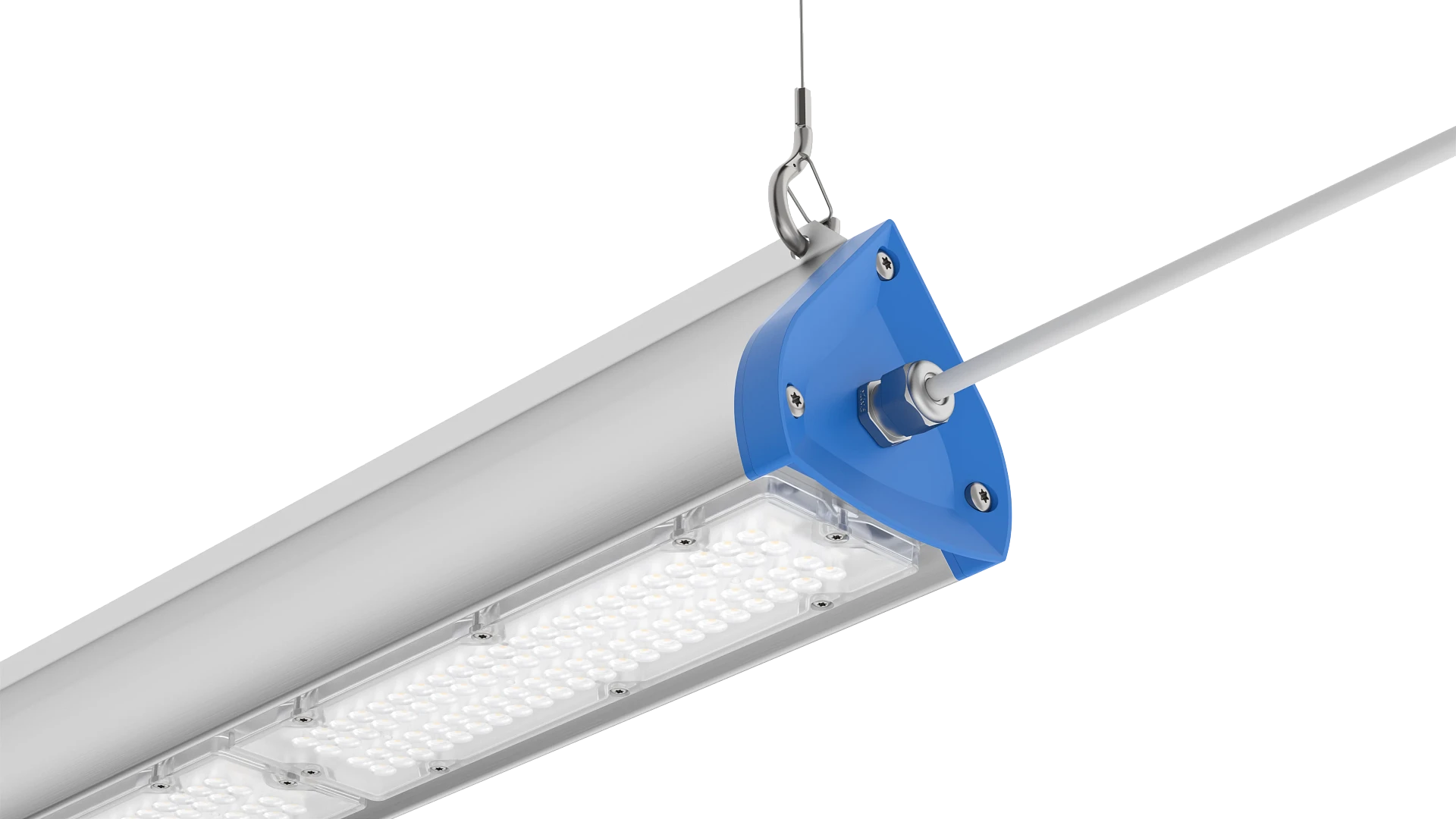

  • Suitable for suspended installation

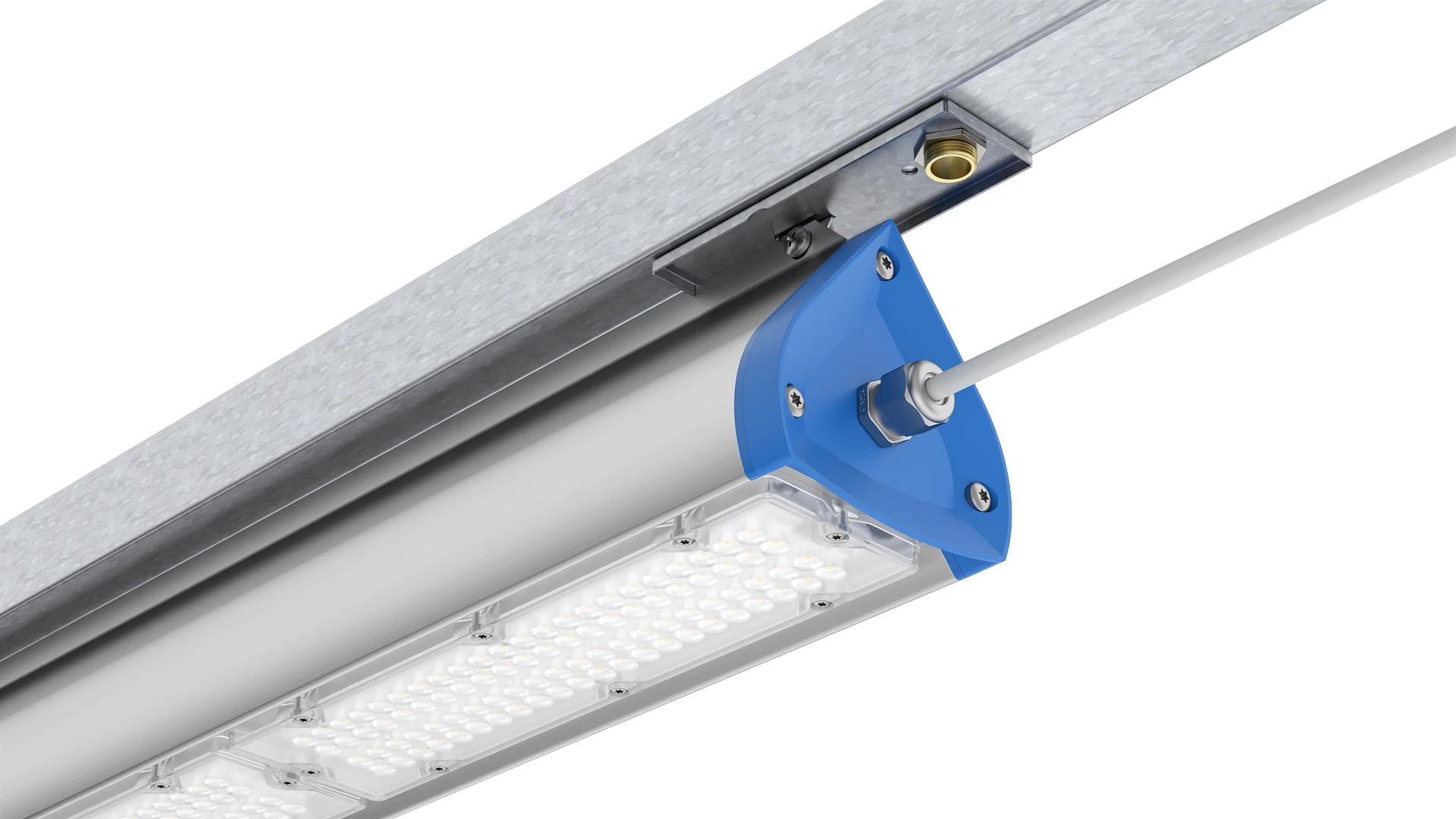

  • Suitable for trunking installation

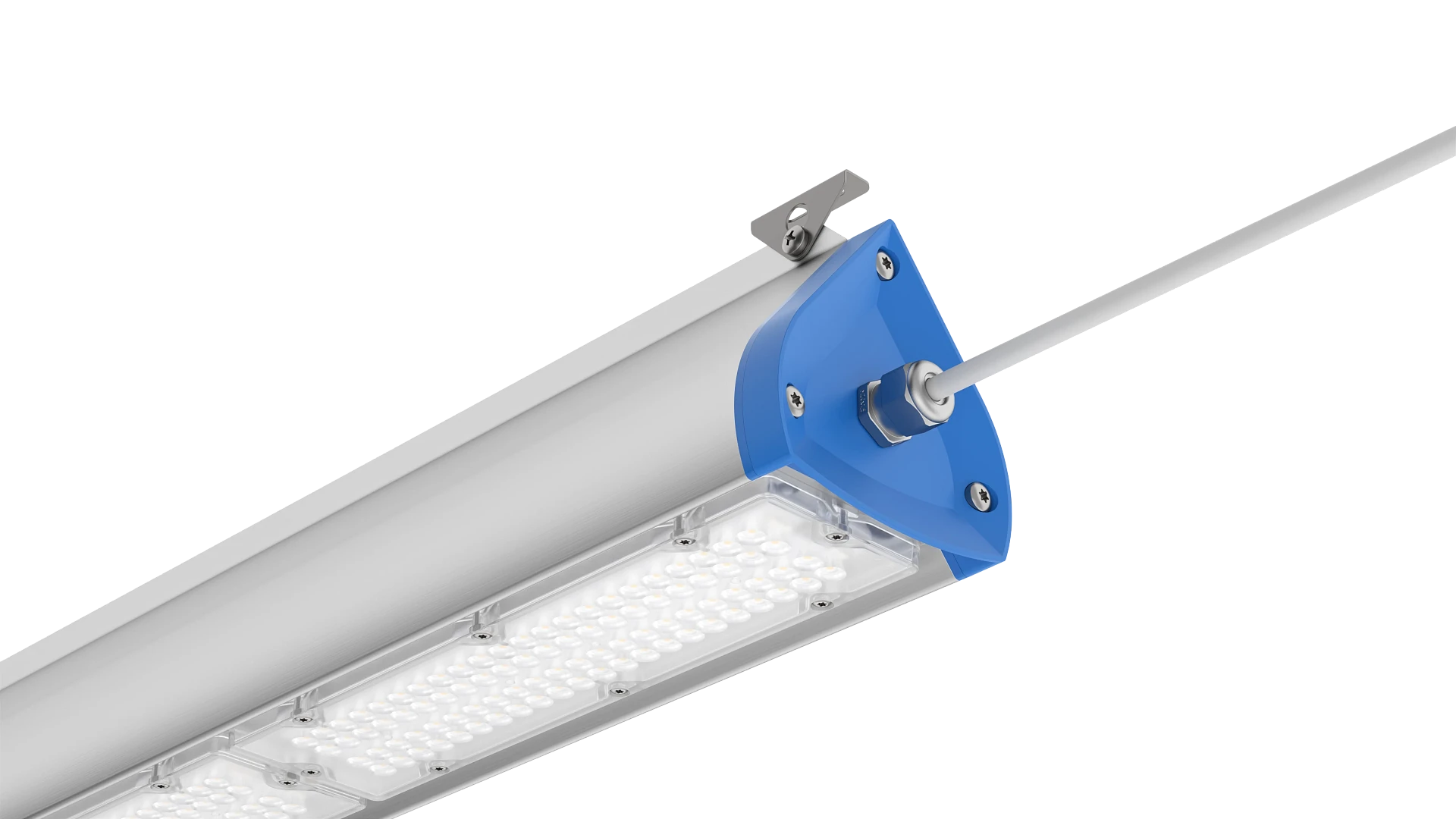

  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
Find out more about our 5 year extended warranty

Technical

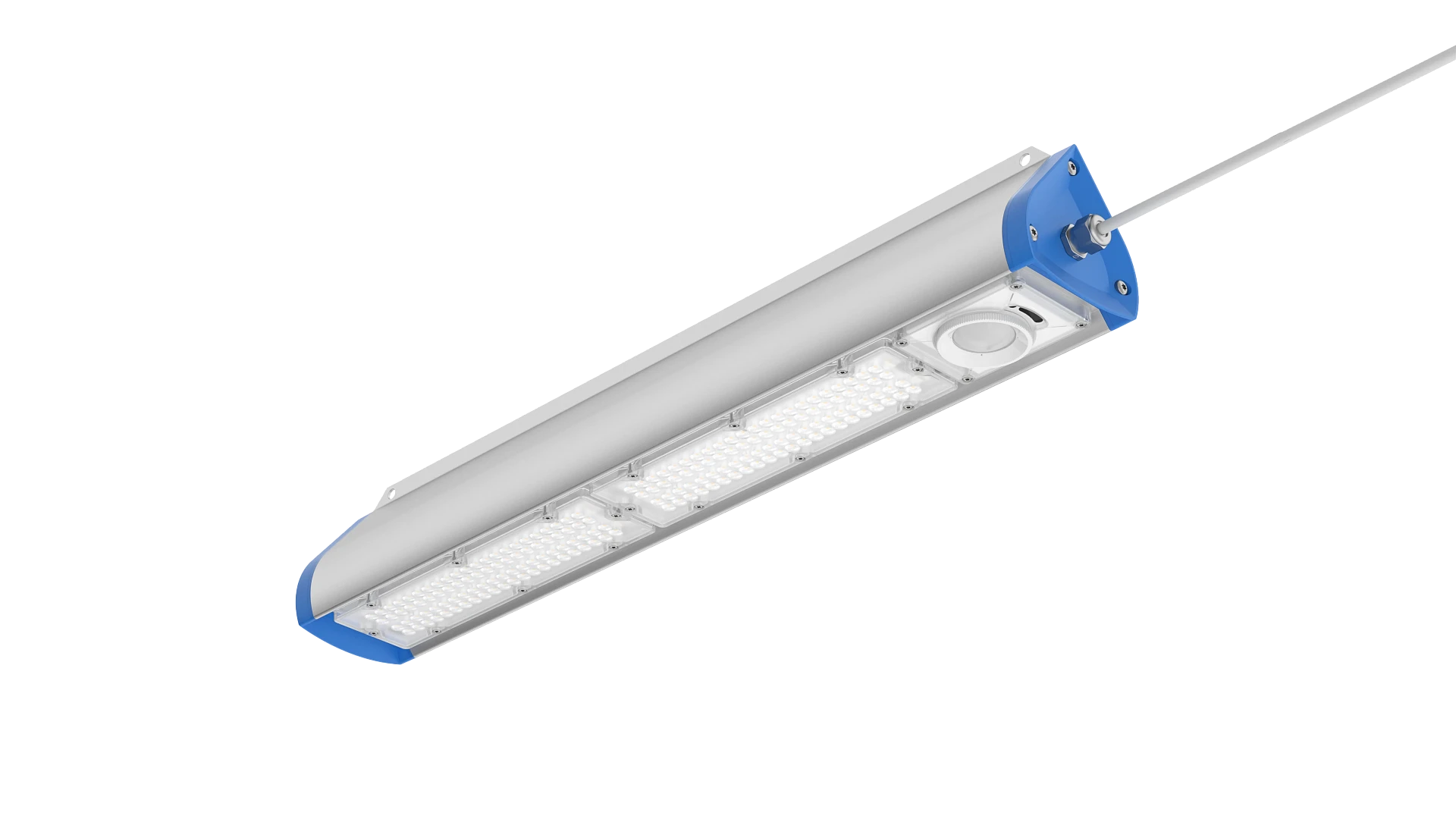

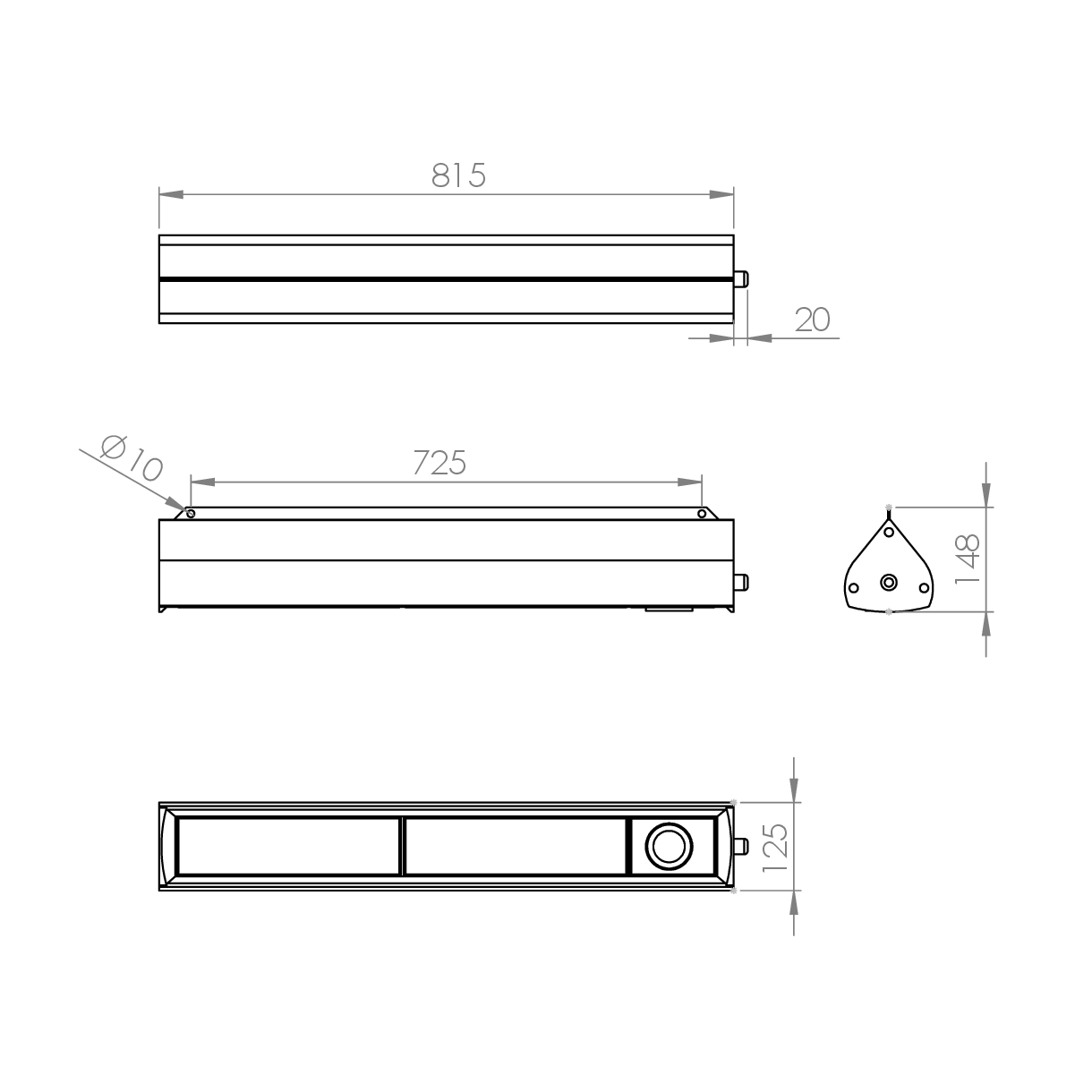

Torrent 2 2 cell with sensor

Torrent 2 2 cell with sensor

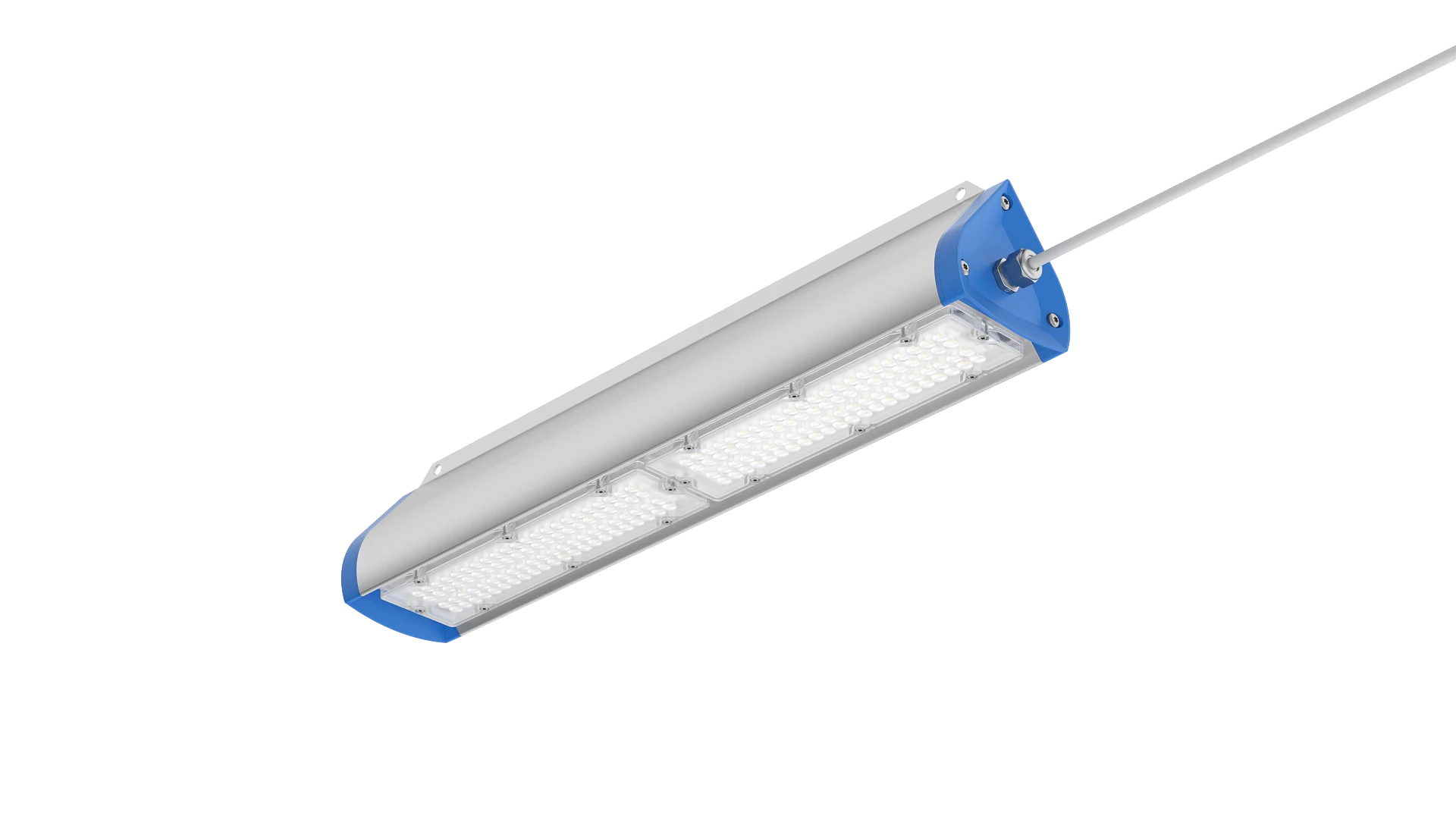

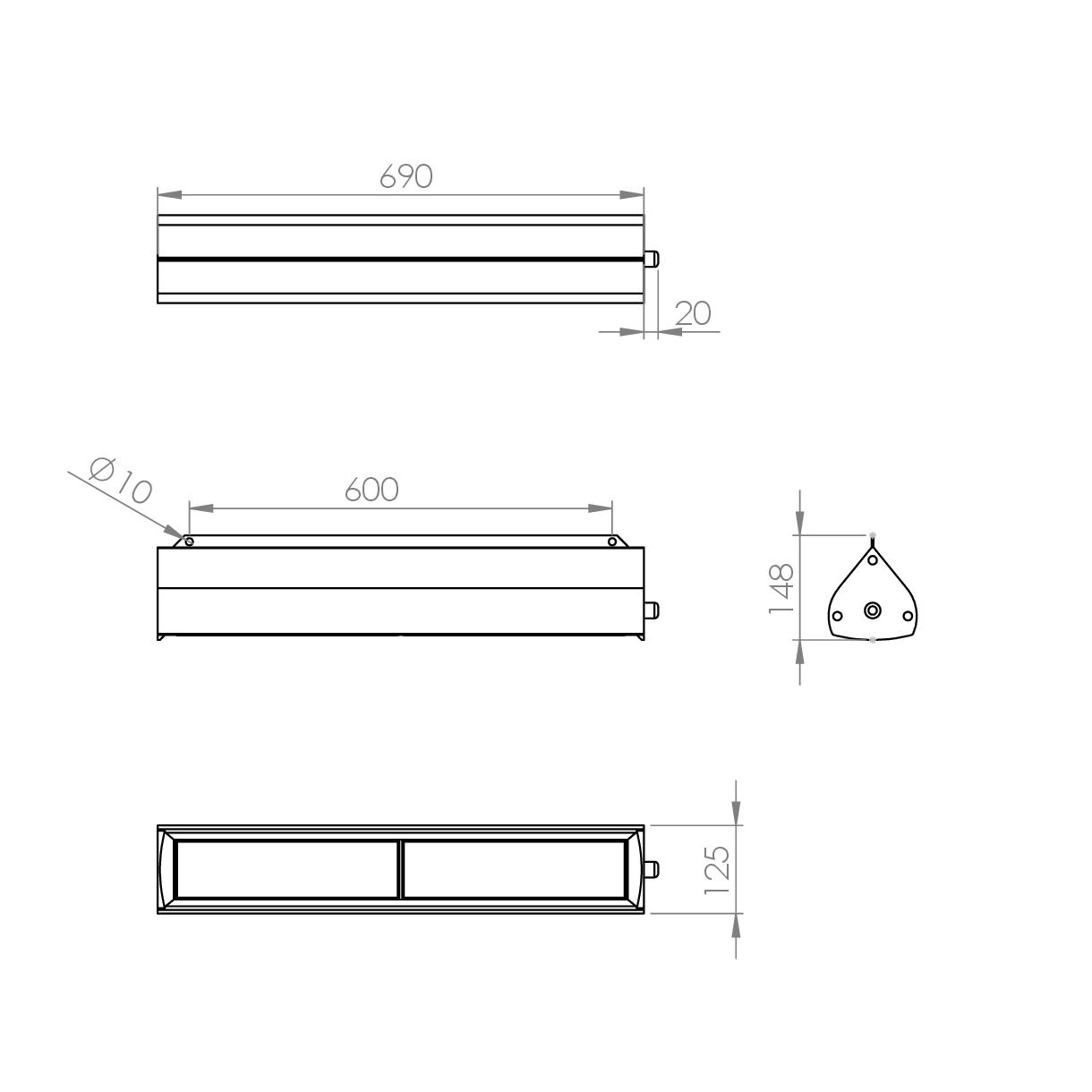

Torrent 2 2 cell

Torrent 2 2 cell

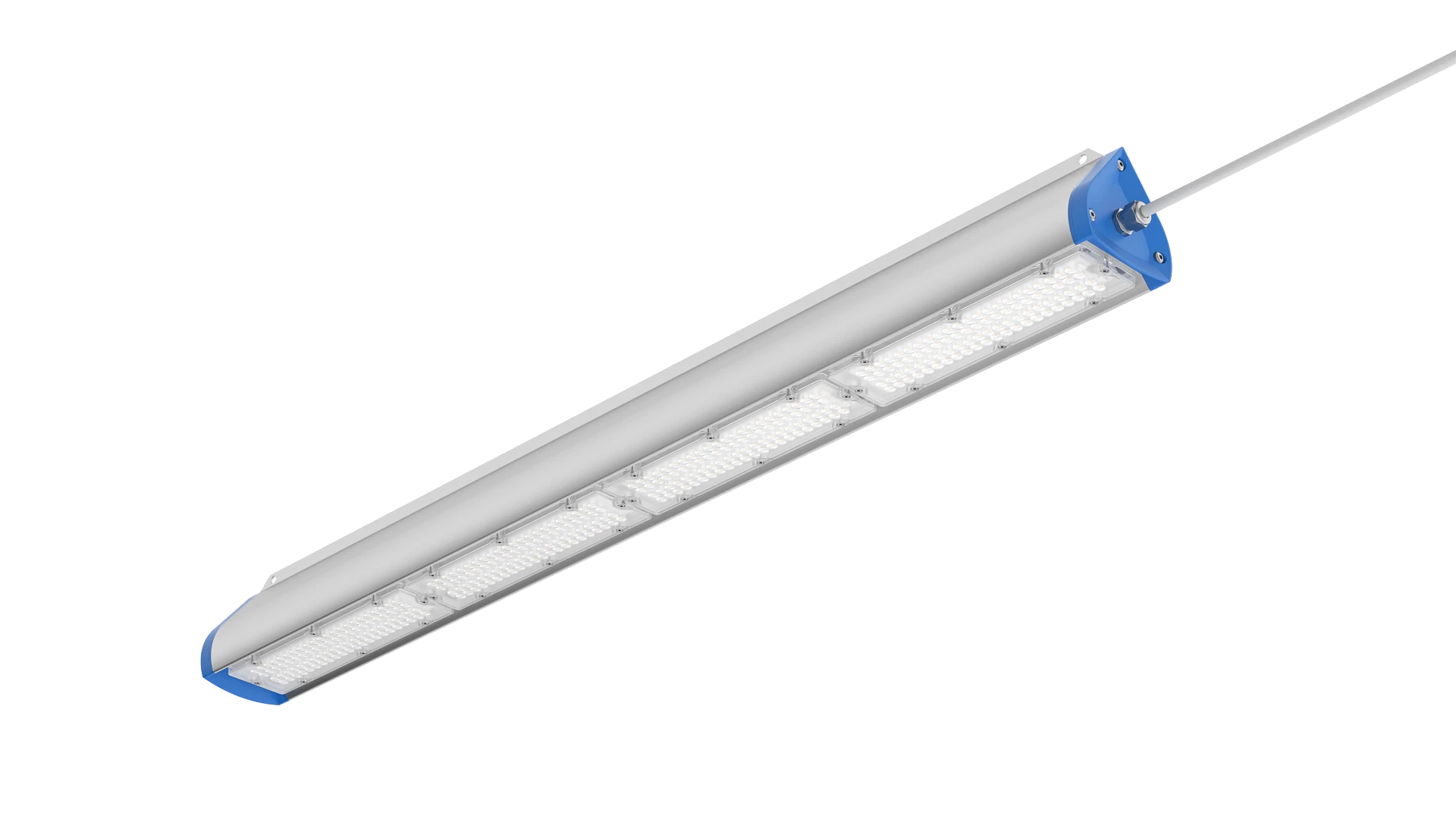

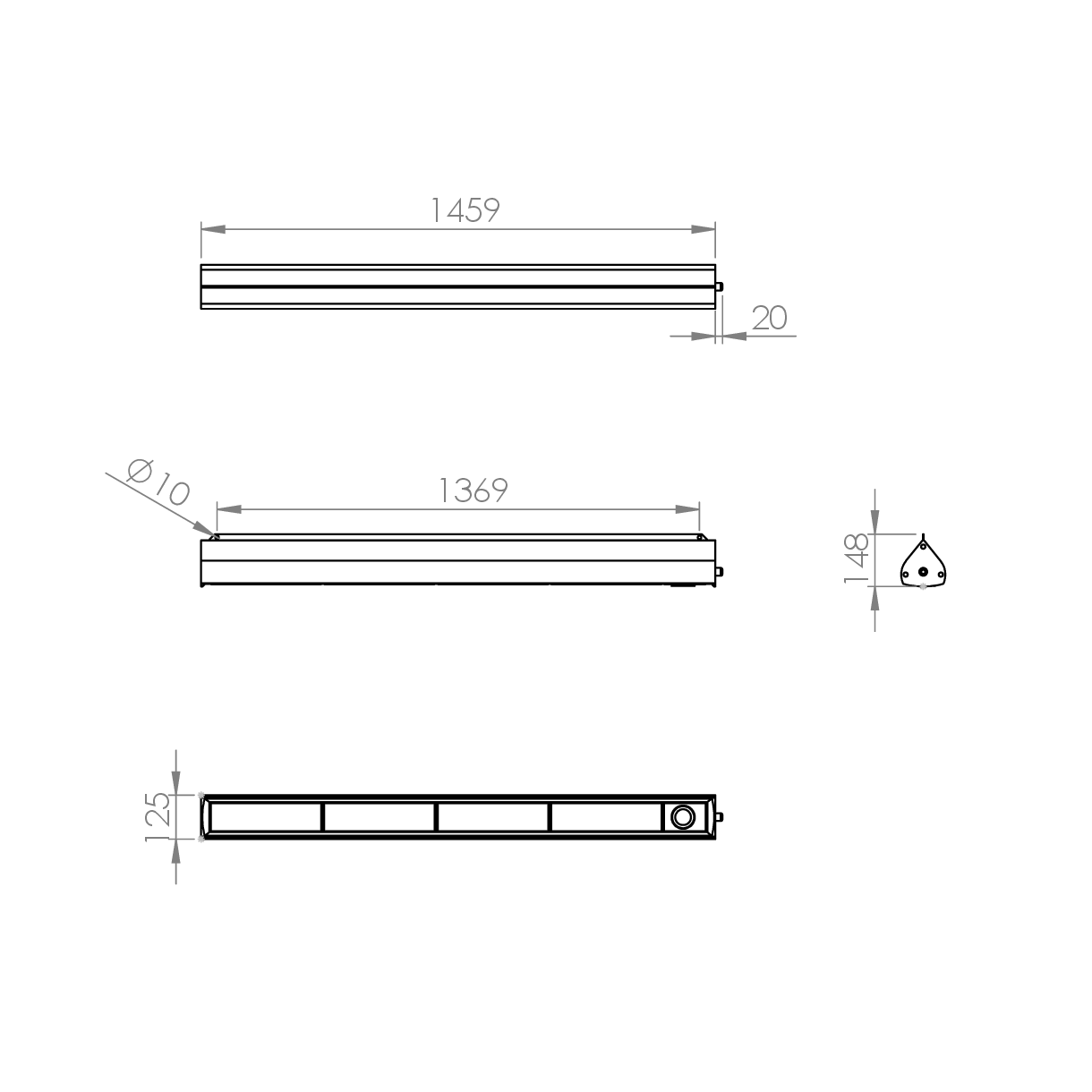

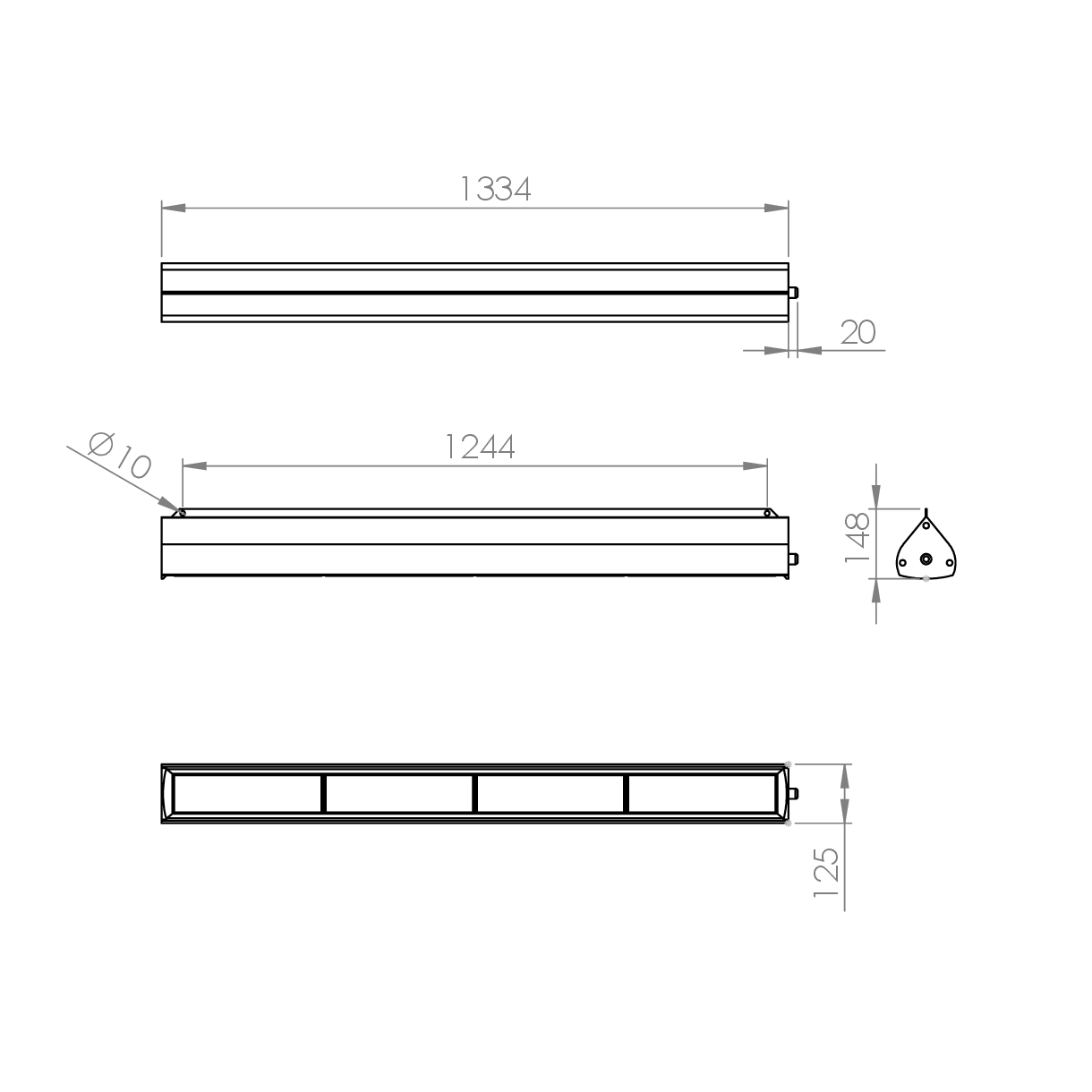

Torrent 2 4 cell

Torrent 2 4 cell

Torrent 2 4 cell with sensor

Torrent 2 4 cell with sensor

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
TOR2 L80 UW Torrent II, 2 Cell, 7,777llm, Ultra Wide, Colour 84 40.7W 191
TOR2 L80 OA Torrent II, 2 Cell, 7,809llm, Open Area, Colour 84 40.7W 192
TOR2 L80 HR Torrent II, 2 Cell, 7,727llm, High Rack, Colour 84 40.7W 190
TOR2 L80 UHR Torrent II, 2 Cell, 7,636llm, Ultra High Rack, Colour 84 40.7W 188
TOR2 L100 UW Torrent II, 2 Cell, 9,722llm, Ultra Wide, Colour 84 51.8W 188
TOR2 L100 OA Torrent II, 2 Cell, 9,762llm, Open Area, Colour 84 51.8W 188
TOR2 L100 HR Torrent II, 2 Cell, 9,659llm, High Rack, Colour 84 51.8W 186
TOR2 L100 UHR Torrent II, 2 Cell, 9,545llm, Ultra High Rack, Colour 84 51.8W 184
TOR2 L120 UW Torrent II, 2 Cell, 11,983llm, Ultra Wide, Colour 84 63.6W 188
TOR2 L120 OA Torrent II, 2 Cell, 12,033llm, Open Area, Colour 84 63.6W 189
TOR2 L120 HR Torrent II, 2 Cell, 11,906llm, High Rack, Colour 84 63.6W 187
TOR2 L120 UHR Torrent II, 2 Cell, 11,765llm, Ultra High Rack, Colour 84 63.6W 185
TOR2 L140 UW Torrent II, 4 Cell, 13,609llm, Ultra Wide, Colour 84 69.9W 195
TOR2 L140 OA Torrent II, 4 Cell, 13,665llm, Open Area, Colour 84 69.9W 195
TOR2 L140 HR Torrent II, 4 Cell, 13,241llm, High Rack, Colour 84 69.9W 189
TOR2 L140 UHR Torrent II, 4 Cell, 13,222llm, Ultra High Rack, Colour 84 69.9W 189
TOR2 L160 UW Torrent II, 4 Cell, 15,554llm, Ultra Wide, Colour 84 76.0W 205
TOR2 L160 OA Torrent II, 4 Cell, 15,618llm, Open Area, Colour 84 76.0W 206
TOR2 L160 HR Torrent II, 4 Cell, 15,292llm, High Rack, Colour 84 76.0W 201
TOR2 L160 UHR Torrent II, 4 Cell, 15,110llm, Ultra High Rack, Colour 84 76.0W 199
TOR2 L200 UW Torrent II, 4 Cell, 19,442llm, Ultra Wide, Colour 84 98.3W 198
TOR2 L200 OA Torrent II, 4 Cell, 19,522llm, Open Area, Colour 84 98.3W 199
TOR2 L200 HR Torrent II, 4 Cell, 19,116llm, High Rack, Colour 84 98.3W 194
TOR2 L200 UHR Torrent II, 4 Cell, 19,088llm, Ultra High Rack, Colour 84 98.3W 194
TOR2 L240 UW Torrent II, 4 Cell, 22,804llm, Ultra Wide, Colour 84 118.6W 192
TOR2 L240 OA Torrent II, 4 Cell, 22,985llm, Open Area, Colour 84 118.6W 194
TOR2 L240 HR Torrent II, 4 Cell, 22,507llm, High Rack, Colour 84 118.6W 190
TOR2 L240 UHR Torrent II, 4 Cell, 22,474llm, Ultra High Rack, Colour 84 118.6W 189

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LE3H Lithium Standard Emergency 3 Hour High Output
LS3H Lithium Selftest Emergency 3 Hour High Output
LA3H Lithium Autotest Emergency 3 Hour High Output
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C83, C84, C85, C865, C93, C94
TOR SUSP Torrent 2 Suspension kit
TOR SURF Torrent 2 Surface mounting kit
TOR TRUNK Torrent 2 Trunking mounting kit

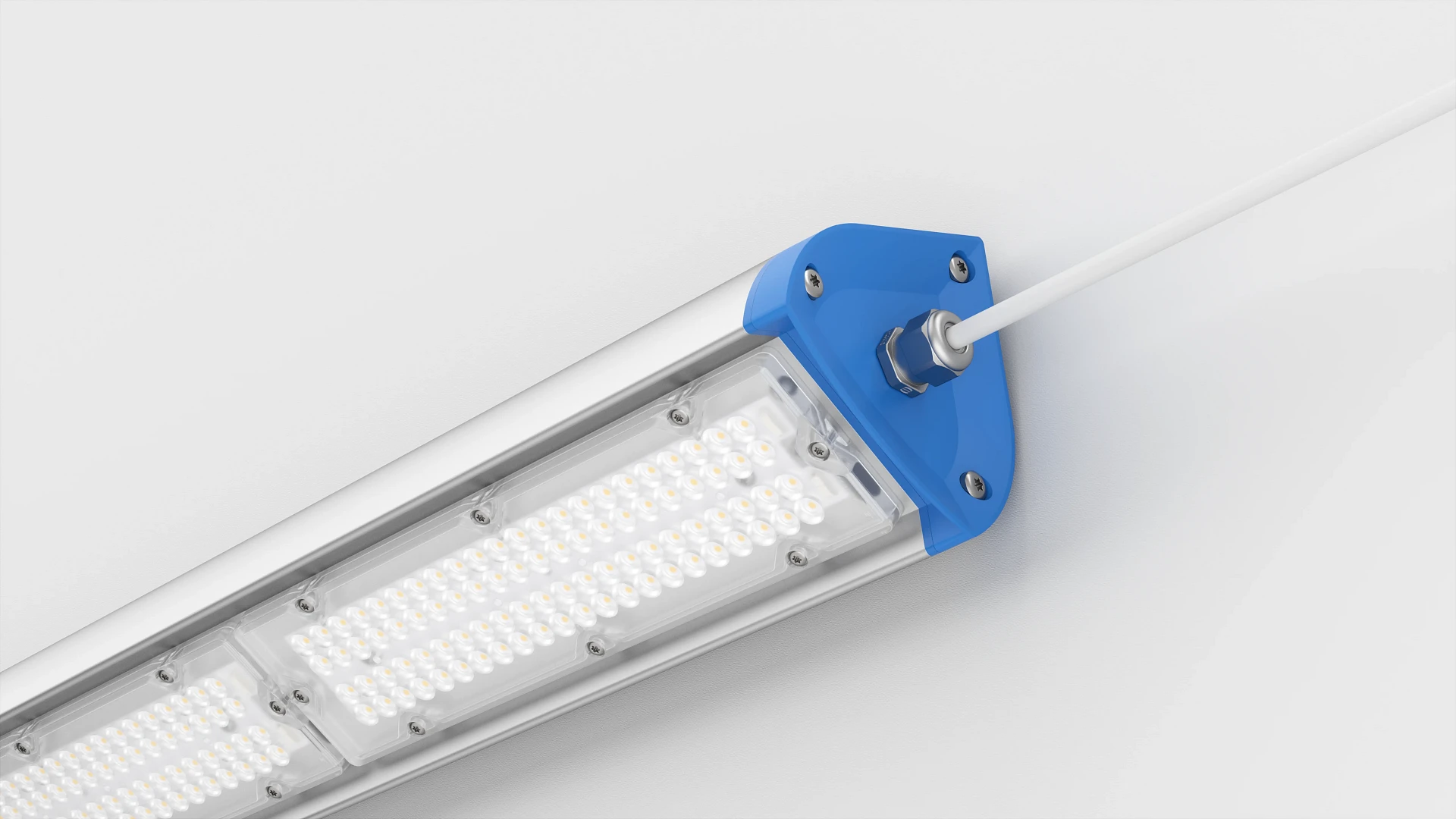

TOR WALL Torrent 2 Wall mounting kit
LSF Low Smoke Zero Halogen
