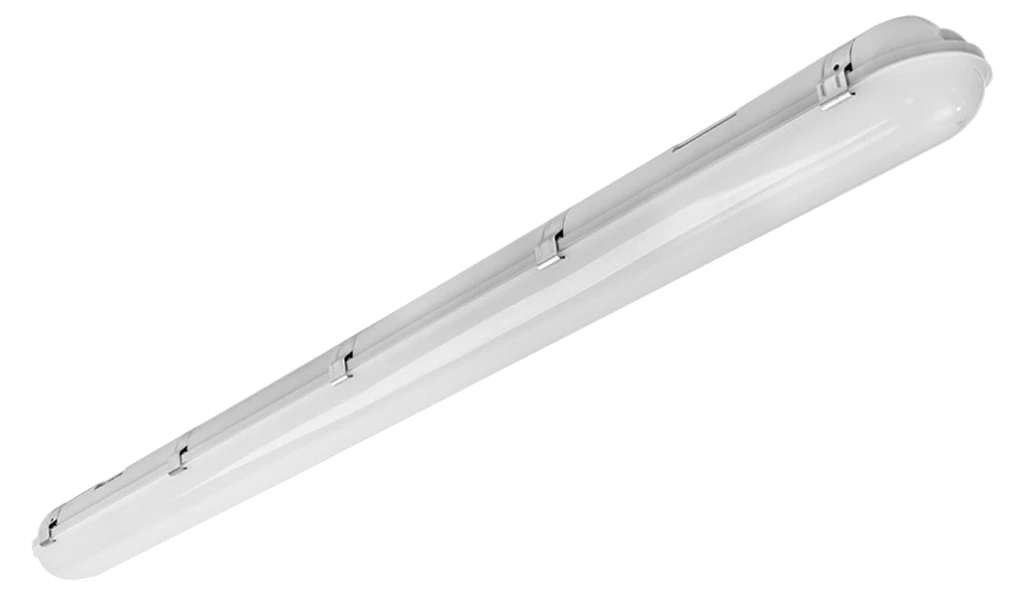

SIREN
An injection moulded IP65 luminaire made from polycarbonate housing and diffuser offering excellent protection against light impact.
Introduction
For applications where glass reinforced polyester is not needed for chemical resistance the Siren offers a full polycarbonate alternative offering excellent impact resistance. The Siren is designed with a snap on mounting clips for the rear of the housing to aid suspension and surface mounting, while a flat rear aids installation to conduit and besa box. The Siren is available in a wide range of lumen outputs, 600mm, 1200mm and 1500mm sizes and lithium emergency and dimming variants. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored. For external applications please ensure that the Siren is installed under canopy in accordance with the installation leaflet. Please see our Tanek range for installations where the product must be both external and fully exposed
For applications where improved chemical resistance is required please refer to our Typhon range.
Complies with:
UKCA | CE | IP65 | IK07 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Canteen | Corridor | Exterior (please refer to installation leaflet for limitations) | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Stairwell | Store Room | Transport | Warehousing
Specification
Construction
- Housing: Injection moulded polycarbonate
- Finish: Matt grey
- Diffuser: Injection moulded high transmission opal polycarbonate
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 163 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- All critical components are mounted on a single tray for simple end of life repair or upgrade.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for suspended installation
- Suitable for trunking installation
- Suitable for conduit installation
- Suitable for surface installation
- Suitable for external use when protected under canopy.
- Please see our Tanek range for installations where the product must be both external and fully exposed
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs

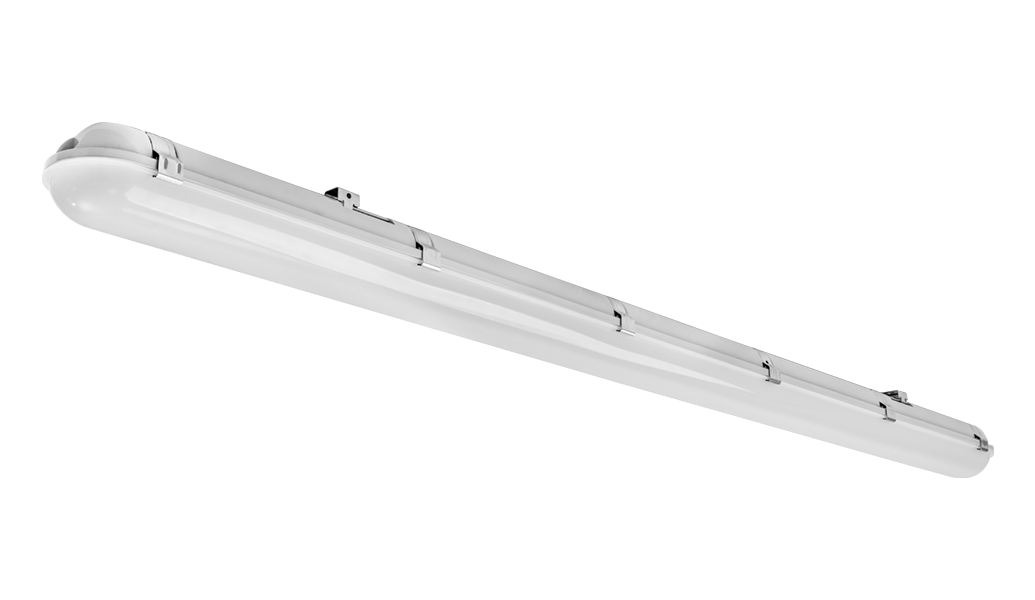

Product Images

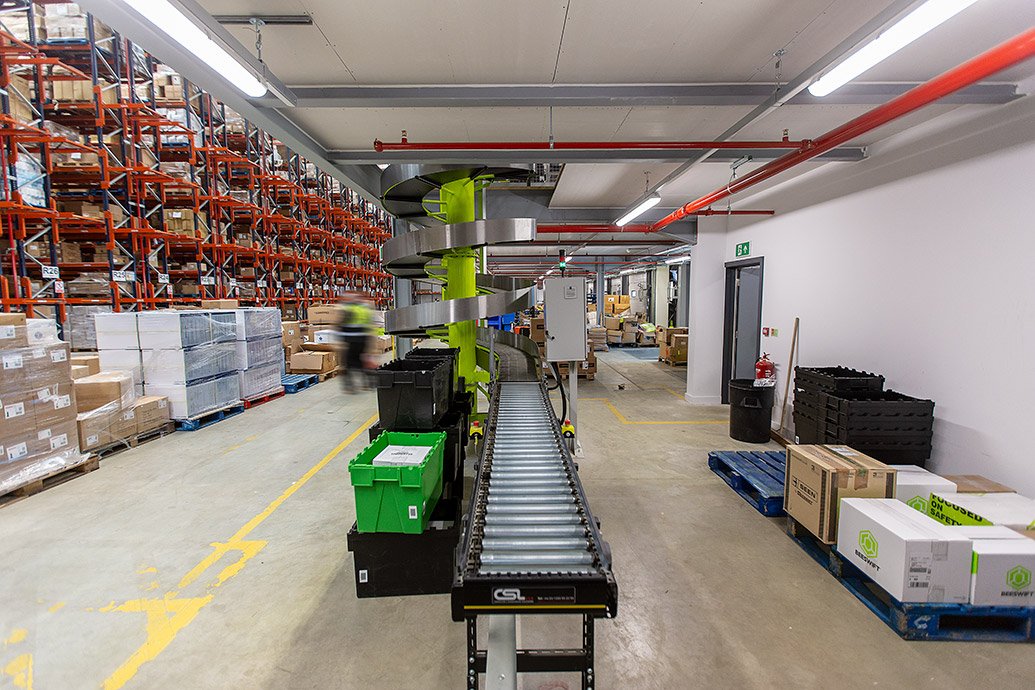

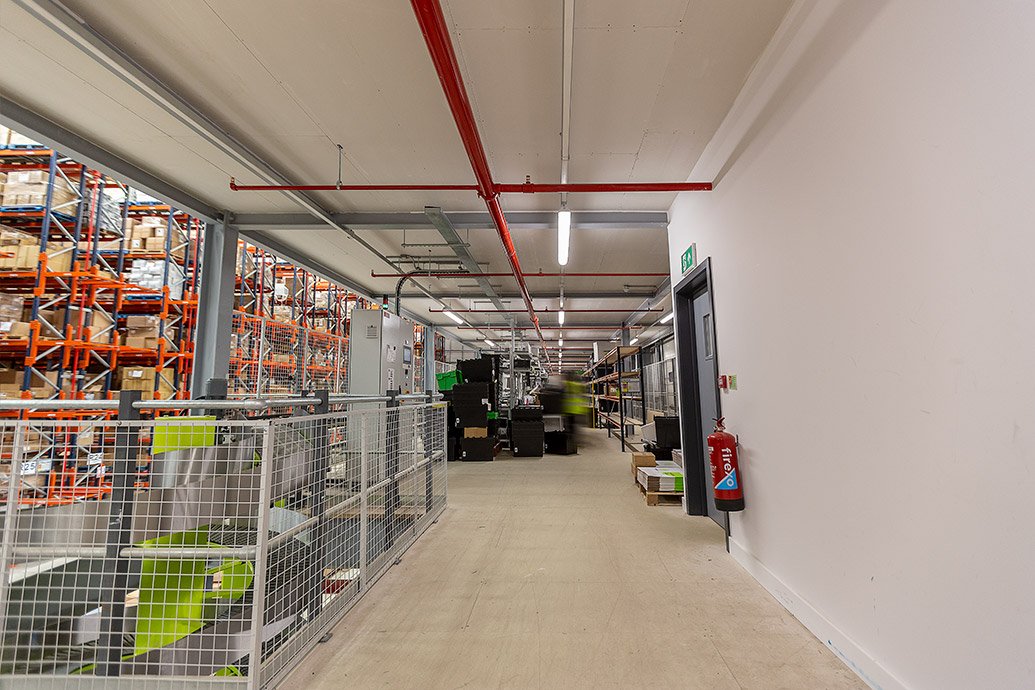

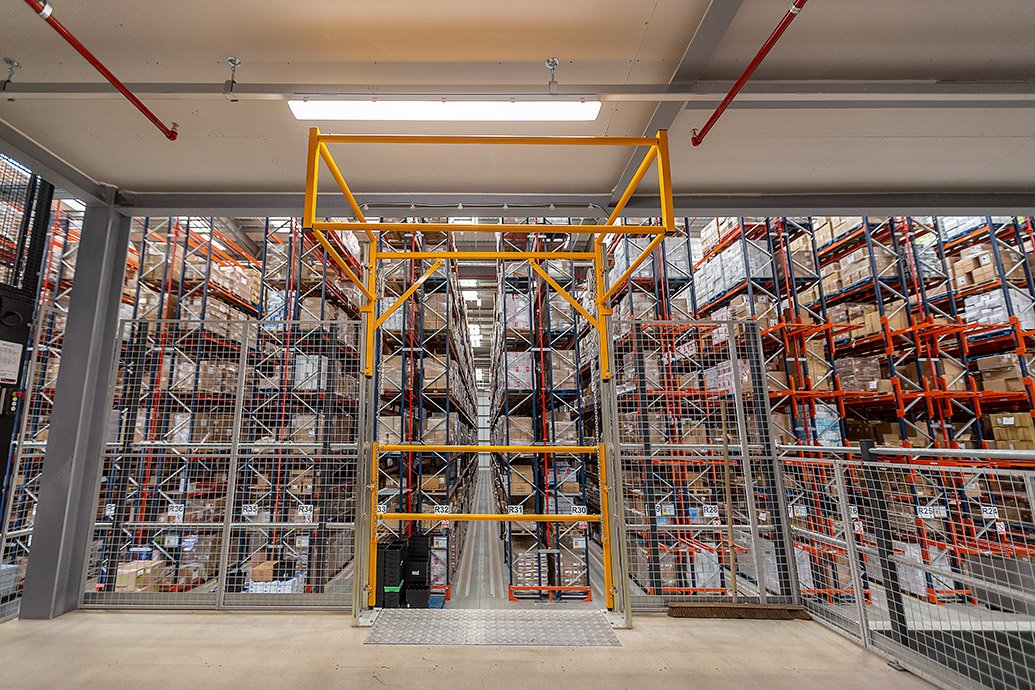

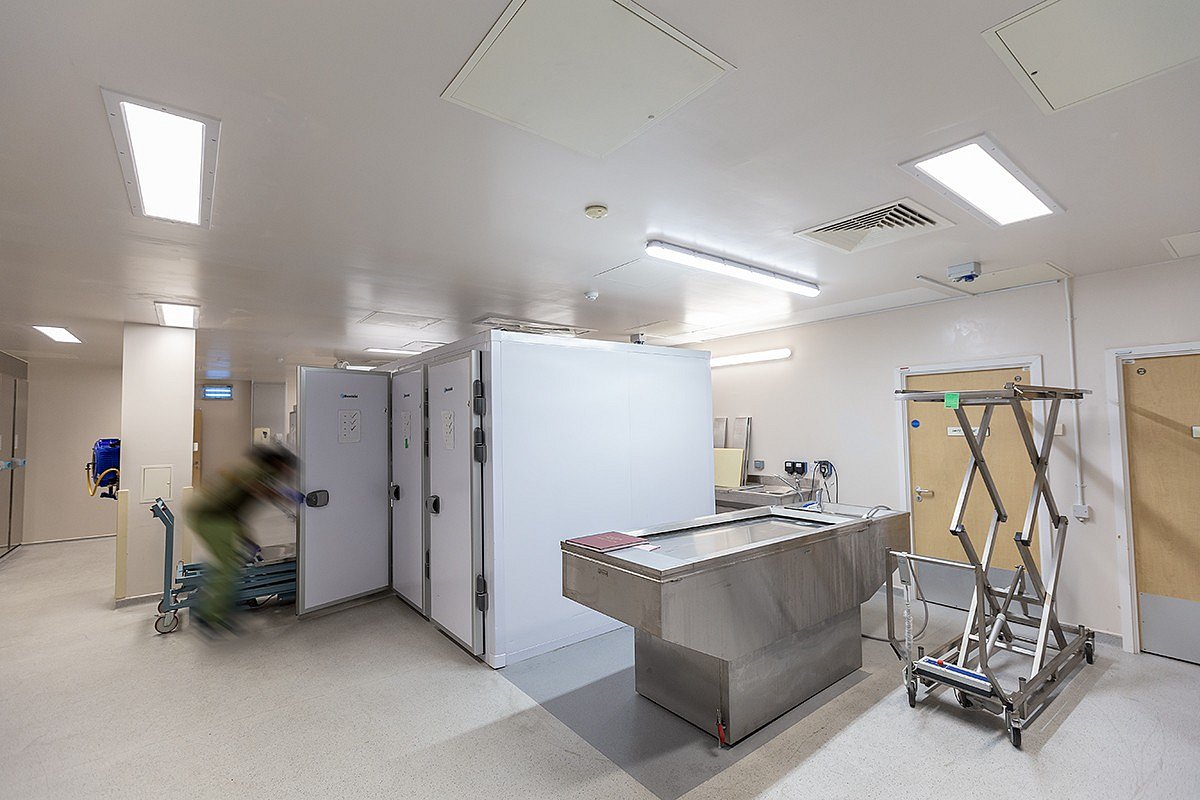

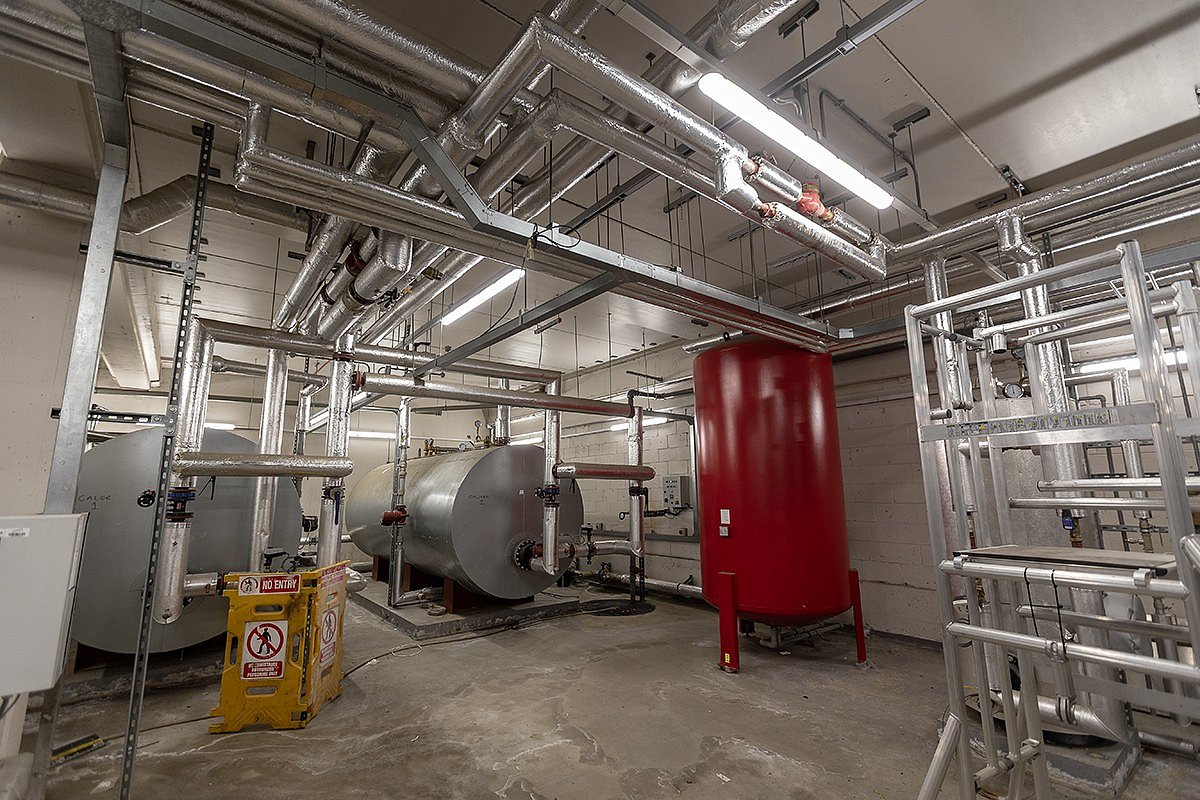

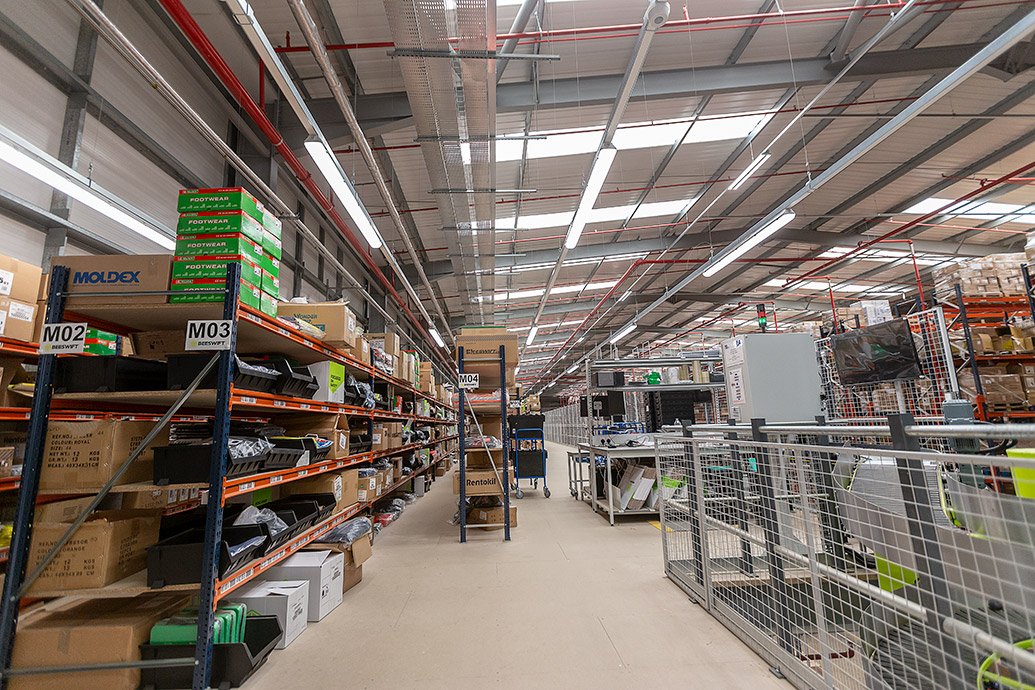

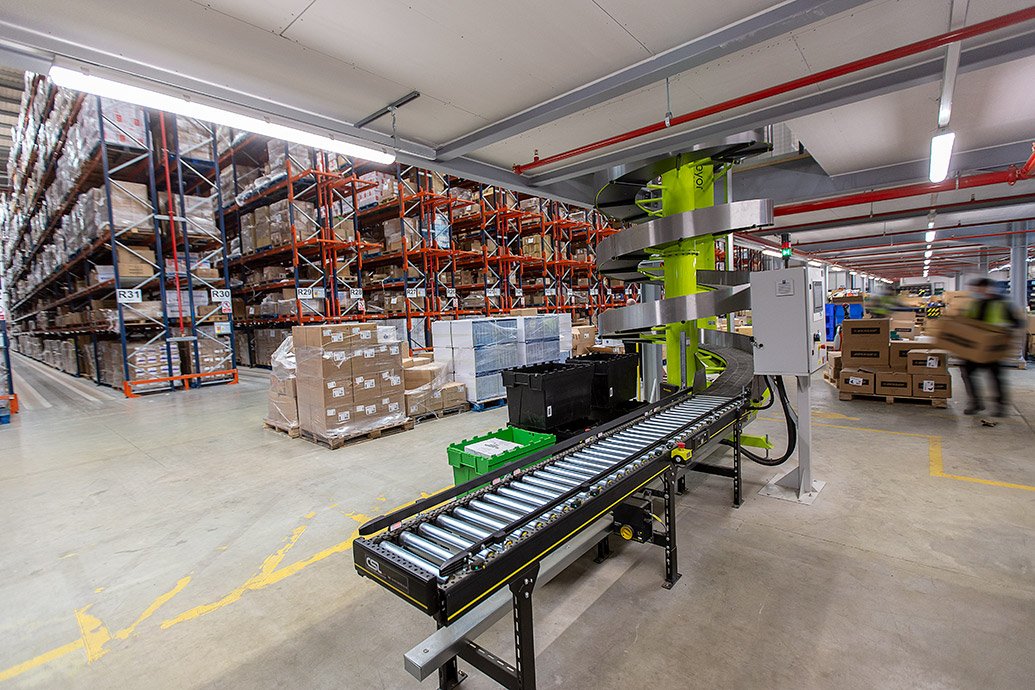

SIREN in action
.jpg)
.jpg)
Technical

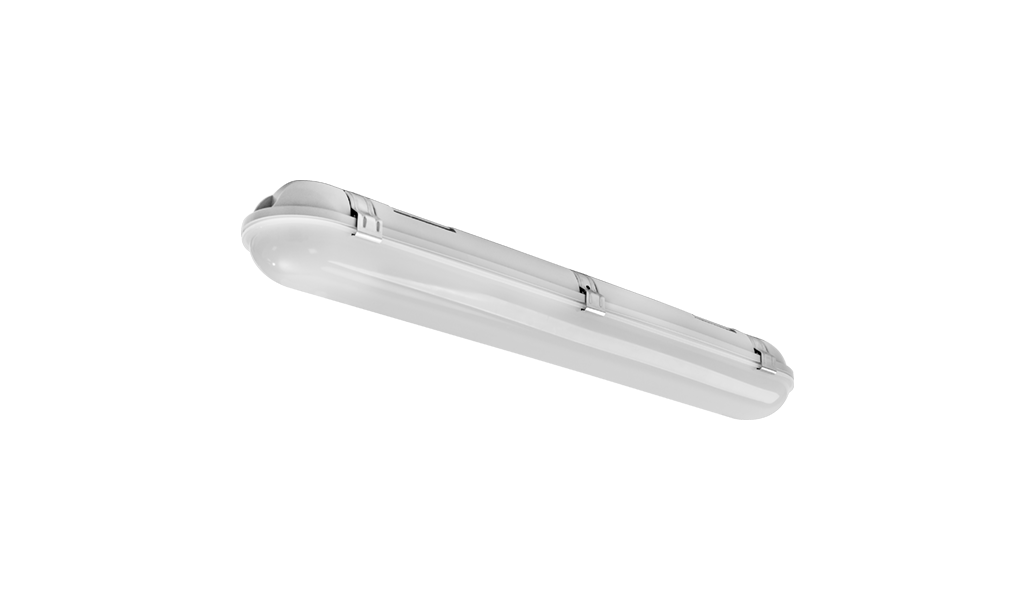

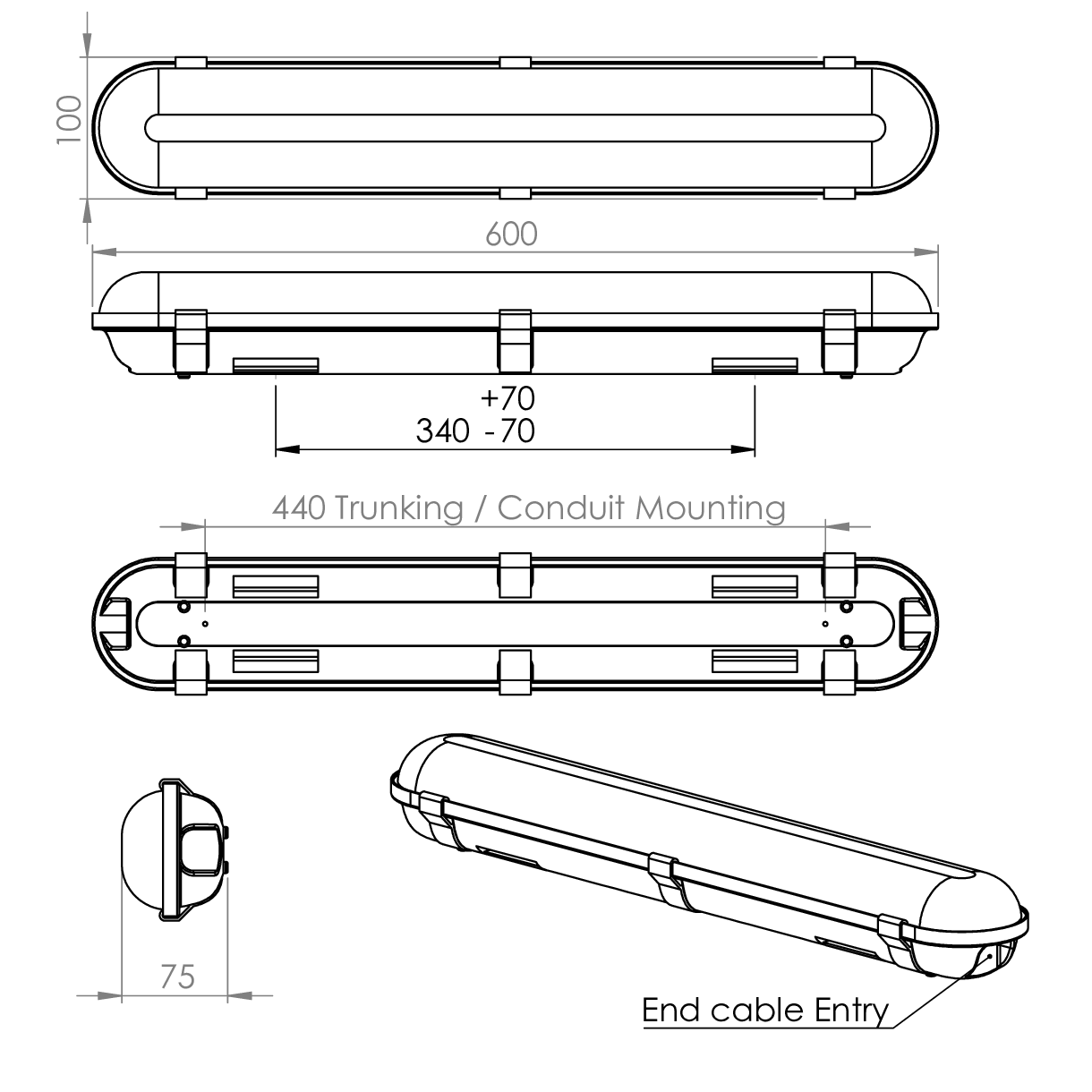

Siren 600mm

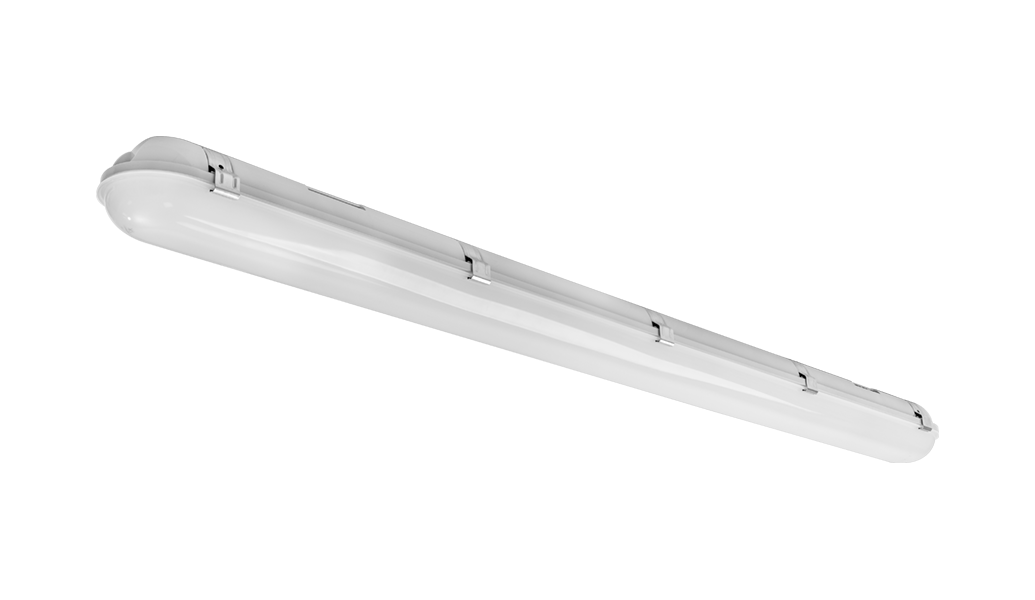

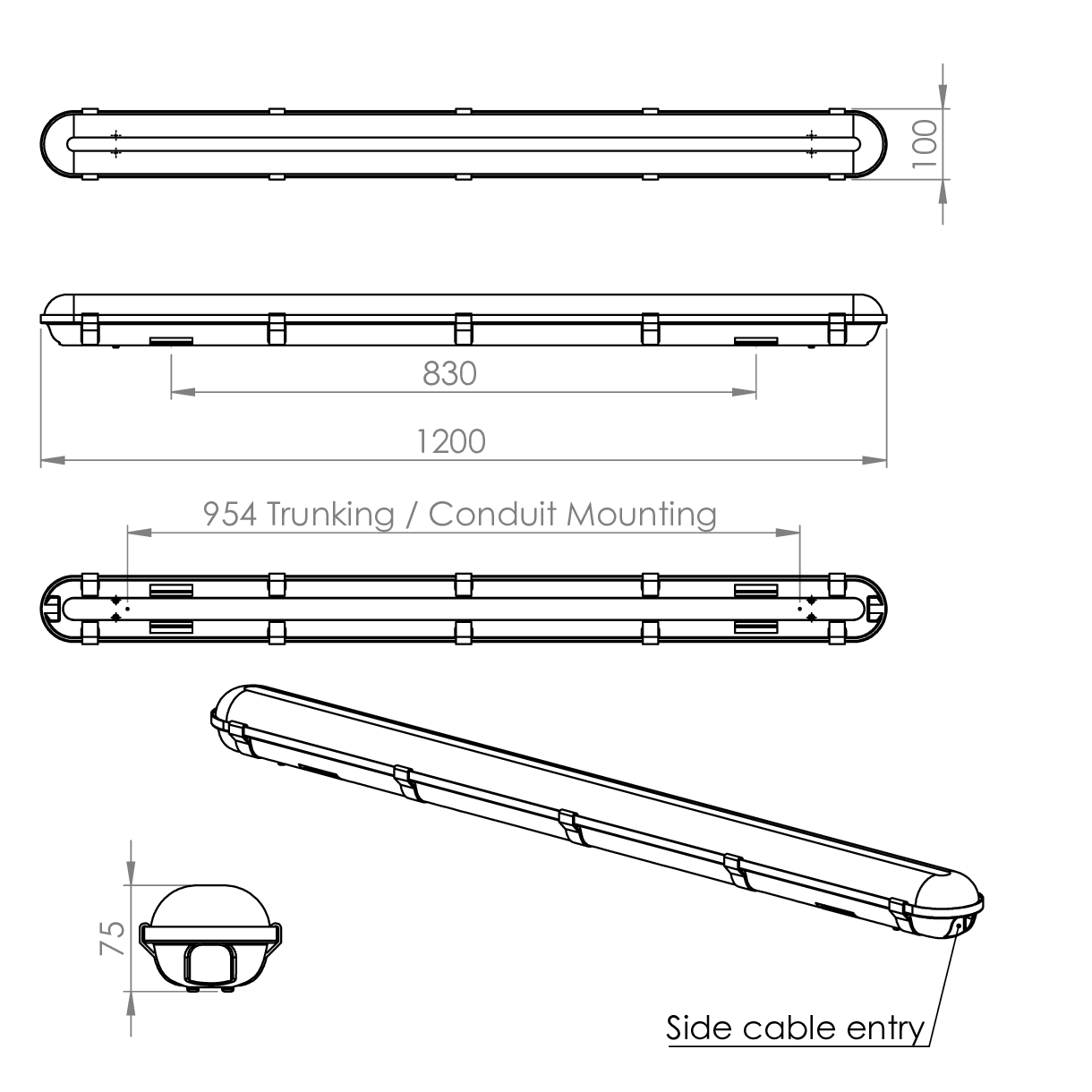

Siren 1200mm

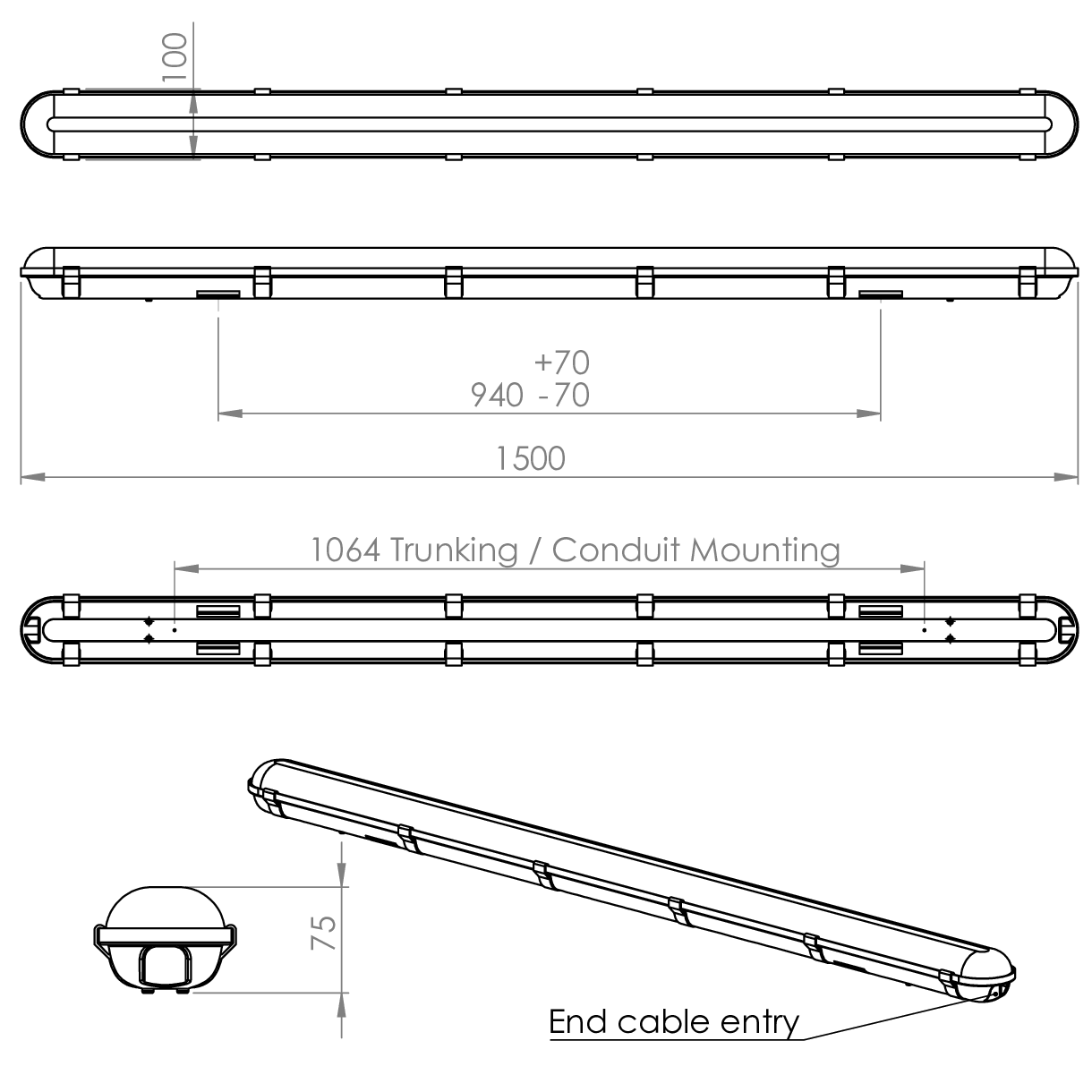

Siren 1500mm
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| HFR not available in 600mm versions. | |
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RLI and RC not available in 600mm versions | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| Emergency is only available in 1200mm and 1500mm variants. | |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| TRS | Tamper Resistant Screws |
| TRS INSTALL KIT | Tamper Resistant Compatible Screwdriver Heads |
| LSF | Low Smoke Zero Halogen |

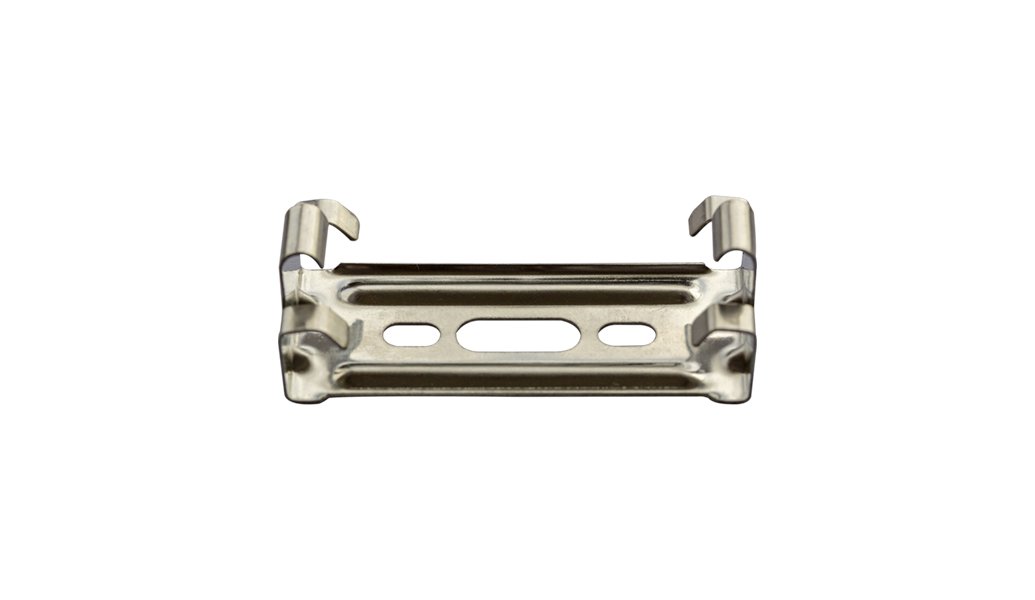

| Supplied with stainless steel clips as standard. | |
