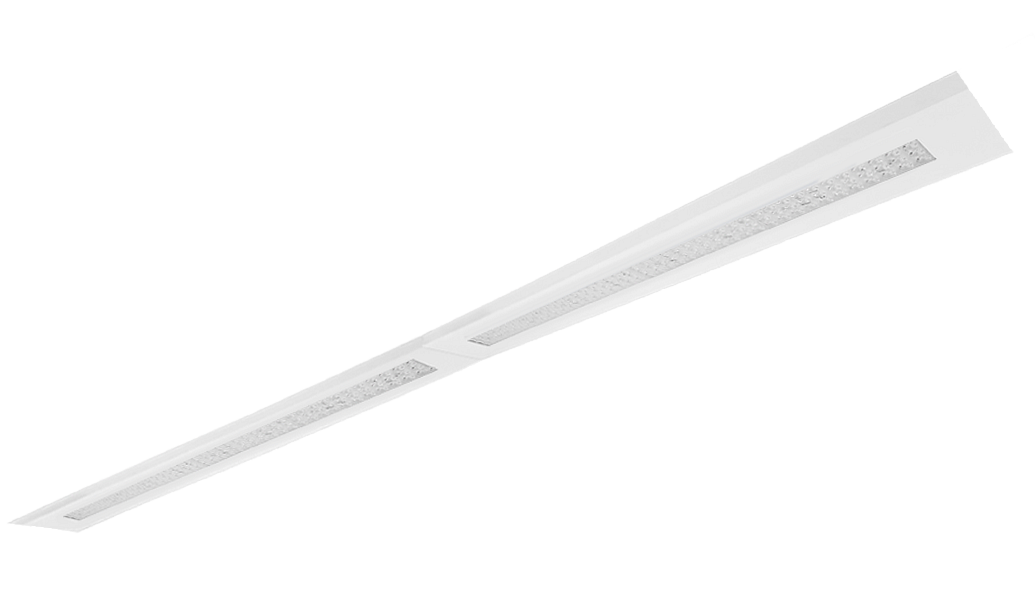

Sira Continuous Suspended

The Sira Continuous is suitable for suspended installation in continuous run with bi directional output, 40% up, 60% down or downlight only.

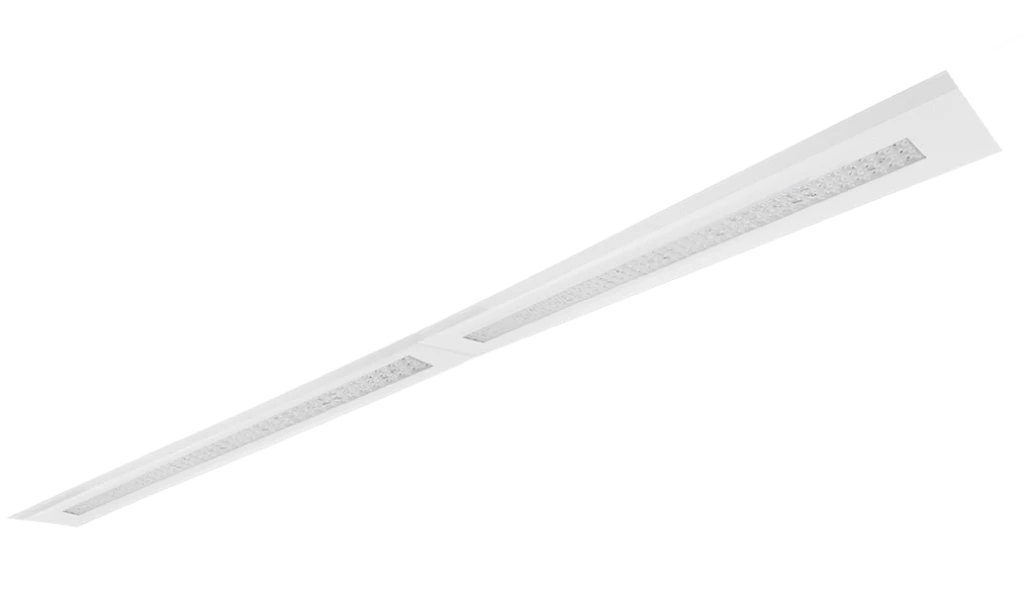

SIRA CONTINUOUS SUSPENDED FEATURED

Introduction

The Sira Continuous is suitable for suspended installation in continuous run formats with bi directional output, 40% up, 60% down or downlight only. This versatility is combined with a shallow body profile and lensed optic providing a sleek appearance and compliance with the glare regulations of BSEN 12464 for use in offices and schools whilst maintaining excellent efficiency.

The versatility of the Sira is further enhanced with a wide range of lumen packages, optional integral sensors, wireless controls and all common dimming and lithium emergency variants. For simplicity of installation the Sira Suspended Continuous is supplied complete with through wire cabling.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.5

Recommended applications:

Commercial & Offices | Education | Office

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Lens: Injection moulded polycarbonate lens
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Bi-Directional 40% up 60% down
  • Up to 189 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for suspended installation
  • Suitable for two point suspension
  • Available with adjustable corners
  • Through Wire variants are supplied with 6 pole 1.5mm loom
  • Please note bi-directional variants use two drivers.

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
Find out more about our 5 year extended warranty

Product Images

Technical

Sira Design Considerations

  • Standalone versions supplied complete with 3M suspension kit.
  • Suspension kits sold separately for continuous run versions.
  • Autotest LA3 emergency and DALI Dimming will use common DALI BUS Cable. LA3 emergency can not be combined with other dimming types.
  • Bi-Directional versions provide 60% down light and 40% up light.
  • Bi-Directional variants use two drivers and therefore DALI variants require two addresses.
  • Integral sensors are only available in the luminaire, one required per luminaire.
  • 1200mm variants can not accommodate both integral emergency and integral sensor.

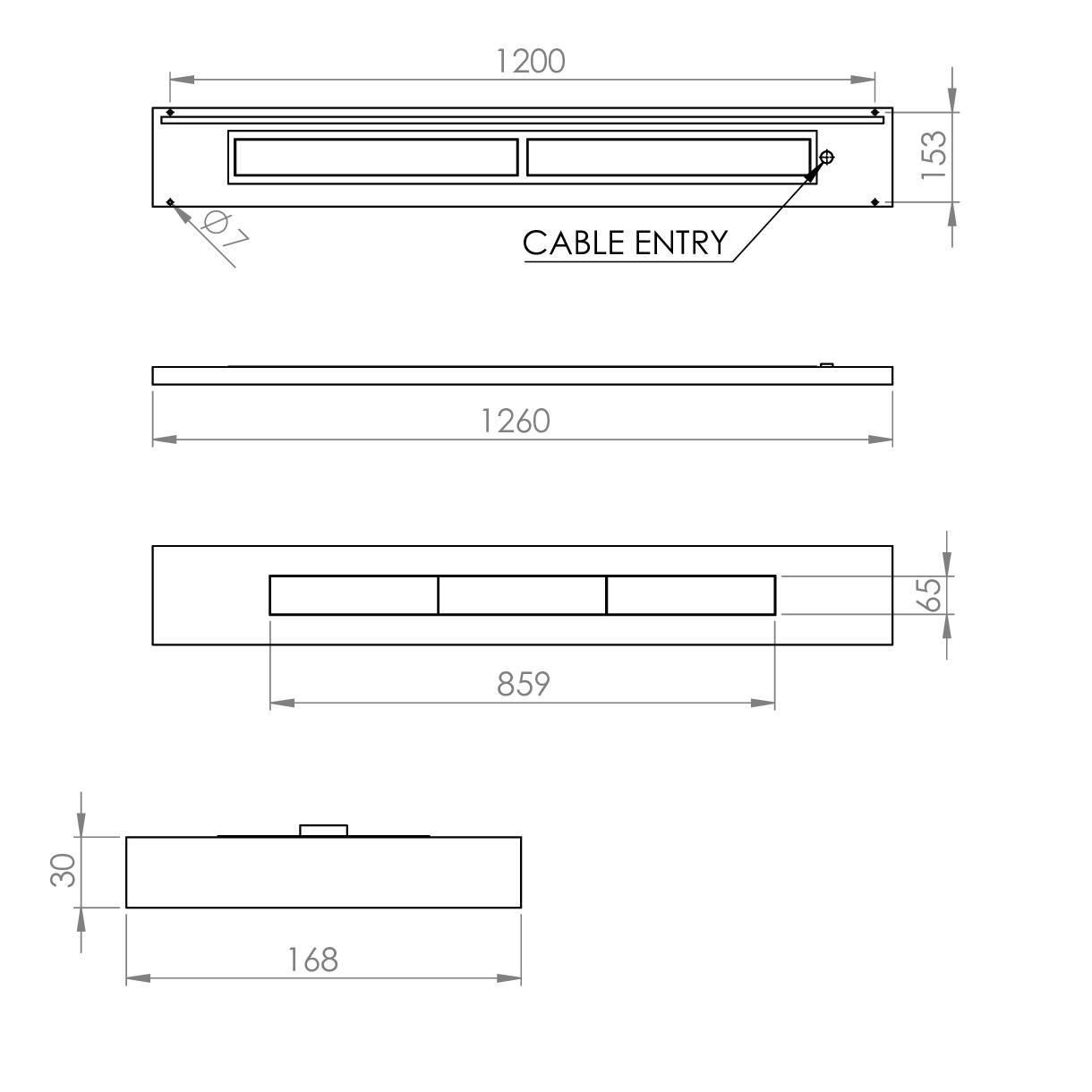

Sira 1200mm

Sira 1200mm

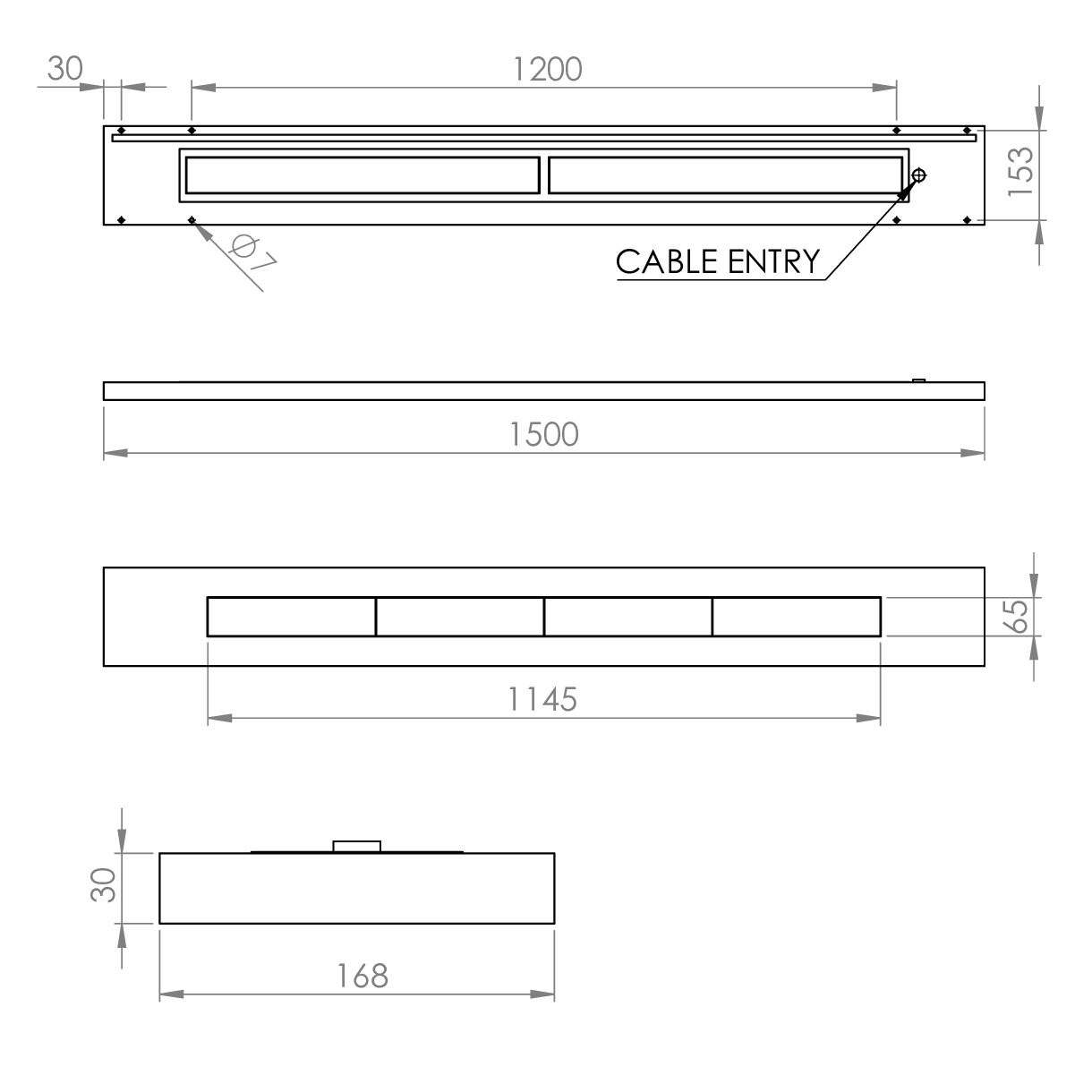

Sira 1500mm

Sira 1500mm

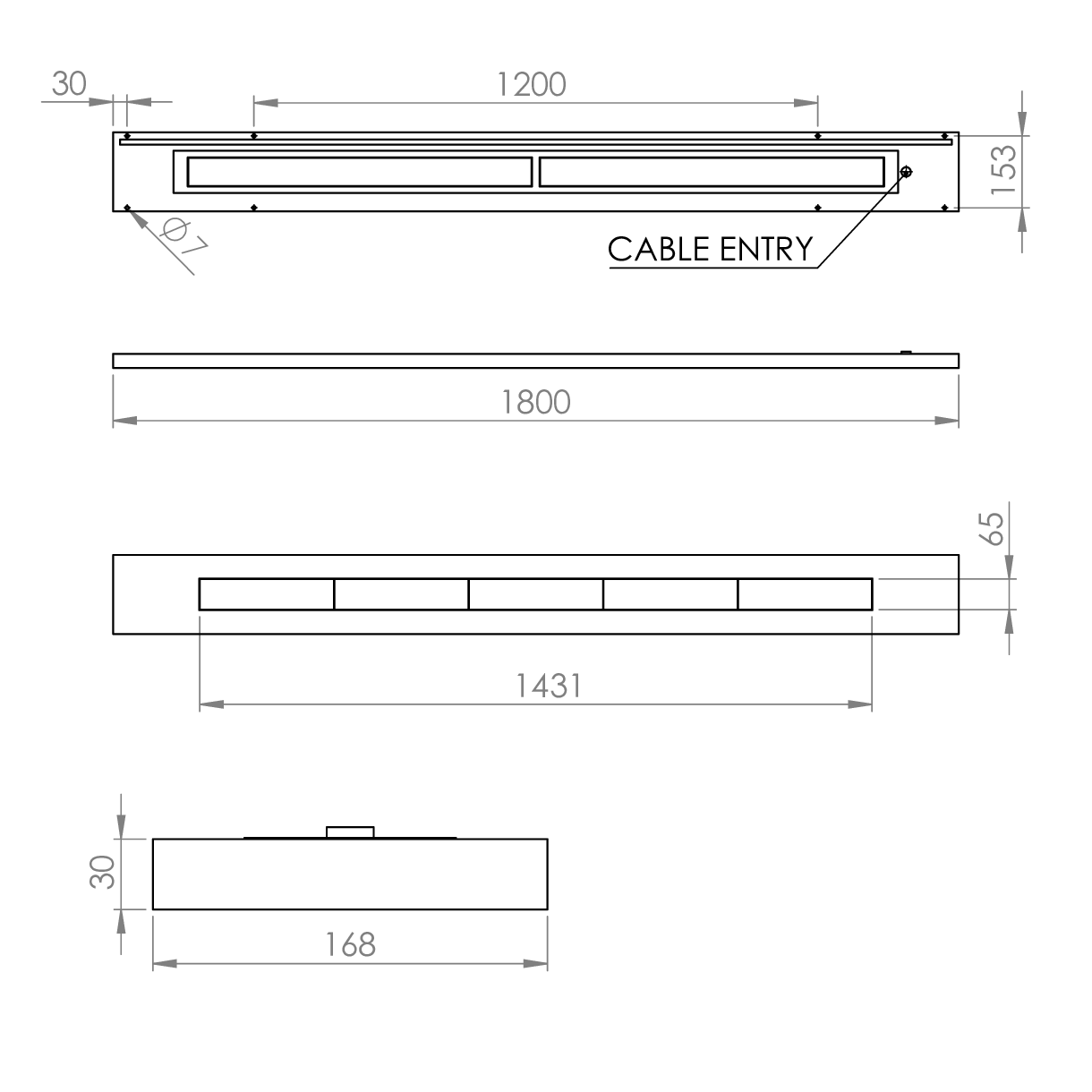

Sira 1800mm

Sira 1800mm

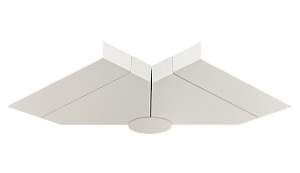

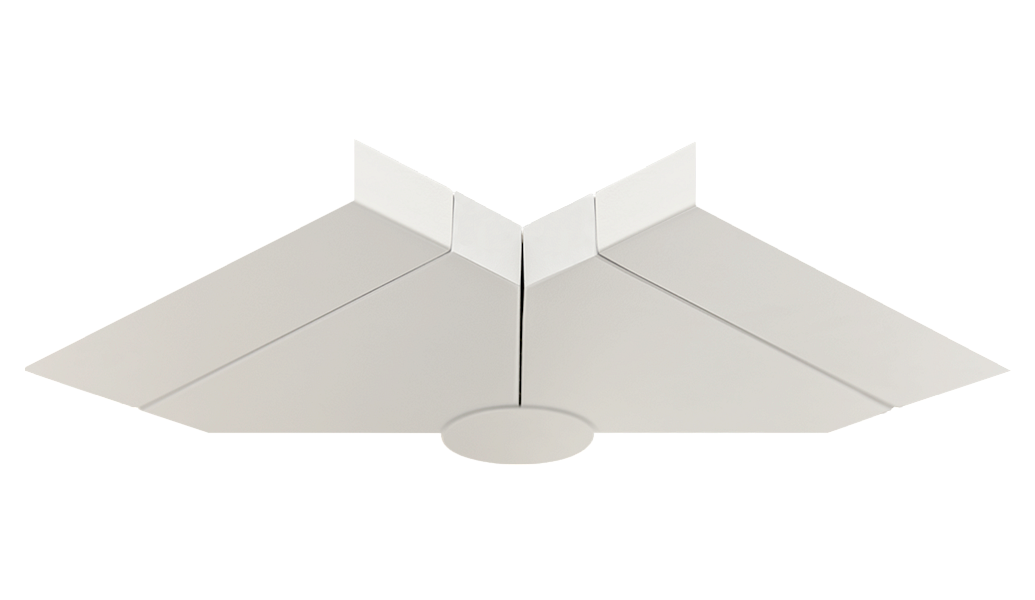

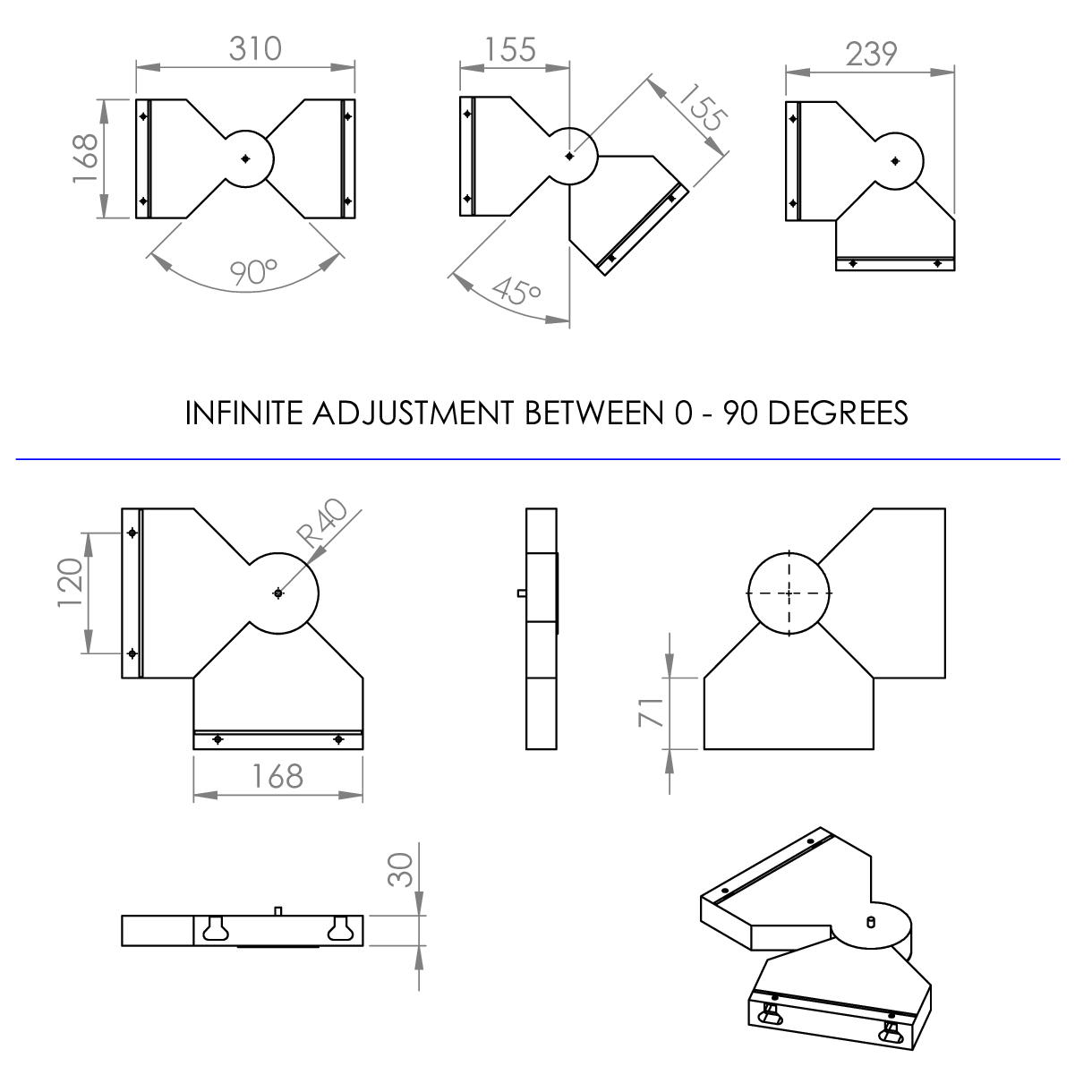

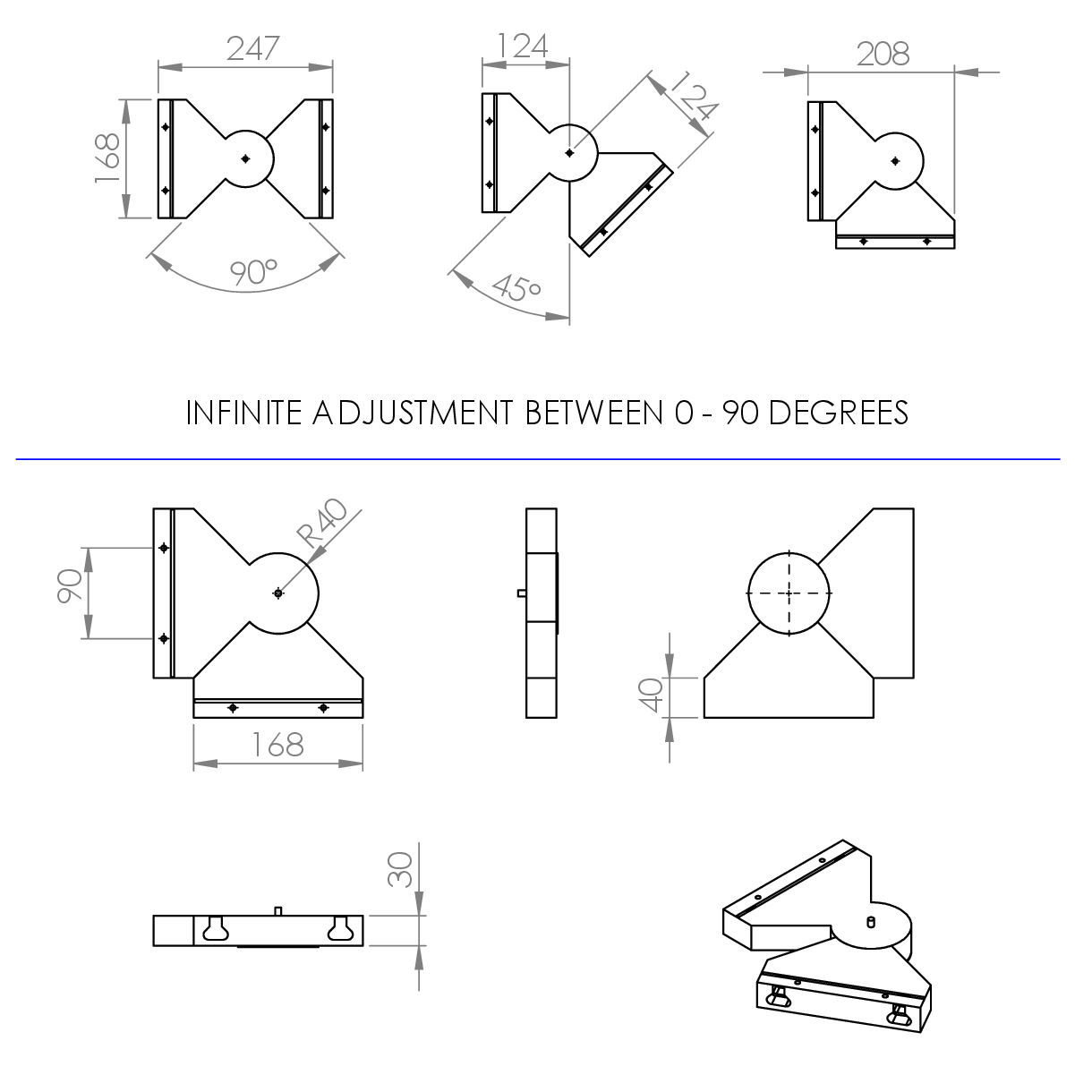

Sira Adjustable Corner

Sira Adjustable Corner

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

SIRA SUSPENDED CONTINUOUS RUN - Downlight
Code Description Power Llm/W
SIR 12L30 ST Sira Start, 1260mm, 2,877llm, Colour 84. 16.5W 174
SIR 12L30 TW Sira Through, 1260mm, 2,877llm, Colour 84. 16.5W 174
SIR 12L30 ER Sira End, 1260mm, 2,877llm, Colour 84. 16.5W 174
SIR 15L37 ST Sira Start, 1500mm, 3,548llm, Colour 84. 19.7W 181
SIR 15L37 TW Sira Through, 1500mm, 3,548llm, Colour 84. 19.7W 181
SIR 15L37 ER Sira End, 1500mm, 3,548llm, Colour 84. 19.7W 181
SIR 18L45 ST Sira Start, 1800mm, 4,316llm, Colour 84 20.4W 141
SIR 18L45 TW Sira Through, 1800mm, 4,316llm, Colour 84. 22.8W 189
SIR 18L45 ER Sira End, 1800mm, 4,316llm, Colour 84. 22.8W 189
SIRA SUSPENDED CONTINUOUS RUN - Bi-Directional
Code Description Power Llm/W
SIRBD 12L40 ST Sira Start, 1260mm, 3,750llm, Bi-Directional, Colour 84. 22.6W 166
SIRBD 12L40 ER Sira End, 1260mm, 3,750llm, Bi-Directional, Colour 84. 22.6W 166
SIRBD 12L40 TW Sira Through, 1260mm, 3,750llm, Bi-Directional, Colour 84. 22.6W 166
SIRBD 15L50 ST Sira Start, 1500mm, 4,697llm, Bi-Directional, Colour 84. 26.9W 175
SIRBD 15L50 TW Sira Through, 1500mm, 4,697llm, Bi-Directional, Colour 84. 26.9W 175
SIRBD 15L50 ER Sira End, 1500mm, 4,697llm, Bi-Directional, Colour 84. 26.9W 175
SIRBD 18L60 ST Sira Start, 1800mm, 5,636llm, Bi-Directional, Colour 84. 31.3W 180
SIRBD 18L60 TW Sira Through, 1800mm, 5,636llm, Bi-Directional, Colour 84. 31.3W 180
SIRBD 18L60 ER Sira End, 1800mm, 5,636llm, Bi-Directional, Colour 84. 31.3W 180

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
Please click here for full details on our white tunable offer.
Please refer to the Sira Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Please refer to the Sira Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
GY Grey Finish
B Black Finish
SUSP RBX SIR ELL 3M BF X2 3M Suspension Kit
LSF Low Smoke Zero Halogen
SIR COR TW Sira Through Corner, Adjustable
SIR BLIND 300 TW Sira Continuous Run, 300mm 6 pole through wire blind unit
SIR BLIND 1260 TW Sira Through 1260mm Blind, 6 Pole
SIR BLIND 1500 TW Sira Through 1500mm Blind, 6 Pole
SIR EC Sira End Cap Pair, One Per Run
SIR JOINER Sira Join (Use where new power feed required mid run)

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
