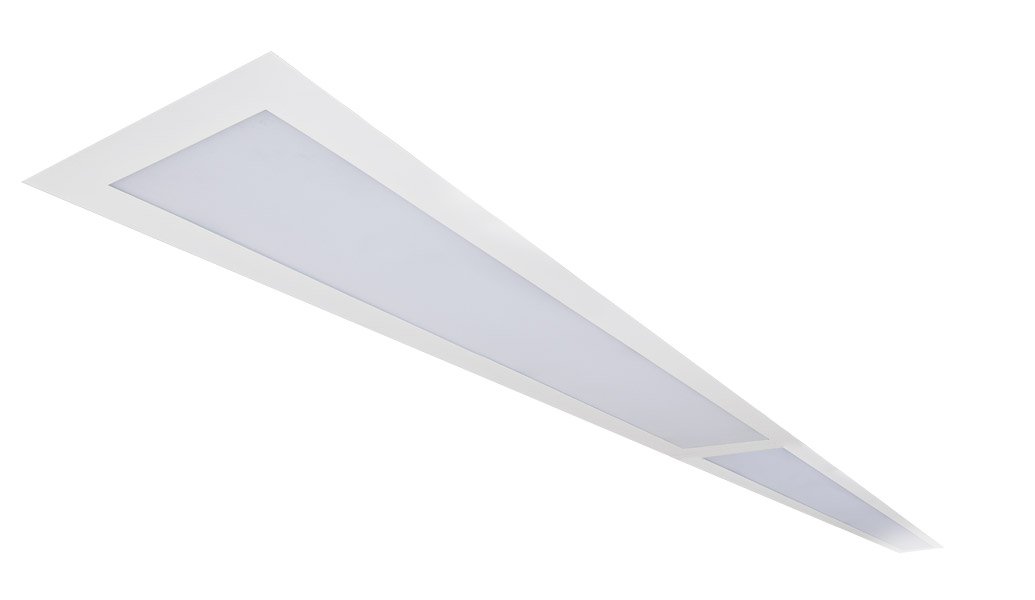

Serial

The Serial has been designed as a retro-fit solution to enable retailers to upgrade their existing fluorescent troffer systems without the expense of removing the troff itself.

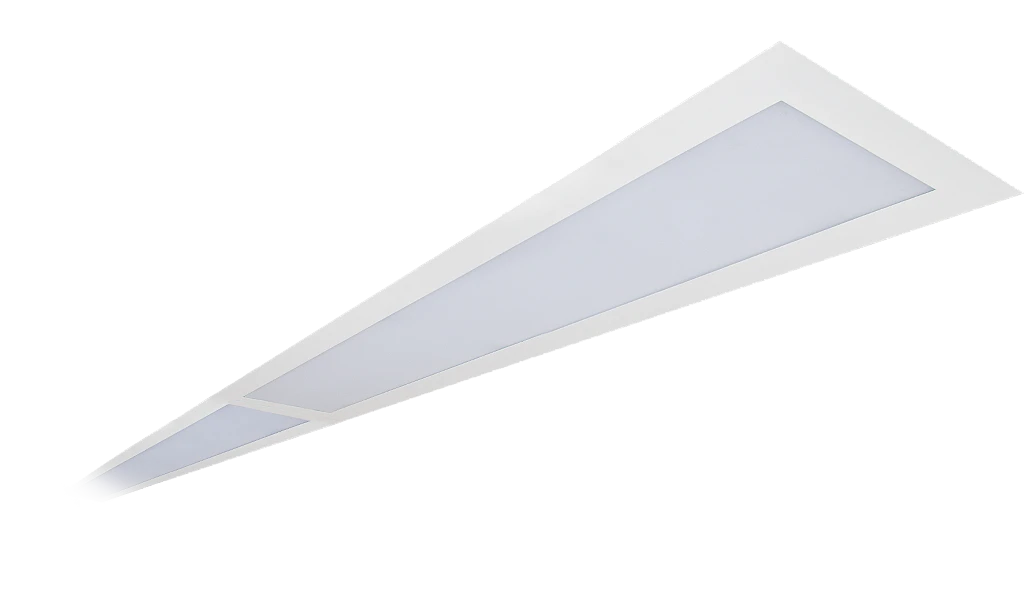

SERIAL FEATURED

Introduction

The Serial has been designed as a retro-fit solution to enable retailers to upgrade their existing fluorescent troffer systems without the expense of removing the troff itself.  As traditional installations commonly support the surrounding ceiling structure the cost to remove them can often outweigh the efficiency gains available.  With the Serial LED the contractor simply removes the old lamps and louvres before installing the new LED gear trays into the existing carcass via bespoke brackets, the high transmission optic is then clipped into place and the diffuser frame covers the trim of the existing troff, making it look like a new installation from underneath.  The gear trays can be supplied with simple piano key connectors allowing you to re-terminate the existing power supplies or alternatively they are available with either a 4 pole, 6 pole or 9 pole 2.5mm square male/female wiring loom allowing for a dual switching emergency and dimming control.  Available in a variety of lumen outputs and with integral lithium emergency this outstanding product range has become the benchmark for retailers nationwide, offering a cost effective sustainable retro-fit solution that's quick to install and easy to maintain.

We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.5

Recommended applications:

Hotel & Leisure | Retail

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • IP20
  • Designed for retrofit installation into existing luminaires or a wide range of ceiling types, please enquire for our customised solutions.
  • Blind units can be customised to incorporate adjustable spot lights or on site services.

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional White tunable
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations

Installation

  • Retrofit in existing luminaires

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
Find out more about our 5 year extended warranty

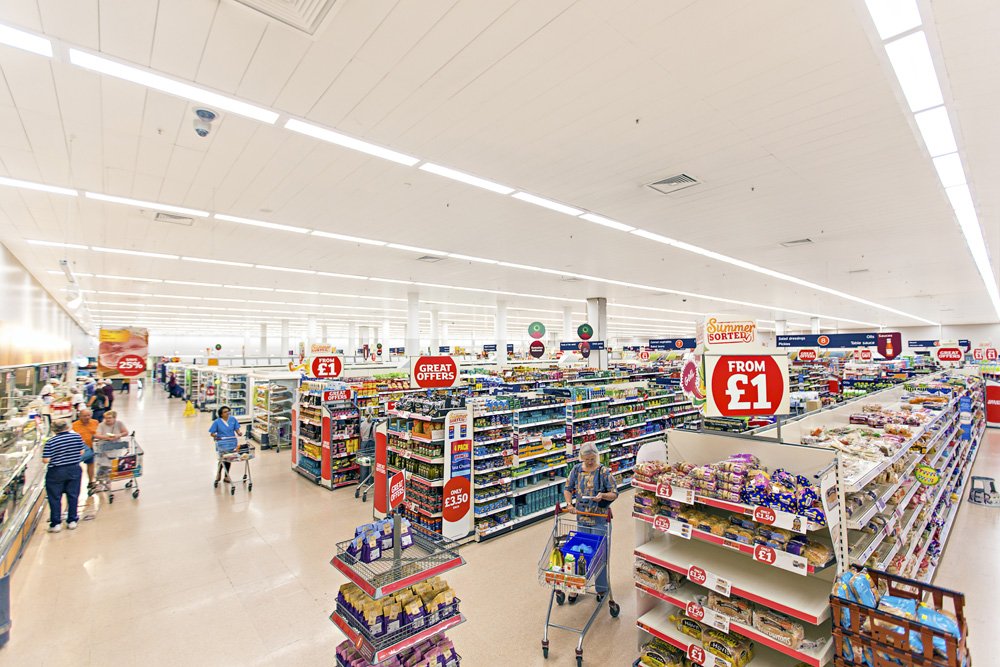

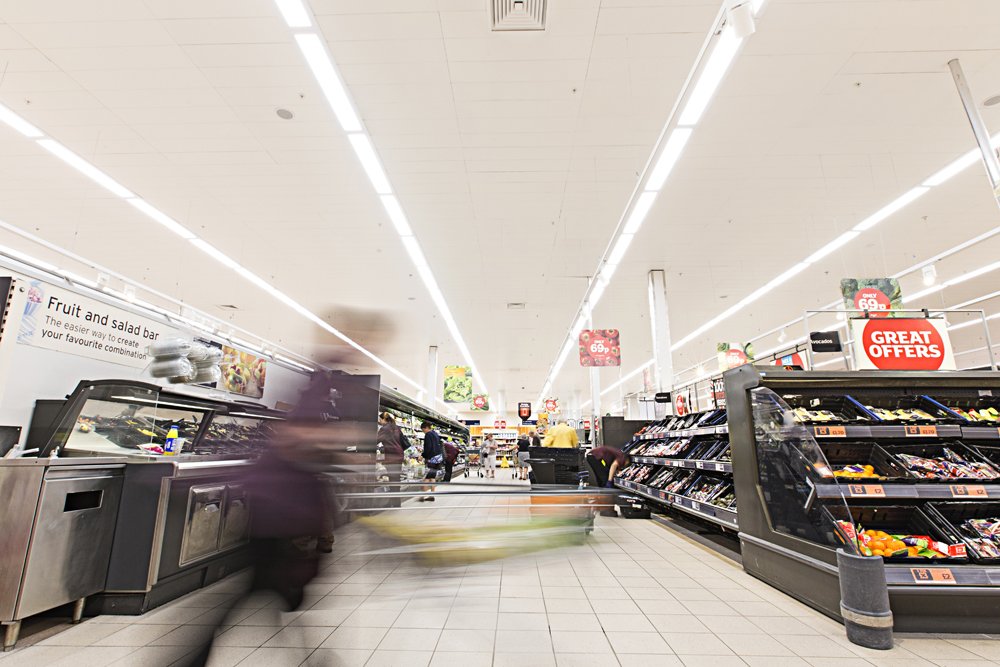

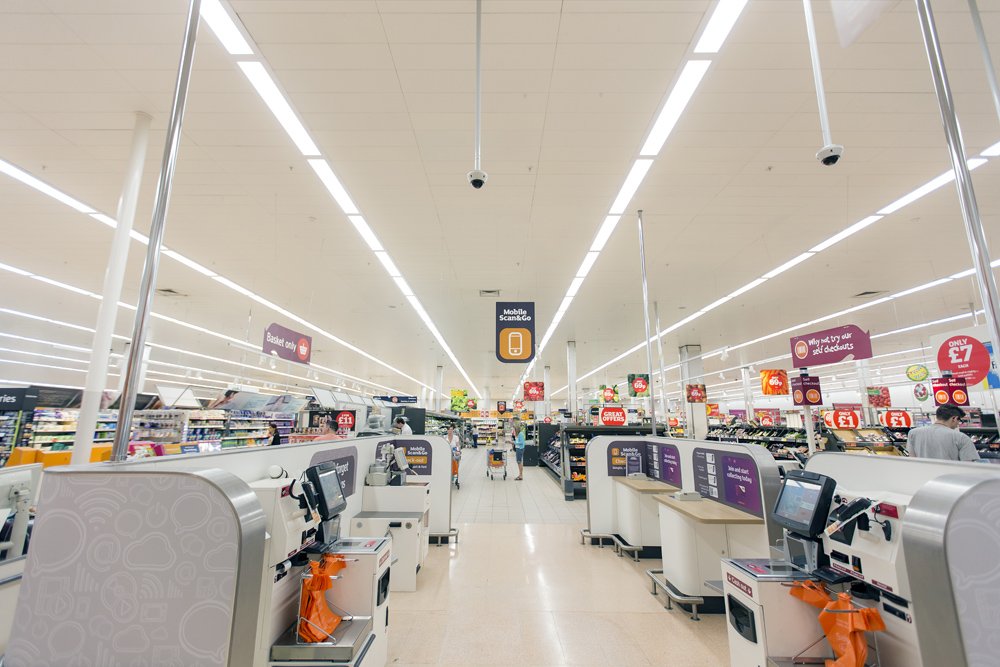

Serial in action

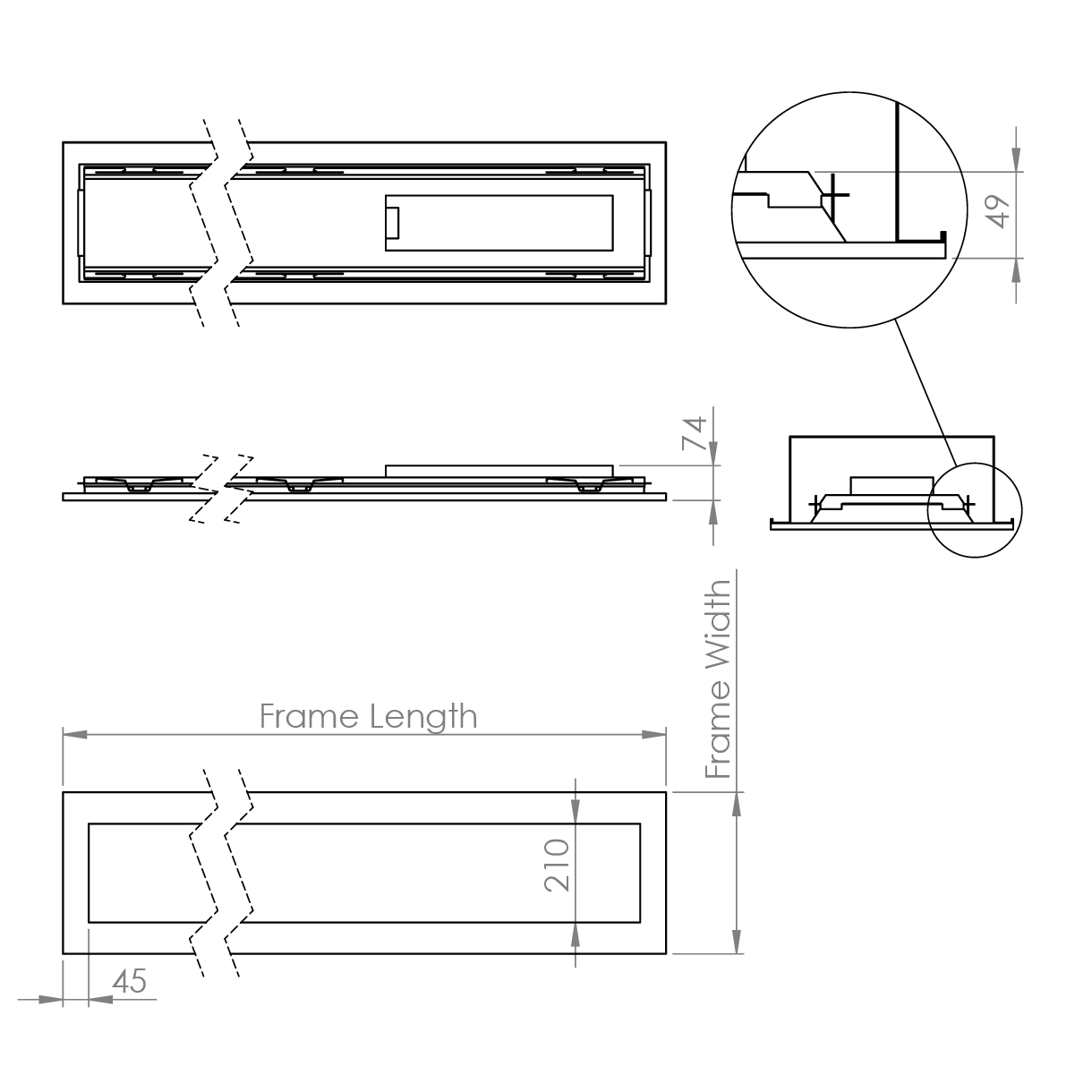

Technical

Serial

Serial

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
SRL L52 OP Serial, 1200mm, 5,200lm, Diffuser and Loom
SRL L60 OP Serial, 1200mm, 6,000lm, Diffuser and Loom
SRL L65 OP Serial, 1500mm, 6,500lm, Diffuser and Loom
SRL L75 OP Serial, 1500mm, 7,500lm, Diffuser and Loom
SRL L78 OP Serial, 1800mm, 7,800lm, Diffuser and Loom
SRL L90 OP Serial, 1800mm, 9,000lm, Diffuser and Loom

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
LSF Low Smoke Zero Halogen
4PP 4 Pole Piano Key Connector
6PP 6 Pole Piano Key Connector
9PP 9 Pole Piano Key Connector

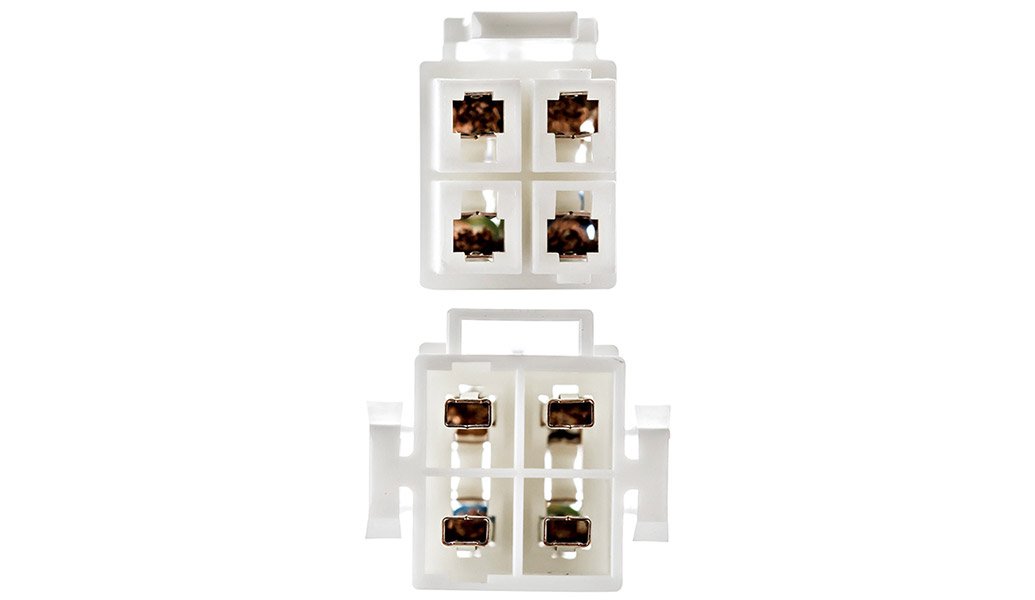

4TW 4 Pole 2.5mm² Wiring Loom c/w Male/Female Connectors

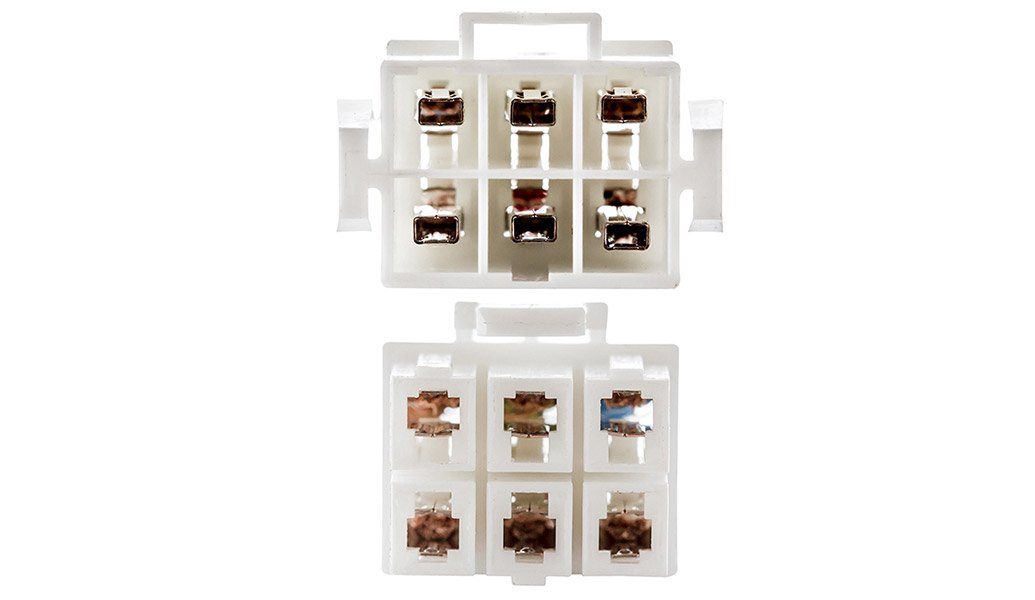

6TW 6 Pole 2.5mm² Wiring Loom c/w Male/Female Connectors

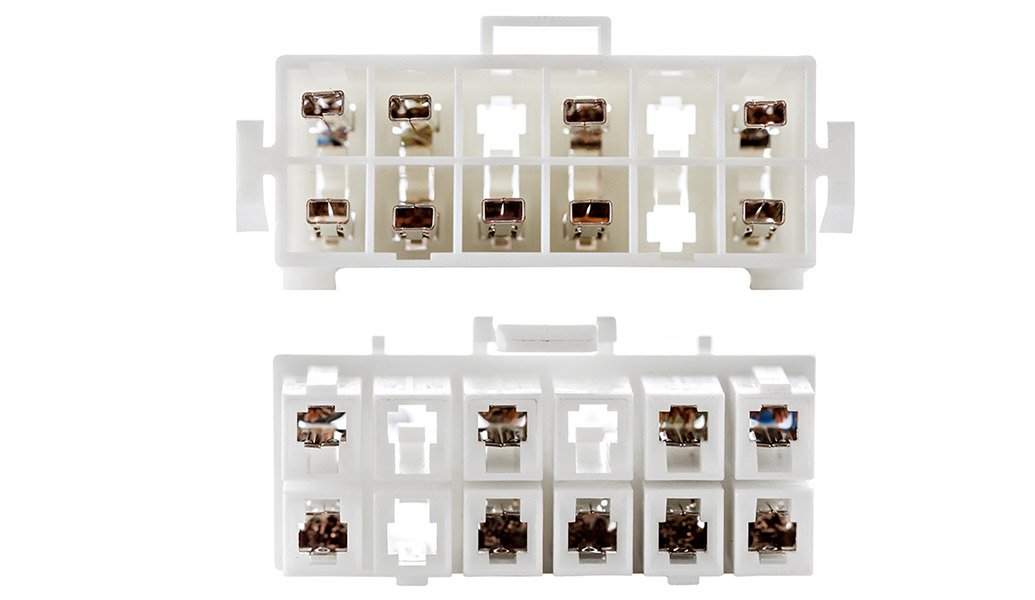

9TW 9 Pole 2.5mm² Wiring Loom c/w Male/Female Connectors
SRL 4P 5M START 4 Pole 5m 2.5mm² Starter Lead
SRL 6P 5M START 6 Pole 5m 2.5mm² Starter Lead
SRL 9P 5M START 9 Pole 5m 2.5mm² Starter Lead
SRL BRKTS PAIR Pair of Fixing Brackets
