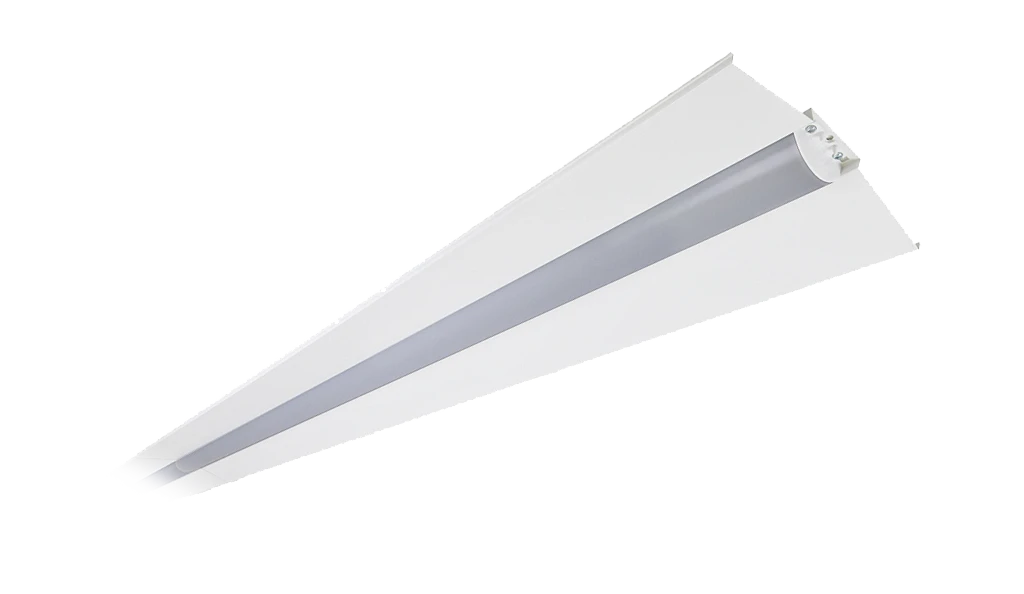

Serial Curve
The Serial Curve is the latest addition to our popular Serial troffer range, designed as a retro-fit solution for rapid installation this cost effective system offers maximum optical performance with minimal glare.
Introduction
The Serial Curve is the latest addition to our popular Serial troffer range, designed as a retro-fit solution for rapid installation this cost effective system offers maximum optical performance with minimal glare. The bespoke 2m long gear trays are supplied fully assembled out the box with a pre-fitted wiring loom and diffuser optic. They are available with either a 4 pole, 6 pole or 9 pole 2.5mm² male/female wiring loom allowing for dual switching, lithium emergency and dimming control. The curved opal diffusers offer maximum light transmission whilst shielding the point source of the LEDs to minimise glare from below. The gear trays are fully customisable and can be adapted to suit both exposed tee and concealed fix ceiling systems, making this versatile retro-fit solution the perfect partner for retail refurbishments. Wireless dimming and control can be offered with our Reacta-Dim system and Reacta-Link options are also available where web based control and reporting of luminaires is required.
We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
Complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.5
Recommended applications:
Hotel & Leisure | Retail
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted RAL 9016 textura matt white
- Diffuser: 2mm extruded high transmission opal polycarbonate
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional White tunable
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
Installation
- Suitable for lay-in installation in exposed T ceilings
- Suitable for pull-up installation in concealed grid ceilings
- Supplied with 4, 6 or 9 pole 2.5mm loom
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
Product Images

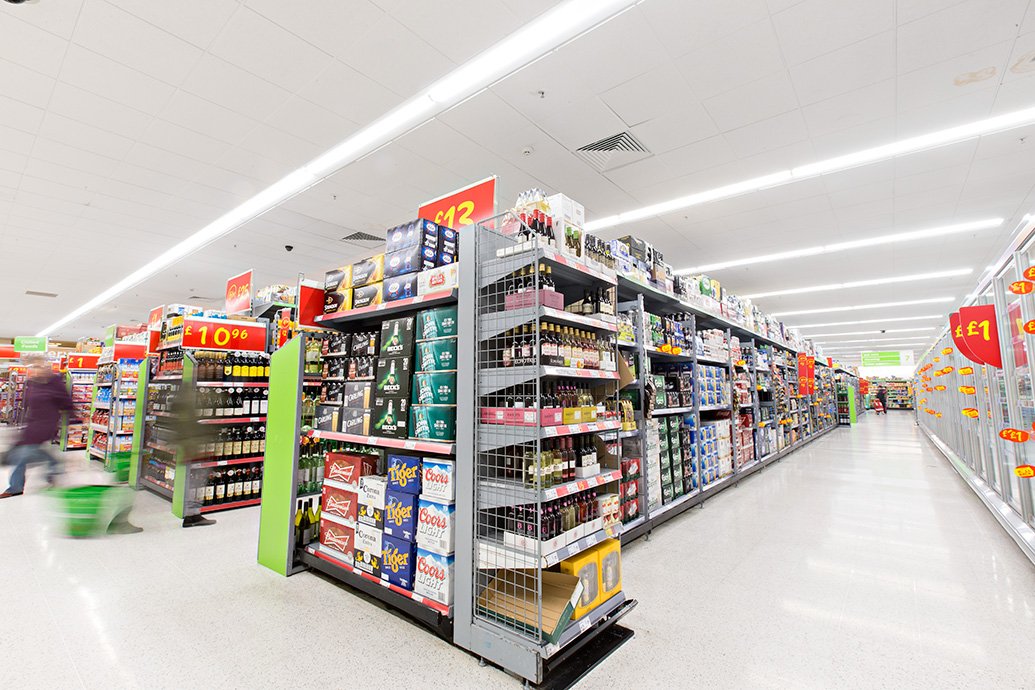

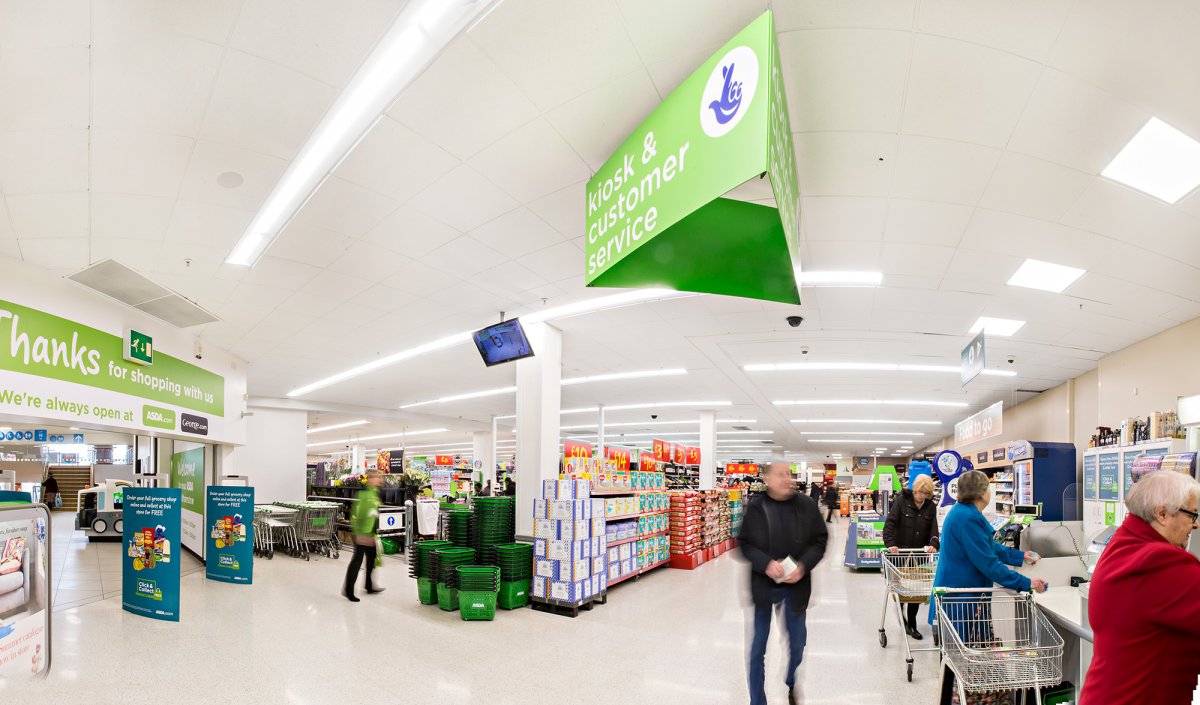

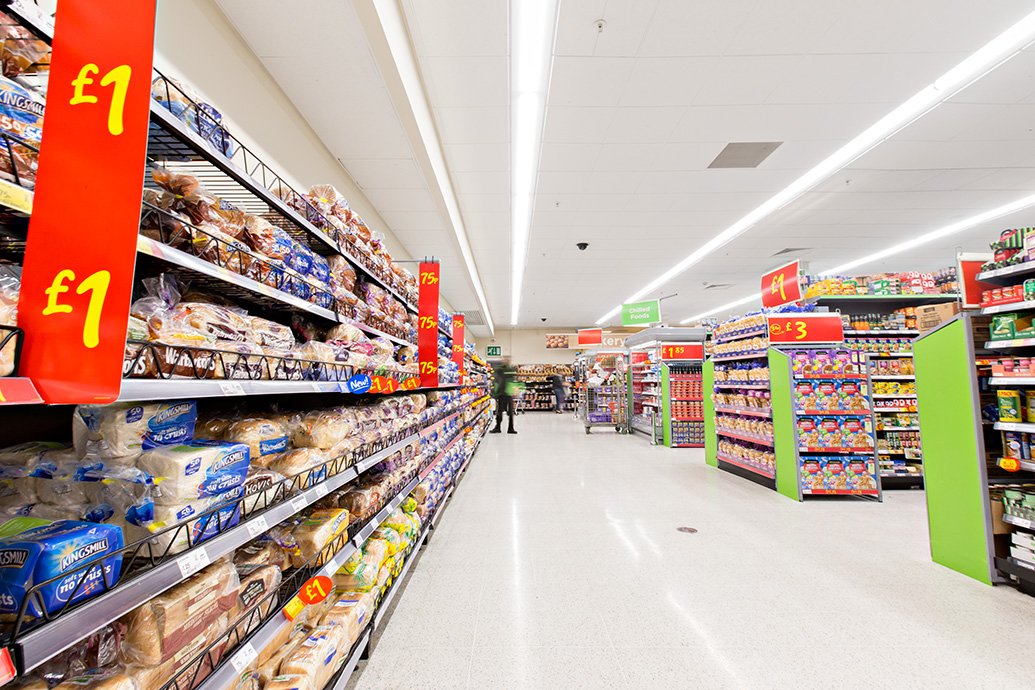

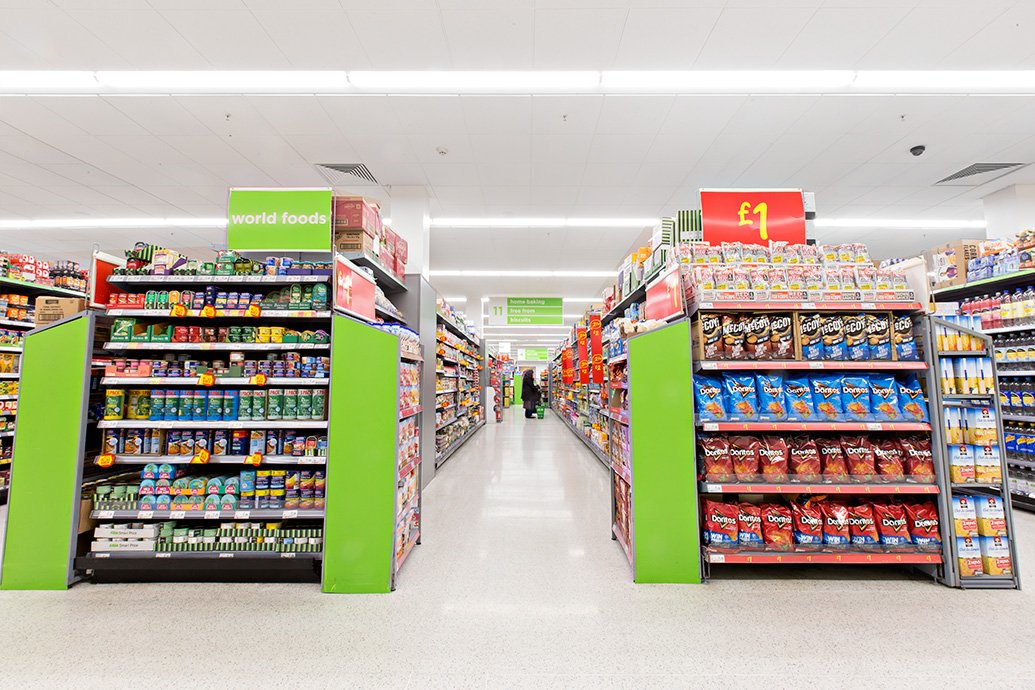

Serial Curve in action

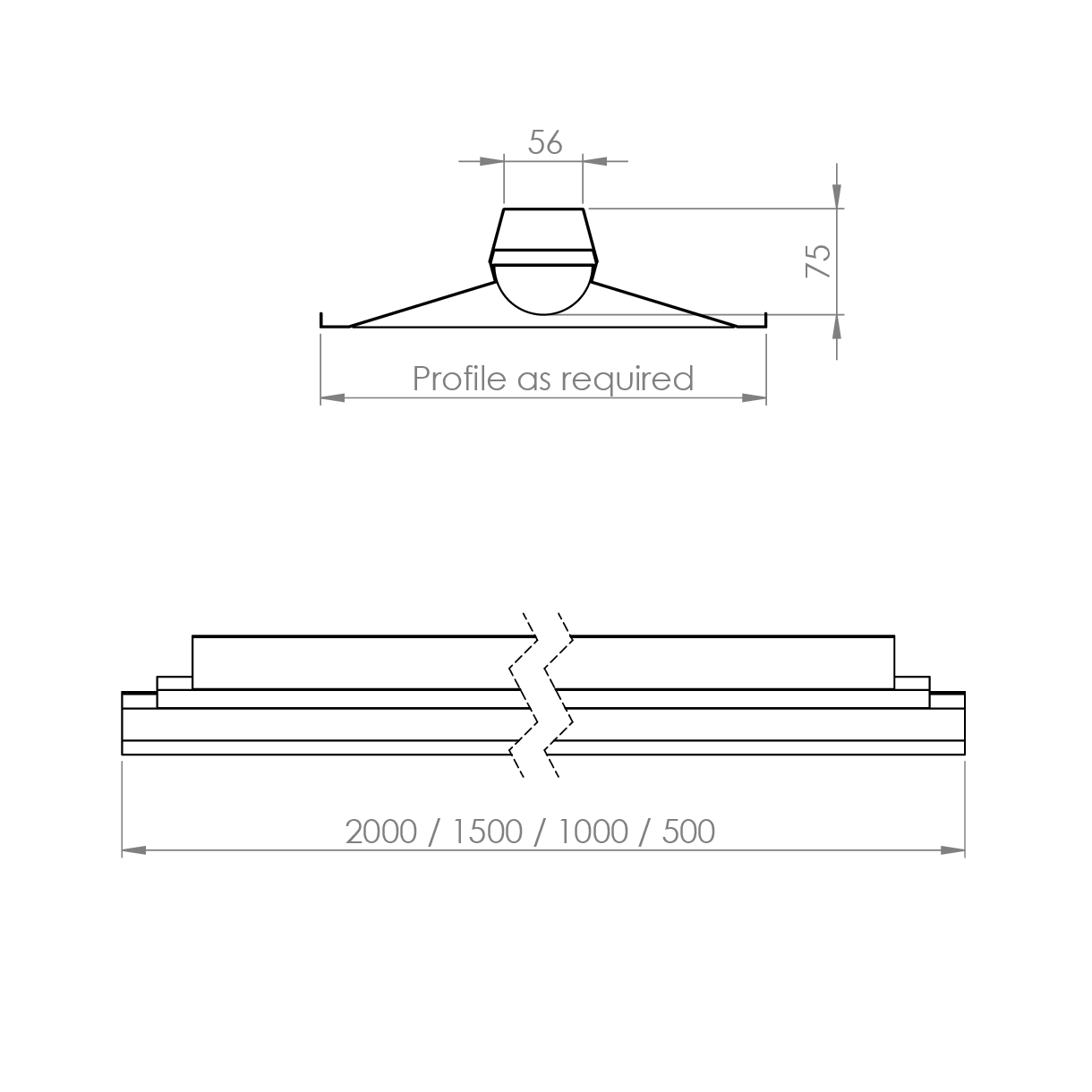

Technical

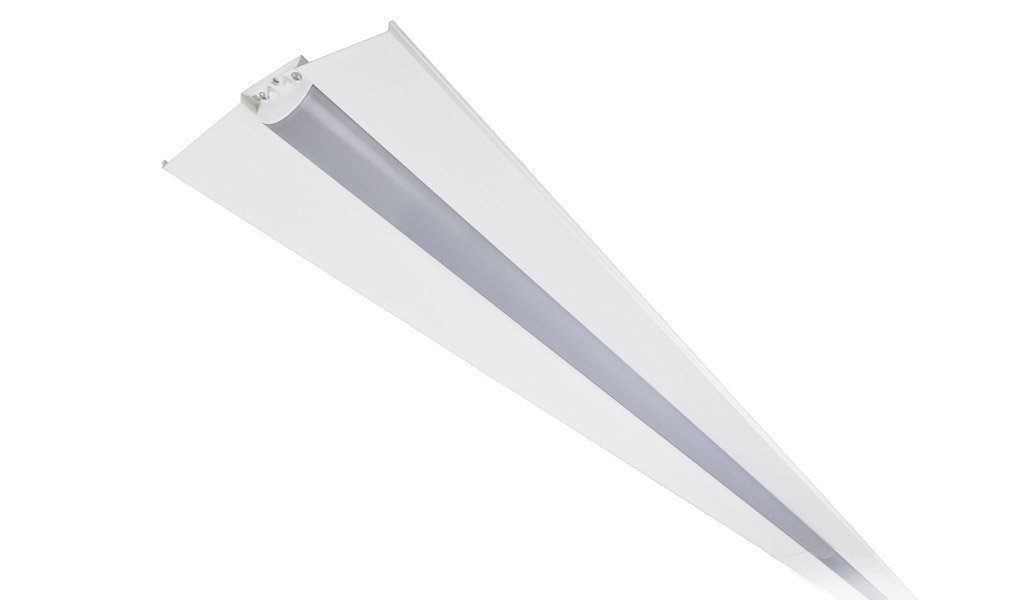

Serial Curve
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
| Continuous Run | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||
| End of Run | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
Control
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| LSF | Low Smoke Zero Halogen |

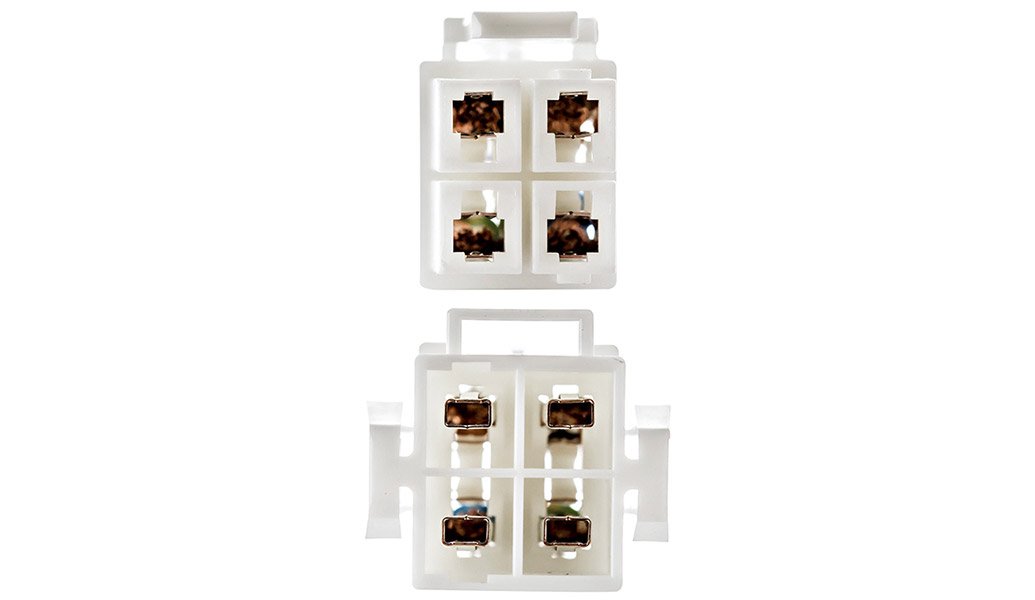

| 4TW | 4 Pole 2.5mm² Wiring Loom c/w Male/Female Connectors |

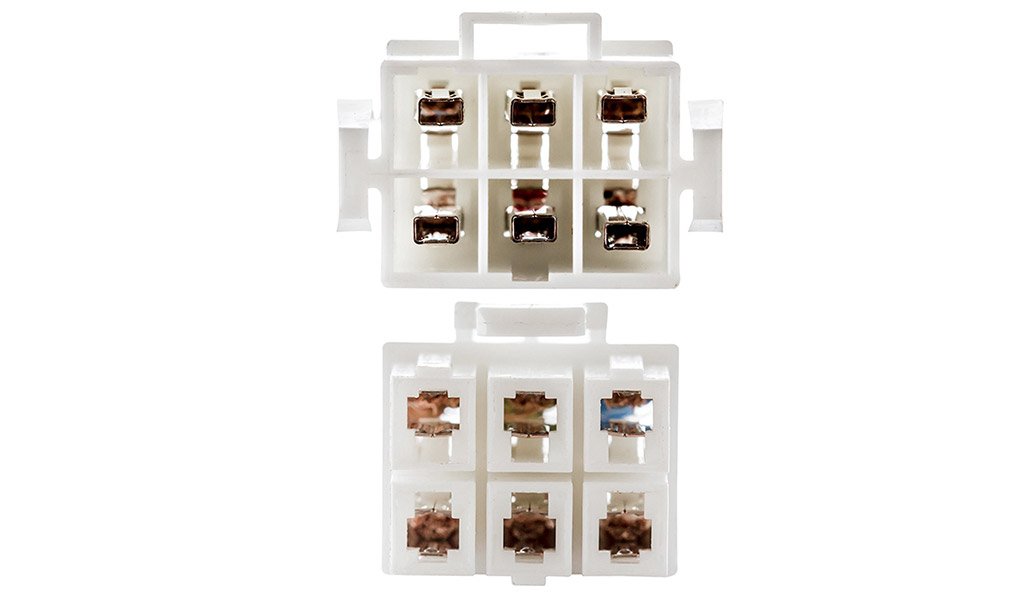

| 6TW | 6 Pole 2.5mm² Wiring Loom c/w Male/Female Connectors |

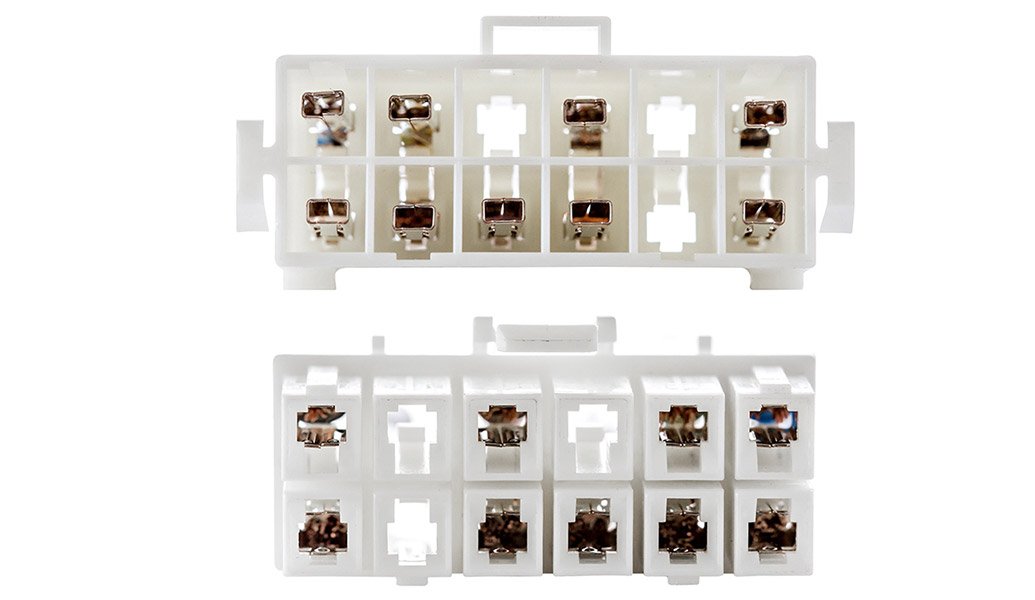

| 9TW | 9 Pole 2.5mm² Wiring Loom c/w Male/Female Connectors |
| SRLC 4P 5M START | 4 Pole 5m 2.5mm² Starter Lead |
| SRLC 6P 5M START | 6 Pole 5m 2.5mm² Starter Lead |
| SRLC 9P 5M START | 9 Pole 5m 2.5mm² Starter Lead |
| SRLC ST ER KIT | Pair of Finishing Endcaps |

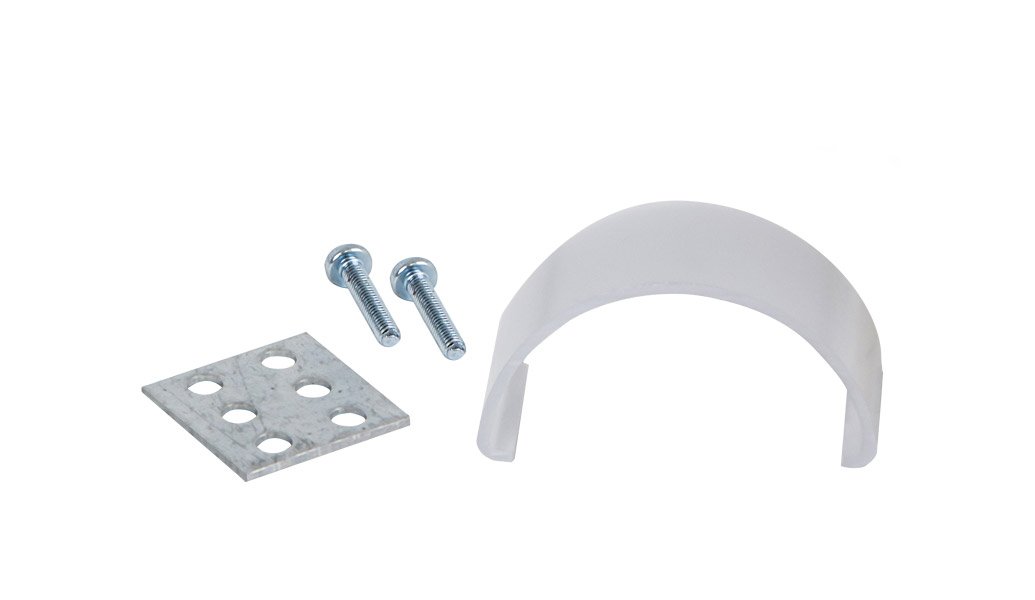

| SRLC JOINING KIT | Joining Kit |
Downloads
Find out more about
Serial Curve
For Sales and Technical Enquires call 01747 858100
