Runway

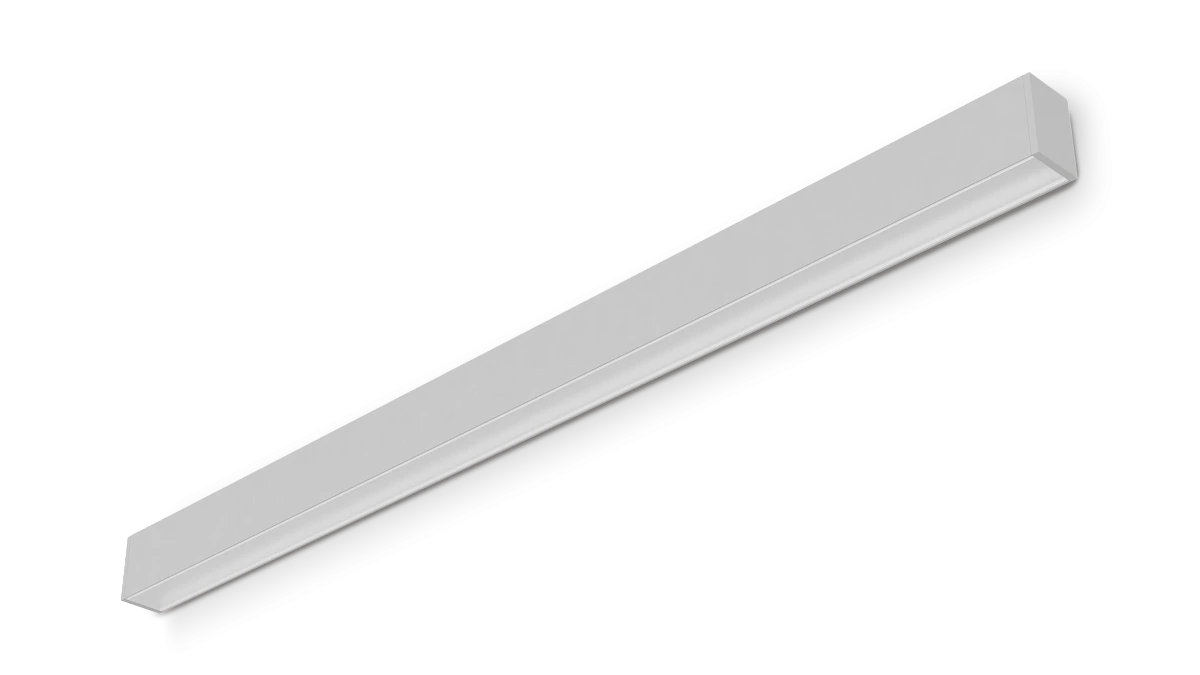

Wall Standalone 1.5

With multiple housing styles the Runway can be specified for standalone or continuous run layouts in suspended, surface mounted, wall mounted or recessed installations.

banner

There are 9 Runway models available. Select one to explore:

Introduction

With multiple housing styles the Runway can be specified for standalone or continuous run layouts in suspended, surface mounted, wall mounted or recessed installations. Where continuous run systems are required these can be configured in any length in 250mm increments and our range includes left or right handed 90° corners allowing the creation of squares, rectangles or diverse linear shapes. Each luminaire within the system can be either downlight or bidirectional and where a continuous lit effect isn’t required infills can be used in place of luminaires. The Runway is available with two diffuser variants, opal or microprism, three housing colours, black, white or grey, and two end cap styles giving a square or curved finish.

 These aesthetic choices combine with a broad selection of lumen outputs, a wide range of dimming and integral emergency options as well as integral sensor options offering both presence detection and daylight regulation. All emergency variants come complete with lithium iron phosphate batteries offering extended battery lifetime and warranty. The Runway also offers compatibility with our wireless systems allowing simple wireless grouping of luminaires, sensors and wall switches or broader integration into wireless lighting management systems allowing centralised reporting and monitoring of your installation minimising ongoing maintenance costs.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.5

Recommended applications:

Education | Hotel & Leisure | Office | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Endcaps: High pressure die cast aluminium
  • Diffuser: 2mm co-extruded high transmission opal polycarbonate
  • Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • All critical components are mounted on a single tray for simple end of life repair or upgrade.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional DEXNet wireless emergency for automated centralised reporting.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional integral DEXNet for integration with DEXNet wireless installations
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
  • Available with opal or microprism diffuser options

Installation

  • Suitable for Wall mounted installation (downlight only)
Find out more about our 5 year extended warranty

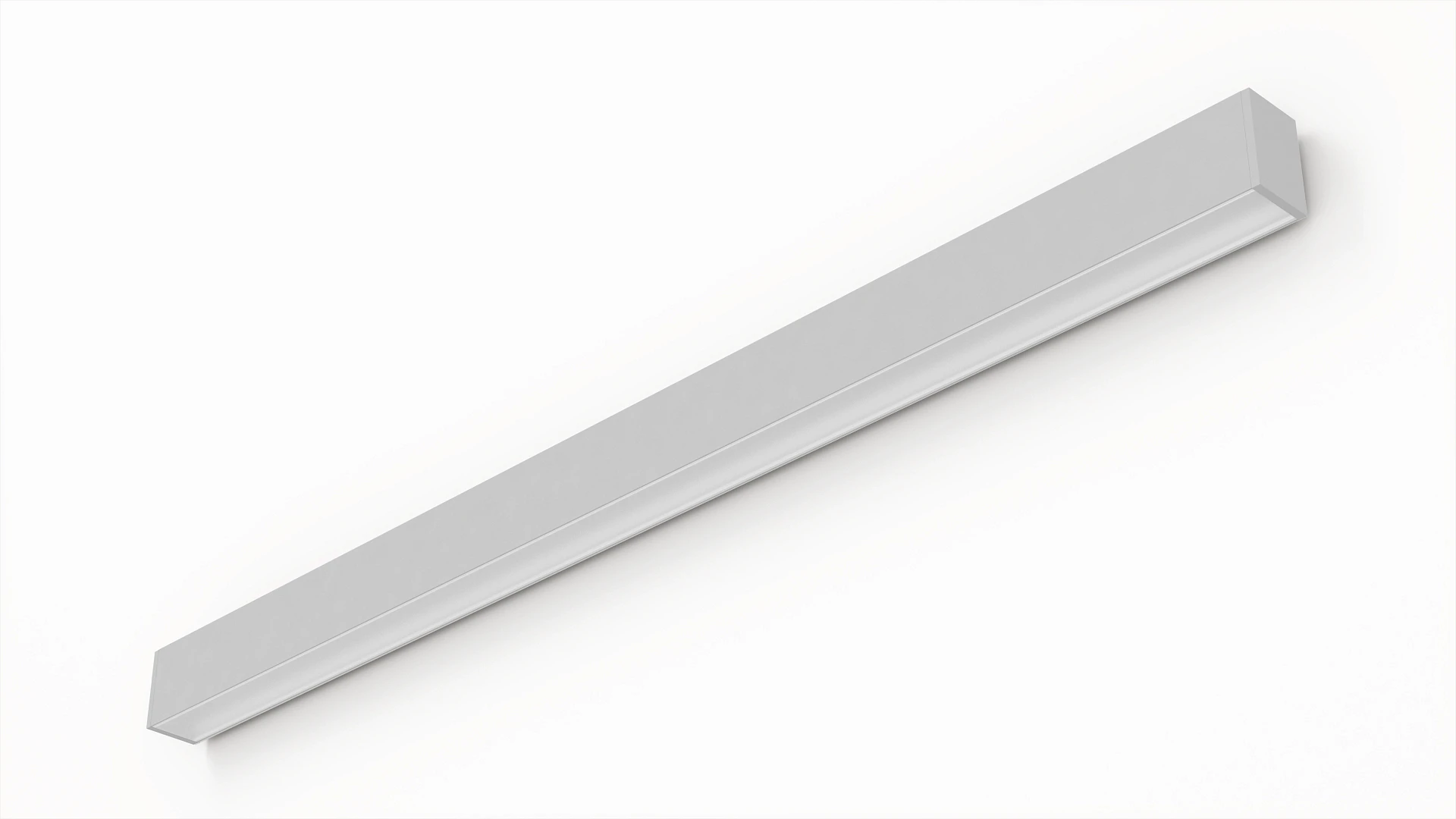

Product Images

Technical

Runway Design Considerations:

  • L15, L18, L22, L25 and L30 variants comply with BSEN 12464 3000 candela limit when used with MP diffuser.
  • Bi-Directional is available in all lengths and should only be used when suspended.
  • Autotest LA3 emergency and DALI Dimming will use common DALI BUS Cable. LA3 emergency can not be combined with other dimming types.
  • Where luminaire lumen and lumen per watt figures are published these relate to the opal diffuser variants.
  • Two suspension kits are required for the first trunking section in the run and one in each consecutive trunking section.
  • All Bi-Directional versions provide approximately 75% down light and 25% up light.
  • Emergency is not available in 1000mm variants. Emergency and sensor can not be combined in 1250mm versions.
  • Bi-Directional variants have differing spaces between up-light optics between different lengths, care should be taken when they are mixed in the same area to ensure up-light distribution is even. A suspension length of 500mm or greater will result in even light distribution on the ceiling even where trunking lengths differ.
  • Gear trays must be matched to the trunking length, 1000mm, 1250mm, 1500mm, 1750mm and 2000mm trunking will only accept the corresponding sized tray. Use 2X 1500mm trays with 3000mm trunking and 2X 2000mm trays with 4000mm trunking.
  • When using longer trunking lengths please ensure that there is suitable access to the building to allow the trunking to be taken to the installation location.
  • Please note that in sensor variants of the Runway Curve the diffuser is only curved at one end.
  • No LSTR available in 1250mm.
  • Wireless emergency can only be offered when combined with the appropriate wireless sensor with the exception of LA3D. LSTR must be combined with RLS. LA3RC must be combined with RCS. LA3D can be alone, or with D44.
  • RW INSTALL KIT must be supplied with each continuous run order.
  • Wall mounted versions are only available in downlight
Runway Wall Standalone

Runway Wall Standalone

Runway 2026 Layout Diagram C

Runway 2026 Layout Diagram C

Runway 2026 Layout Diagram F

Runway 2026 Layout Diagram F

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Runway Wall Standalone
Code Description Power Llm/W
RWF10 L15 ** GY Runway Wall Standalone, 1000mm, 943llm, ** Select Diffuser, Grey, Colour 84 9.7W 97
RWF10 L20 ** GY Runway Wall Standalone, 1000mm, 1,293llm, ** Select Diffuser, Grey, Colour 84 12.3W 105
RWF10 L30 ** GY Runway Wall Standalone, 1000mm, 1,938llm, ** Select Diffuser, Grey, Colour 84 16.9W 115
RWF12 L18 ** GY Runway Wall Standalone, 1250mm, 1,178llm, ** Select Diffuser, Grey, Colour 84 11.1W 106
RWF12 L25 ** GY Runway Wall Standalone, 1250mm, 1,604llm, ** Select Diffuser, Grey, Colour 84 13.7W 117
RWF12 L37 ** GY Runway Wall Standalone, 1250mm, 2,421llm, ** Select Diffuser, Grey, Colour 84 19.5W 124
RWF15 L22 ** GY Runway Wall Standalone, 1500mm, 1,428llm, ** Select Diffuser, Grey, Colour 84 12.4W 115
RWF15 L30 ** GY Runway Wall Standalone, 1500mm, 1,925llm, ** Select Diffuser, Grey, Colour 84 15.5W 124
RWF15 L45 ** GY Runway Wall Standalone, 1500mm, 2,920llm, ** Select Diffuser, Grey, Colour 84 22.5W 130
RWF17 L26 ** GY Runway Wall Standalone, 1750mm, 1,688llm, ** Select Diffuser, Grey, Colour 84 13.7W 123
RWF17 L35 ** GY Runway Wall Standalone, 1750mm, 2,312llm, ** Select Diffuser, Grey, Colour 84 18.7W 124
RWF17 L53 ** GY Runway Wall Standalone, 1750mm, 3,469llm, ** Select Diffuser, Grey, Colour 84 27.1W 128
RWF20 L30 ** GY Runway Wall Standalone, 2000mm, 1,965llm, ** Select Diffuser, Grey, Colour 84 15.1W 130
RWF20 L40 ** GY Runway Wall Standalone, 2000mm, 2,691llm, ** Select Diffuser, Grey, Colour 84 20.8W 129
RWF20 L60 ** GY Runway Wall Standalone, 2000mm, 4,036llm, ** Select Diffuser, Grey, Colour 84 30.5W 132
RWF30 L44 ** GY Runway Wall Standalone, 3000mm, 2,856llm, ** Select Diffuser, Grey, Colour 84 24.8W 115
RWF30 L60 ** GY Runway Wall Standalone, 3000mm, 3,852llm, ** Select Diffuser, Grey, Colour 84 31.0W 124
RWF30 L90 ** GY Runway Wall Standalone, 3000mm, 5,844llm, ** Select Diffuser, Grey, Colour 84 45.0W 130
RWF40 L60 ** GY Runway Wall Standalone, 4000mm, 3,936llm, ** Select Diffuser, Grey, Colour 84 30.2W 130
RWF40 L80 ** GY Runway Wall Standalone, 4000mm, 5,376llm, ** Select Diffuser, Grey, Colour 84 41.6W 129
RWF40 L120 ** GY Runway Wall Standalone, 4000mm, 8,064lm, ** Select Diffuser, Grey, Colour 84 61.1W 132
**Diffuser
**Diffuser
Code Description
OP Opal
MP Microprism

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH White Finish
BL Black Finish
LSF Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Downloads

Product Datasheet (Download PDF) Runway Wall Standalone Install (Download PDF) Revit Files Dialux Files Relux Files
