Runway RGBW & RGBU

Runway Continuous Surface / Suspended RGBW RGBU 1.5

With multiple housing styles the Runway can be specified for standalone or continuous run layouts in suspended, surface mounted, wall mounted or recessed installations.

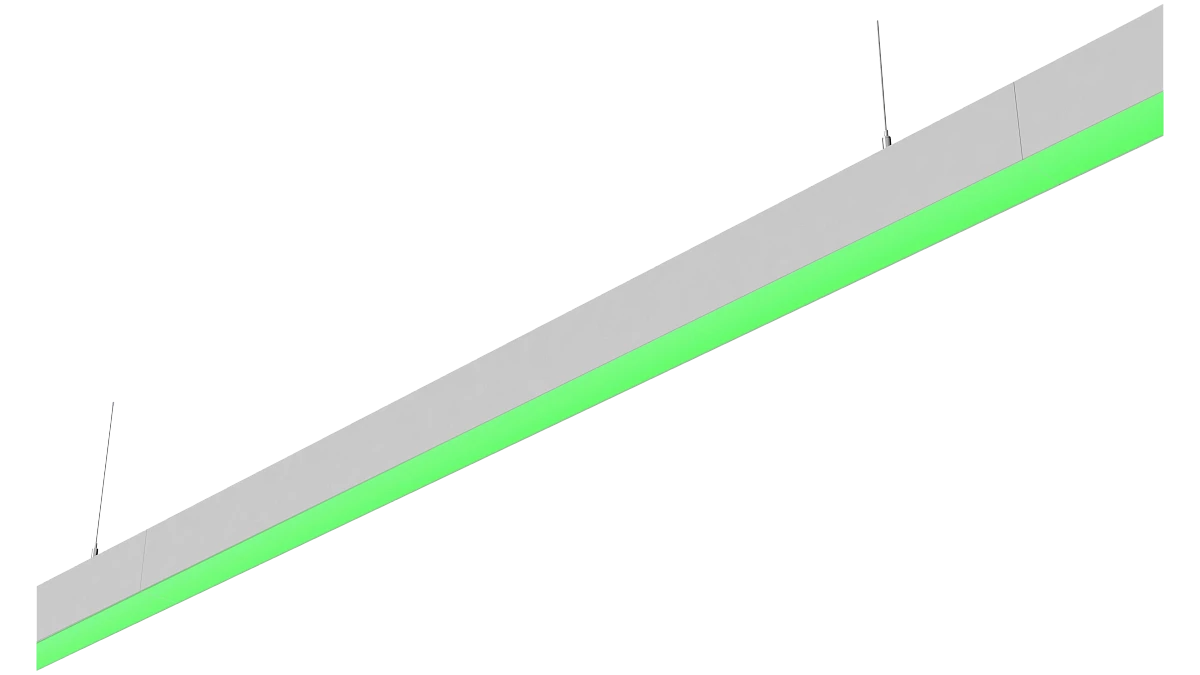

banner

There are 7 Runway RGBW & RGBU models available. Select one to explore:

Introduction

With multiple housing styles the Runway can be specified for standalone or continuous run layouts in suspended, surface mounted, wall mounted or recessed installations. Where continuous run systems are required these can be configured in any length in 250mm increments and our range includes left or right handed 90° corners allowing the creation of squares, rectangles or diverse linear shapes. Our Runway RGBW offers full colour changing with DALI control for both downlight and bidirectional variants, whilst our Runway RGBU offers a traditional white source downward with DALI controlled RGB colour changing uplight providing colour wash on ceilings whilst ensuring the working area is effectively lit. The Runway RGBW is supplied with an opal diffuser as standard whilst the RGBU is available with either opal or glare compliant microprism diffuser. Both ranges can incorporate infill sections where continuous run luminaires are not required. The Runway RBGW and RGBU are both available with three housing colours, black, white or grey, and two end cap styles giving a square or curved finish.

 These aesthetic choices combine with a broad selection of lumen outputs, a wide range of dimming and integral emergency options as well as integral sensor options offering both presence detection and daylight regulation. All emergency variants come complete with lithium iron phosphate batteries offering extended battery lifetime and warranty. The Runway also offers compatibility with our wireless systems allowing simple wireless grouping of luminaires, sensors and wireless wall switches or broader integration into wireless lighting management systems allowing centralised reporting and monitoring of your installation, minimising ongoing maintenance costs.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.5

Recommended applications:

Education | Hotel & Leisure | Office | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Endcaps: High pressure die cast aluminium
  • Diffuser: 2mm extruded high transmission opal polycarbonate
  • Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • All critical components are mounted on a single tray for simple end of life repair or upgrade.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional DEXNet wireless emergency for automated centralised reporting.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • DALI controlled RGBW Downlight
  • DALI controlled RGBW Bi-Directional
  • DALI controlled RGB Uplight with white downlight
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for suspended installation
  • Suitable for surface installation
  • Suitable for standalone or continuous installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
  • Available with opal or microprism diffuser options
Find out more about our 5 year extended warranty

Product Images

Technical

Runway Design Considerations

  • L15, L18, L22, L25 and L30 variants comply with BSEN 12464 3000 candela limit when used with MP diffuser in RGBU variants.
  • Bi-Directional RGBW is available in 1250mm lengths only and should only be used when suspended.
  • Autotest LA3 emergency and DALI Dimming will use common DALI BUS Cable. LA3 emergency can not be combined with other dimming types.
  • Where luminaire lumen and lumen per watt figures are published these relate to the opal diffuser variants in the white channel only.
  • Where colour temperature and rendering are specified in a part code, for example C84, this relates to the white channel.
  • Two suspension kits are required for the first trunking section in the run and one in each consecutive trunking section.
  • Bi-Directional variants have differing spaces between up-light optics between different lengths, care should be taken when they are mixed in the same area to ensure up-light distribution is even. A suspension length of 500mm or greater will result in even light distribution on the ceiling even where trunking lengths differ.
  • Gear trays must be matched to the trunking length, 1000mm, 1250mm, 1500mm, 1750mm and 2000mm trunking will only accept the corresponding sized tray. Use 2X 1500mm trays with 3000mm trunking and 2X 2000mm trays with 4000mm trunking.
  • When using longer trunking lengths please ensure that there is suitable access to the building to allow the trunking to be taken to the installation location.
  • Please note that in sensor variants of the Runway Curve the diffuser is only curved at one end.
  • 1250mm variants can not accommodate sensor or emergency.
  • 1500mm variants can accommodate sensor but not emergency.
  • Emergency can only be offered in 1750mm RGBW variants and can be combined with sensor.
  • Emergency can only be offered in 1750mm and 2000mm RGBU variants and can be combined with sensor.
  • 2000mm variants are only available in RGBU.
  • Corner units can not accommodate emergency.
  • RGBW and RGBU include DALI as standard for all colour channels in all variants.
  • RGBW variants are only available with opal diffusers.
  • Not available with integral sensors or wireless controls.
  • Emergency will only operate white channel.
  • RW INSTALL KIT must be supplied with each continuous run order.
  • Wall mounted versions are only available in downlight and RGBW versions

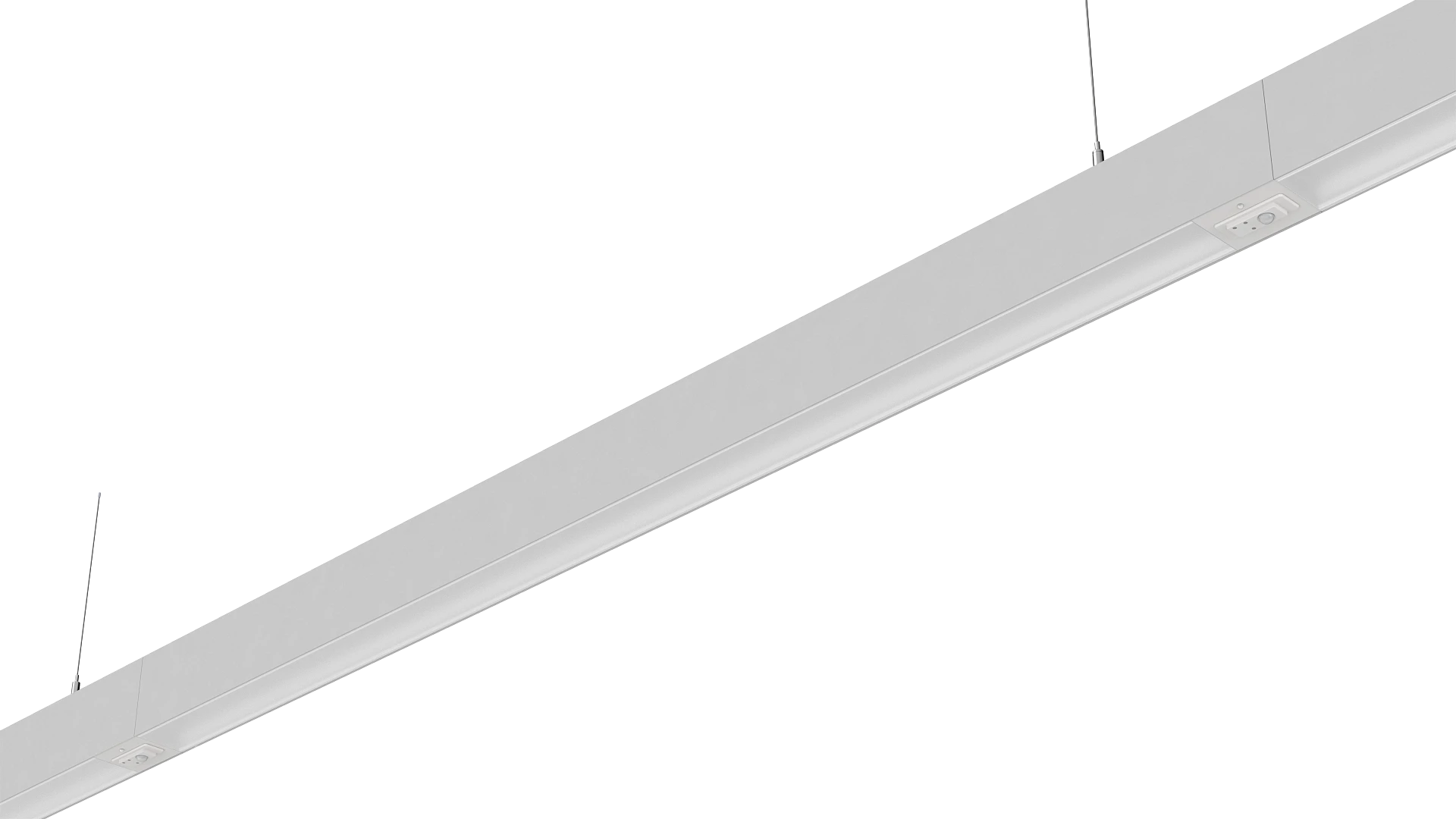

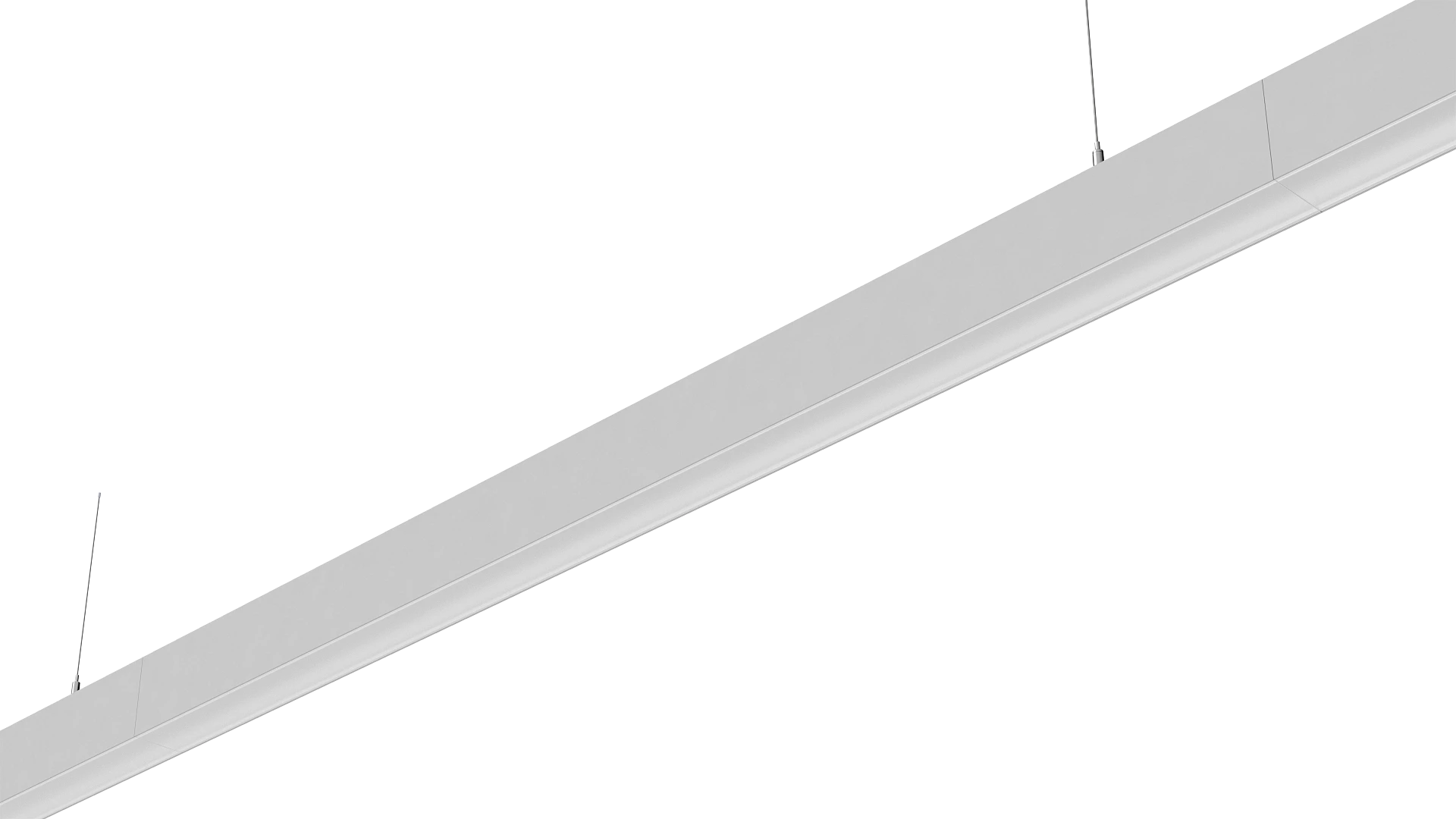

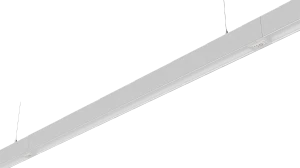

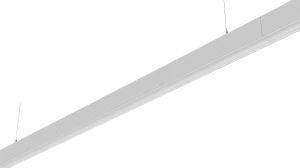

Runway Surface & Suspended Continuous

Runway Surface & Suspended Continuous

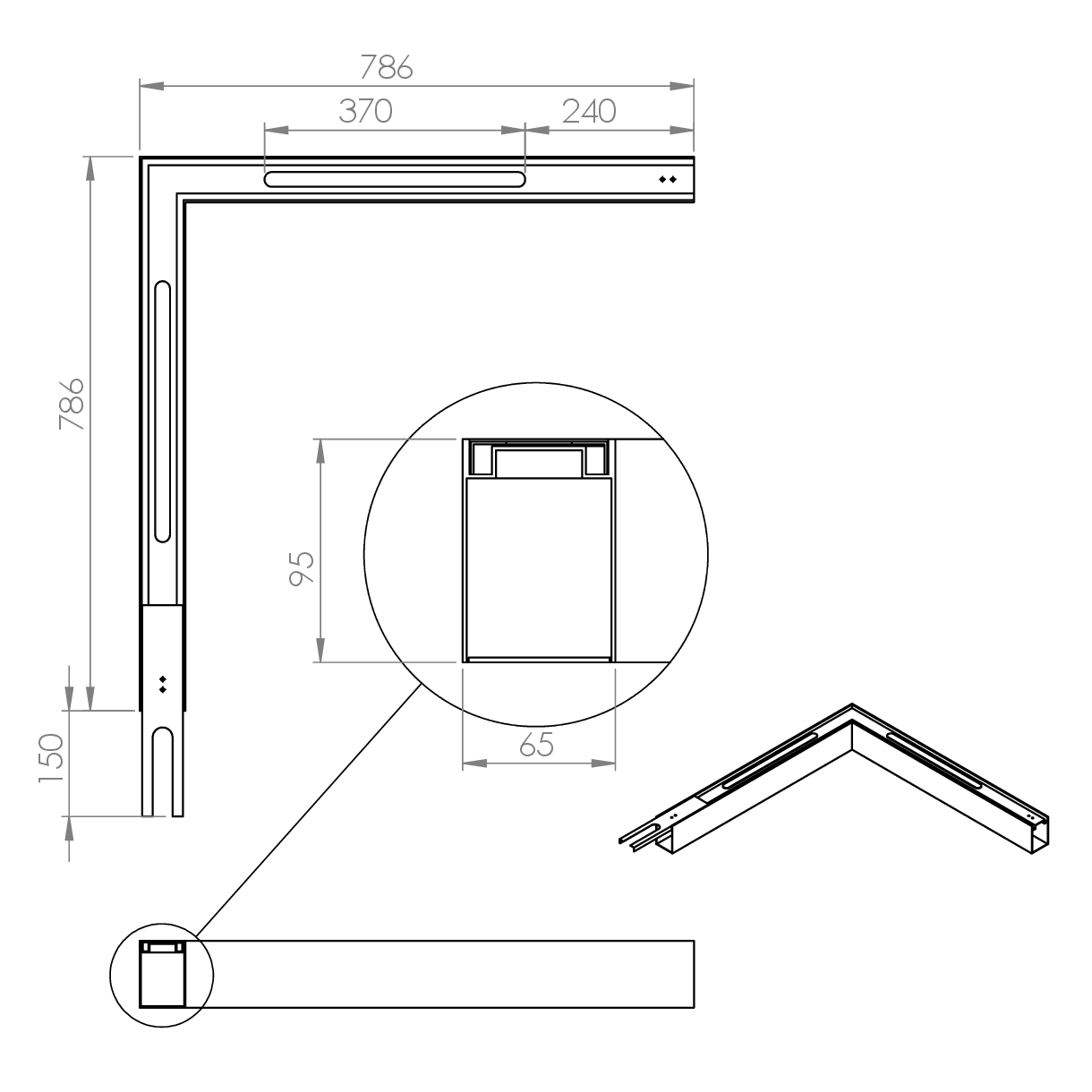

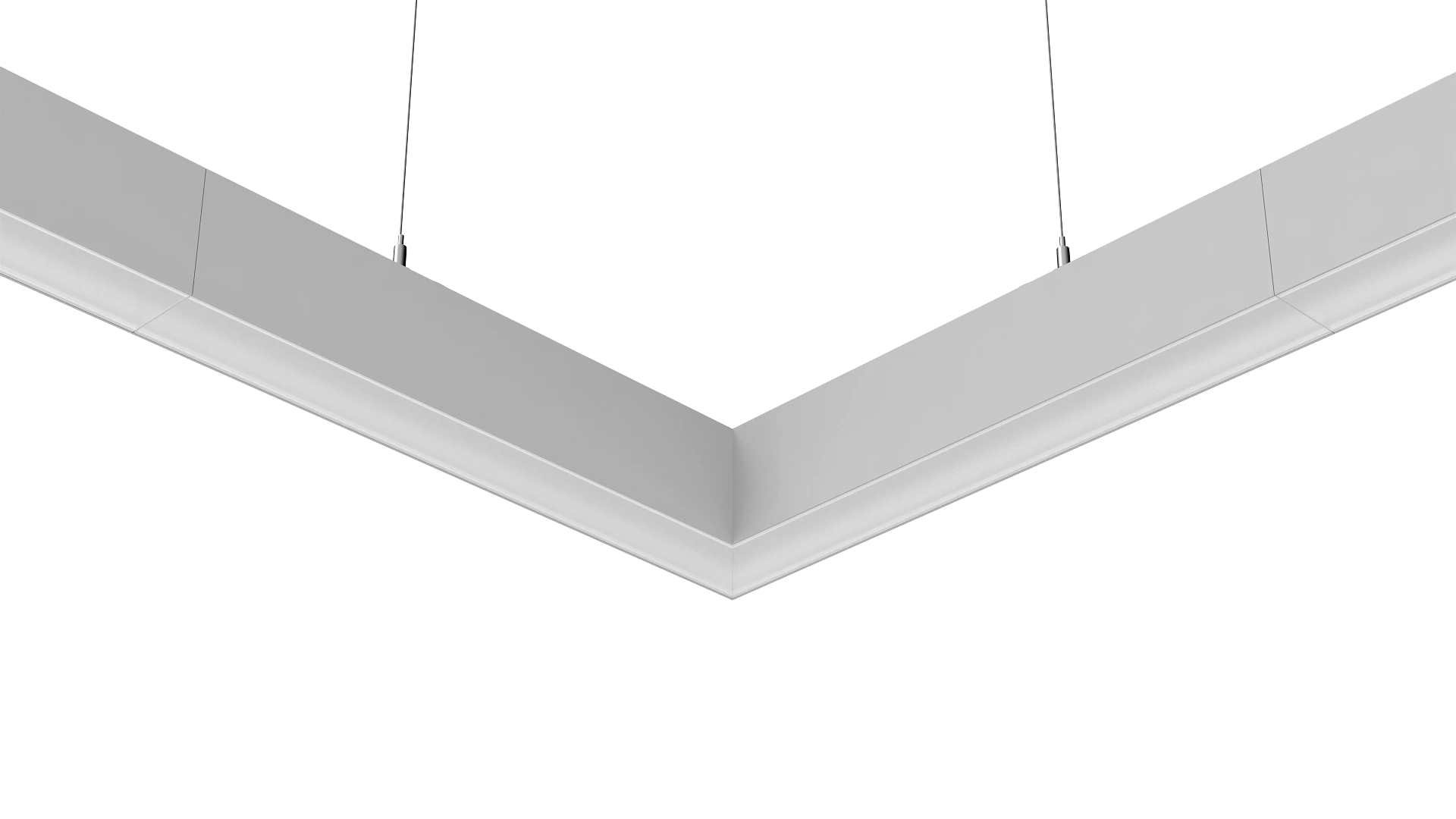

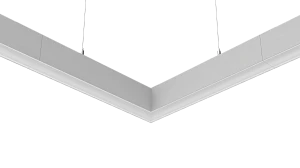

Runway Surface & Suspended Continuous corner

Runway Surface & Suspended Continuous corner

Runway RGBW Surface & Suspended Continuous corner

Runway RGBW Surface & Suspended Continuous corner

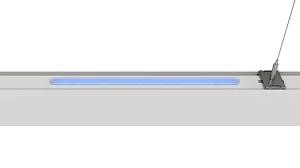

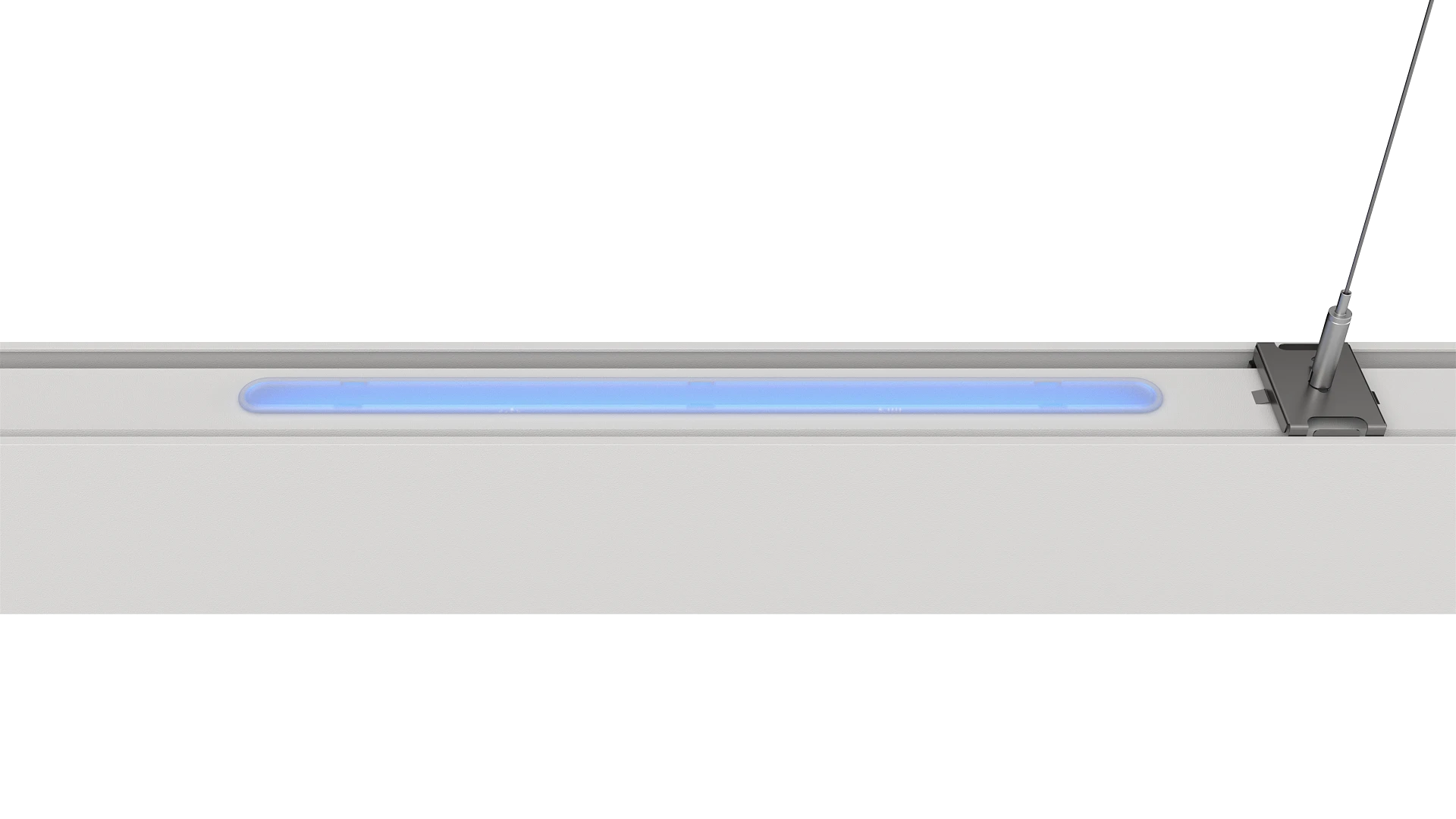

Runway Bi-Directional Uplight

Runway Bi-Directional Uplight

Runway 2026 Layout Diagram A

Runway 2026 Layout Diagram A

Runway 2026 Layout Diagram B

Runway 2026 Layout Diagram B

Runway 2026 Layout Diagram C

Runway 2026 Layout Diagram C

Runway 2026 Layout Diagram D

Runway 2026 Layout Diagram D

Runway 2026 Layout Diagram E

Runway 2026 Layout Diagram E

Runway 2026 Layout Diagram F

Runway 2026 Layout Diagram F

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

SURFACE & SUSPENDED CONTINUOUS
Code Description
RS12 ST Runway Trunking 1250mm, Surface / Suspended, Downlight, Start,
RS12 TW Runway Trunking 1250mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS15 ST Runway Trunking 1500mm, Surface / Suspended, Downlight, Start
RS15 TW Runway Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS17 ST Runway Trunking 1750mm, Surface / Suspended, Downlight, Start
RS17 TW Runway Trunking 1750mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS20 ST Runway Trunking 2000mm, Surface / Suspended, Downlight, Start
RS20 TW Runway Trunking 2000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS30 ST Runway Trunking 3000mm, Surface / Suspended, Downlight, Start
RS30 TW Runway Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS12 ST BD Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Start
RS12 TW BD Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS15 ST BD Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Start
RS15 TW BD Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS17 ST BD Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Start
RS17 TW BD Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS20 ST BD Runway Trunking 2000mm, Surface / Suspended, B-Directional, Start
RS20 TW BD Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS30 ST BD Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Start
RS30 TW BD Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS40 ST BD Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Start
RS40 TW BD Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
CONTINUOUS RUN GEAR TRAY - LOW OUPUT
Code Description
RGB Up
RW12 RGBU L18 TW Runway Tray, 1250mm, 1,800lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L18 ER Runway Tray, 1250mm, 1,800lm, RGB Up, End of Run, Colour 84
RW15 RGBU L22 TW Runway Tray, 1500mm, 2,200lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L22 ER Runway Tray, 1500mm, 2,200lm, RGB Up, End of Run, Colour 84
RW17 RGBU L26 TW Runway Tray, 1750mm, 2,600lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L26 ER Runway Tray, 1750mm, 2,600lm, RGB Up, End of Run, Colour 84
RW20 RGBU L30 TW Runway Tray, 2000mm, 3,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L30 ER Runway Tray, 2000mm, 3,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L22 TW ** L GY Runway Corner 90?, 750mm, 2,200lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L22 ER ** L GY Runway Corner 90?, 750mm, 2,200lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L22 TW ** R GY Runway Corner 90?, 750mm, 2,200lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L22 ER ** R GY Runway Corner 90?, 750mm, 2,200lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84
CONTINUOUS RUN GEAR TRAY - MEDIUM OUTPUT
Code Description
RGB Up
RW12 RGBU L25 TW Runway Tray, 1250mm, 2,500lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L25 ER Runway Tray, 1250mm, 2,500lm, RGB Up, End of Run, Colour 84
RW15 RGBU L30 TW Runway Tray, 1500mm, 3,000lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L30 ER Runway Tray, 1500mm, 3,000lm, RGB Up, End of Run, Colour 84
RW17 RGBU L35 TW Runway Tray, 1750mm, 3,500lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L35 ER Runway Tray, 1750mm, 3,500lm, RGB Up, End of Run, Colour 84
RW20 RGBU L40 TW Runway Tray, 2000mm, 4,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L40 ER Runway Tray, 2000mm, 4,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L30 TW ** L GY Runway Corner 90?, 750mm, 3,000lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L30 ER ** L GY Runway Corner 90?, 750mm, 3,000lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L30 TW ** R GY Runway Corner 90?, 750mm, 3,000lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L30 ER ** R GY Runway Corner 90?, 750mm, 3,000lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84
CONTINUOUS RUN GEAR TRAY - HIGH OUTPUT
Code Description
RGBW
RW12 RGBW L37 TW Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 RGBW L37 ER Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW12 RGBW L53 TW BD Runway Tray, 1250mm, 5,300lm, Through Wire, Bi-Directional, Colour 84
RW12 RGBW L53 ER BD Runway Tray, 1250mm, 5,300lm, End of Run, Bi-Directional, Colour 84
RW15 RGBW L45 TW Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 RGBW L45 ER Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW17 RGBW L53 TW Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 RGBW L53 ER Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RSCO RGBW L45 TW ** L GY Runway Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, ** Select Diffuser, Opal, Left, Grey, Colour 84
RSCO RGBW L45 ER ** L GY Runway Corner 90?, 750mm, 4,500lm, RGBW, End of Run, ** Select Diffuser, Opal, Left, Grey, Colour 84
RSCO RGBW L45 TW ** R GY Runway Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, ** Select Diffuser, Opal, Right, Grey, Colour 84
RSCO RGBW L45 ER ** R GY Runway Corner 90?, 750mm, 4,500lm, RGBW, End of Run, ** Select Diffuser, Opal, Right, Grey, Colour 84
RGB Up
RW12 RGBU L37 TW Runway Tray, 1250mm, 3,700lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L37 ER Runway Tray, 1250mm, 3,700lm, RGB Up, End of Run, Colour 84
RW15 RGBU L45 TW Runway Tray, 1500mm, 4,500lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L45 ER Runway Tray, 1500mm, 4,500lm, RGB Up, End of Run, Colour 84
RW17 RGBU L53 TW Runway Tray, 1750mm, 5,300lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L53 ER Runway Tray, 1750mm, 5,300lm, RGB Up, End of Run, Colour 84
RW20 RGBU L60 TW Runway Tray, 2000mm, 6,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L60 ER Runway Tray, 2000mm, 6,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L45 TW ** L GY Runway Corner 90?, 750mm, 4,500lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L45 ER ** L GY Runway Corner 90?, 750mm, 4,500lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L45 TW ** R GY Runway Corner 90?, 750mm, 4,500lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L45 ER ** R GY Runway Corner 90?, 750mm, 4,500lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84
**Diffuser
Code Description
OP Opal
MP Microprism

Optic

Code Description
RW12 OP Runway 1250mm Diffuser, Opal
RW12 MP Runway 1250mm Diffuser, Microprism
RW12 Z20 OP Runway 1250mm Diffuser, RCS Sensor, Opal
RW12 Z20 MP Runway 1250mm Diffuser, RCS Sensor, Microprism
RW12 INFILL TW Runway 1250mm Infill, Through Wire
RW15 OP Runway 1500mm Diffuser, Opal
RW15 MP Runway 1500mm Diffuser, Microprism
RW15 Z20 OP Runway 1500mm Diffuser, RCS Sensor, Opal
RW15 Z20 MP Runway 1500mm Diffuser, RCS Sensor, Microprism
RW15 INFILL TW Runway 1500mm Infill, Through Wire
RW17 OP Runway 1750mm Diffuser, Opal
RW17 MP Runway 1750mm Diffuser, Microprism
RW17 Z20 OP Runway 1750mm Diffuser, RCS Sensor, Opal
RW17 Z20 MP Runway 1750mm Diffuser, RCS Sensor, Microprism
RW17 INFILL TW Runway 1750mm Infill, Through Wire
RW20 OP Runway 2000mm Diffuser, Opal
RW20 MP Runway 2000mm Diffuser, Microprism
RW20 Z20 OP Runway 2000mm Diffuser, RCS Sensor, Opal
RW20 Z20 MP Runway 2000mm Diffuser, RCS Sensor, Microprism
RW20 INFILL TW Runway 2000mm Infill, Through Wire
RW30 OP Runway 3000mm Diffuser, Opal
RW30 MP Runway 3000mm Diffuser, Microprism
RW40 OP Runway 4000mm Diffuser, Opal
RW40 MP Runway 4000mm Diffuser, Microprism
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code Description
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH White Finish
BL Black Finish
RW SMK CONTINUOUS Runway Continuous Surface Mount Kit
SUSP RW 3M BF X1 Runway 3M suspension Kit One Drop
RW INSTALL KIT Runway Installation Kit
LSF Low Smoke Zero Halogen
RS EC ** Runway End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Downloads

Product Datasheet (Download PDF) Runway Suspended/Surface Continuous Run Installati (Download PDF) Revit Files Dialux Files Relux Files

Find out more about
Runway Continuous Surface / Suspended RGBW RGBU 1.5

For Sales and Technical Enquires call 01747 858100
