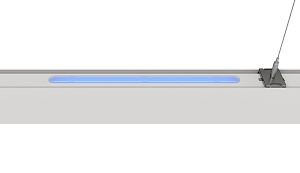

Runway RGBW & RGBU

With multiple housing styles the Runway can be specified for standalone or continuous run layouts in suspended, surface mounted, wall mounted or recessed installations.

Introduction

With multiple housing styles the Runway can be specified for standalone or continuous run layouts in suspended, surface mounted, wall mounted or recessed installations. Where continuous run systems are required these can be configured in any length in 250mm increments and our range includes left or right handed 90° corners allowing the creation of squares, rectangles or diverse linear shapes. Our Runway RGBW offers full colour changing with DALI control for both downlight and bidirectional variants, whilst our Runway RGBU offers a traditional white source downward with DALI controlled RGB colour changing uplight providing colour wash on ceilings whilst ensuring the working area is effectively lit. The Runway RGBW is supplied with an opal diffuser as standard whilst the RGBU is available with either opal or glare compliant microprism diffuser. Both ranges can incorporate infill sections where continuous run luminaires are not required. The Runway RBGW and RGBU are both available with three housing colours, black, white or grey, and two end cap styles giving a square or curved finish.

These aesthetic choices combine with a broad selection of lumen outputs, a wide range of dimming and integral emergency options as well as integral sensor options offering both presence detection and daylight regulation. All emergency variants come complete with lithium iron phosphate batteries offering extended battery lifetime and warranty. The Runway also offers compatibility with our wireless systems allowing simple wireless grouping of luminaires, sensors and wireless wall switches or broader integration into wireless lighting management systems allowing centralised reporting and monitoring of your installation, minimising ongoing maintenance costs.

Complies with:

Recommended applications:

Education | Hotel & Leisure | Office | Retail

Specification

Construction

Housing: Extruded aluminium
Finish: Polyester powder painted RAL 9016 textura matt white
Finish: Polyester powder painted RAL 9006 textura matt grey
Finish: Polyester powder painted RAL 9005 textura matt black
Endcaps: High pressure die cast aluminium
Diffuser: 2mm extruded high transmission opal polycarbonate
Diffuser: Combined 2mm extruded clear polycarbonate and 2mm microprism anti glare PMMA
IP20

Performance

Part L2 compliant
BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
3SDCM Three step Macadams ellipse
TM21: L90>60K Hours / L80>100K Hours

Environmental

Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
All critical components are mounted on a single tray for simple end of life repair or upgrade.
Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
Contains no single use plastics or polystyrene packaging.
Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
Designed to allow simple disassembly for end of life recycling.
UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Optional DEXNet wireless emergency for automated centralised reporting.
Optional Reacta-Link wireless emergency for automated centralised reporting.
Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

DALI controlled RGBW Downlight
DALI controlled RGBW Bi-Directional
DALI controlled RGB Uplight with white downlight
Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

Suitable for suspended installation
Suitable for recessed installation
Suitable for surface installation
Suitable for standalone or continuous installation
Suitable for Wall mounted installation (downlight and RGBW only)

Variations

Available with a wide range of colour temperatures and renderings
Available in a range of housing sizes and lumen outputs
Available in white or black finishes
Available with opal or microprism diffuser options

Find out more about our 5 year extended warranty

Product Images

Runway RGBW & RGBU

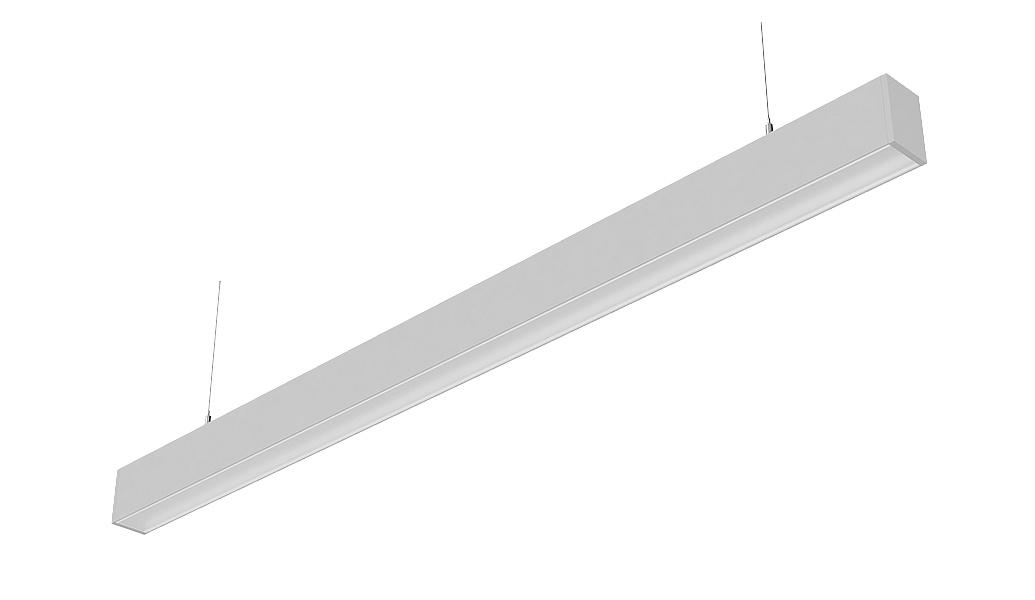

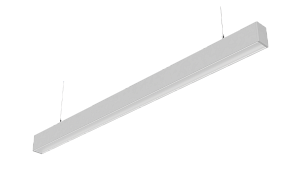

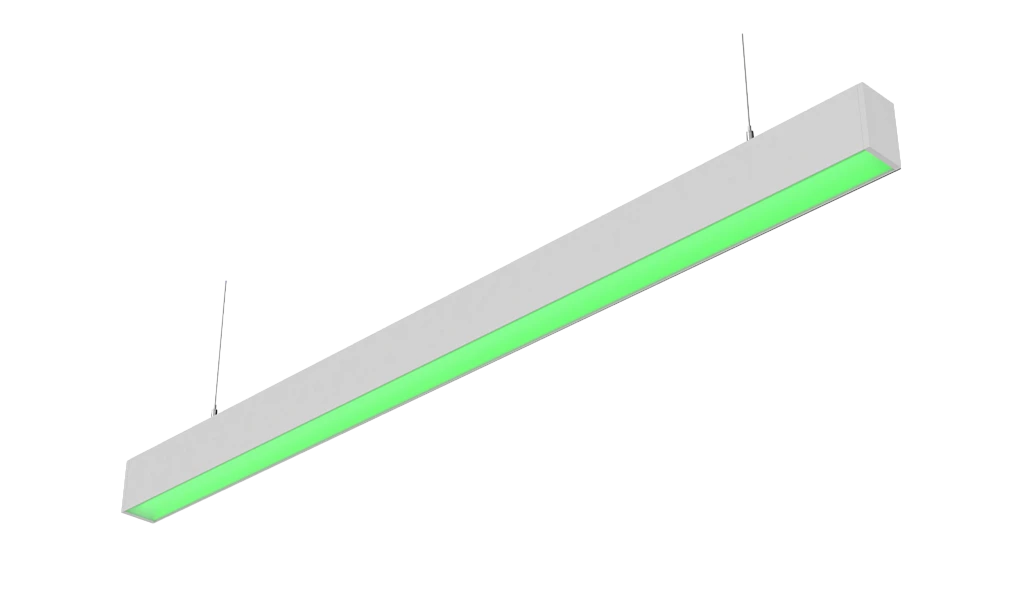

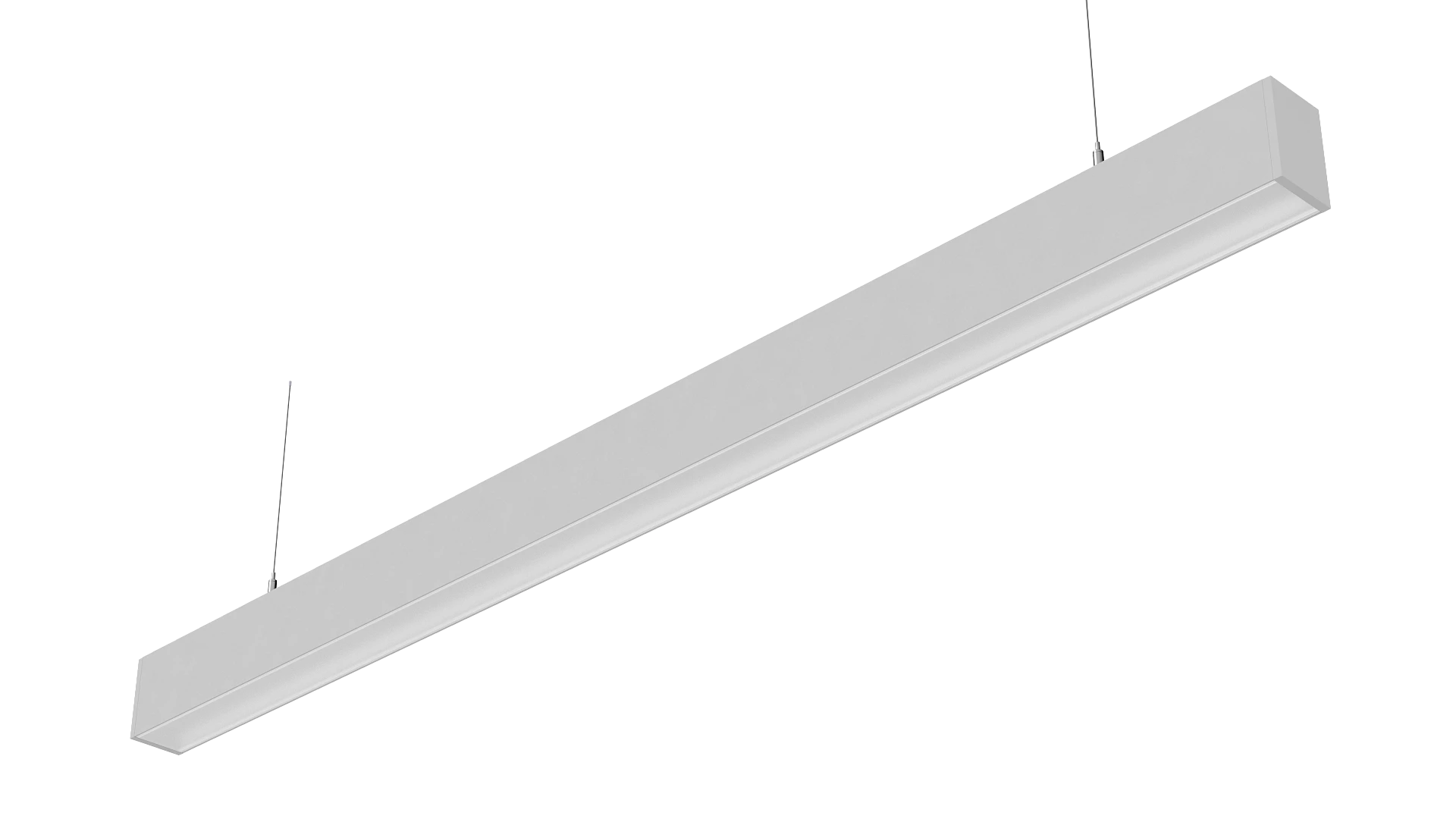

Runway Suspended RGBW in Grey

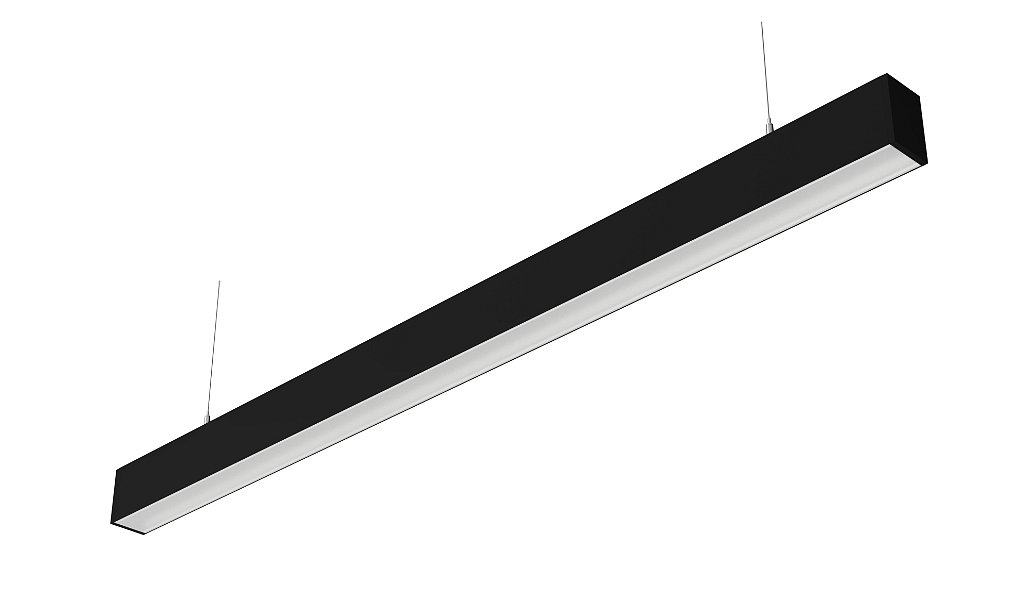

Runway Suspended RGBW in Black

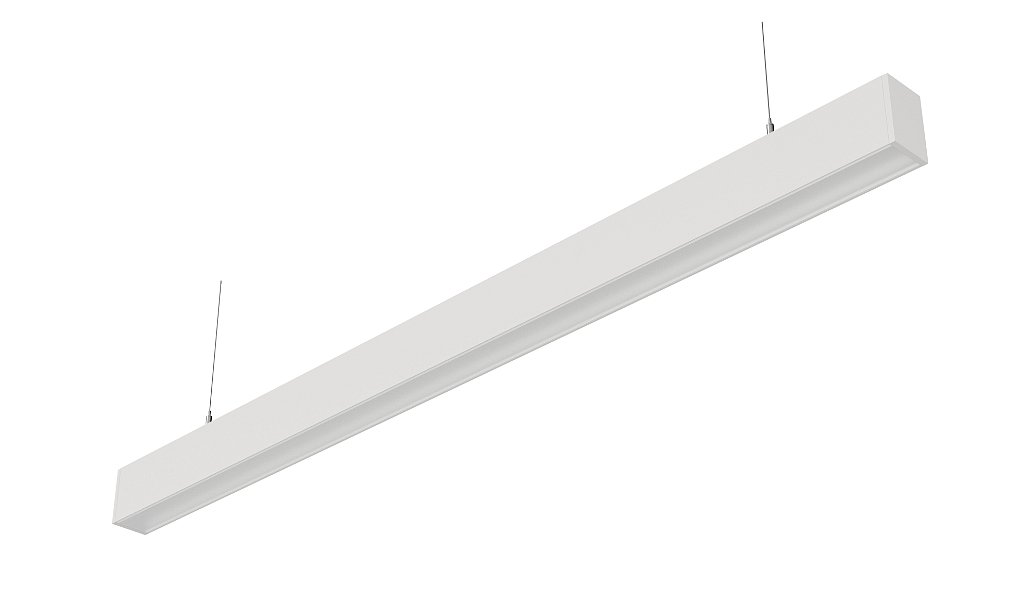

Runway Suspended RGBW in White

Runway Curve Suspended RGBW in Grey

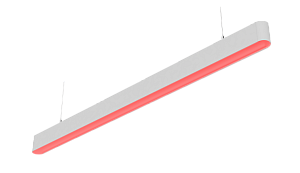

Runway Curve Suspended RGBW

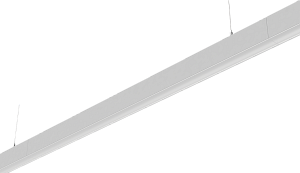

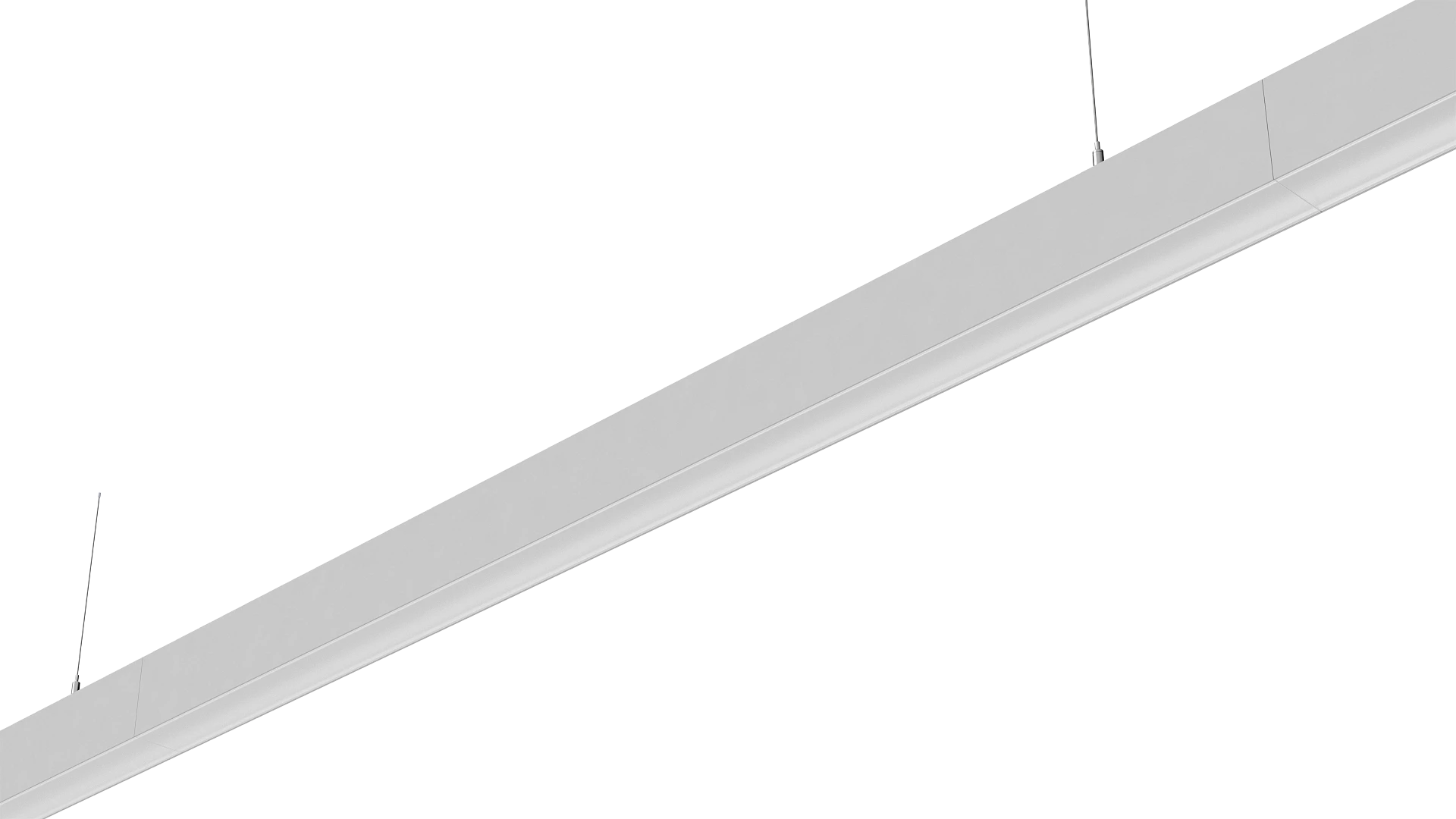

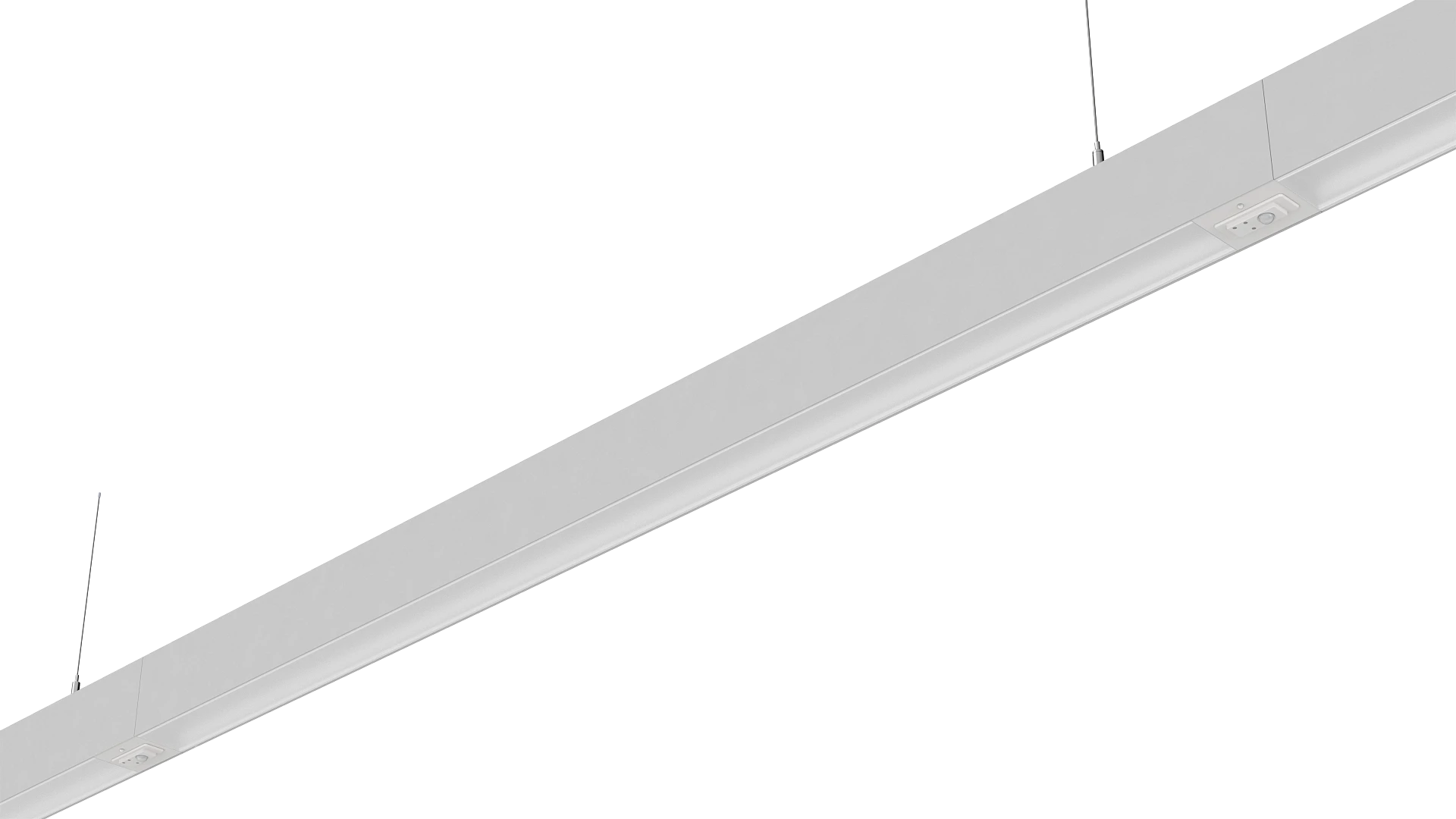

Runway Continuous Suspended RGBW in Grey

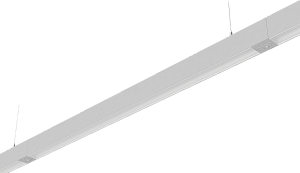

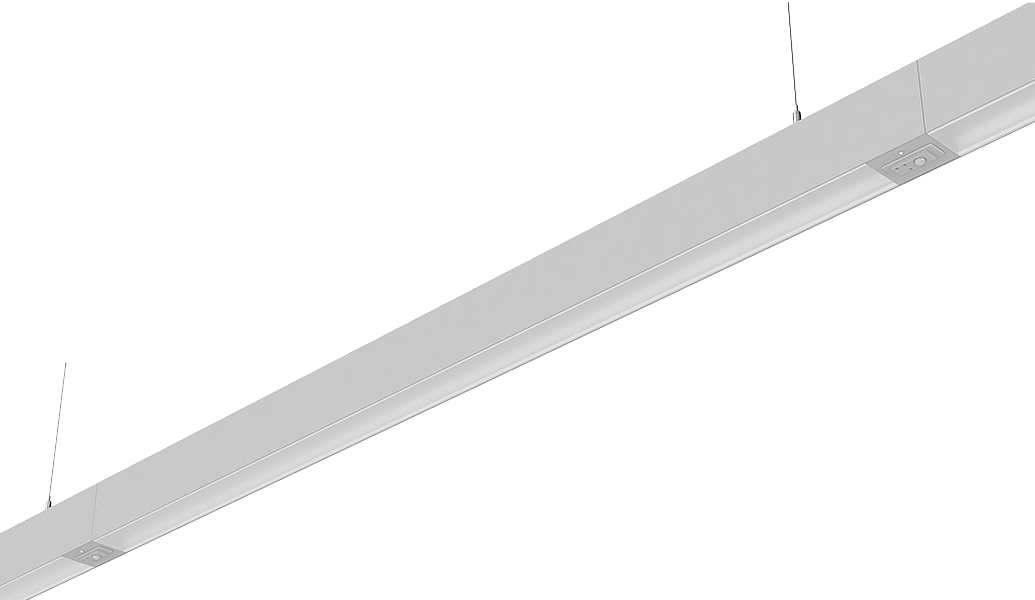

Runway Continuous Suspended RGBW in Grey with D44

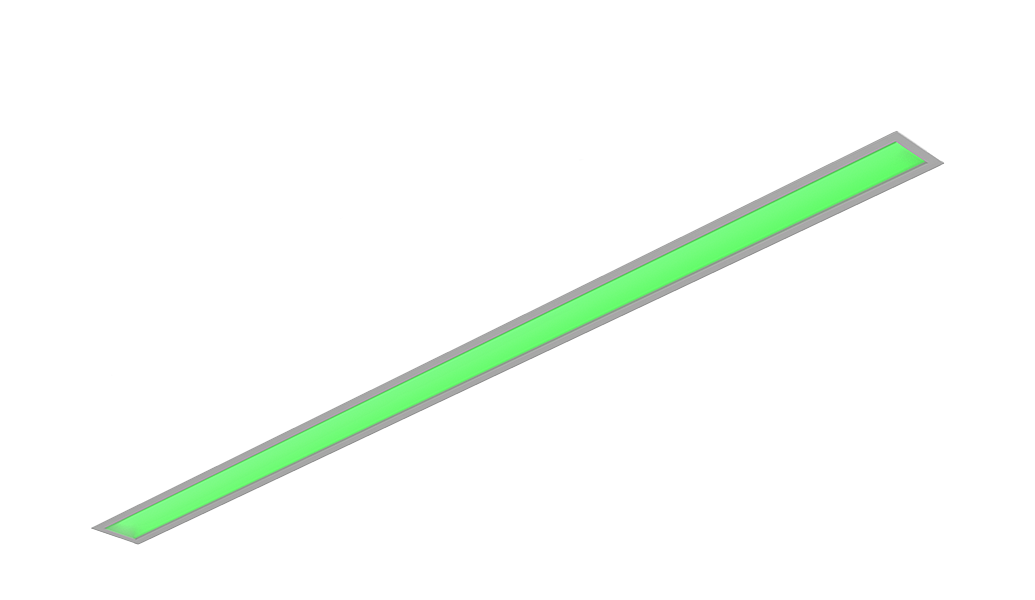

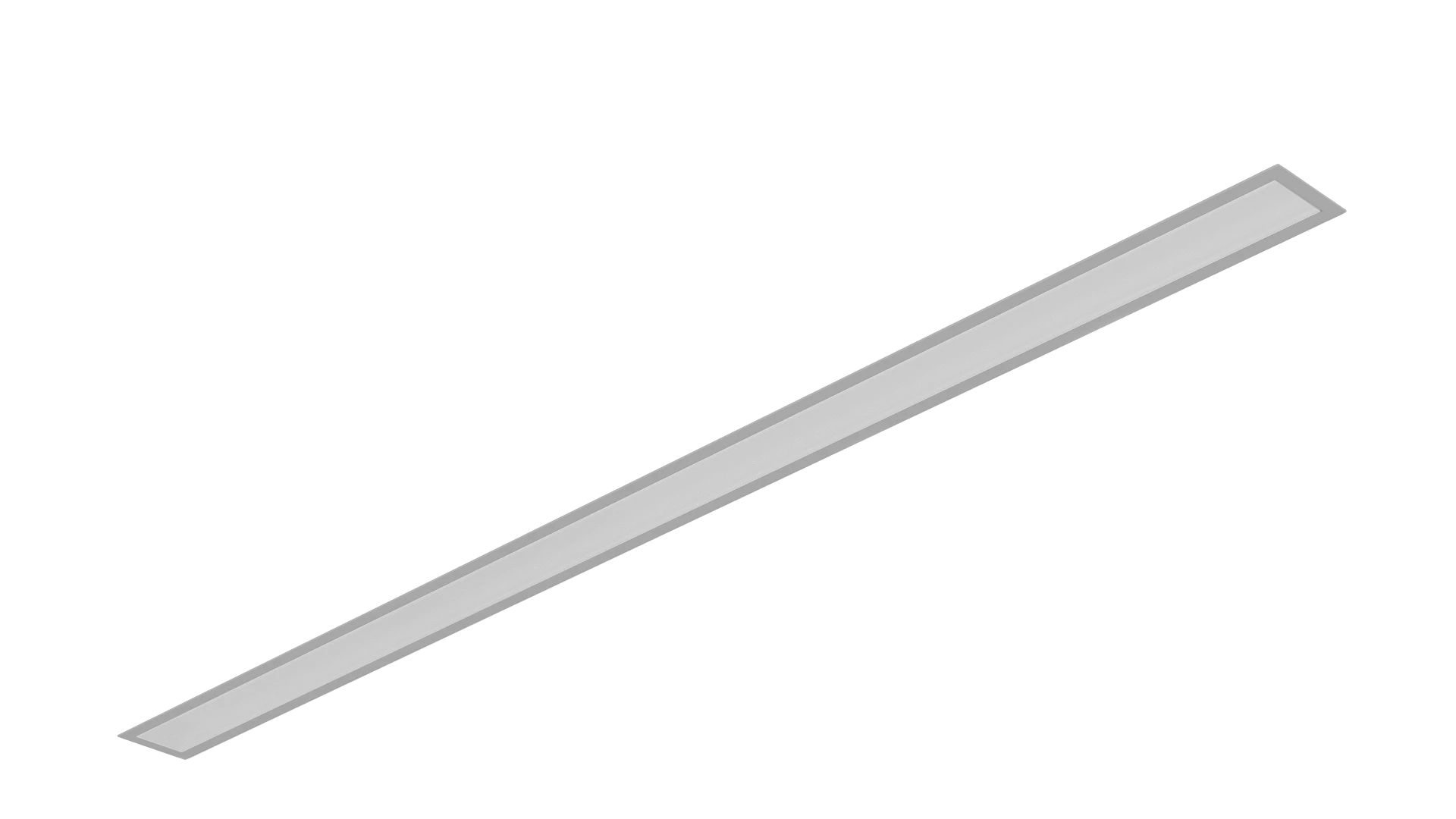

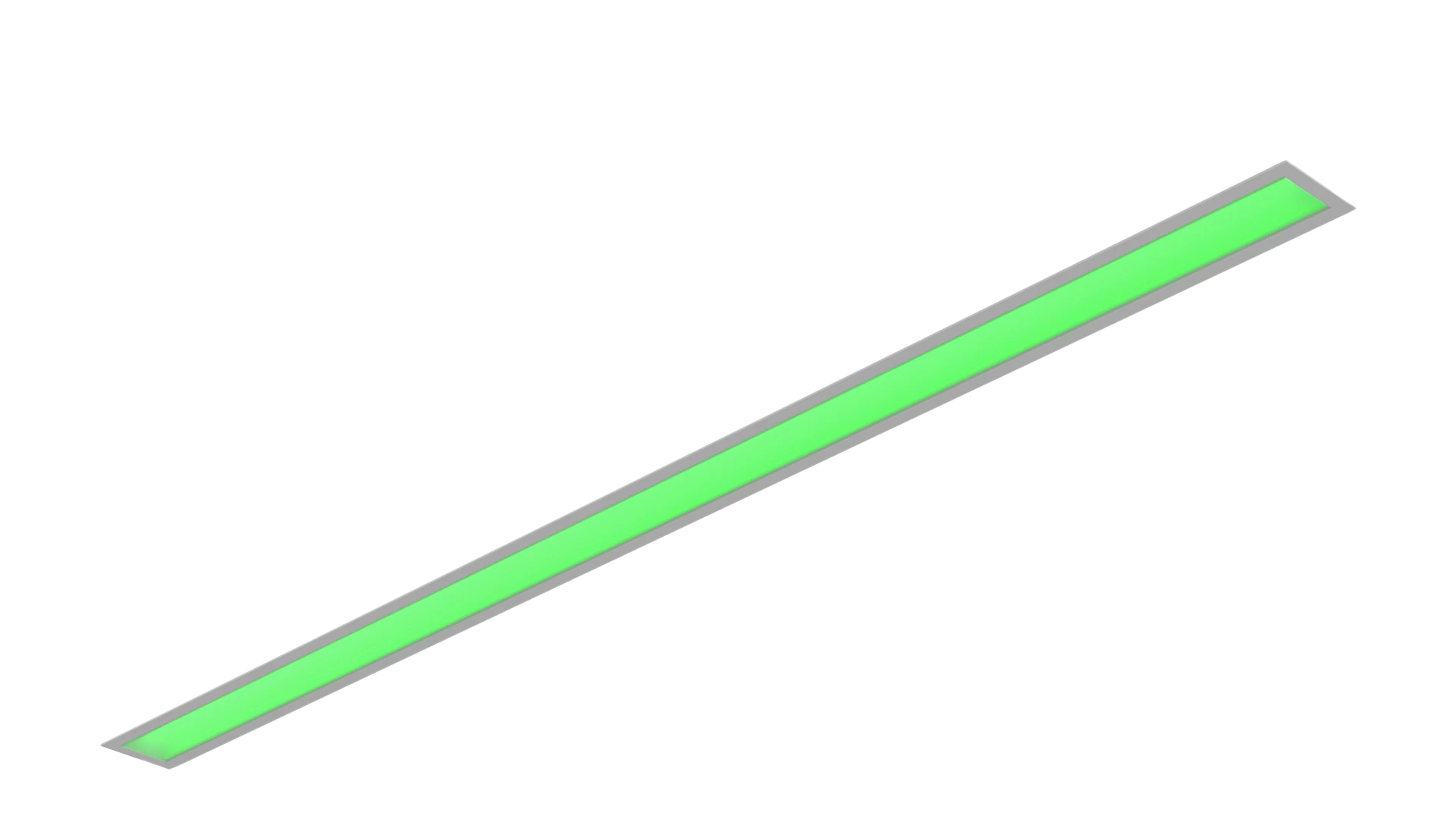

Runway Recessed RGBW

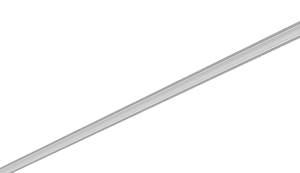

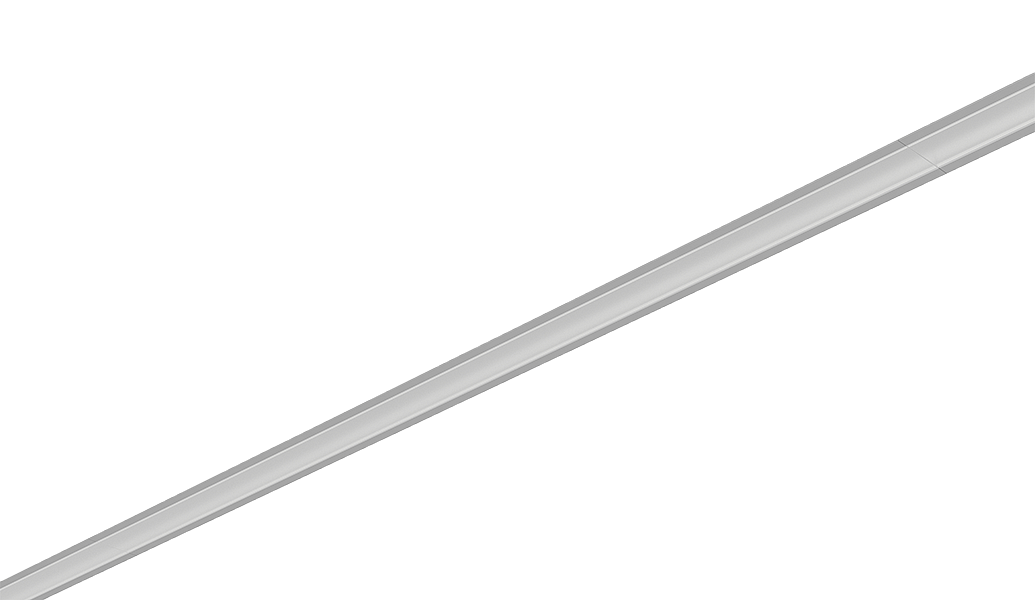

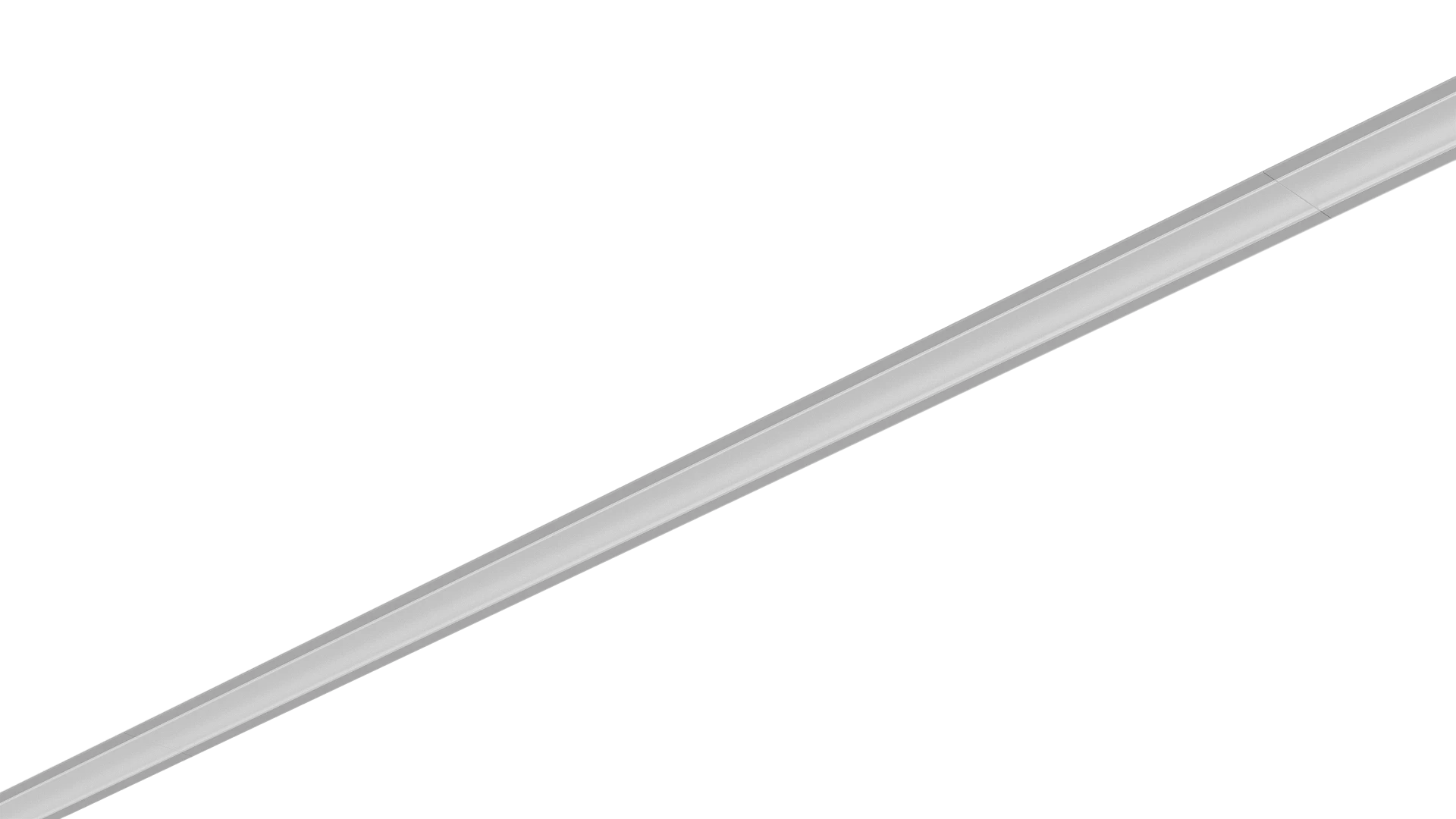

Runway Continuous Recessed RGBW in Grey

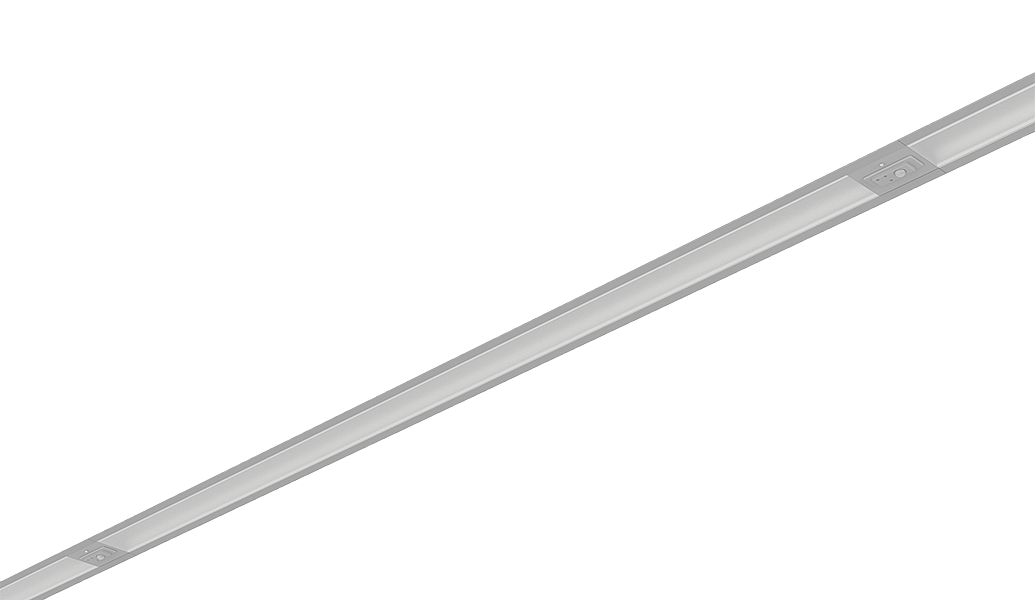

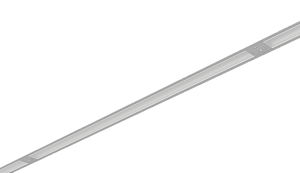

Runway Continuous Recessed RGBW in Grey with D44

Runway Continuous Recessed RGBW in Grey

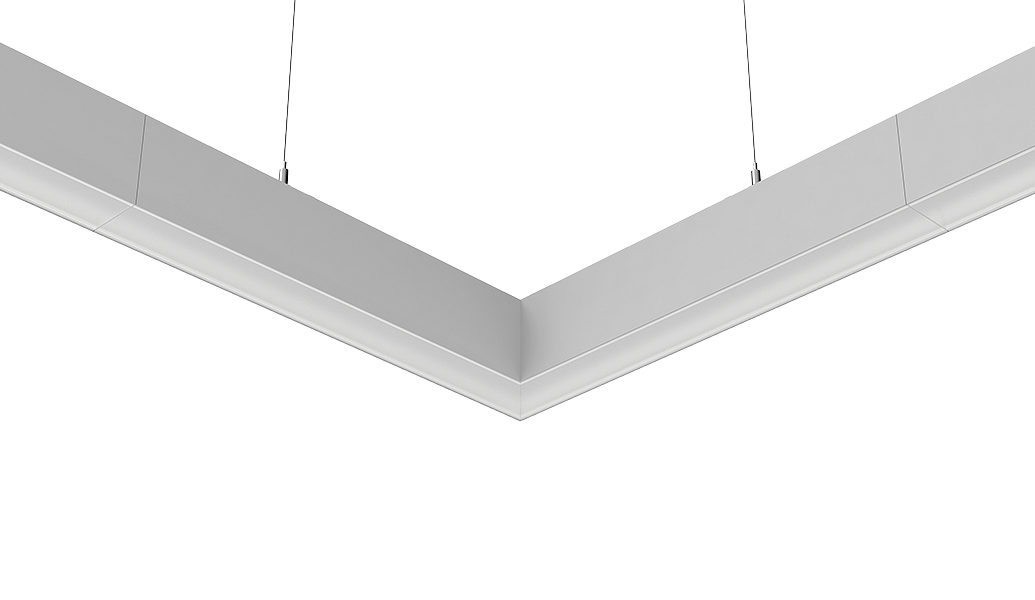

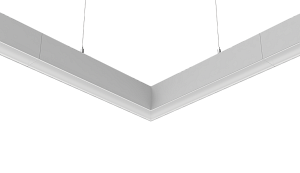

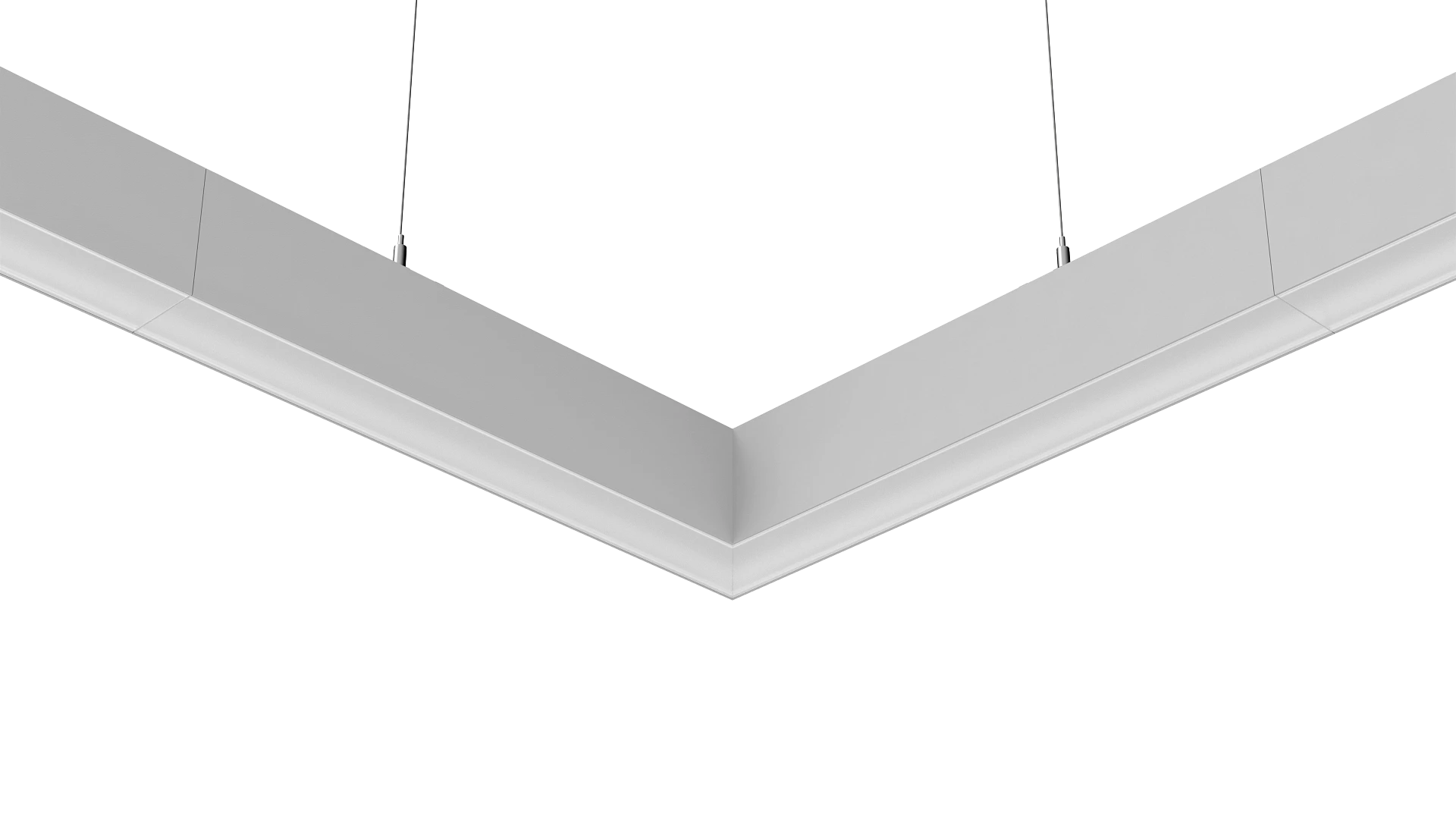

Runway Continuous Corner RGBWSuspended in Grey

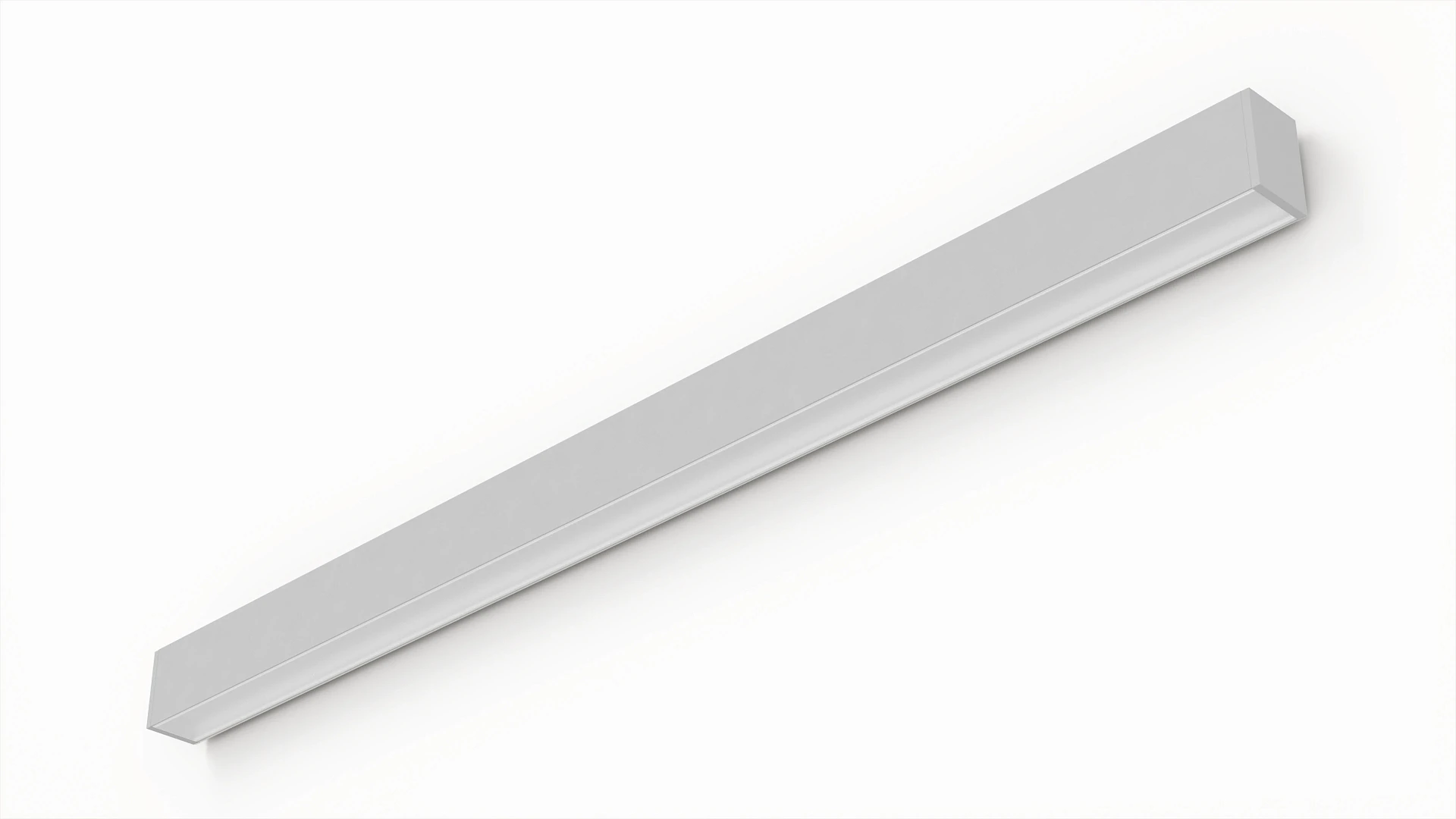

Runway Wall in Grey

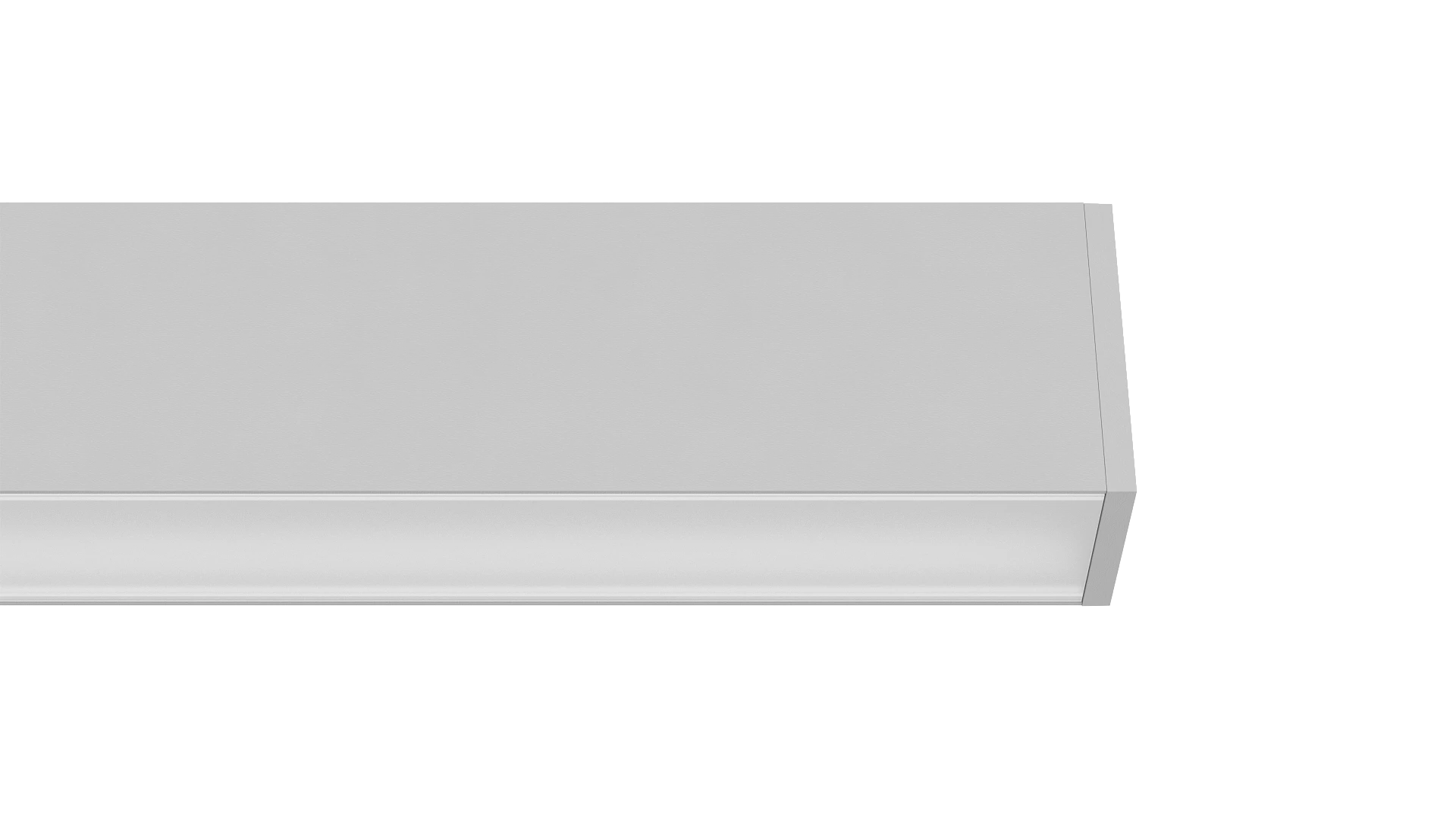

Runway RGBW in Grey

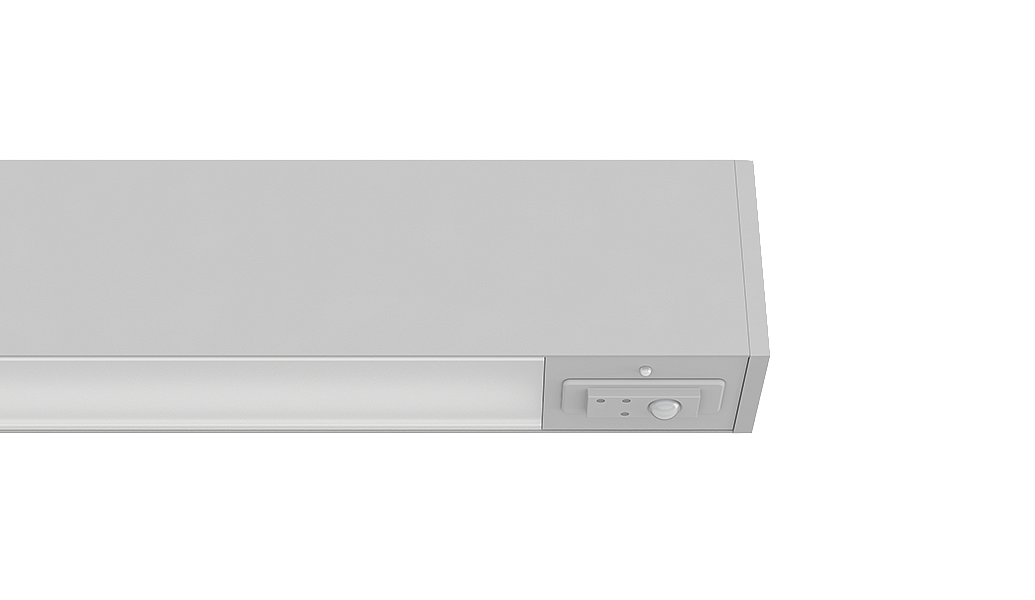

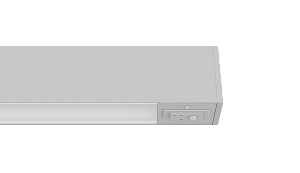

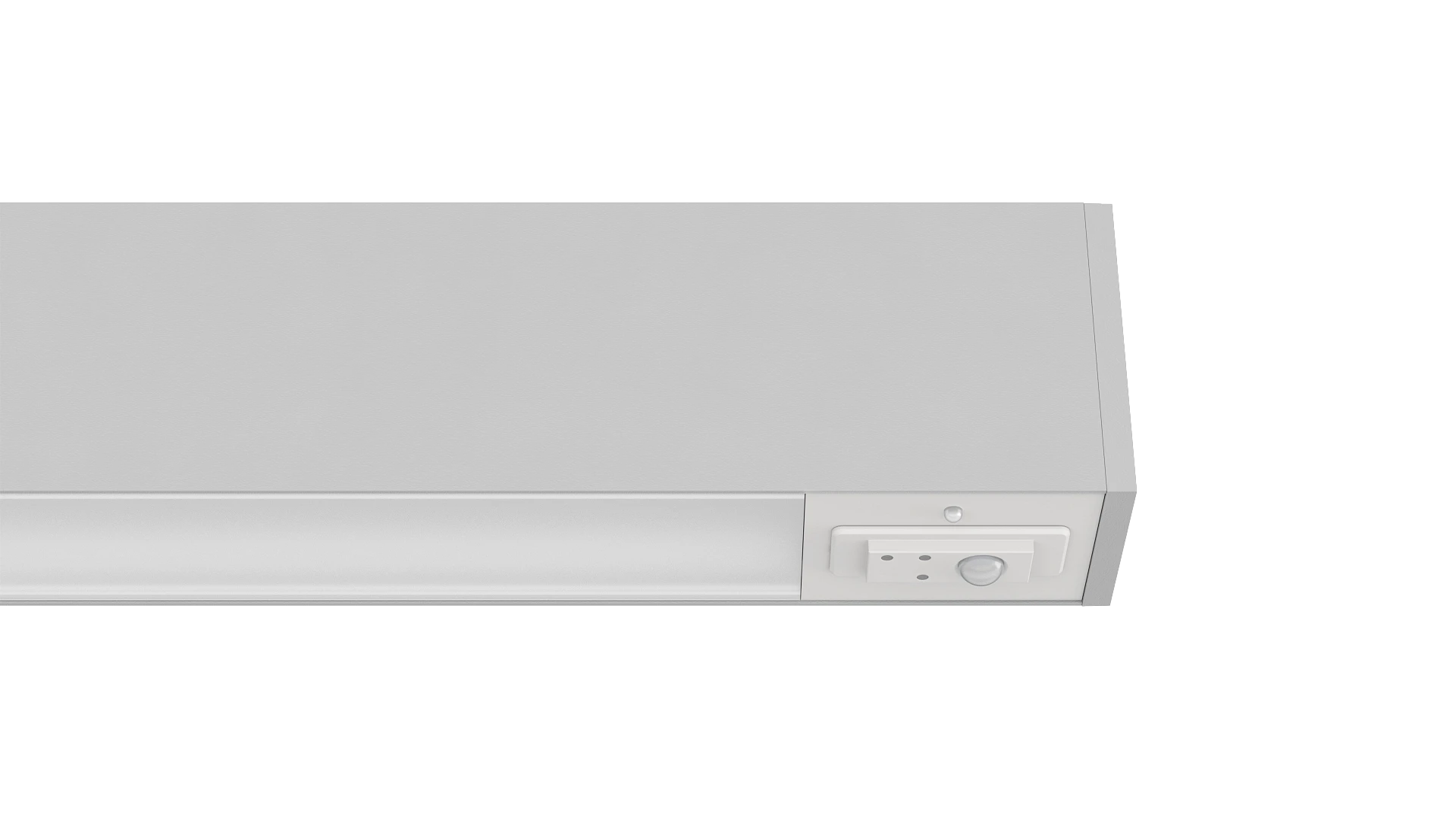

Runway RGBW in Grey with D44

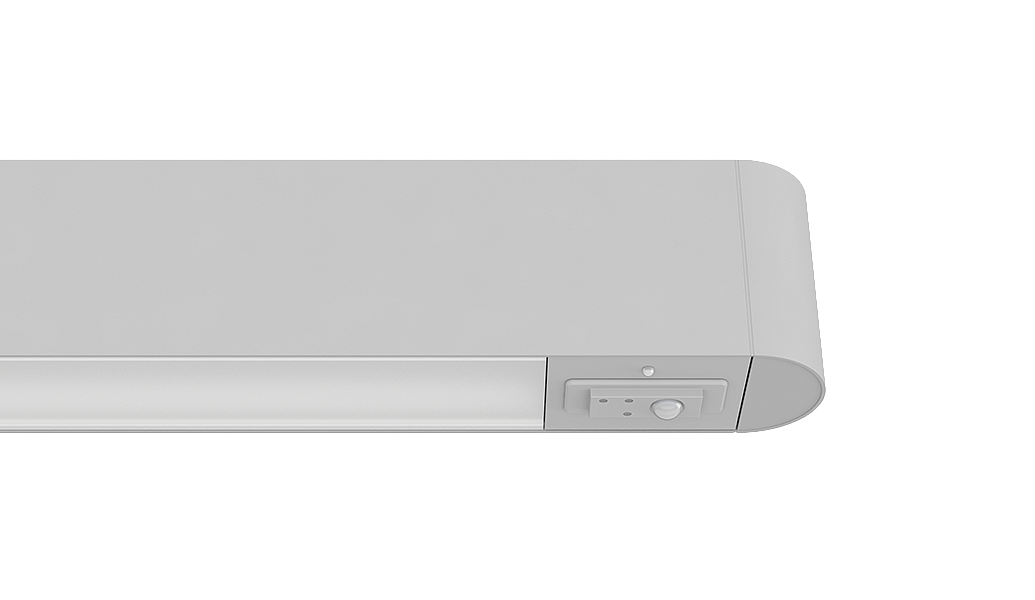

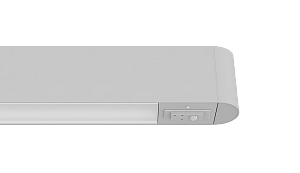

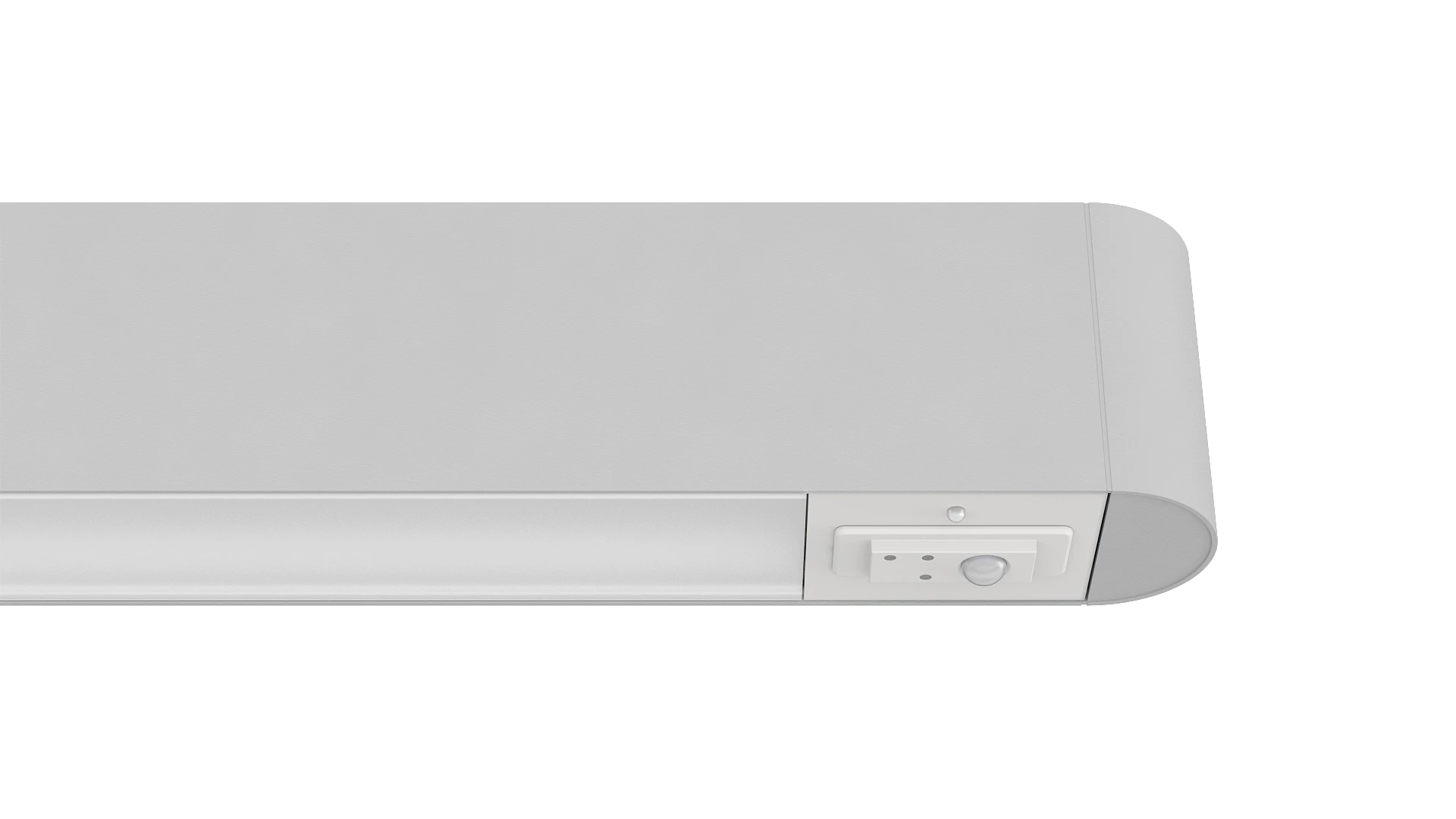

Runway Curve RGBW in Grey with D44

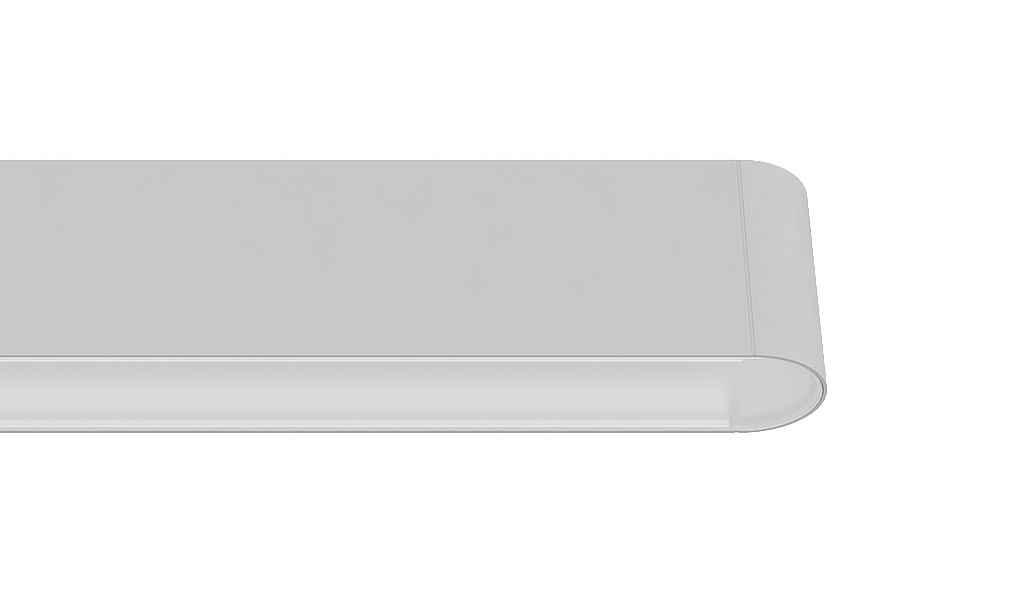

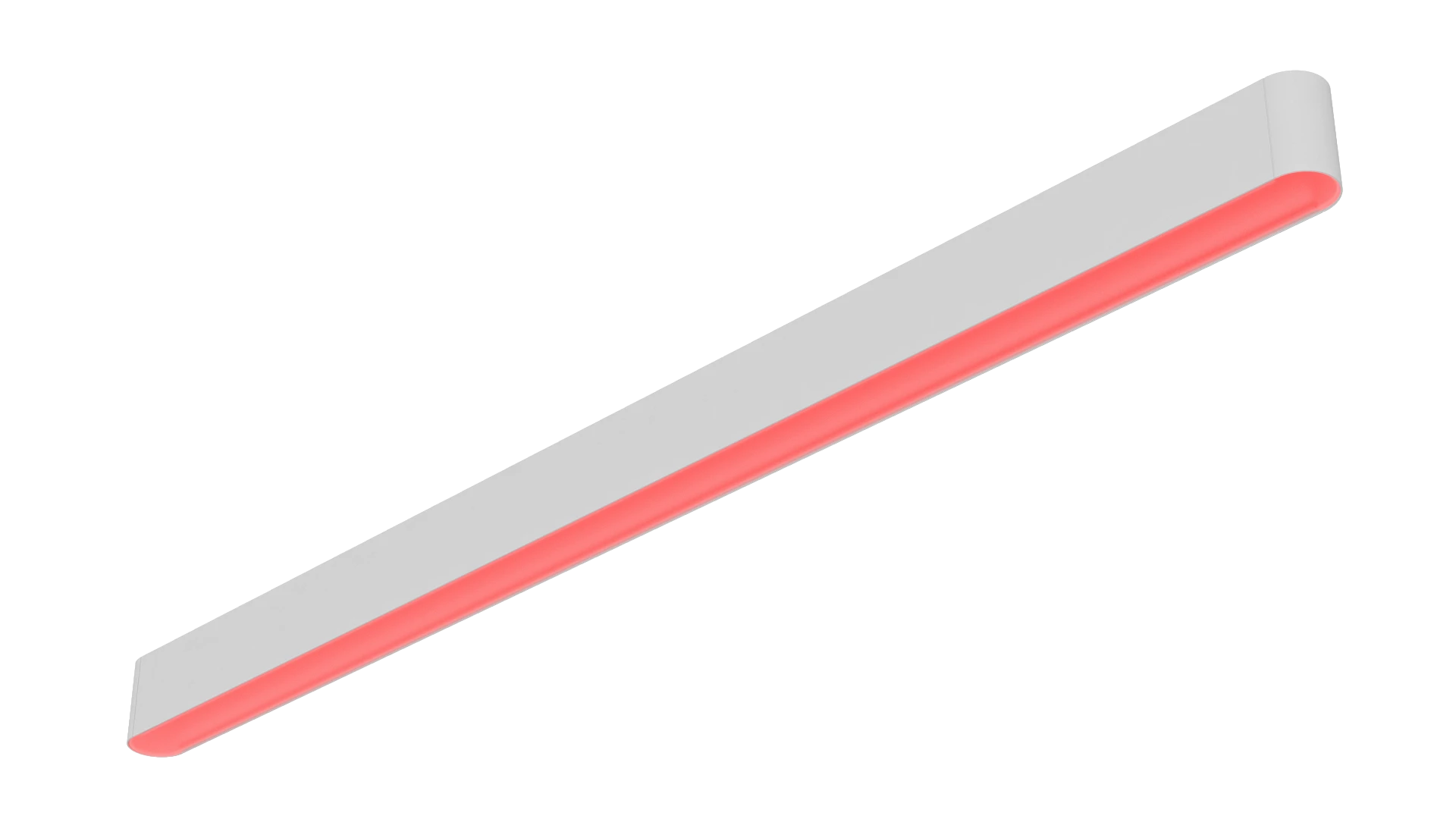

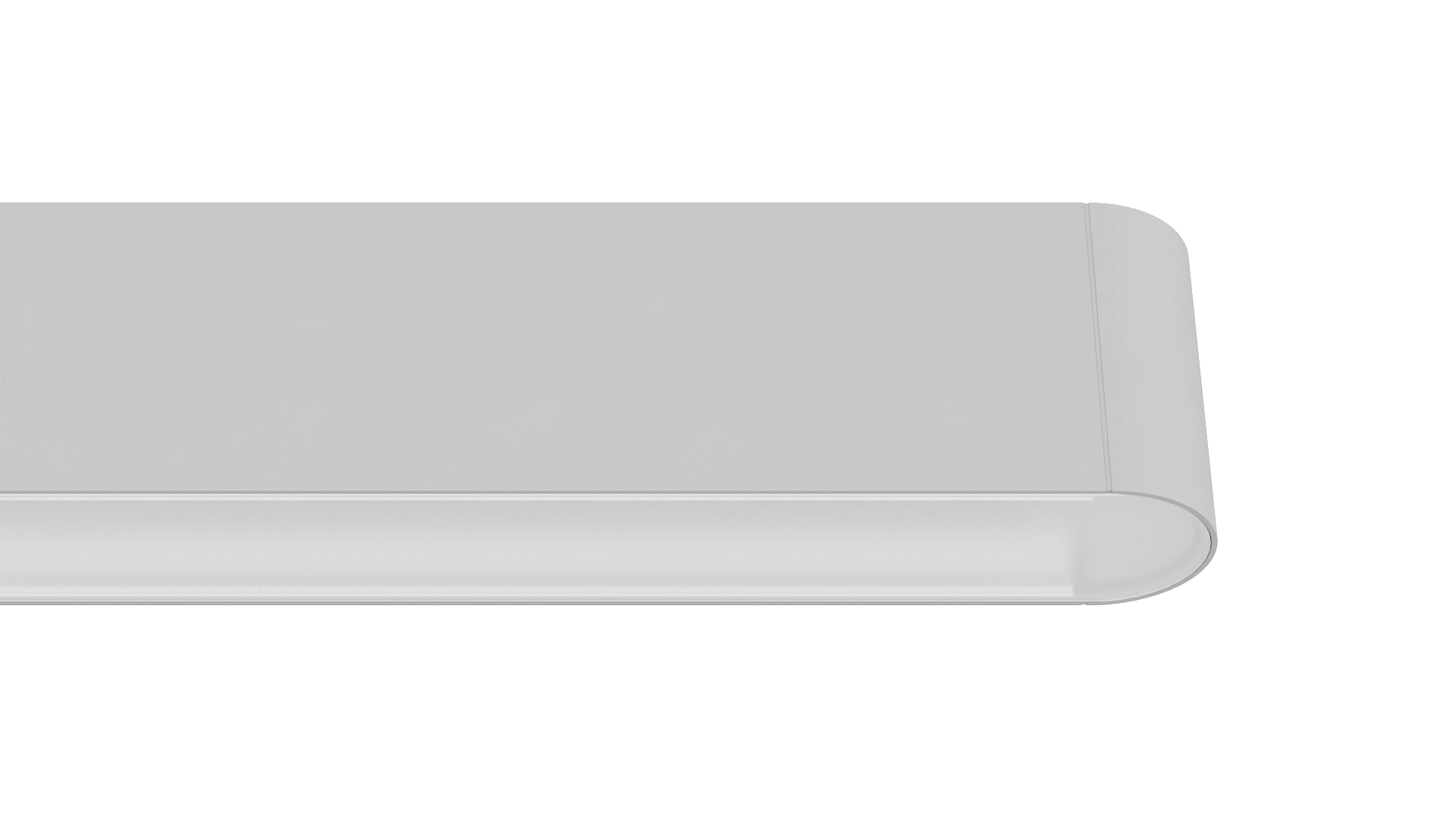

Runway Curve RGBW in Grey

Runway RGBW & RGBU

Case studies featuring Runway RGBW & RGBU

Technical

Runway Design Considerations

L15, L18, L22, L25 and L30 variants comply with BSEN 12464 3000 candela limit when used with MP diffuser in RGBU variants.
Bi-Directional RGBW is available in 1250mm lengths only and should only be used when suspended.
Autotest LA3 emergency and DALI Dimming will use common DALI BUS Cable. LA3 emergency can not be combined with other dimming types.
Where luminaire lumen and lumen per watt figures are published these relate to the opal diffuser variants in the white channel only.
Where colour temperature and rendering are specified in a part code, for example C84, this relates to the white channel.
Two suspension kits are required for the first trunking section in the run and one in each consecutive trunking section.
Bi-Directional variants have differing spaces between up-light optics between different lengths, care should be taken when they are mixed in the same area to ensure up-light distribution is even. A suspension length of 500mm or greater will result in even light distribution on the ceiling even where trunking lengths differ.
Gear trays must be matched to the trunking length, 1000mm, 1250mm, 1500mm, 1750mm and 2000mm trunking will only accept the corresponding sized tray. Use 2X 1500mm trays with 3000mm trunking and 2X 2000mm trays with 4000mm trunking.
When using longer trunking lengths please ensure that there is suitable access to the building to allow the trunking to be taken to the installation location.
Please note that in sensor variants of the Runway Curve the diffuser is only curved at one end.
1250mm variants can not accommodate sensor or emergency.
1500mm variants can accommodate sensor but not emergency.
Emergency can only be offered in 1750mm RGBW variants and can be combined with sensor.
Emergency can only be offered in 1750mm and 2000mm RGBU variants and can be combined with sensor.
2000mm variants are only available in RGBU.
Corner units can not accommodate emergency.
RGBW and RGBU include DALI as standard for all colour channels in all variants.
RGBW variants are only available with opal diffusers.
Not available with integral sensors or wireless controls.
Emergency will only operate white channel.
RW INSTALL KIT must be supplied with each continuous run order.
Wall mounted versions are only available in downlight and RGBW versions

Runway Surface & Suspended Continuous

Runway Surface & Suspended

Runway Recessed Continuous

Runway Recessed

Runway Curve

Runway Surface & Suspended Continuous corner

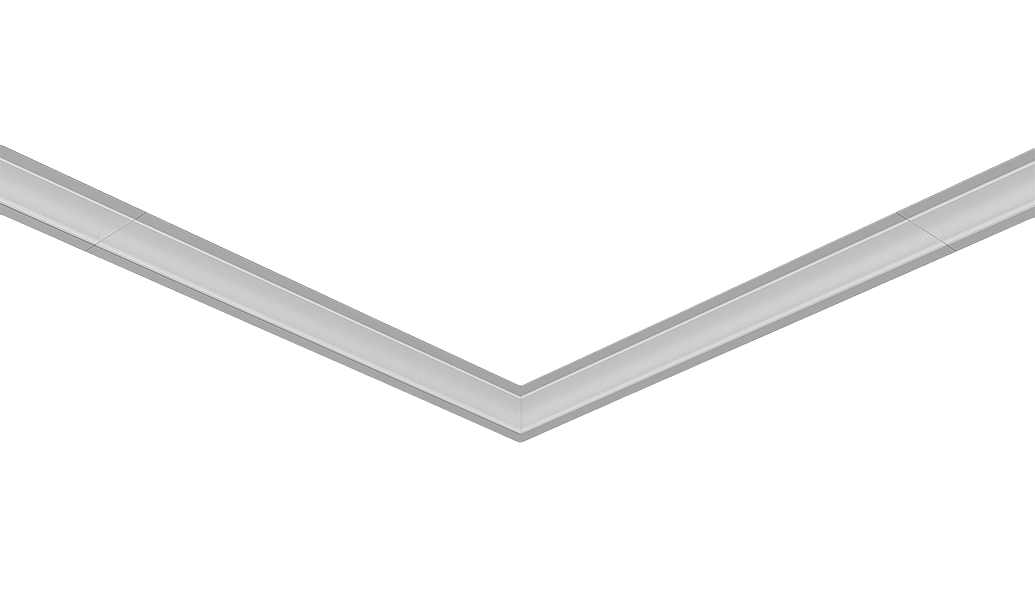

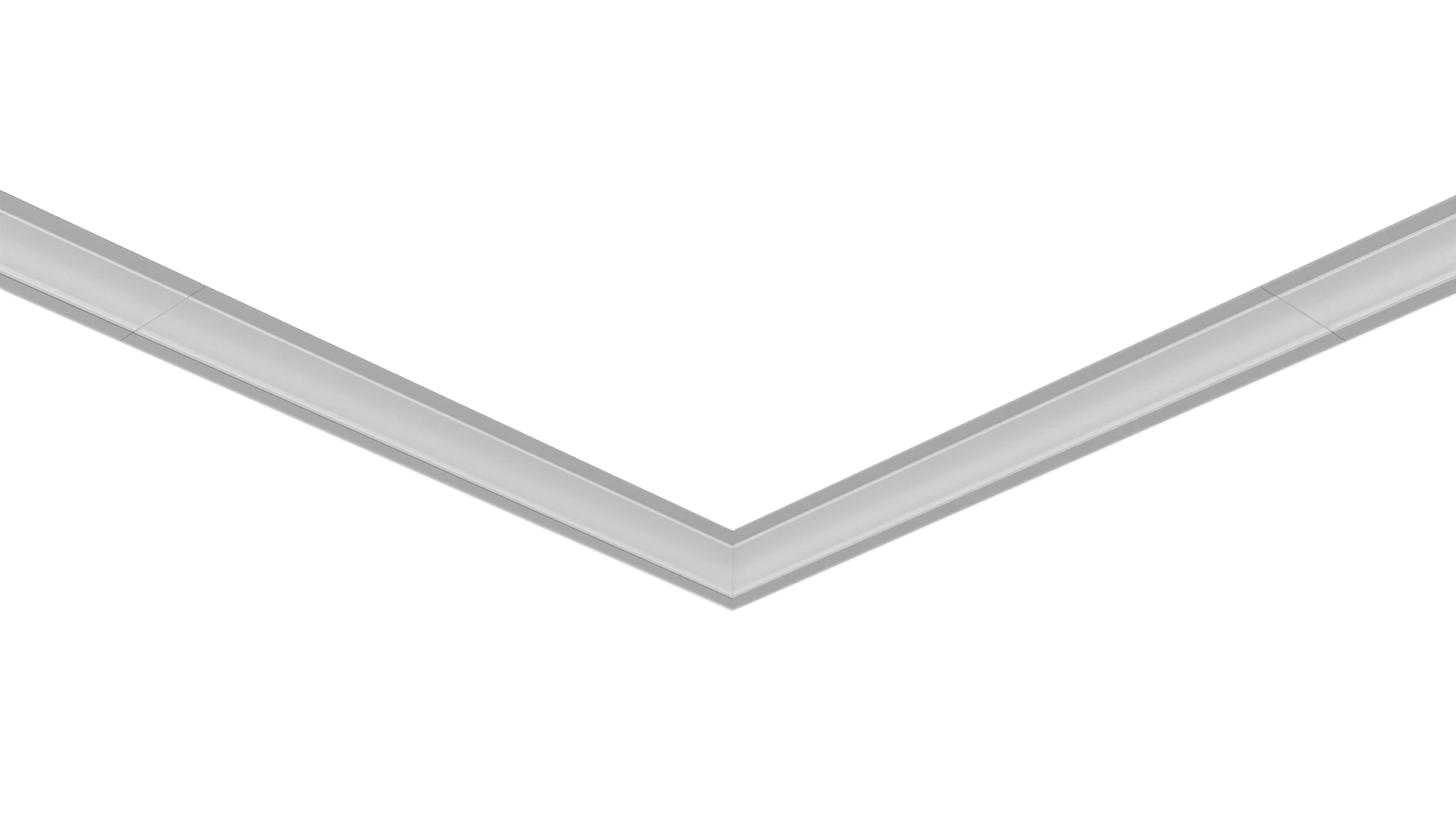

Runway Recessed Continuous corner

Runway Wall Standalone

Runway Wall Curve

Runway Wall Continuous

Runway RGBW Surface & Suspended Continuous corner

Runway RGBW Recessed Continuous corner

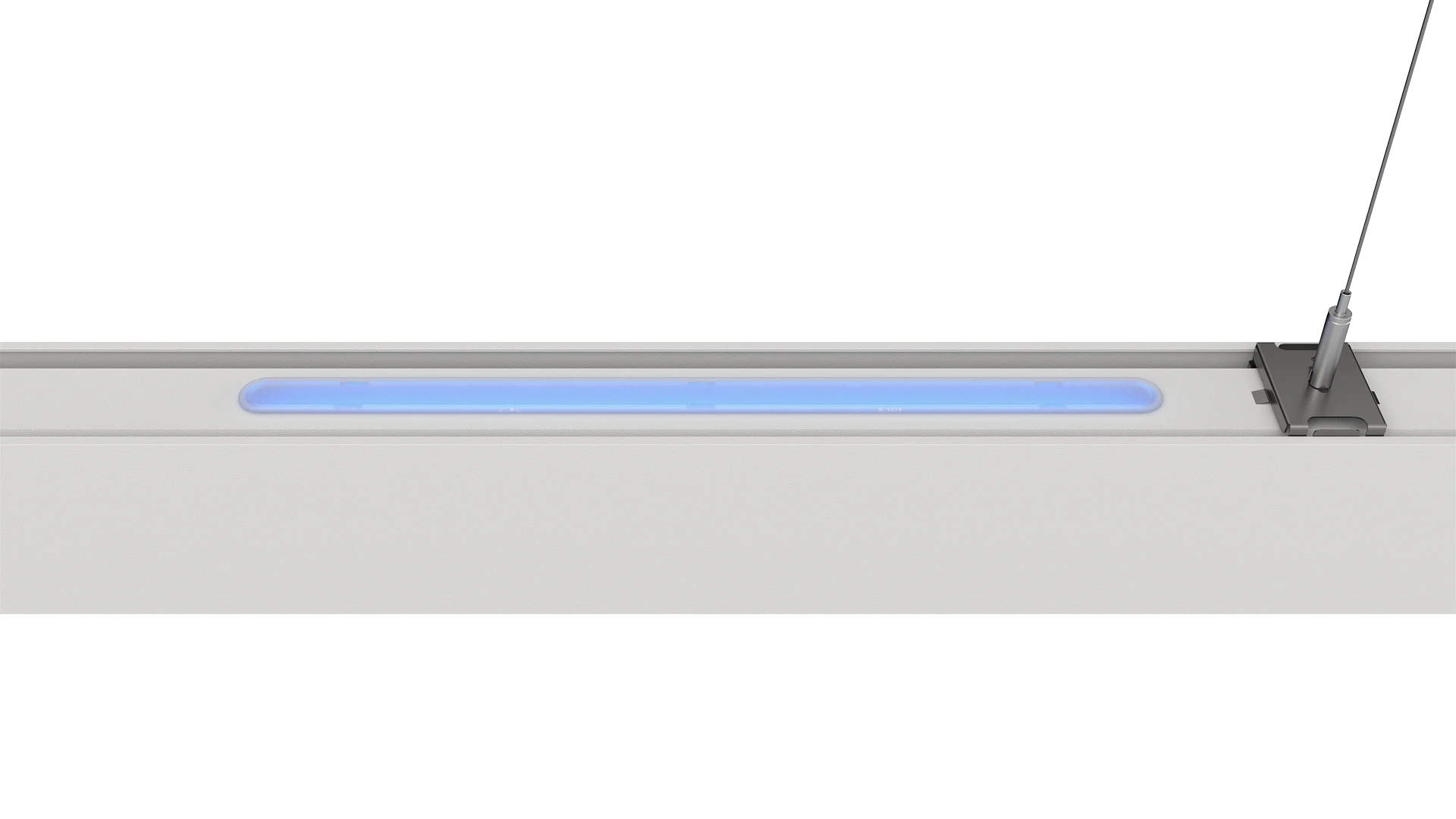

Runway Bi-Directional Uplight

Runway 2026 Layout Diagram A

Runway 2026 Layout Diagram B

Runway 2026 Layout Diagram C

Runway 2026 Layout Diagram D

Runway 2026 Layout Diagram E

Runway 2026 Layout Diagram F

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

RGBW

Code	Description	Power	Llm/W
RS12 RGBW L18 GY	Runway, 1250mm, 1,098llm, RGBW, Opal, Grey, Colour 84	10.0W	110
RS12 RGBW L25 GY	Runway, 1250mm, 1,614llm, RGBW, Opal, Grey, Colour 84	12.9W	125
RS12 RGBW L37 GY	Runway, 1250mm, 2,389llm, RGBW, Opal, Grey, Colour 84	18.6W	128
RS12 RGBW L53 BD GY	Runway, 1250mm, 3,392llm, RGBW, Bi-Directional, Opal, Grey, Colour 84	26.9W	126
RS15 RGBW L45 GY	Runway, 1500mm, 2,921llm, RGBW, Opal, Grey, Colour 84	23.0W	127
RS17 RGBW L53 GY	Runway, 1750mm, 3,436llm, RGBW, Opal, Grey, Colour 84	26.9W	128

RGB UP

Code	Description	Power	Llm/W
RS12 RGBU L18 ** GY	Runway, 1250mm, 1,090llm, RGB Up, ** Select Diffuser, Grey, Colour 84	10.0W	109
RS12 RGBU L25 ** GY	Runway, 1250mm, 1,600llm, RGB Up, ** Select Diffuser, Grey, Colour 84	13.0W	123
RS12 RGBU L37 ** GY	Runway, 1250mm, 2,370llm ,RGB Up, ** Select Diffuser, Grey, Colour 84	18.8W	126
RS15 RGBU L22 ** GY	Runway, 1500mm, 1,410llm, RGB Up, ** Select Diffuser, Grey, Colour 84	12.0W	118
RS15 RGBU L30 ** GY	Runway, 1500mm, 1,920llm, RGB Up, ** Select Diffuser, Grey, Colour 84	15.0W	128
RS15 RGBU L45** GY	Runway, 1500mm, 2,880llm, RGB Up, ** Select Diffuser, Grey, Colour 84	18.0W	160
RS17 RGBU L26 ** GY	Runway, 1750mm, 1,603llm, RGB Up, ** Select Diffuser, Grey, Colour 84	13.5W	118
RS17 RGBU L35 ** GY	Runway, 1750mm, 2,240llm, RGB Up, ** Select Diffuser, Grey, Colour 84	17.7W	127
RS17 RGBU L53 ** GY	Runway, 1750mm, 3,325llm, RGB Up, ** Select Diffuser, Grey, Colour 84	25.8W	129
RS20 RGBU L30 ** GY	Runway, 2000mm, 2,045llm, RGB Up, ** Select Diffuser, Grey, Colour 84	15.3W	134
RS20 RGBU L40 ** GY	Runway, 2000mm, 2,560llm, RGB Up, ** Select Diffuser, Grey, Colour 84	20.0W	128
RS20 RGBU L60 ** GY	Runway, 2000mm, 3,840llm, RGB Up, ** Select Diffuser, Grey, Colour 84	30.0W	128
RS30 RGBU L44 ** GY	Runway, 3000mm, 4,400lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RS30 RGBU L60 ** GY	Runway, 3000mm, 6,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RS30 RGBU L90 ** GY	Runway, 3000mm, 9,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RS40 RGBU L60 ** GY	Runway, 4000mm, 6,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RS40 RGBU L80 ** GY	Runway, 4000mm, 8,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RS40 RGBU L120 ** GY	Runway, 4000mm, 12,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK STANDALONE	Runway Standalone Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
LSF	Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Luminaires

SURFACE & SUSPENDED CONTINUOUS

Code	Description
RS12 ST	Runway Trunking 1250mm, Surface / Suspended, Downlight, Start,
RS12 TW	Runway Trunking 1250mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS15 ST	Runway Trunking 1500mm, Surface / Suspended, Downlight, Start
RS15 TW	Runway Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS17 ST	Runway Trunking 1750mm, Surface / Suspended, Downlight, Start
RS17 TW	Runway Trunking 1750mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS20 ST	Runway Trunking 2000mm, Surface / Suspended, Downlight, Start
RS20 TW	Runway Trunking 2000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS30 ST	Runway Trunking 3000mm, Surface / Suspended, Downlight, Start
RS30 TW	Runway Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS12 ST BD	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Start
RS12 TW BD	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS15 ST BD	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Start
RS15 TW BD	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS17 ST BD	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Start
RS17 TW BD	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS20 ST BD	Runway Trunking 2000mm, Surface / Suspended, B-Directional, Start
RS20 TW BD	Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS30 ST BD	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Start
RS30 TW BD	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS40 ST BD	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Start
RS40 TW BD	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run

CONTINUOUS RUN GEAR TRAY - LOW OUPUT

Code	Description
RGB Up
RW12 RGBU L18 TW	Runway Tray, 1250mm, 1,800lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L18 ER	Runway Tray, 1250mm, 1,800lm, RGB Up, End of Run, Colour 84
RW15 RGBU L22 TW	Runway Tray, 1500mm, 2,200lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L22 ER	Runway Tray, 1500mm, 2,200lm, RGB Up, End of Run, Colour 84
RW17 RGBU L26 TW	Runway Tray, 1750mm, 2,600lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L26 ER	Runway Tray, 1750mm, 2,600lm, RGB Up, End of Run, Colour 84
RW20 RGBU L30 TW	Runway Tray, 2000mm, 3,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L30 ER	Runway Tray, 2000mm, 3,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L22 TW ** L GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L22 ER ** L GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L22 TW ** R GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L22 ER ** R GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - MEDIUM OUTPUT

Code	Description
RGB Up
RW12 RGBU L25 TW	Runway Tray, 1250mm, 2,500lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L25 ER	Runway Tray, 1250mm, 2,500lm, RGB Up, End of Run, Colour 84
RW15 RGBU L30 TW	Runway Tray, 1500mm, 3,000lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L30 ER	Runway Tray, 1500mm, 3,000lm, RGB Up, End of Run, Colour 84
RW17 RGBU L35 TW	Runway Tray, 1750mm, 3,500lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L35 ER	Runway Tray, 1750mm, 3,500lm, RGB Up, End of Run, Colour 84
RW20 RGBU L40 TW	Runway Tray, 2000mm, 4,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L40 ER	Runway Tray, 2000mm, 4,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L30 TW ** L GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L30 ER ** L GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L30 TW ** R GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L30 ER ** R GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - HIGH OUTPUT

Code	Description
RGBW
RW12 RGBW L37 TW	Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 RGBW L37 ER	Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW12 RGBW L53 TW BD	Runway Tray, 1250mm, 5,300lm, Through Wire, Bi-Directional, Colour 84
RW12 RGBW L53 ER BD	Runway Tray, 1250mm, 5,300lm, End of Run, Bi-Directional, Colour 84
RW15 RGBW L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 RGBW L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW17 RGBW L53 TW	Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 RGBW L53 ER	Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RSCO RGBW L45 TW ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, ** Select Diffuser, Opal, Left, Grey, Colour 84
RSCO RGBW L45 ER ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, End of Run, ** Select Diffuser, Opal, Left, Grey, Colour 84
RSCO RGBW L45 TW ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, ** Select Diffuser, Opal, Right, Grey, Colour 84
RSCO RGBW L45 ER ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, End of Run, ** Select Diffuser, Opal, Right, Grey, Colour 84

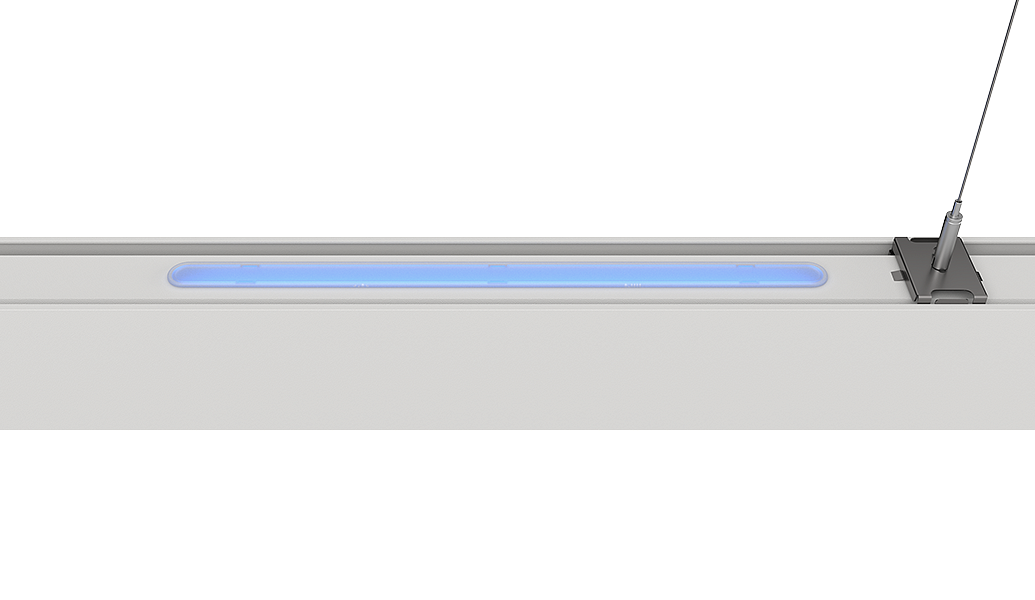

RGB Up
RW12 RGBU L37 TW	Runway Tray, 1250mm, 3,700lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L37 ER	Runway Tray, 1250mm, 3,700lm, RGB Up, End of Run, Colour 84
RW15 RGBU L45 TW	Runway Tray, 1500mm, 4,500lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L45 ER	Runway Tray, 1500mm, 4,500lm, RGB Up, End of Run, Colour 84
RW17 RGBU L53 TW	Runway Tray, 1750mm, 5,300lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L53 ER	Runway Tray, 1750mm, 5,300lm, RGB Up, End of Run, Colour 84
RW20 RGBU L60 TW	Runway Tray, 2000mm, 6,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L60 ER	Runway Tray, 2000mm, 6,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L45 TW ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L45 ER ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L45 TW ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L45 ER ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Optic

Code	Description
RW12 OP	Runway 1250mm Diffuser, Opal
RW12 MP	Runway 1250mm Diffuser, Microprism
RW12 Z20 OP	Runway 1250mm Diffuser, RCS Sensor, Opal
RW12 Z20 MP	Runway 1250mm Diffuser, RCS Sensor, Microprism

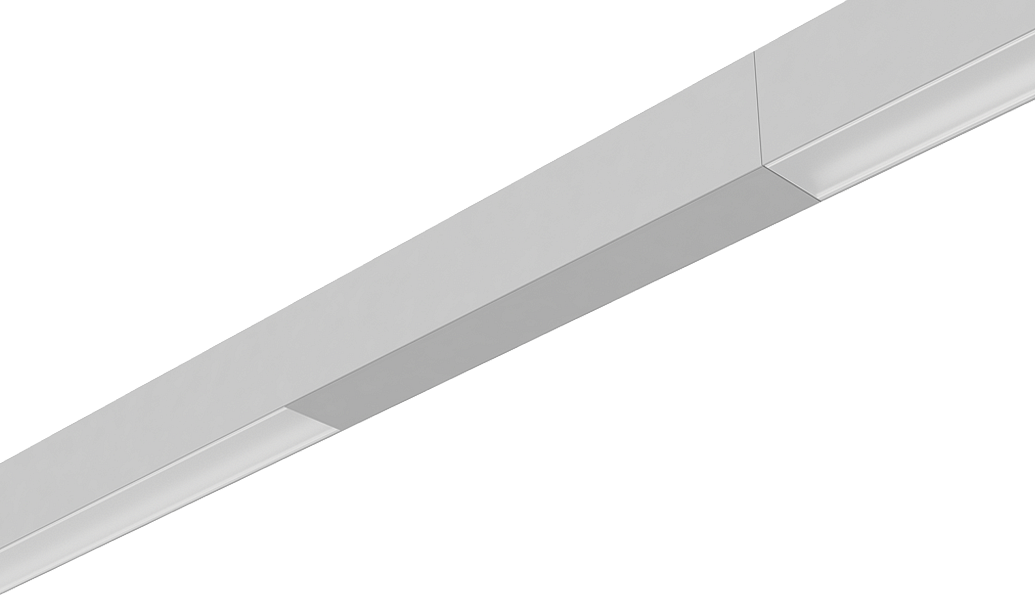

RW12 INFILL TW	Runway 1250mm Infill, Through Wire
RW15 OP	Runway 1500mm Diffuser, Opal
RW15 MP	Runway 1500mm Diffuser, Microprism
RW15 Z20 OP	Runway 1500mm Diffuser, RCS Sensor, Opal
RW15 Z20 MP	Runway 1500mm Diffuser, RCS Sensor, Microprism
RW15 INFILL TW	Runway 1500mm Infill, Through Wire
RW17 OP	Runway 1750mm Diffuser, Opal
RW17 MP	Runway 1750mm Diffuser, Microprism
RW17 Z20 OP	Runway 1750mm Diffuser, RCS Sensor, Opal
RW17 Z20 MP	Runway 1750mm Diffuser, RCS Sensor, Microprism
RW17 INFILL TW	Runway 1750mm Infill, Through Wire
RW20 OP	Runway 2000mm Diffuser, Opal
RW20 MP	Runway 2000mm Diffuser, Microprism
RW20 Z20 OP	Runway 2000mm Diffuser, RCS Sensor, Opal
RW20 Z20 MP	Runway 2000mm Diffuser, RCS Sensor, Microprism
RW20 INFILL TW	Runway 2000mm Infill, Through Wire
RW30 OP	Runway 3000mm Diffuser, Opal
RW30 MP	Runway 3000mm Diffuser, Microprism
RW40 OP	Runway 4000mm Diffuser, Opal
RW40 MP	Runway 4000mm Diffuser, Microprism
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK CONTINUOUS	Runway Continuous Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen

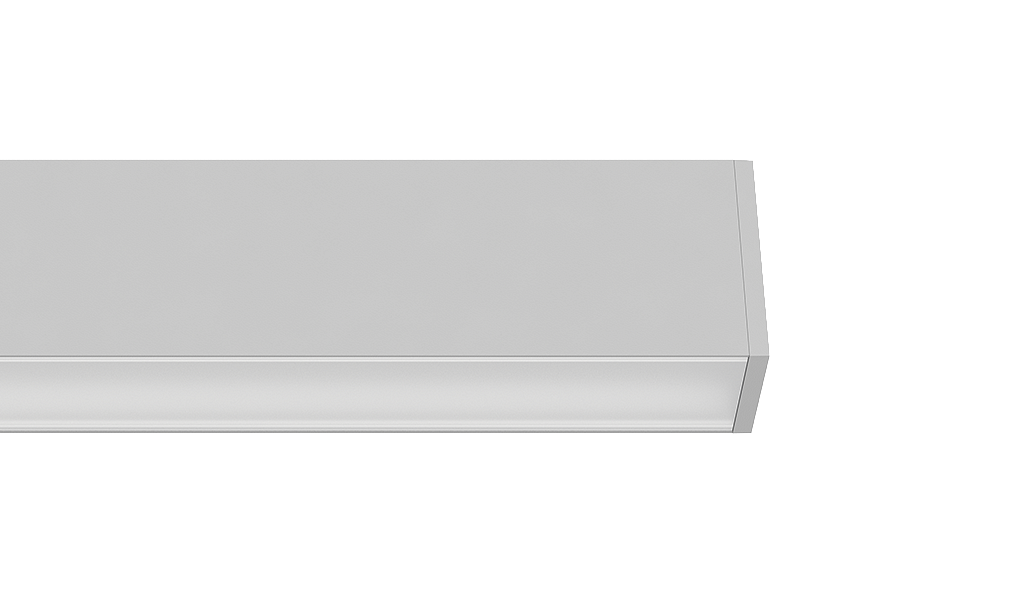

RS EC **	Runway End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Luminaires

RGBW

Code	Description	Power	Llm/W
RC12 RGBW L18 GY	Runway Curve, 1250mm, 1,098llm, RGBW, Opal, Grey, Colour 84	10.0W	110
RC12 RGBW L25 GY	Runway Curve, 1250mm, 1,614llm, RGBW, Opal, Grey, Colour 84	12.9W	125
RC12 RGBW L37 GY	Runway Curve, 1250mm, 2,389llm, RGBW, Opal, Grey, Colour 84	18.6W	128
RC12 RGBW L53 BD GY	Runway Curve, 1250mm, 3,392llm, RGBW, Bi-Directional, Opal, Grey, Colour 84	26.9W	126
RC15 RGBW L45 GY	Runway Curve, 1500mm, 2,921llm, RGBW, Opal, Grey, Colour 84	23.0W	127
RC17 RGBW L53 GY	Runway Curve, 1750mm, 3,436llm, RGBW, Opal, Grey, Colour 84	26.9W	128

RGB UP

Code	Description	Power	Llm/W
RC12 RGBU L18 ** GY	Runway Curve, 1250mm, 1,090llm, RGB Up, ** Select Diffuser, Grey, Colour 84	10.0W	109
RC12 RGBU L25 ** GY	Runway Curve, 1250mm, 1,600llm, RGB Up, ** Select Diffuser, Grey, Colour 84	13.0W	123
RC12 RGBU L37 ** GY	Runway Curve, 1250mm, 2,370llm ,RGB Up, ** Select Diffuser, Grey, Colour 84	20.0W	119
RC15 RGBU L22 ** GY	Runway Curve, 1500mm, 1,410llm, RGB Up, ** Select Diffuser, Grey, Colour 84	12.0W	118
RC15 RGBU L30 ** GY	Runway Curve, 1500mm, 1,920llm, RGB Up, ** Select Diffuser, Grey, Colour 84	15.0W	128
RC15 RGBU L45** GY	Runway Curve, 1500mm, 2,880llm, RGB Up, ** Select Diffuser, Grey, Colour 84	18.0W	160
RC17 RGBU L25 ** GY	Runway Curve, 1750mm, 1,603llm, RGB Up, ** Select Diffuser, Grey, Colour 84	13.5W	119
RC17 RGBU L35 ** GY	Runway Curve, 1750mm, 2,240llm, RGB Up, ** Select Diffuser, Grey, Colour 84	17.7W	127
RC17 RGBU L53 ** GY	Runway Curve, 1750mm, 3,325llm, RGB Up, ** Select Diffuser, Grey, Colour 84	25.8W	129
RC20 RGBU L30 ** GY	Runway Curve, 2000mm, 2,045llm, RGB Up, ** Select Diffuser, Grey, Colour 84	15.3W	134
RC20 RGBU L40 ** GY	Runway Curve, 2000mm, 2,560llm, RGB Up, ** Select Diffuser, Grey, Colour 84	20.0W	128
RC20 RGBU L60 ** GY	Runway Curve, 2000mm, 3,840llm, RGB Up, ** Select Diffuser, Grey, Colour 84	30.0W	128
RC30 RGBU L44 ** GY	Runway Curve, 3000mm, 4,400lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RC30 RGBU L60 ** GY	Runway Curve, 3000mm, 6,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RC30 RGBU L90 ** GY	Runway Curve, 3000mm, 9,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RC40 RGBU L60 ** GY	Runway Curve, 4000mm, 6,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RC40 RGBU L80 ** GY	Runway Curve, 4000mm, 8,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84
RC40 RGBU L120 ** GY	Runway Curve, 4000mm, 12,000lm, RGB Up, ** Select Diffuser, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK STANDALONE	Runway Standalone Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
LSF	Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Luminaires

CURVE CONTINUOUS

Code	Description
RS12 TW	Runway Trunking 1250mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS12 ST	Runway Trunking 1250mm, Surface / Suspended, Downlight, Start,
RS12 TW BD	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS12 ST BD	Runway Trunking 1250mm, Surface / Suspended, Bi-Directional, Start
RS15 TW	Runway Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS15 ST	Runway Trunking 1500mm, Surface / Suspended, Downlight, Start
RS15 TW BD	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS15 ST BD	Runway Trunking 1500mm, Surface / Suspended, Bi-Directional, Start
RS17 TW	Runway Trunking 1750mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS17 ST	Runway Trunking 1750mm, Surface / Suspended, Downlight, Start
RS17 TW BD	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS17 ST BD	Runway Trunking 1750mm, Surface / Suspended, Bi-Directional, Start
RS20 TW	Runway Trunking 2000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS20 ST	Runway Trunking 2000mm, Surface / Suspended, Downlight, Start
RS20 TW BD	Runway Trunking 2000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS20 ST BD	Runway Trunking 2000mm, Surface / Suspended, B-Directional, Start
RS30 TW	Runway Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run
RS30 ST	Runway Trunking 3000mm, Surface / Suspended, Downlight, Start
RS30 TW BD	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS30 ST BD	Runway Trunking 3000mm, Surface / Suspended, Bi-Directional, Start
RS40 TW BD	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Through Wire and End of Run
RS40 ST BD	Runway Trunking 4000mm, Surface / Suspended, Bi-Directional, Start

CONTINUOUS RUN GEAR TRAY - Low Output

Code	Description
RGB Up
RW12 RGBU L18 TW	Runway Tray, 1250mm, 1,800lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L18 ER	Runway Tray, 1250mm, 1,800lm, RGB Up, End of Run, Colour 84
RW15 RGBU L22 TW	Runway Tray, 1500mm, 2,200lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L22 ER	Runway Tray, 1500mm, 2,200lm, RGB Up, End of Run, Colour 84
RW17 RGBU L26 TW	Runway Tray, 1750mm, 2,600lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L26 ER	Runway Tray, 1750mm, 2,600lm, RGB Up, End of Run, Colour 84
RW20 RGBU L30 TW	Runway Tray, 2000mm, 3,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L30 ER	Runway Tray, 2000mm, 3,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L22 TW ** L GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L22 ER ** L GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L22 TW ** R GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L22 ER ** R GY	Runway Corner 90?, 750mm, 2,200lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - Medium Output

Code	Description
RGB Up
RW12 RGBU L25 TW	Runway Tray, 1250mm, 2,500lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L25 ER	Runway Tray, 1250mm, 2,500lm, RGB Up, End of Run, Colour 84
RW15 RGBU L30 TW	Runway Tray, 1500mm, 3,000lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L30 ER	Runway Tray, 1500mm, 3,000lm, RGB Up, End of Run, Colour 84
RW17 RGBU L35 TW	Runway Tray, 1750mm, 3,500lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L35 ER	Runway Tray, 1750mm, 3,500lm, RGB Up, End of Run, Colour 84
RW20 RGBU L40 TW	Runway Tray, 2000mm, 4,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L40 ER	Runway Tray, 2000mm, 4,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L30 TW ** L GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L30 ER ** L GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L30 TW ** R GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L30 ER ** R GY	Runway Corner 90?, 750mm, 3,000lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84

CONTINUOUS RUN GEAR TRAY - High Output

Code	Description
RGBW
RW12 RGBW L37 TW	Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 RGBW L37 ER	Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW12 RGBW L53 TW BD	Runway Tray, 1250mm, 5,300lm, Through Wire, Bi-Directional, Colour 84
RW12 RGBW L53 ER BD	Runway Tray, 1250mm, 5,300lm, End of Run, Bi-Directional, Colour 84
RW15 RGBW L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 RGBW L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW17 RGBW L53 TW	Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 RGBW L53 ER	Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RSCO RGBW L45 TW ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, Opal, Left, Grey, Colour 84
RSCO RGBW L45 ER ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, End of Run, Opal, Left, Grey, Colour 84
RSCO RGBW L45 TW ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, Opal, Right, Grey, Colour 84
RSCO RGBW L45 ER ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGBW, End of Run, Opal, Right, Grey, Colour 84
RGB Up
RW12 RGBU L37 TW	Runway Tray, 1250mm, 3,700lm, RGB Up, Through Wire, Colour 84
RW12 RGBU L37 ER	Runway Tray, 1250mm, 3,700lm, RGB Up, End of Run, Colour 84
RW15 RGBU L45 TW	Runway Tray, 1500mm, 4,500lm, RGB Up, Through Wire, Colour 84
RW15 RGBU L45 ER	Runway Tray, 1500mm, 4,500lm, RGB Up, End of Run, Colour 84
RW17 RGBU L53 TW	Runway Tray, 1750mm, 5,300lm, RGB Up, Through Wire, Colour 84
RW17 RGBU L53 ER	Runway Tray, 1750mm, 5,300lm, RGB Up, End of Run, Colour 84
RW20 RGBU L60 TW	Runway Tray, 2000mm, 6,000lm, RGB Up, Through Wire, Colour 84
RW20 RGBU L60 ER	Runway Tray, 2000mm, 6,000lm, RGB Up, End of Run, Colour 84
RSCO RGBU L45 TW ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, Through Wire, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L45 ER ** L GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, End of Run, ** Select Diffuser, Left, Grey, Colour 84
RSCO RGBU L45 TW ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, Through Wire, ** Select Diffuser, Right, Grey, Colour 84
RSCO RGBU L45 ER ** R GY	Runway Corner 90?, 750mm, 4,500lm, RGB Up, End of Run, ** Select Diffuser, Right, Grey, Colour 84

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Optic

Code	Description
RW12 OP	Runway 1250mm Diffuser, Opal, for mid run
RW12 MP	Runway 1250mm Diffuser, Microprism, for mid run
RC12 OP	Runway Curve 1250mm Diffuser, Opal, for end of run
RC12 MP	Runway Curve 1250mm Diffuser, Microprism, for end of run
RW12 Z20 OP	Runway 1250mm Diffuser, RCS Sensor, Opal mid run
RW12 Z20 MP	Runway 1250mm Diffuser, RCS Sensor, Microprism mid run
RC12 Z20 OP	Runway Curve 1250mm Diffuser, RCS Sensor, Opal end of run
RC12 Z20 MP	Runway Curve 1250mm Diffuser, RCS Sensor, Microprism end of run
RW12 INFILL TW	Runway 1250mm Infill, Through Wire
RW15 OP	Runway 1500mm Diffuser, Opal, for mid run
RW15 MP	Runway 1500mm Diffuser, Microprism, for mid run
RC15 OP	Runway Curve 1500mm Diffuser, Opal, for end of run
RC15 MP	Runway Curve 1500mm Diffuser, Microprism, for end of run
RW15 Z20 OP	Runway 1500mm Diffuser, RCS Sensor, Opal mid run
RW15 Z20 MP	Runway 1500mm Diffuser, RCS Sensor, Microprism mid run
RC15 Z20 OP	Runway Curve 1500mm Diffuser, RCS Sensor, Opal end of run
RC15 Z20 MP	Runway Curve 1500mm Diffuser, RCS Sensor, Microprism end of run
RW15 INFILL TW	Runway 1500mm Infill, Through Wire
RW17 OP	Runway 1750mm Diffuser, Opal, for mid run
RW17 MP	Runway 1750mm Diffuser, Microprism, for mid run
RC17 OP	Runway Curve 1750mm Diffuser, Opal, for end of run
RC17 MP	Runway Curve 1750mm Diffuser, Microprism, for end of run
RW17 Z20 OP	Runway 1750mm Diffuser, RCS Sensor, Opal mid run
RW17 Z20 MP	Runway 1750mm Diffuser, RCS Sensor, Microprism mid run
RC17 Z20 OP	Runway Curve 1750mm Diffuser, RCS Sensor, Opal end of run
RC17 Z20 MP	Runway Curve 1750mm Diffuser, RCS Sensor, Microprism end of run
RW17 INFILL TW	Runway 1750mm Infill, Through Wire
RW20 OP	Runway 2000mm Diffuser, Opal, for mid run
RW20 MP	Runway 2000mm Diffuser, Microprism, for mid run
RC20 OP	Runway Curve 2000mm Diffuser, Opal, for end of run
RC20 MP	Runway Curve 2000mm Diffuser, Microprism, for end of run
RW20 Z20 OP	Runway 2000mm Diffuser, RCS Sensor, Opal mid run
RW20 Z20 MP	Runway 2000mm Diffuser, RCS Sensor, Microprism mid run
RC20 Z20 OP	Runway Curve 2000mm Diffuser, RCS Sensor, Opal end of run
RC20 Z20 MP	Runway Curve 2000mm Diffuser, RCS Sensor, Microprism end of run
RW20 INFILL TW	Runway 2000mm Infill, Through Wire
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order.

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
RW SMK CONTINUOUS	Runway Continuous Surface Mount Kit
SUSP RW 3M BF X1	Runway 3M suspension Kit One Drop
LSF	Low Smoke Zero Halogen
RC EC **	Runway Curve End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Luminaires

RGBW

Code	Description	Power	Llm/W
RR12 RGBW L18 GY	Runway, 1250mm, 1,098llm, RGBW, Opal, Grey, Colour 84	10.0W	110
RR12 RGBW L25 GY	Runway, 1250mm, 1,614llm, RGBW, Opal, Grey, Colour 84	12.9W	125
RR12 RGBW L37 GY	Runway, 1250mm, 2,389llm, RGBW, Opal, Grey, Colour 84	18.6W	128
RR15 RGBW L45 GY	Runway, 1500mm, 2,921llm, RGBW, Opal, Grey, Colour 84	23.0W	127
RR17 RGBW L53 GY	Runway, 1750mm, 3,436llm, RGBW, Opal, Grey, Colour 84	26.9W	128

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
WH	White Finish
BL	Black Finish
LSF	Low Smoke Zero Halogen
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Luminaires

RECESSED CONTINUOUS

Code	Description
RR12 ST	Runway Trunking, 1250mm, Recessed, Start
RR12 TW	Runway Trunking, 1250mm, Recessed, Through Wire and End of Run
RR15 ST	Runway Trunking, 1500mm, Recessed, Start
RR15 TW	Runway Trunking, 1500mm, Recessed, Through Wire and End of Run
RR17 ST	Runway Trunking, 1750mm, Recessed, Start
RR17 TW	Runway Trunking, 1750mm, Recessed, Through Wire and End of Run
RR30 ST	Runway Trunking, 3000mm, Recessed, Start
RR30 TW	Runway Trunking, 3000mm, Recessed, Through Wire and End of Run

CONTINUOUS RUN GEAR TRAY - HIGH OUTPUT

Code	Description
RW12 RGBW L37 TW	Runway Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RW12 RGBW L37 ER	Runway Tray, 1250mm, 3,700lm, End of Run, Colour 84
RW15 RGBW L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RW15 RGBW L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run, Colour 84
RW17 RGBW L53 TW	Runway Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RW17 RGBW L53 ER	Runway Tray, 1750mm, 5,300lm, End of Run, Colour 84
RRCO RGBW L45 TW ** L GY	Runway Recessed Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, Opal, Left, Grey, Colour 84
RRCO RGBW L45 ER ** L GY	Runway Recessed Corner 90?, 750mm, 4,500lm, RGBW, End of Run, Opal, Left, Grey, Colour 84
RRCO RGBW L45 TW ** R GY	Runway Recessed Corner 90?, 750mm, 4,500lm, RGBW, Through Wire, Opal, Right, Grey, Colour 84
RRCO RGBW L45 ER ** R GY	Runway Recessed Corner 90?, 750mm, 4,500lm, RGBW, End of Run, Opal, Right, Grey, Colour 84

Optic

Code	Description
RW12 OP	Runway 1250mm Diffuser, Opal
RW12 Z20 OP	Runway 1250mm Diffuser, RCS Sensor, Opal
RWR12 INFILL TW	Runway Recessed 1250mm Infill, Through Wire
RW15 OP	Runway 1500mm Diffuser, Opal
RW15 Z20 OP	Runway 1500mm Diffuser, RCS Sensor, Opal
RWR15 INFILL TW	Runway Recessed 1500mm Infill, Through Wire
RW17 OP	Runway 1750mm Diffuser, Opal
RW17 Z20 OP	Runway 1750mm Diffuser, RCS Sensor, Opal
RWR17 INFILL TW	Runway Recessed 1750mm Infill, Through Wire
RW30 OP	Runway 3000mm Diffuser, Opal
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
RCS	Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Emergency

Code	Description
LE3	Lithium Standard Emergency 3 Hour
LS3	Lithium Selftest Emergency 3 Hour
LA3	Lithium Autotest Emergency 3 Hour
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Miscellaneous

Code	Description
C**	Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
RW INSTALL KIT	Runway Installation Kit
LSF	Low Smoke Zero Halogen
RR EC **	Runway End Cap (Pair)
** Please specify colour for Runway End Caps (WH, BL, GY)
Please refer to the Runway Design Consideration notes in the Technical section prior to placing your order

Luminaires

Runway Wall RGBW Standalone

Code	Description	Power	Llm/W
RWF12 RGBW L18 GY	Runway Wall, 1250mm, 1,098llm, RGBW, Opal, Grey, Colour 84	10.0W	110
RWF12 RGBW L25 GY	Runway Wall, 1250mm, 1,614llm, RGBW, Opal, Grey, Colour 84	12.9W	125
RWF12 RGBW L37 GY	Runway Wall, 1250mm, 2,389llm, RGBW, Opal, Grey, Colour 84	18.6W	128
RWF15 RGBW L45 GY	Runway Wall, 1500mm, 2,921llm, RGBW, Opal, Grey, Colour 84	23.0W	127
RWF17 RGBW L53 GY	Runway Wall, 1750mm, 3,436llm, RGBW, Opal, Grey, Colour 84	26.9W	128

Runway Wall RGBW Continuous Surface Suspended

Code	Description
RWF12 ST	Runway Wall Trunking 1250mm, Surface / Suspended, Downlight, Start,
RWF12 TW	Runway Wall Trunking 1250mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWF15 ST	Runway Wall Trunking 1500mm, Surface / Suspended, Downlight, Start
RWF15 TW	Runway Wall Trunking 1500mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWF17 ST	Runway Wall Trunking 1750mm, Surface / Suspended, Downlight, Start
RWF17 TW	Runway Wall Trunking 1750mm, Surface / Suspended, Downlight, Through Wire and End of Run
RWF30 ST	Runway Wall Trunking 3000mm, Surface / Suspended, Downlight, Start
RWF30 TW	Runway Wall Trunking 3000mm, Surface / Suspended, Downlight, Through Wire and End of Run

RGBW

Code	Description
RWF12 RGBW L37 TW	Runway Wall Tray, 1250mm, 3,700lm, Through Wire, Colour 84
RWF12 RGBW L37 ER	Runway Wall Tray, 1250mm, 3,700lm, End of Run, Colour 84
RWF15 RGBW L45 TW	Runway Wall Tray, 1500mm, 4,500lm, Through Wire, Colour 84
RWF15 RGBW L45 ER	Runway Wall Tray, 1500mm, 4,500lm, End of Run, Colour 84
RWF17 RGBW L53 TW	Runway Wall Tray, 1750mm, 5,300lm, Through Wire, Colour 84
RWF17 RGBW L53 ER	Runway Wall Tray, 1750mm, 5,300lm, End of Run, Colour 84

Runway RGBW Curve Wall Standalone

Code	Description	Power	Llm/W
RWC12 RGBW L18 GY	Runway Wall Curve, 1250mm, 1,098llm, RGBW, Opal, Grey, Colour 84	10.0W	110
RWC12 RGBW L25 GY	Runway Wall Curve, 1250mm, 1,614llm, RGBW, Opal, Grey, Colour 84	12.9W	125
RWC12 RGBW L37 GY	Runway Wall Curve, 1250mm, 2,389llm, RGBW, Opal, Grey, Colour 84	18.6W	128
RWC15 RGBW L45 GY	Runway Wall Curve, 1500mm, 2,921llm, RGBW, Opal, Grey, Colour 84	23.0W	127
RWC17 RGBW L53 GY	Runway Wall Curve, 1750mm, 3,436llm, RGBW, Opal, Grey, Colour 84	26.9W	128

**Diffuser

Code	Description
OP	Opal
MP	Microprism

Control

Code	Description
RC	Reacta-Control, Wireless Enabled Luminaire
Please note RC is supplied in a sensor infill in the diffuser of the luminaire.

Downloads

Product Datasheet Runway Curve Standalone Installation Runway Suspended/Surface Continuous Run Installati Runway Suspended/Surface Standalone Installation Runway Recessed Standalone/Continuous Run Installa Runway Curve Standalone Installation Runway Wall Installation Revit Files Dialux Files Relux Files

Find out more about
Runway RGBW & RGBU

For Sales and Technical Enquires call 01747 858100

Runway RGBW & RGBU

Introduction

Complies with:

Recommended applications:

Specification

Construction

Performance

Environmental

Emergency

Control

Installation

Variations

Product Images

Case studies featuring Runway RGBW & RGBU

King’s School, Chester

Ipswich Mortuary

Technical

Runway Design Considerations

Ordering

Luminaires

Control

Emergency

Miscellaneous

Luminaires

Optic

Control

Emergency

Miscellaneous

Luminaires

Control

Emergency

Miscellaneous

Luminaires

Optic

Control

Emergency

Miscellaneous

Luminaires

Control

Emergency

Miscellaneous

Luminaires

Optic

Control

Emergency

Miscellaneous

Luminaires

Control

Downloads

Find out more about Runway RGBW & RGBU

Find out more about
Runway RGBW & RGBU
