RUBIX SURFACE LINEAR

To further enhance the Rubix range, the Rubix Surface Linear is now available for both suspended installation and direct mounting to a wide range of ceiling types both solid and suspended.

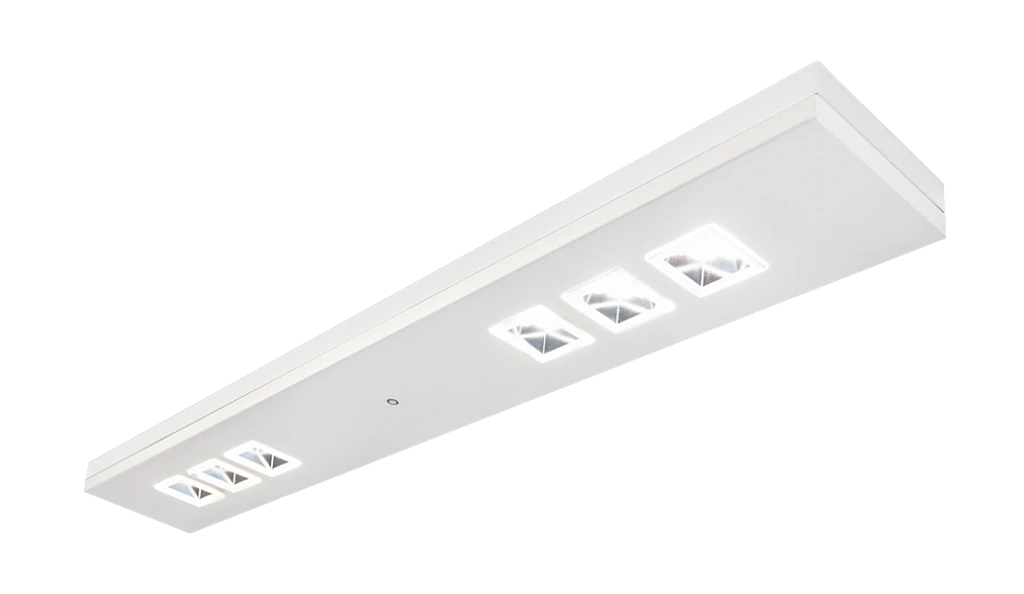

RUBIX SURFACE LINEAR FEATURED

Introduction

To further enhance the Rubix range, the Rubix Surface Linear is now available for both suspended installation and direct mounting to a wide range of ceiling types both solid and suspended.

Utilising the same optic design as the recessed and suspended variants the Rubix surface offers glare compliance to BSEN12464 and UGR19 or below ensuring it can be used in applications such as offices and classrooms. In common with other members of the Rubix family the optic frame is available in a range of colours allowing the appearance to be tailored to suit any corporate theme whilst the housing is available in white, black or grey variants.

The Rubix Surface Linear housing has sufficient width to cover the footprint of the majority of fluorescent surface linear luminaires reducing the need to redecorate or repair ceilings after installation minimising installation cost and maximising your return on investment, please refer to the Technical line diagrams for more details.

Available in 1200mm and 1500mm versions with a range of cell counts and lumen outputs, as well as all common dimming and lithium emergency variants the Rubix can be customised to suit the majority of installations in educational and office applications. Our range of sensors can further enhance energy and cost saving by providing both presence detection and daylight regulation ensuring the luminaire is only operating when required. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial / Offices | Education

Specification

Construction

  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Diffuser: Injection moulded high transmission opal polycarbonate cell with miro silver aluminium inserts and injection moulded clip on bezel
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 132 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
Find out more about our 5 year extended warranty
Arrow right

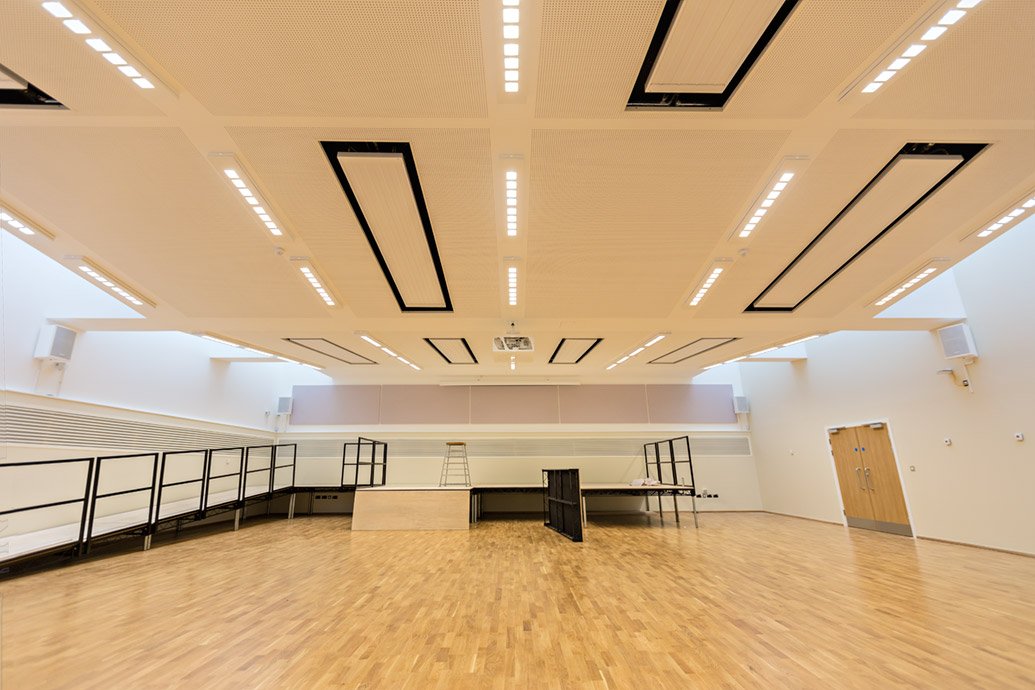

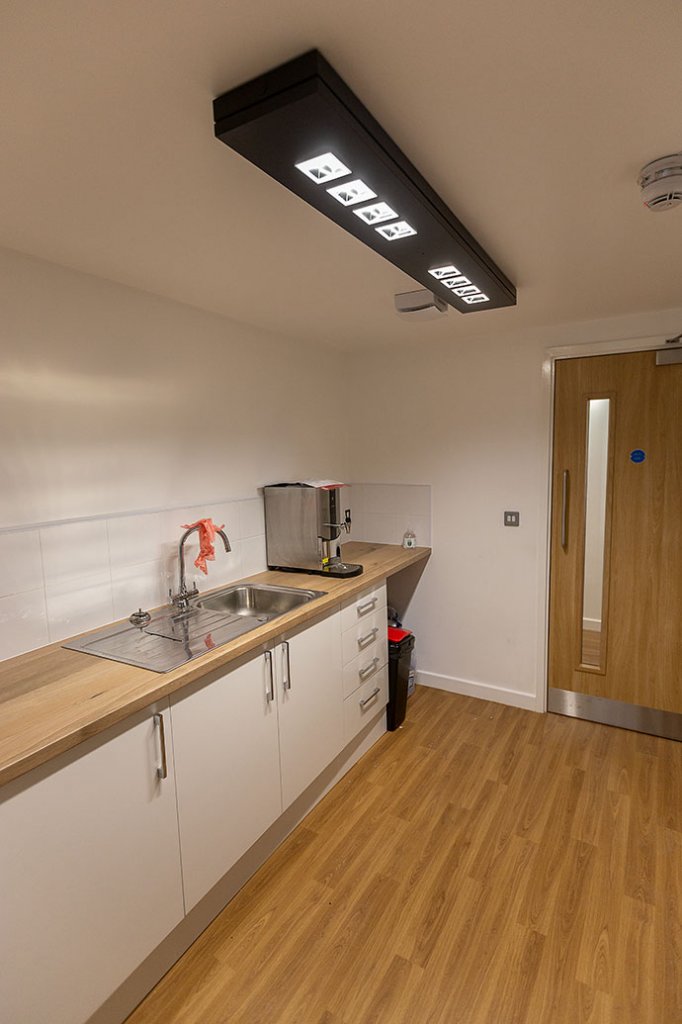

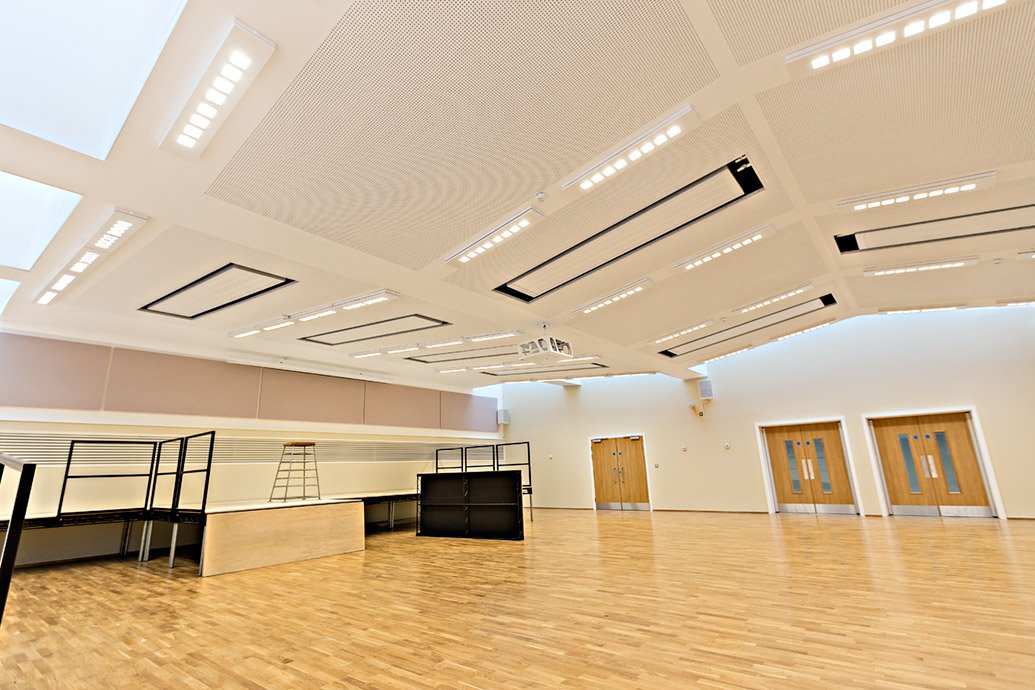

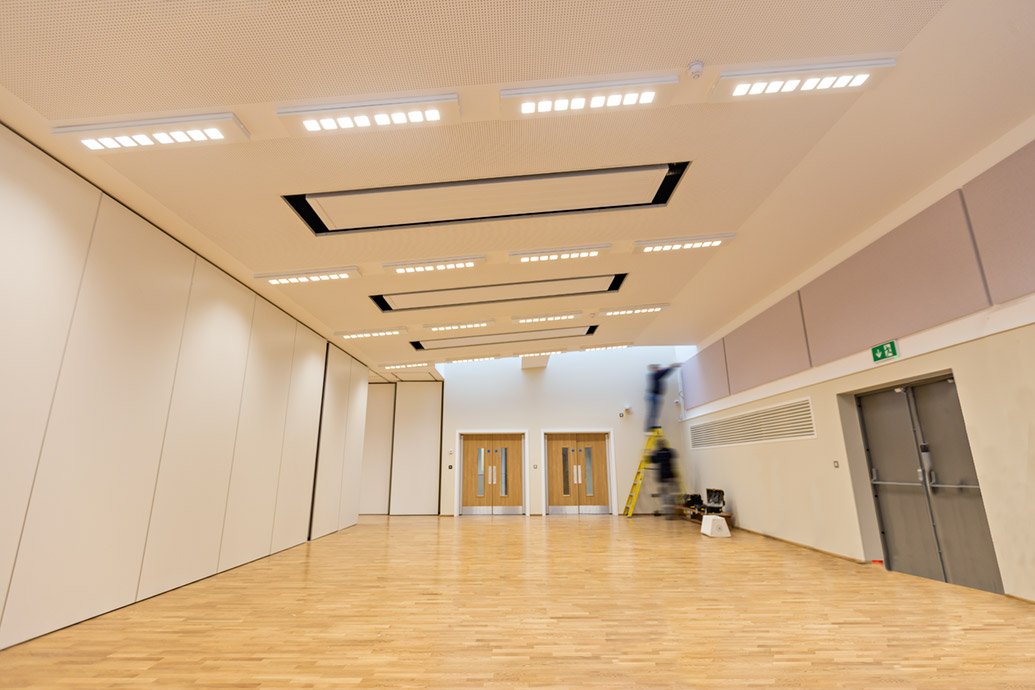

RUBIX SURFACE LINEAR in action

Technical

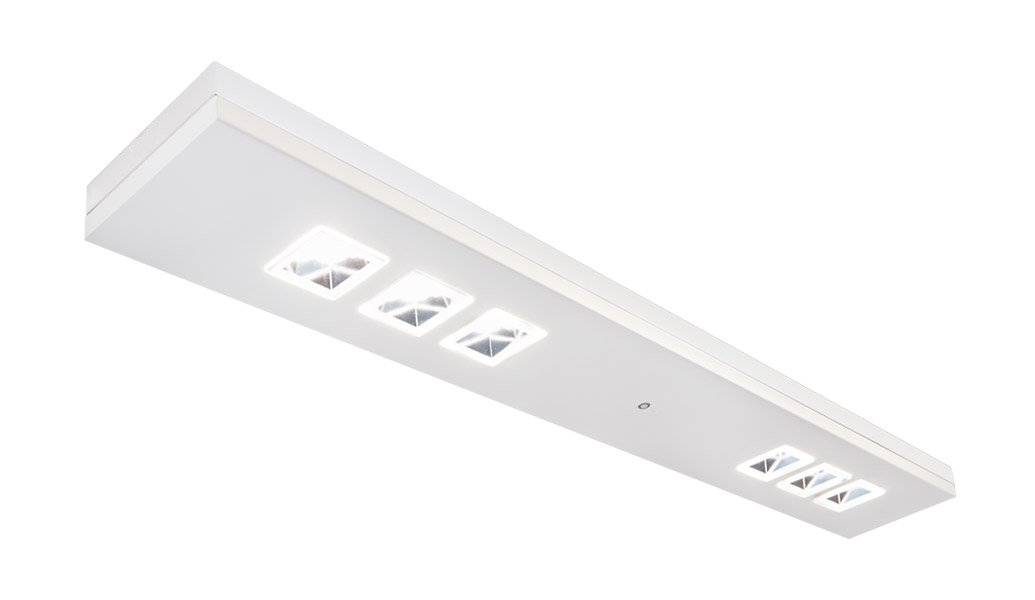

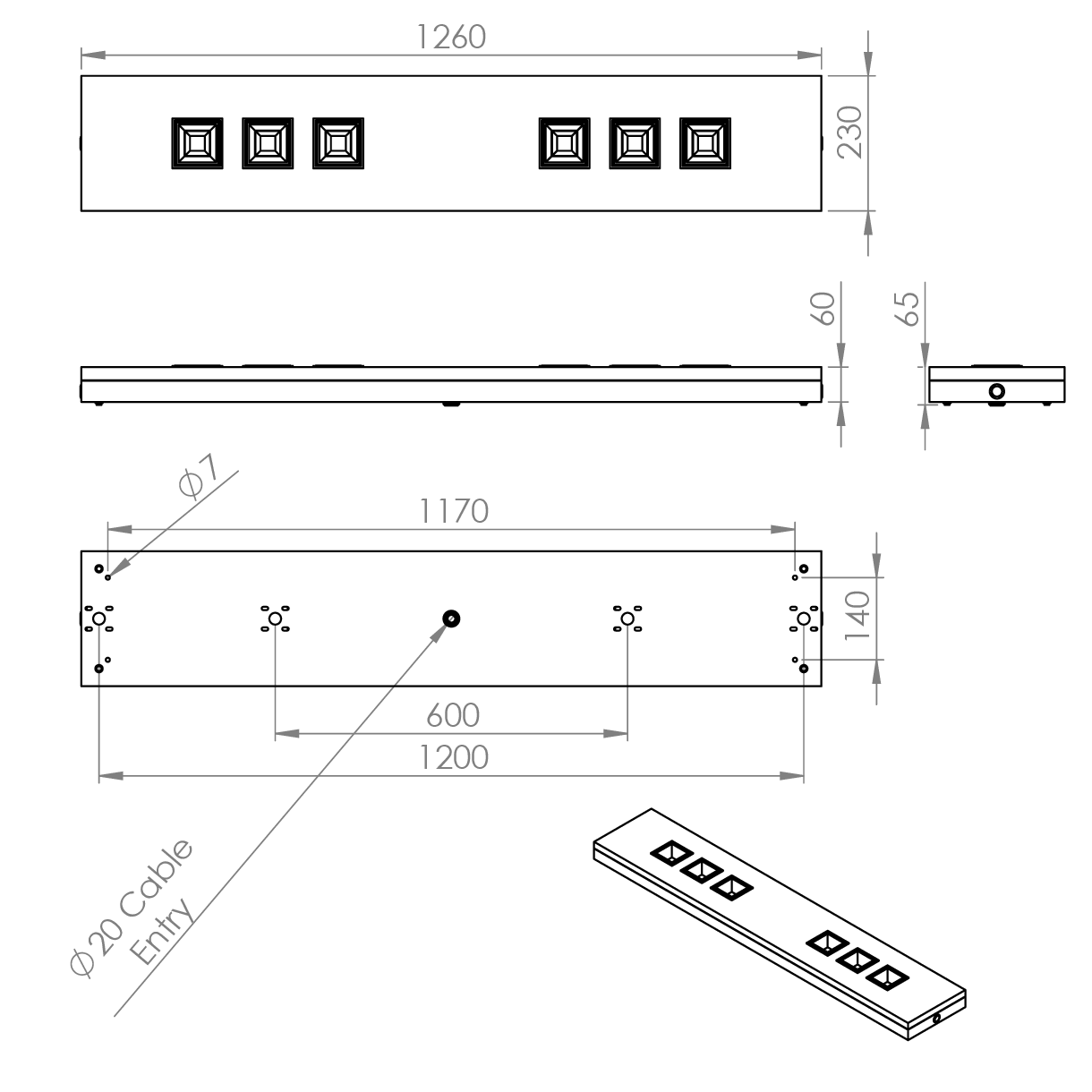

Rubix Surface 6 Cell 1200mm

Rubix Surface 6 Cell 1200mm

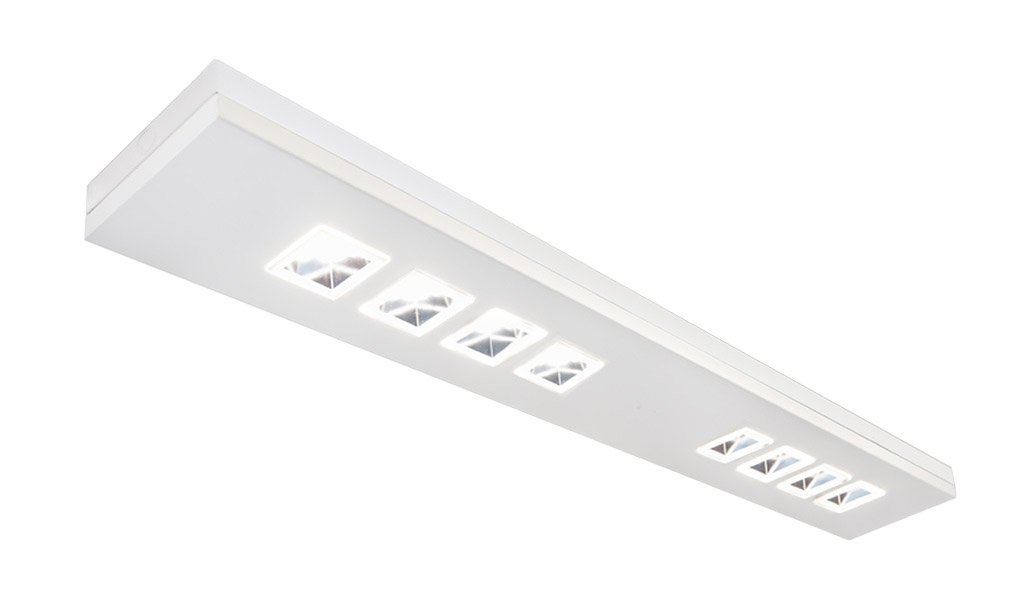

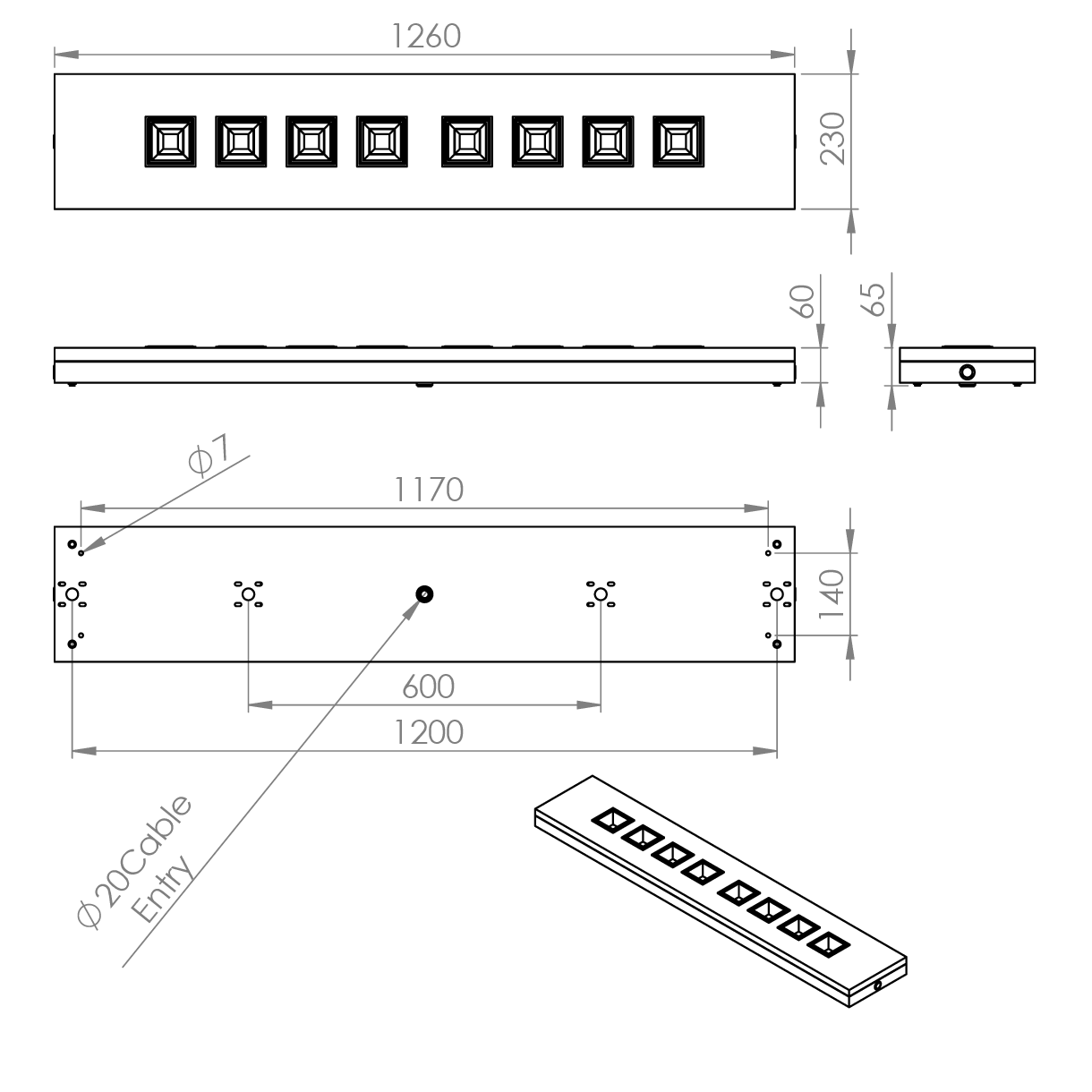

Rubix Surface 8 Cell 1200mm

Rubix Surface 8 Cell 1200mm

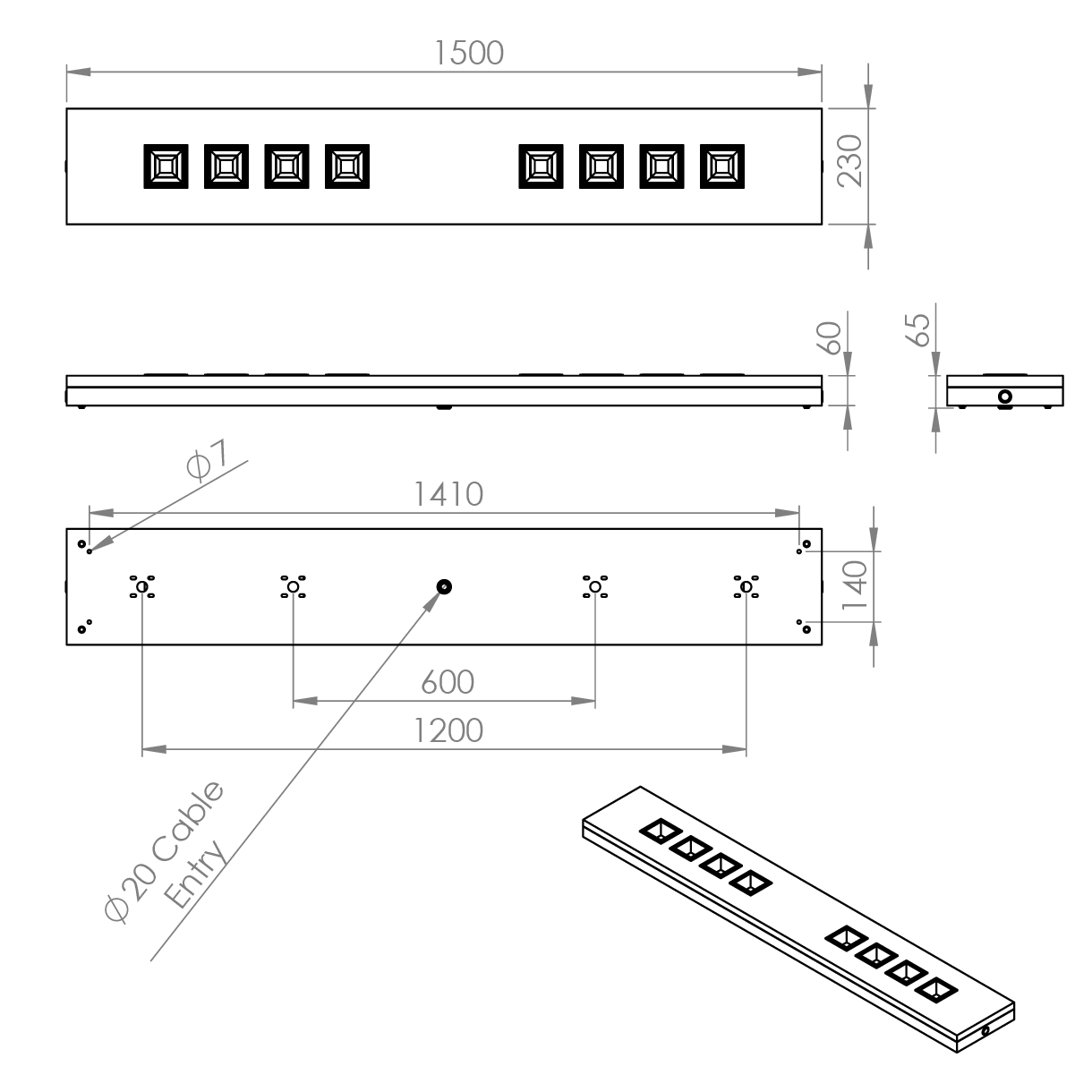

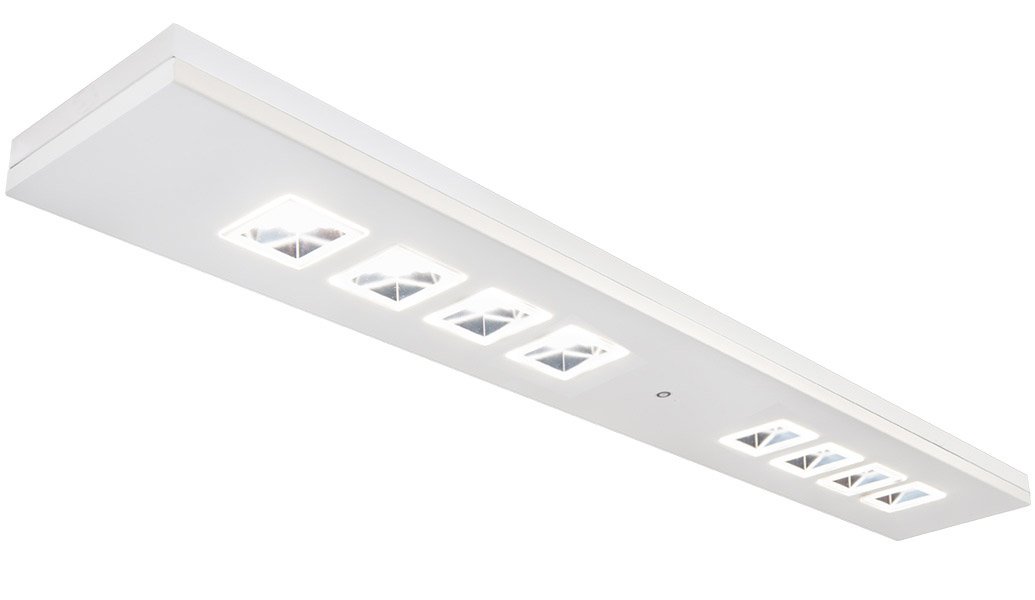

Rubix Surface 8 Cell 1500mm

Rubix Surface 8 Cell 1500mm

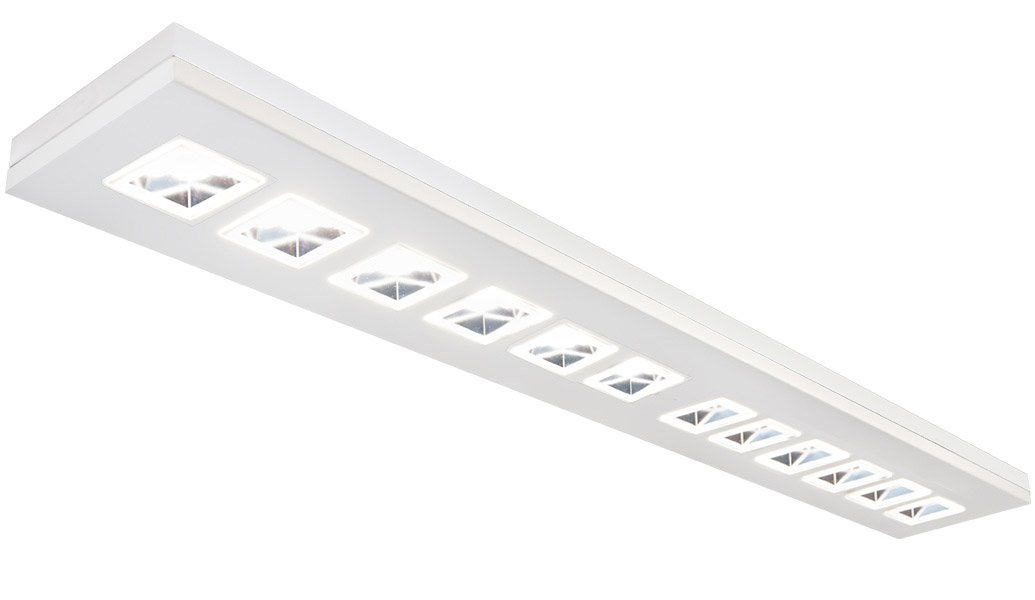

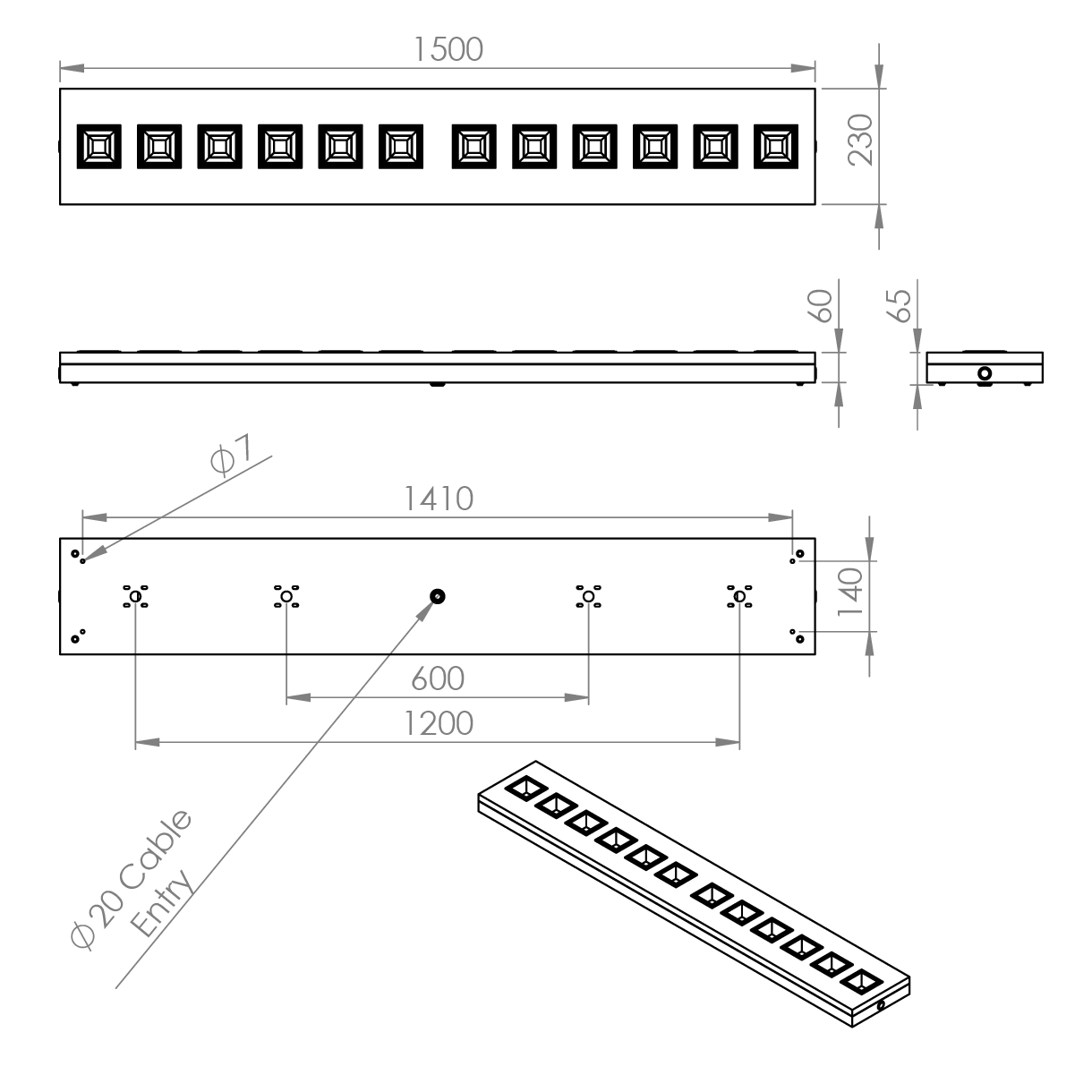

Rubix Surface 12 Cell 1500mm

Rubix Surface 12 Cell 1500mm

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
RBXSL 123 L30 Rubix Surface Linear, 1200x300, 2,494llm, 6 Cell, Opal Cell, Colour 84. 16.4W 152
RBXSL 123 L40 Rubix Surface Linear, 1200x300, 3,236llm, 8 Cell, Opal Cell, Colour 84 22.8W 141
RBXSL 153 L40 Rubix Surface Linear, 1500x300, 3,303llm, 8 Cell, Opal Cell, Colour 84 22.8W 141
RBXSL 153 L60 Rubix Surface Linear, 1500x300, 4,976llm, 12 Cell, Opal Cell, Colour 84. 32.2W 155

Optic

Code Description
BLK Black Cell

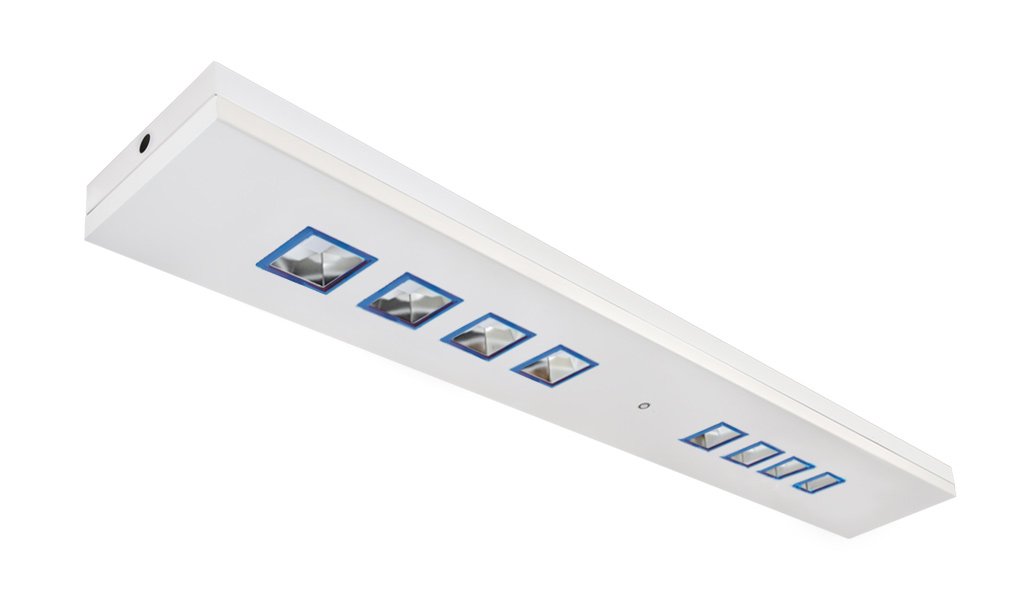

BLE Blue Cell

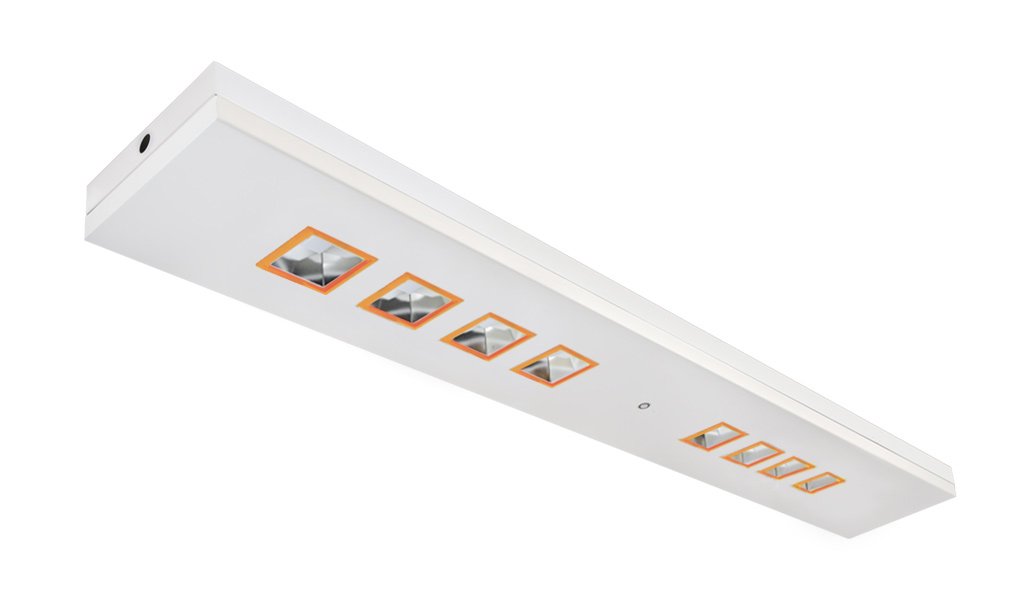

ORA Orange Cell

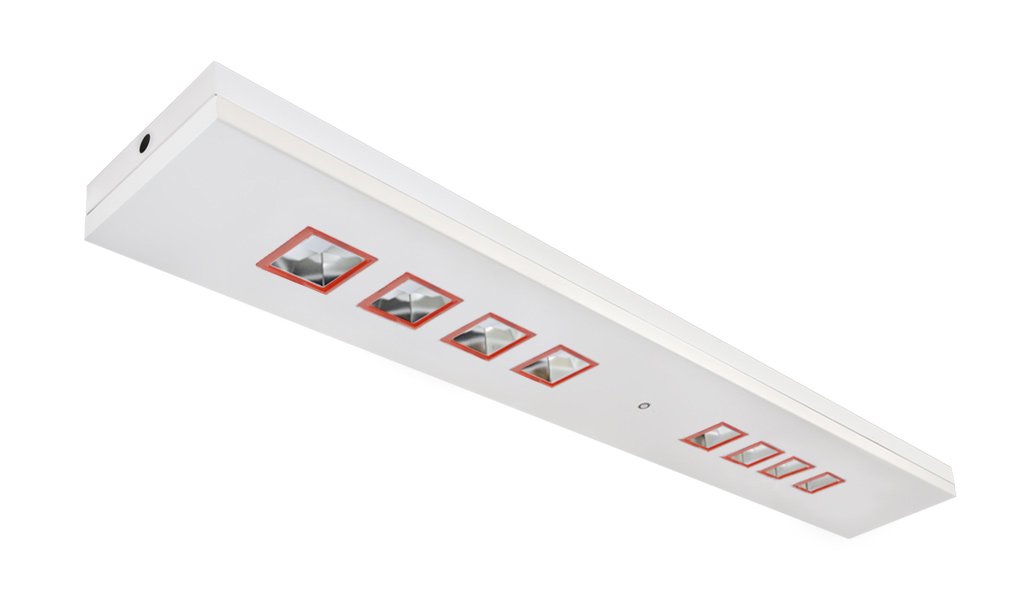

RED Red Cell
Other cell colours are available on request subject to minimum order quantities and extended delivery times

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
D44 DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN DexNET Node, Wireless Node only.
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M
Please click here for full details on our wireless controls.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
BL Black Finish
GY Grey Finish
SUSP Y KIT 3M BF X2 Two Point Y Suspension Kit
LSF Low Smoke Zero Halogen
