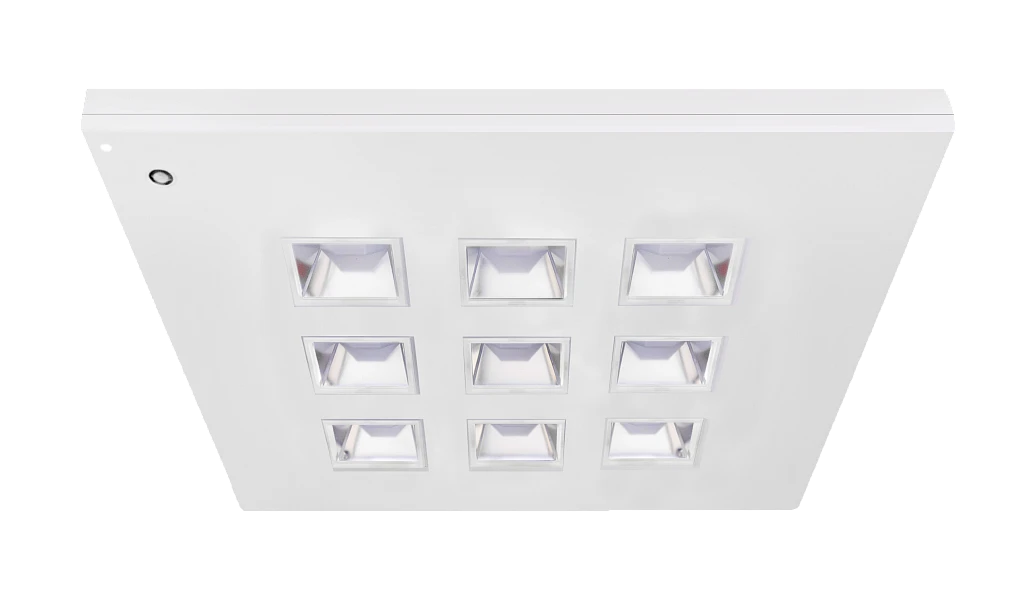

RUBIX SURFACE FLUSH
To compliment the Rubix Recessed we have launched the Rubix Surface Flush, utilising the same Rubix optic design but without the surrounding halo to provide a minimalist appearance.
Introduction
To complement the Rubix Recessed we have launched the Rubix Surface Flush, utilising the same Rubix optic design but without the surrounding halo to provide a minimalist appearance.
The nine individual cells offer precise optical control allowing for spacing's up to three by three metres whilst still maintaining 400 lux on the working plane at typical ceiling heights and also providing compliance with UGR 19 and the 3000 candela BSEN 12464 requirement.

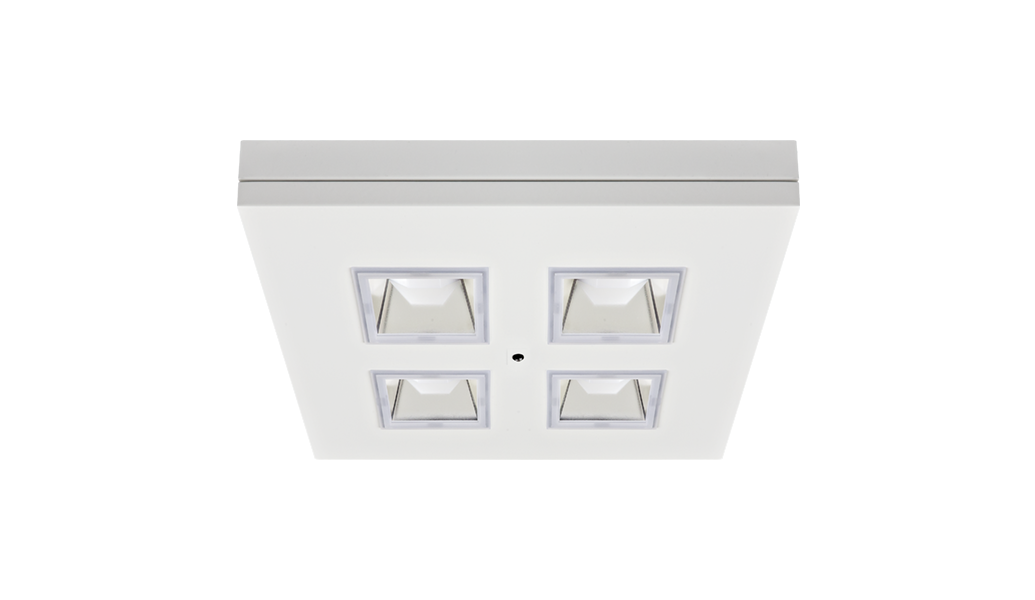

The surface mount variant of the Rubix family is ideal for solid ceilings or where there is insufficient ceiling void to accommodate a recessed luminaire. The Rubix Surface Flush is available with a wide range of lumen outputs and dimming and lithium emergency variants ensuring that the Rubix can be customised to your specific requirements and is also now available in 300x300 versions. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
Complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9006 textura matt grey
- Finish: Polyester powder painted RAL 9005 textura matt black
- Diffuser: Injection moulded high transmission opal polycarbonate cell with miro silver aluminium inserts and injection moulded clip on bezel
- IP20
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 126 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional Integral R44 presence and daylight sensor
- Optional Integral Reacta-Air wireless presence and daylight regulations sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for surface installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs
- Available in white, black or grey finishes

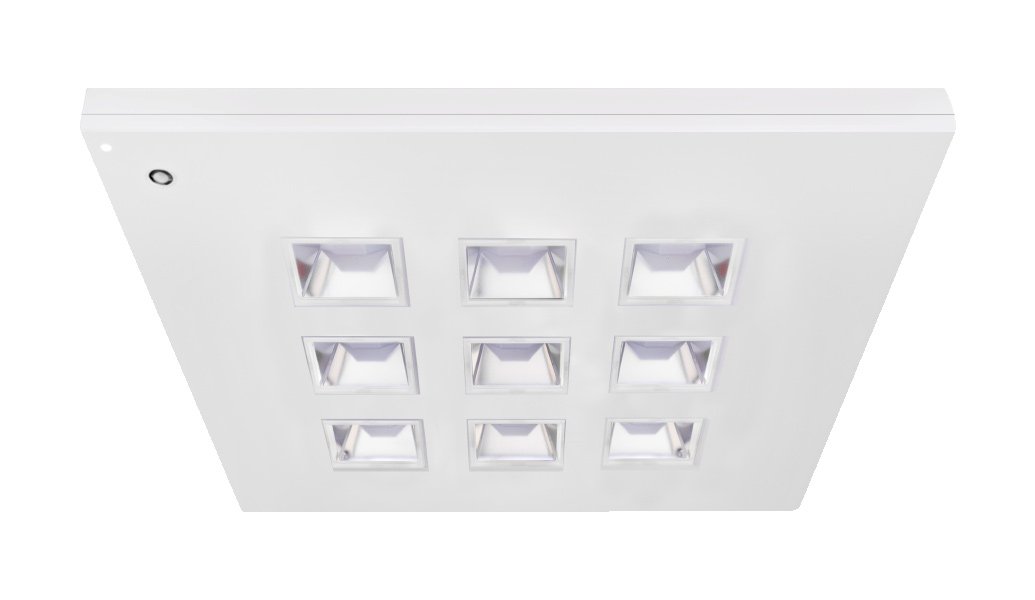

Product Images

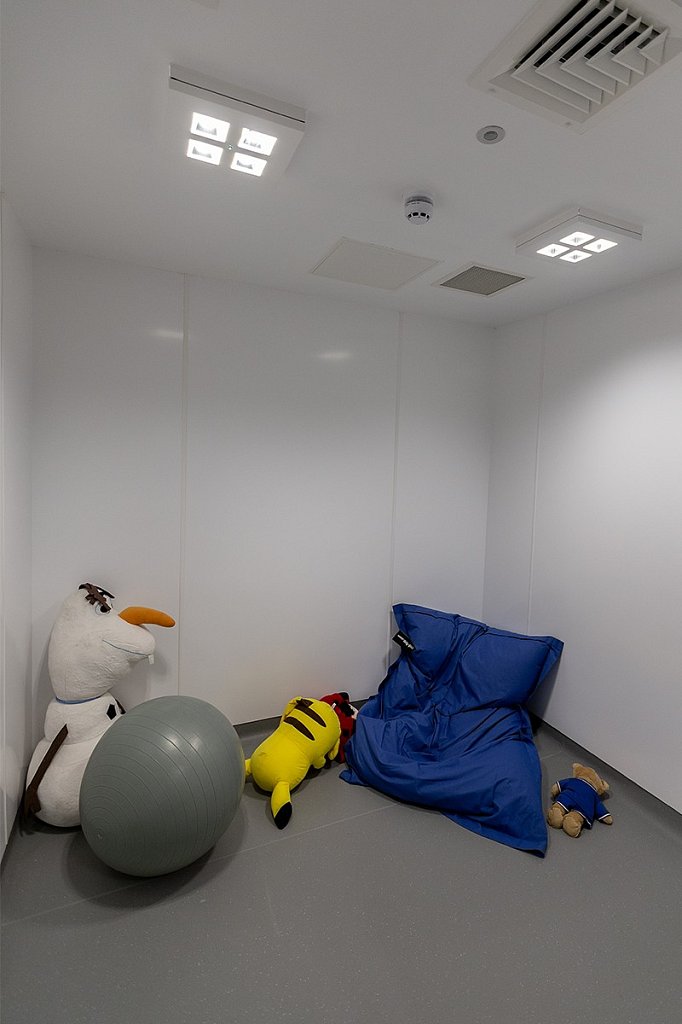

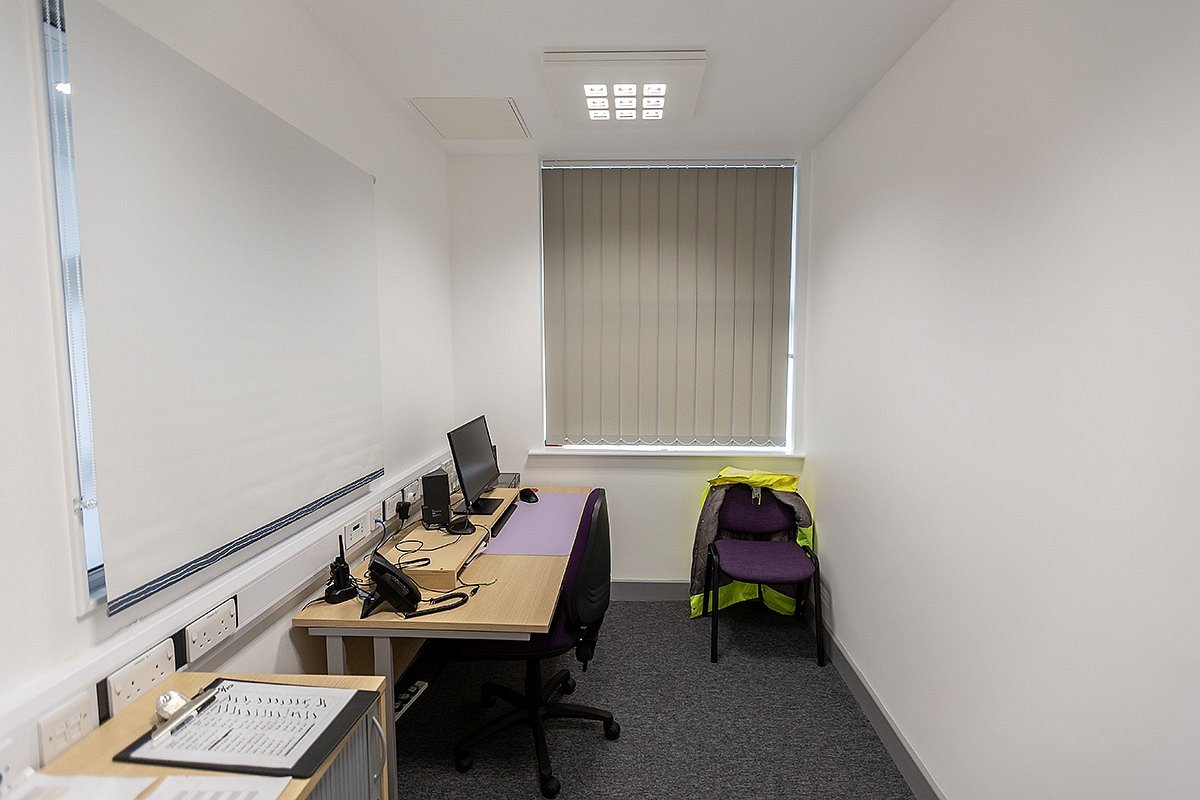

RUBIX SURFACE FLUSH in action
.jpg)
.jpg)
Case studies
Technical

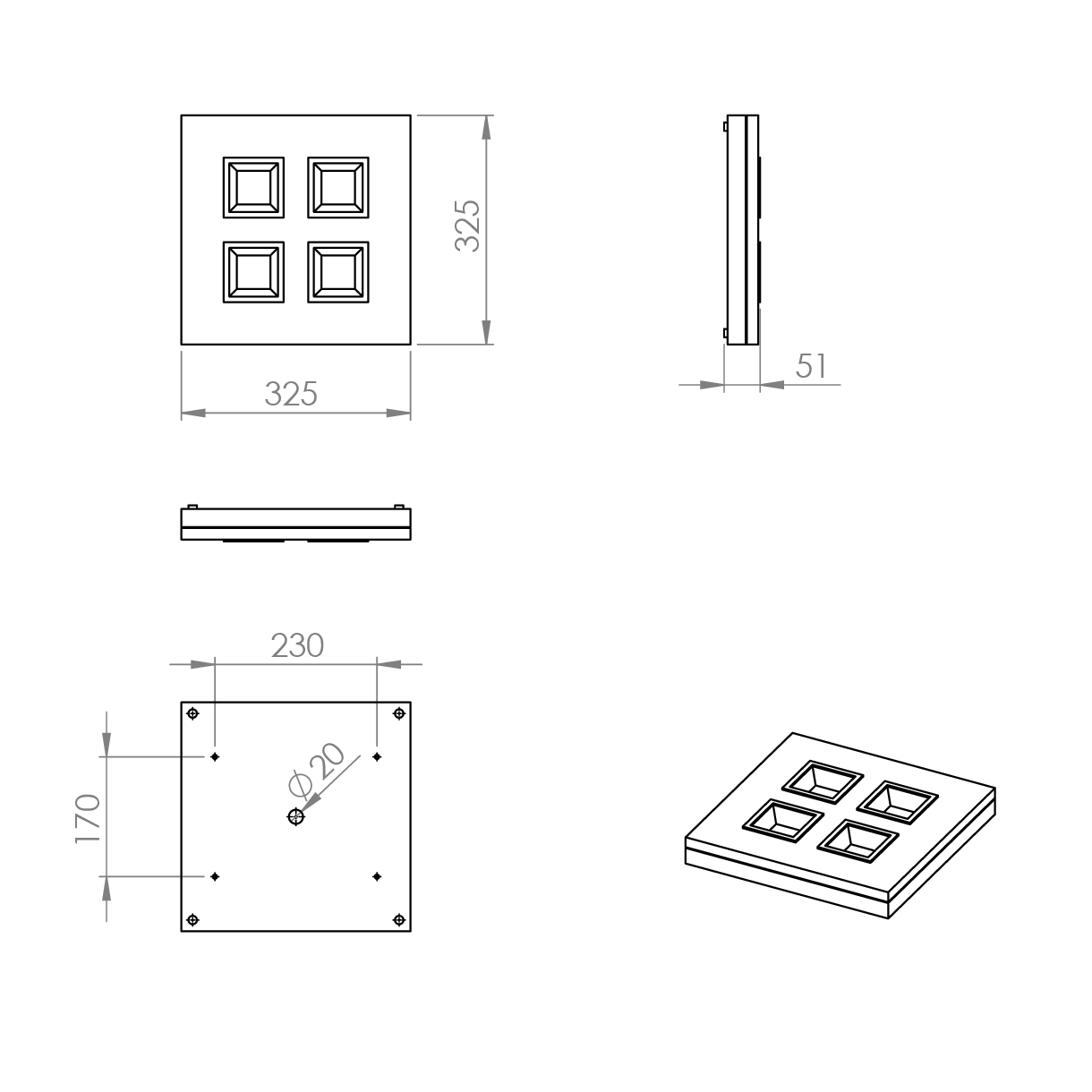

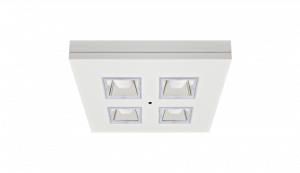

Rubix Flush Surface 300x300

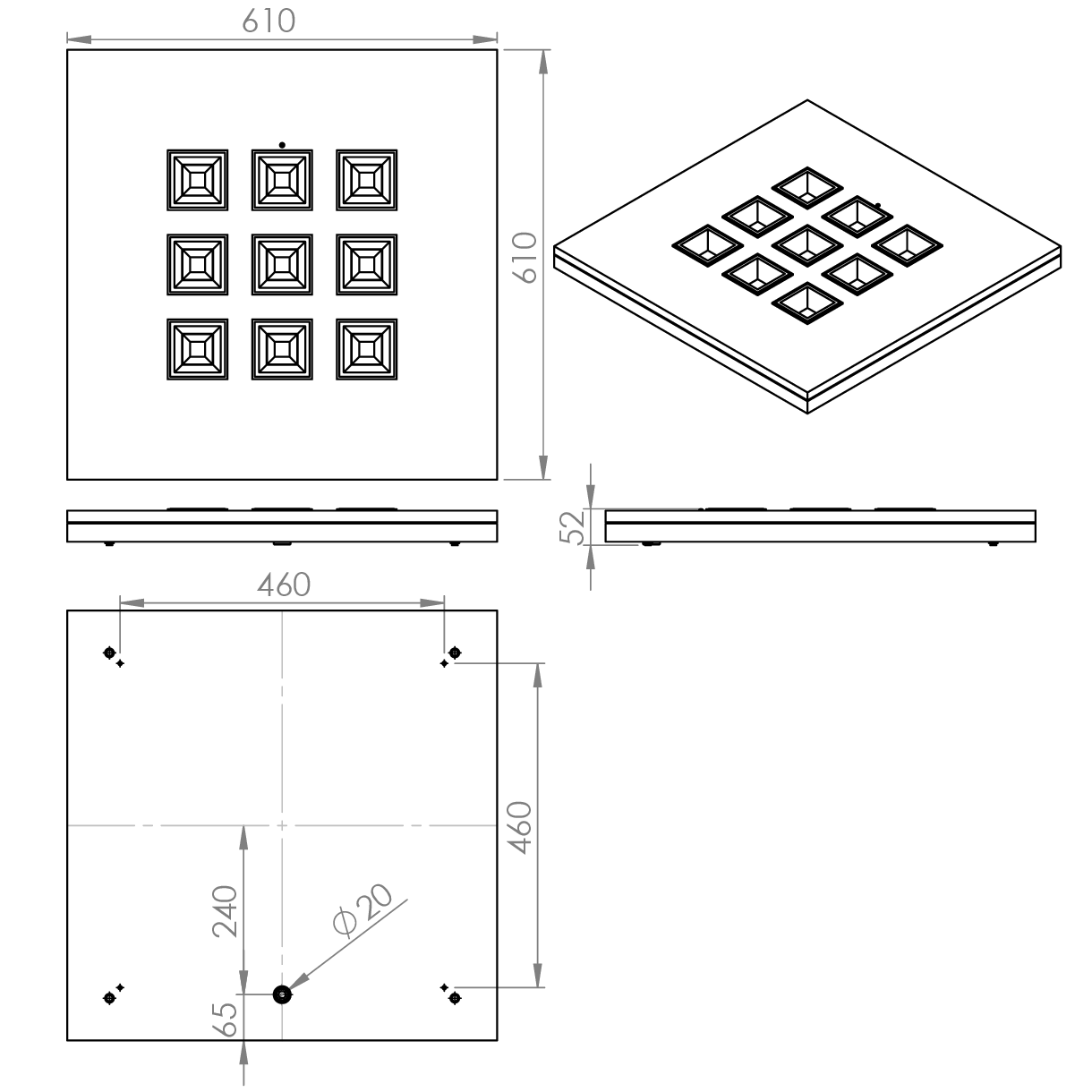

Rubix Flush Surface 600x600
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
| 600x600mm | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||
Optic
| Code | Description |
|---|---|

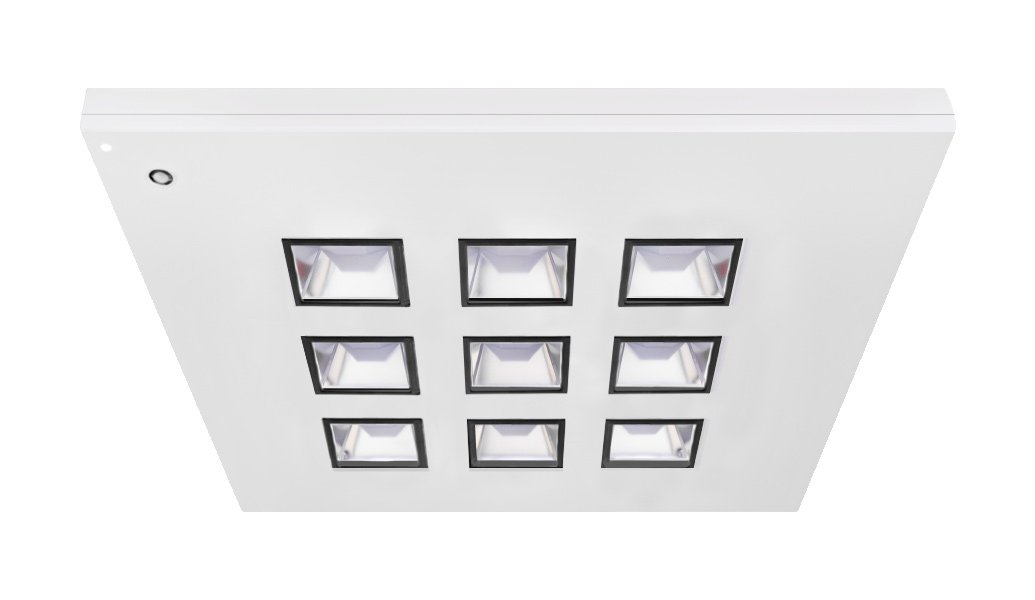

| BLK | Black Cell |
| BLE | Blue Cell |

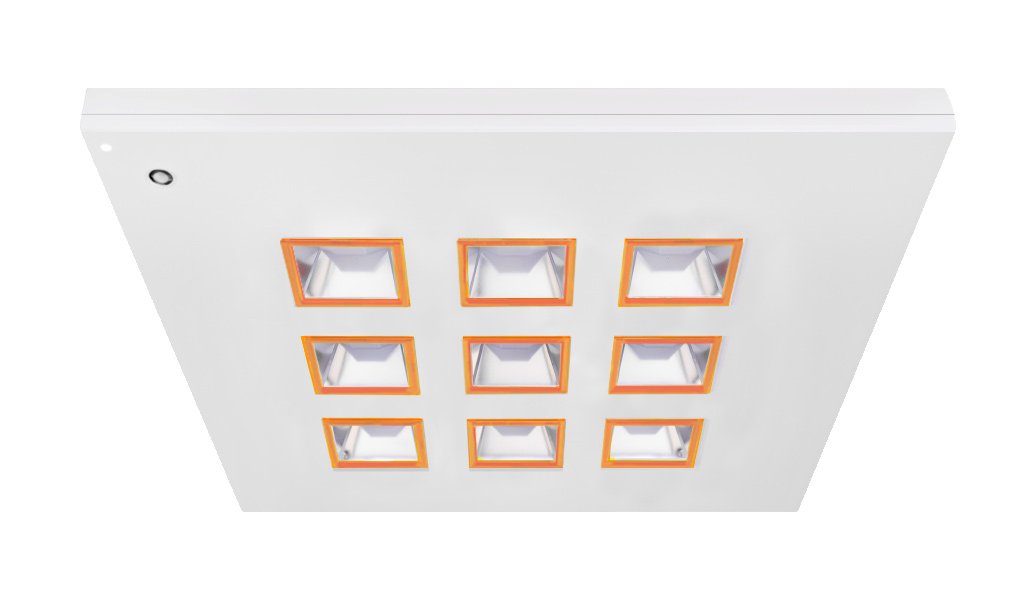

| ORA | Orange Cell |

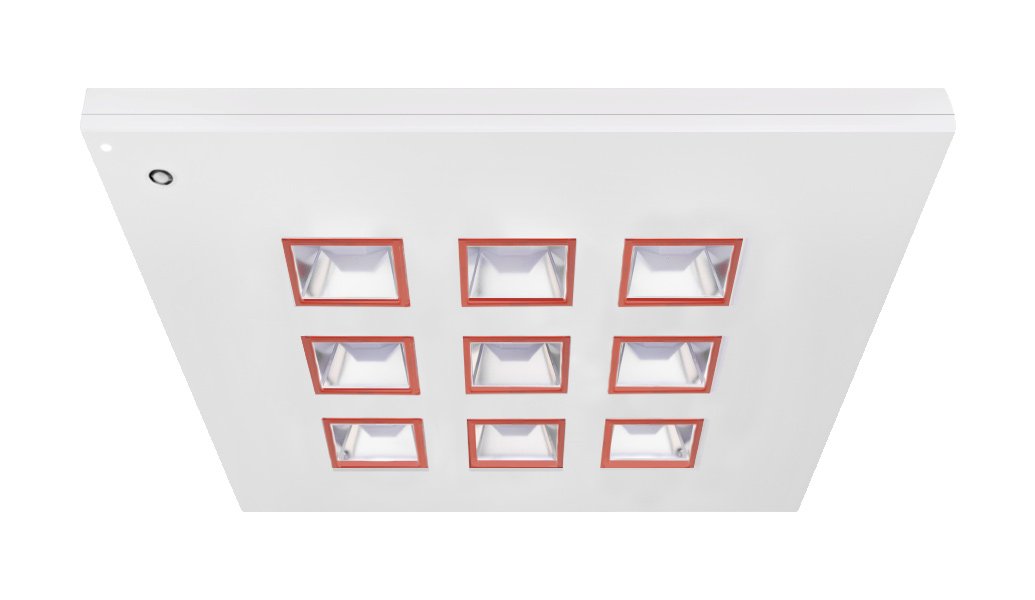

| RED | Red Cell |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| R44 | Reacta 44, Presence & Daylight, 2.5-7M |
| D44 | DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M |
| DN | DexNET Node, Wireless Node only. |
| RAS | Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLS | Reacta-Link Wireless, Presence & Daylight, 2.5M-5M |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCS | Reacta-Control Wireless, Presence & Daylight, 2.5-4M |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| BL | Black Finish |
| GY | Grey Finish |
| LSF | Low Smoke Zero Halogen |
