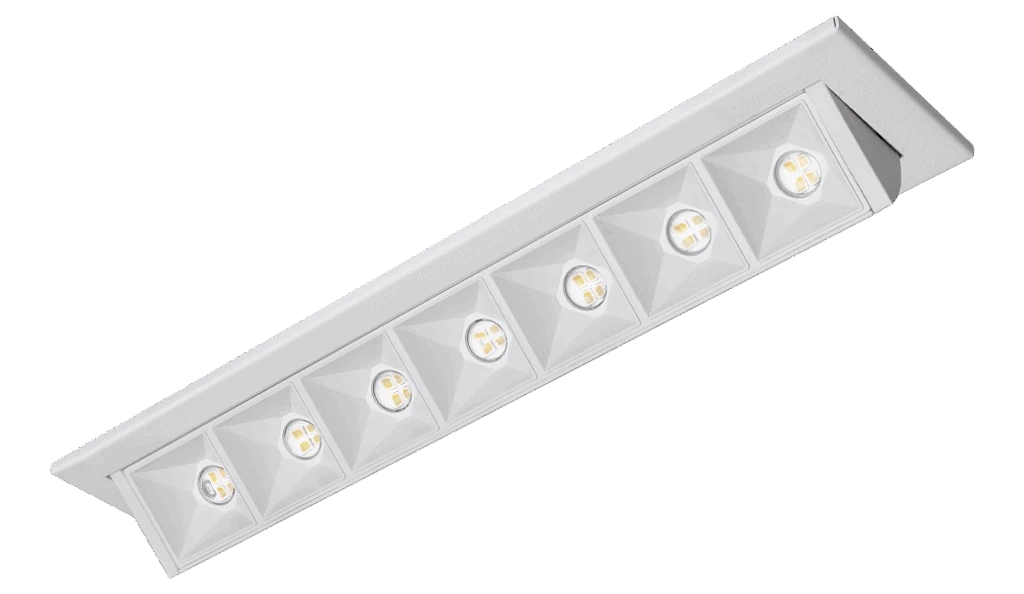

RUBINI ACCENT
Where lighting must be both discreet and attractive, the Rubini Accent provides the optimum solution with its small form factor combined with a modern and attractive cellular design
Introduction
Where lighting must be both discreet and attractive, the Rubini Accent provides the optimum solution with its small form factor combined with a modern and attractive cellular design. With excellent glare control of UGR 16 and cutting edge efficiency in excess of 145 luminaire lumens per watt, the Rubini Accent offers superb efficiency and architectural appeal. With an extruded aluminium housing, injection moulded cellular baffle and front bezel and lensed optic to ensure consistent optical performance with excellent glare control and efficiency the Rubini Accent has been designed without compromise in materials or performance.

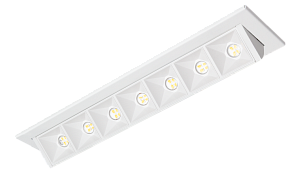

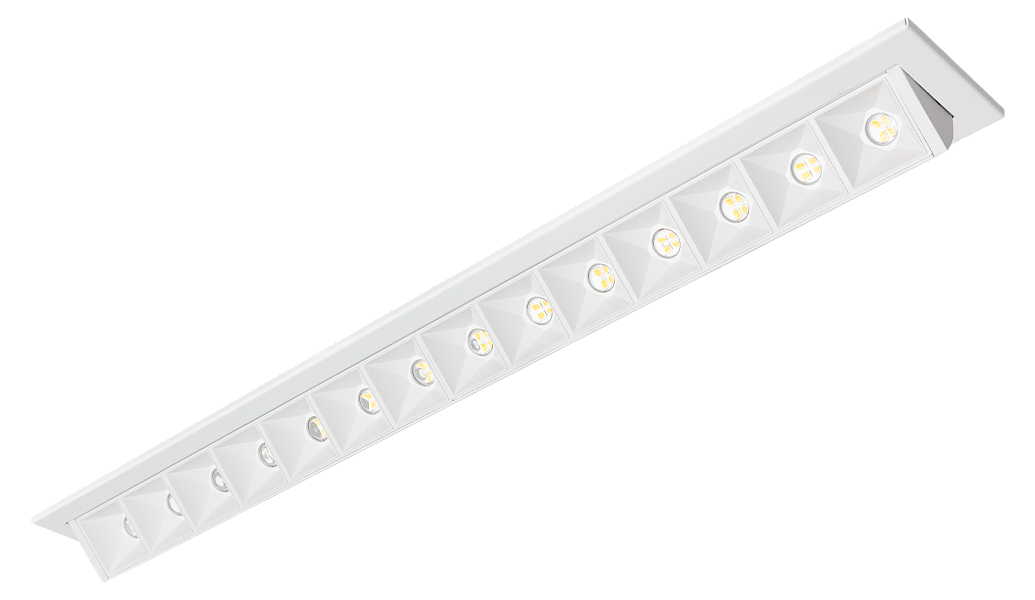

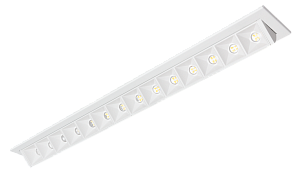

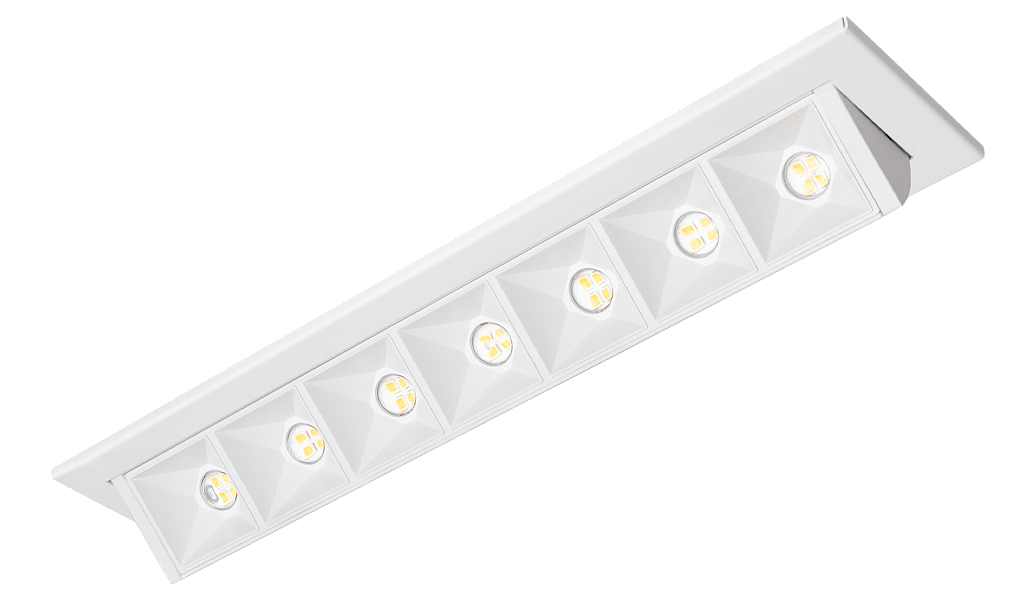

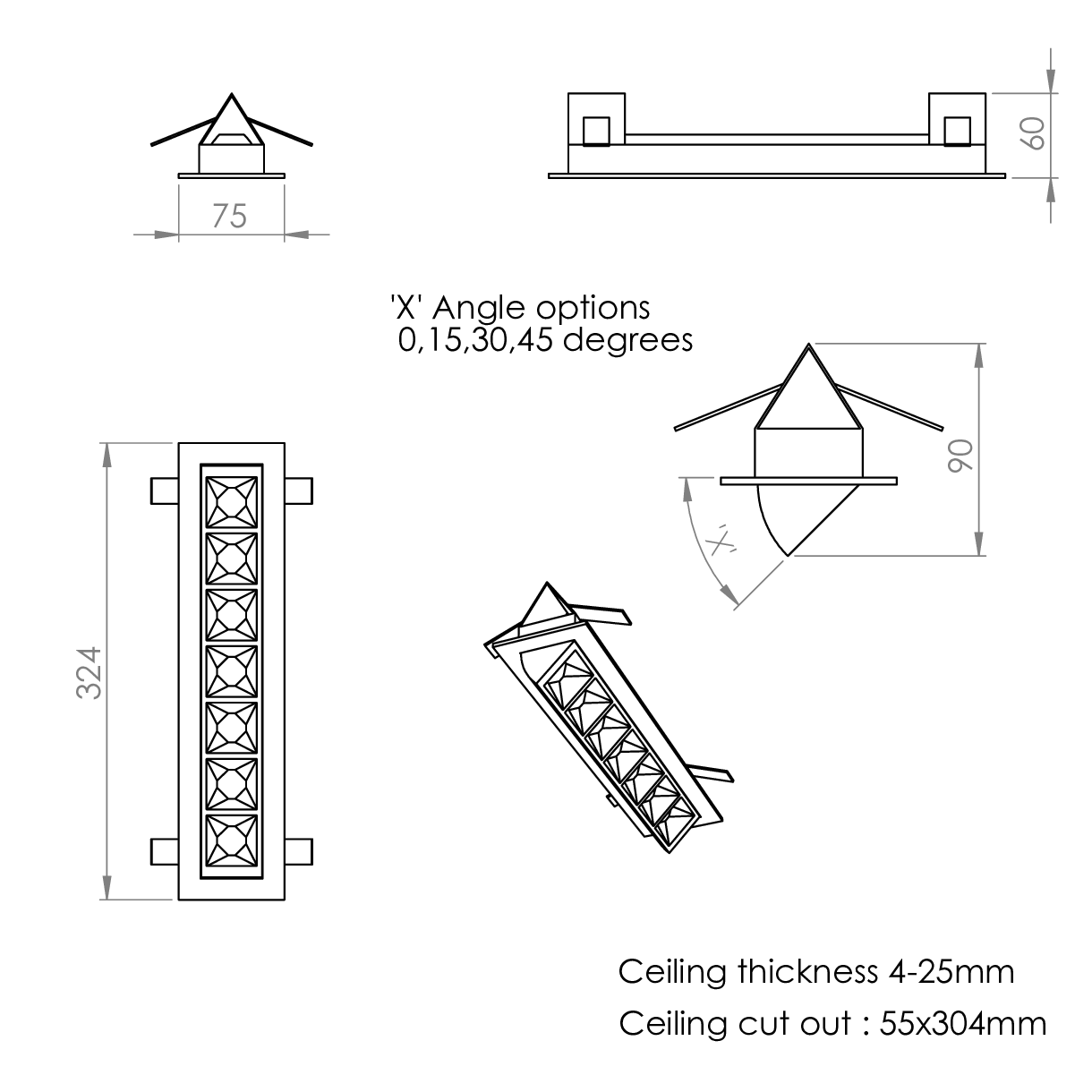

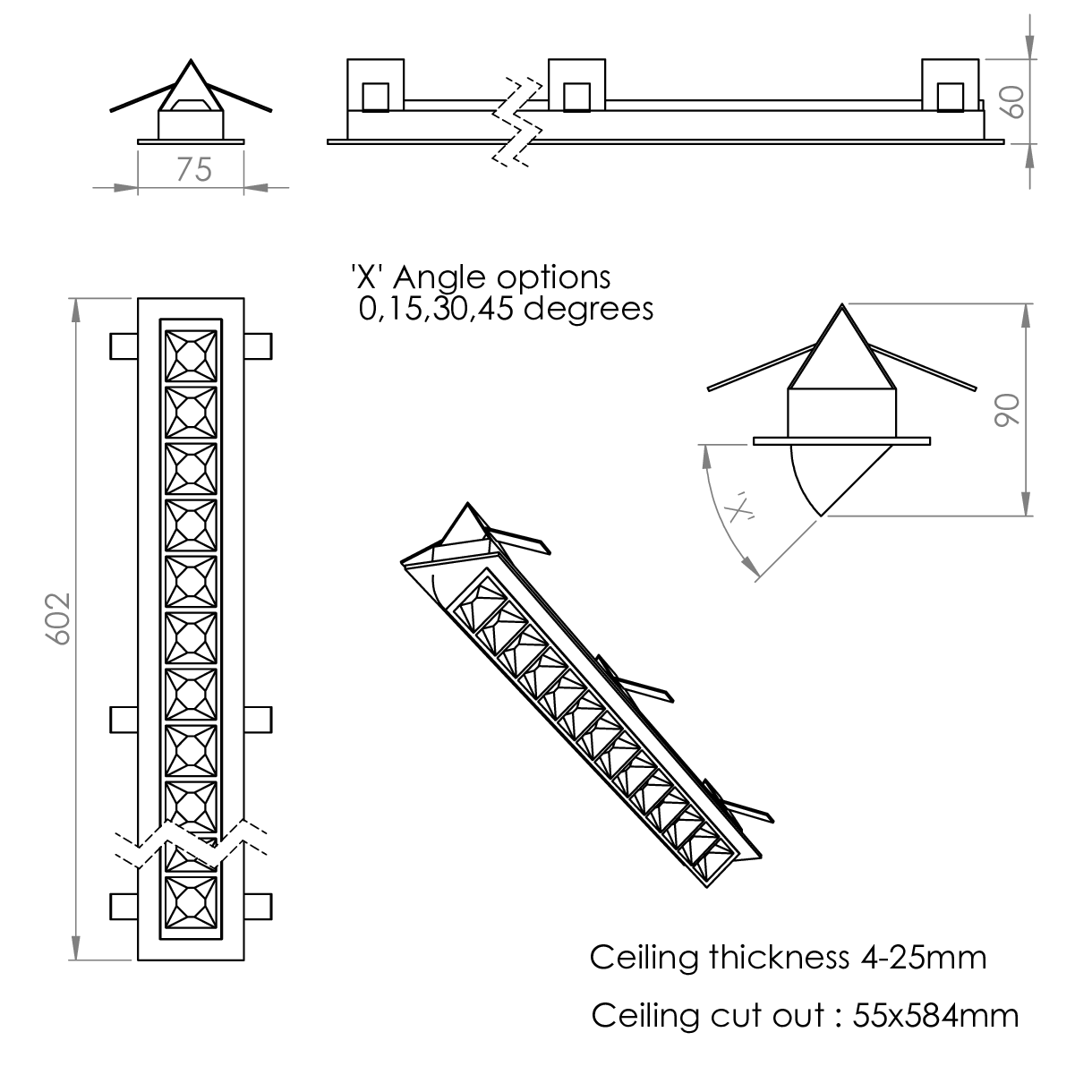

The Rubini Accent has an adjustable scoop design allowing the head to be pivoted from horizontal through 15°, 30° and 45° angles allowing effective highlighting of wall mounted displays and merchandise. White or black housing and cellular baffle options are available ensuing that the Rubini can blend into a range of architectural styles, and is available in two housing sizes, 300mm 7 cell or 600mm 14 cell as well as a range of dimmable options including Switch Dim, DSI, HFR or DALI. The Rubini is available with a range of wireless options and can be installed flush in the ceiling where required.
Complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Hotel / Leisure | Office | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9005 textura matt black
- Lens: Injection moulded PMMA 80° with baffle in RAL9005 matt black, RAL 9016 matt white or copper
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 145 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- HFR 1-10V analogue dimming
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
- Suitable for metal ceiling tile installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of housing sizes and lumen outputs
- Available in white or black finishes

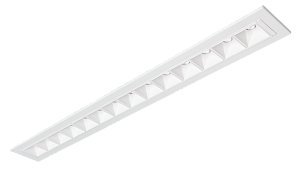

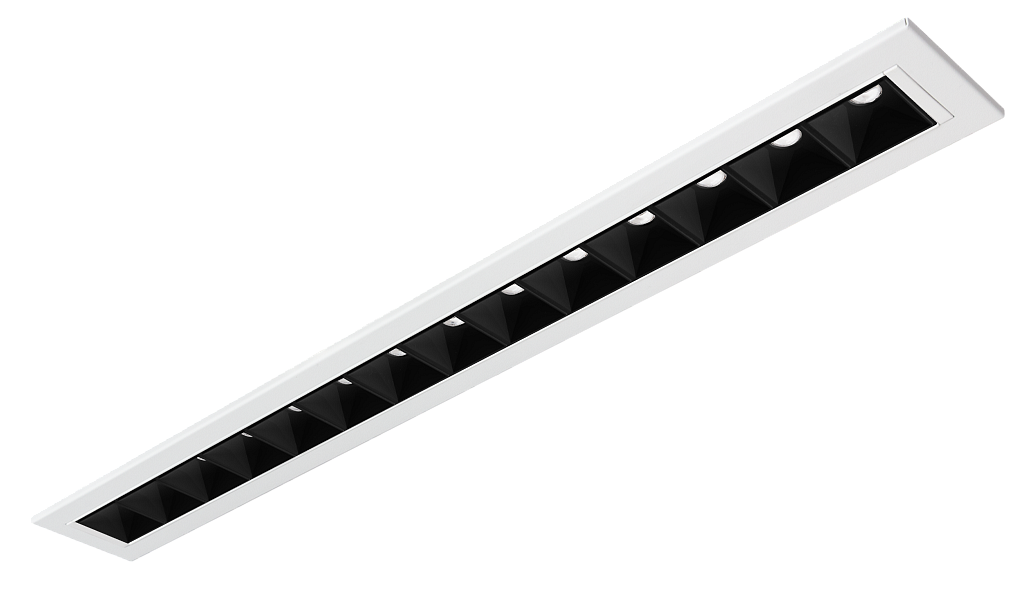

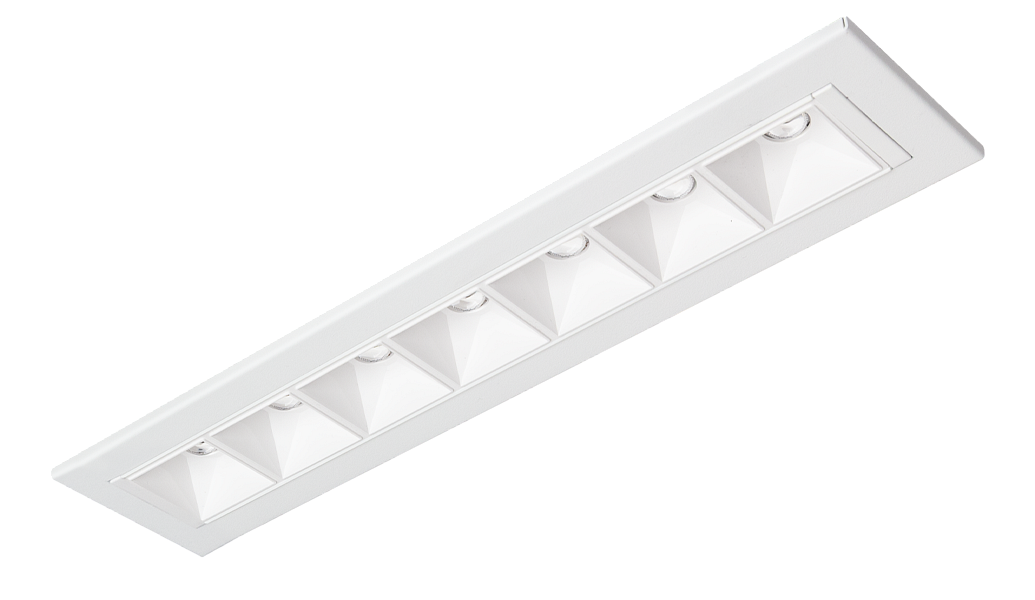

Product Images

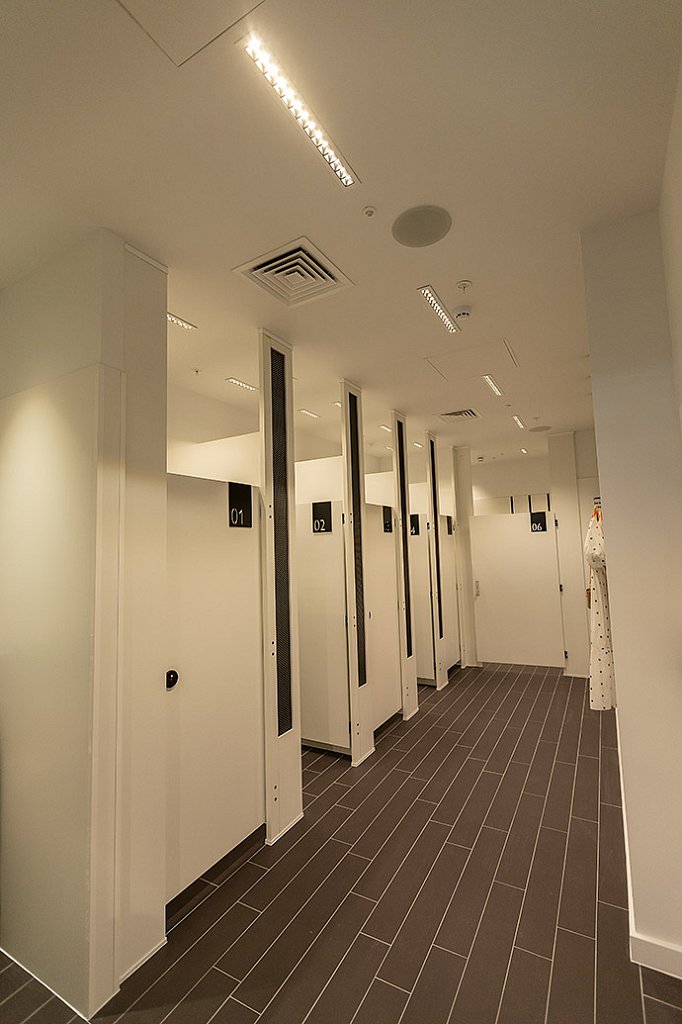

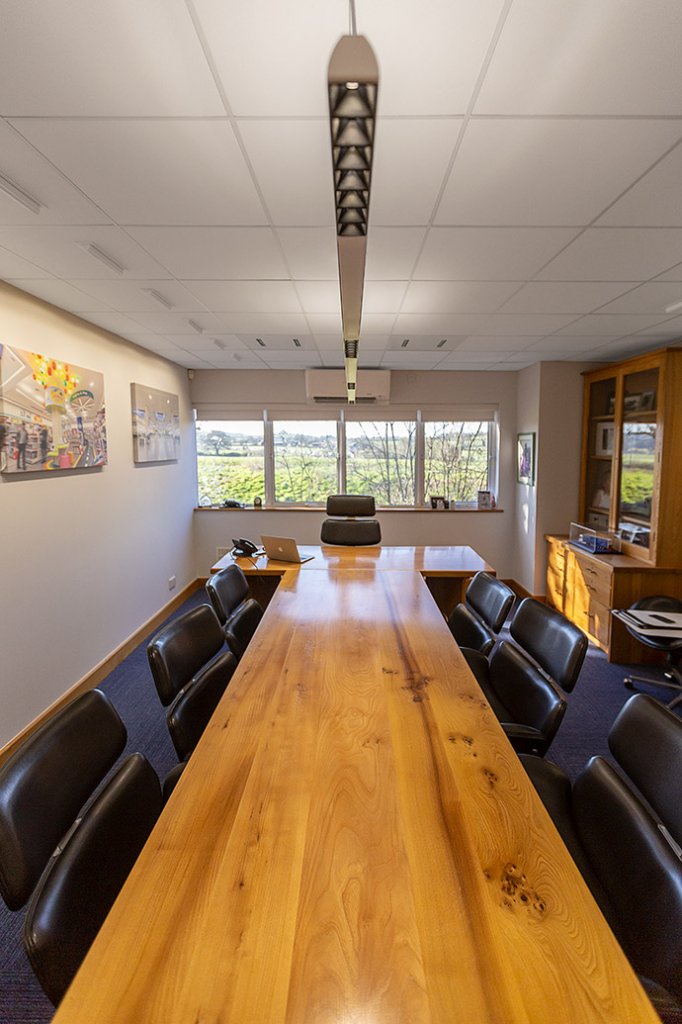

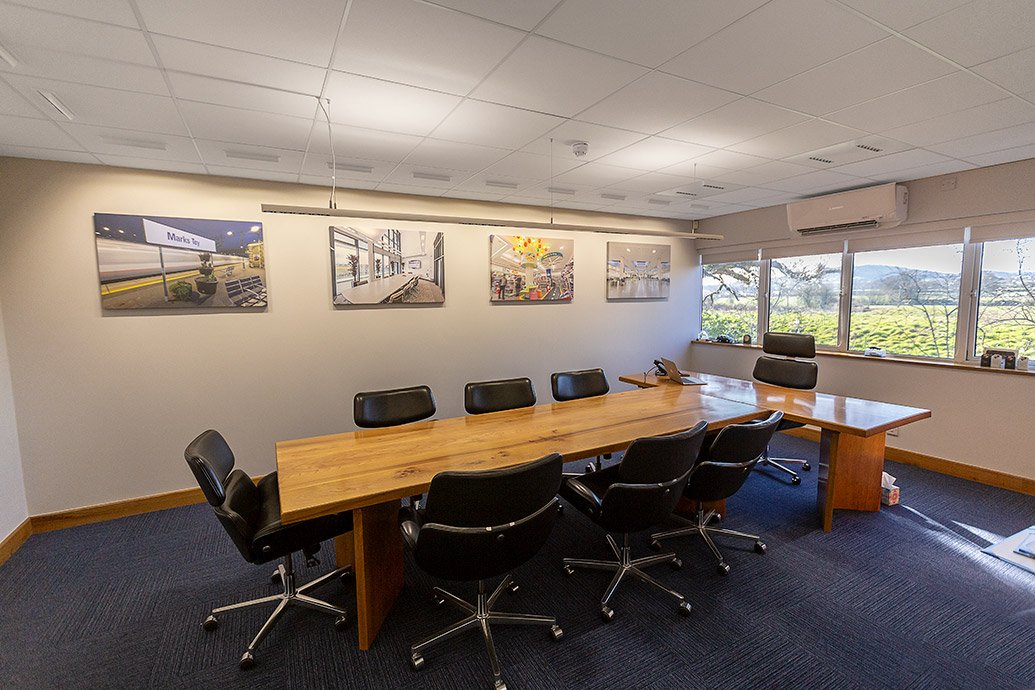

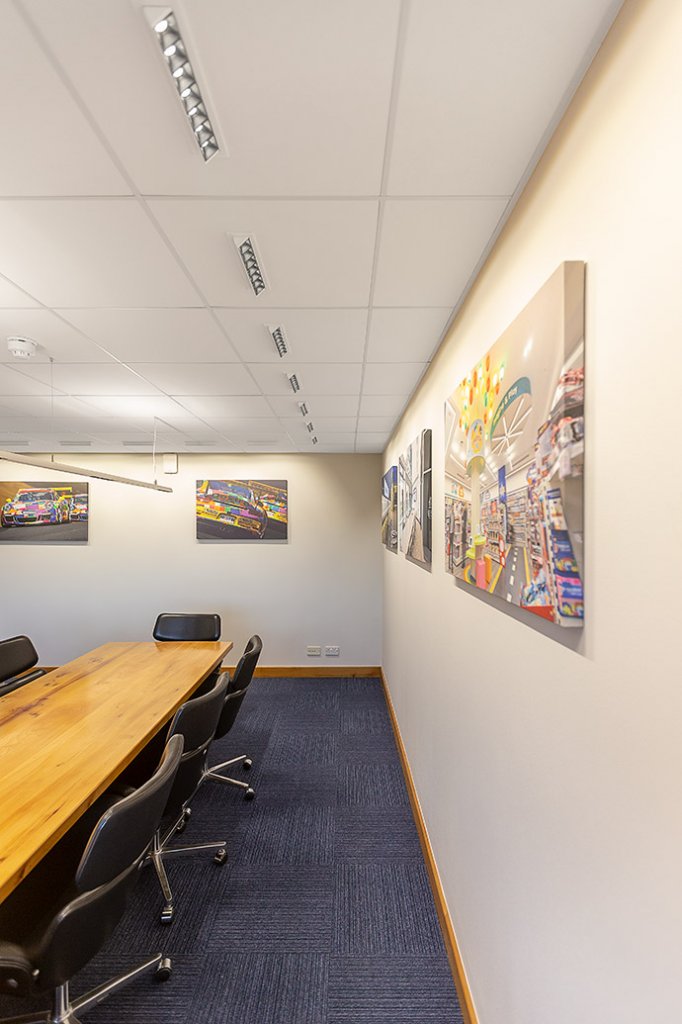

RUBINI ACCENT in action
Case studies
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||||||||||
Colour
| Code | Description |
|---|---|

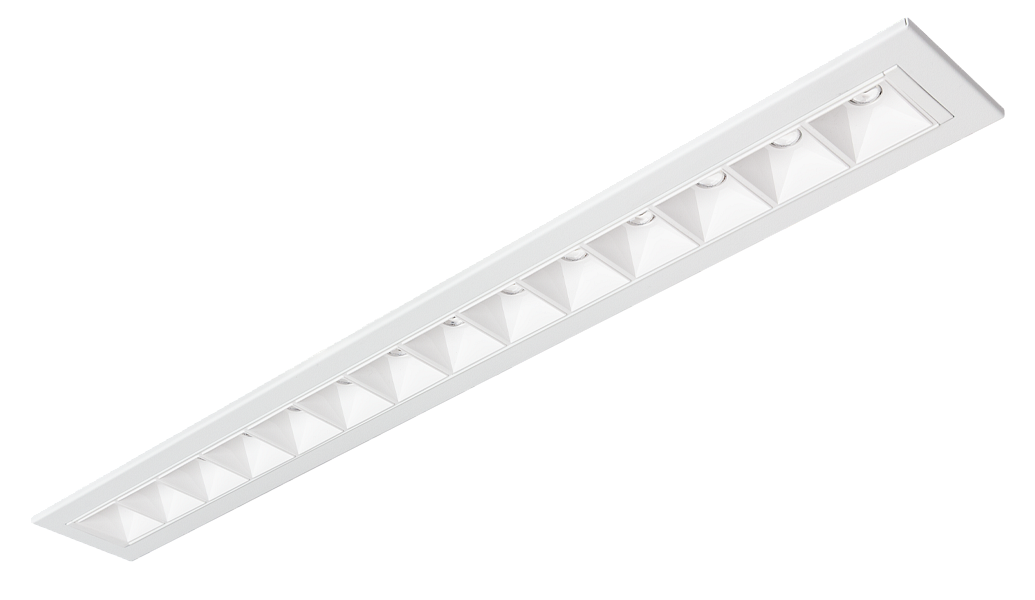

| WW | White Housing / White Baffle |

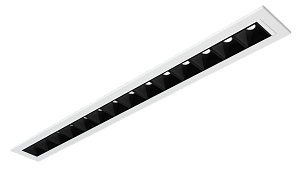

| WB | White Housing / Black Baffle |

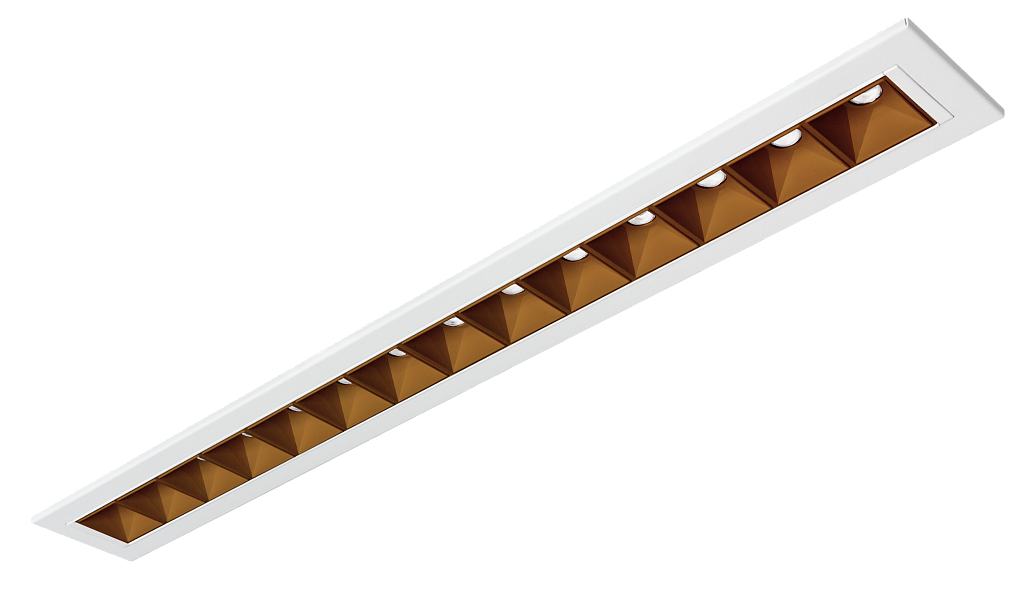

| WC | White Housing / Copper Baffle |

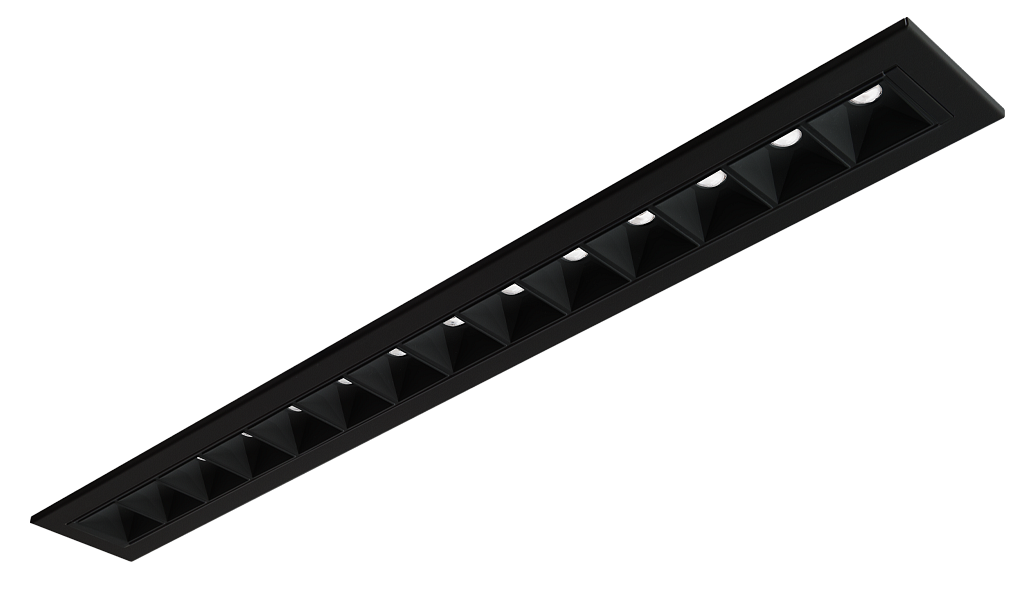

| BB | Black Housing / Black Baffle |

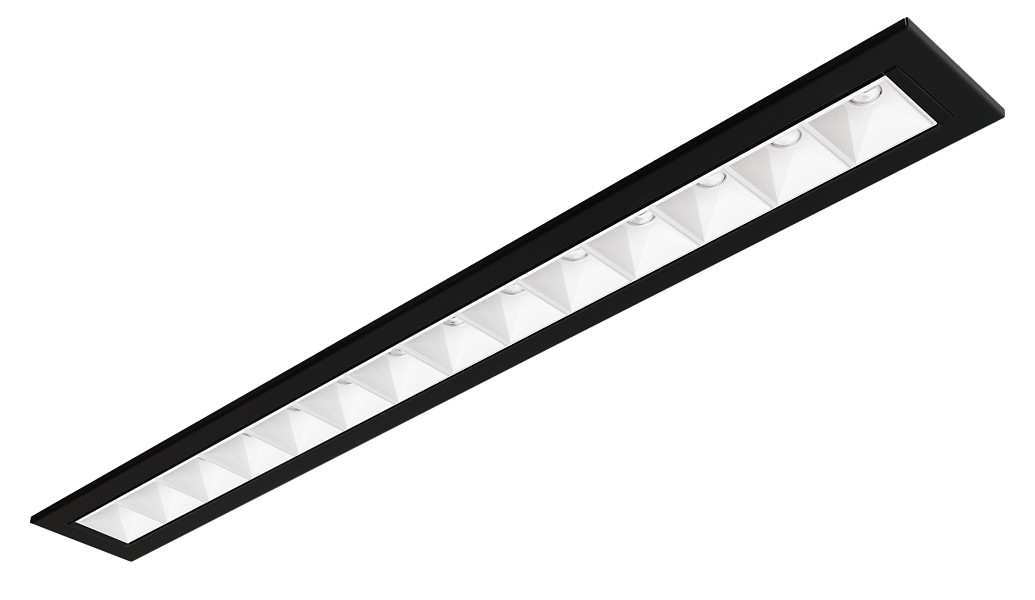

| BW | Black Housing / White Baffle |

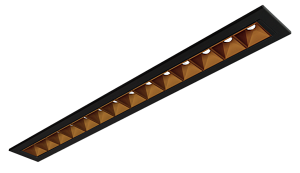

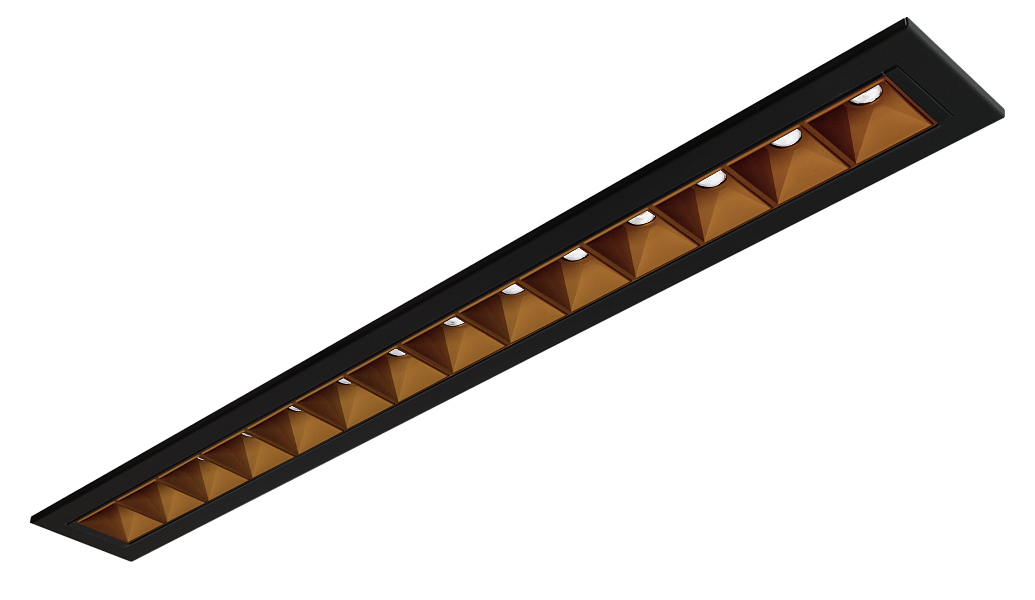

| BC | Black Housing / Copper Baffle |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| INFILL | Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering. |
| LSF | Low Smoke Zero Halogen |
