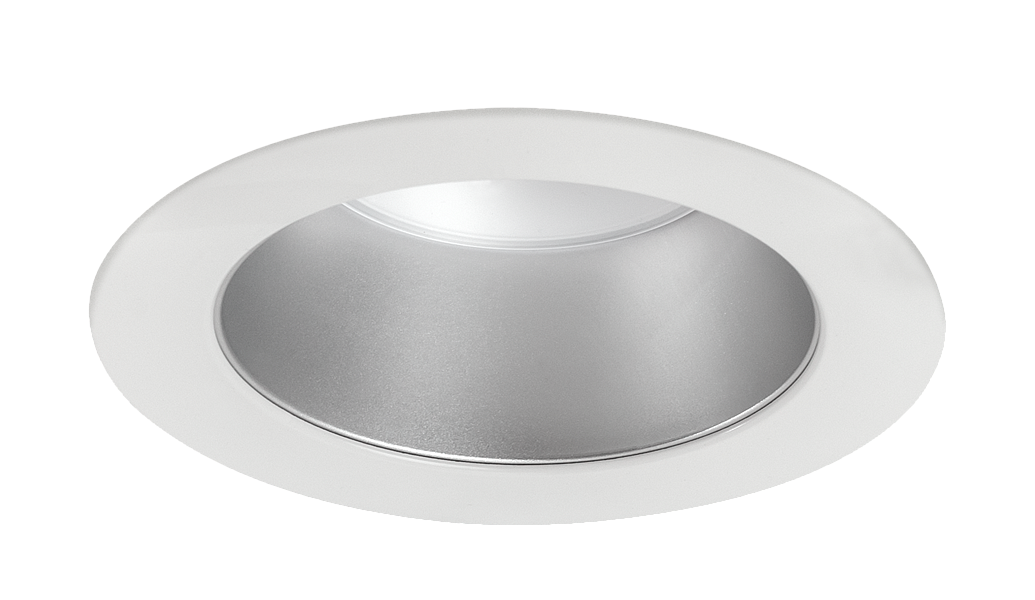

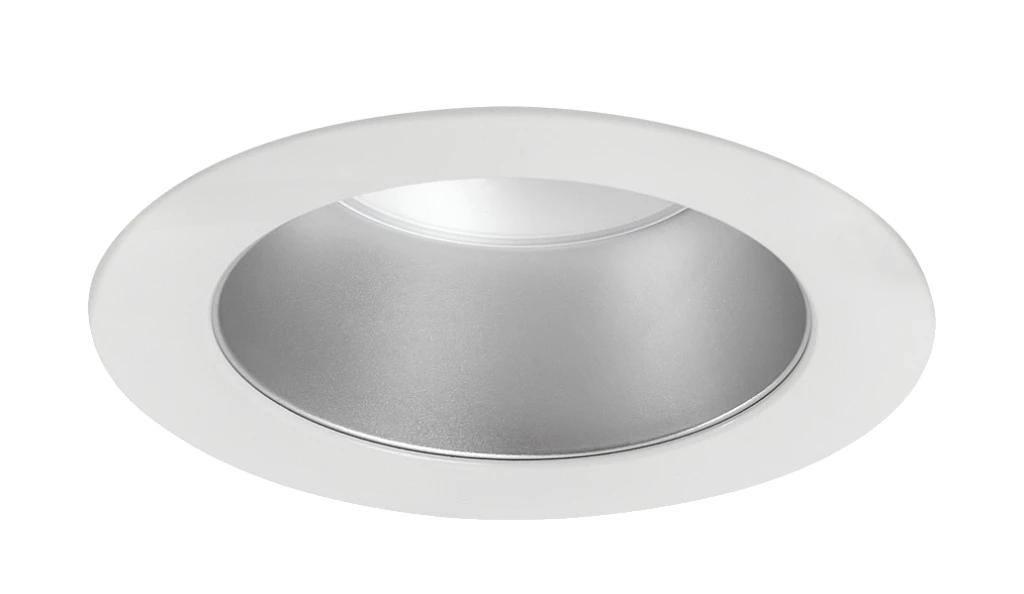

RTECD
The Rapid Tec Deep comes with the same benefits as the standard RTEC range but with a simplified one piece bezel design.
Introduction
The RTECD Downlight combines elements of both of our highly successful BTEC and Protec downlight ranges offering two reflector styles combined with a similar diffuser design to our BTEC downlight, the RTECD combines flexibility and an appealing design with excellent efficiency, colour consistency and lifetime. The RTECD has a simplified bezel design compared to the standard RTEC range where customers do not wish to see the additional channel between inner and outer frames and is supplied fully assembled with the attachment fitted to the luminaire to simplify installation.
To complete the range the RTECD downlight is also available in all common dimming and lithium emergency variants. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored. Infill rings are available on request for retrofit applications to ensure suitability for existing ceiling cut outs.
Complies with:
UKCA | CE | IP44 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Toilet | Transport
Specification
Construction
- Housing: Spun aluminium
- Finish: Matt white

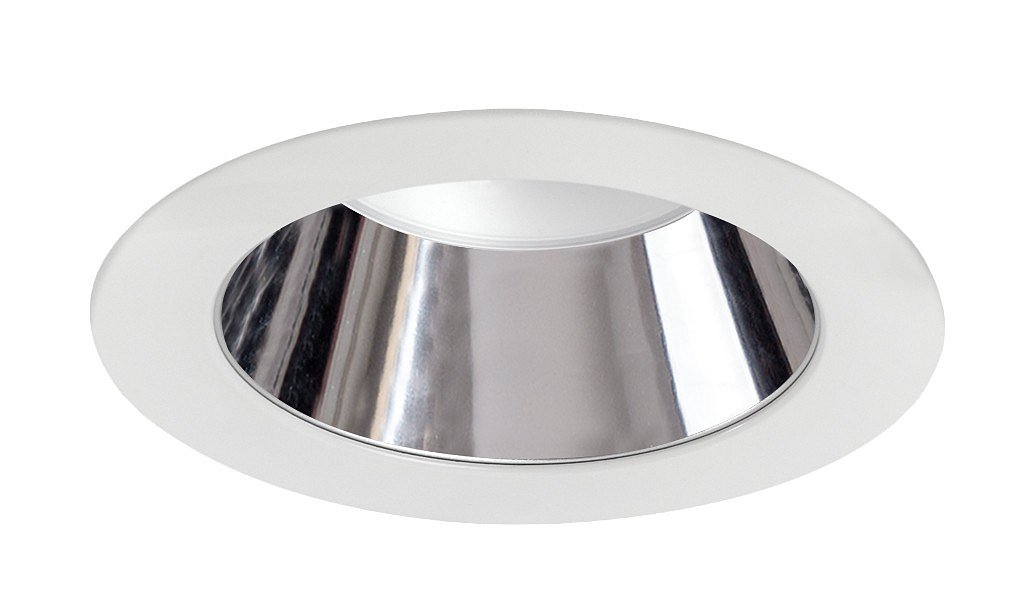

- Reflector: Specular aluminium

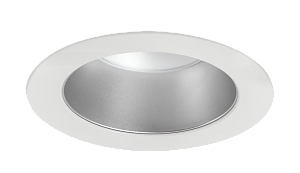

- Reflector: Semi specular aluminium
- IP44
Performance
- Part L2 compliant
- BSEN 12464-1:2011 3000 Candela 65°
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 149 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs
Product Images
Case studies

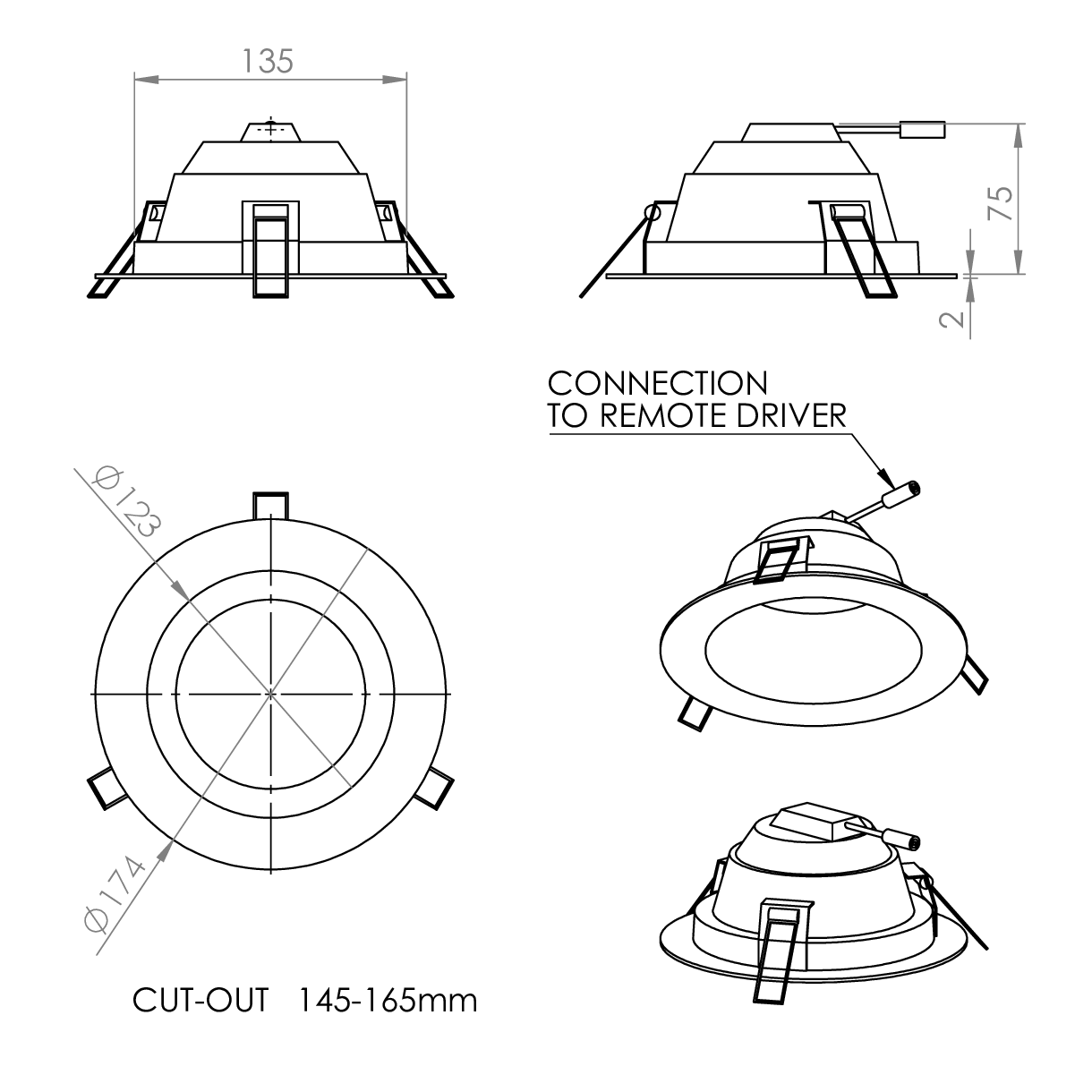

Technical
RTECD
RTECD Emergency Gear Package
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| Analogue dimming only available in L18 variants | |
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCSS | Reacta-Control Standalone Sensor, Presence & Daylight 2.5-4M, Use with RC Luminaires |
| RLS REMOTE SENSOR | Reacta-Link Standalone Sensor, Presence, 2.5-4M, Use with RLI Luminaires (sold separately) |
| RAD | Reacta-Air, Wireless Enabled Luminaire |
| RASS | Reacta-Air Standalone Sensor, Presence, 2.5-4M, Use with RAD Luminaires (sold separately) |
| RASSD | Reacta-Air Standalone Sensor, Presence & Daylight, 2.5-4M, Use with RAD Luminaires (sold separately) |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| INFILL | Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering. |
| LSF | Low Smoke Zero Halogen |
