Roux

The Roux has been specifically engineered to offer retailers something completely different.

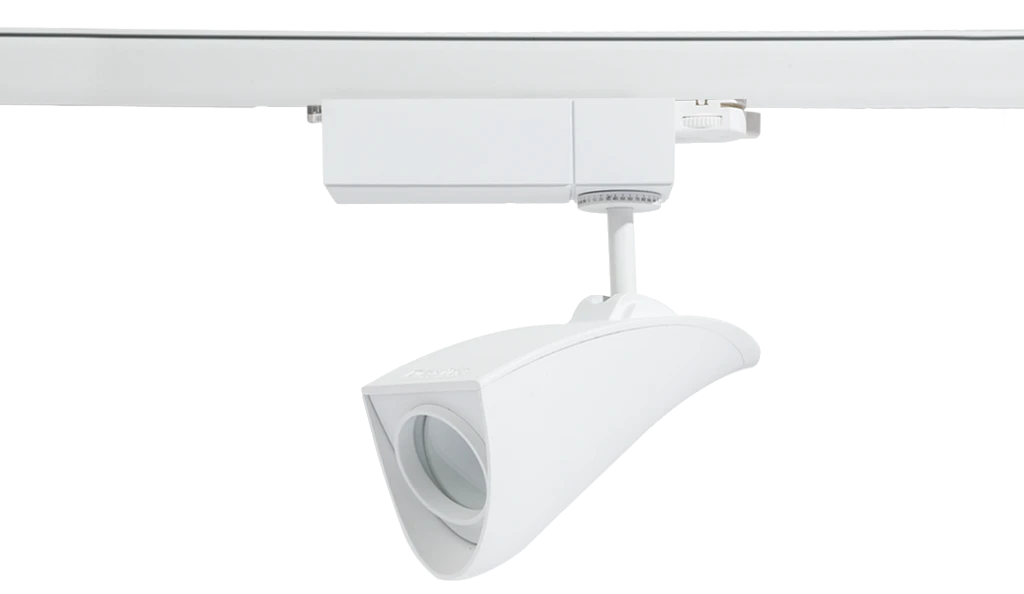

ROUX FEATURED

Introduction

The Roux has been specifically engineered to offer retailers something completely different, this ground breaking innovative design utilises the very latest LED technology to deliver a fresh looking and exquisitely formed track luminaire that's well suited to the modern retail environment. The mounting arm comes with an annotated dial at either end allowing you to both rotate and pivot the fitting head to the exact angle required, ensuring that they can be positioned precisely and consistently with minimal effort along the length of the track. In addition the slim line flush mounted gear can comes with a clear plastic cover on the rear enabling quick identification of the driver for ease of future maintenance. Available in two colours, three beam angles and multiple lumen outputs this sublime new range of track spots is already proving popular with clients nationwide.

Complies with:

UKCA | CE | IP20 | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.3

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: High pressure die cast aluminium

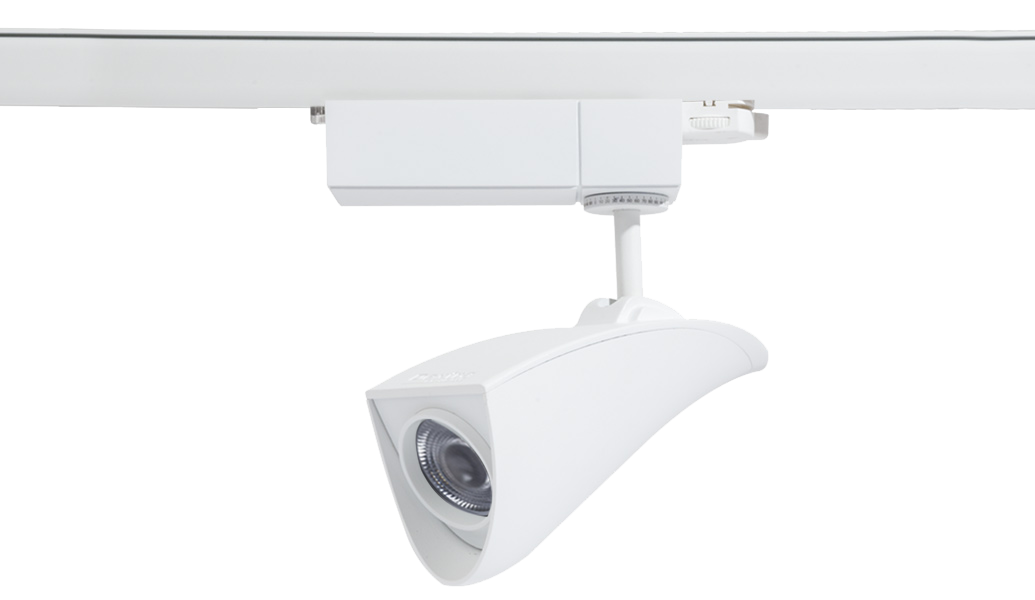

  • Finish: Polyester powder painted RAL 9016 textura matt white

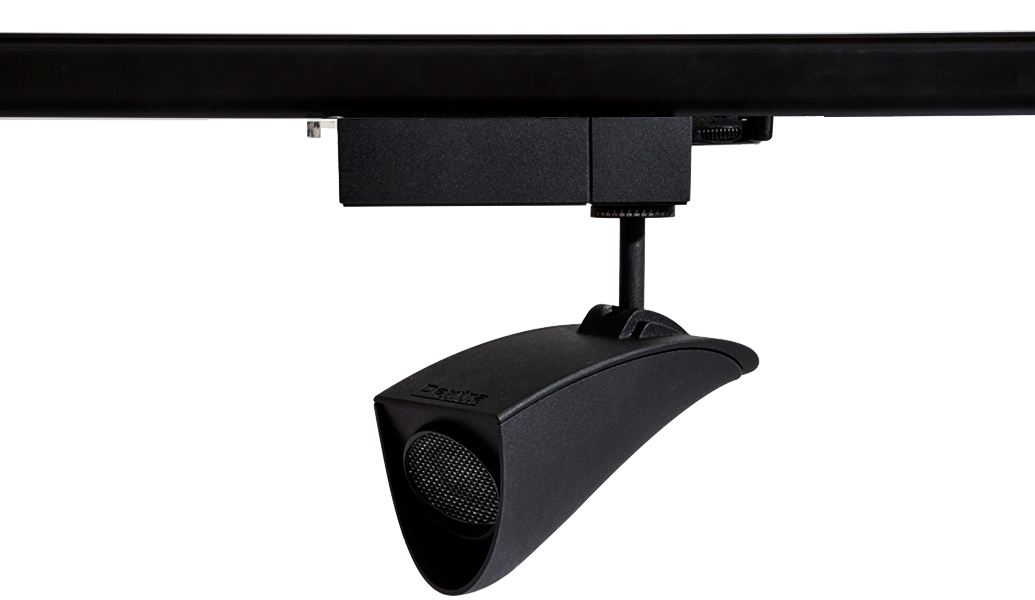

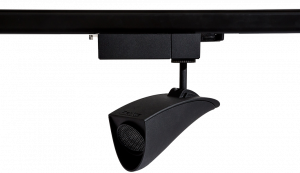

  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Lens: Injection moulded PMMA lens
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 115 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Installation

  • Suitable for three circuit track installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs

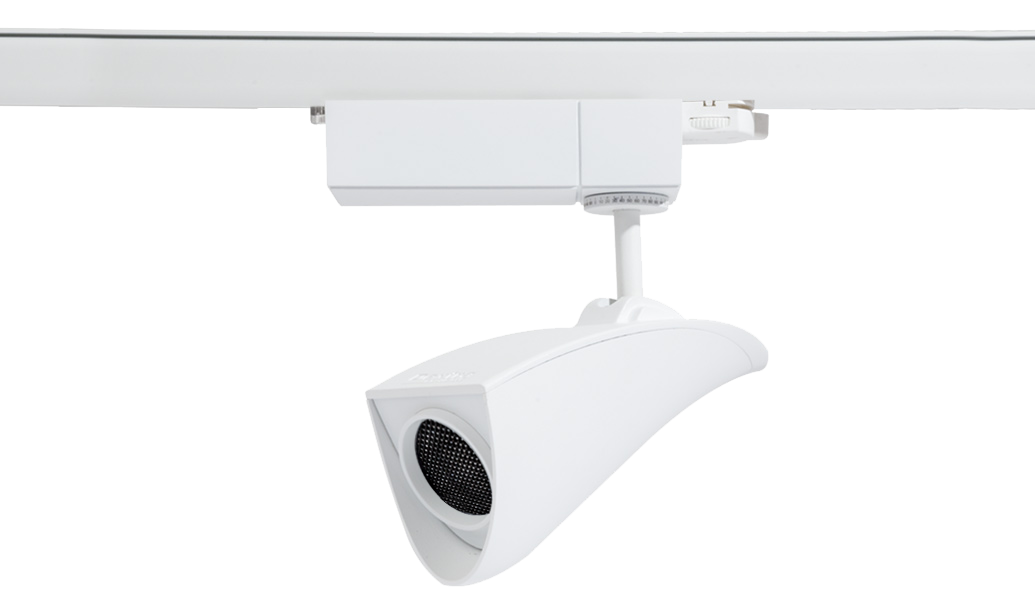

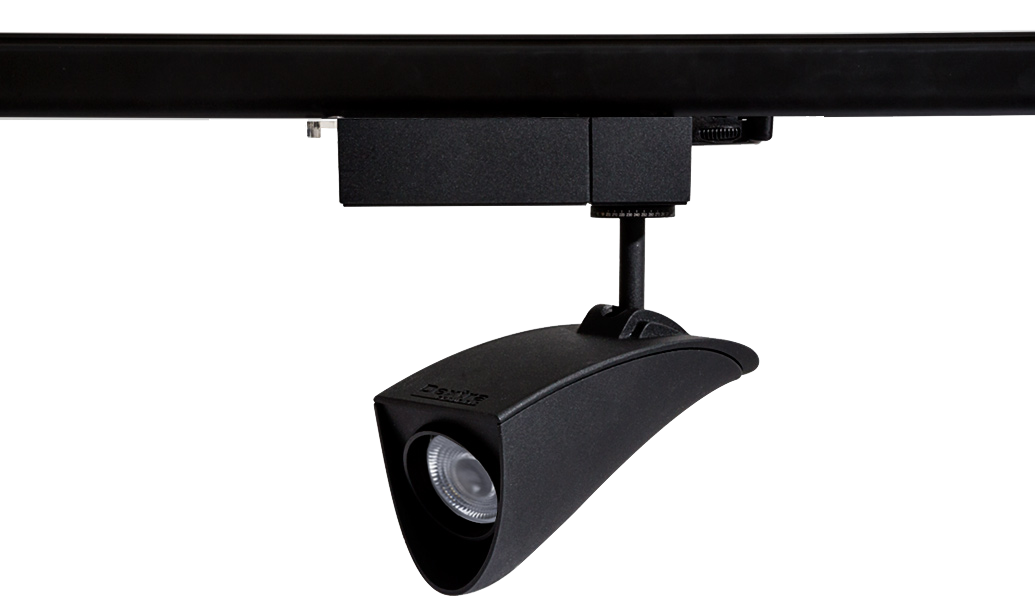

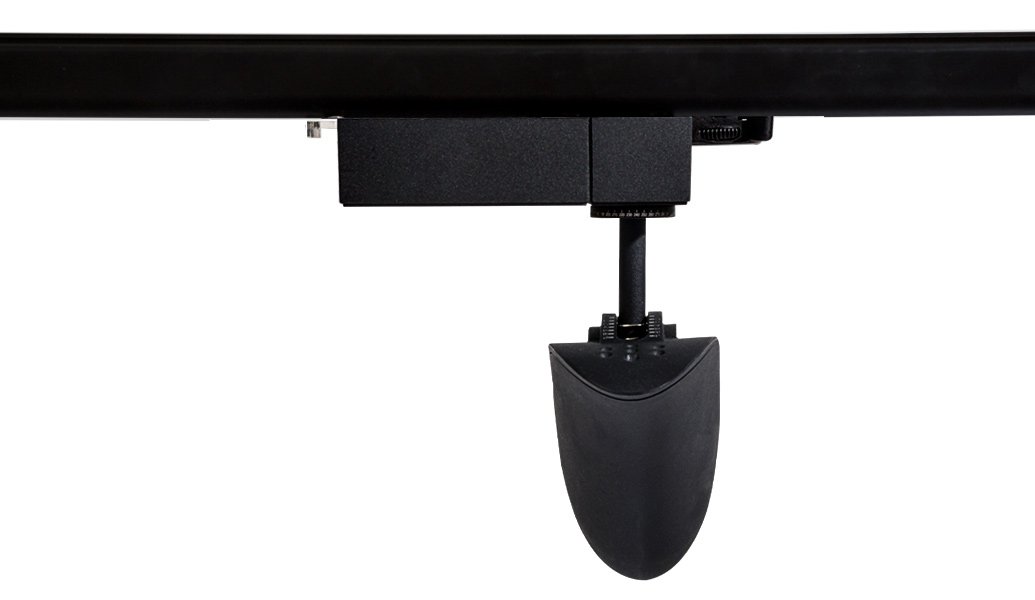

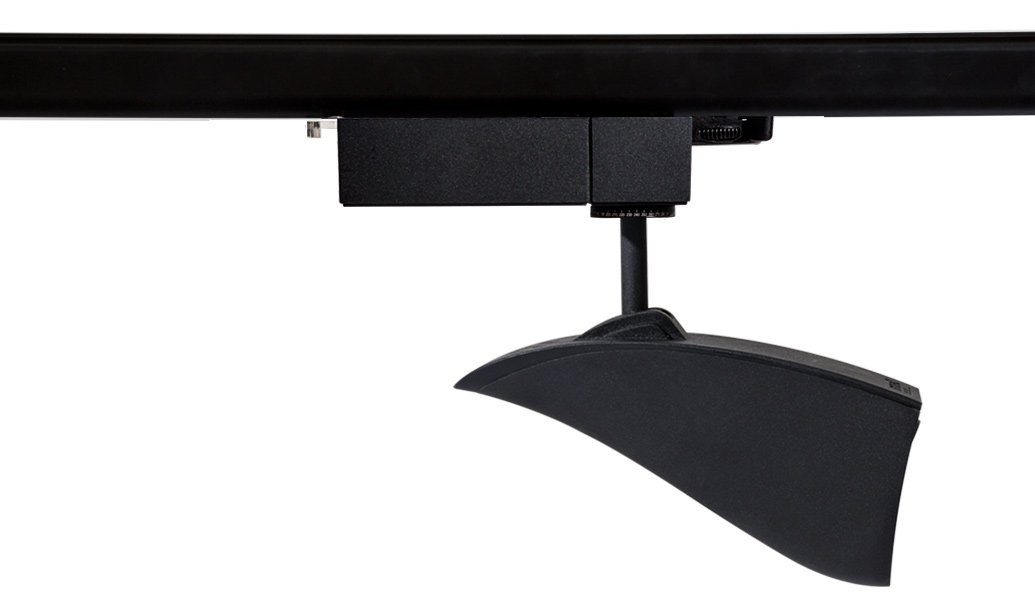

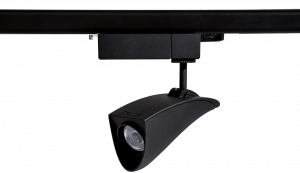

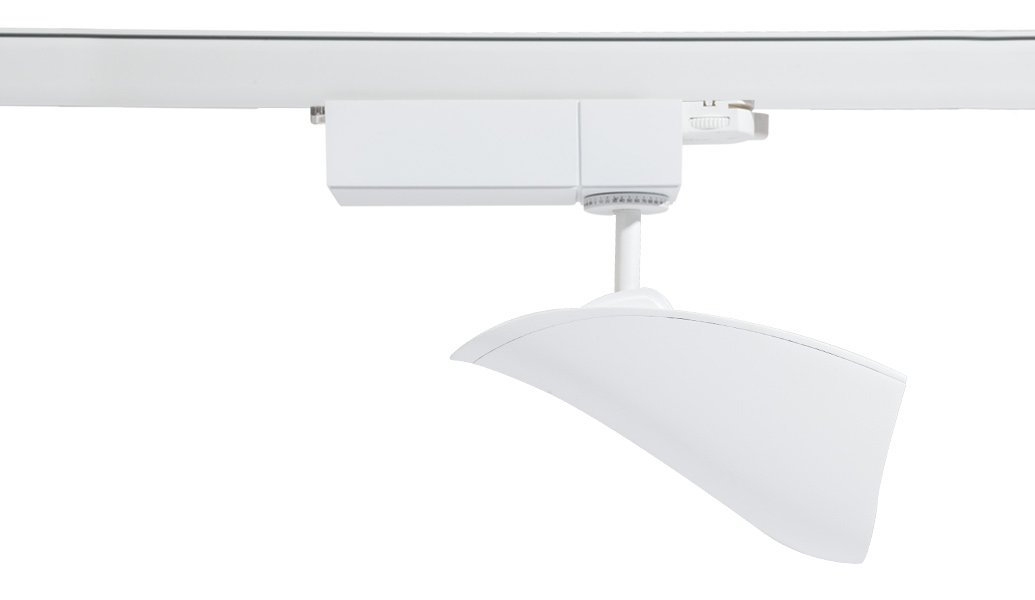

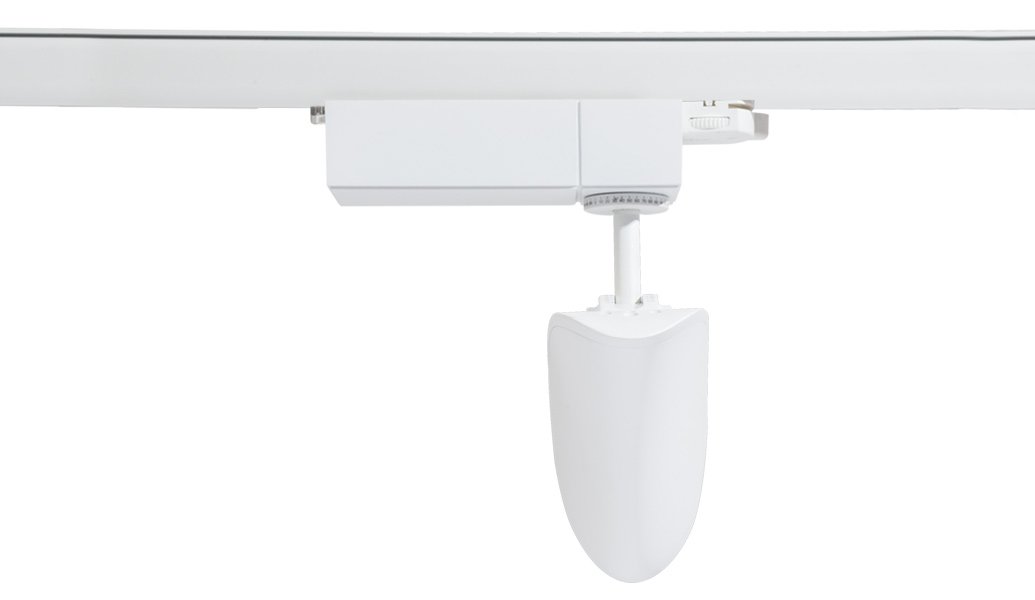

  • Available in white or black finishes
  • Available with Philips Premium White, Premium Colour, Crisp White, Food Premium Red or Warm White
Find out more about our 5 year extended warranty

Technical

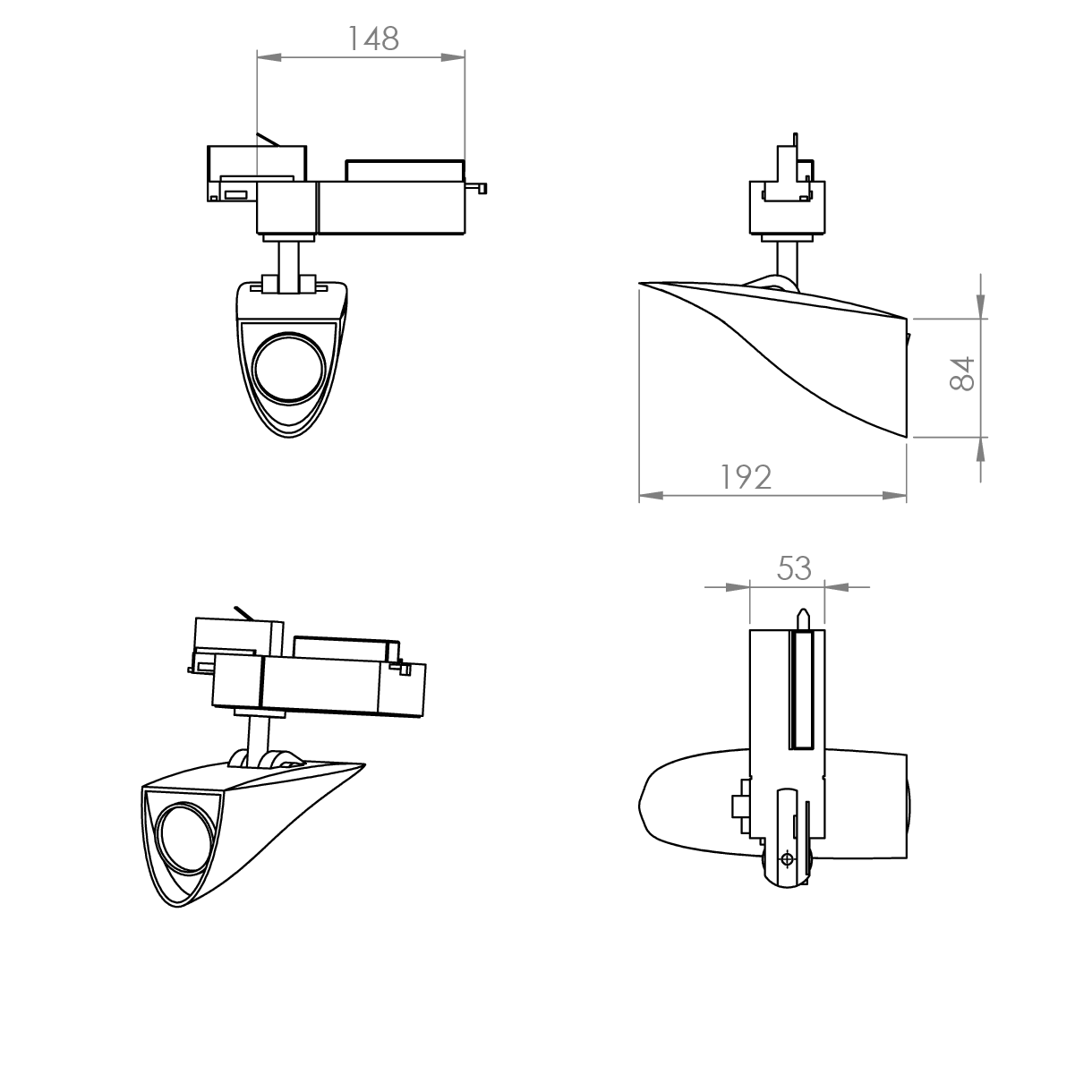

Roux

Roux

Track Configuration

Track Configuration

Track Dimensions and Loadings

Track Dimensions and Loadings

Track Polarity

Track Polarity

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
ROU L14 25 Roux, 847llm, 25° Lens, Colour 84 9.6W 88
ROU L20 25 Roux, 1,207llm, 25° Lens, Colour 84 13.9W 86
ROU L30 25 Roux, 1,790llm, 25° Lens, Colour 84 22.2W 75
ROU L14 40 Roux, 1,107llm, 40° Lens, Colour 84 9.6W 115
ROU L20 40 Roux, 1,575llm, 40° Lens, Colour 84 13.9W 113
ROU L30 40 Roux, 2,319llm, 40° Lens, Colour 84 22.2W 104

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C83, C93, C94
BL Black Finish
LSF Low Smoke Zero Halogen
