RECESSED TRAYS

Retrofit gear trays to suit our recessed ranges

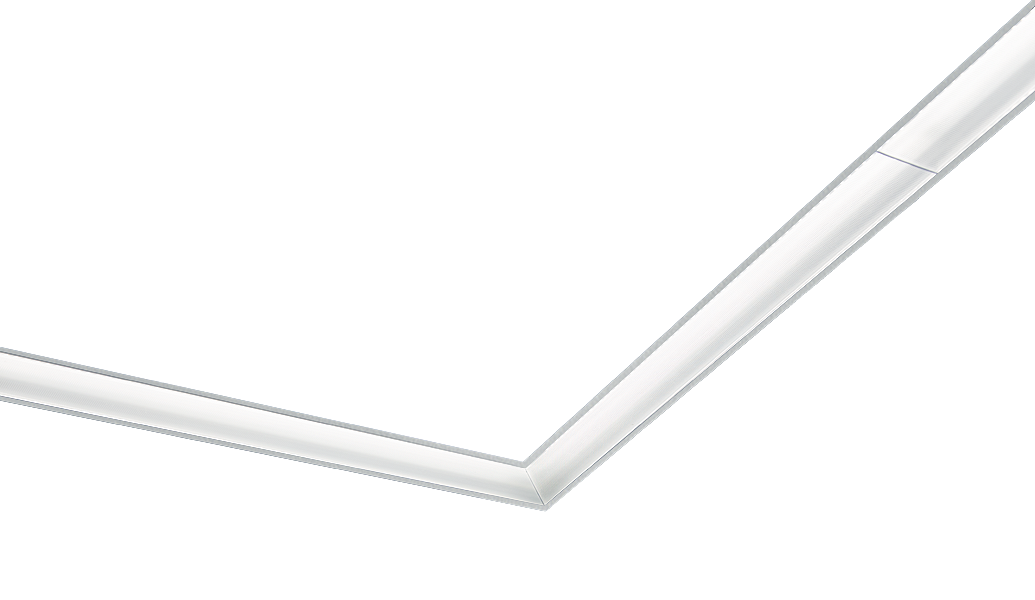

Runway Recessed Continuous Complete Luminaire

Introduction

We offer retrofit gear trays for several of our Recessed ranges including the IMPR, Runway Recessed and Runway Continuous Recessed ranges. These trays enable luminaires to be either repaired or upgraded at end of life to use the most efficient LED sources. Replacing the gear tray can also enable you to upgrade luminaires to incorporate dimming, emergency and wireless controls in many cases should you wish to enhance the performance of your product. Please note that we can also offer replacement parts such as diffusers and accessory parts should these also need to be renewed.

 To arrange replacement gear trays please contact us with the luminaire type and date of supply so that we can advise on the most suitable tray to upgrade your product. Each luminaire contains a 7 digit number on the product labelled prefixed with IJN which will allow us to trace the exact product details for your installation. Please be aware that we will need to understand the age and condition of the product to determine if replacement gear trays are feasible, the style of gear tray that will be required and if any additional parts such as the diffuser will also require replacement.

Complies with:

UKCA | CE | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Product Images

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

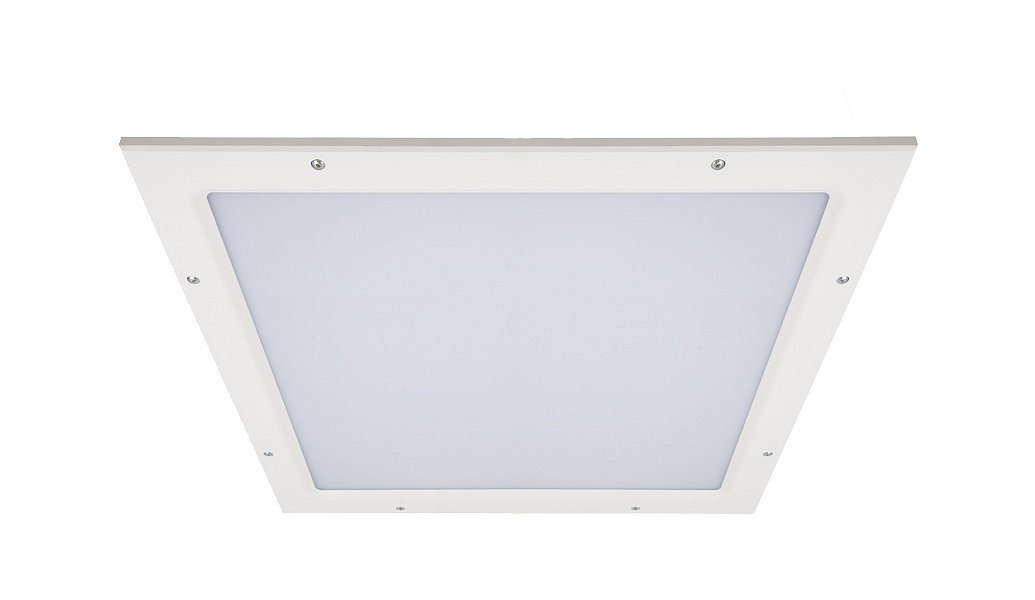

IMPR
Code Description
IMPR65 L35 GT IMPR, Pull-Up, 600x600, 3,500lm, IP65, Tray, Colour 84
IMPR65 L45 GT IMPR, Pull-Up, 600x600, 4,500lm, IP65, Tray, Colour 84
IMPR65 L55 GT IMPR, Pull-Up, 600x600, 5,500lm, IP65, Tray, Colour 84
IMPR65 L68 GT IMPR, Pull-Up, 600x600, 6,800lm, IP65, Tray, Colour 84
IMPR65 L76 GT IMPR, Pull-Up, 600x600, 7,600lm, IP65, Tray, Colour 84
IMPR65 123 L35 GT IMPR, Pull-Up, 1200x300, 3,500lm, IP65, Tray, Colour 84
IMPR65 123 L45 GT IMPR, Pull-Up, 1200x300, 4,500lm, IP65, Tray, Colour 84
IMPR65 123 L55 GT IMPR, Pull-Up, 1200x300, 5,500lm, IP65, Tray, Colour 84
IMPR65 123 L68 GT IMPR, Pull-Up, 1200x300, 6,800lm, IP65, Tray, Colour 84
IMPR65 123 L76 GT IMPR, Pull-Up, 1200x300, 7,600lm, IP65, Tray, Colour 84
IMPR65 126 L70 GT IMPR, Pull-Up, 1200x600, 7,000lm, IP65, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless and a selection of colour temperature options

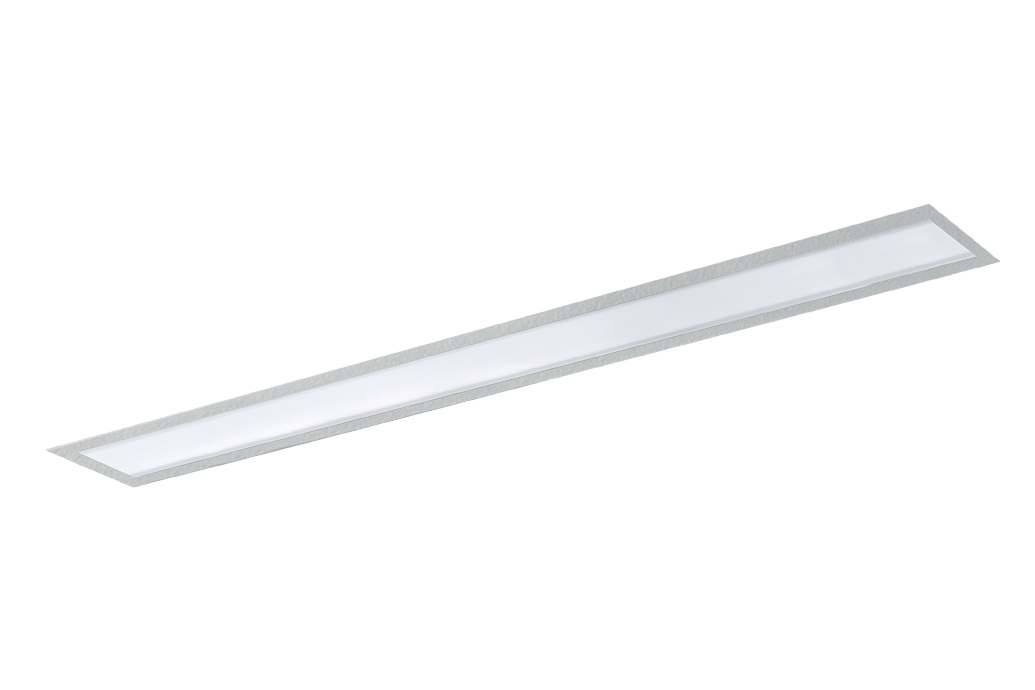

Runway Recessed
Code Description
RWY 1000 L14 ER Runway, 1000mm, 1,400lm, Tray, Colour 84
RWY 1000 L20 ER Runway, 1000mm, 2,000lm, Tray, Colour 84
RWY 1000 L30 ER Runway, 1000mm, 3,000lm, Tray, Colour 84
RWY 1500 L22 ER Runway, 1500mm, 2,200lm, Tray, Colour 84
RWY 1500 L30 ER Runway, 1500mm, 3,000lm, Tray, Colour 84
RWY 1500 L45 ER Runway, 1500mm, 4,500lm, Tray, Colour 84
RWY 1500 L96 ER Runway, 1500mm, 9,600lm, Tray Colour 84
RWY 2000 L29 ER Runway, 2000mm, 2,900lm, Tray, Colour 84
RWY 2000 L40 ER Runway, 2000mm, 4,000lm, Tray, Colour 84
RWY 2000 L60 ER Runway, 2000mm, 6,000lm, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless and a selection of colour temperature options

Runway Continuous Recessed & Runway Surface / Suspended
Code Description
Low Output
RWY 1000 L14 ER Runway Tray, 1000mm, 1,400lm, Tray, Colour 84
RWY 1000 L14 TW Runway Tray, 1000mm, 1,400lm, Through Wire Tray, Colour 84
RWY 1500 L22 ER Runway Tray, 1500mm, 2,200lm, End of Run Tray, Colour 84
RWY 1500 L22 TW Runway Tray, 1500mm, 2,200lm, Through Wire Tray, Colour 84
RWY 1500 L29 ER BD Runway Tray, 1500mm, 2,900lm, End of Run Tray, Bi-Directional, Colour 84
RWY 1500 L29 TW BD Runway Tray, 1500mm, 2,900lm, Through Wire Tray, Bi-Directional, Colour 84
RWY 2000 L29 ER Runway Tray, 2000mm, 2,900lm, End of Run Tray, Colour 84
RWY 2000 L29 TW Runway Tray, 2000mm, 2,900lm, Through Wire Tray, Colour 84
RWY 2000 L38 ER BD Runway Tray, 2000mm, 3,800lm, End of Run Tray, Bi-Directional, Colour 84
RWY 2000 L38 TW BD Runway Tray, 2000mm, 3,800lm, Through Wire Tray, Bi-Directional, Colour 84
RWY COR L14 ER GT Runway Tray, 1000mm, 1,400lm, End of Run Tray, Colour 84
RWY COR L14 TW GT Runway Tray, 1000mm, 1,400lm, Through Wire Tray, Colour 84
High Output
RWY 1000 L30 ER Runway Tray, 1000mm, 3,000llm, End of Run Tray, Colour 84
RWY 1000 L30 TW Runway Tray, 1000mm, 3,000llm, Through Wire Tray, Colour 84
RWY 1500 L45 ER Runway Tray, 1500mm, 4,500llm, End of Run Tray, Colour 84
RWY 1500 L45 TW Runway Tray, 1500mm, 4,500llm, Through Wire Tray, Colour 84
RWY 1500 L60 ER BD Runway Tray, 1500mm, 6,000llm, End of Run Tray, Bi-Directional, Colour 84
RWY 1500 L60 TW BD Runway Tray, 1500mm, 6,000llm, Through Wire Tray, Bi-Directional, Colour 84
RWY 2000 L60 ER Runway Tray, 2000mm, 6,000llm, End of Run Tray, Colour 84
RWY 2000 L60 TW Runway Tray, 2000mm, 6,000llm, Through Wire Tray, Colour 84
RWY 2000 L80 ER BD Runway Tray, 2000mm, 8,000llm, End of Run Tray, Bi-Directional, Colour 84
RWY 2000 L80 TW BD Runway Tray, 2000mm, 8,000llm, Through Wire Tray, Bi-Directional, Colour 84
RWY COR L30 ER GT Runway Corner 90°, 3,000llm, End of Run Tray, Colour 84
RWY COR L30 TW GT Runway Corner 90°, 3,000llm, Through Wire Tray, Colour 84
Very High Output
RWY 1500 L96 ER Runway Tray, 1500mm, 9,600lm, End of Run Tray, Colour 84
RWY 1500 L96 TW Runway Tray, 1500mm, 9,600lm, Through Wire Tray, Colour 84
RWY 1500 L127 BD ER Runway Tray, 1500mm, 12,700lm, End of Run Tray, Bi-Directional, Colour 84
RWY 1500 L127 BD TW Runway Tray, 1500mm, 12,700lm, Through Wire Tray, Bi-Directional, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless and a selection of colour temperature options

Downloads

Product Datasheet (Download PDF) Revit Files Dialux Files Relux Files
