Protec Micro

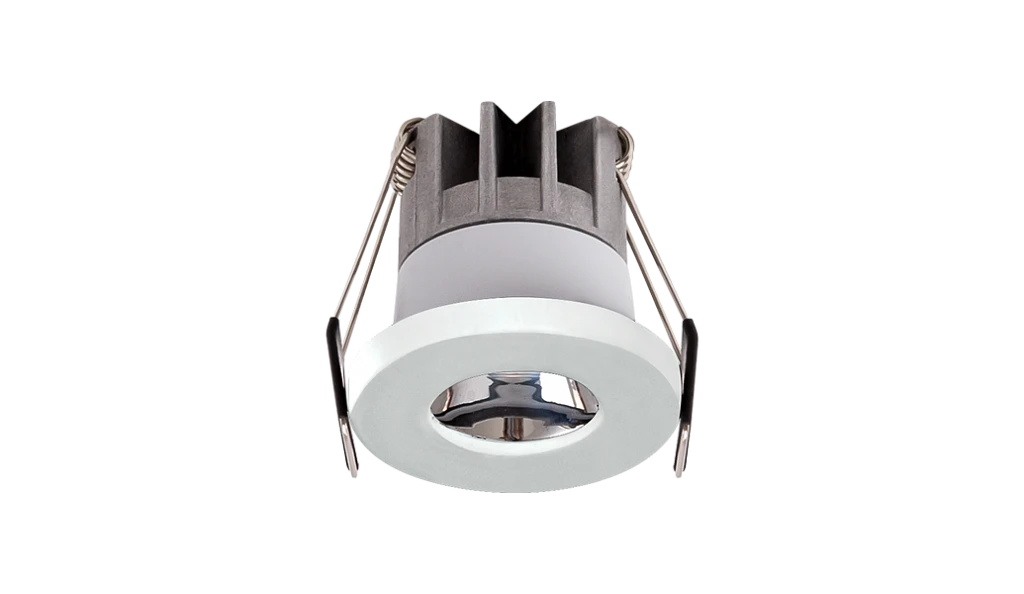

With a diameter of just 40mm the Protec Micro is the ultimate in discreet lighting.

PROTEC MICRO FEATURED

Introduction

With a diameter of just 40mm the Protec Micro is the ultimate in discreet lighting. Despite its small size the Protec Micro offers up to 197 lumen output, ideal for high end domestic, boutique retail and hospitality applications. With a choice of black, white and brushed chrome bezel colours the Protec Micro will blend into the ceiling with minimal impact, whilst the micro driver and spring clip installation ensures it is suitable for plasterboard or suspended ceiling systems.

Complies with:

UKCA | CE | IP20 | TM66 CEAM Score: 1.5

Recommended applications:

Commercial & Offices | Corridor | Hotel & Leisure | Office | Retail

Specification

Construction

  • Housing: High pressure die cast aluminium

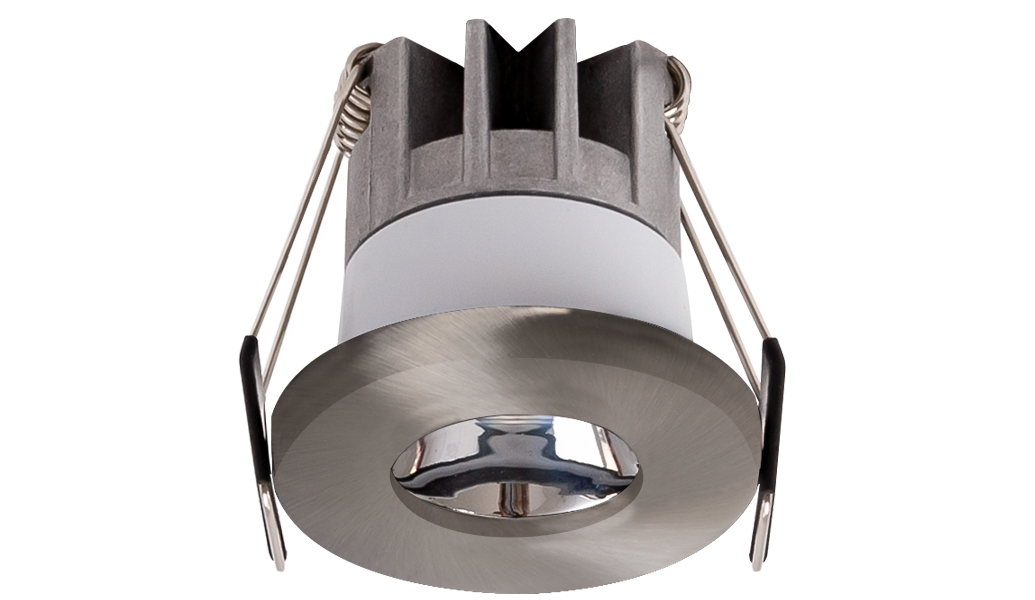

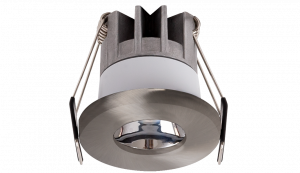

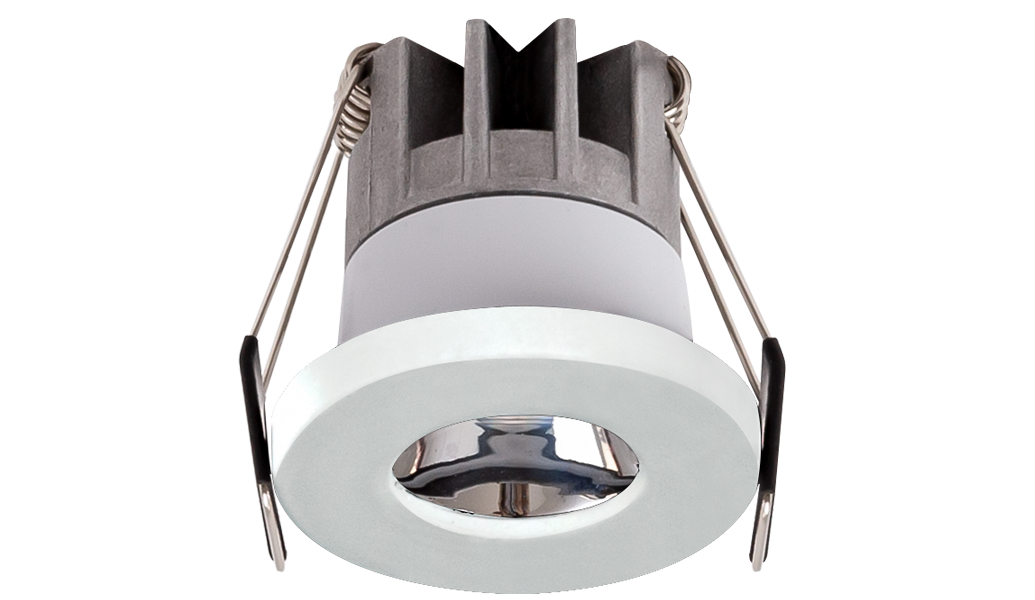

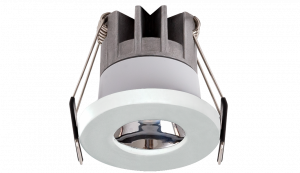

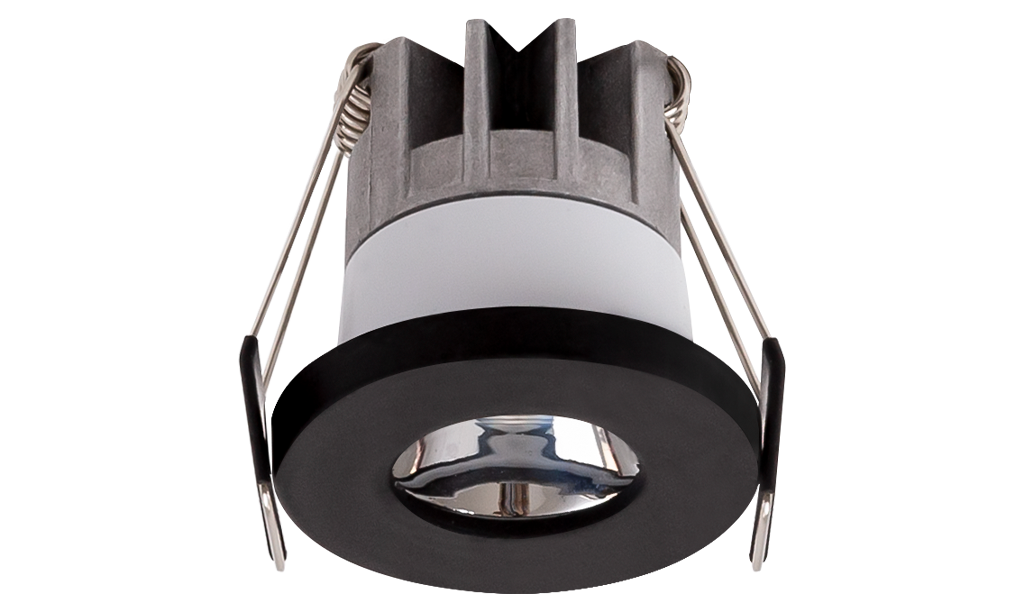

  • Finish: White, black or brushed chrome bezels
  • Reflector: Specular aluminium
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • Up to 61 luminaire lumens per circuit Watt.

Environmental

  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Contains no single use plastics or polystyrene packaging.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • Fixed output only.

Installation

  • Suitable for plasterboard installation
  • Suitable for mineral fibre ceiling tile installation
  • Suitable for metal ceiling tile installation
Find out more about our 5 year extended warranty

Case studies featuring Protec Micro

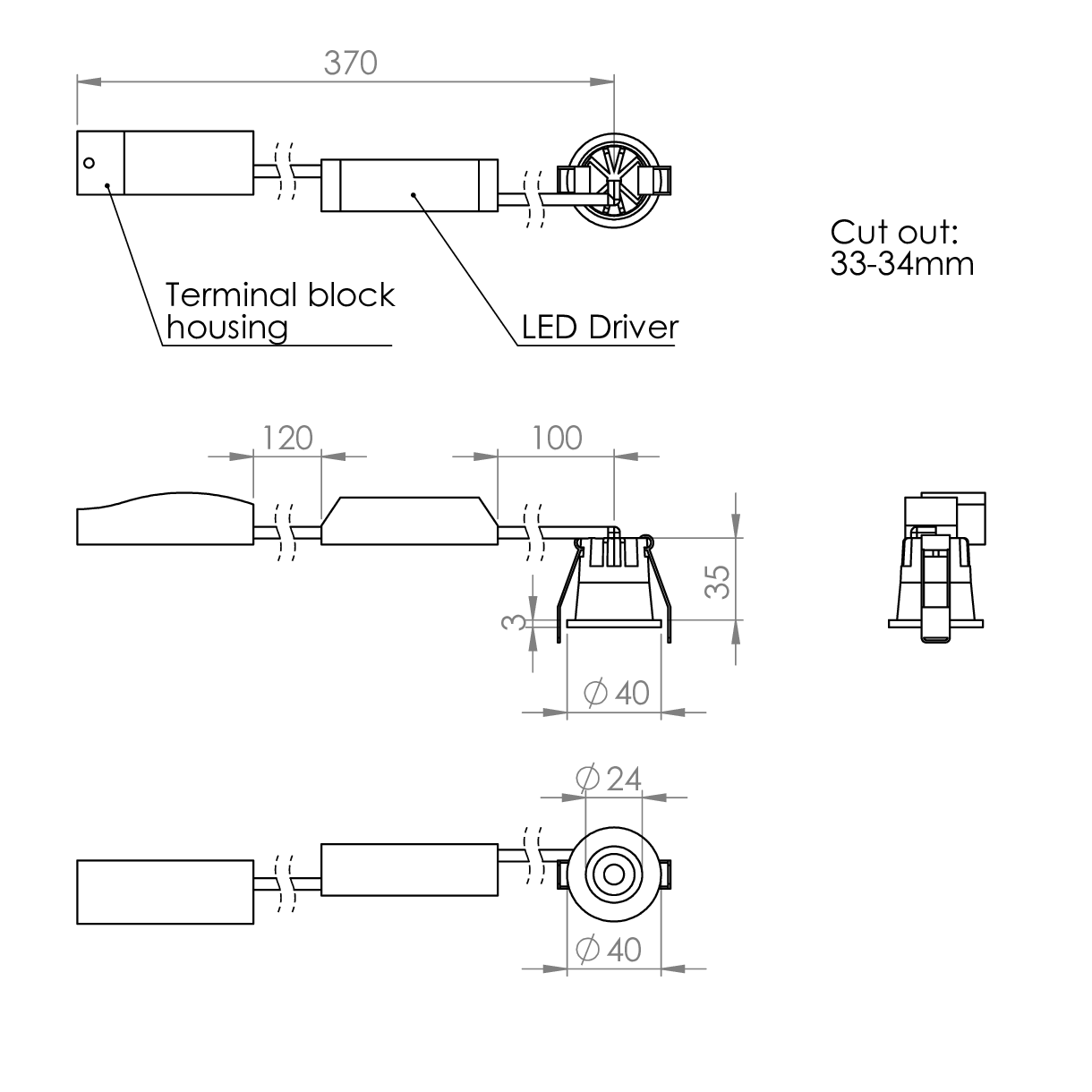

Technical

Protec Micro

Protec Micro

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
PTECMI L02 C94 Protec Micro, 177 lumen, Colour 94 2.9W 61
PTECMI L02 C93 Protec Micro, 168 lumen, Colour 93 2.9W 58

Find out more about
Protec Micro

For Sales and Technical Enquires call 01747 858100
