PRO-LIGHT MINI FIXED
The Pro-Light Mini range has been developed to offer retailers a comprehensive selection of high quality LED spot lights for a variety of applications.
Introduction
The Pro-Light Mini range has been developed to offer clients a comprehensive selection of high quality LED spot lights for a variety of applications. This unique family of products include Fixed, Gimbal, Wallwash and Scoop luminaires that are available in both circular and square formats. The bodies are manufactured from high quality die cast aluminium and come complete with either specular or semi-specular reflectors in a choice of three beam angles. The reflectors simply twist lock into place enabling you to swap them out for a different type post install should you wish to alter the lighting to suit layout changes. All models are offered in an array of lumen outputs ranging from 1206llm up to 3304llm and are available in both CRI80 and CRI98 with a choice of C83 or C84 colour temperatures.
We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored. Infill rings are available on request for retrofit applications to ensure suitability for existing ceiling cut outs.
Complies with:
UKCA | CE | IP20 | 3 STEP MACADAM ELLIPSE
Recommended applications:
Accent Lighting | Display Lighting | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9006 textura matt grey
- Finish: Polyester powder painted RAL 9005 textura matt black
- Reflector: Specular aluminium
- Reflector: Semi specular aluminium
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 104 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
- Suitable for metal ceiling tile installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs
- Available in white, black or grey finishes

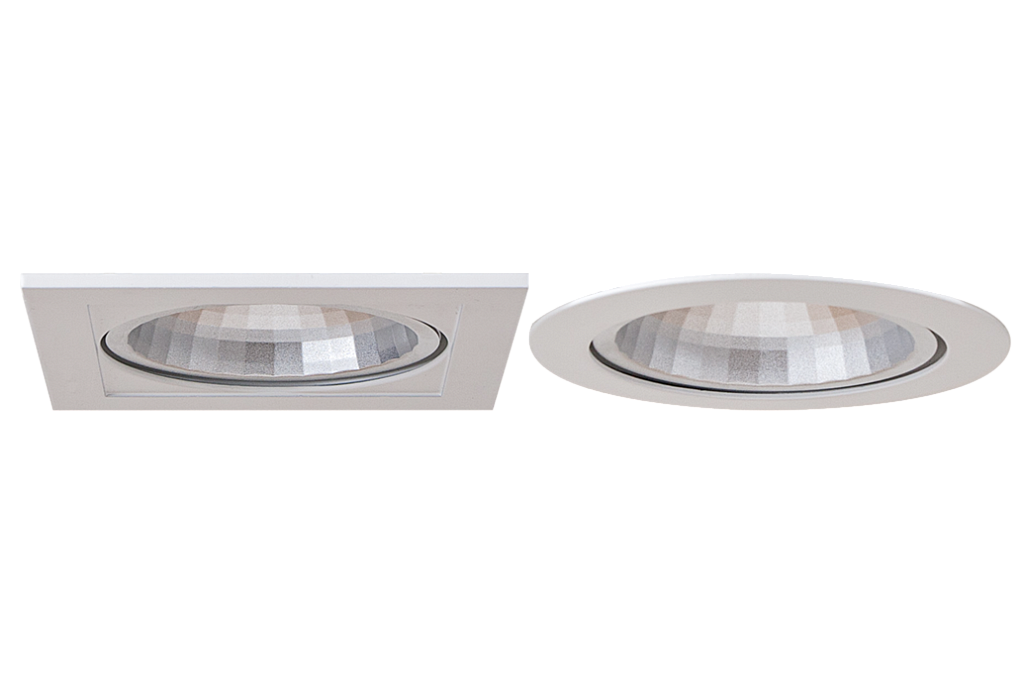

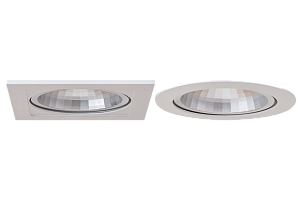

- Available with circular or square bezels

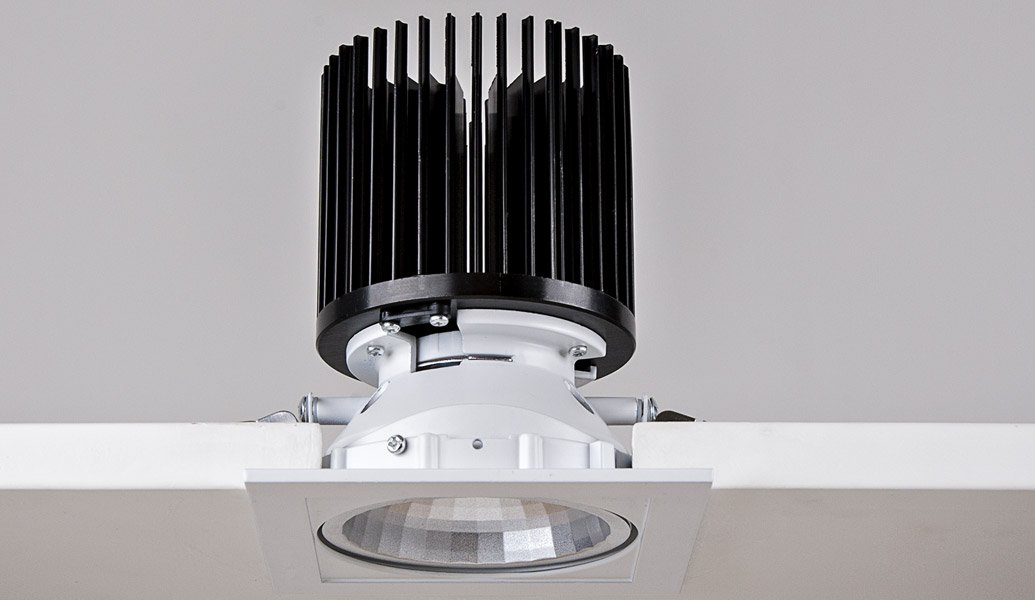

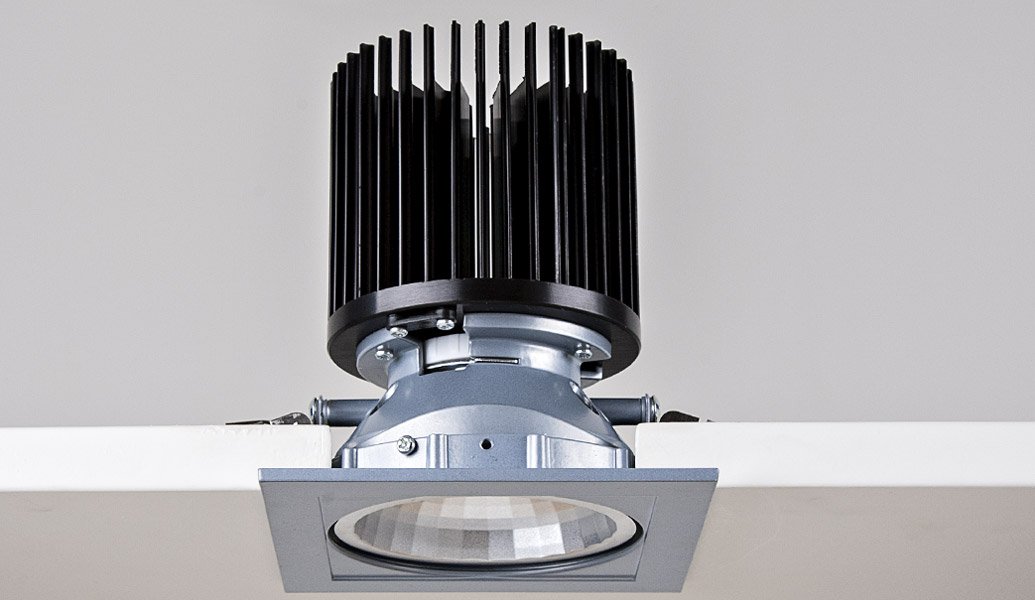

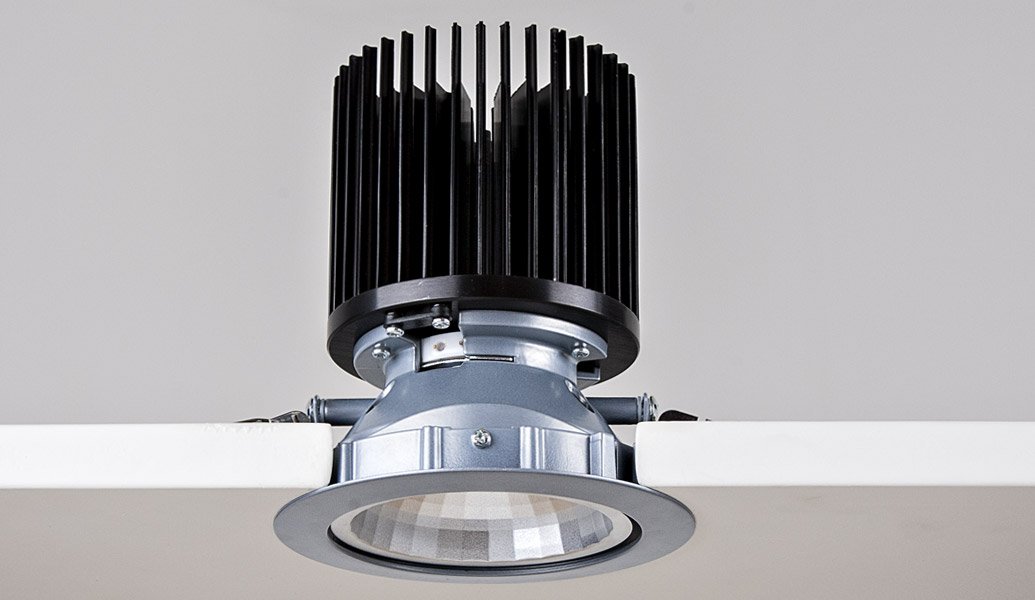

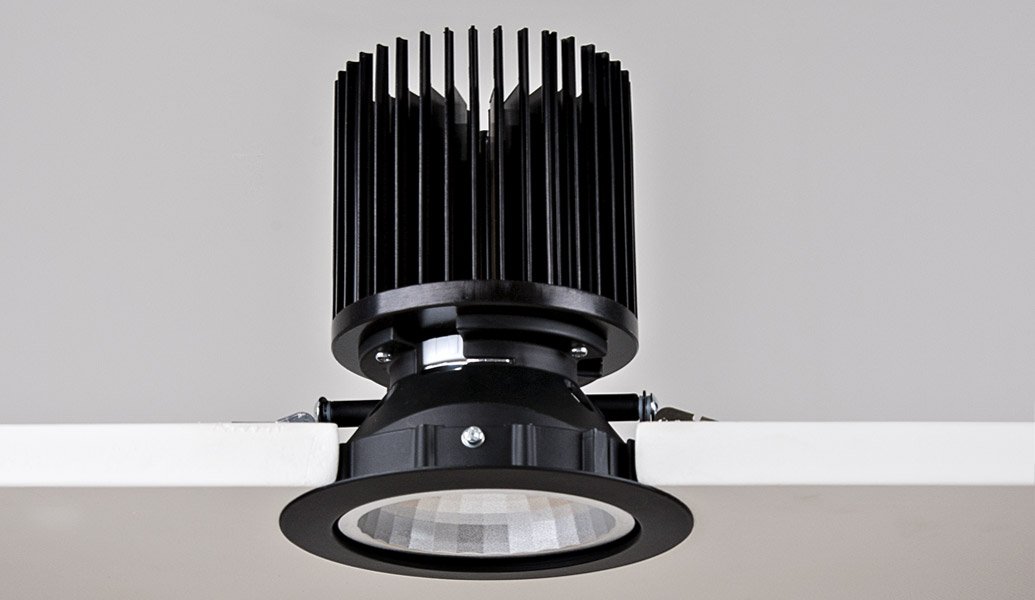

Product Images

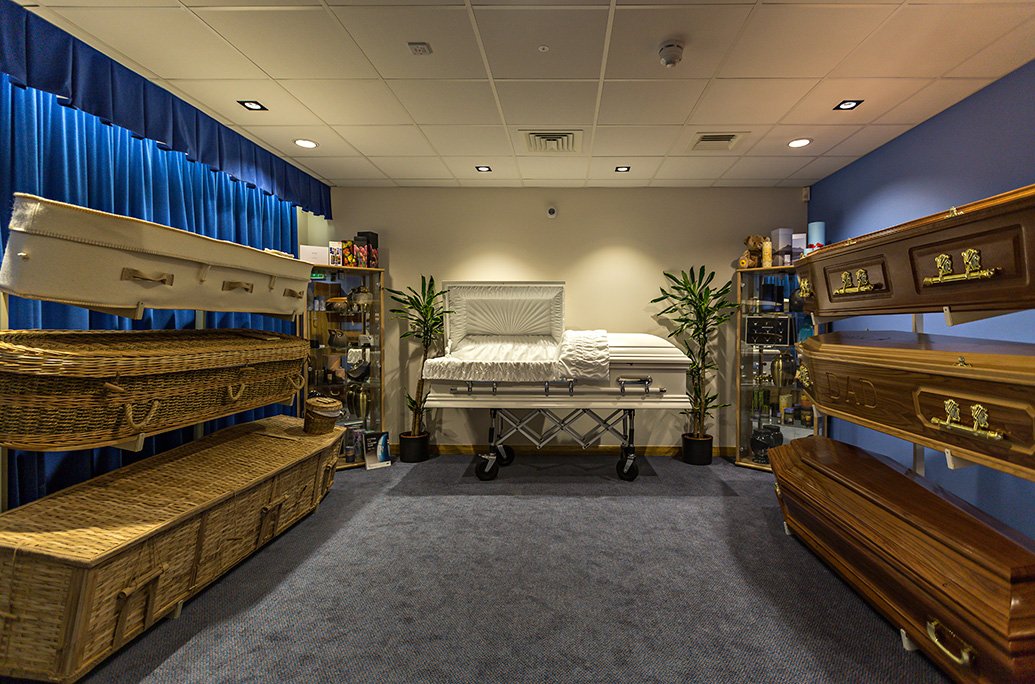

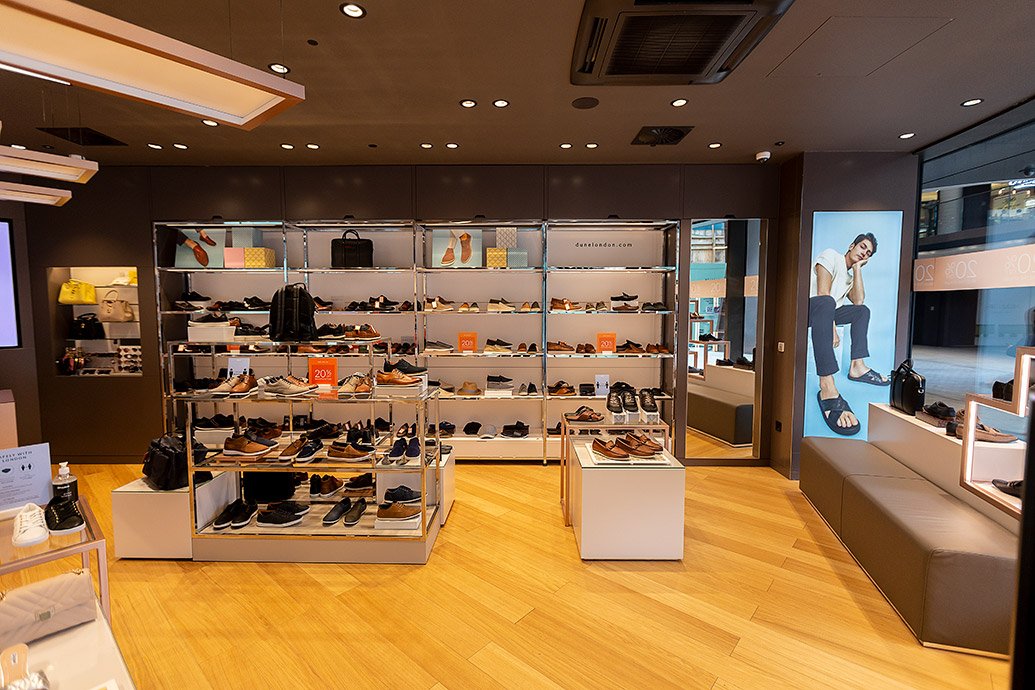

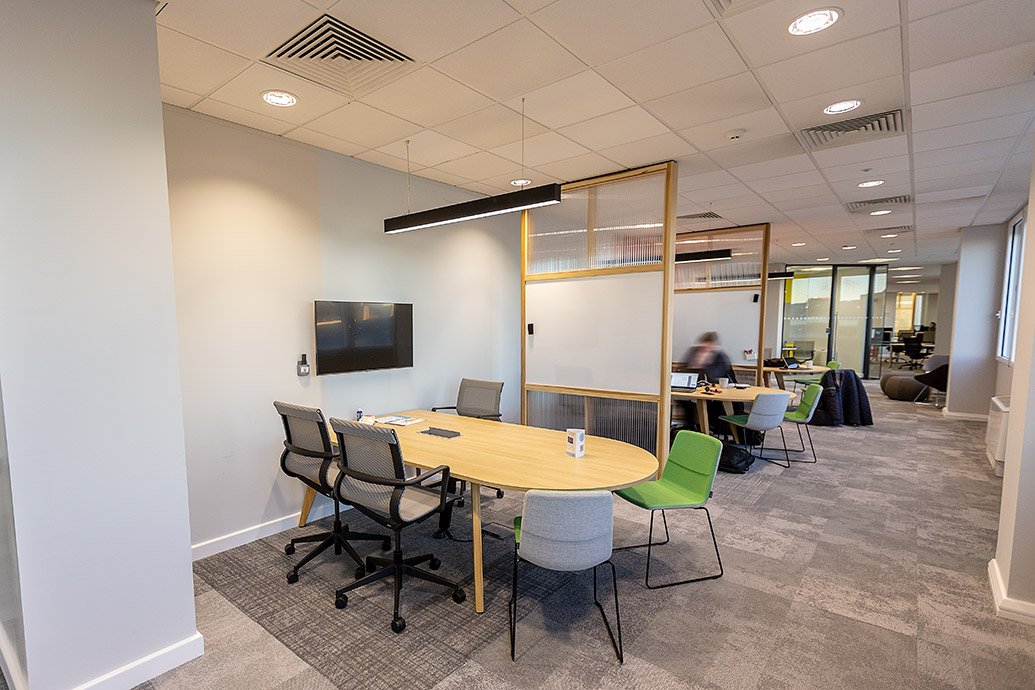

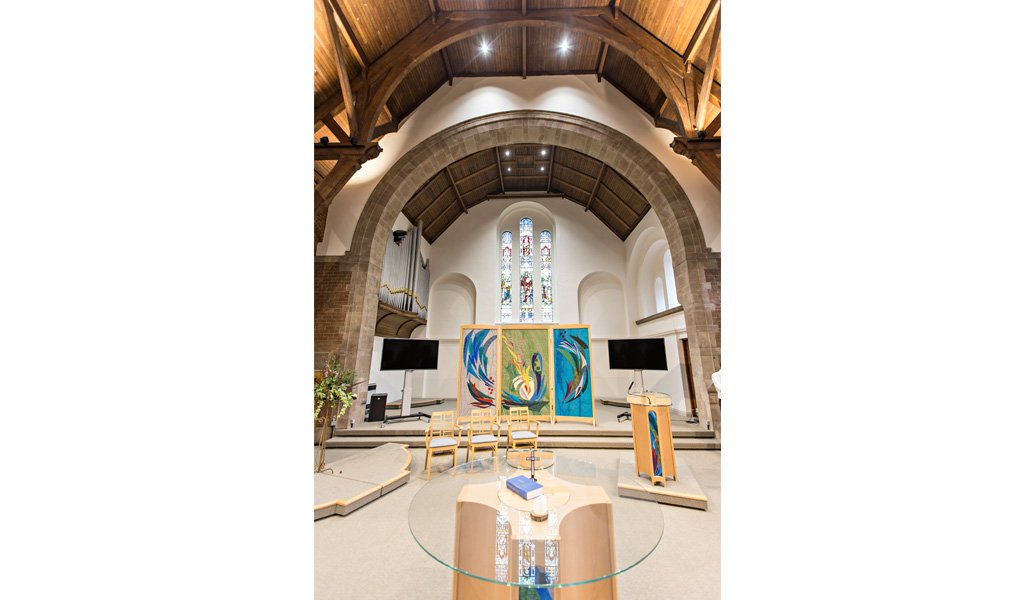

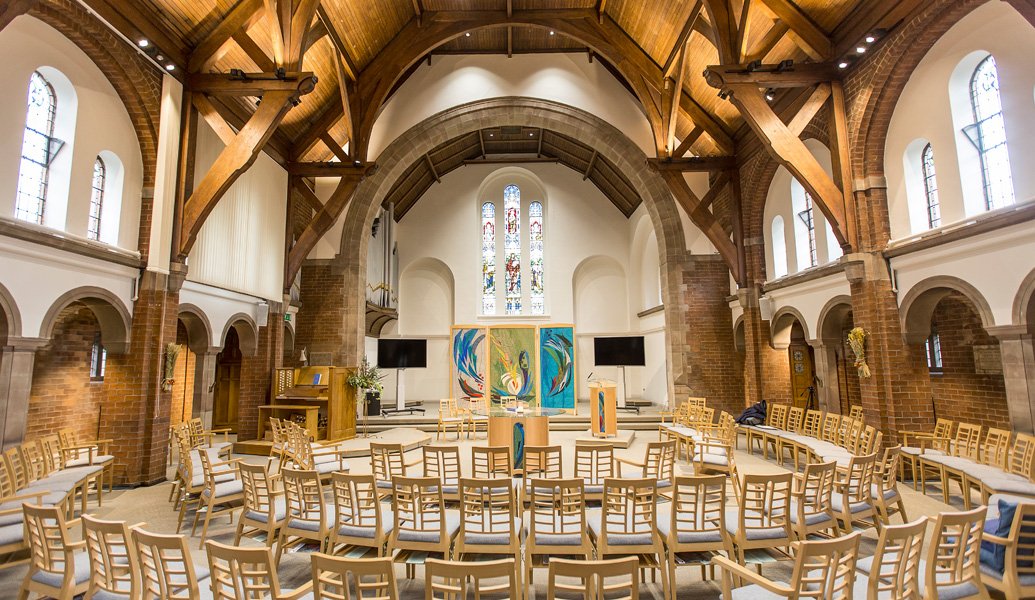

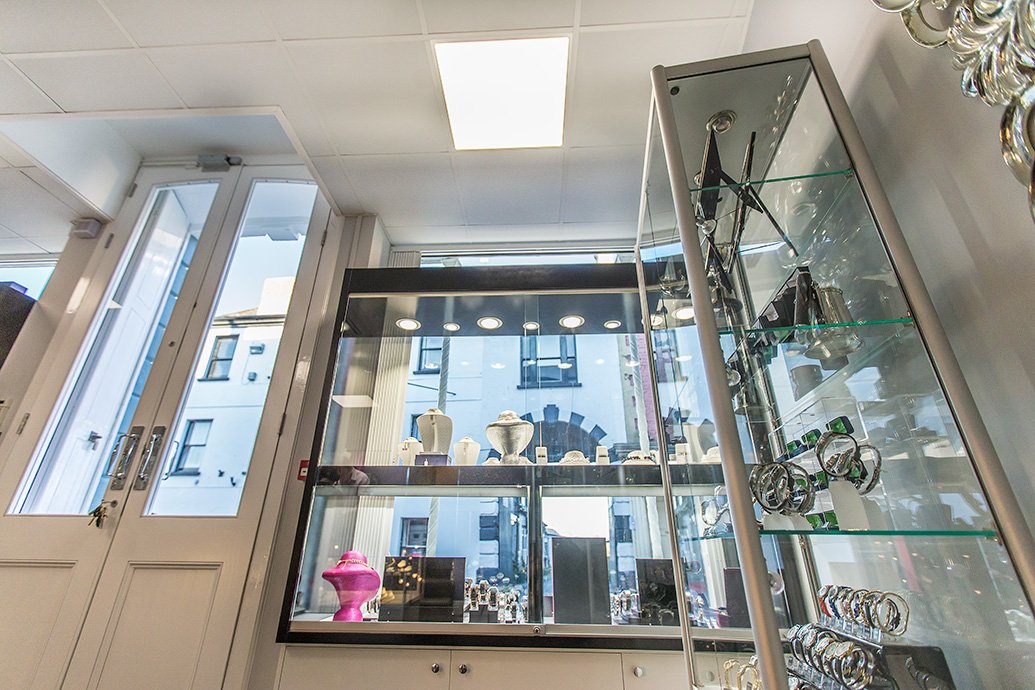

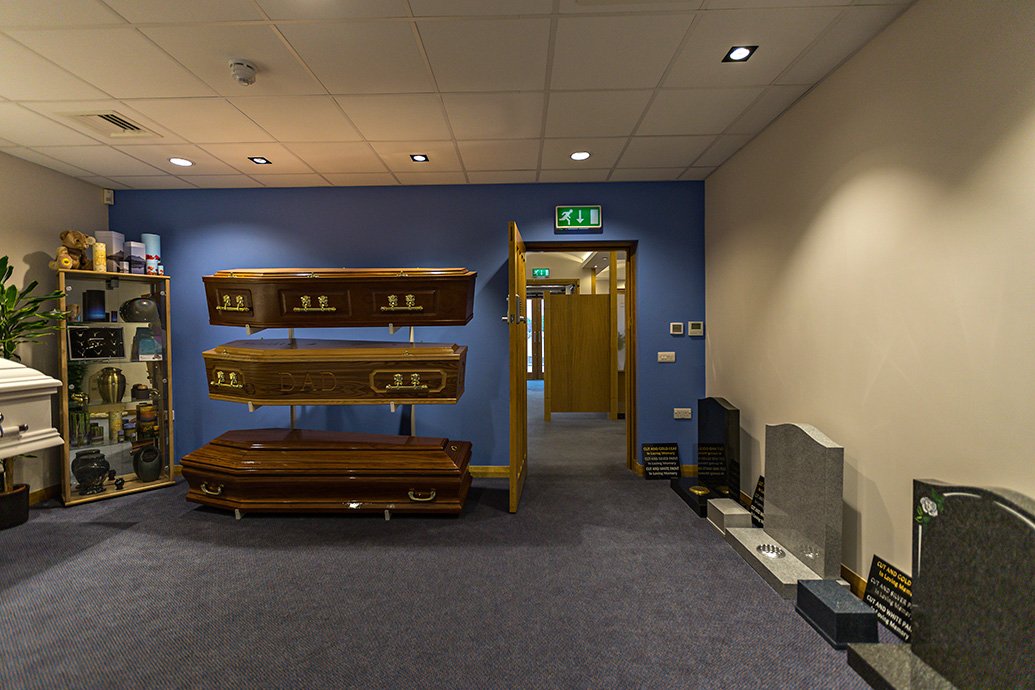

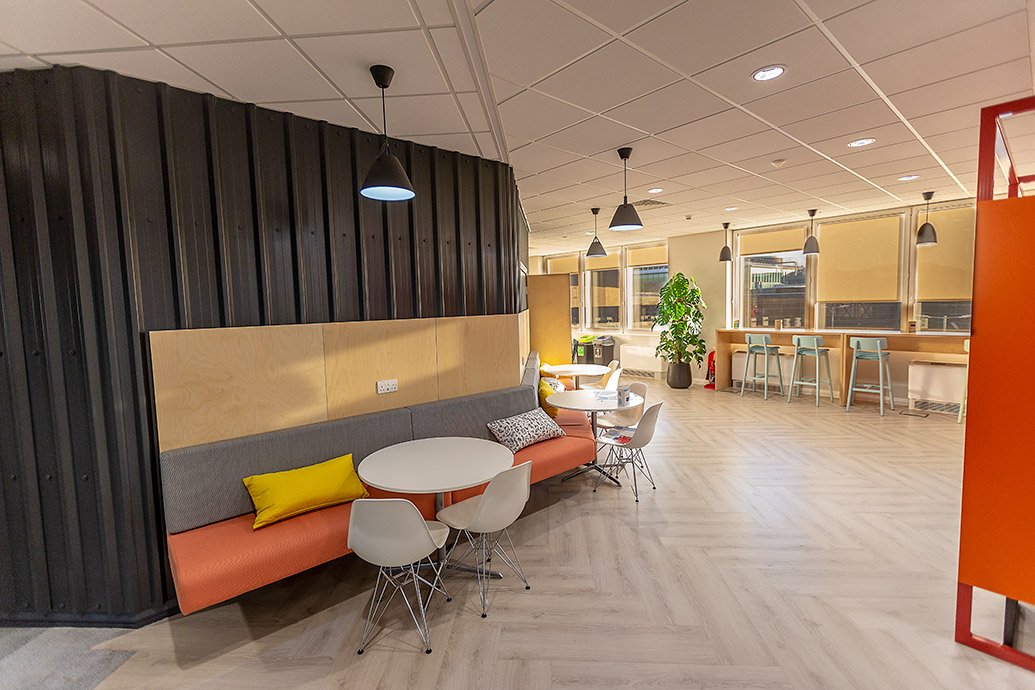

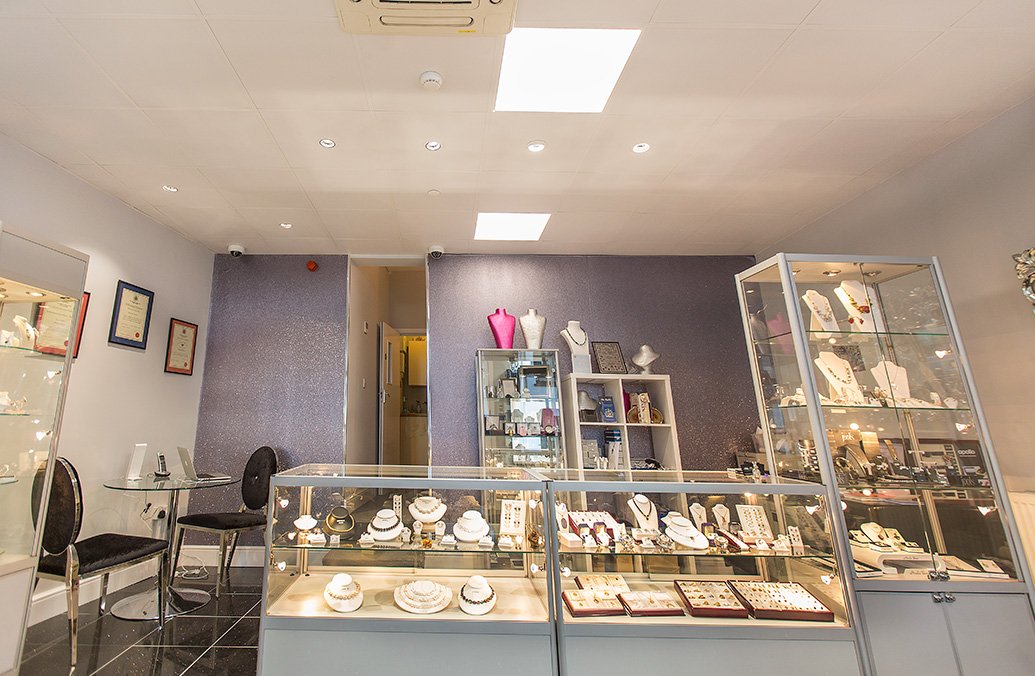

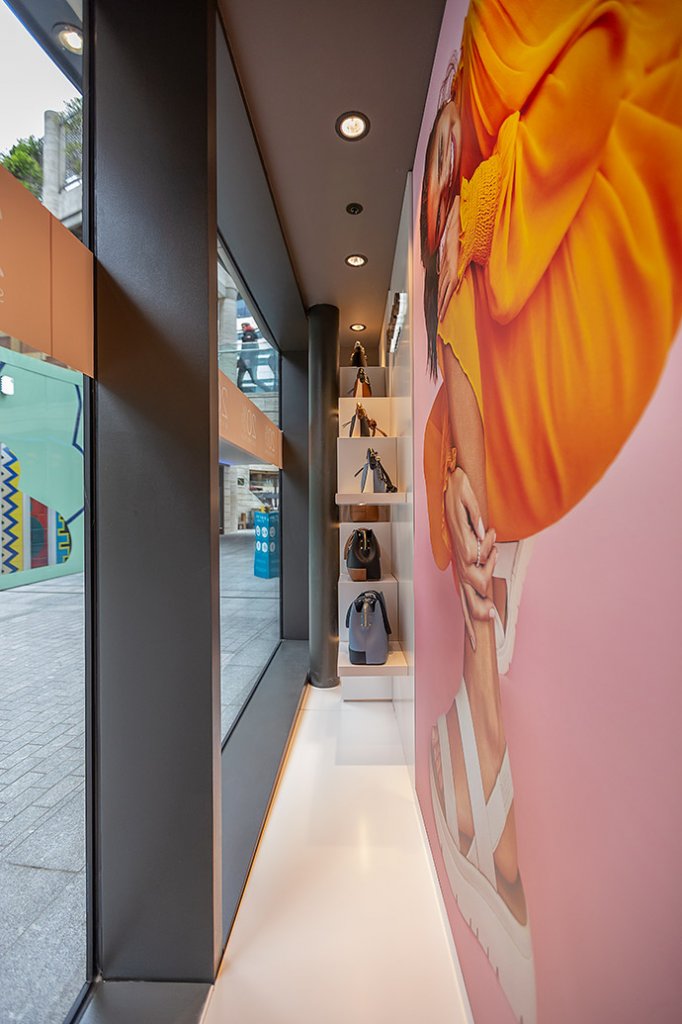

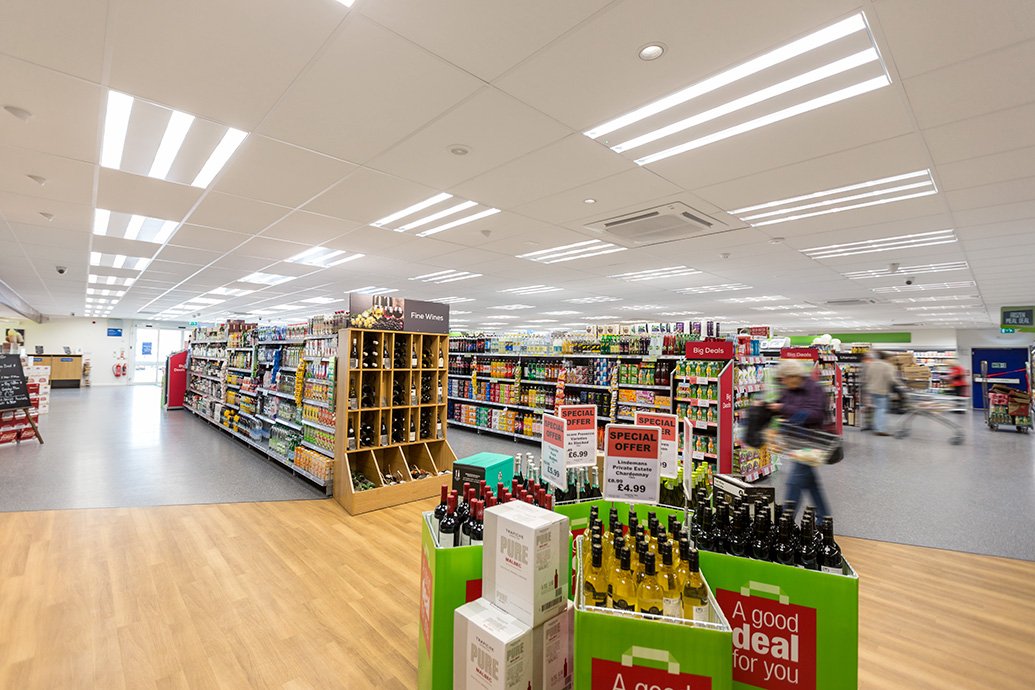

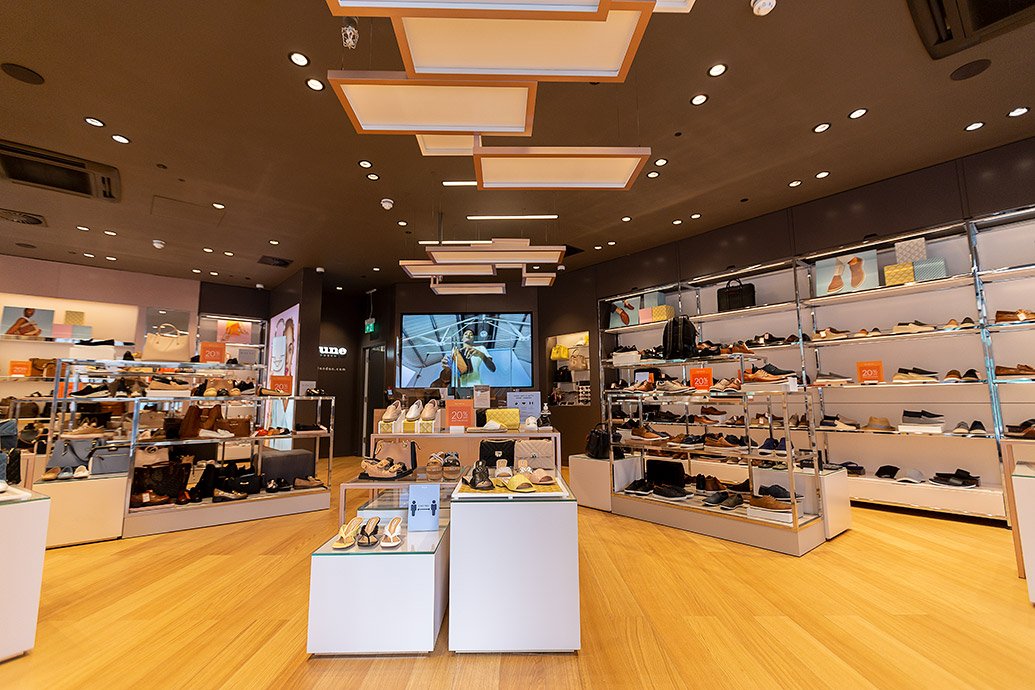

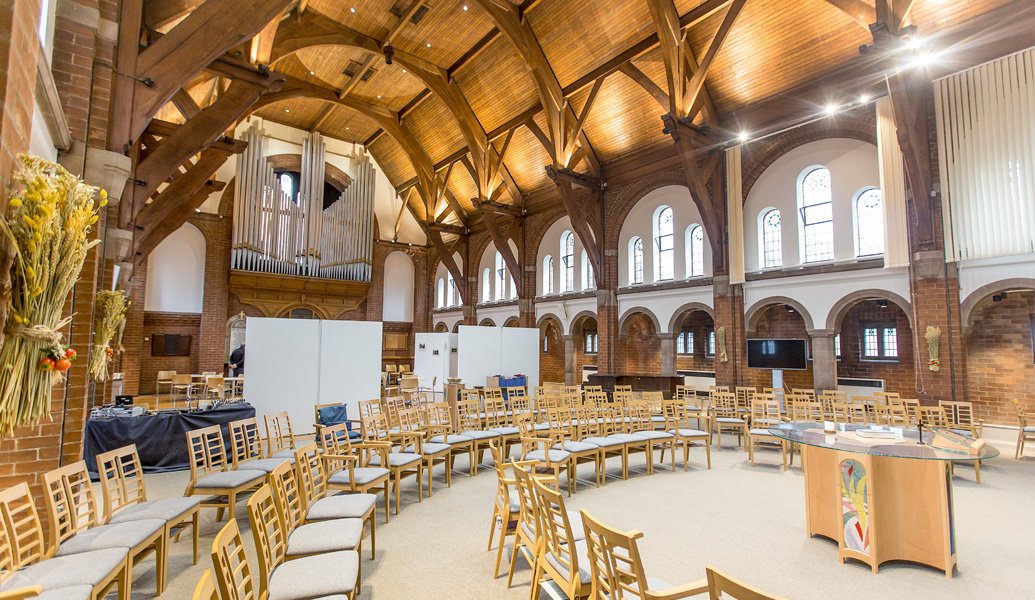

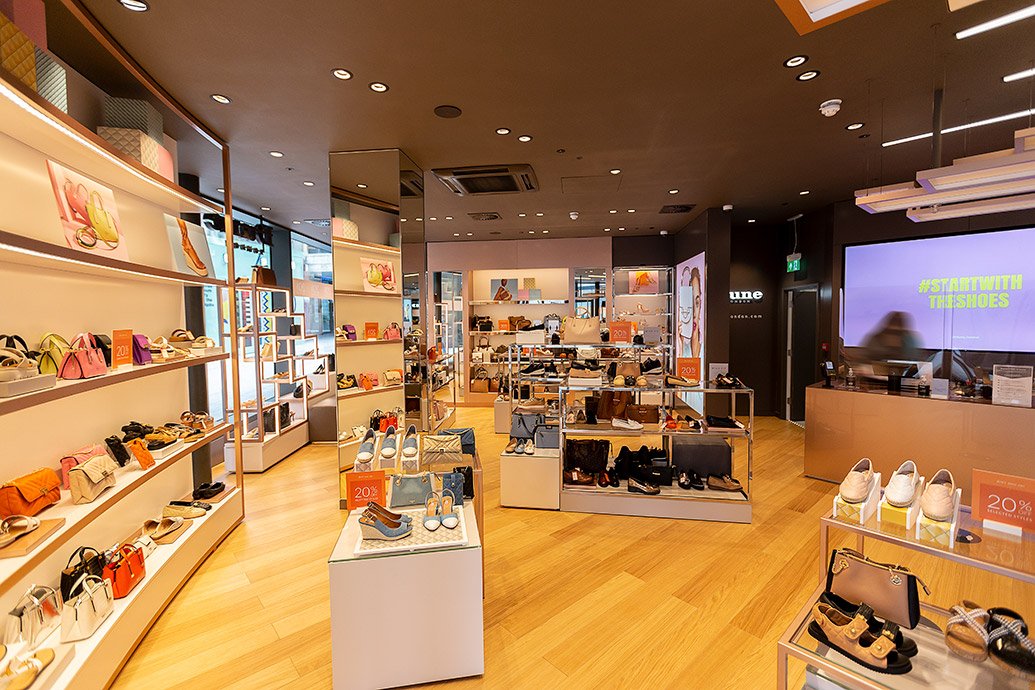

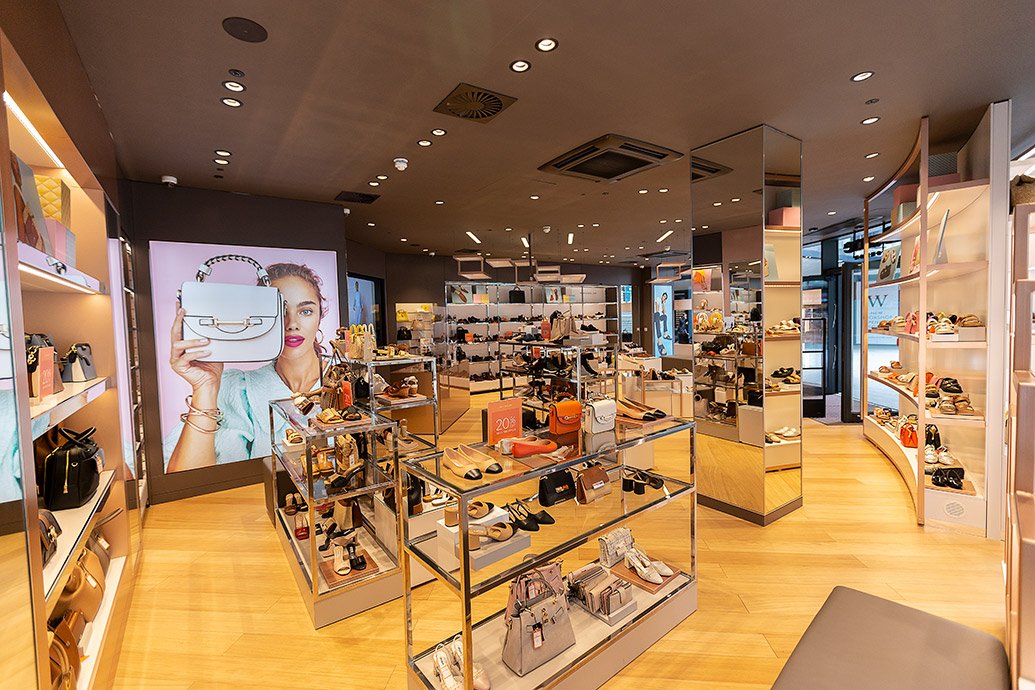

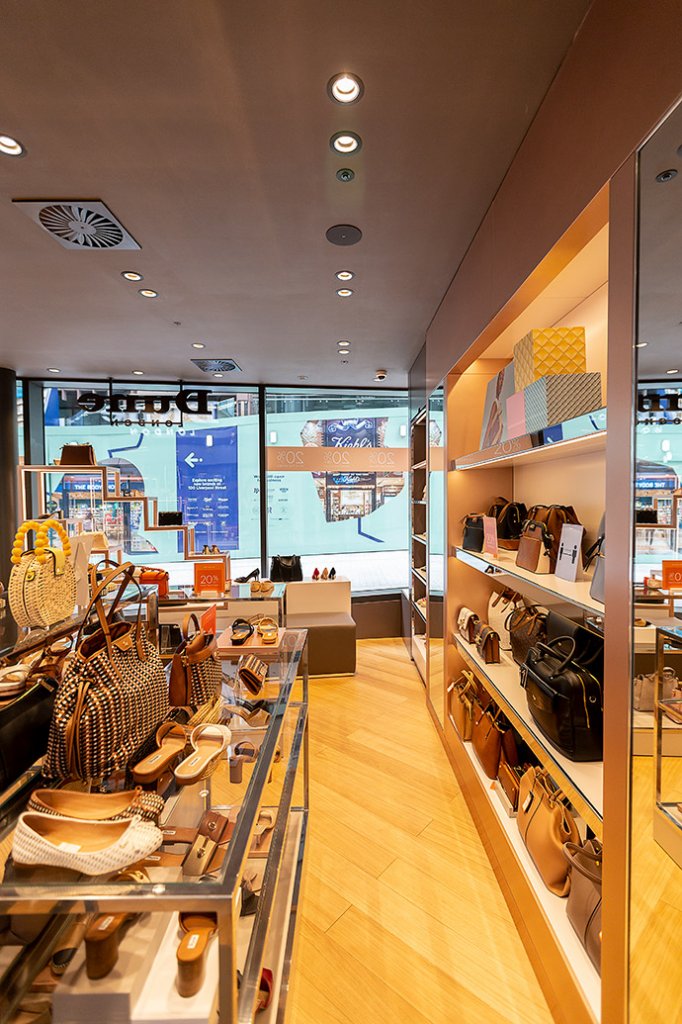

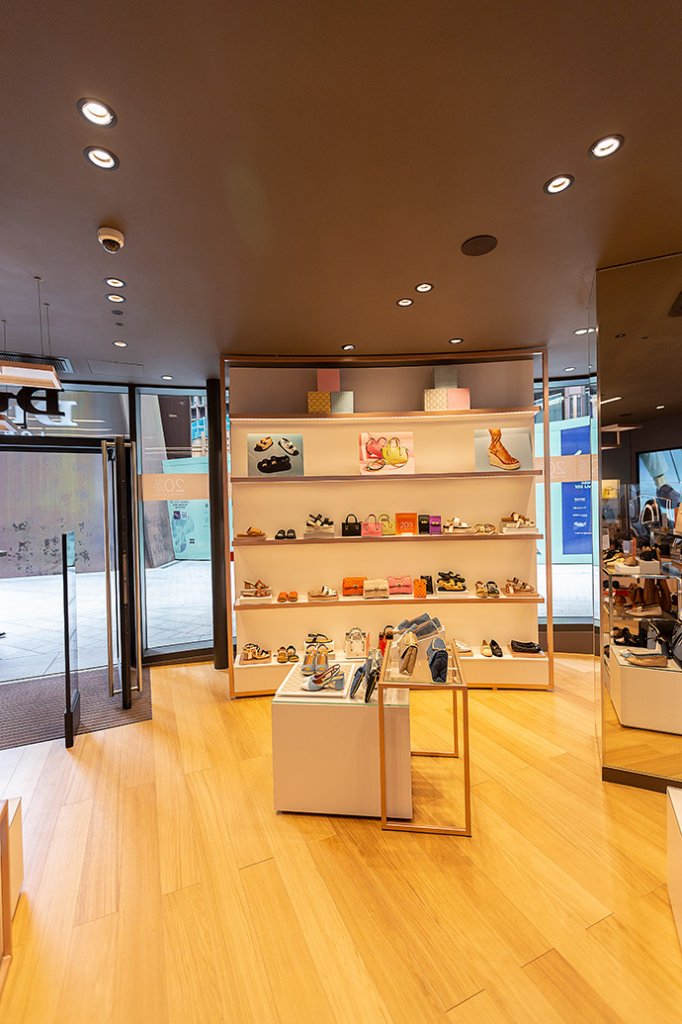

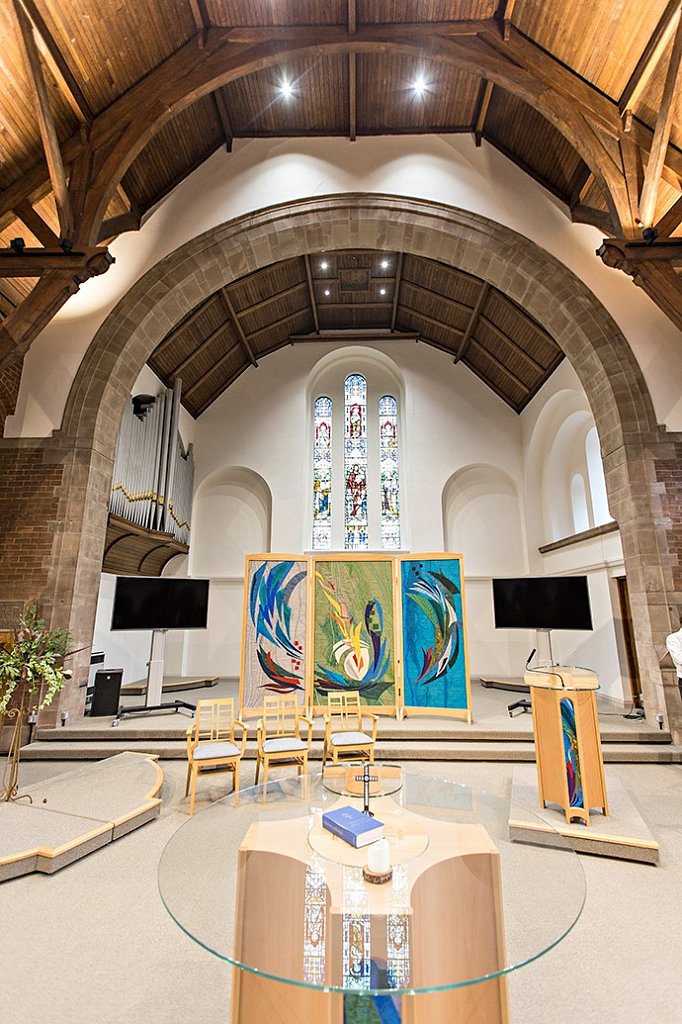

PRO-LIGHT MINI FIXED in action
Technical

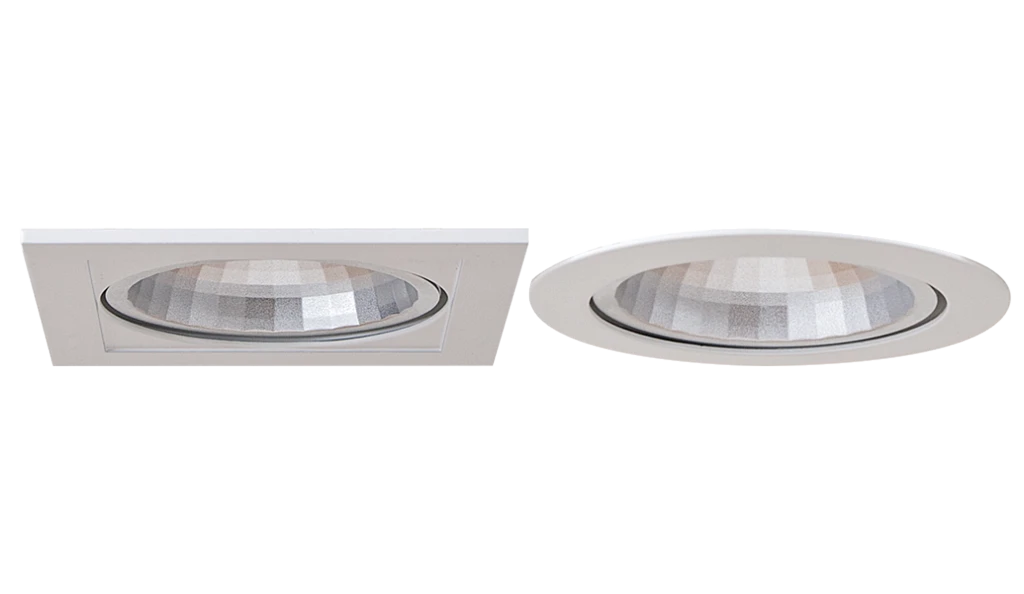

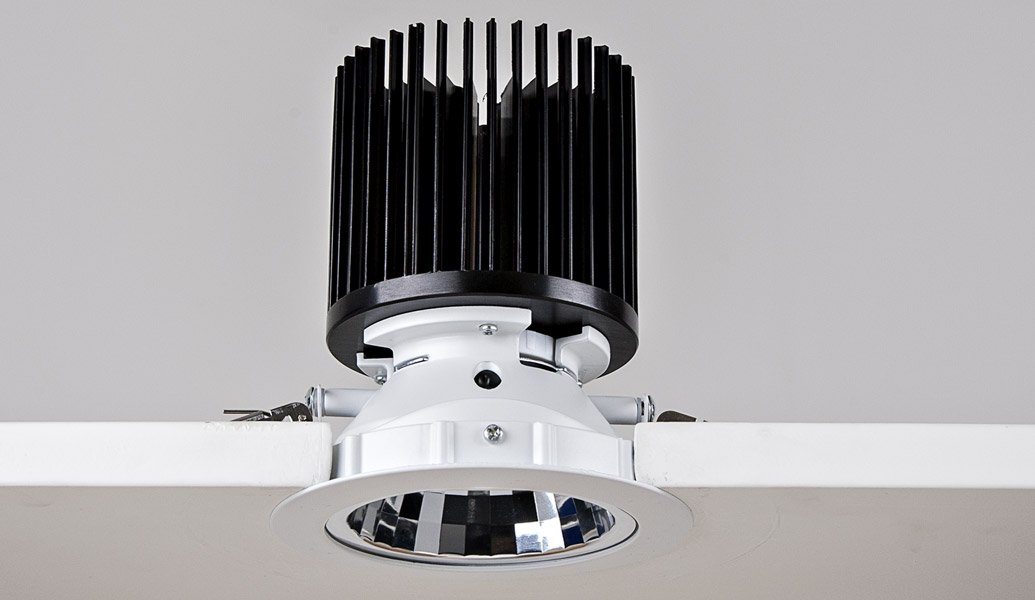

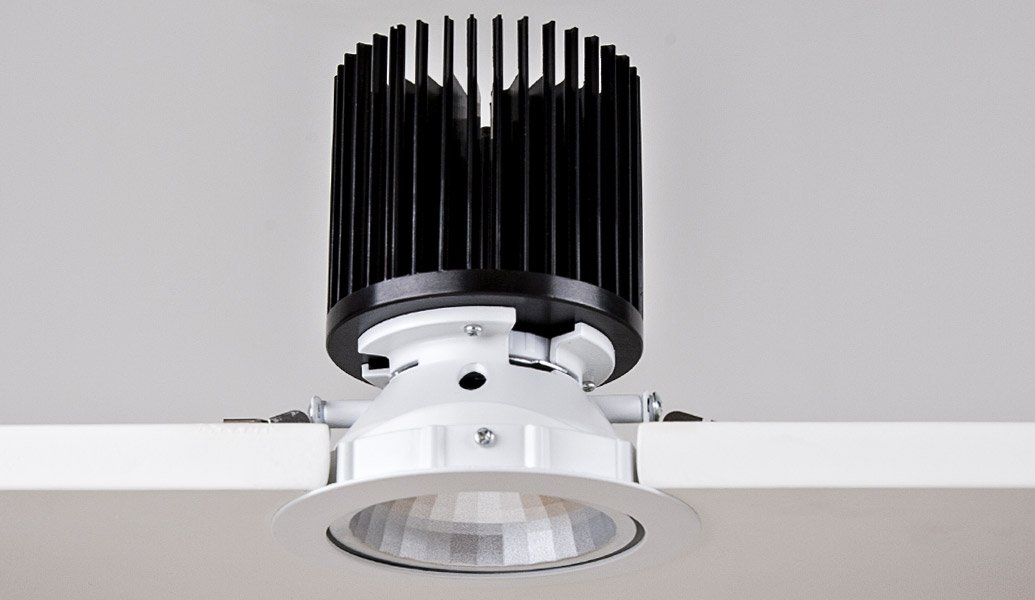

Pro-Light Mini Fixed Circular

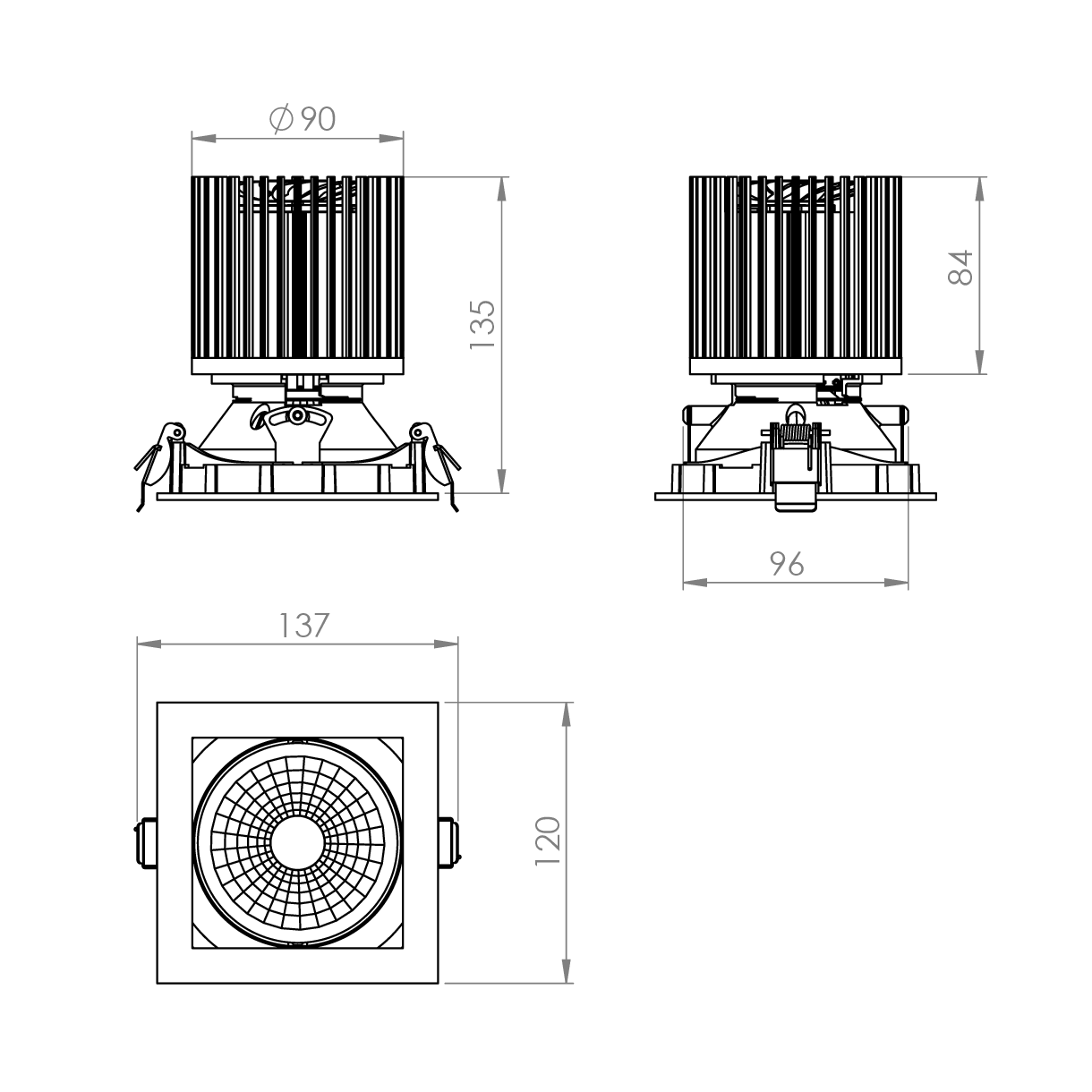

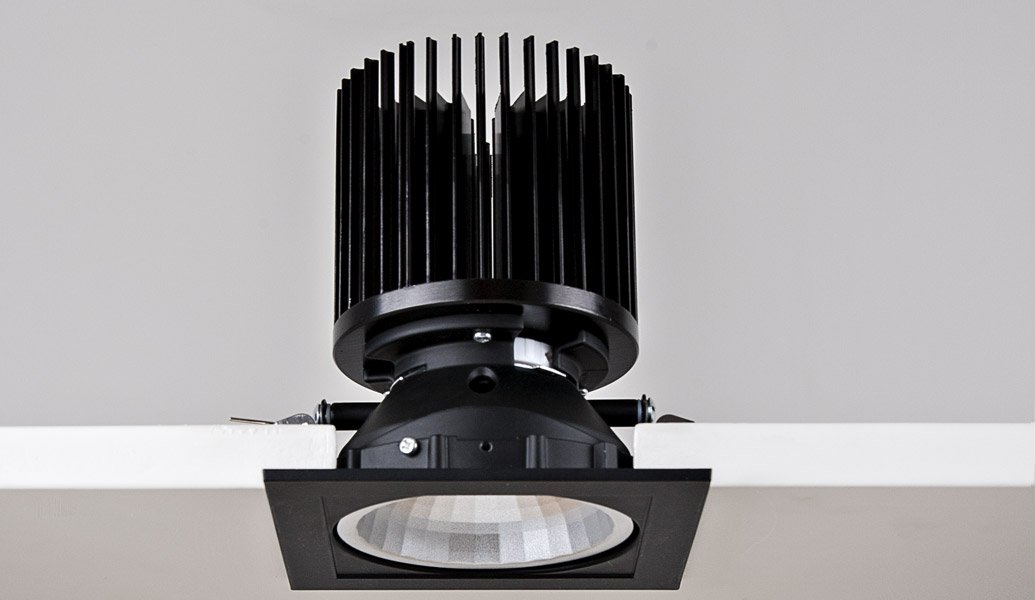

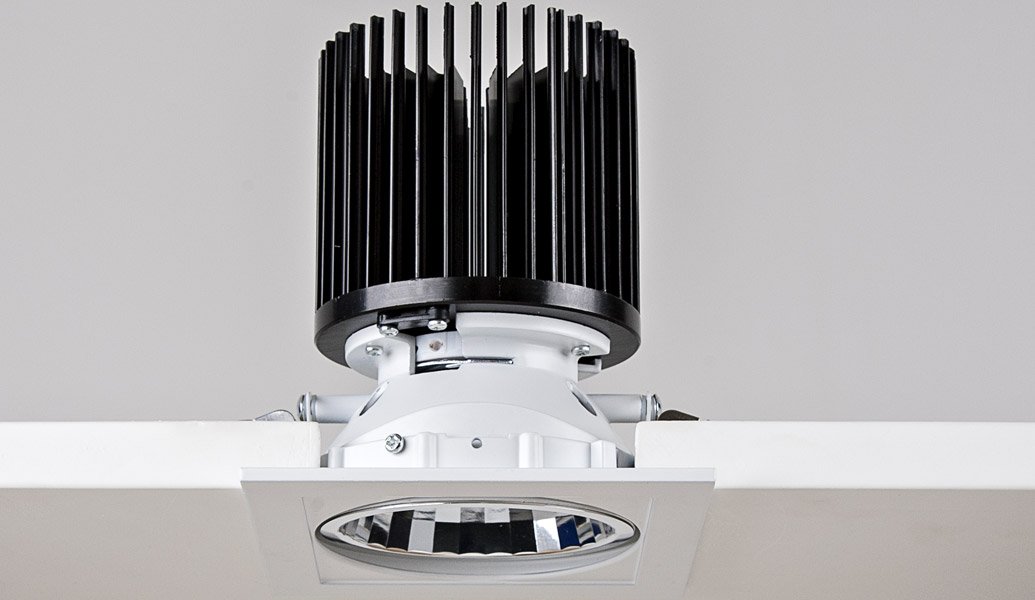

Pro-Light Mini Fixed Square
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
| Circular | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Square | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optic
| Code | Description |
|---|---|
| SP | Specular |
| SS | Semi-Specular |
| Semi-Specular is not available in 20° variants. | |
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCSS | Reacta-Control Standalone Sensor, Presence & Daylight 2.5-4M, Use with RC Luminaires |
| RAD | Reacta-Air, Wireless Enabled Luminaire |
| RASS | Reacta-Air Standalone Sensor, Presence, 2.5-4M, Use with RAD Luminaires (sold separately) |
| RASSD | Reacta-Air Standalone Sensor, Presence & Daylight, 2.5-4M, Use with RAD Luminaires (sold separately) |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C83, C93, C94 |
| W | White Finish |
| B | Black Finish |
| G | Grey Finish |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| INFILL | Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering. |
| LSF | Low Smoke Zero Halogen |
