Pituba

With an IK10 and IP69 rating the Pituba is suitable for a wide range of applications from food manufacturing through to industrial and unzoned vehicle maintenance pits.

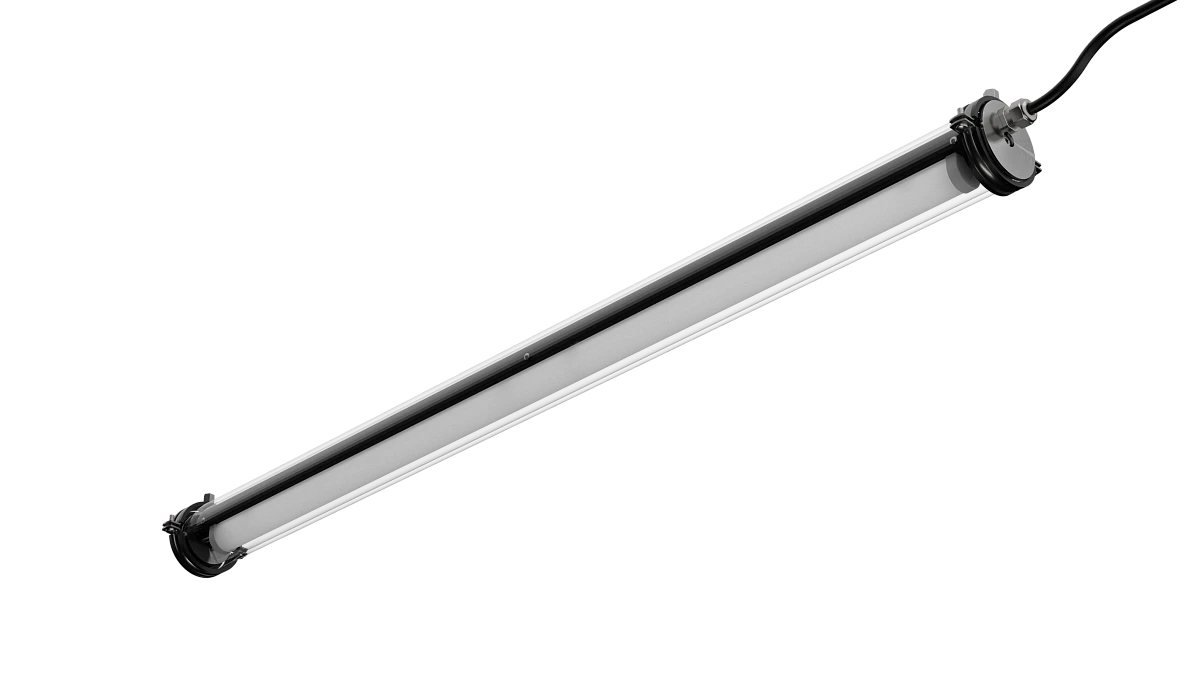

Pituba featured

Introduction

The Pituba is manufactured from a robust 5mm cylindrical housing in both polycarbonate and acrylic variants. With stainless steel end caps and compression gaskets the Pituba offers both an IK10 impact rating and IP69K ingress protection. Polycarbonate variants offer improved impact resistance while acrylic variants offer superior chemical resistance. This robust design allows the Pituba to be used in applications as diverse as food manufacturing and industrial applications through to vehicle maintenance pits where there are no zoned requirements.

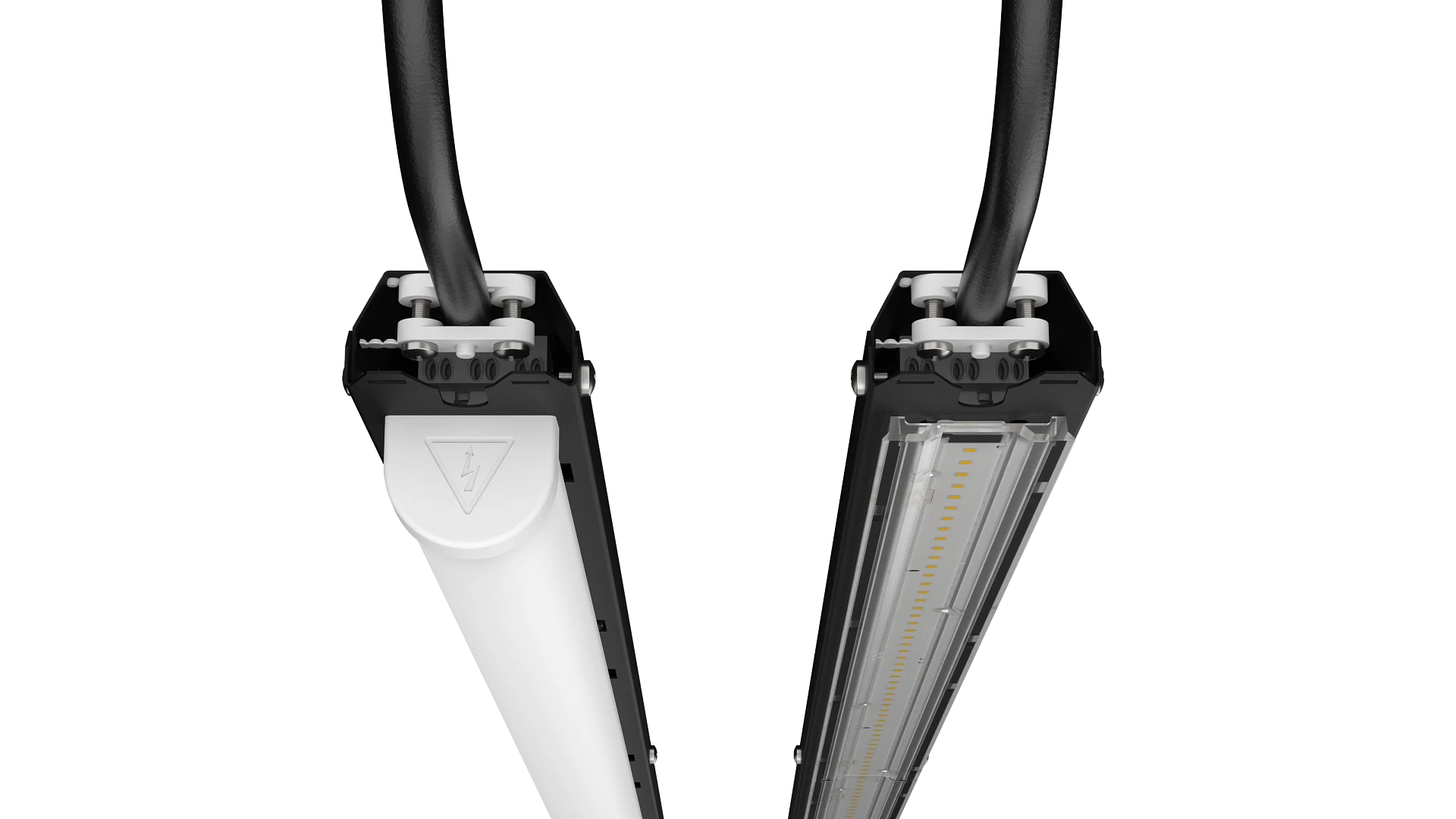

 The Pituba is available in 600mm, 1200mm and 1800mm lengths with a range of lumen outputs, either a lensed or opal optic and can also be offered with integral emergency incorporating lithium iron phosphate batteries for extended lifetime and warranty. Two bracket options allow for either surface or suspended installation and the Pituba is supplied complete with a prewired lead for quick and simple installation.

Complies with:

UKCA | CE | IP69 | IK10 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Exterior | Food Production | Industrial & Manufacturing | Pit Lighting - Not suitable for zoned applications

Specification

Construction

  • Housing: 5mm extruded acrylic
  • Housing: 5mm extruded polycarbonate
  • Endcaps: Stainless Steel
  • IK10
  • IP69

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours

Environmental

  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations

Installation

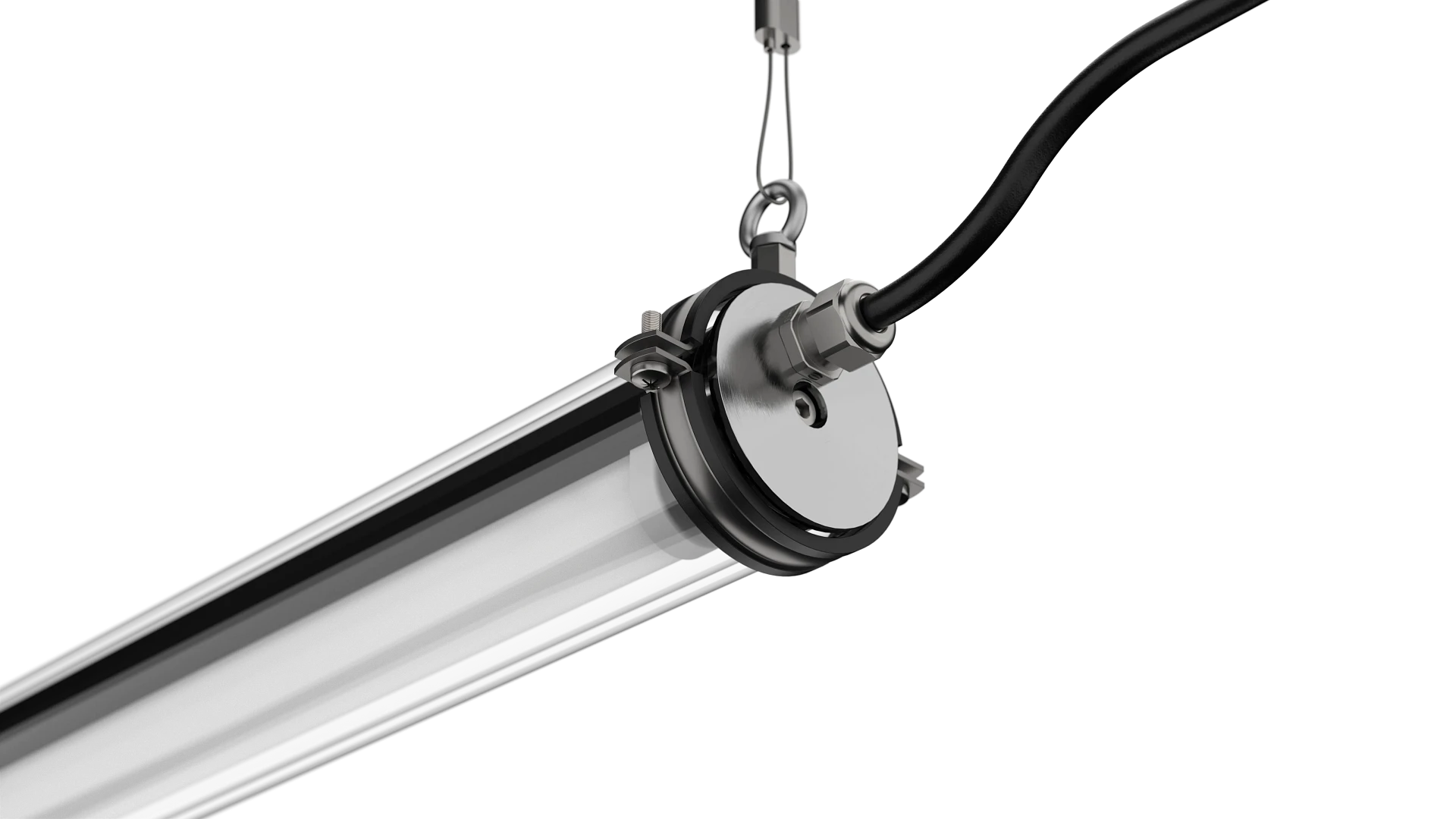

  • Suitable for suspended installation

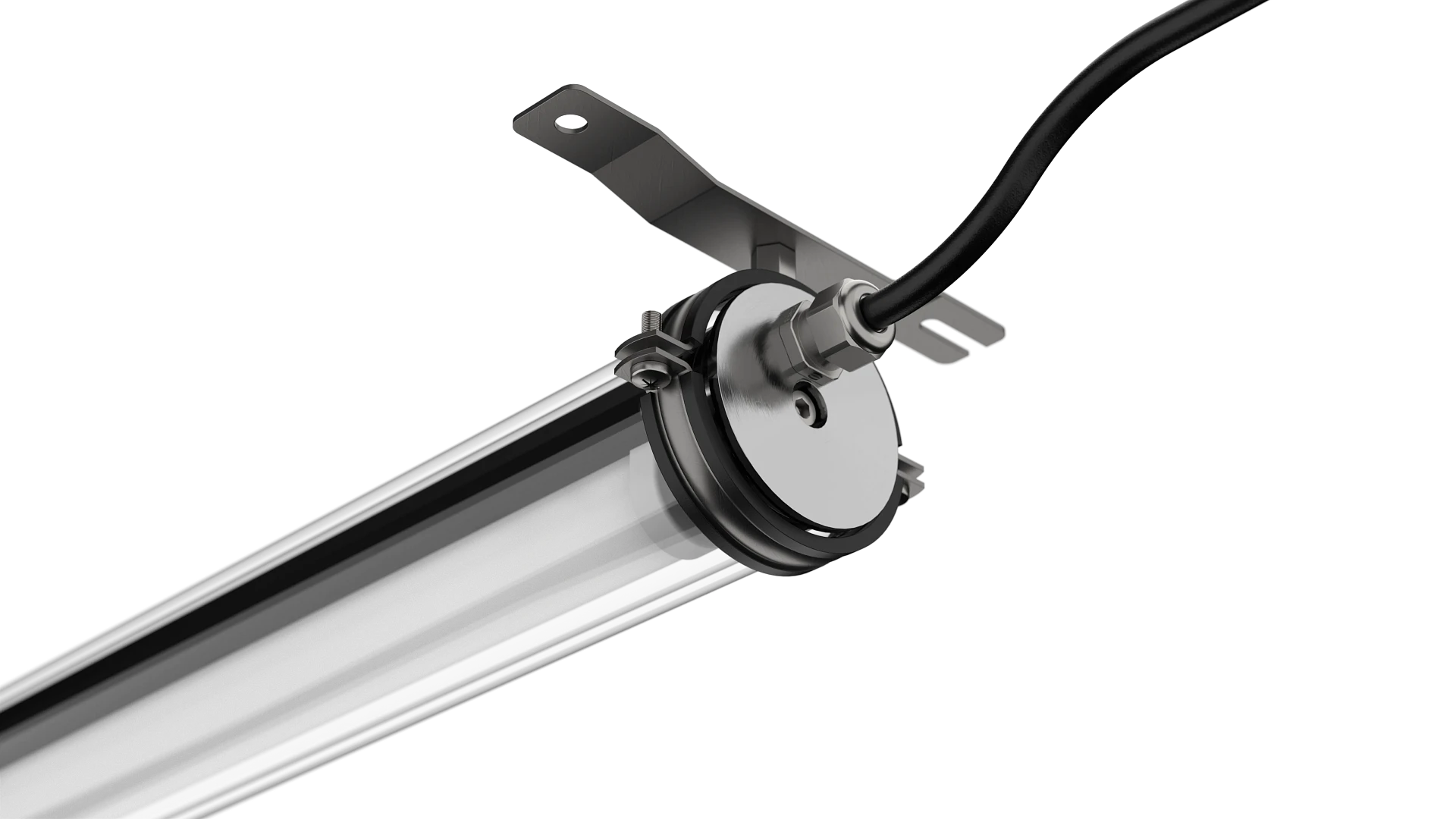

  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
Find out more about our 5 year extended warranty

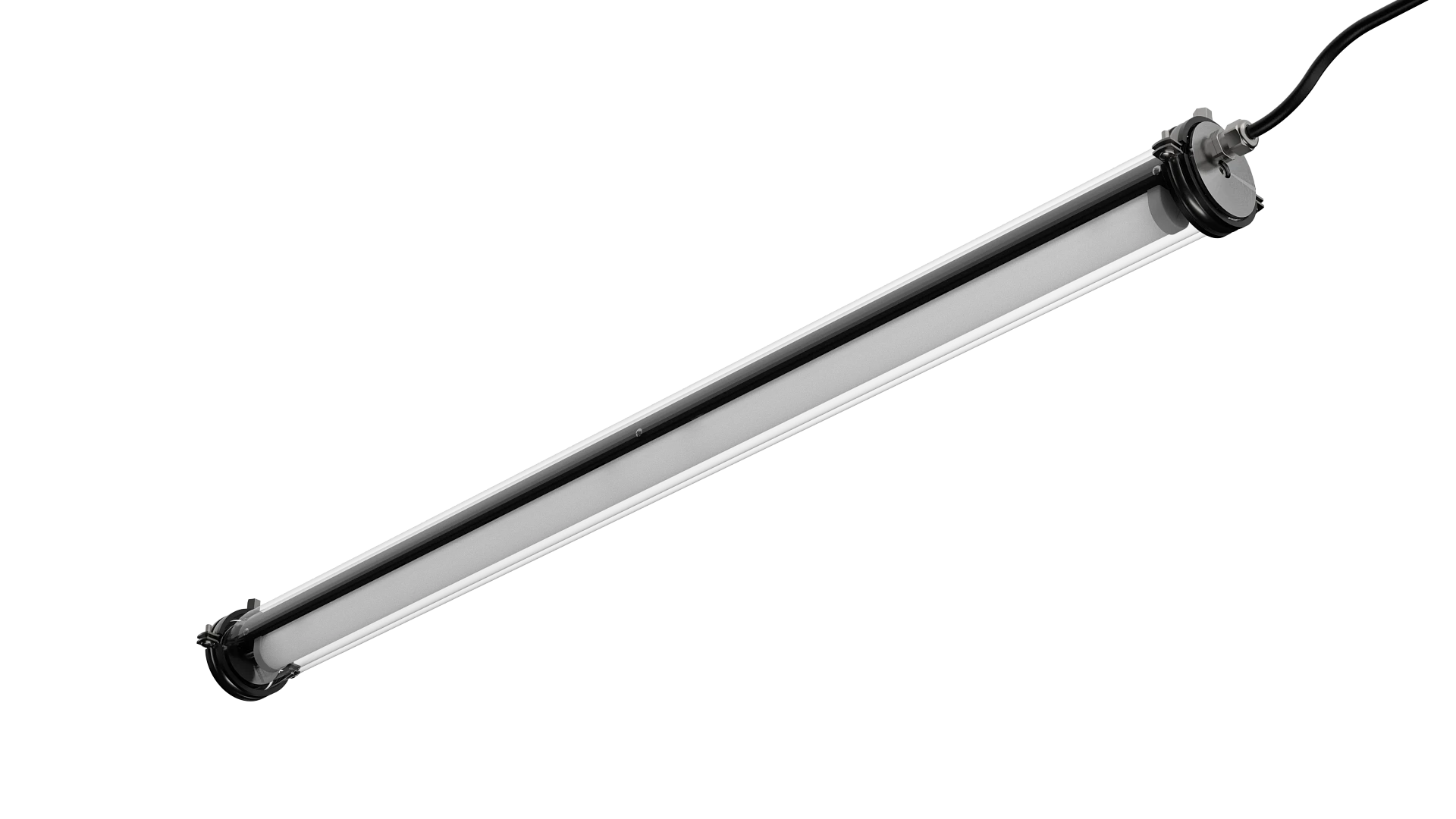

Product Images

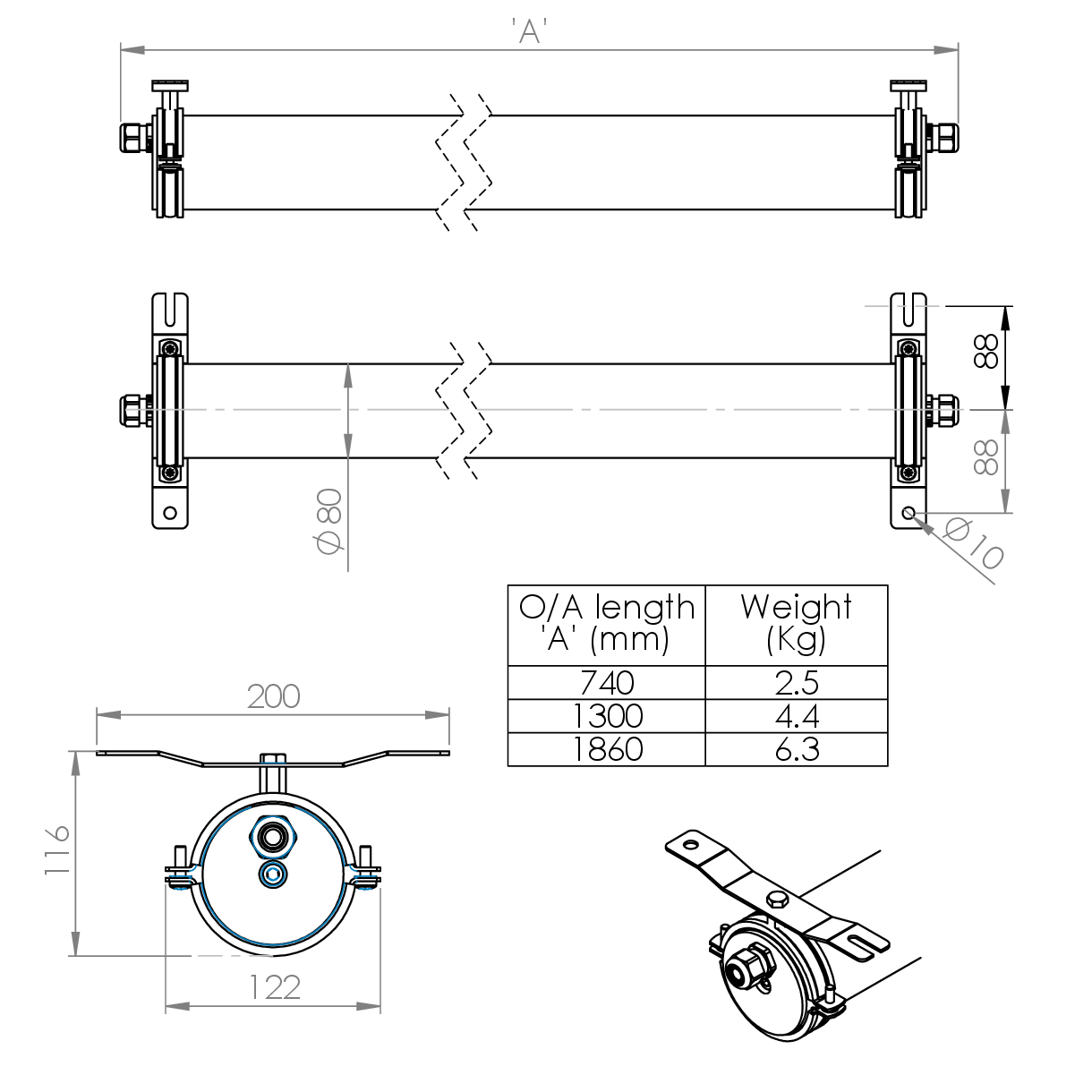

Technical

Pituba

Pituba

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Acrylic
Code Description Power Llm/W
PTB L22 OP AC Pituba, 740mm, 2,016llm, Opal, Acrylic 13.2W 153
PTB L22 OA AC Pituba, 740mm, 2,075llm, Open Area, Acrylic 13.2W 157
PTB L38 OP AC Pituba, 740mm, 3,482llm, Opal, Acrylic 22.2W 157
PTB L38 OA AC Pituba, 740mm, 3,584llm, Open Area, Acrylic 22.2W 161
PTB L45 OP AC Pituba, 1300mm, 4,124llm, Opal, Acrylic 24.7W 167
PTB L45 OA AC Pituba, 1300mm, 4,244llm, Open Area, Acrylic 24.7W 172
PTB L70 OP AC Pituba, 1300mm, 6,415llm, Opal, Acrylic 38.7W 166
PTB L70 OA AC Pituba, 1300mm, 6,601llm, Open Area, Acrylic 38.7W 171
PTB L80 OP AC Pituba, 1860mm, 7,331llm, Opal, Acrylic 40.9W 179
PTB L80 OA AC Pituba, 1860mm, 7,545llm, Open Area, Acrylic 40.9W 184
PTB L105 OP AC Pituba, 1860mm, 9,622llm, Opal, Acrylic 56.6W 170
PTB L105 OA AC Pituba, 1860mm, 9,903llm, Open Area, Acrylic 56.6W 175
Polycarbonate
Code Description Power Llm/W
PTB L22 OP PC Pituba, 740mm, 1,919llm, Opal, Polycarbonate 13.2W 145
PTB L22 OA PC Pituba, 740mm, 1,978llm, Open Area, Polycarbonate 13.2W 150
PTB L38 OP PC Pituba, 740mm, 3,315llm, Opal, Polycarbonate 22.2W 149
PTB L38 OA PC Pituba, 740mm, 3,416llm, Open Area, Polycarbonate 22.2W 154
PTB L45 OP PC Pituba, 1300mm, 3,926llm, Opal, Polycarbonate 24.7W 159
PTB L45 OA PC Pituba, 1300mm, 4,046llm, Open Area, Polycarbonate 24.7W 164
PTB L70 OP PC Pituba, 1300mm, 6,109llm, Opal, Polycarbonate 38.7W 158
PTB L70 OA PC Pituba, 1300mm, 6,294llm, Open Area, Polycarbonate 38.7W 163
PTB L80 OP PC Pituba, 1860mm, 6,979llm, Opal, Polycarbonate 40.9W 171
PTB L80 OA PC Pituba, 1860mm, 7,192llm, Open Area, Polycarbonate 40.9W 176
PTB L105 OP PC Pituba, 1860mm, 9,160llm, Opal, Polycarbonate 56.6W 162
PTB L105 OA PC Pituba, 1860mm, 9,439llm, Open Area, Polycarbonate 56.6W 167

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
All emergency variants are only suitable for ambient temperatures of 25°C

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
PTB SUSP Pituba Suspension kit
PTB SURF Pituba Surface mounting kit
LSF Low Smoke Zero Halogen

Downloads

Product Datasheet (Download PDF) Installation Guide (Download PDF) Revit Files Dialux Files Relux Files
