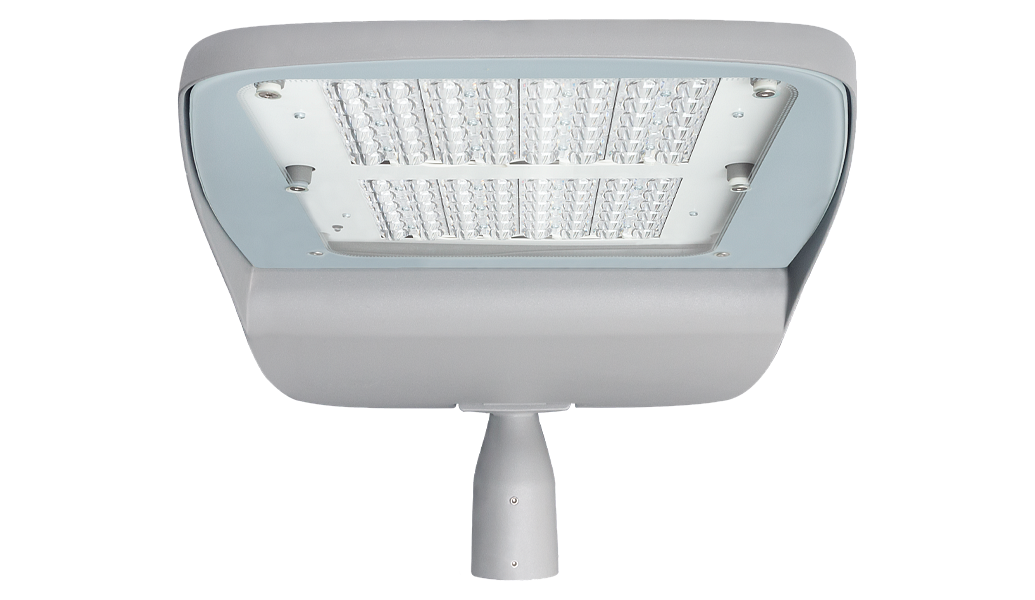

Opus Column XL

The Opus Column XL offers up to 50,000 lumens combined with the benefits of our smaller Opus Column Ranges.

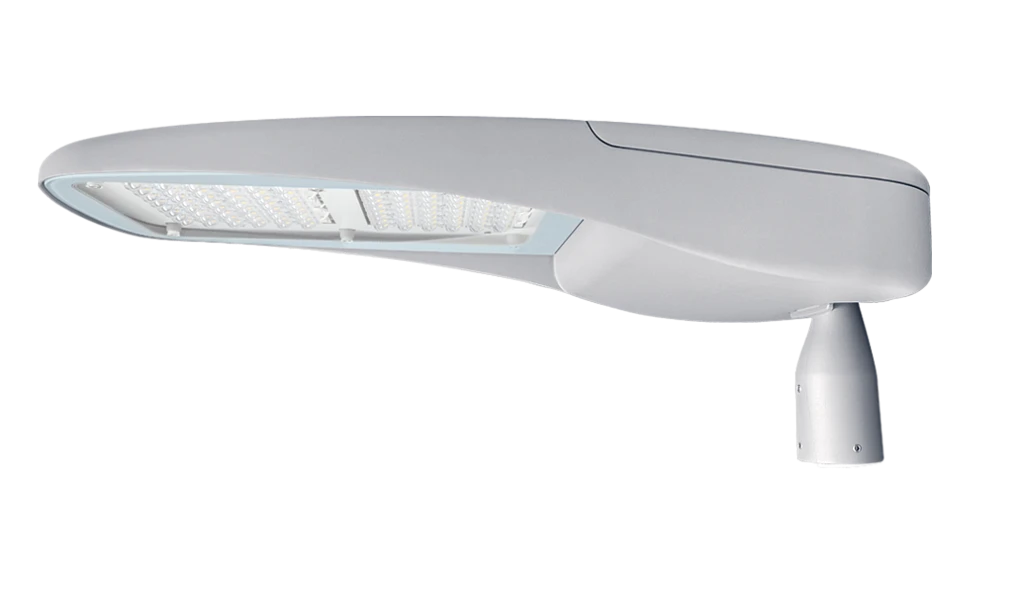

OPUS COLUMN XL FEATURED

Introduction

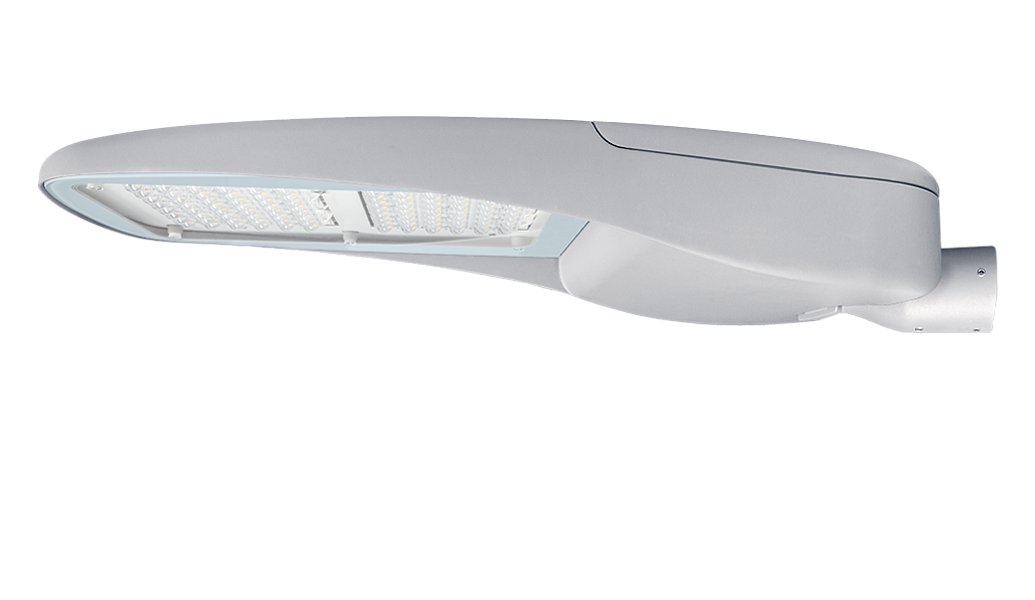

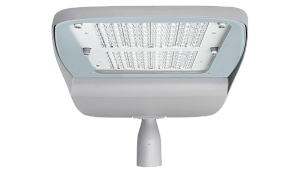

The Opus Column XL combines a robust die cast aluminium housing,toughened glass diffuser and marine grade paint finish with an attractive contoured housing ensuring it can be used in arduous applications without compromising aesthetic appeal whilst offering up to 50,000lm output. These features do not compromise practicality, the Opus Column Sensor incorporates an adjustable spigot allowing for vertical or horizontal mounting adjustable in five degree increments, the control gear department includes an automatic disconnect feature allowing individual luminaires to be serviced without the need to isolate entire circuits and it is also supplied complete with a twenty metre prewired lead for quick and simple connection at the column base.

An optional NEMA socket allows for integration of a photocell for use for dusk to dawn operation. This versatility is further enhanced with two lens options, open area or wide and two lumen outputs of either 40,000 or 50,000lm. Wireless control options can also be integrated allowing central web based control and reporting of luminaires. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP65 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE | TM66 CEAM Score: 2.5

Recommended applications:

Commercial & Offices | Education | Exterior | Healthcare & Social Housing | Hotel & Leisure | Industrial & Manufacturing | Parking & Exterior | Retail | Transport | Warehousing

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Manufactured with a marine grade paint finish to ensure durability in harsh environments.
  • Diffuser: 5mm toughened glass
  • Lens: Injection moulded polycarbonate lens
  • IP65

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90 at >80,000 Operating Hours
  • Up to 157 luminaire lumens per circuit Watt

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Control

  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for column installation, please specify spigot size required.
  • Available with 40-50mm, 50-60mm or 60-76mm spigot
  • Supplied with 10M prewired lead

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
Find out more about our 5 year extended warranty

Technical

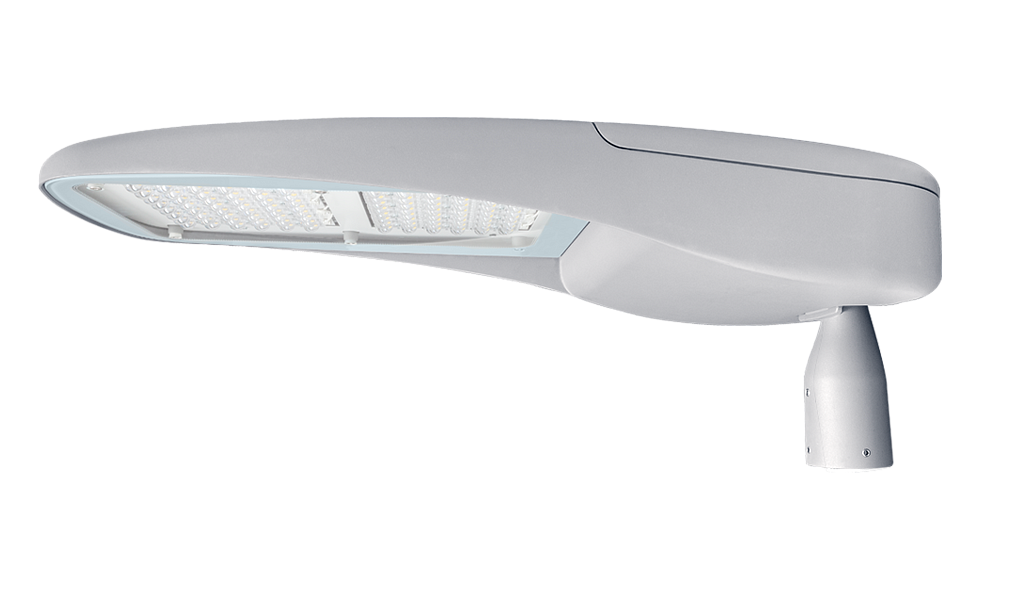

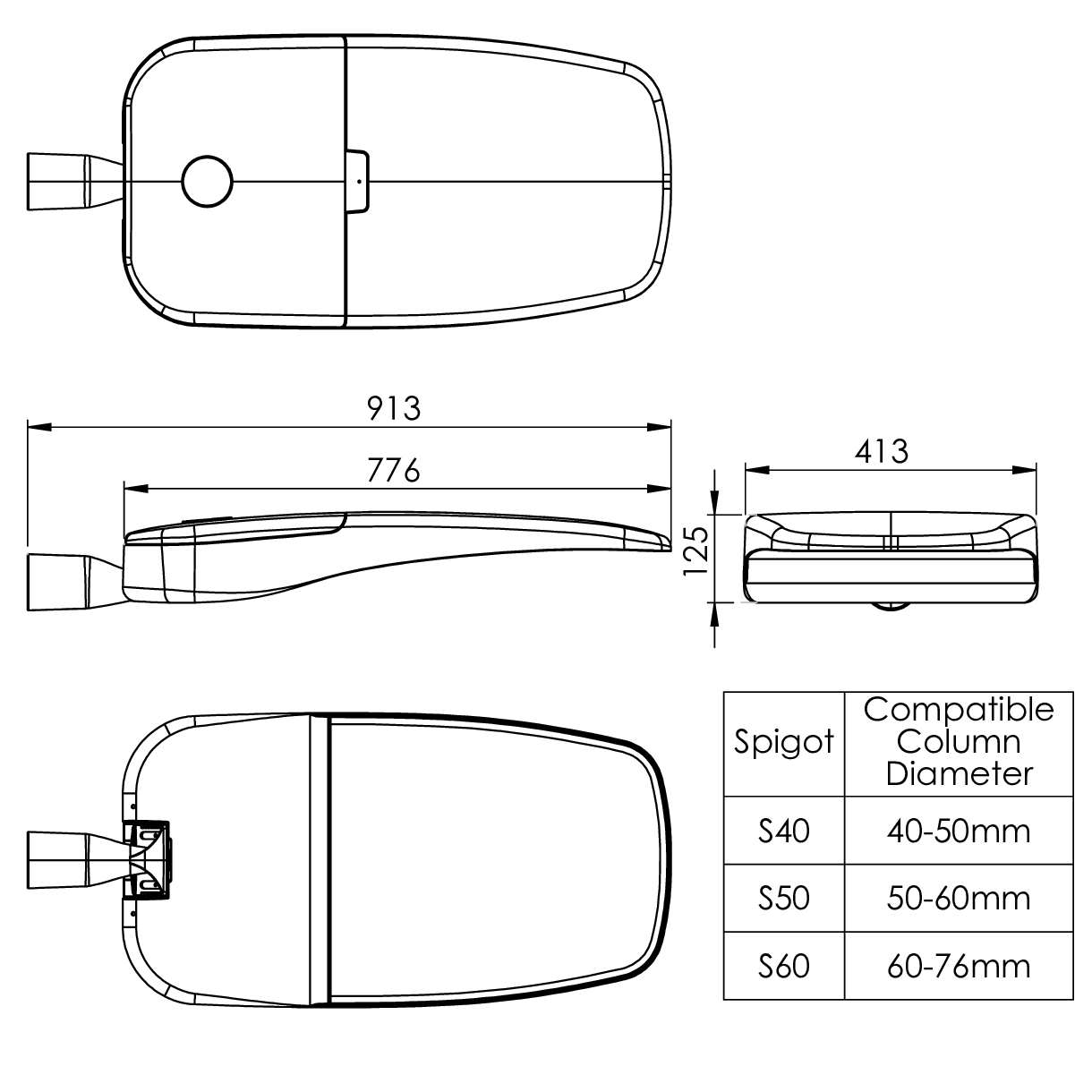

Opus Column XL

Opus Column XL

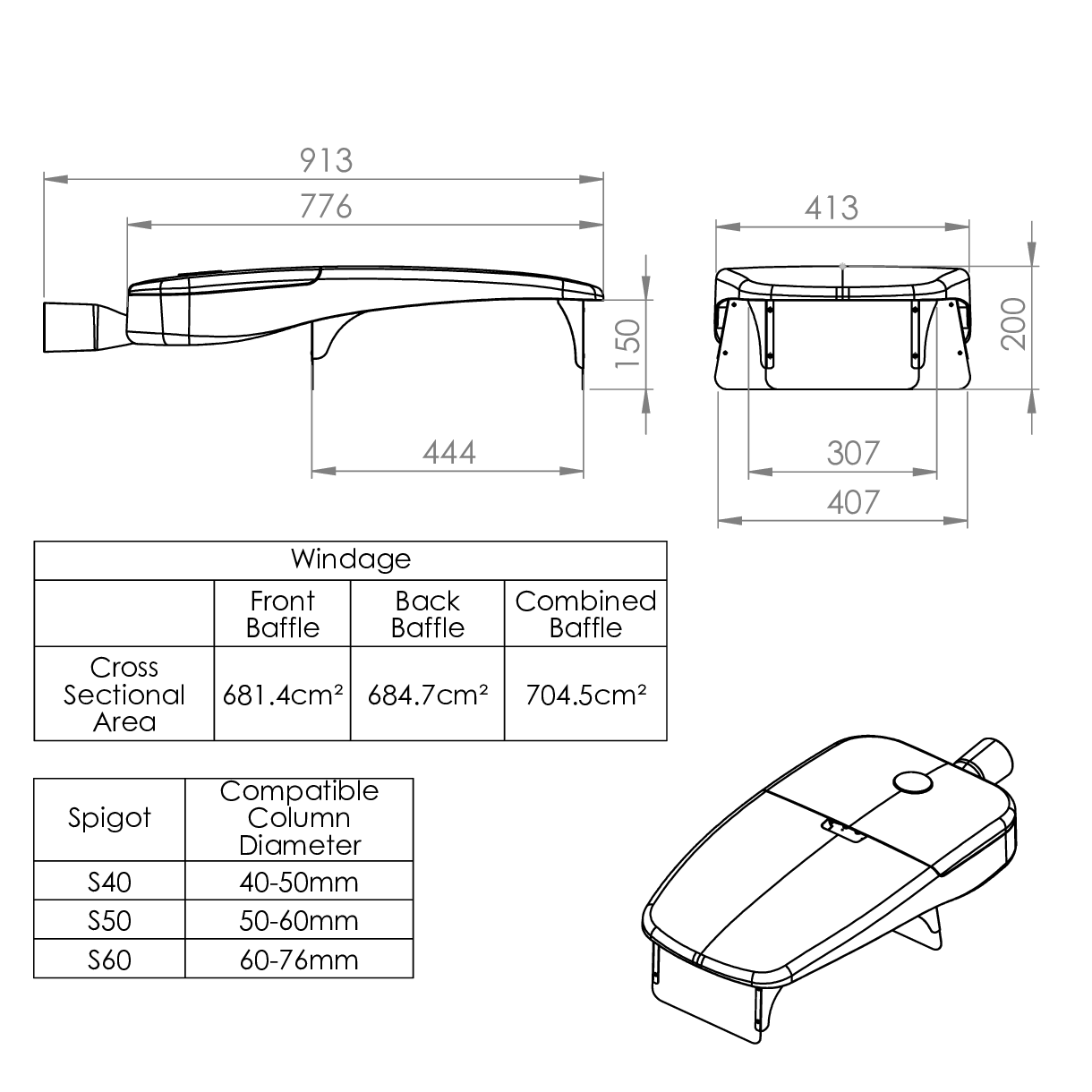

Opus Column XL with Baffle

Opus Column XL with Baffle

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
OPUCXL L400 OA Opus Column, 35,000llm, Open Area, Colour 74 232.7W 150
OPUCXL L500 OA Opus Column, 43,736llm, Open Area, Colour 74 296.0W 148
OPUCXL L400 W Opus Column, 36,600llm, Wide, Colour 74 232.7W 157
OPUCXL L500 W Opus Column, 45,744llm, Wide, Colour 74 296.5W 154

Control

Code Description
NEM NEMA Socket
PH Photocell

Spigot

Code Description
S40 40-50mm Spigot
S50 50-60mm Spigot
S60 60-76mm Spigot
Please specify spigot size when ordering.

Miscellaneous

Code Description
C** C727, C73

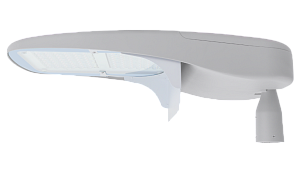

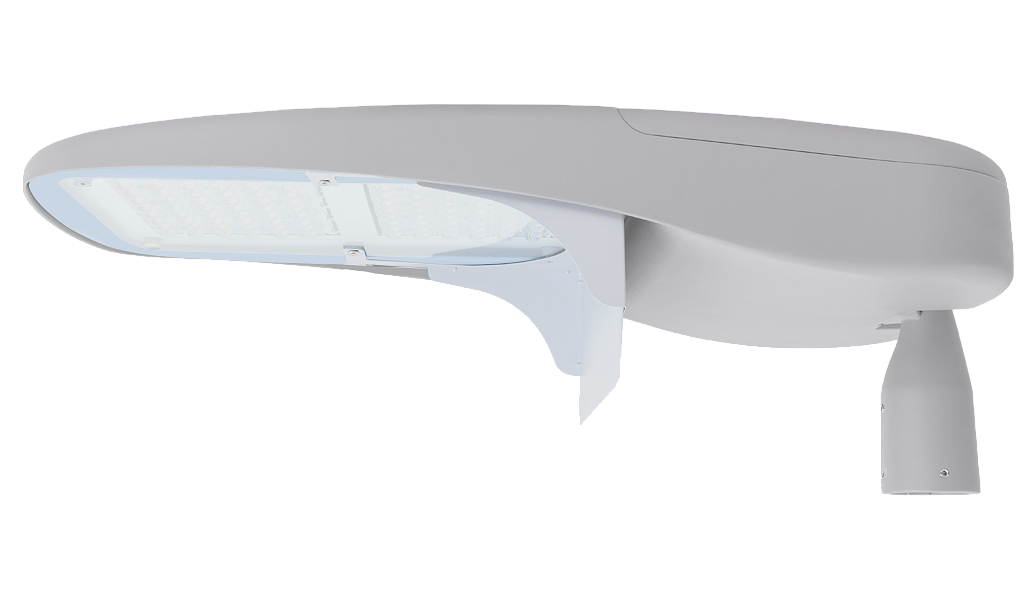

OPUCXL BAFFLE REAR GY Opus Column XL Baffle, Rear, Grey

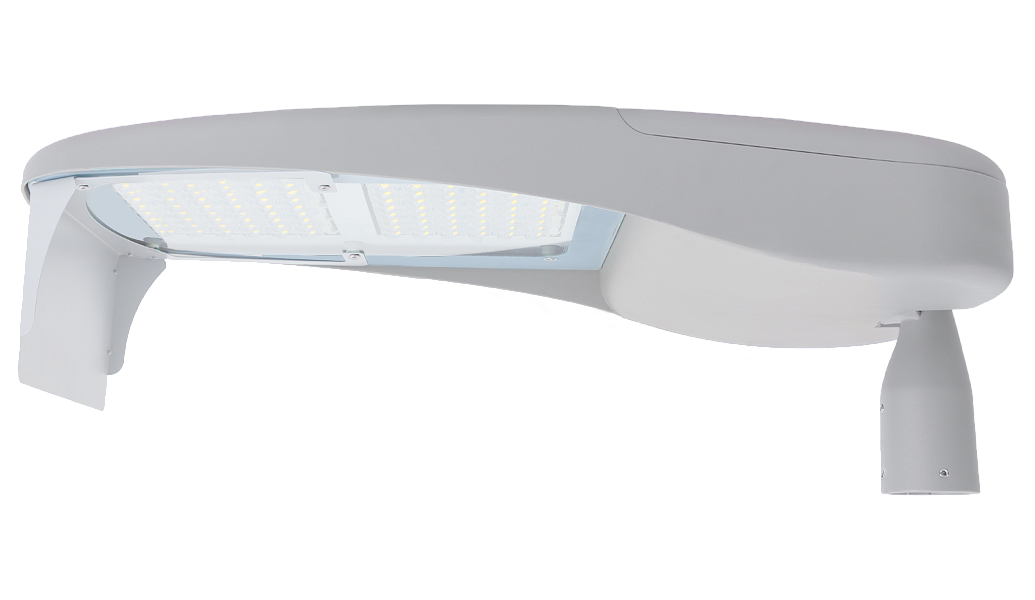

OPUCXL BAFFLE FRONT GY Opus Column XL Baffle, Front, Grey

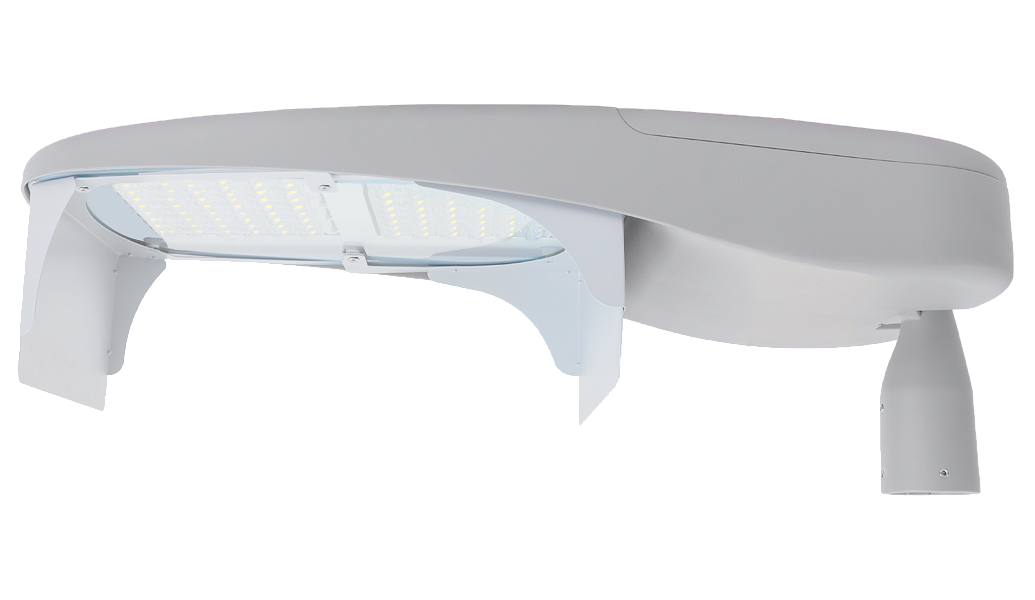

OPUCXL BAFFLE BOTH GY Opus Column XL Baffle, Front & Rear, Grey

Find out more about
Opus Column XL
