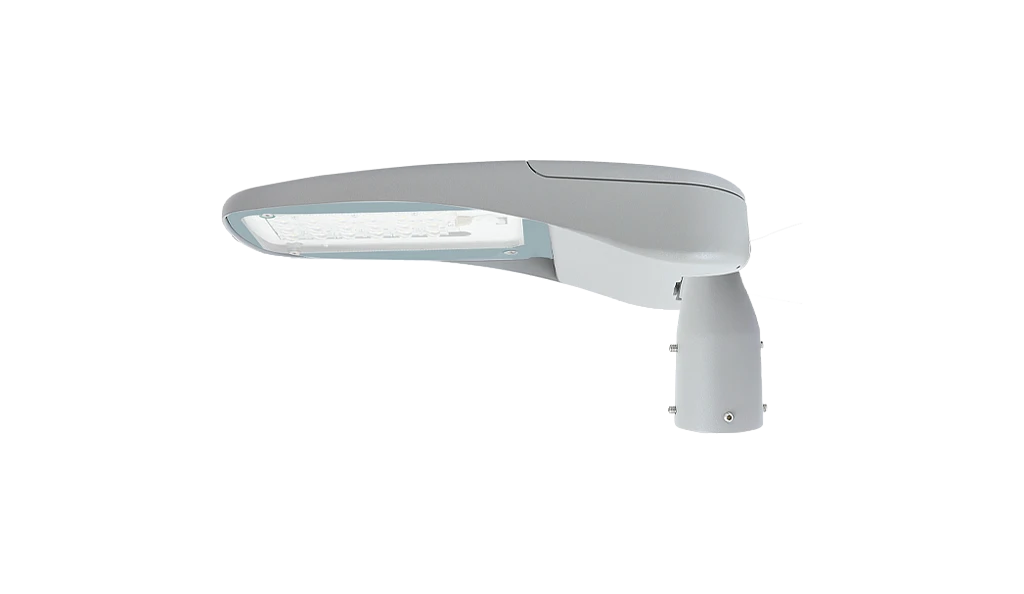

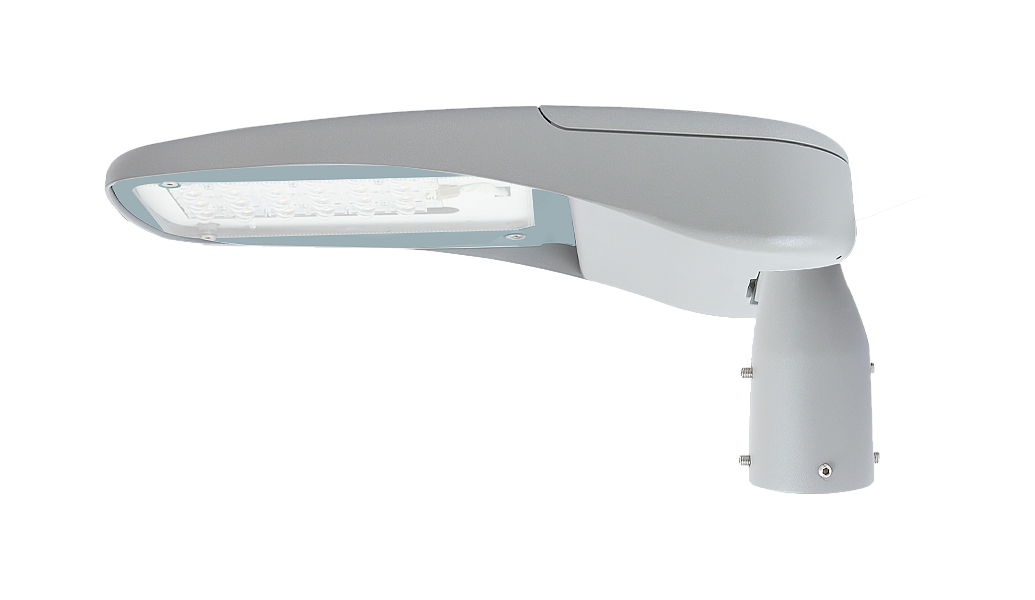

OPUS COLUMN SMALL
The Opus Column Small compliments our Opus Column range with an unobtrusive housing offering up to 7,000lm output ideal for lower column heights and smaller external areas.
Introduction

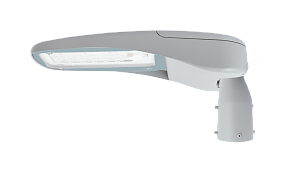

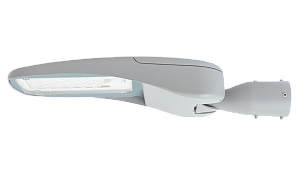

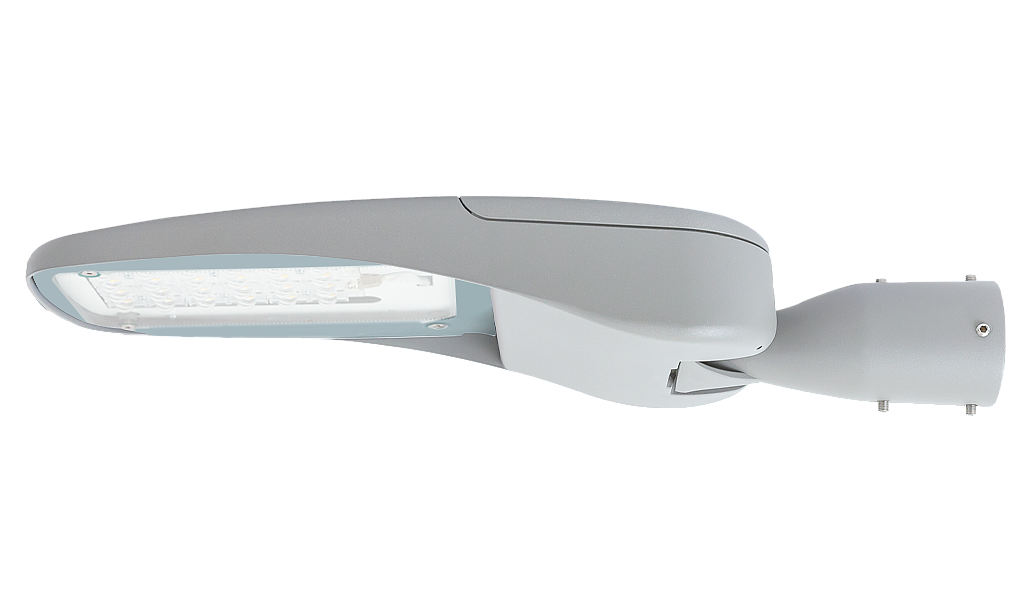

The Opus Column Small Sensor compliments the standard Opus Column range with a smaller housing offering up to 7,000 lumen output. The Opus Column Small Sensor incorporates the same features as the larger product range such as an adjustable spigot allowing for vertical or horizontal mounting, an optional NEMA socket and an automatic disconnect feature when accessing the control gear housing and prewired 10M lead for quick and simple installation and is manufactured with a marine grade paint finish to ensure durability in harsh environments.
The Opus Column Small is available with two different lens options, wide and open area and lumen outputs ranging from 4,400 up to 7,000. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.
Complies with:
UKCA | CE | IP65 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Commercial / Offices | Education | Exterior | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Parking / Exterior | Retail | Transport
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9006 textura matt grey
- Finish: Manufactured with a marine grade paint finish to ensure durability in harsh environments.
- Diffuser: 5mm toughened glass
- Lens: Injection moulded polycarbonate lens
- IP65
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90 at >80,000 Operating Hours
- Up to 151 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Control
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for column installation, please specify spigot size required.
- Available with 40-50mm, 50-60mm or 60-76mm spigot
- Supplied with 10M prewired lead
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs
Technical

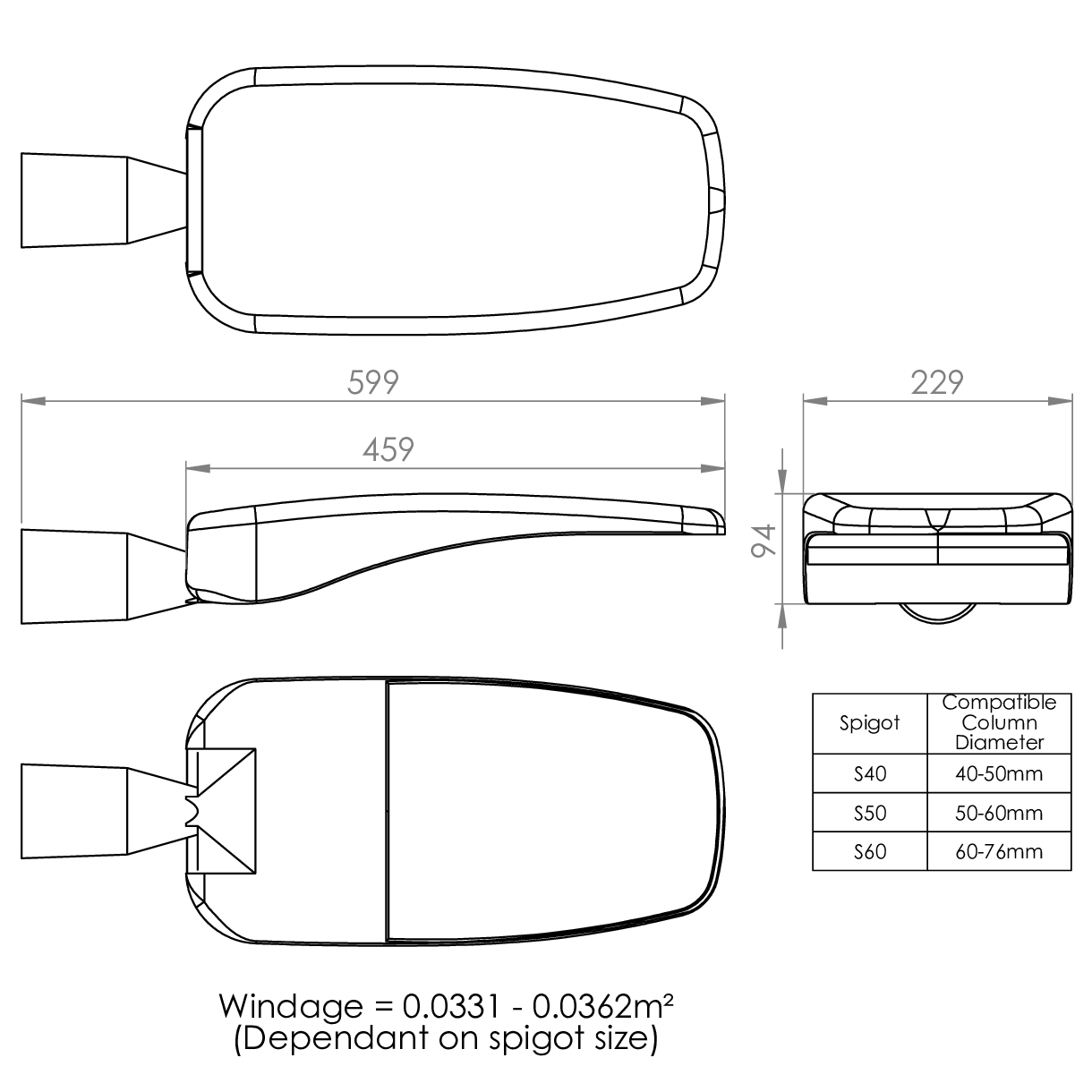

Opus Column Small

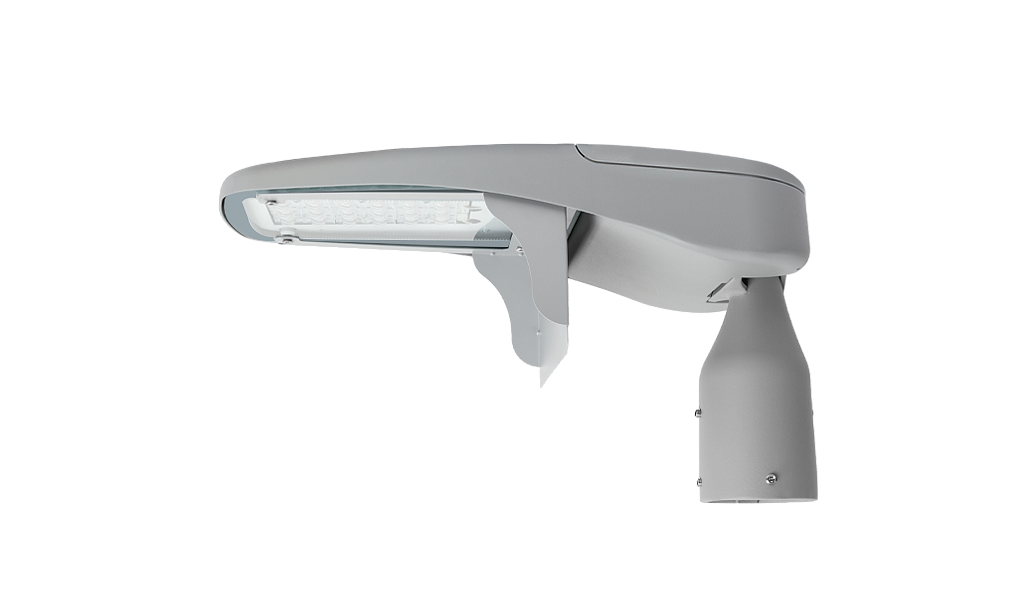

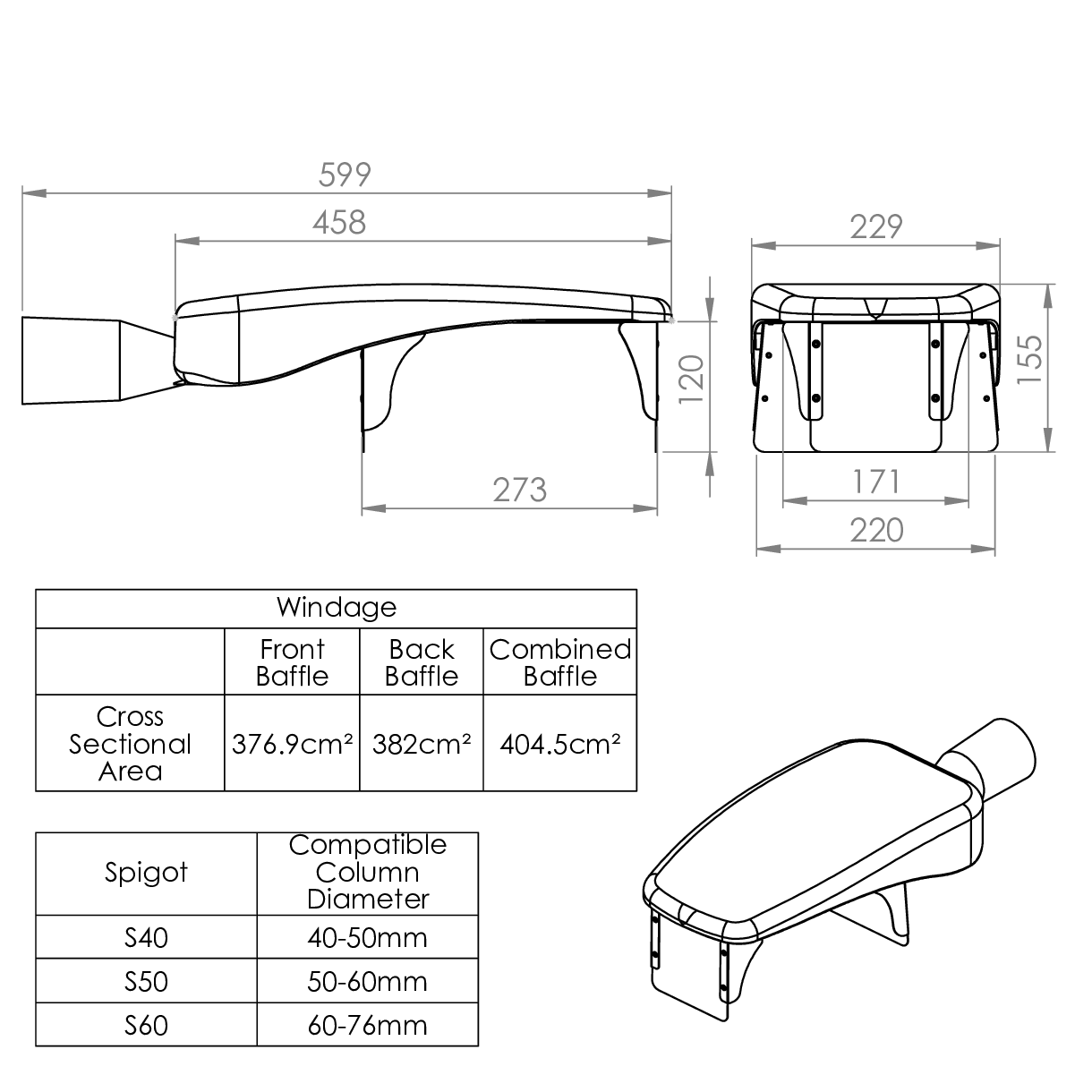

Opus Column Small with Baffle
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Control
| Code | Description |
|---|---|
| NEM | NEMA Socket |
| PH | Photocell |
Spigot
| Code | Description |
|---|---|
| S40 | 40-50mm Spigot |
| S50 | 50-60mm Spigot |
| S60 | 60-76mm Spigot |
| OPUC WB | Opus Column Wall Mount Bracket |
| Please specify spigot size when ordering. | |
| Please order luminaire less spigot when purchasing the wall mount bracket option. | |
Miscellaneous
| Code | Description |
|---|---|
| C** | C727, C73 |

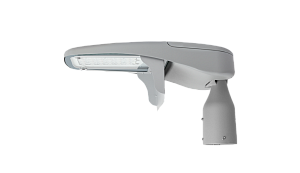

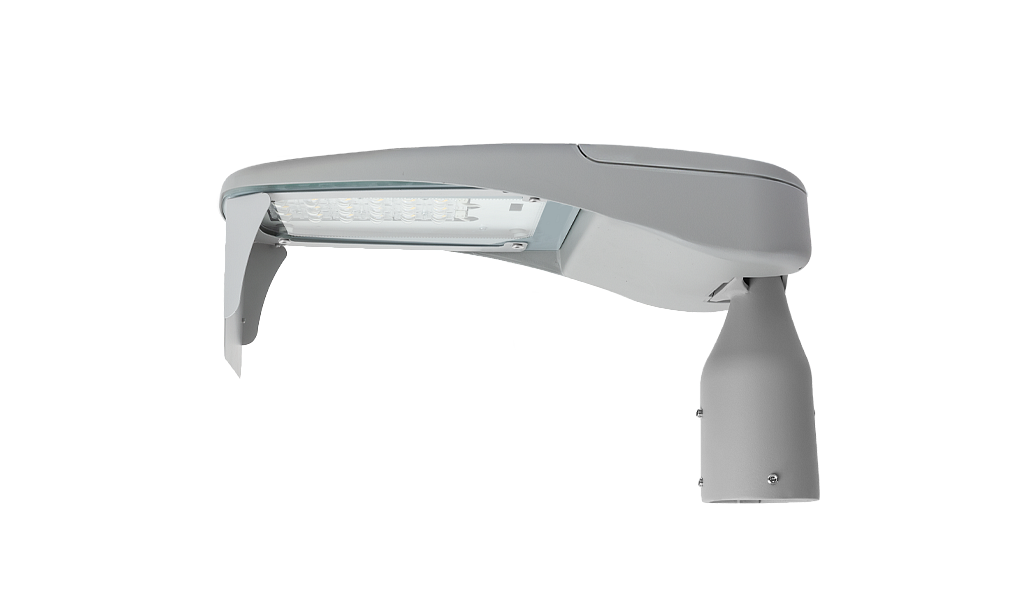

| OPUCS BAFFLE REAR GY | Opus Column Small Baffle, Rear, Grey |
| OPUCS BAFFLE FRONT GY | Opus Column Small Baffle, Front, Grey |

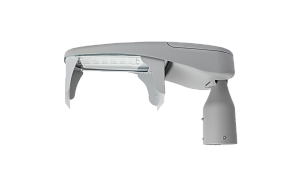

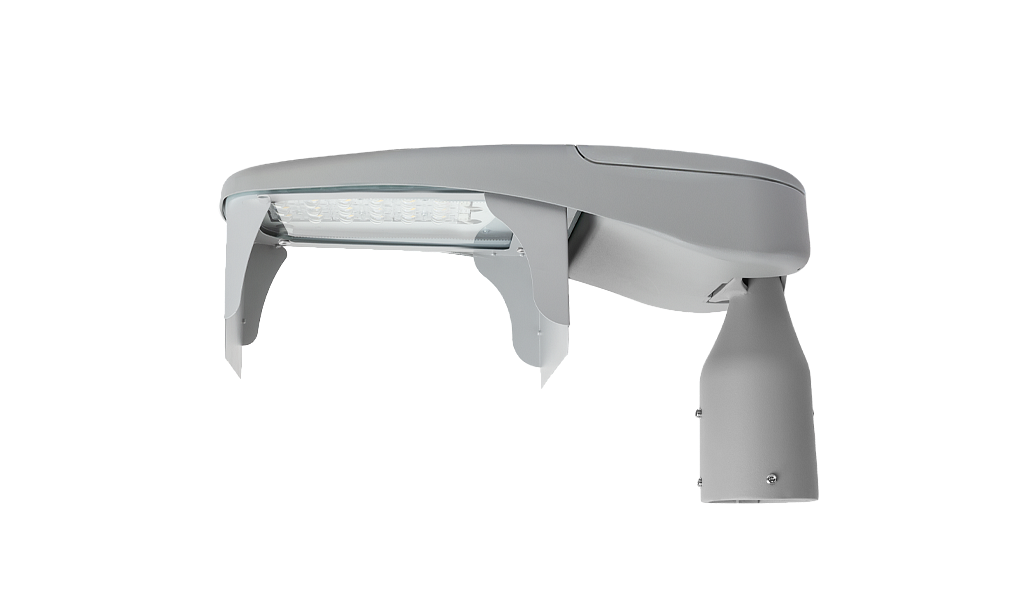

| OPUCS BAFFLE BOTH GY | Opus Column Small Baffle, Front & Rear, Grey |
