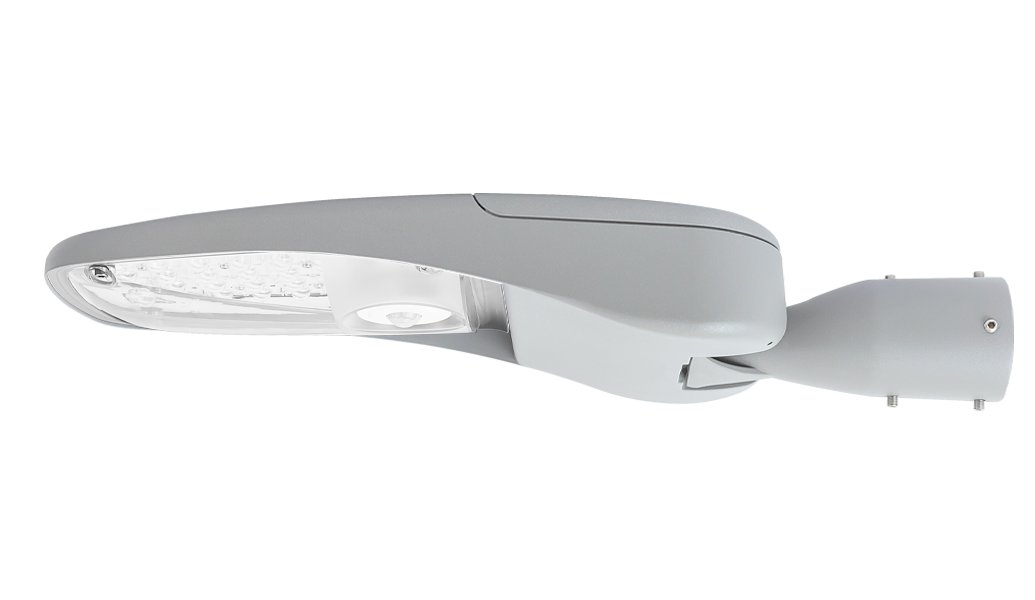

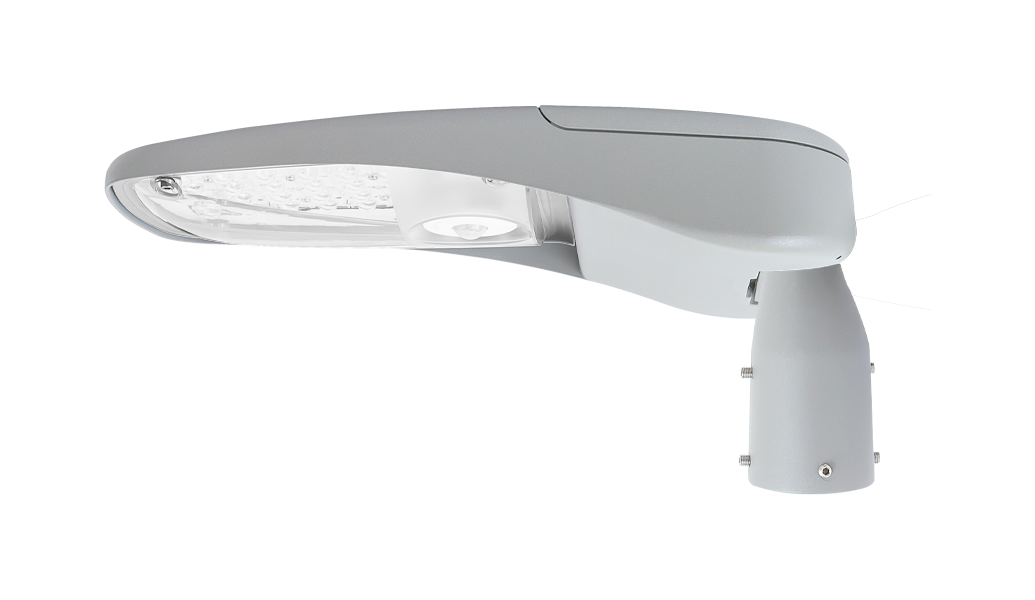

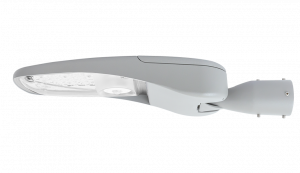

Opus Column Small Sensor

The Opus Column Small Sensor compliments the standard Opus Column range with a smaller housing offering up to 7,000 lumen output.

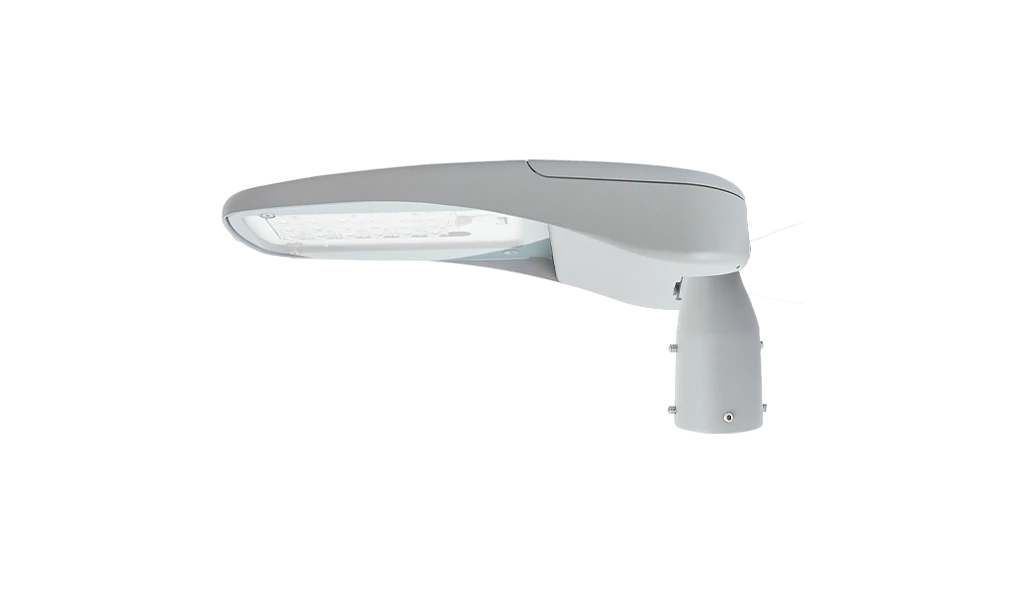

OPUS COLUMN SMALL SENSOR FEATURED

Introduction

The Opus Column Small Sensor compliments the standard Opus Column range with a smaller housing offering up to 7,000 lumen output. The Opus Column Small Sensor incorporates the same features as the larger product range such as an adjustable spigot allowing for vertical or horizontal mounting, an optional NEMA socket and an automatic disconnect feature when accessing the control gear housing and prewired 10M lead for quick and simple installation and is manufactured with a marine grade paint finish to ensure durability in harsh environments.

The Opus Column Small Sensor incorporates our R11 sensor offering presence detection and a wide range of adjustable parameters such as time delays, dimming levels during absence, dimming rates and optional secondary time delays to turn the luminaire off altogether, all programmed via remote control from ground level. The Opus Column Small is available with two different lens options, wide and open area and lumen outputs ranging from 4,400 up to 7,000. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP65 | TM21: L90>80K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Commercial & Offices | Education | Exterior | Healthcare & Social Housing | Hotel & Leisure | Industrial & Manufacturing | Parking & Exterior | Retail | Transport

Specification

Construction

  • Housing: High pressure die cast aluminium
  • Finish: Polyester powder painted RAL 9006 textura matt grey
  • Finish: Manufactured with a marine grade paint finish to ensure durability in harsh environments.
  • Diffuser: Injection moulded clear polycarbonate
  • Lens: Injection moulded polycarbonate lens
  • IP65
  • Adjustable high light levels allows light output to be adjusted after installation to meet the exact requirements of the installation preventing the need to install multiple luminaire variants and maximising energy savings.

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90 at >80,000 Operating Hours
  • Up to 151 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Control

  • Optional Integral R11 presence sensor
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations
  • Ground level commissioning with REA-AP controller allows quick and simple setting and adjustment of sensors without the need for costly commissioning.

Installation

  • Suitable for column installation, please specify spigot size required.
  • Available with 40-50mm, 50-60mm or 60-76mm spigot
  • Supplied with 10M prewired lead

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs
Find out more about our 5 year extended warranty

Technical

Opus Column Small Sensor

Opus Column Small Sensor

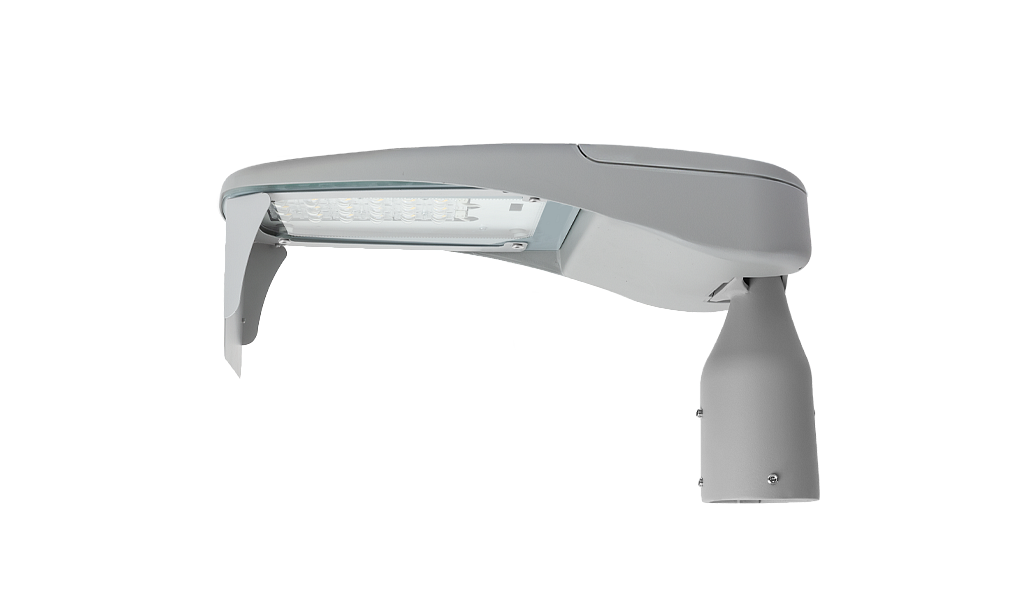

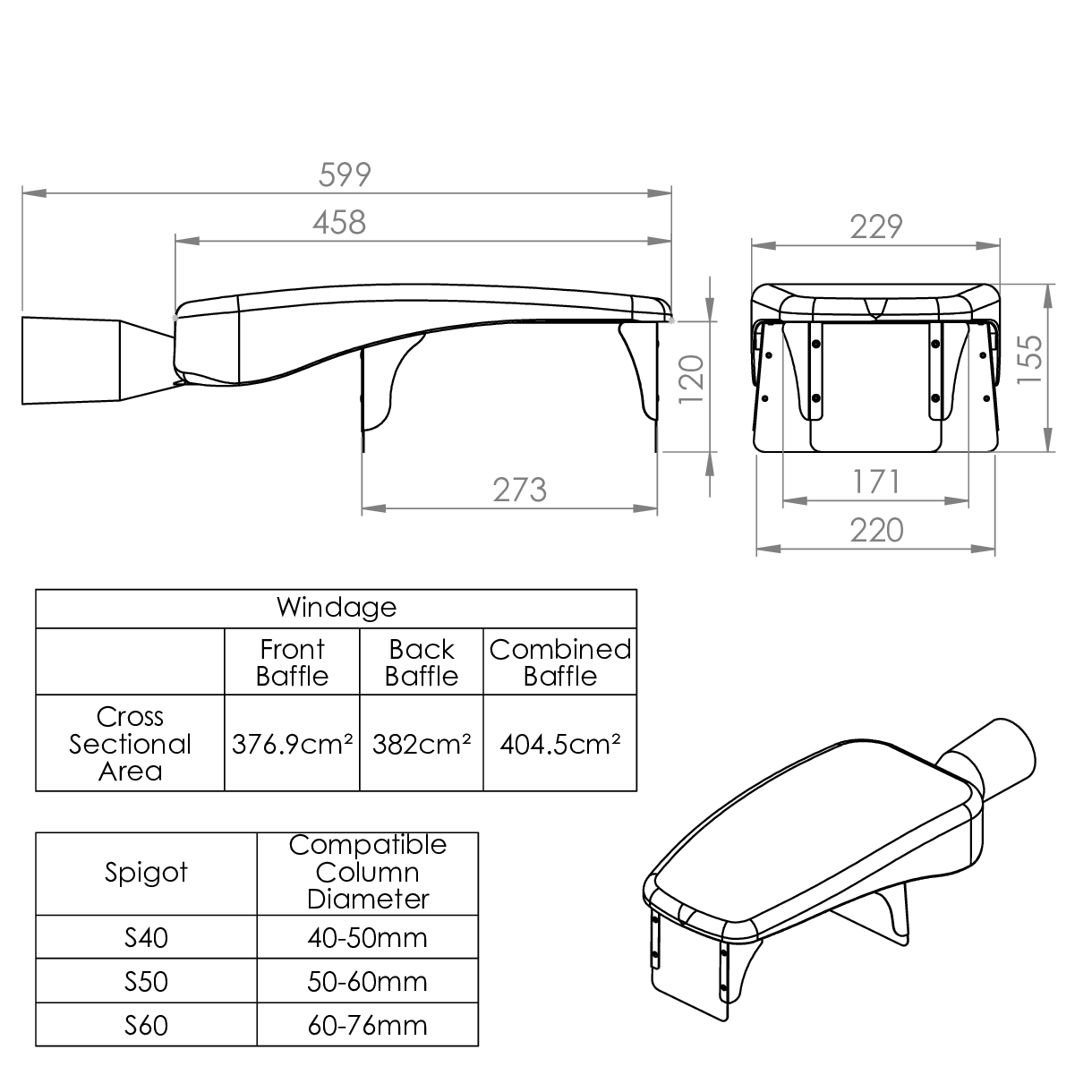

Opus Column Small Sensor with Baffle

Opus Column Small Sensor with Baffle

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
OPUCSE L44 OA Opus Column Small, 3,683llm, Open Area, Colour 74 25.6W 143
OPUCSE L60 OA Opus Column Small, 5,022llm, Open Area, Colour 74 34.4W 145
OPUCSE L70 OA Opus Column Small, 5,858llm, Open Area, Colour 74 42.0W 139
OPUCSE L44 W Opus Column Small, 3,828llm, Wide, Colour 74 25.6W 149
OPUCSE L60 W Opus Column Small, 5,220llm, Wide, Colour 74 34.4W 151
OPUCSE L70 W Opus Column Small, 6,094llm, Wide, Colour 74 42.0W 145

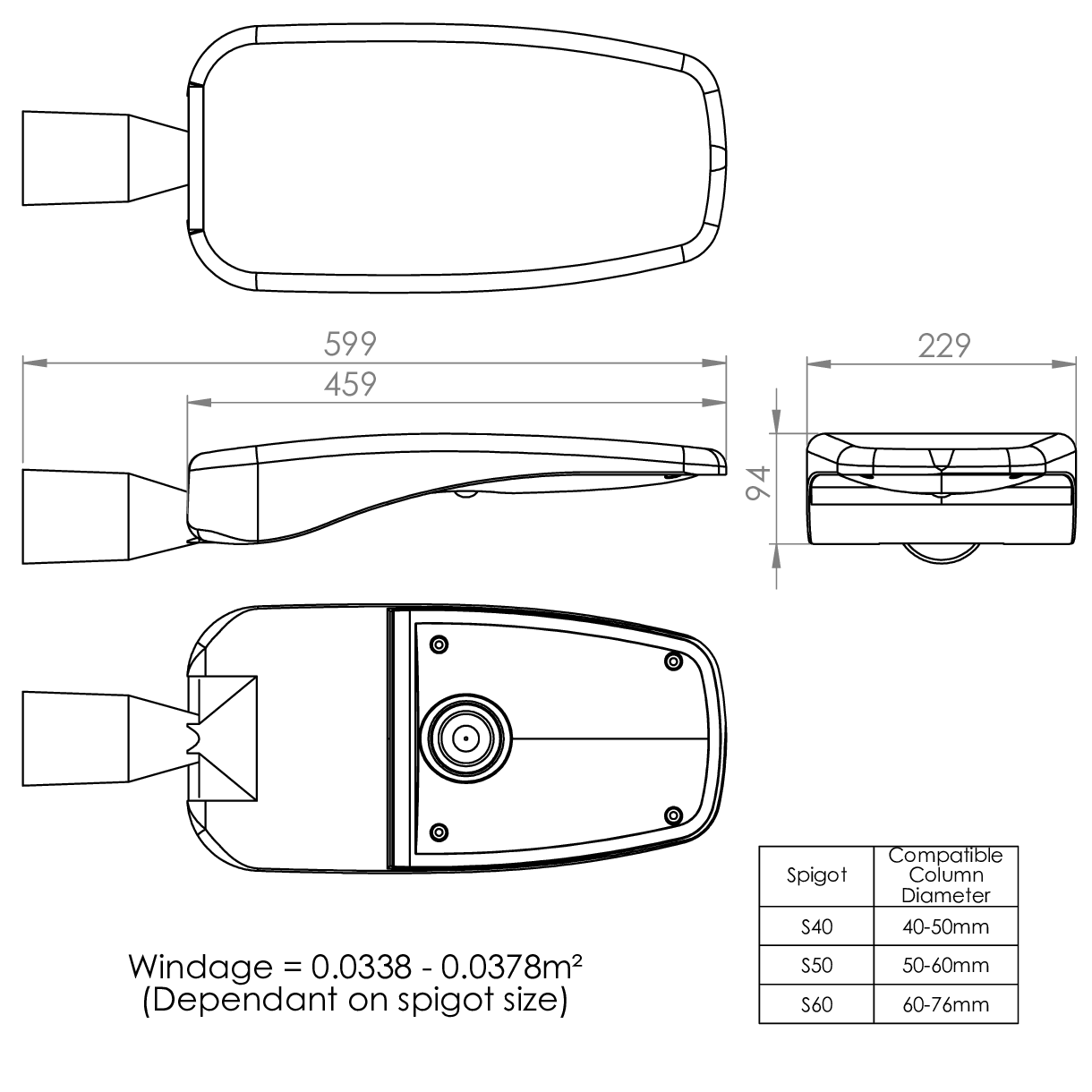

Spigot

Code Description
S40 40-50mm Spigot
S50 50-60mm Spigot
S60 60-76mm Spigot
OPUC WB Opus Column Wall Mount Bracket
Please specify spigot size when ordering.
Please order luminaire less spigot when purchasing the wall mount bracket option.

Miscellaneous

Code Description
C** C727, C73

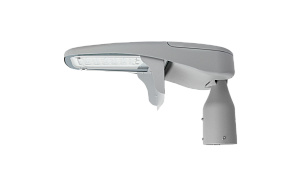

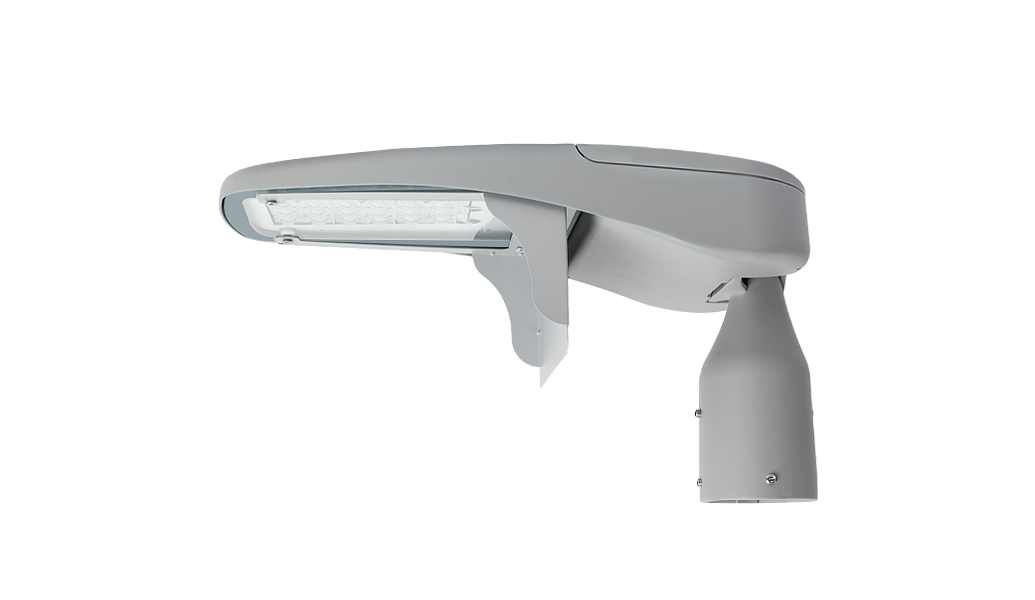

OPUCS BAFFLE REAR GY Opus Column Small Baffle, Rear, Grey
OPUCS BAFFLE FRONT GY Opus Column Small Baffle, Front, Grey

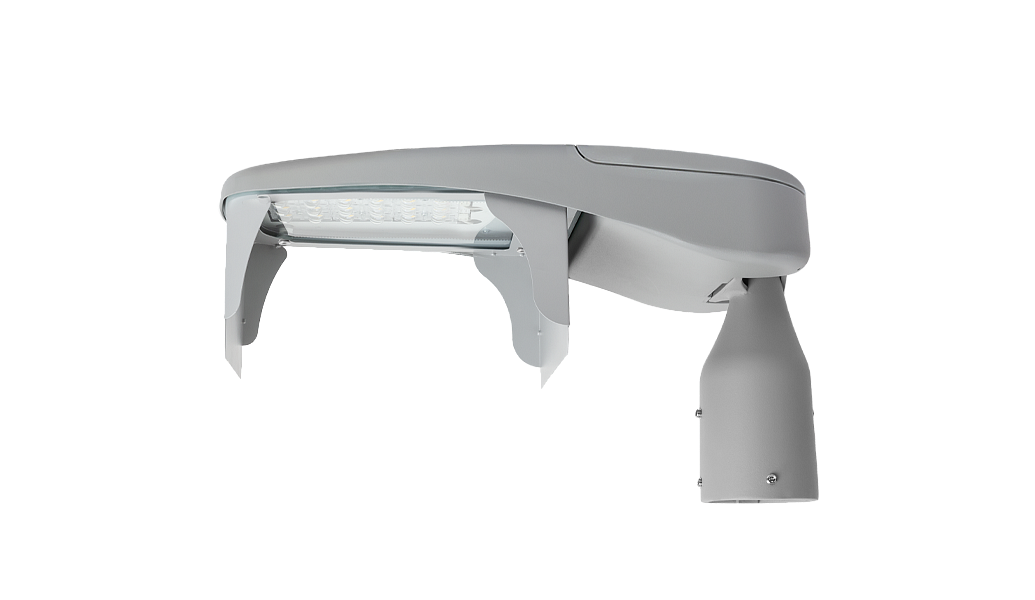

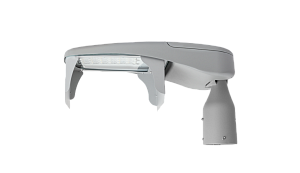

OPUCS BAFFLE BOTH GY Opus Column Small Baffle, Front & Rear, Grey

Find out more about
Opus Column Small Sensor

For Sales and Technical Enquires call 01747 858100
