OEZ2
The OEZ2 offers a surface mount solution with an IP65 rating.
Introduction
The OEZ2 is suitable for surface mount installation on walls and ceilings and can be supplied without legend, with hanging blade or with adhesive legends all in ISO 7010 format. With an IP65 rating the OEZ2 is suitable for applications where protection from dirt, dust and water is required. The OEZ2 is available in standard, self test and autotest variants ensuring compatibility with a wide range of emergency testing systems. The OEZ2 incorporates side and conduit entry points for ease of installation.
Complies with:
UKCA | CE | IP65
Recommended applications:
Canteen | Commercial / Offices | Corridor | Education | Exterior | Food Production | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Kitchen | Office | Parking / Exterior | Retail | Stairwell | Store Room | Toilet | Transport | Warehousing
Specification
Construction
- Housing: Injection moulded polycarbonate
- Finish: Matt white
- ISO 7010 or Euro Norm Legends with all directional arrow options.
- IP65
Environmental
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Installation
- Suitable for conduit installation
- Suitable for surface installation
Technical

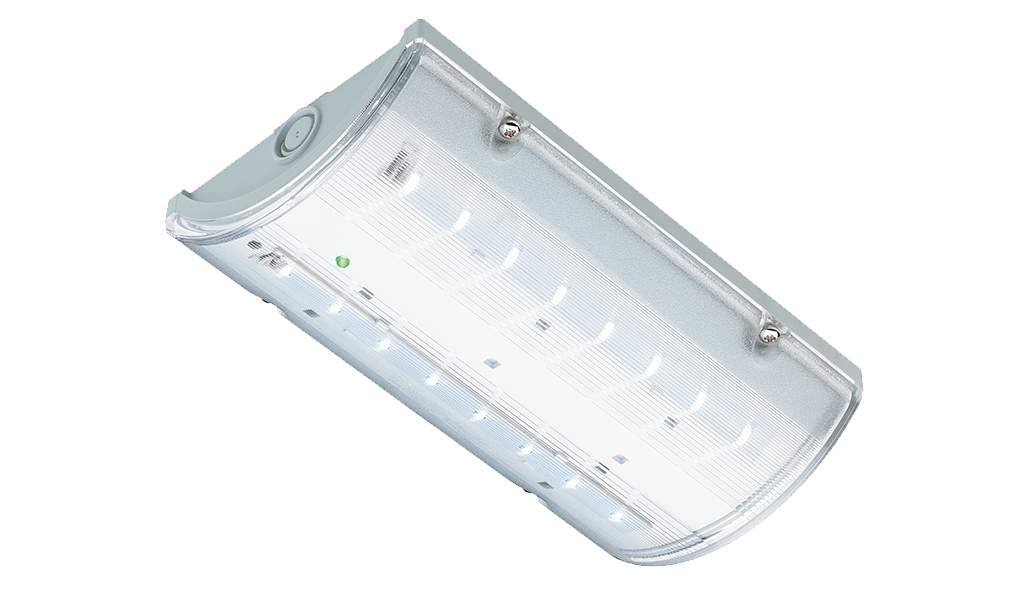

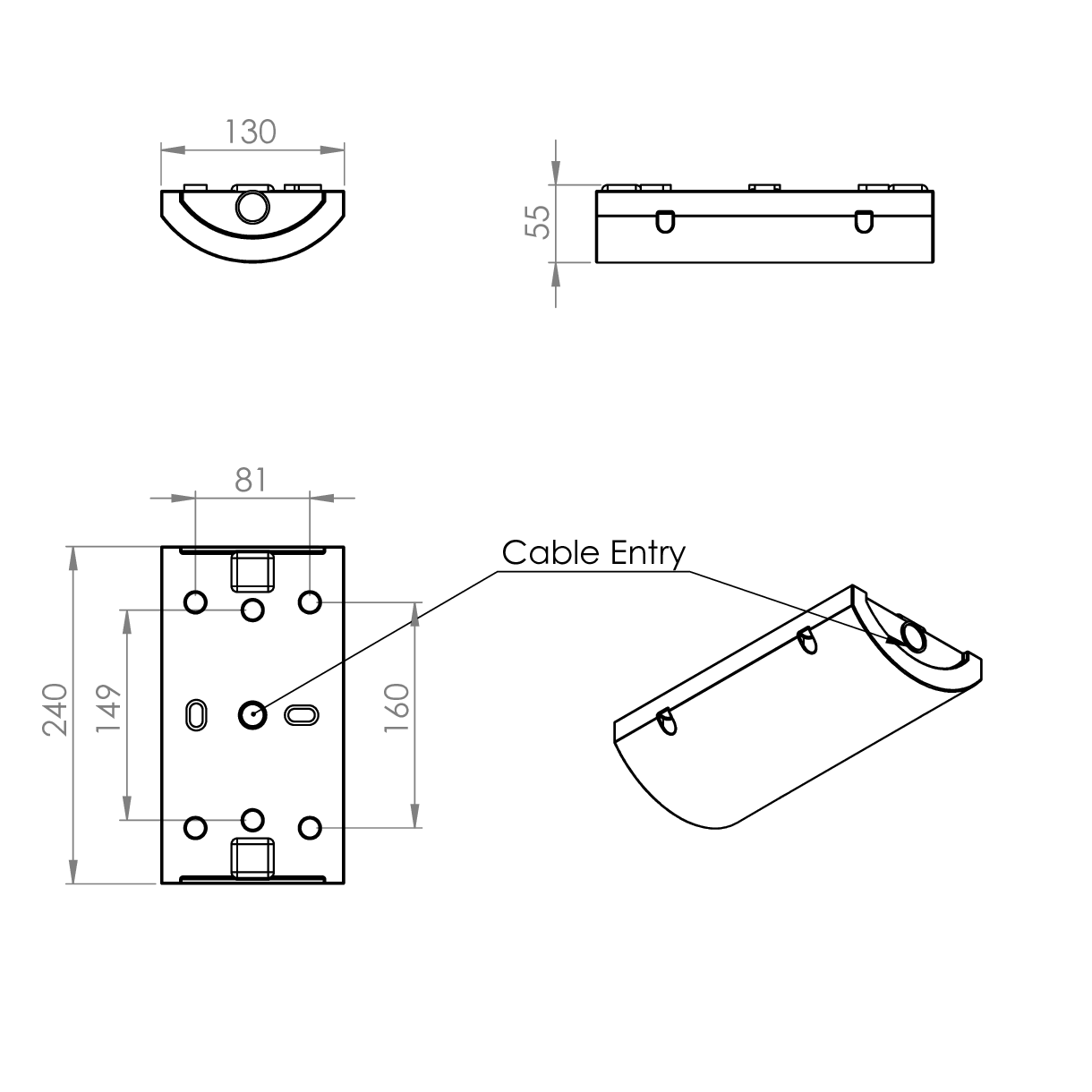

OEZ 2

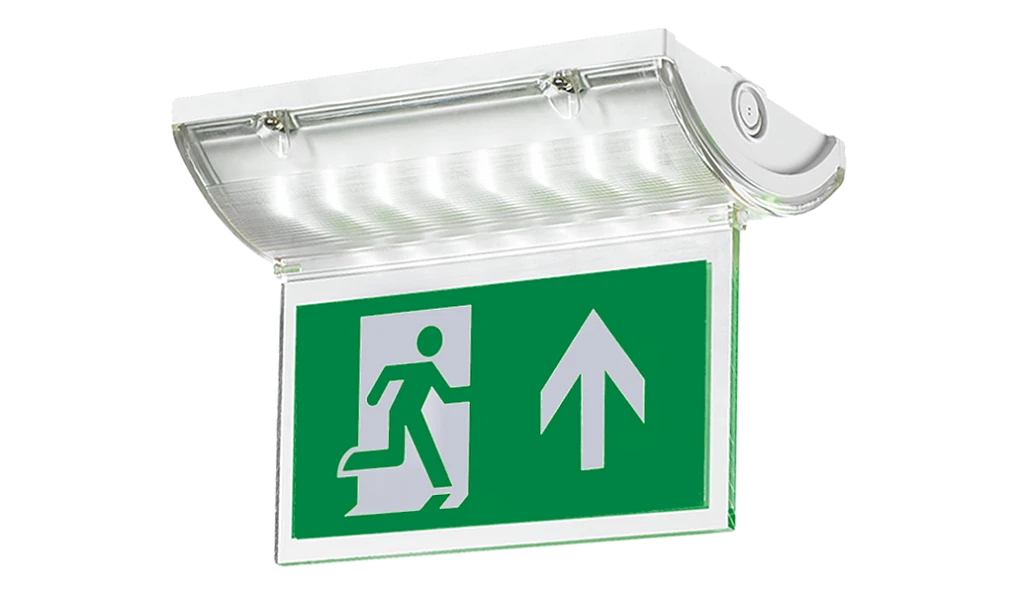

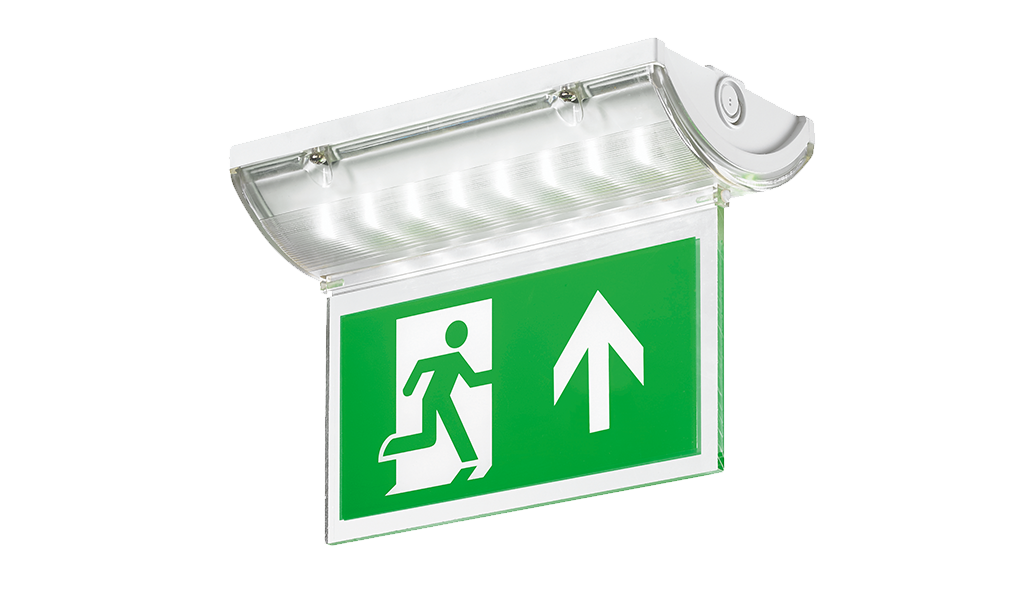

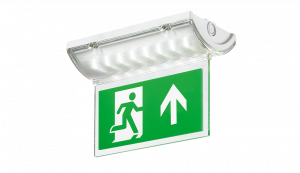

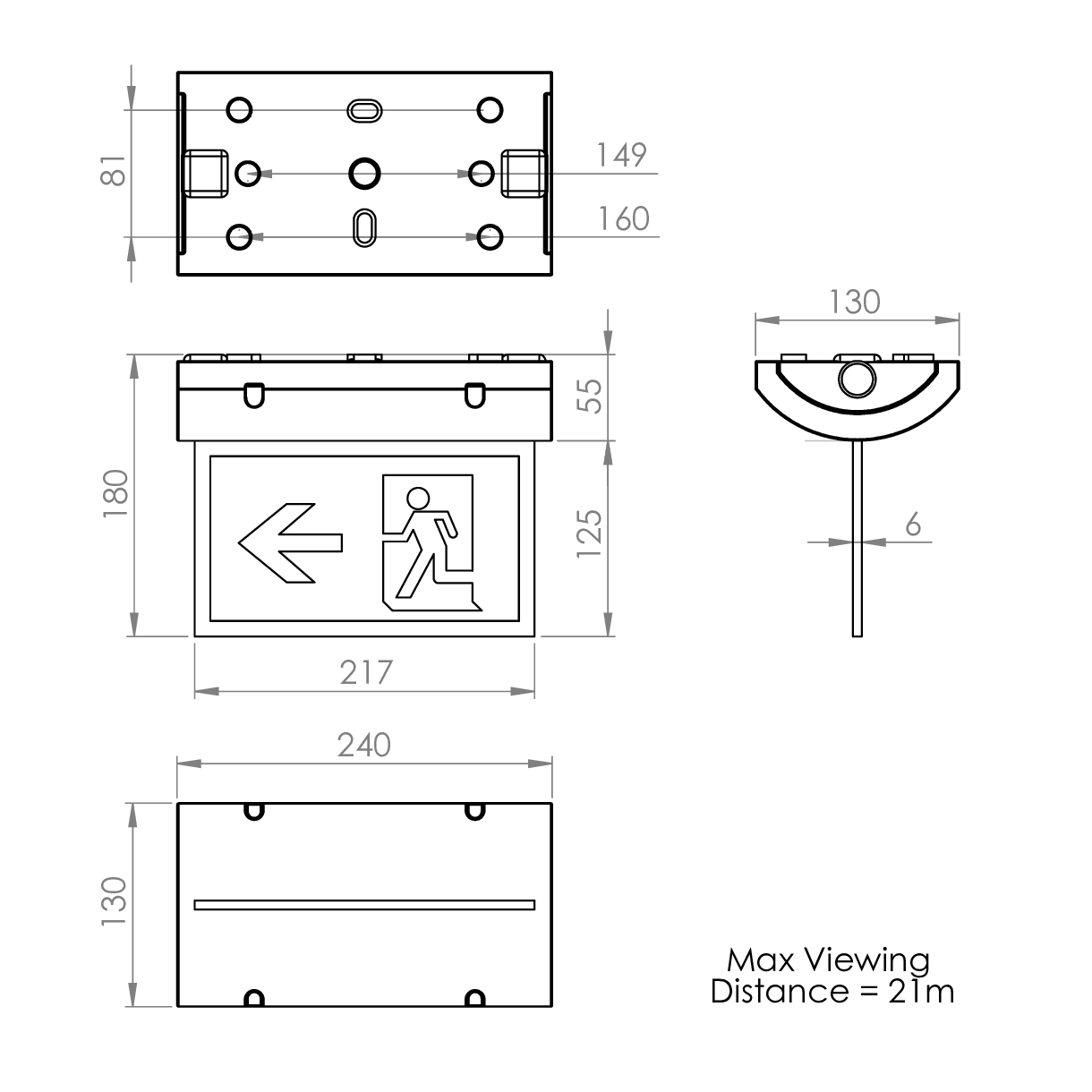

OEZ 2 with Legend
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
|
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| LSF | Low Smoke Zero Halogen |

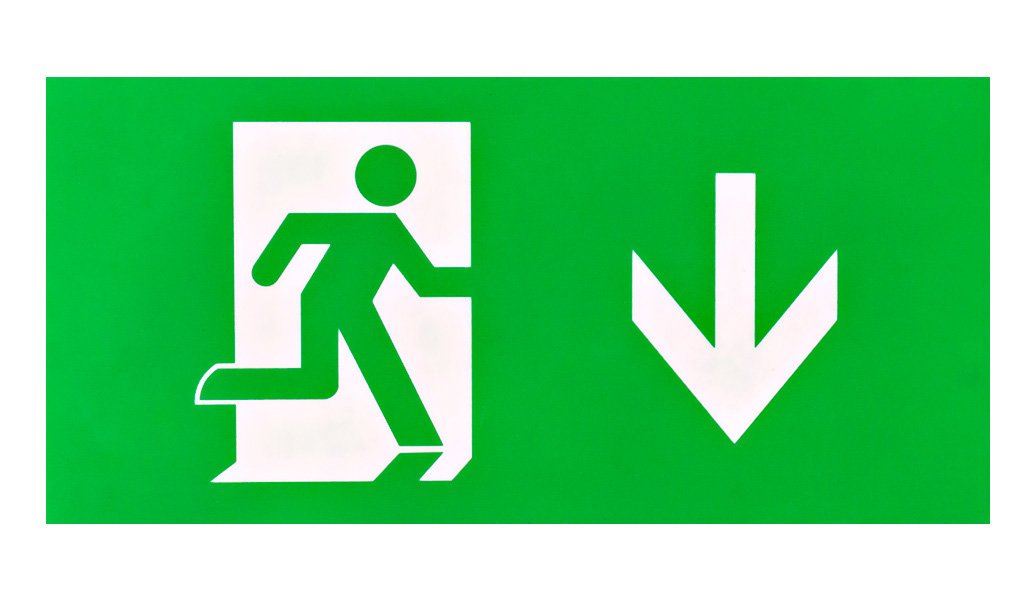

| OEZ2 DL ISO7010 | OEZ2 Down Arrow ISO 7010 Legend, Double Sided |
| OEZ2 LLRL ISO7010 | OEZ2 Left / Right Arrow ISO 7010 Legend, Double Sided |

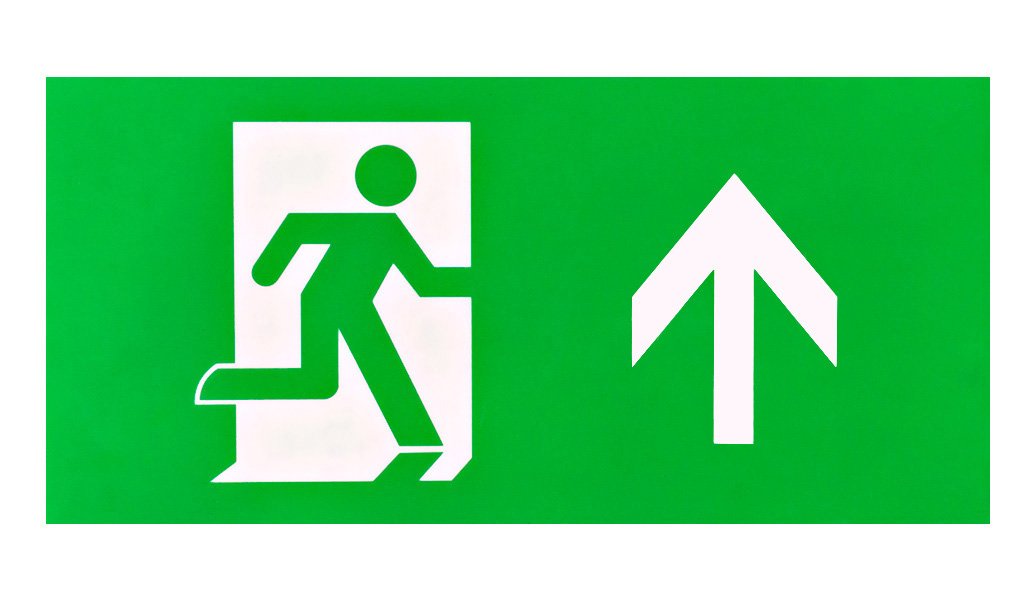

| OEZ2 UL ISO7010 | OEZ2 Up Arrow ISO 7010 Legend, Double Sided |
| OEZ2 DL ELK ISO7010 | OEZ2 Down Arrow ISO 7010 Legend, Self Adhesive |

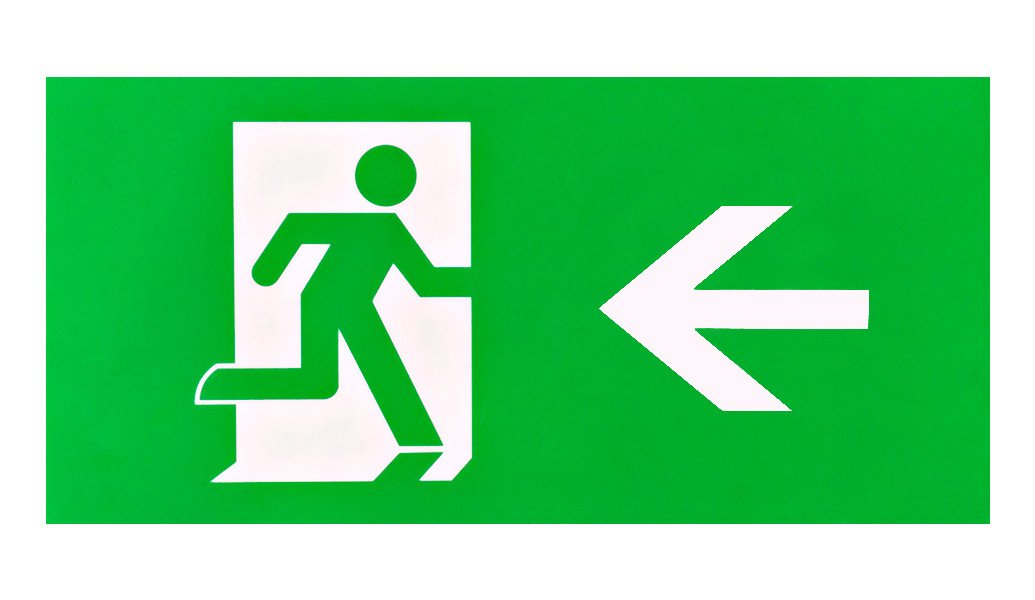

| OEZ2 LL ELK ISO7010 | OEZ2 Left Arrow ISO 7010 Legend, Self Adhesive |

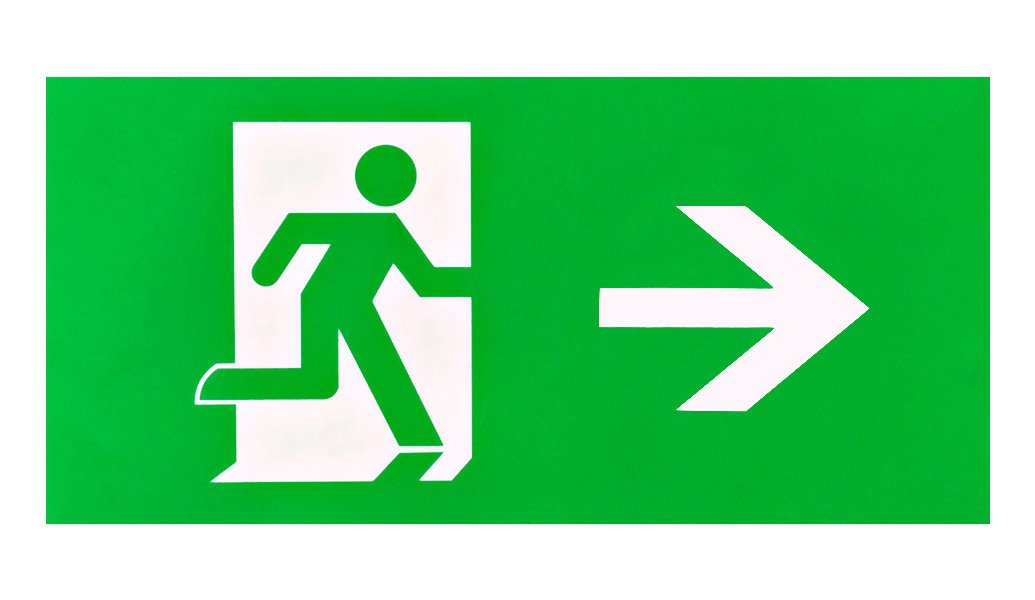

| OEZ2 RL ELK ISO7010 | OEZ2 Right Arrow ISO 7010 Legend, Self Adhesive |
| OEZ2 UL ELK ISO7010 | OEZ2 Up Arrow ISO 7010 Legend, Self Adhesive |
