MODLP
The MODLP offers compatibility with in tile and linear plank ceiling systems such as SAS 330. With microprism diffuser the MODLP provides glare compliance to BSEN 12464 and UGR 19.
Introduction
The MODLP offers compatibility with in tile and linear plank ceiling systems such as SAS 330. With microprism diffuser the MODLP provides glare compliance to BSEN 12464 and UGR 19, and is available in a range of finishes including RAL 9010 to suit the appearance of most linear plank ceiling systems. A wide range of options compliment the MODLP including multiple lumen outputs, integral sensors, all common dimming variants, integral emergency with lithium batteries as standard for extended warranty and lifetime and air handling up to 25 litres per second.
Wireless versions of the MODLP are available offering compatibility with a range of wireless control systems providing grouped operation of luminaires, integration with wireless controls such as sensors and switches and automated testing and reporting of emergency systems offering significant reductions in the life time operating cost of your system.
Due to the custom nature of linear plank ceiling systems please confirm the exact dimensions of the tile size or tile aperture when placing your order.
Complies with:
UKCA | CE | IP40 | TM21: L90>60K HOURS / L80>100K HOURS | TP(a) | TM66 CEAM Score: 2.5
Recommended applications:
Commercial & Offices | Corridor | Education | Office
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted RAL 9010 textura matt white
- Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
- IK08
- IP20
- IP40
Performance
- BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
- TM21: L90>60K Hours / L80>100K Hours
- Up to 134 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency

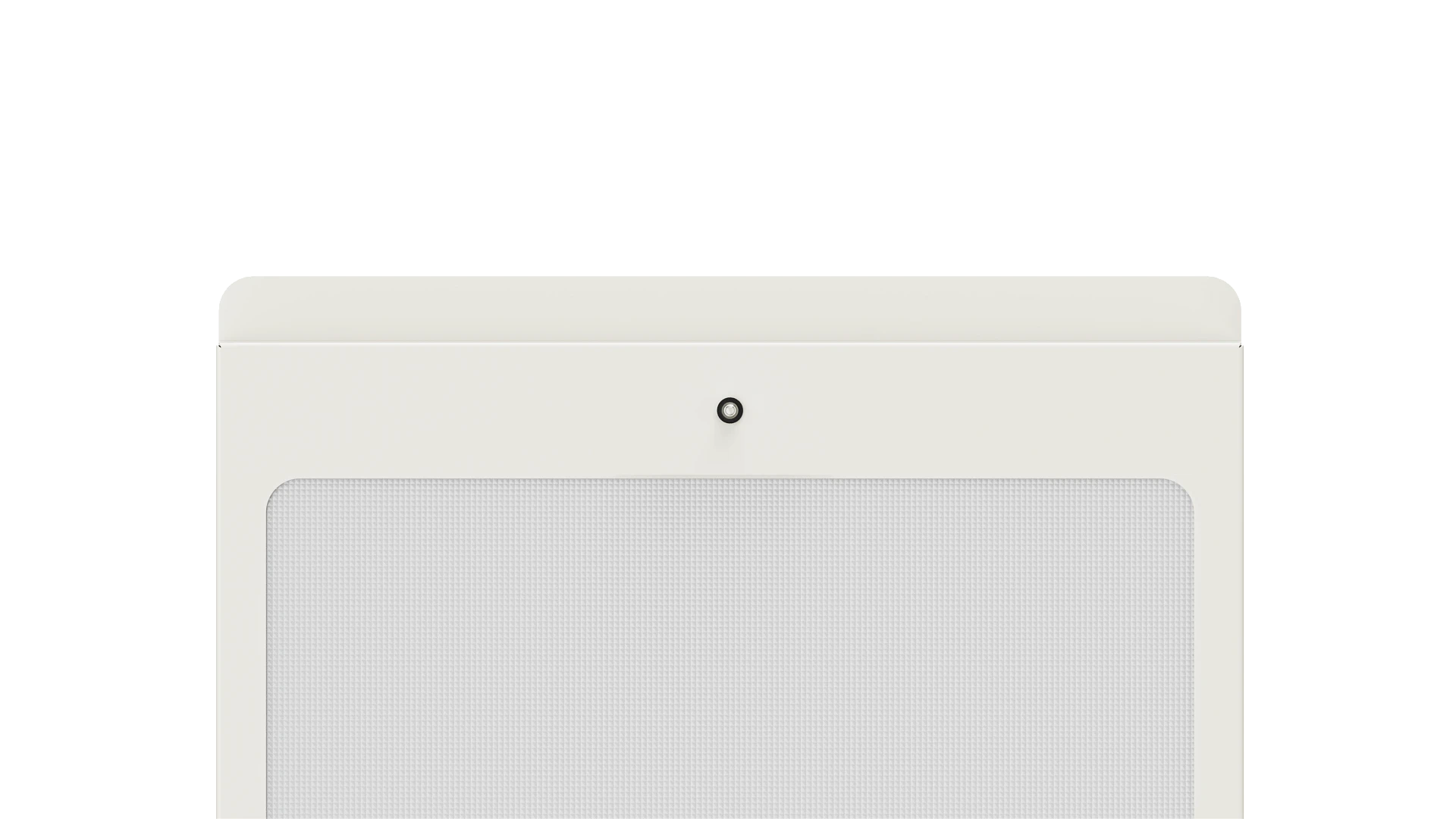

- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
- Optional Reacta-Link wireless emergency for automated centralised reporting.
- Optional Reacta-Control wireless emergency for automated centralised reporting.
- Optional central battery changeover relay
Control
- HFR 1-10V analogue dimming
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional White tunable

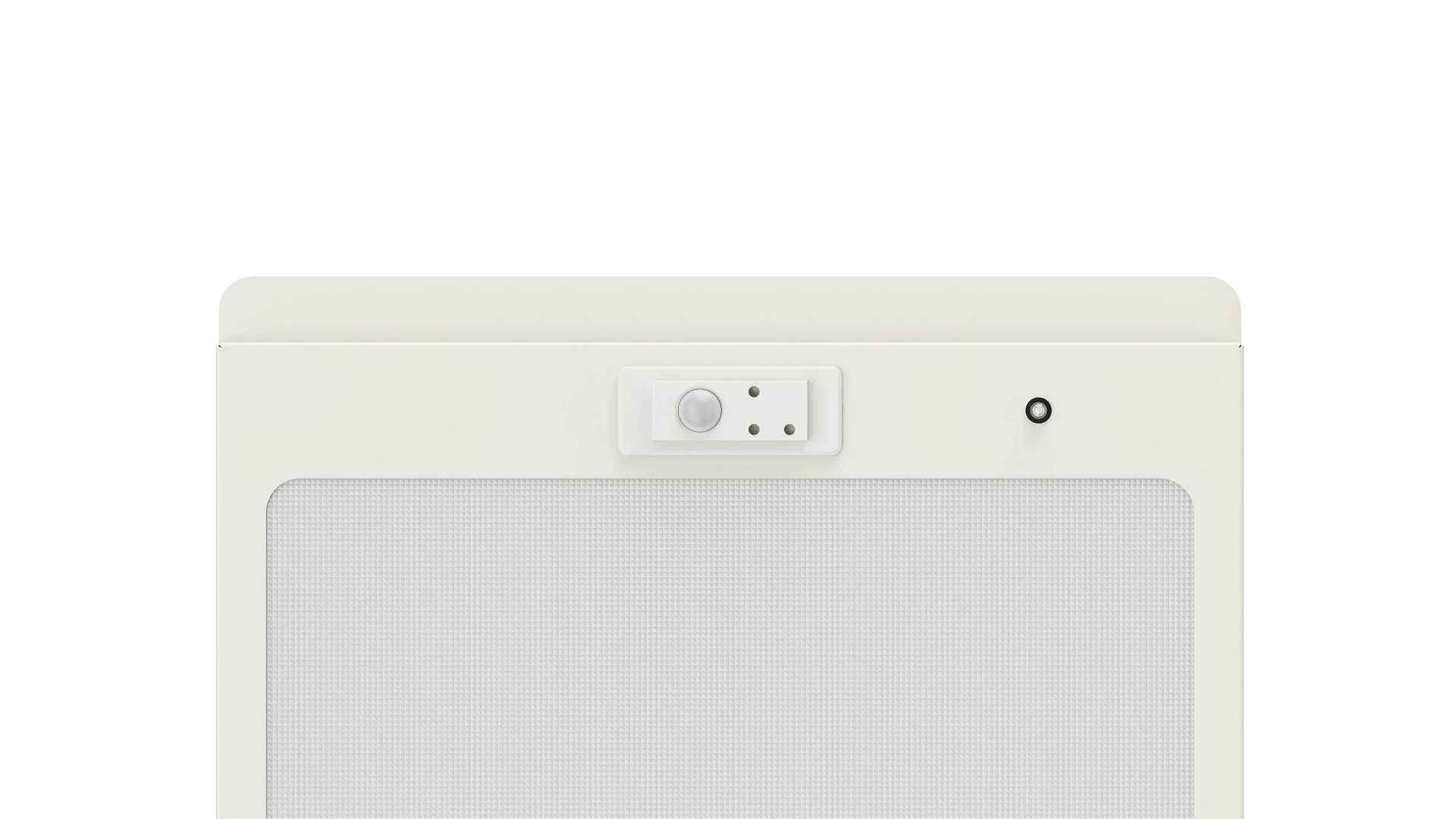

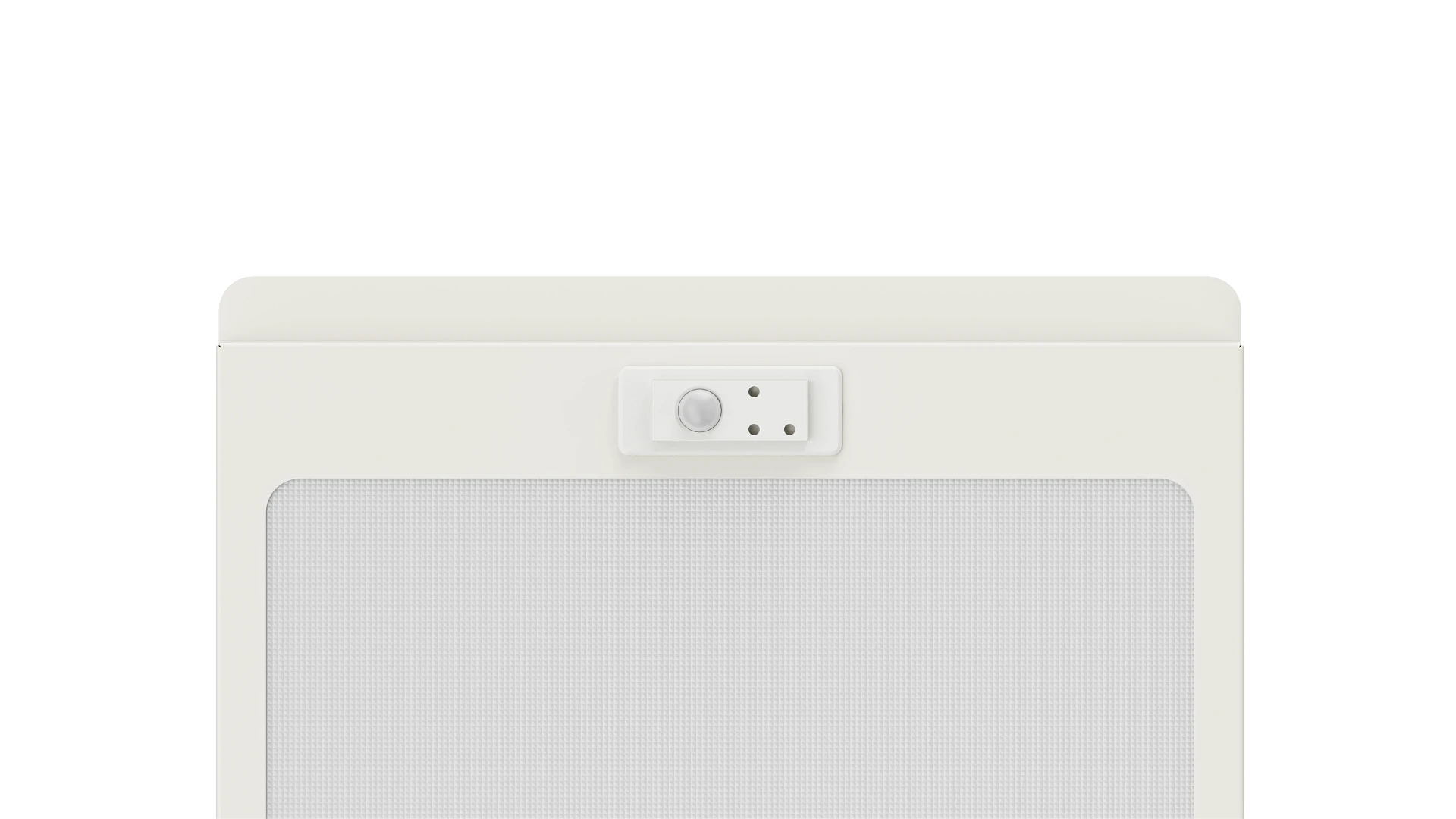

- Optional Integral DR44 presence and daylight sensor
- Optional Integral D44 wireless presence and daylight sensor
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for lay-in installation in exposed T ceilings
- Suitable for pull-up installation in concealed grid ceilings
- Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
- End mount installation ensures compatibility with linear plank ceilings.
- Available in narrow sizes to suit in tile applications.
- Optional compatibility with air handling systems.
- Due to the custom nature of linear plank ceiling systems please confirm the exact dimensions of the tile size or tile aperture when placing your order.
Variations
- Available with a wide range of colour temperatures and renderings

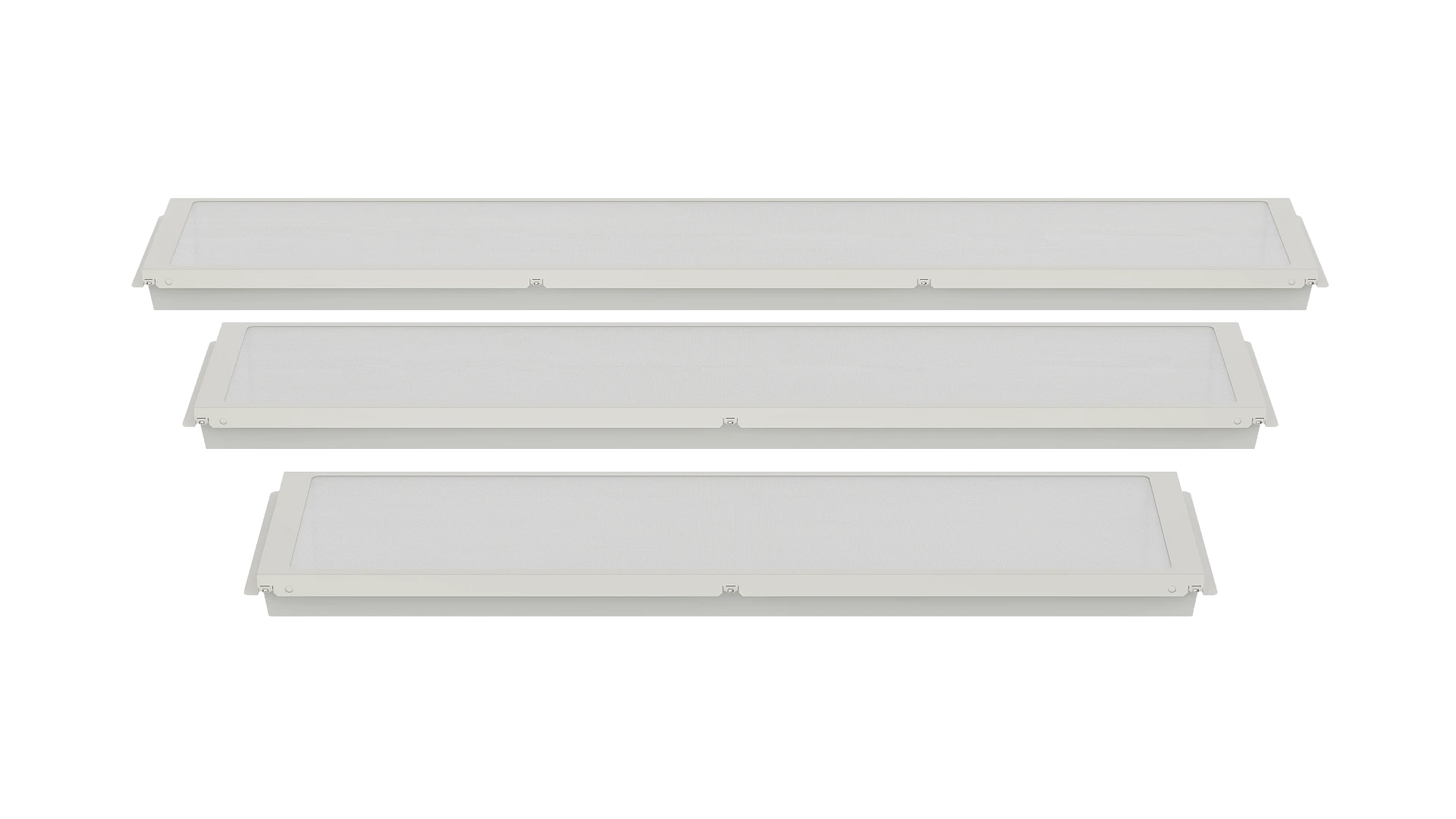

- Available in a range of housing sizes and lumen outputs
Technical

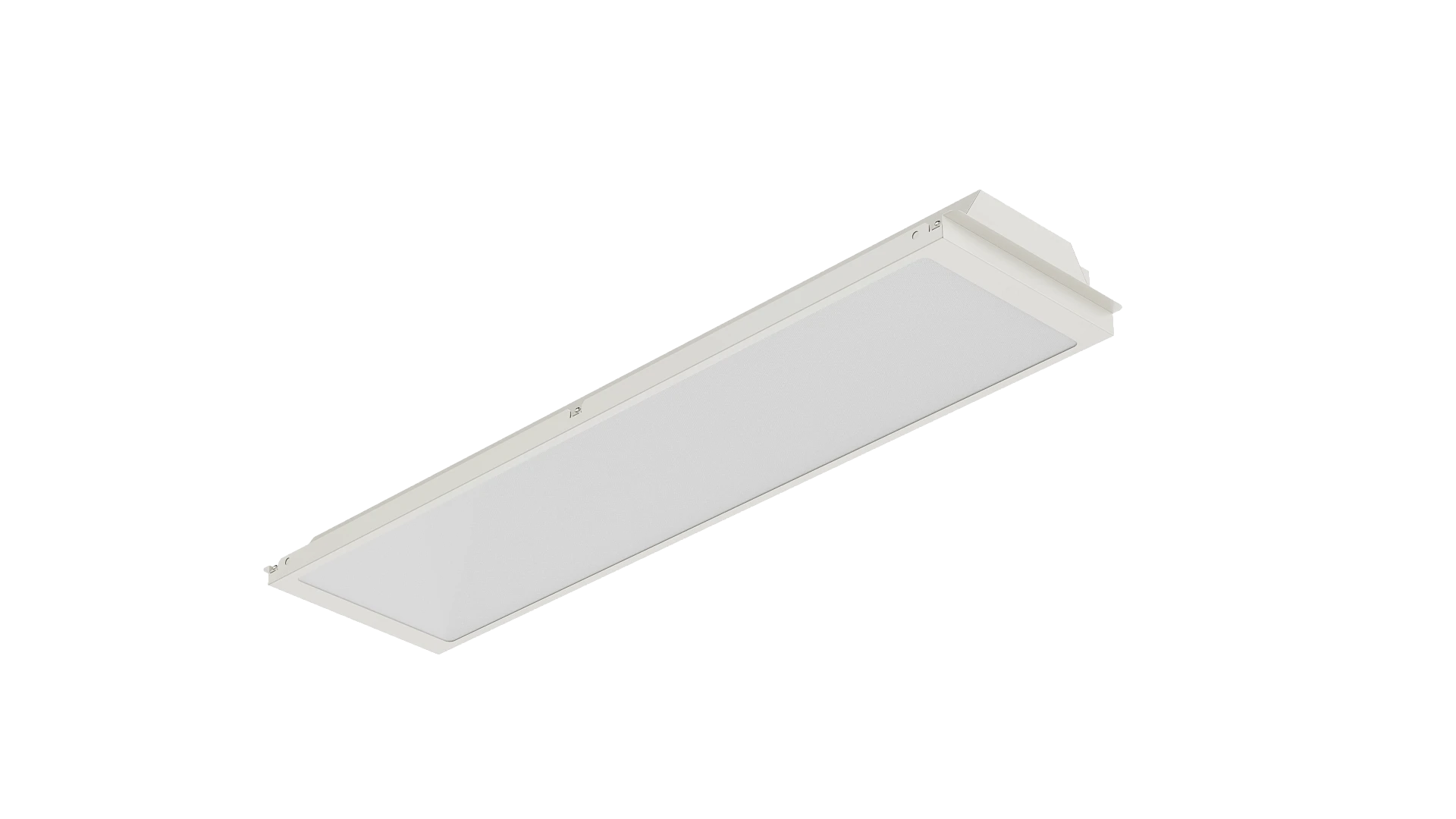

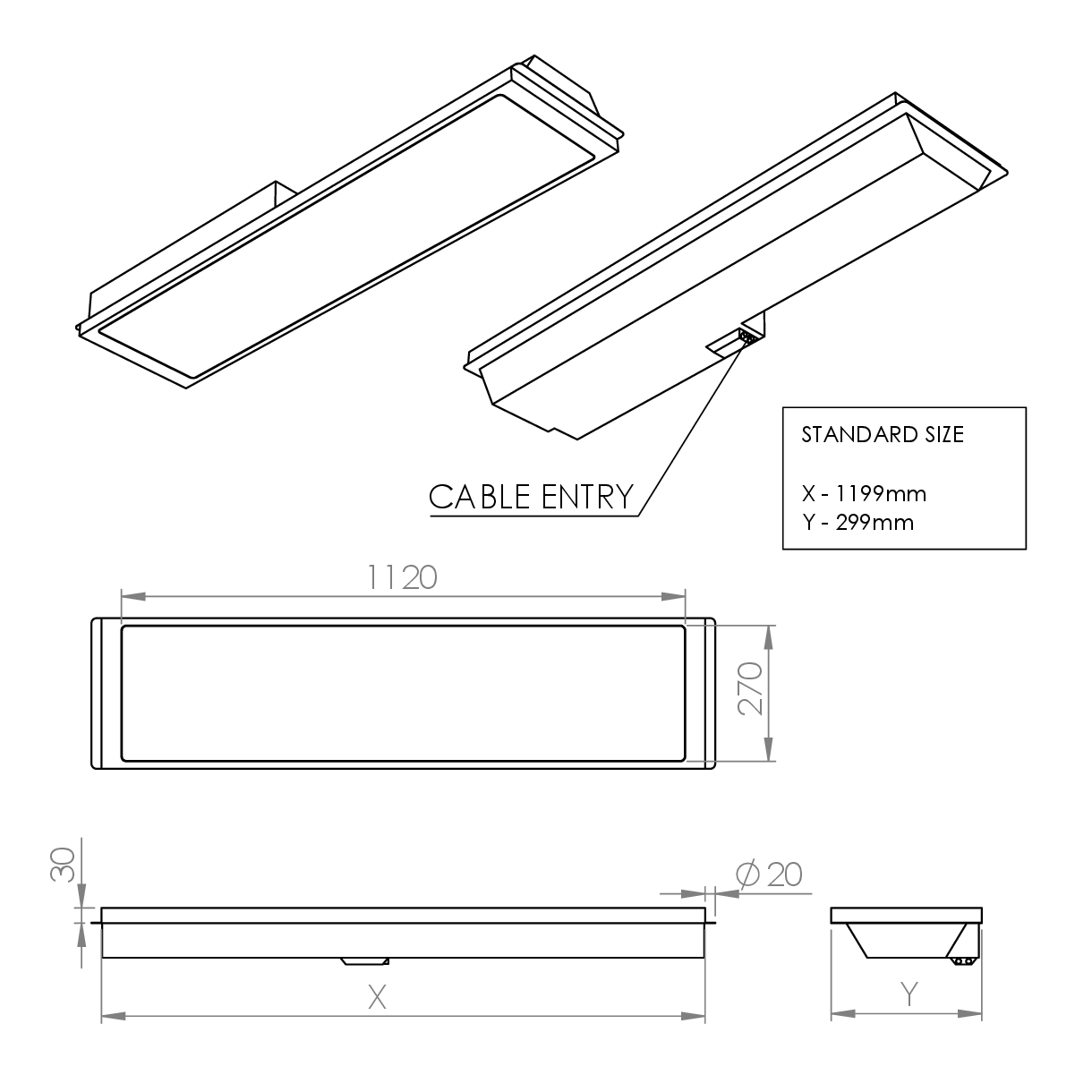

MODLP 1200x300

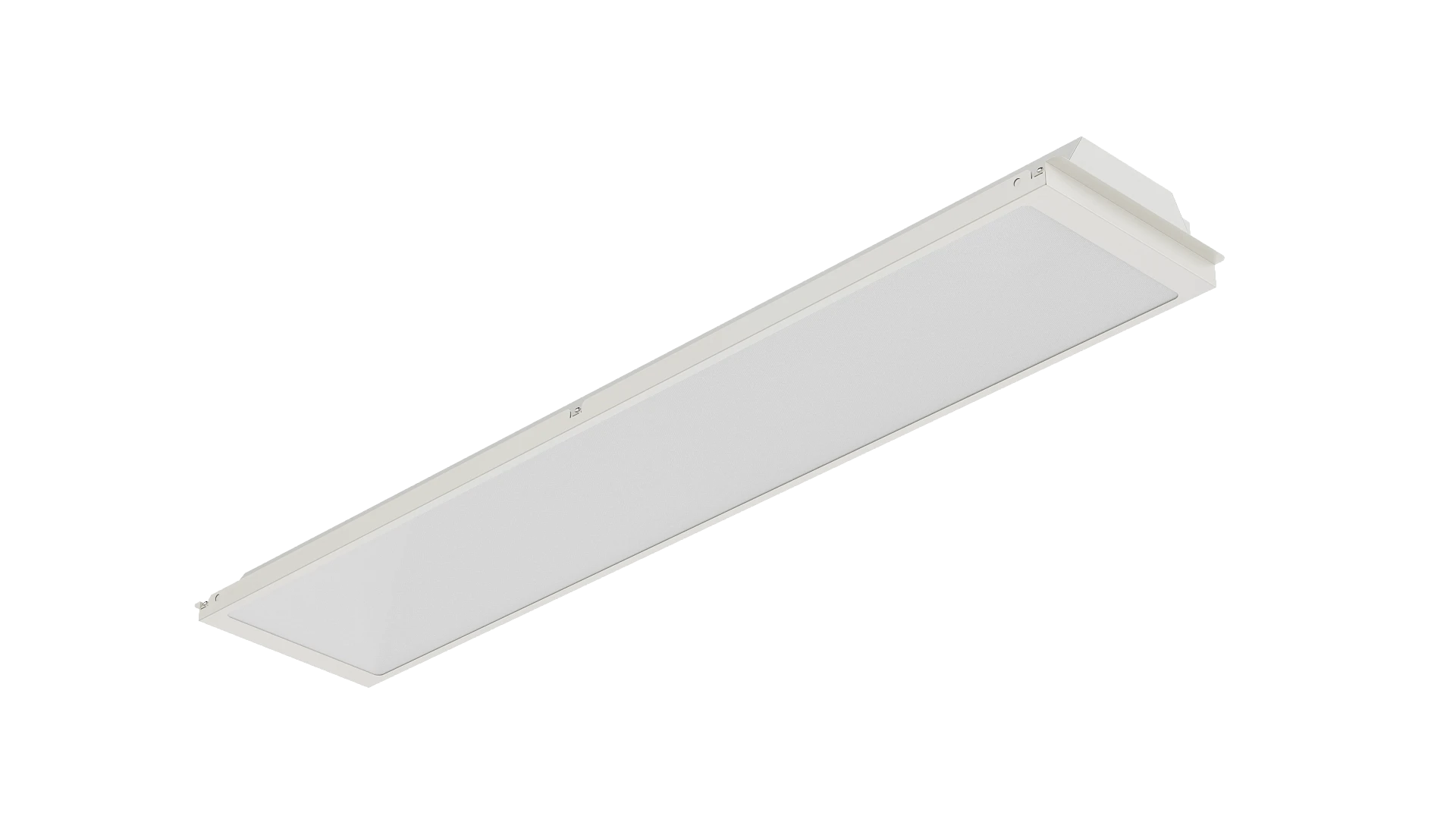

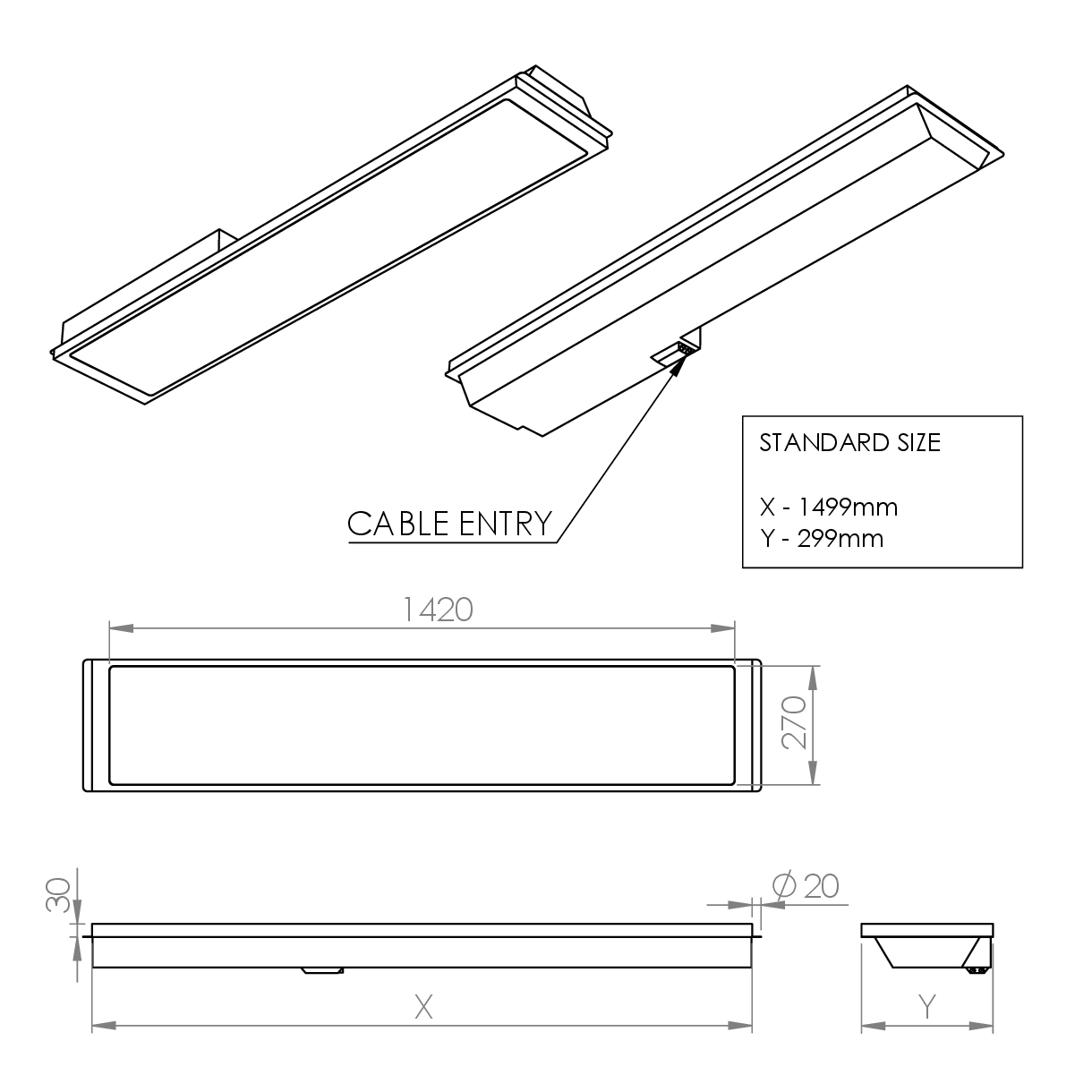

MODLP 1500x300

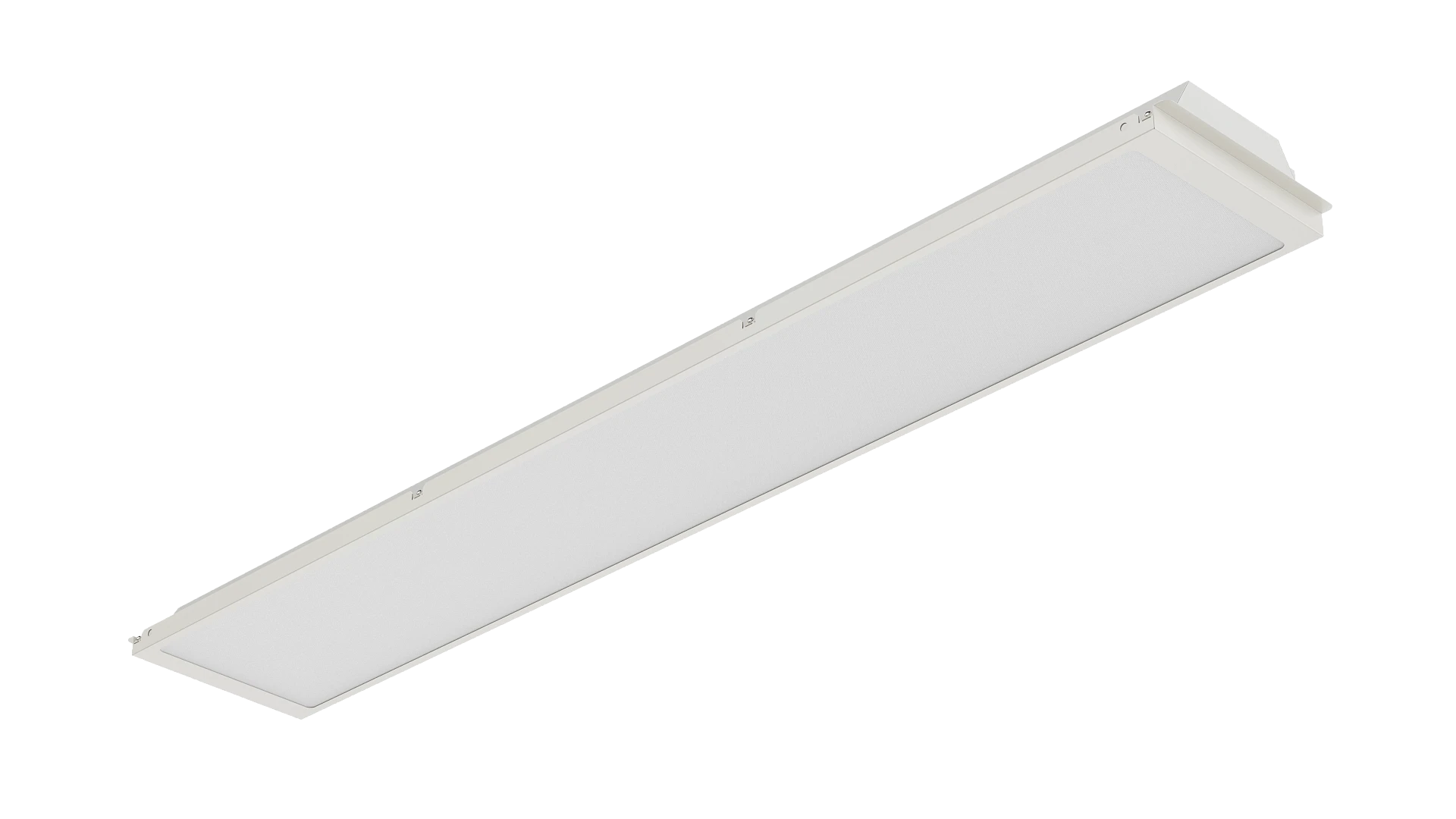

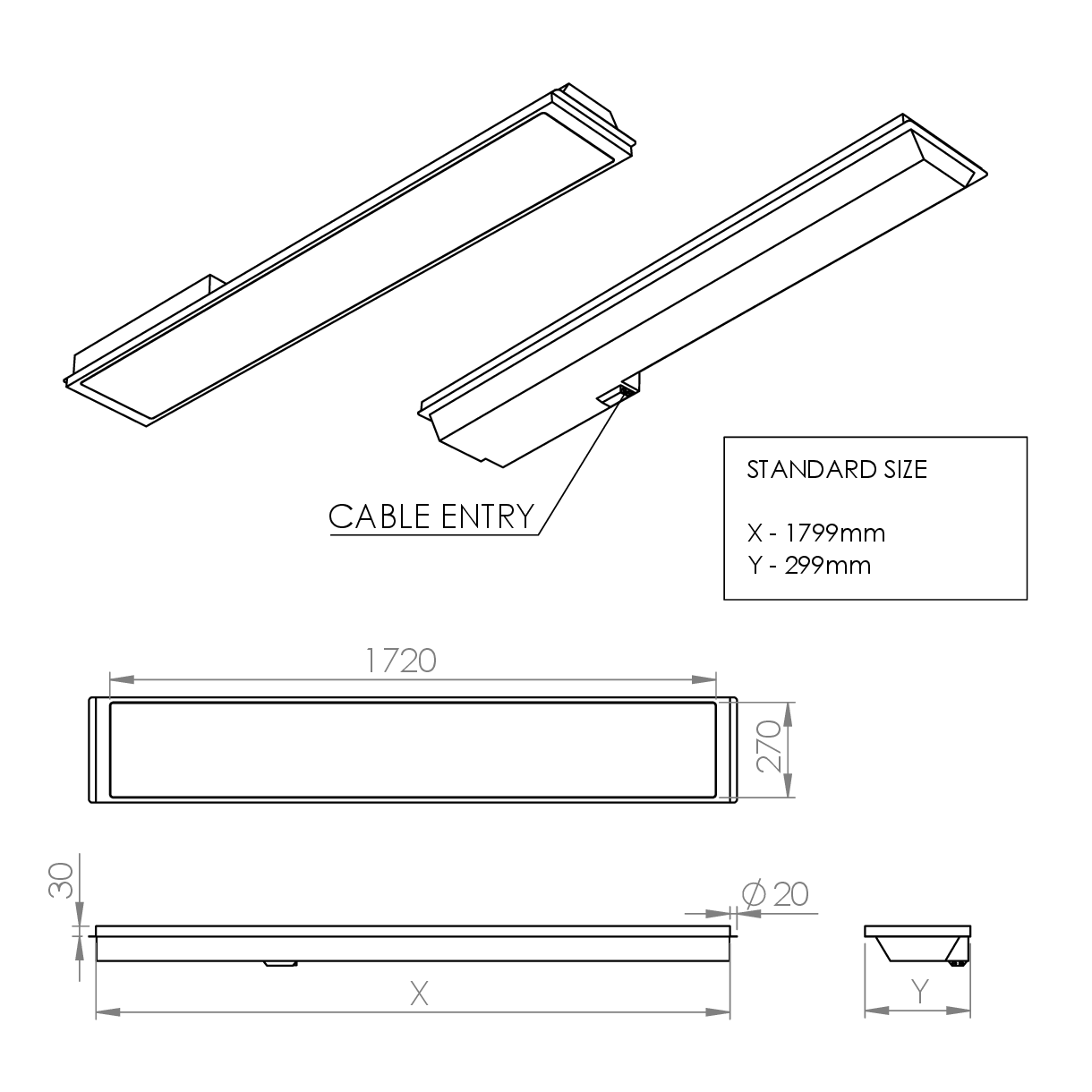

MODLP 1800x300
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||||||||||
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| H | HFR Analogue 1-10v |
| C | Bi-Level Dimming For Standalone Switched Sensor |
| Please click here for full details on our white tunable offer. | |
Control
| Code | Description |
|---|---|
| D44 | DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M |
| DR44 | DEXNet Sensor, Presence & Daylight, 2.5-4M |
| DN | DexNET Node, Wireless Node only. |
| RAS | Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RLS | Reacta-Link Wireless, Presence & Daylight, 2.5M-5M |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCS | Reacta-Control Wireless, Presence & Daylight, 2.5-4M |
| Please click here for full details on our wireless controls. | |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
| CB | Central Battery, Please Specify 110V or 230V when Ordering |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| AH25 | Air Handling, 25 litres per second |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| RECESSED TETHER KIT TWIN | Secondary fix twin drop. |
| LSF | Low Smoke Zero Halogen |
