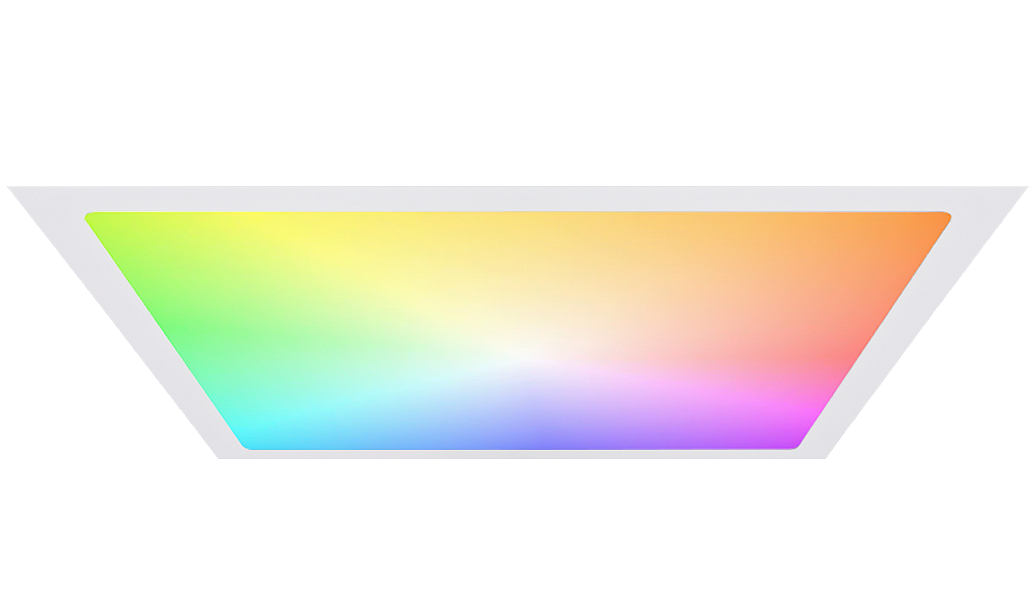

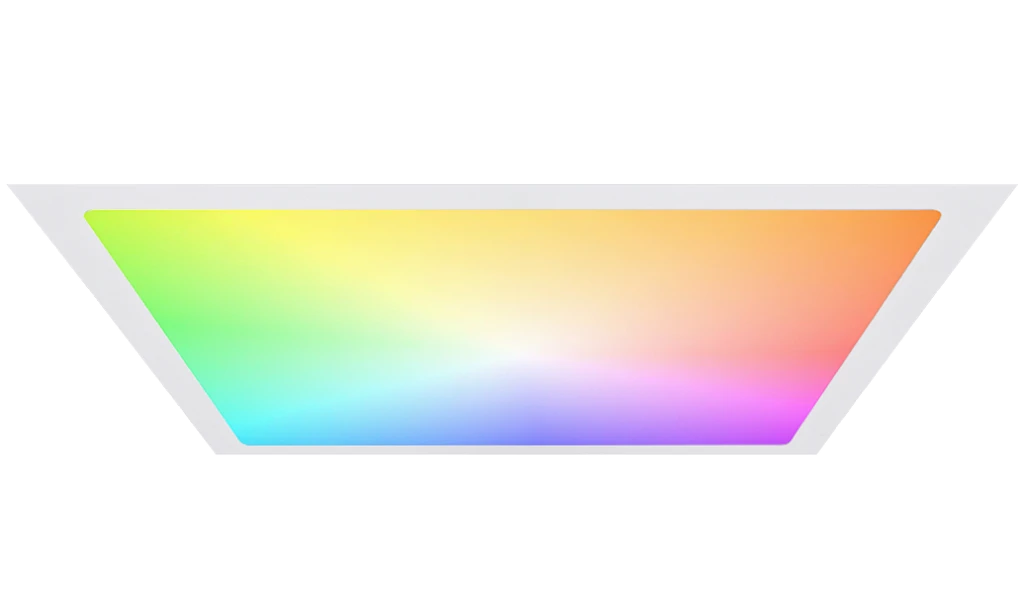

MOD RGBW
The MOD RGBW combines a recessed full colour changing solution with a minimalist traditional flat panel design.
Introduction
The MOD RGBW offers full colour changing with both surface mount and recessed variants. The highly efficient back lit design gives a superior energy efficiency and LED lifetime whilst the high transmission polycarbonate opal diffuser ensures excellent efficiency, a homogenous lit appearance and TP(a) rating. The recessed MOD RGBW is available in both lay in and pull up variants to suit a range of ceiling types and is supplied with one DALI driver per channel ensuring colours can be quickly and easily adjusted to the desired effect.
Complies with:
UKCA | CE | IP40 | IK08 | TP(a)
Recommended applications:
Education | Healthcare / Social Housing | Hotel / Leisure
Specification
Construction
- Housing: 0.7mm CR4 steel
- Finish: Polyester powder painted RAL 9016 textura matt white
- Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
- IK08
- IP40
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Control
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
- RGBW Colour Change with DALI control
Installation
- Suitable for lay-in installation in exposed T ceilings
- Suitable for pull-up installation in concealed grid ceilings
- Suitable for plasterboard installation when purchased with the appropriate plasterboard kit
- Suitable for surface installation
Variations
- Available in a range of housing sizes and lumen outputs
Performance
- Red / Blue / Green channels allow for full colour change. White channel supplied in 4000k as standard, other colour temperatures available on request. Please note RGB and W channels must be operated separately.
- Circuit Wattage – Red 21.3W, Green 30.4W, Blue 28.2W
- Luminaire Lumens – Red 923llm, Green 2,380llm, Blue 364llm

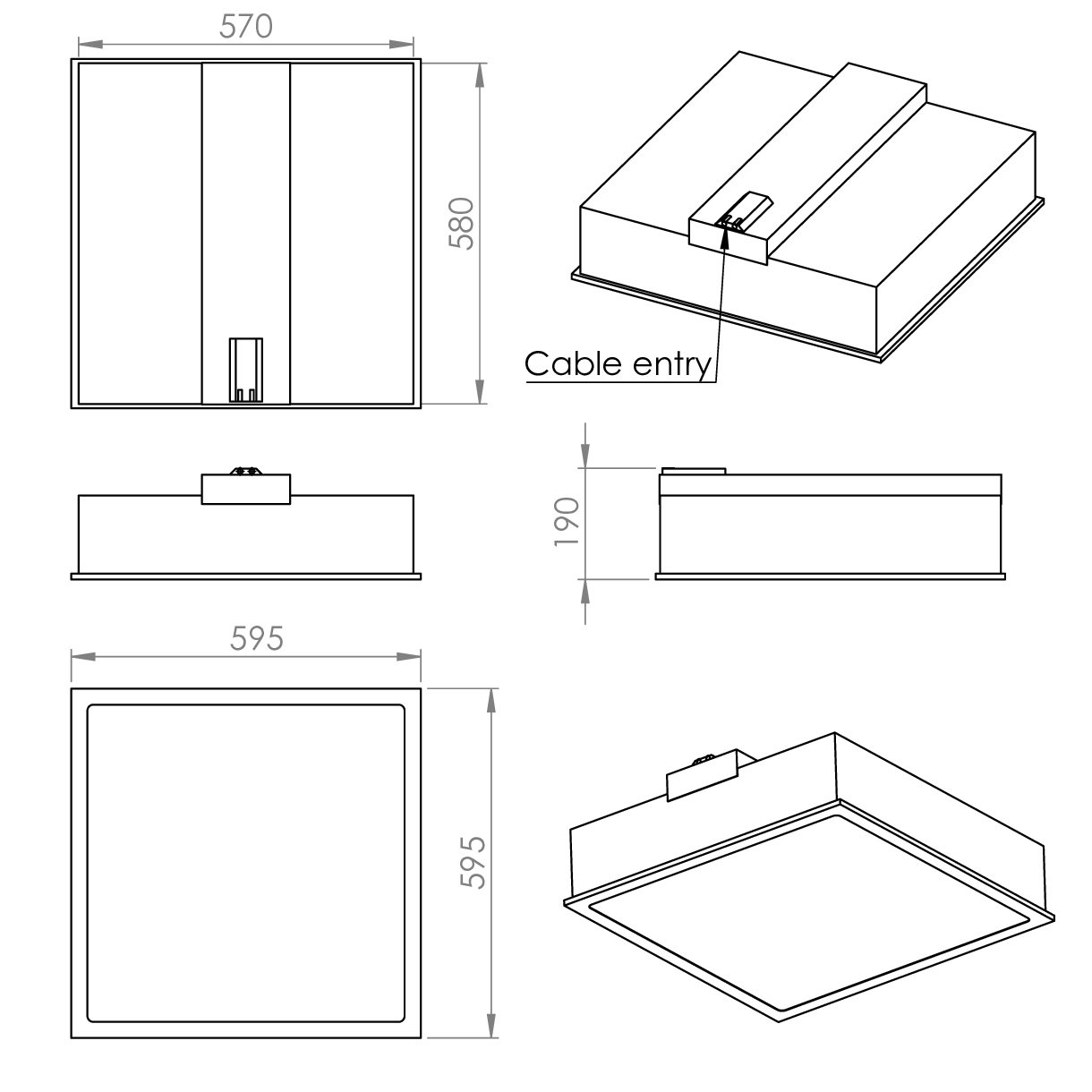

Technical

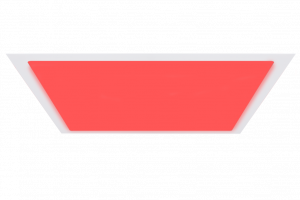

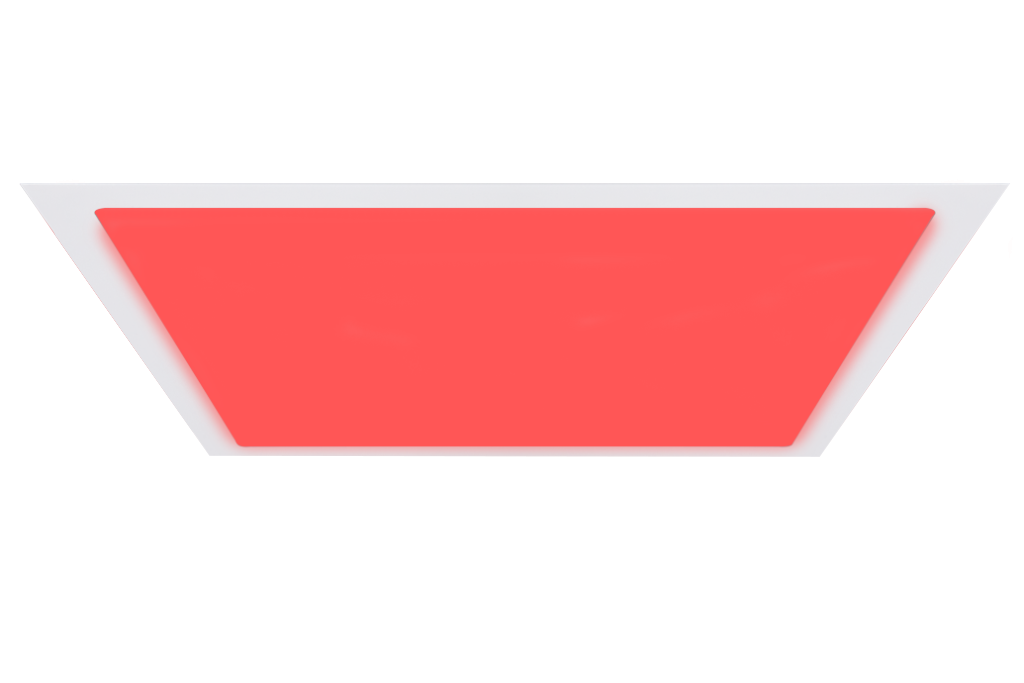

MOD RGBW

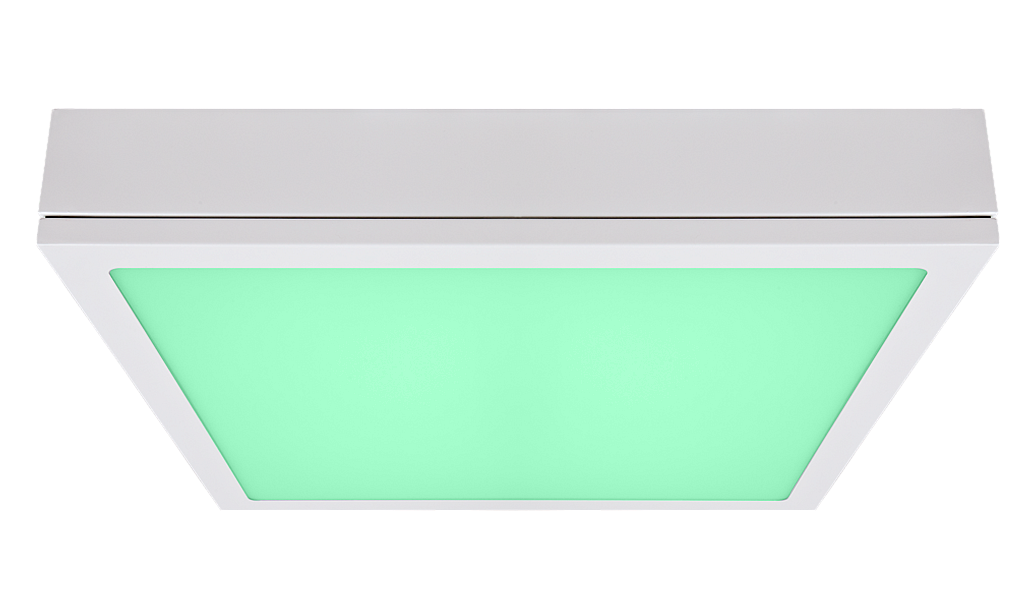

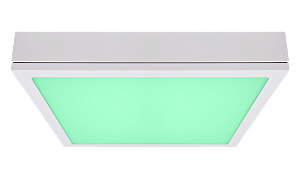

MODS RGBW
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||||||
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
Miscellaneous
| Code | Description |
|---|---|
| LSF | Low Smoke Zero Halogen |
