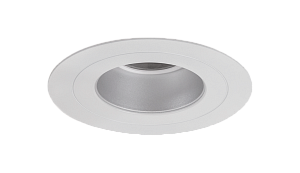

LTECM
The LTECM offers a fixed downlight housing with a highly efficient lens design.
Introduction

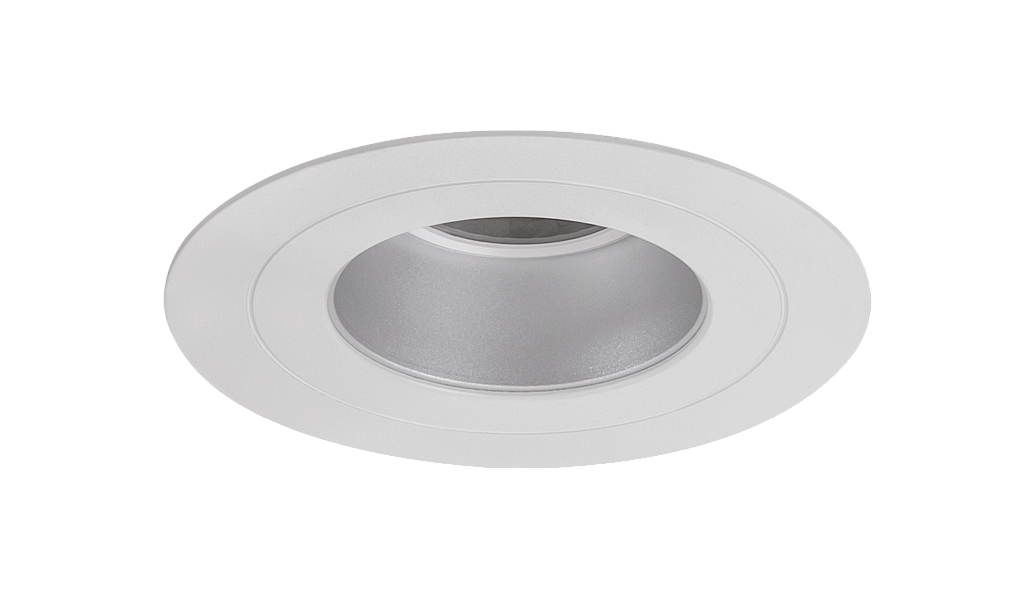

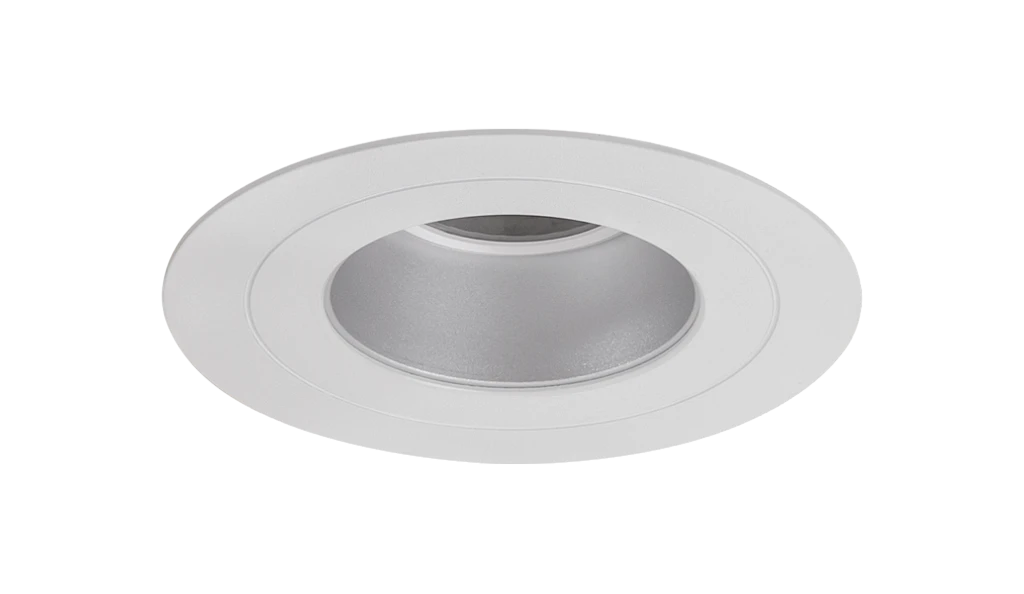

The LTECM has a fixed downlight housing with a circular bezel and a feature seam line for additional decorative detail. The lensed optic ensures accurate control with a 30° beam angle combined with high light output ratios. The housing is manufactured from die cast aluminium powder painted white with a semi specular reflector and a recessed lens to minimise glare when the luminaire is viewed off axis.
With a wide range of lumen outputs, dimmable options and wireless control, as well as a range of colour temperatures and rendering options the LTECM offers a versatile and highly efficient solution for applications from retail through to circulation and display.
Infill rings are available to ensure that the LTECM can be used in a range of ceiling cut outs.
Complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Accent Lighting | Display Lighting | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9016 textura matt white
- Lens: Injection moulded PMMA lens
- IP20
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
Control
- Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
- Optional integral Reacta-Link for integration with Reacta-Link wireless installations
- Optional integral Reacta-Control for integration with Reacta-Control wireless installations
Installation
- Suitable for plasterboard installation
- Suitable for mineral fibre ceiling tile installation
- Suitable for metal ceiling tile installation
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs
Product Images
Case studies

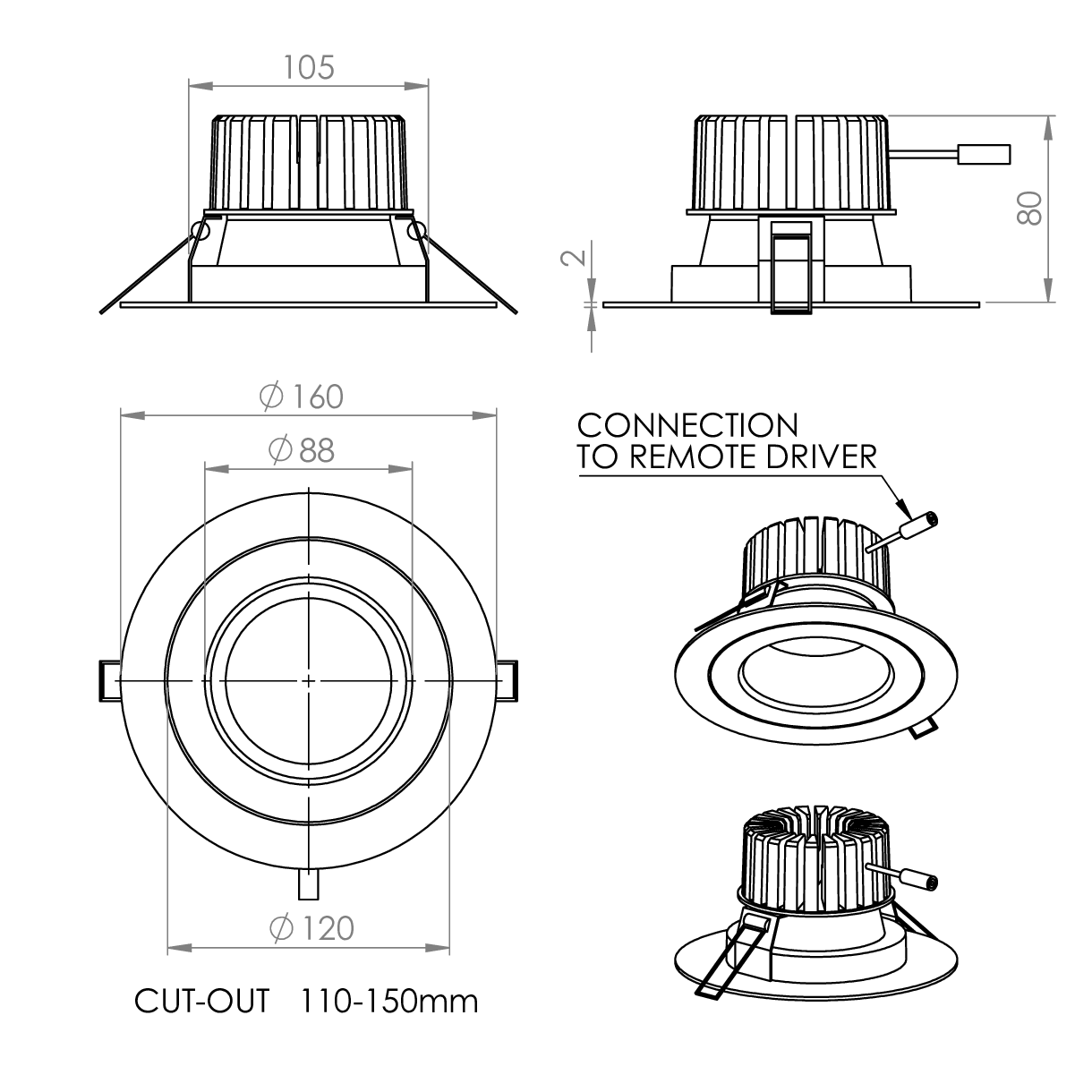

Technical
LTECM
LTECM Emergency Gear Package
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
| S | Switch Dimming |
| D | DSI Digital Dimming |
| C | Bi-Level Dimming For Standalone Switched Sensor |
Control
| Code | Description |
|---|---|
| DN | DexNET Node, Wireless Node only. |
| RLI | Reacta-Link, Wireless Enabled Luminaire |
| RC | Reacta-Control, Wireless Enabled Luminaire |
| RCSS | Reacta-Control Standalone Sensor, Presence & Daylight 2.5-4M, Use with RC Luminaires |
| RLS REMOTE SENSOR | Reacta-Link Standalone Sensor, Presence, 2.5-4M, Use with RLI Luminaires (sold separately) |
| RAD | Reacta-Air, Wireless Enabled Luminaire |
| RASS | Reacta-Air Standalone Sensor, Presence, 2.5-4M, Use with RAD Luminaires (sold separately) |
| RASSD | Reacta-Air Standalone Sensor, Presence & Daylight, 2.5-4M, Use with RAD Luminaires (sold separately) |
Emergency
| Code | Description |
|---|---|
| LE3 | Lithium Standard Emergency 3 Hour |
| LS3 | Lithium Selftest Emergency 3 Hour |
| LA3 | Lithium Autotest Emergency 3 Hour |
| LA3D | Lithium DexNET Emergency 3 Hour |
| LSTR | Lithium Reacta-Link Emergency 3 Hour |
| LA3RC | Lithium Reacta-Control Emergency 3 Hour |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C83, C93, C94 |
| 4PM | 4 Pole Panel Mount |
| 6PM | 6 Pole Panel Mount |
| INFILL | Infill Rings to Suit Over Size Ceiling Cut Out, Please Specify Size when Ordering. |
| LSF | Low Smoke Zero Halogen |
