LINEAR RETROFIT

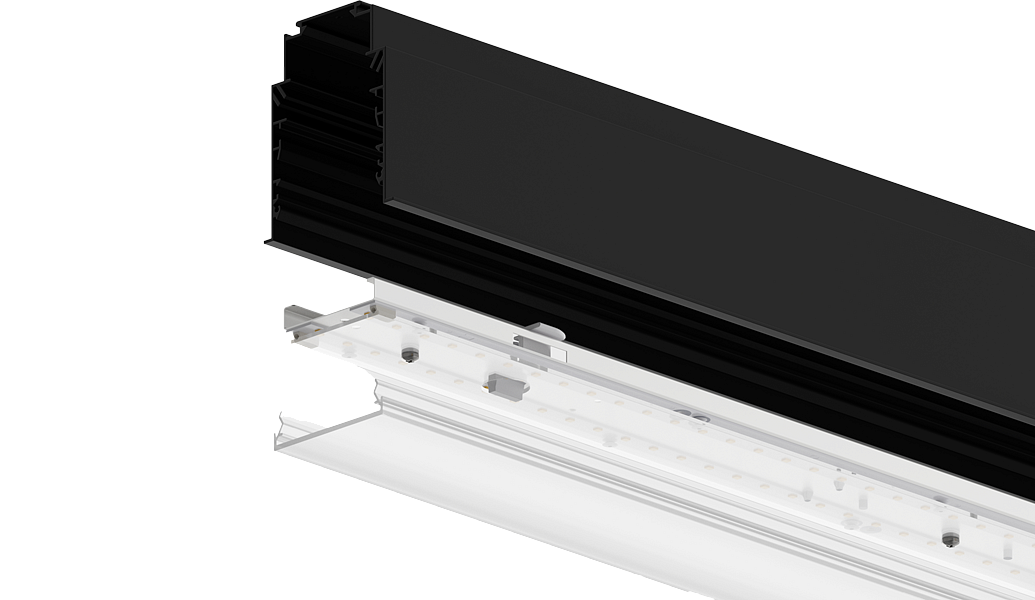

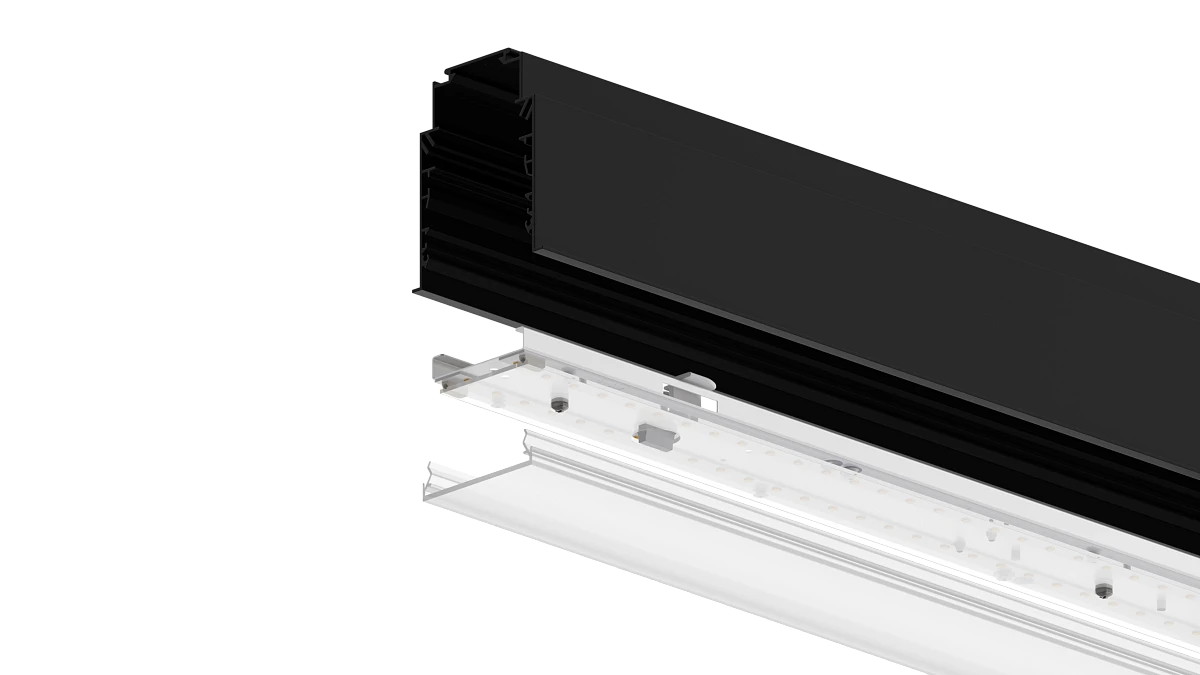

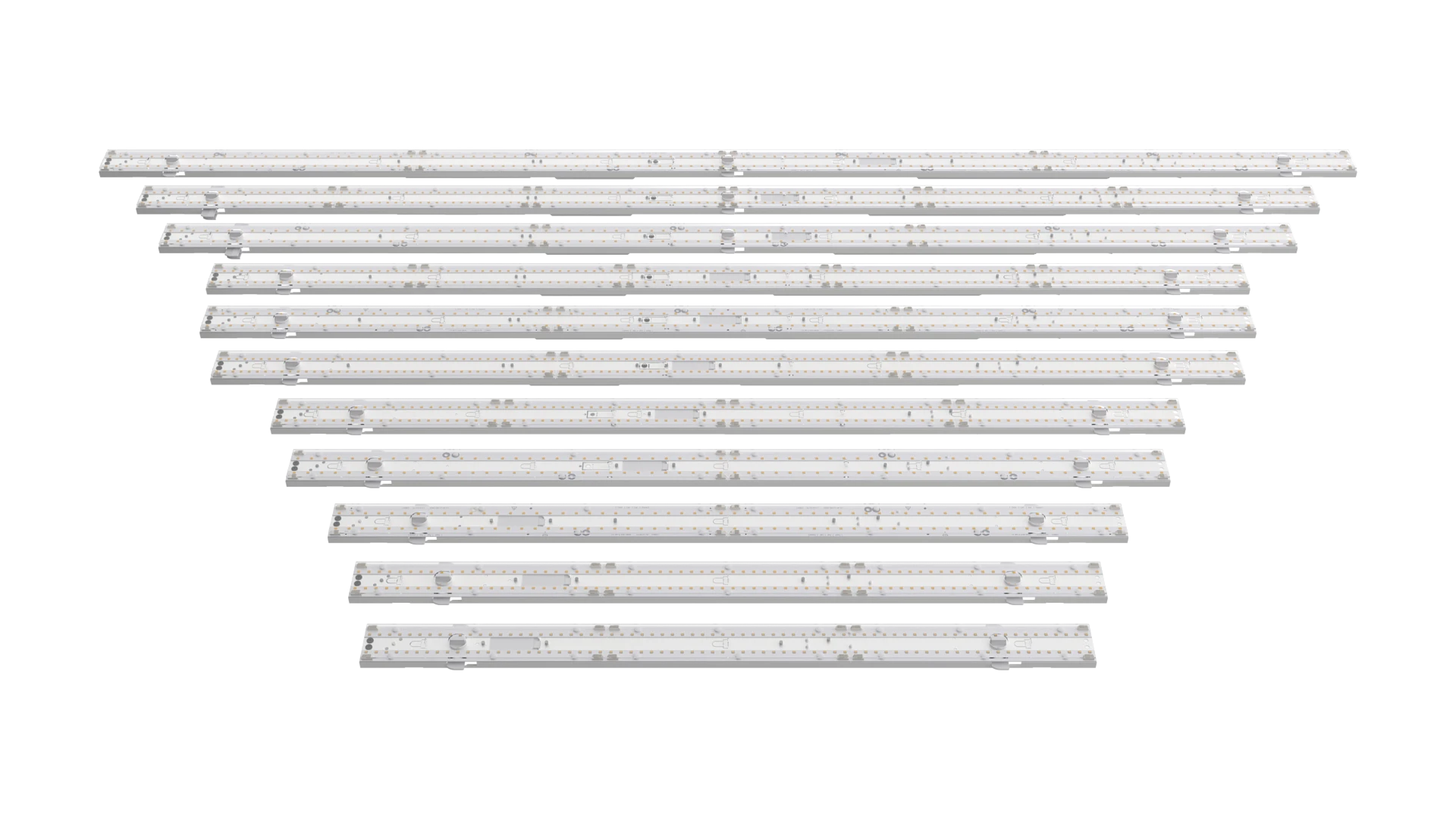

Linear Retrofit Assembly

Introduction

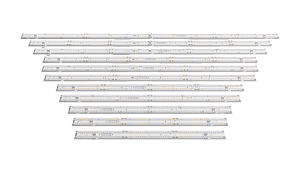

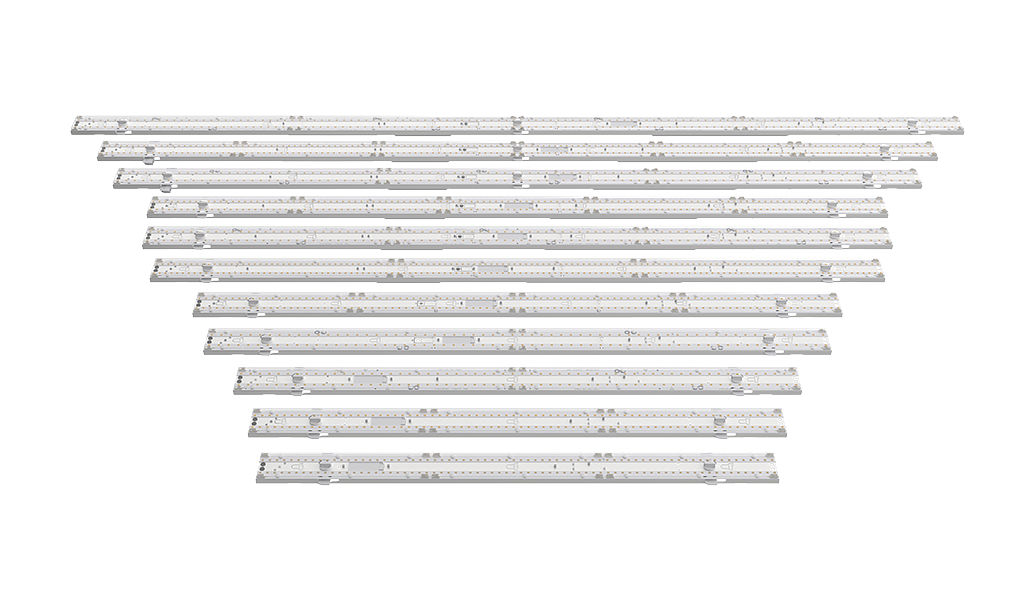

Continuously run and standalone linear luminaires such as our Runway have been widely adopted throughout the UK and are commonplace in a diverse range of applications. Given their architectural nature these are typically high value luminaires and in recessed applications these are often cut into solid ceilings meaning complete replacement is often costly or impractical. When such luminaires reach end of life our retrofit gear tray solution offers a cost effective method to upgrade the most common linear systems on the market whilst ensuring that only the gear tray is replaced minimising the environmental impact of renewing your installation.

 Our linear retrofit system allows the installation of highly efficient long life LED solutions providing substantial energy savings compared to fluorescent and old generation LED luminaires. We are also able to provide a range of dimming, integral emergency and our wireless controls systems offering further energy savings and automated emergency testing reducing ongoing maintenance costs. In many cases we can supply replacement diffusers also, revitalising old luminaires and ensuring that light transmission is optimised, please advise if this is a requirement with your enquiry.

 All Dextra retrofit systems are designed to ensure that the upgrade will provide effective performance without compromising the lux levels and uniformity of your installation. For peace of mind these solutions are fully certified with a CE mark and we provide our 5 year warranty against replacement LED trays as we do with all new luminaires.





Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Retrofit solution for existing linear systems

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs

Installation

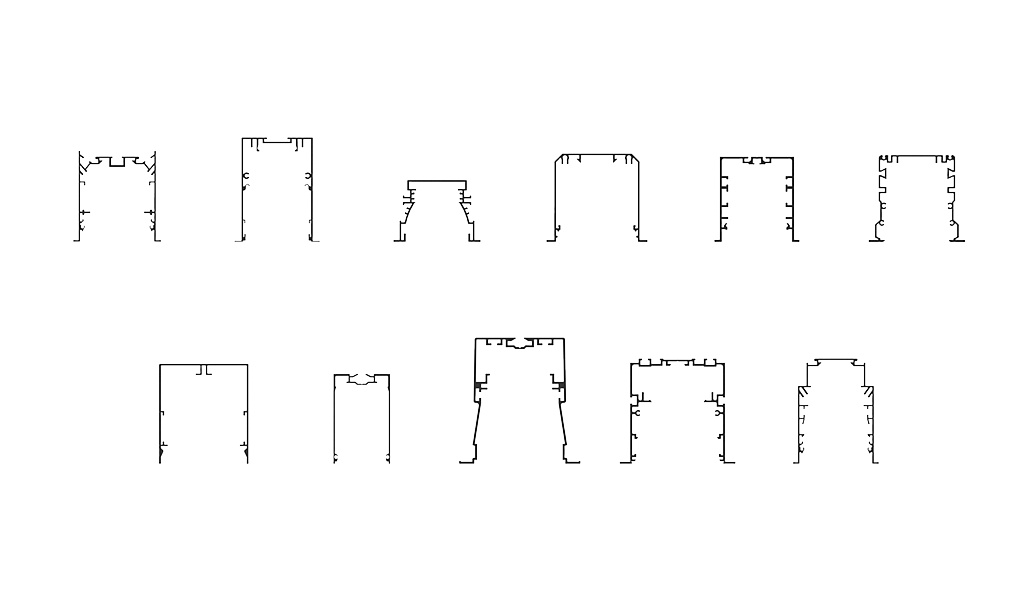

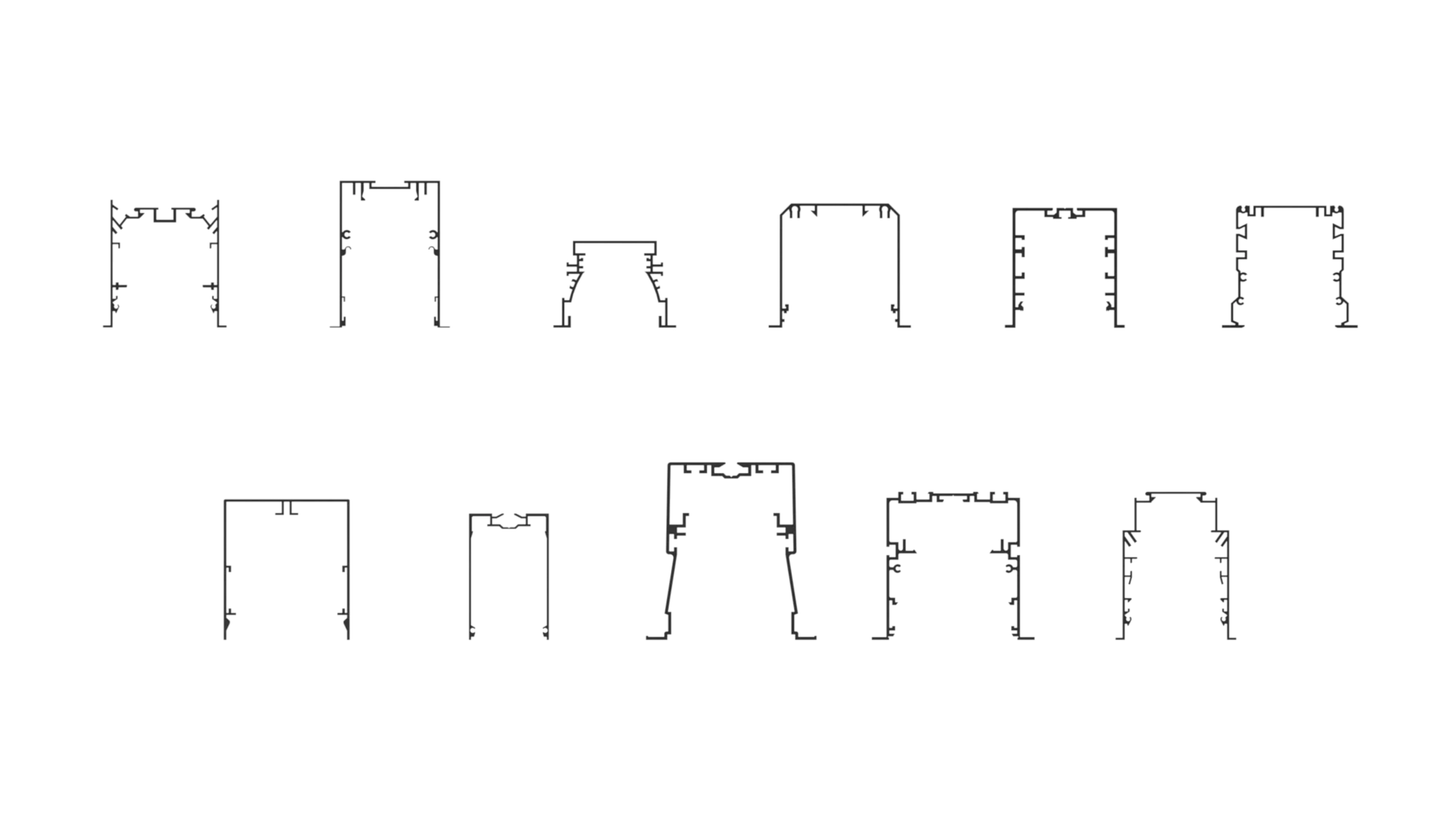

  • Retrofit LED cartridges suitable for a range of linear systems, please specify existing luminaire type when enquiring
  • Replacement diffusers can be offered subject to quantity and system type, please advise if this is a requirement when enquiring
Find out more about our 5 year extended warranty

Technical

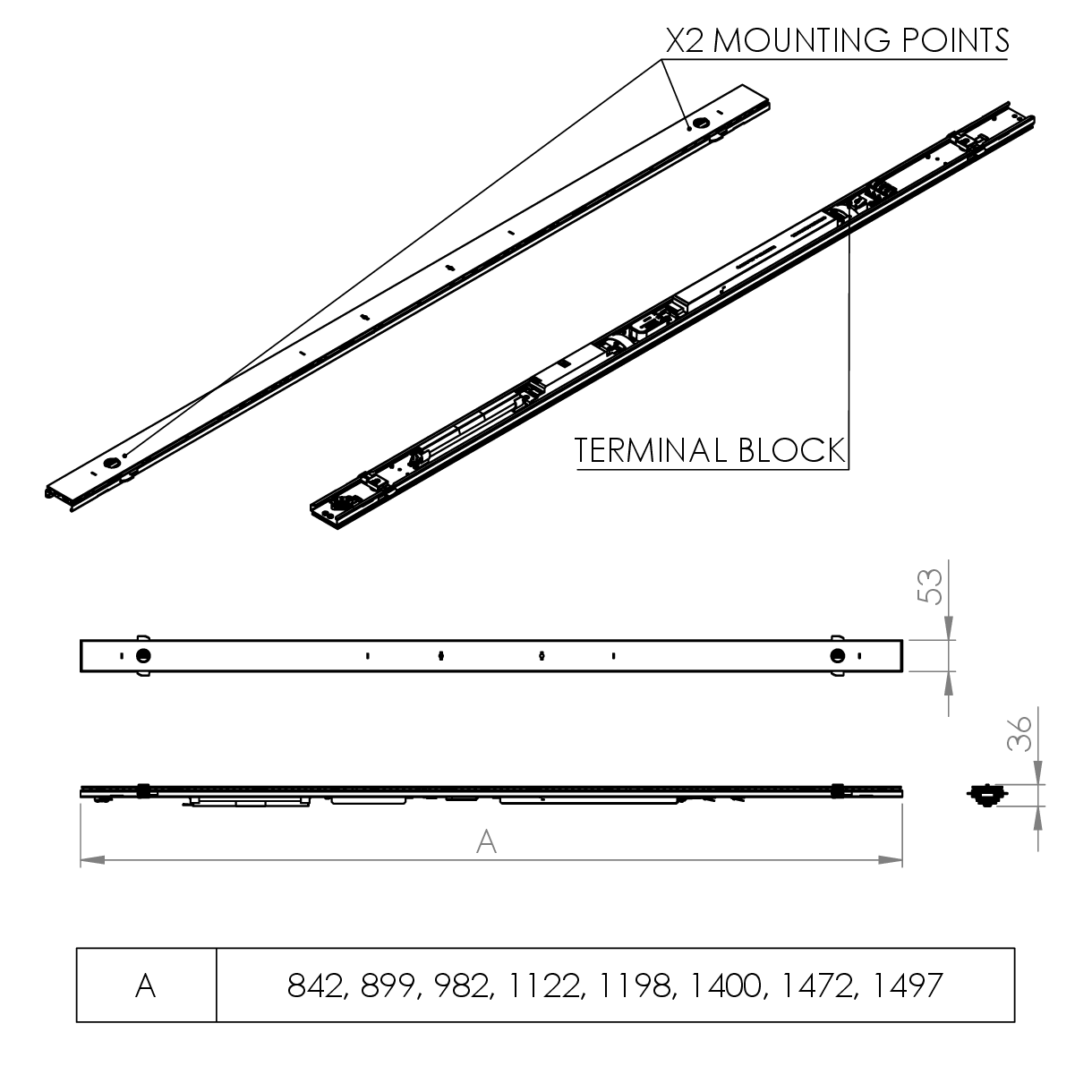

Linear Retrofit 842-1497mm

Linear Retrofit 842-1497mm

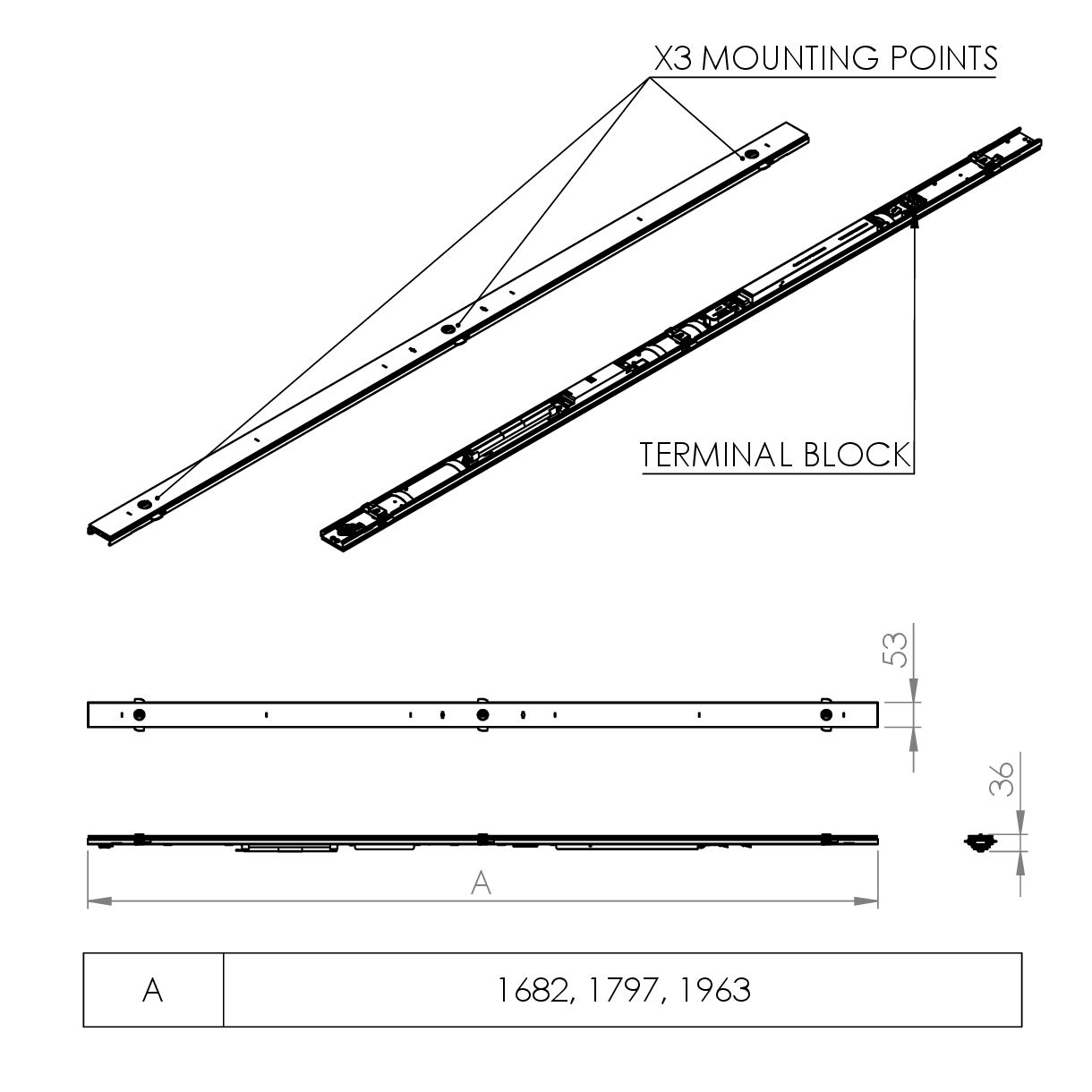

Linear Retrofit 1682-1963mm

Linear Retrofit 1682-1963mm

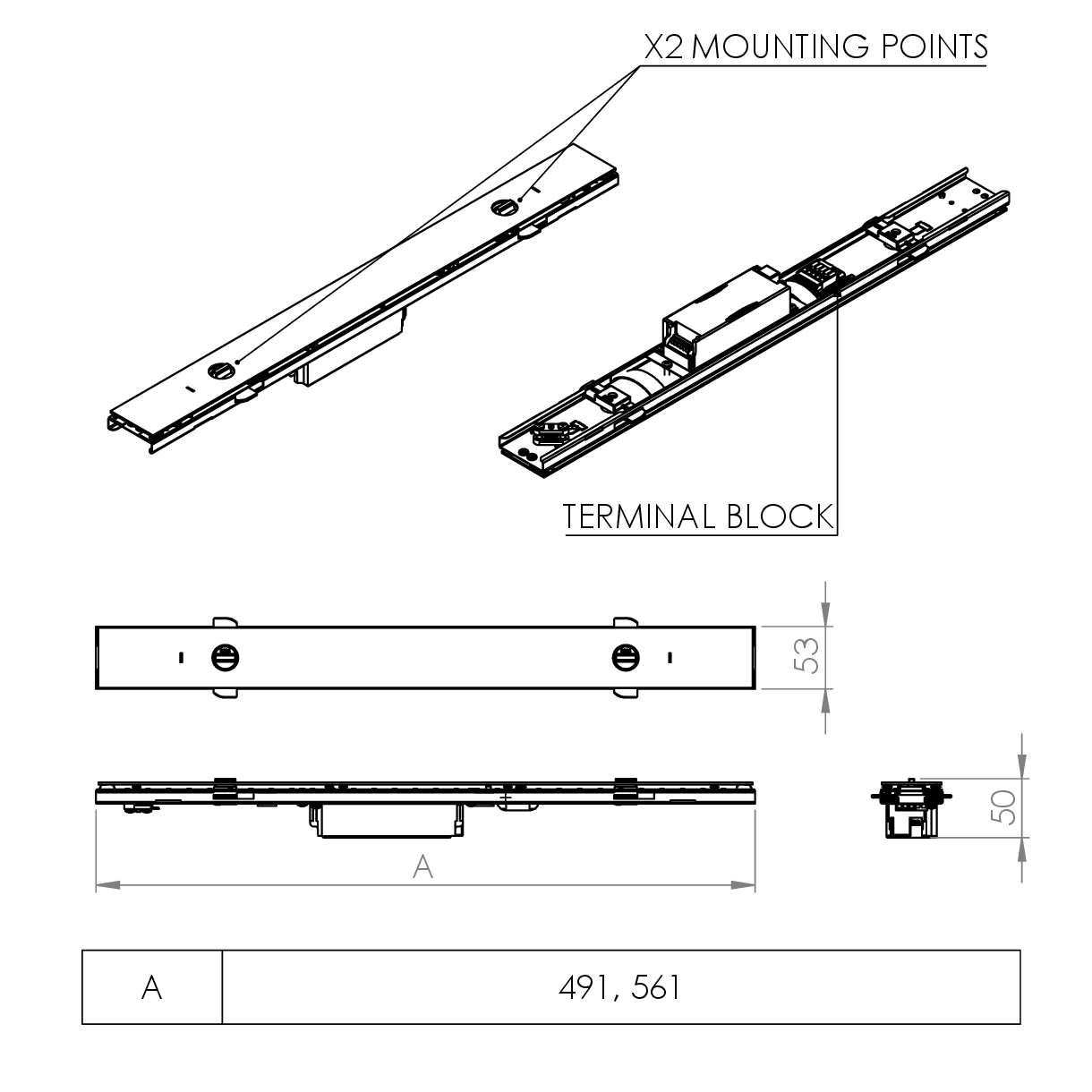

Linear Retrofit 491-561mm

Linear Retrofit 491-561mm

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
LR* 491 L11 Linear Retrofit, 491mm, 1,100lm, Colour 84
LR* 561 L13 Linear Retrofit, 561mm, 1,300lm, Colour 84
LR* 561 L23 Linear Retrofit, 561mm, 2,300lm, Colour 84
LR* 842 L19 Linear Retrofit, 842mm, 1,900lm, Colour 84
LR* 842 L34 Linear Retrofit, 842mm, 3,400lm, Colour 84
LR* 899 L20 Linear Retrofit, 899mm, 2,000lm, Colour 84
LR* 899 L37 Linear Retrofit, 899mm, 3,700lm, Colour 84
LR* 982 L23 Linear Retrofit, 982mm, 2,300lm, Colour 84
LR* 982 L40 Linear Retrofit, 982mm, 4,000lm, Colour 84
LR* 1122 L26 Linear Retrofit, 1,122mm, 2,600lm, Colour 84
LR* 1122 L46 Linear Retrofit, 1,122mm, 4,600lm, Colour 84
LR* 1198 L27 Linear Retrofit, 1,198mm, 2,700lm, Colour 84
LR* 491 L20 Linear Retrofit, 491mm, 2,000lm, Colour 84
LR* 1400 L32 Linear Retrofit, 1,400mm, 3,200lm, Colour 84
LR* 1400 L57 Linear Retrofit, 1,400mm, 5,700lm, Colour 84
LR* 1472 L34 Linear Retrofit, 1,472mm, 3,400lm, Colour 84
LR* 1472 L60 Linear Retrofit, 1,472mm, 6,000lm, Colour 84
LR* 1497 L35 Linear Retrofit, 1,497mm, 3,500lm, Colour 84
LR* 1497 L62 Linear Retrofit, 1,497mm, 6,200lm, Colour 84
LR* 1682 L39 Linear Retrofit, 1,682mm, 3,900lm, Colour 84
LR* 1682 L69 Linear Retrofit, 1,682mm, 6,900lm, Colour 84
LR* 1797 L41 Linear Retrofit, 1,797mm, 4,100lm, Colour 84
LR* 1797 L74 Linear Retrofit, 1,797mm, 7,400lm, Colour 84
LR* 1963 L45 Linear Retrofit, 1,963mm, 4,500lm, Colour 84
LR* 1963 L80 Linear Retrofit, 1,963mm, 8,000lm, Colour 84
LR* 1198 L49 Linear Retrofit, 1,198mm, 4,900lm, Colour 84

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming

Control

Code Description
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C83, C85, C865, C93, C94
LR INSTALL KIT Linear Retrofit Installation Kit
4TW 4 Pole Through Wire Loom
6TW 6 Pole Through Wire Loom
4ER 4 Pole End of Run
6ER 6 Pole End of Run
LSF Low Smoke Zero Halogen
