INEAL 46 DIFFUSE

The Ineal 46 family of linear products has been created to offer retailers a discreet low profile solution for their ambient store lighting.

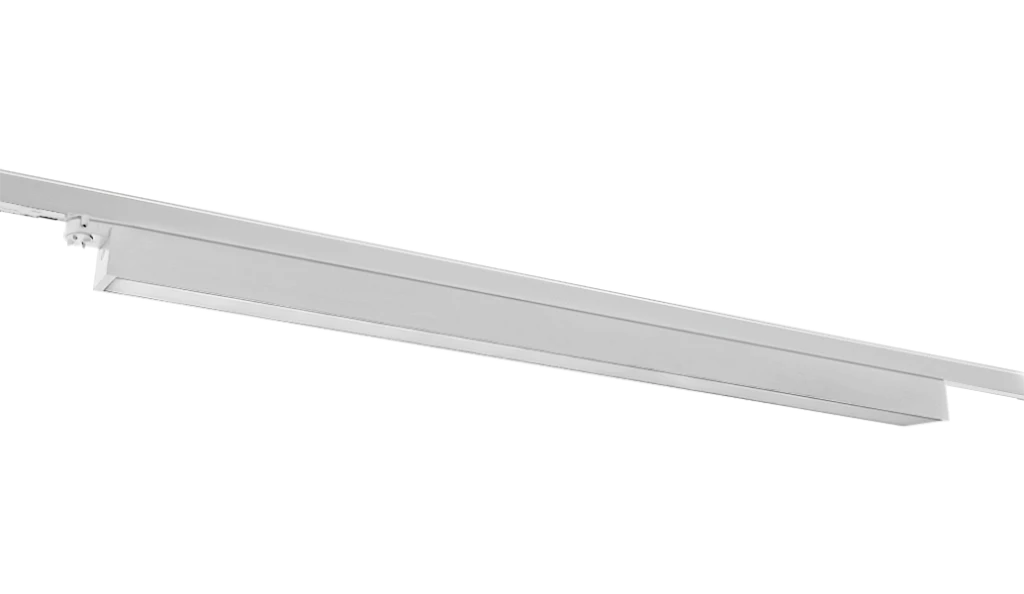

INEAL 46 DIFFUSE FEATURED

Introduction

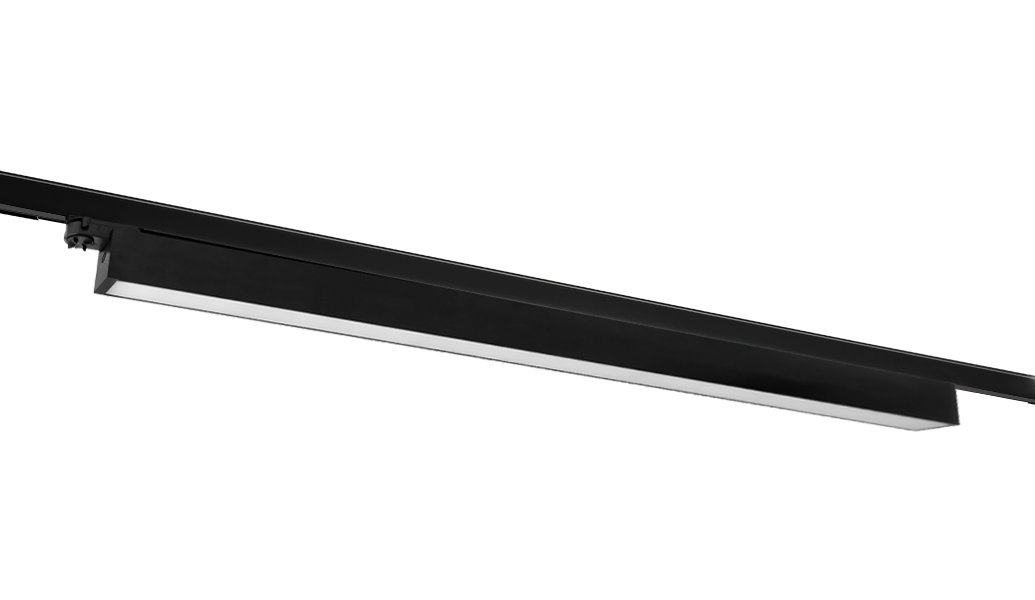

The Ineal 46 family of linear products has been created to offer retailers a discreet low profile solution for their ambient store lighting. Designed to mount directly onto three circuit or DALI lighting track the high quality extruded aluminium body measures just 46mm in width and is offered in matt black or white as standard. This version comes with a flush opal diffuser which provides a high vertical illuminance onto merchandise whilst shielding the point source of the LED chips to minimise discomfort glare from below and maintaining a minimalist and modern luminaire aesthetic. The flexibility of the track adaptor allows you to re-position the fittings quickly and simply should there be any changes to the store layout further down the line. This unique product range is also available with integral emergency and offered in a wide range of lumen outputs across three luminaire lengths.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Accent Lighting | Display Lighting | Retail

Specification

Construction

  • Housing: Extruded aluminium
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Endcaps: Injection moulded polycarbonate
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 122 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.

Control

  • Optional DALI dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for three circuit track installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white or black finishes
Find out more about our 5 year extended warranty
Arrow right

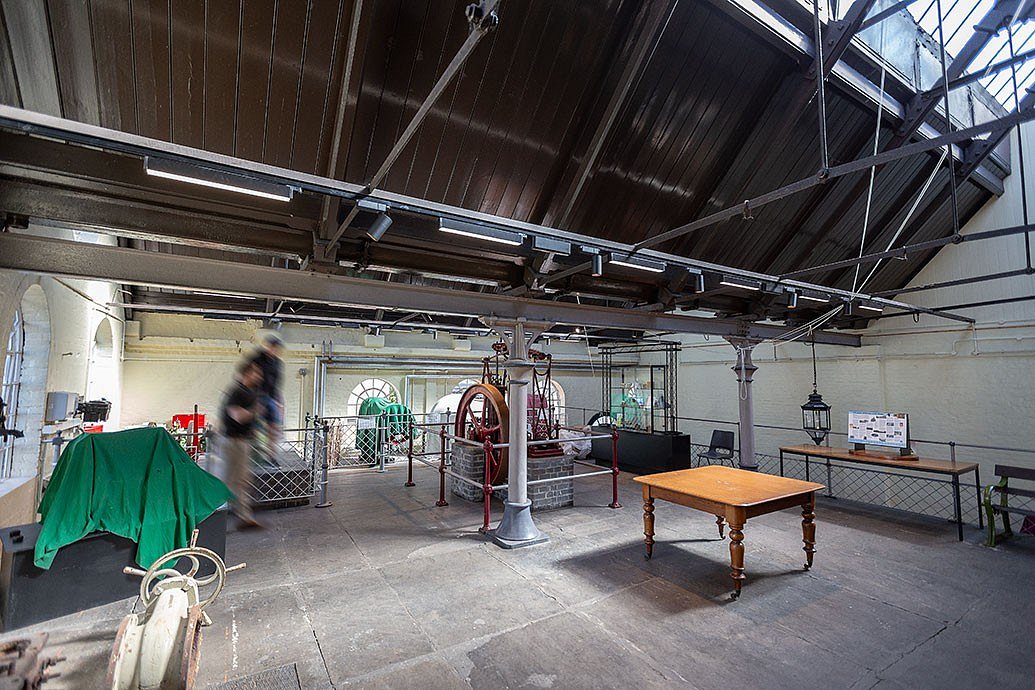

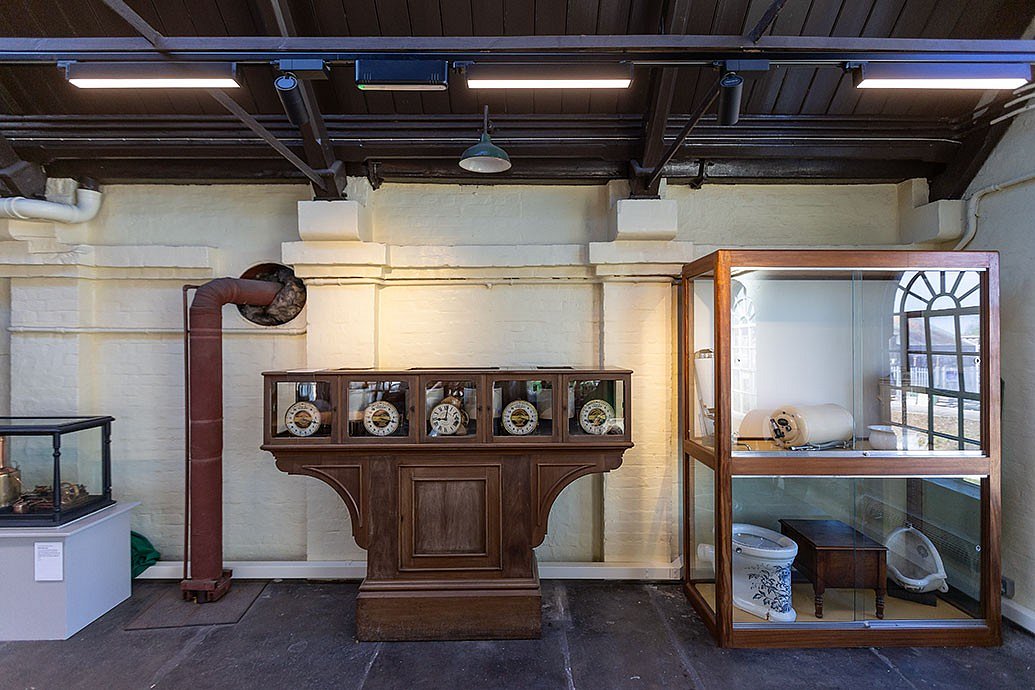

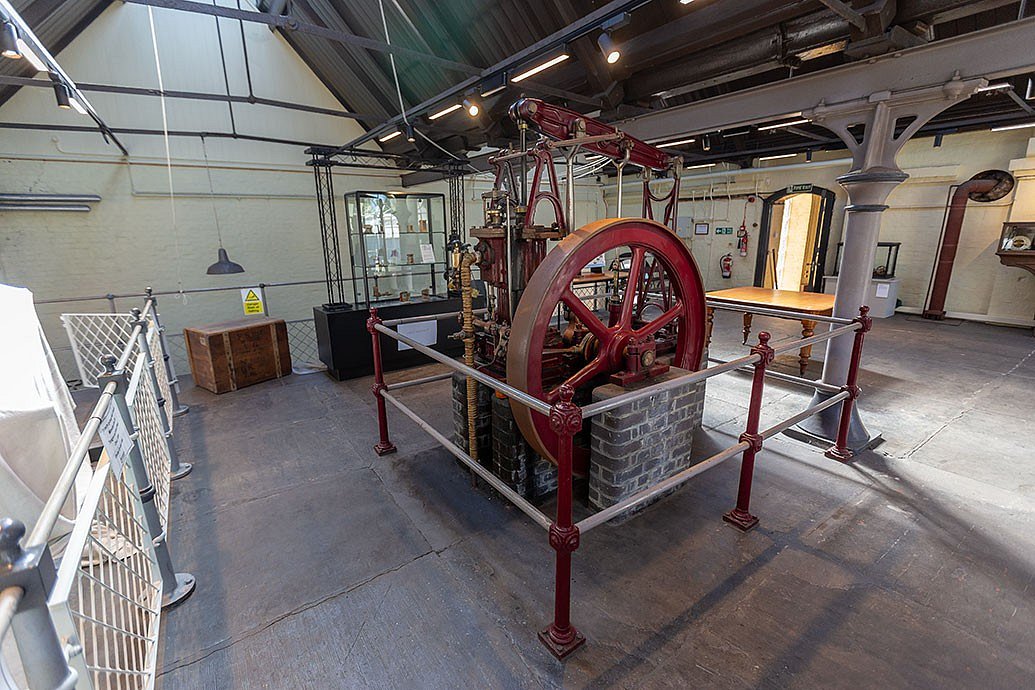

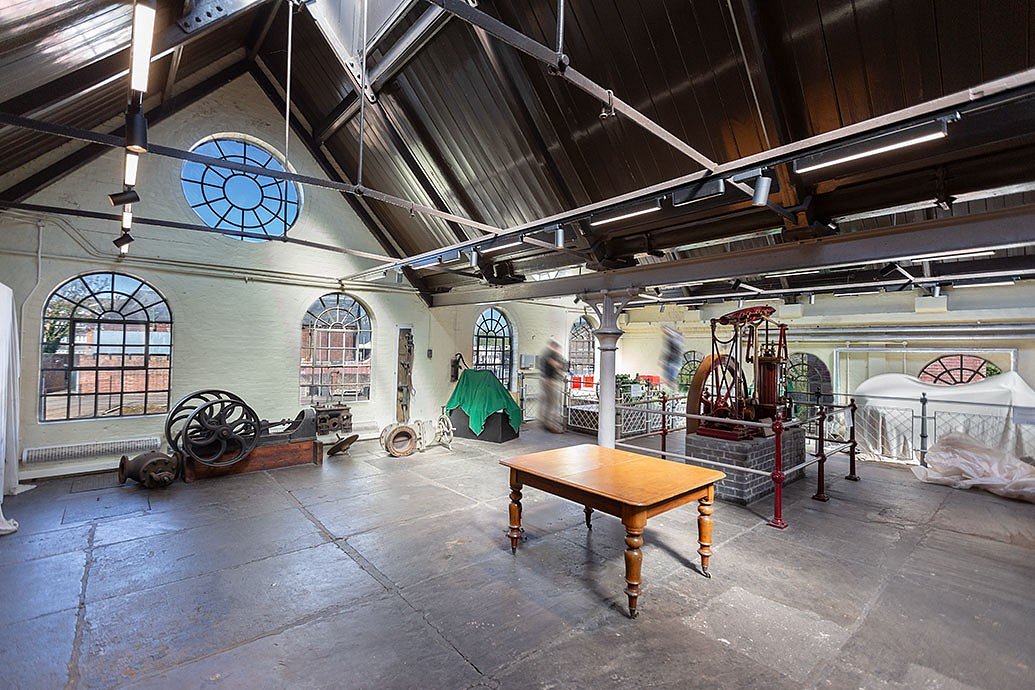

INEAL 46 DIFFUSE in action

Technical

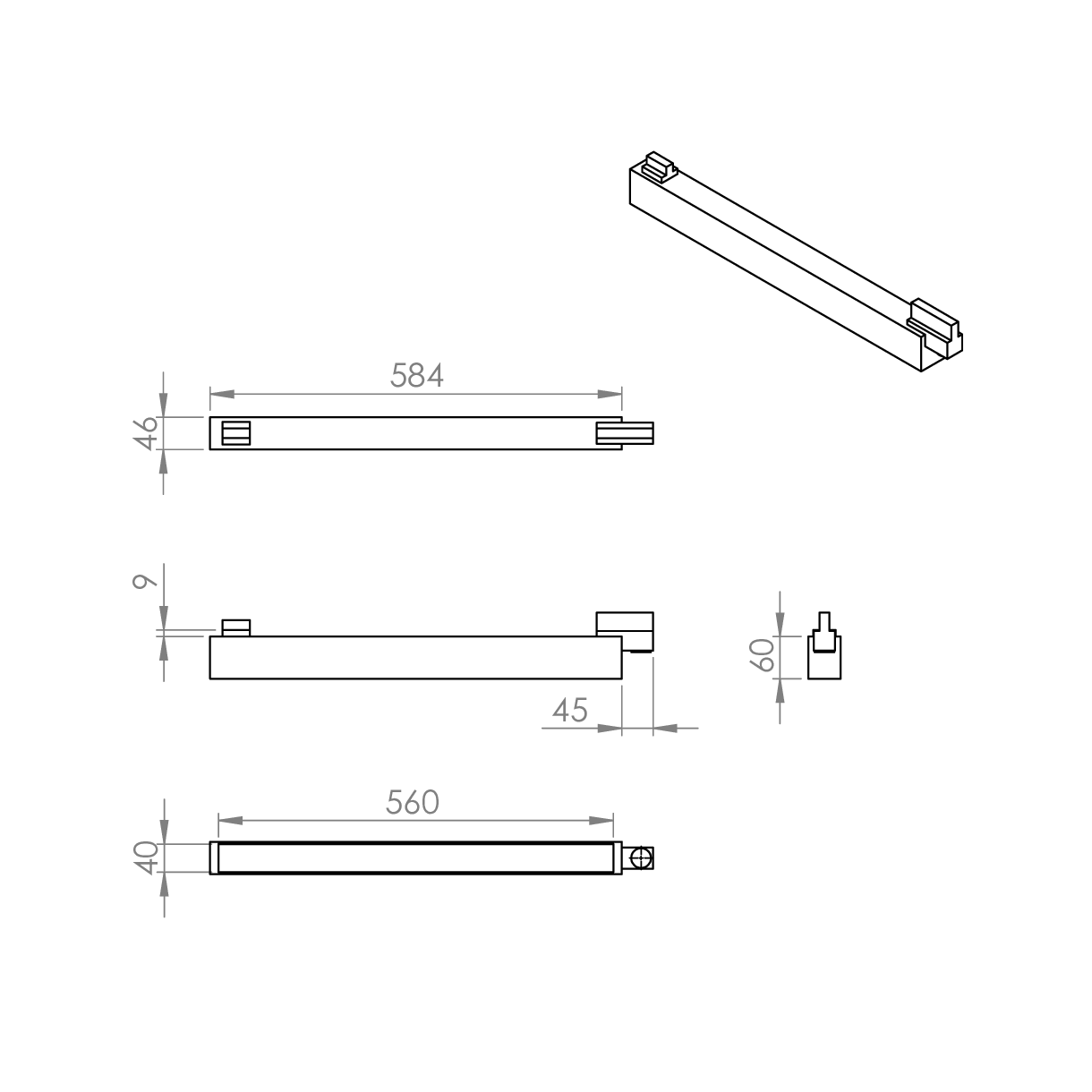

Ineal 46, 584mm

Ineal 46, 584mm

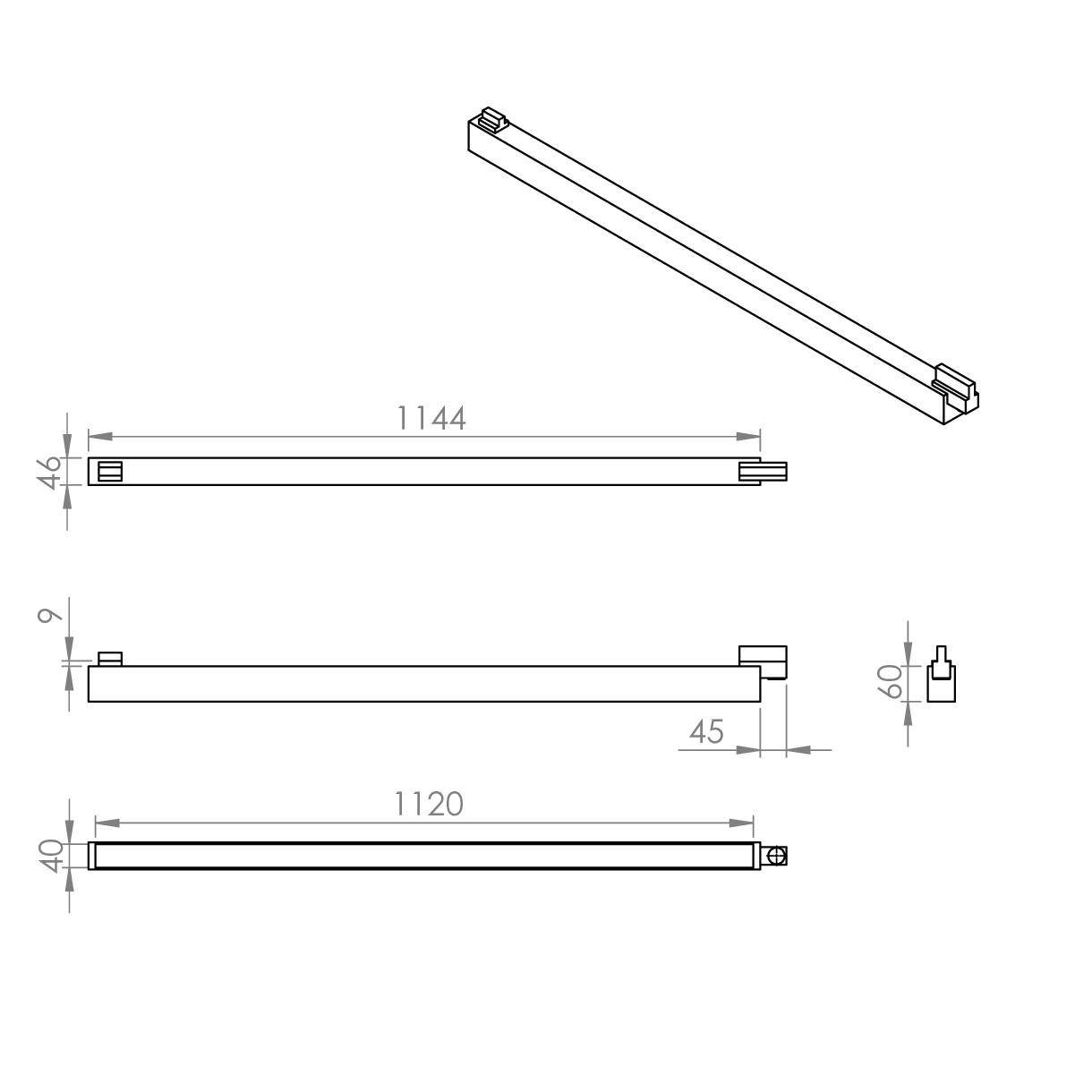

Ineal 46, 1144mm

Ineal 46, 1144mm

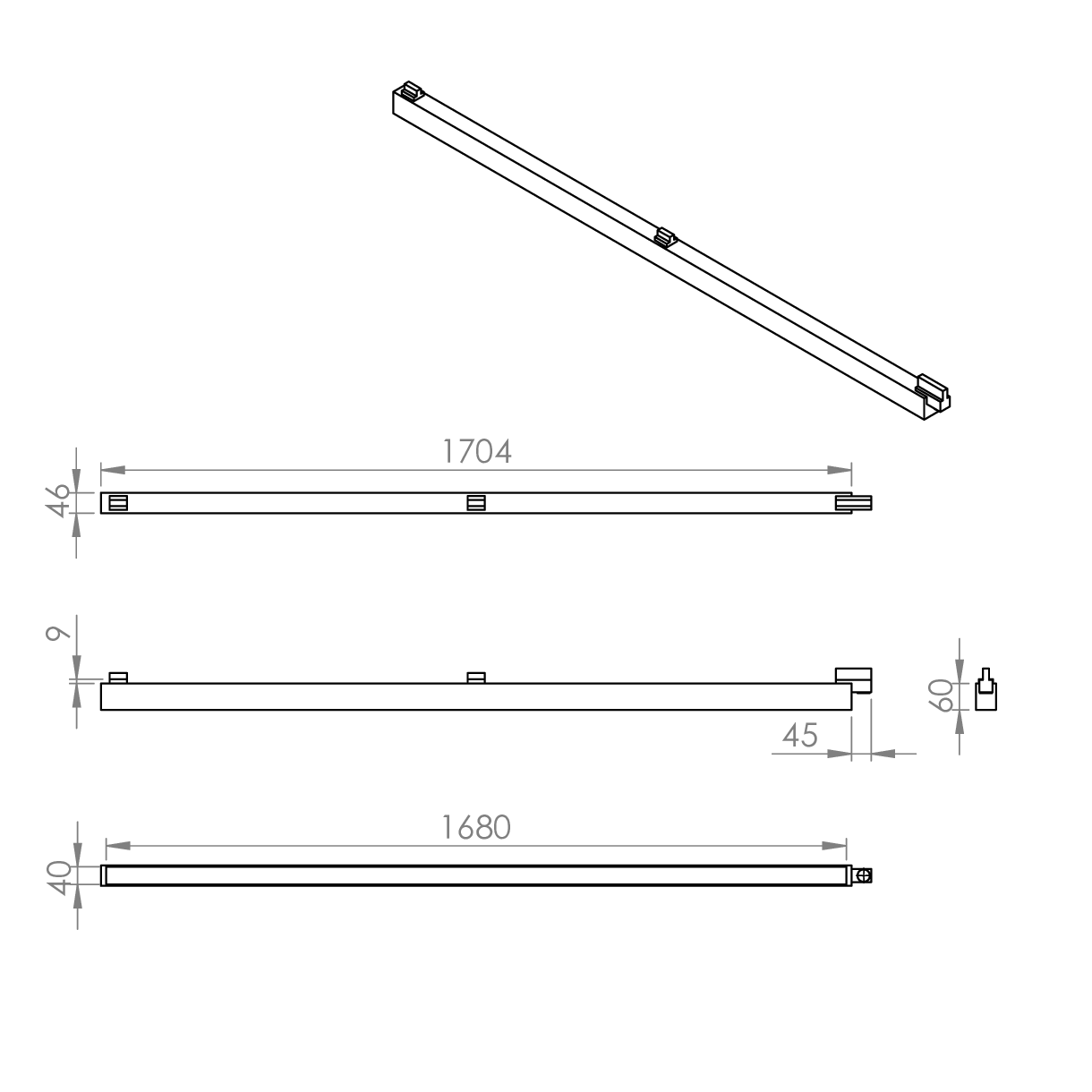

Ineal 46, 1704mm

Ineal 46, 1704mm

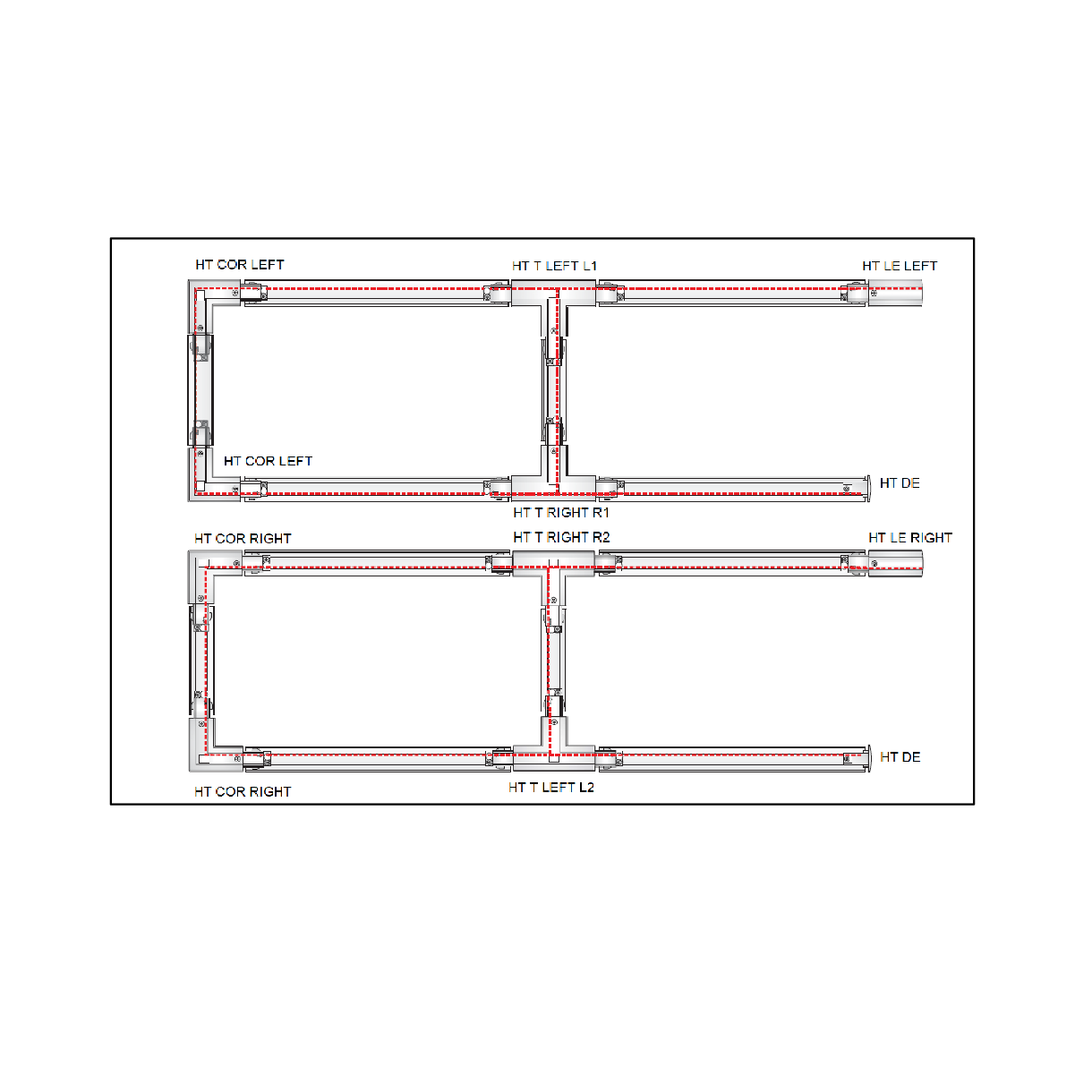

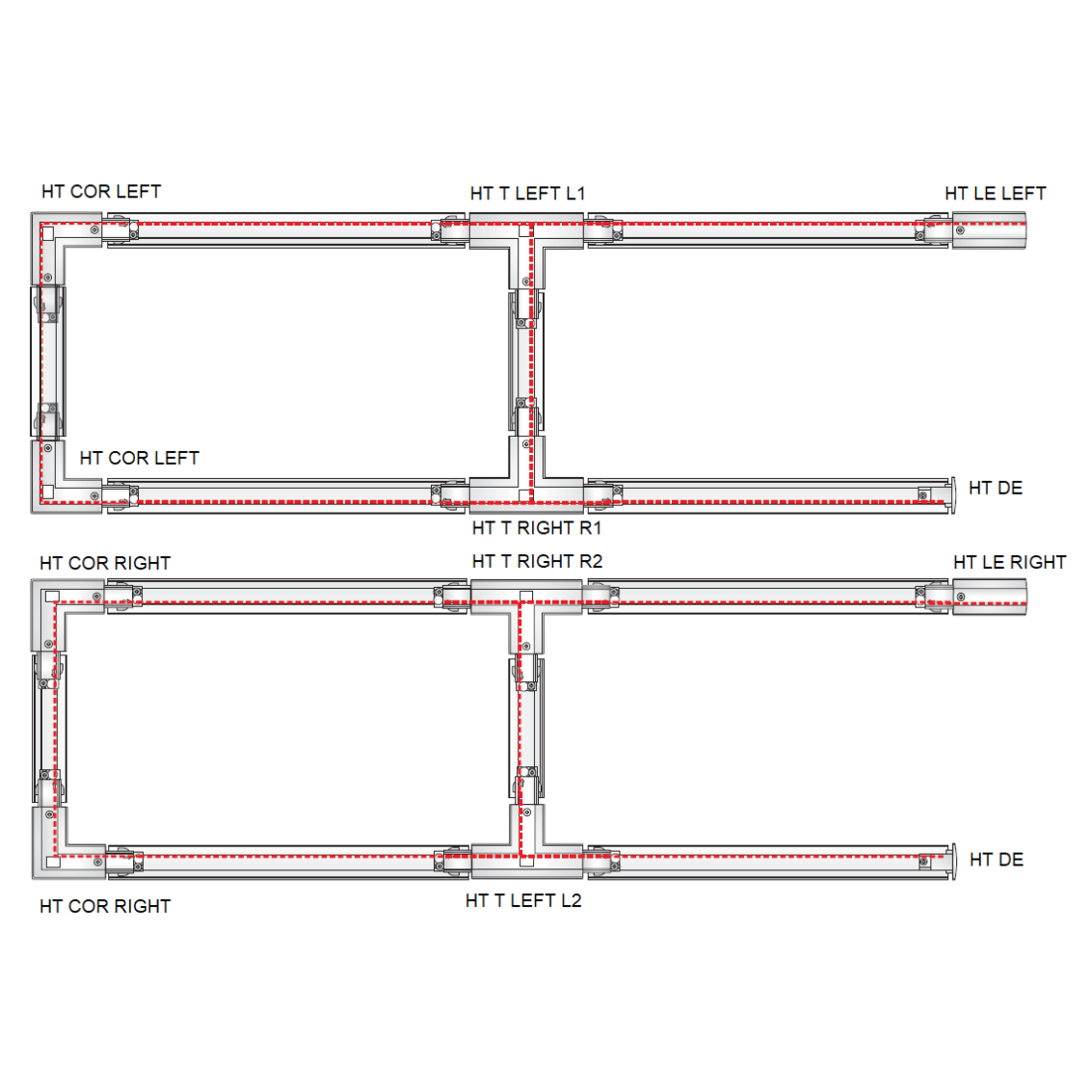

Track Polarity

Track Polarity

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
INED L22 GB Ineal 46, 584mm, 1,359llm, Diffuse, Colour 84, Global. 13.1W 104
INED L26 GB Ineal 46, 1144mm, 1,607llm, Diffuse, Colour 84, Global. 15.5W 104
INED L38 GB Ineal 46, 1144mm, 2,348llm, Diffuse, Colour 84, Global. 20.6W 114
INED L45 GB Ineal 46, 1704mm, 2,781llm, Diffuse, Colour 84, Global. 22.7W 122
INED L56 GB Ineal 46, 1704mm, 3,460llm, Diffuse, Colour 84, Global. 29.7W 116
INED L65 GB Ineal 46, 1704mm, 4,017llm, Diffuse, Colour 84, Global. 33.3W 121
INED L90 GB Ineal 46, 1704mm, 5,562llm, Diffuse, Colour 84, Global. 48.4W 114

Dimming

Code Description
A DALI Digital Addressable Lighting Interface

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
Emergency only available in DALI variants of 1144 and 1704mm length

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
BL Black Finish
LSF Low Smoke Zero Halogen
