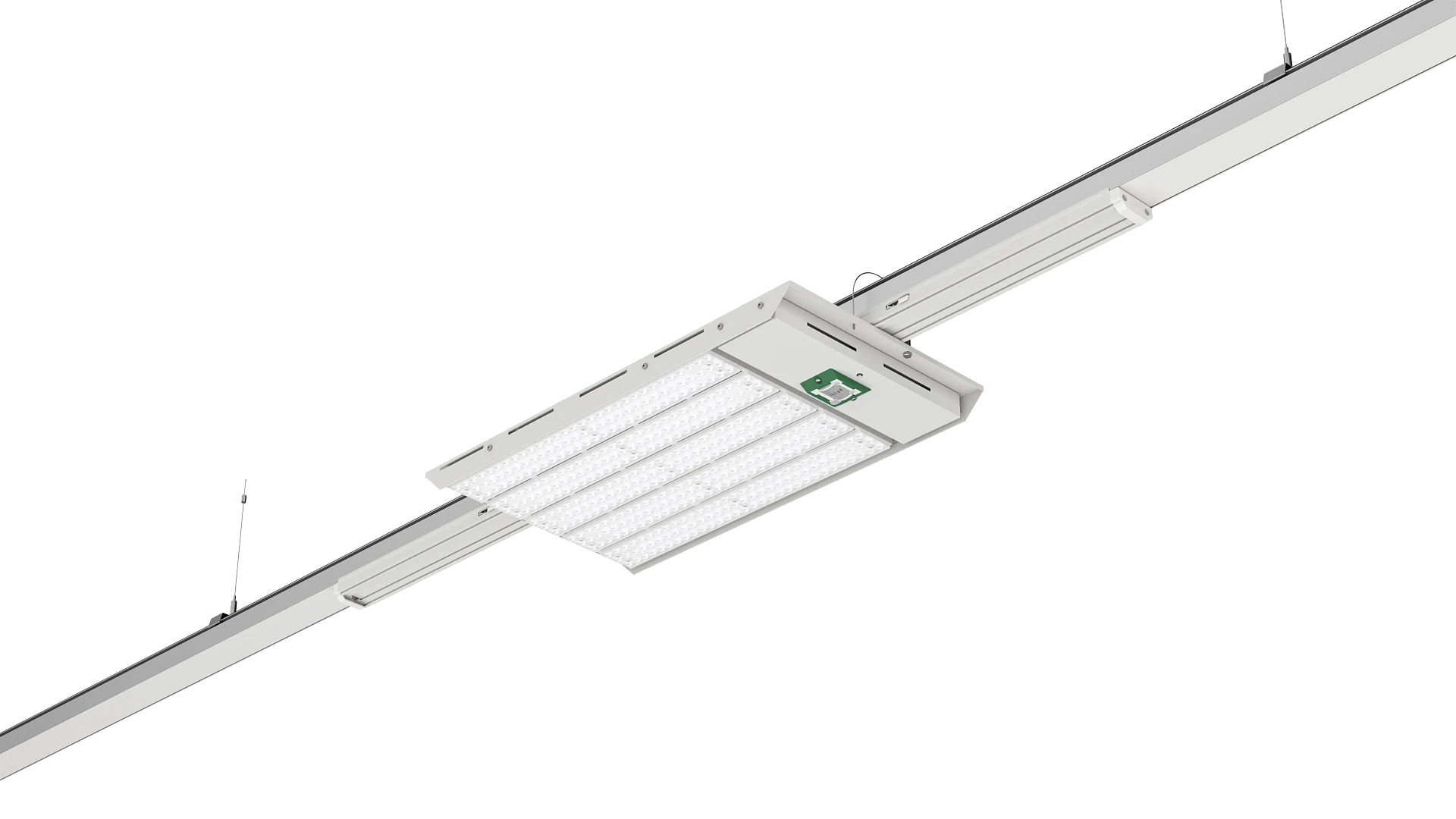

Indeco Highbay

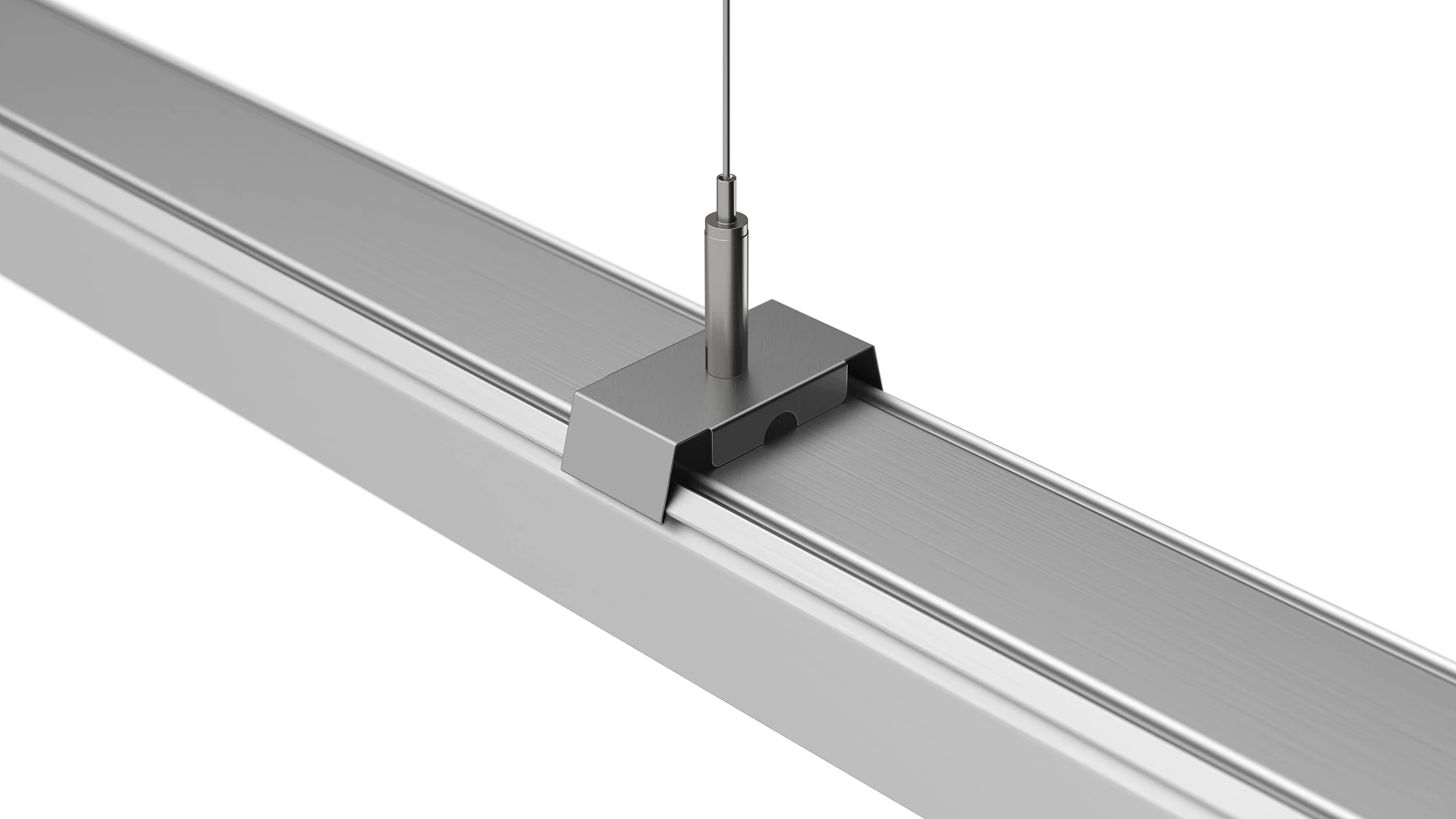

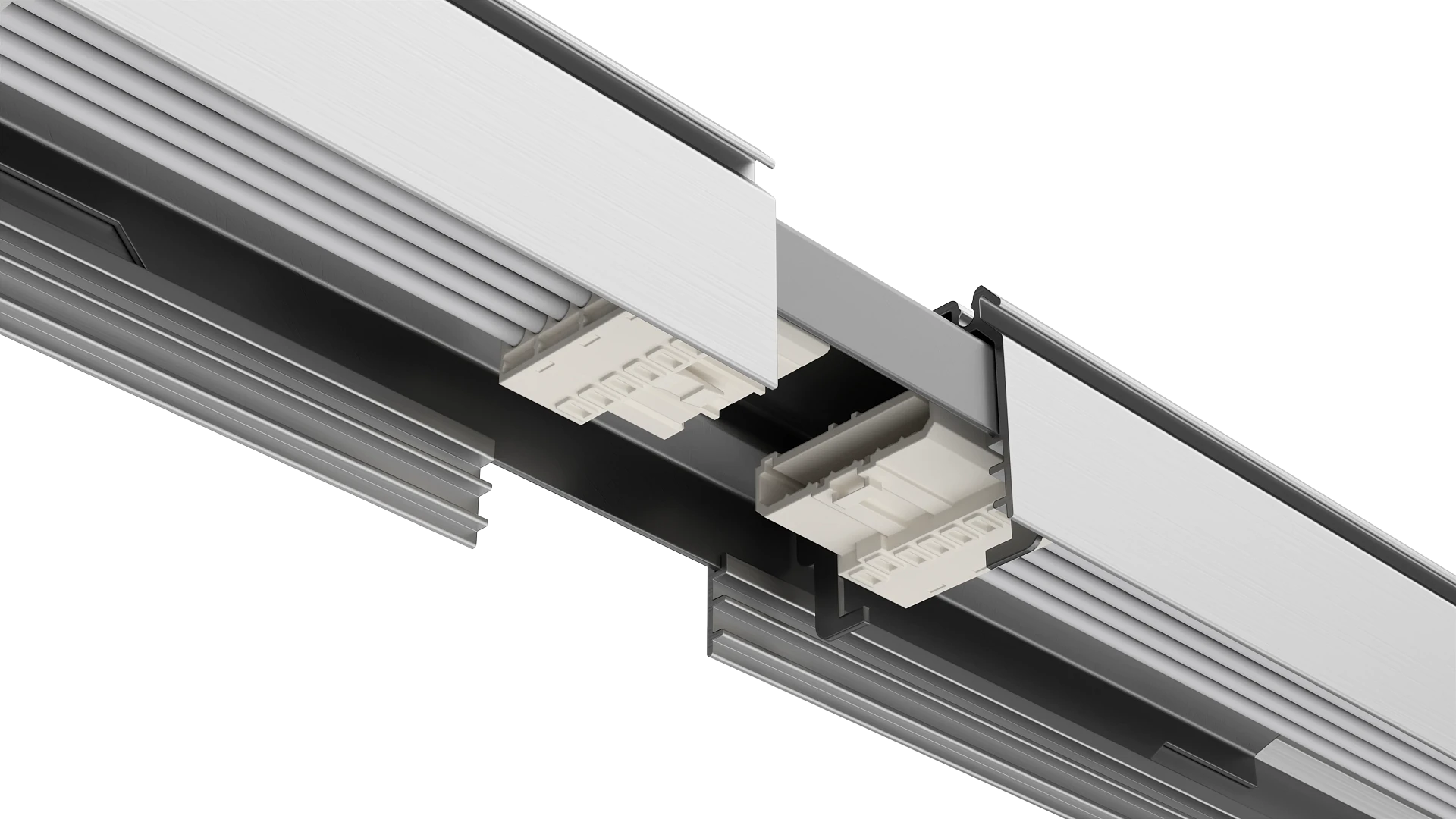

The Indeco Highbay is designed to provide the quickest and simplest installation of any product in the Dextra range by combining the trunking, electrical system and quick release luminaires in a single product. Indeco trunking is available in 4.5M, 3M and 1.5M lengths with 6 pole through wire looms, each loom has a socket connector at 1.5M intervals with a corresponding connector on the rear of the luminaire housing. Each trunking length connects to the next with a simple splice plate and plug and socket connector allowing installation of the trunking with no need to wire electrical connections, the luminaires can then be installed in the required positions with twist lock mounting clips and plug and socket electrical connections. The trunking itself is mounted with snap on sprung steel clips ensuring that the entire system can be installed without tools or wiring of electrical connections except for a single connection at the beginning of each trunking run. The Indeco Highbay is available with lumen outputs ranging from 20,000 to 38,000 lumens with open area, high rack and ultra high rack lens variants ensuring a compliant lighting solution can be achieved in racking and marshalling areas at a range of mounting heights with a minimum of energy consumption. Snap in covers allow the trunking to be enclosed between luminaires preventing dust and dirt ingress into the electrical supply system and ensuring a neat and complete appearance to your installation.

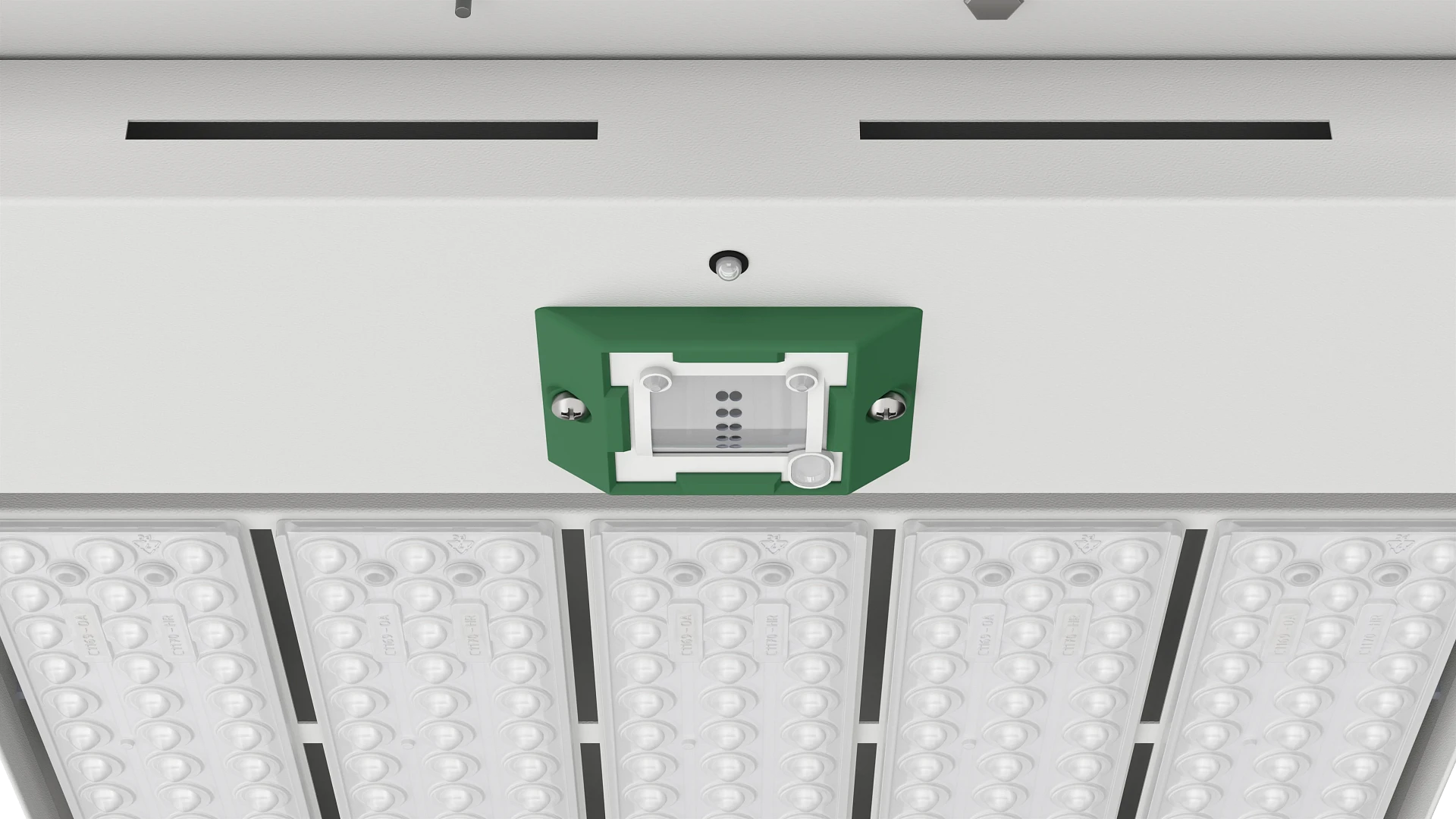

 The Indeco Highbay is supplied with up to 4 dedicated power circuits using 2.5mm cable (dependent on requirements for DALI and emergency) allowing long runs to be achieved without exceeding Volt drop limitations. Energy savings can be further enhanced with our integral R18 sensor range offering presence detection and daylight regulation up to 18M mounting heights, whilst wireless variants allow for grouped sensor operation, automated emergency testing and centralised reporting of the results eliminating manual testing and reducing operational cost. All emergency variants incorporate lithium iron phosphate batteries for extended warranty and lifetime.
