HELIOS 2
The Helios 2 has been specifically engineered for retail applications to provide track mounted perimeter lighting with improved efficiency and optical control.
Introduction
The Helios 2 has been specifically engineered to offer retailers an effective track mounted solution for internal store perimeters. Manufactured with a die cast aluminium housing with in track driver the Helios 2 offers a substantial weight reduction over its predecessor with much improved efficiency and optical control. The Helios 2 is available in a range of lumen outputs, colour temperatures and colour renderings, fixed output and DALI compatible drivers with both black and white housing options.
Complies with:
UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE
Recommended applications:
Accent Lighting | Display Lighting | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9016 textura matt white
- Finish: Polyester powder painted RAL 9005 textura matt black
- IP20
- Diffuser: 2mm high transmission opal polycarbonate
Performance
- Part L2 compliant
- 3SDCM Three step Macadams ellipse
- TM21: L90>60K Hours / L80>100K Hours
- Up to 147 luminaire lumens per circuit Watt.
Environmental
- Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
- Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
- Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- Designed to allow simple disassembly for end of life recycling.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- Optional DALI dimming
Installation
- Suitable for three circuit track installation

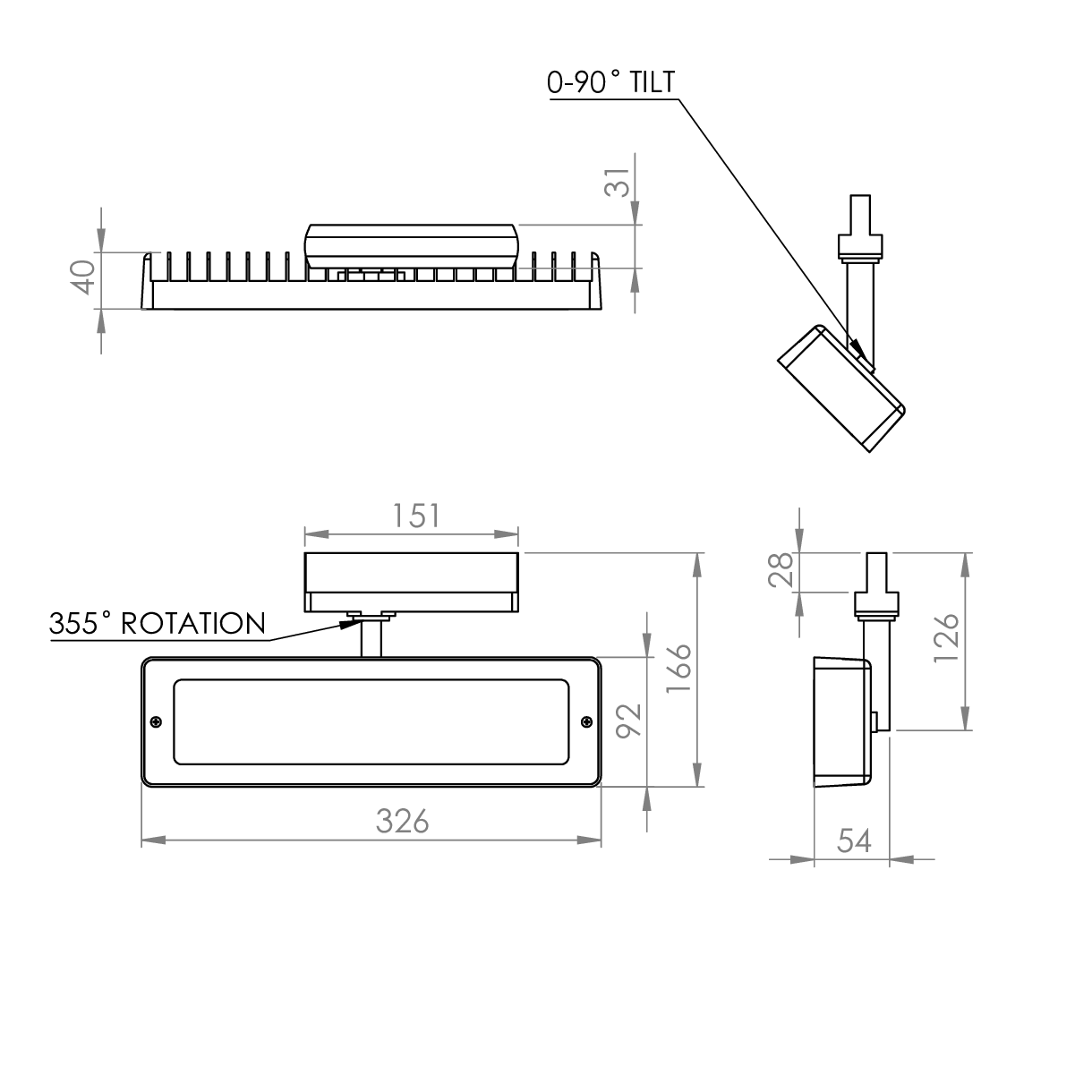

- Adjustable bracket allows the fitting head to be both pivoted and rotated to the angle required
Variations
- Available with a wide range of colour temperatures and renderings
- Available in a range of lumen outputs

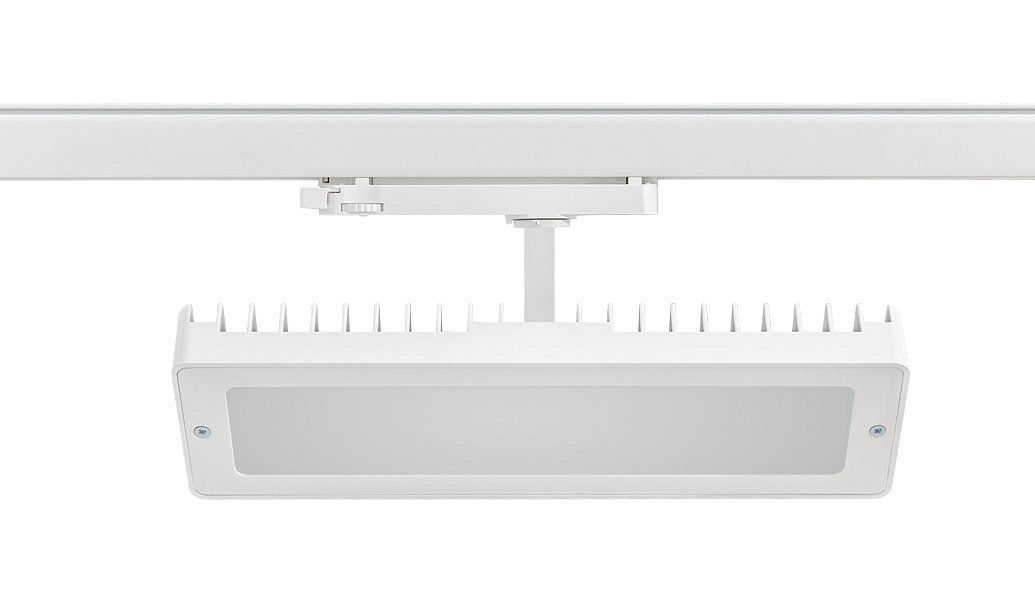

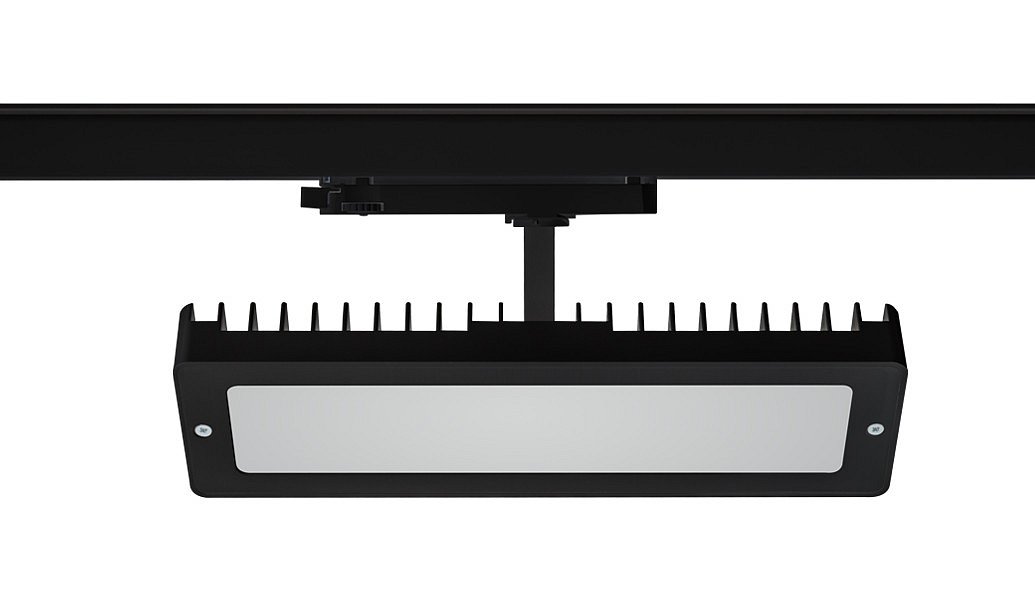

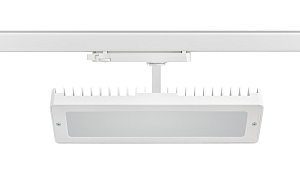

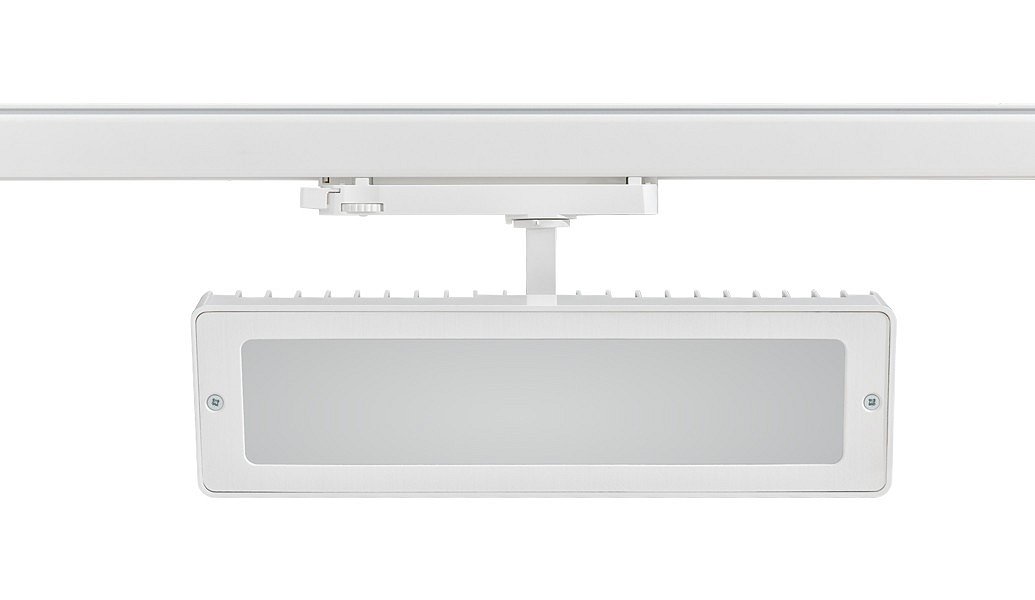

- Available in white or black finishes

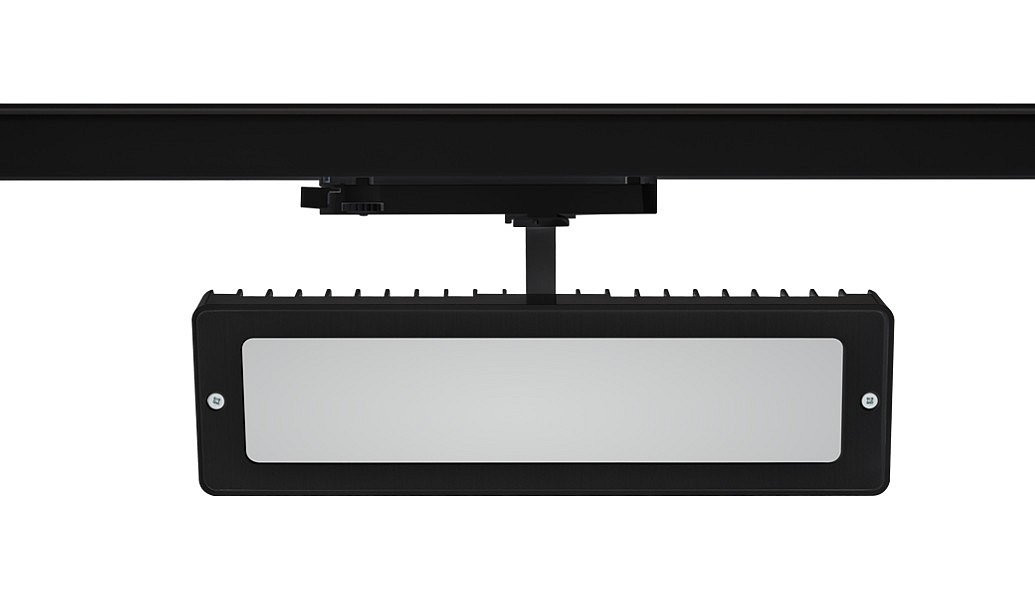

Product Images
Case studies
Technical
Helios 2
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
Dimming
| Code | Description |
|---|---|
| A | DALI Digital Addressable Lighting Interface |
Miscellaneous
| Code | Description |
|---|---|
| C** | Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94 |
| BL | Black Finish |
| LSF | Low Smoke Zero Halogen |
