DEXROTA

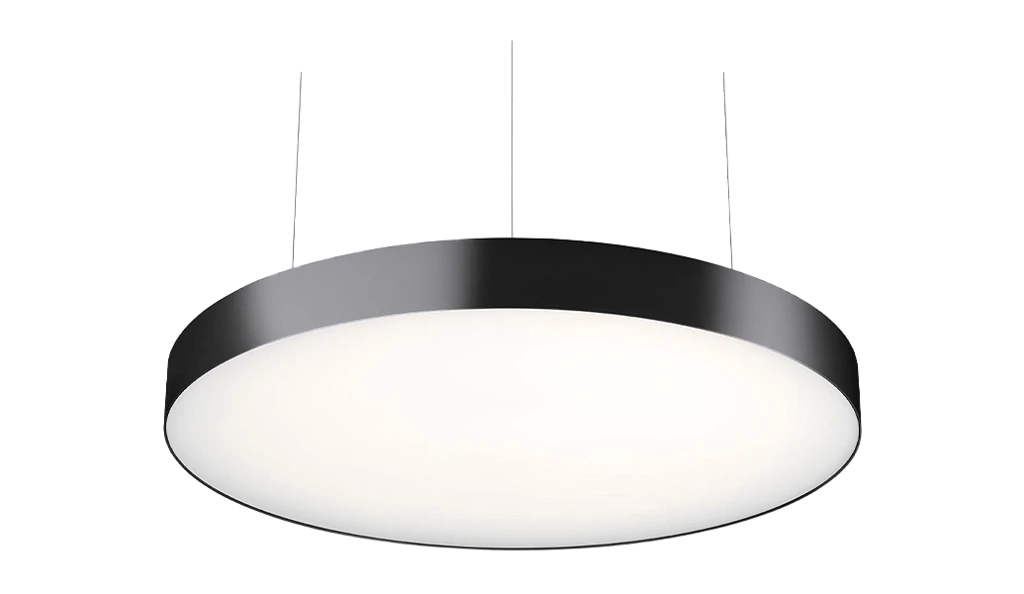

DEXROTA FEATURED

Specification

Construction

  • Housing: Extruded aluminium

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.

Installation

  • Suitable for suspended installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of housing sizes and lumen outputs
  • Available in white, black or grey finishes
Find out more about our 5 year extended warranty
Arrow right

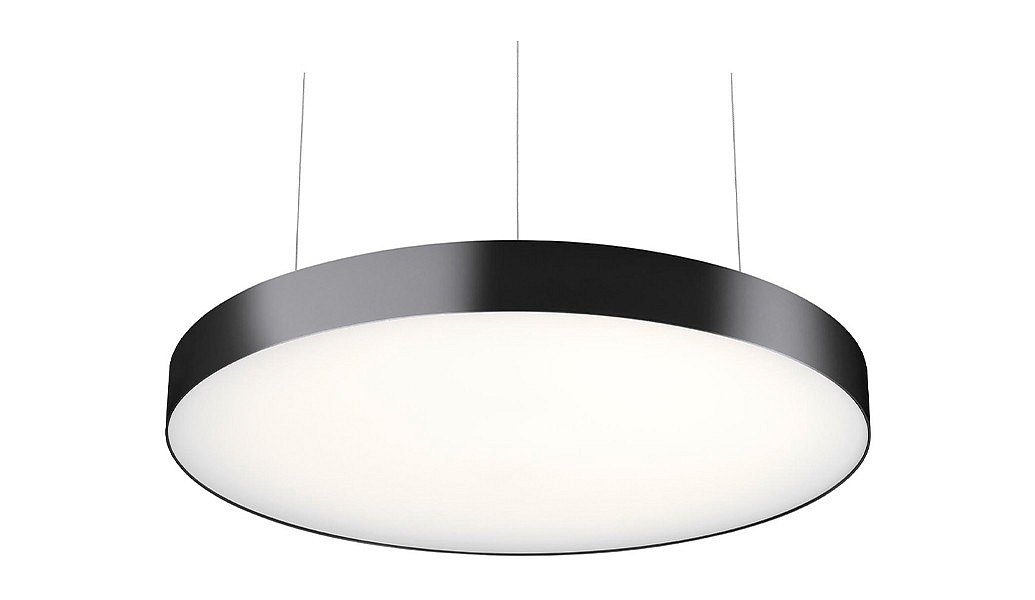

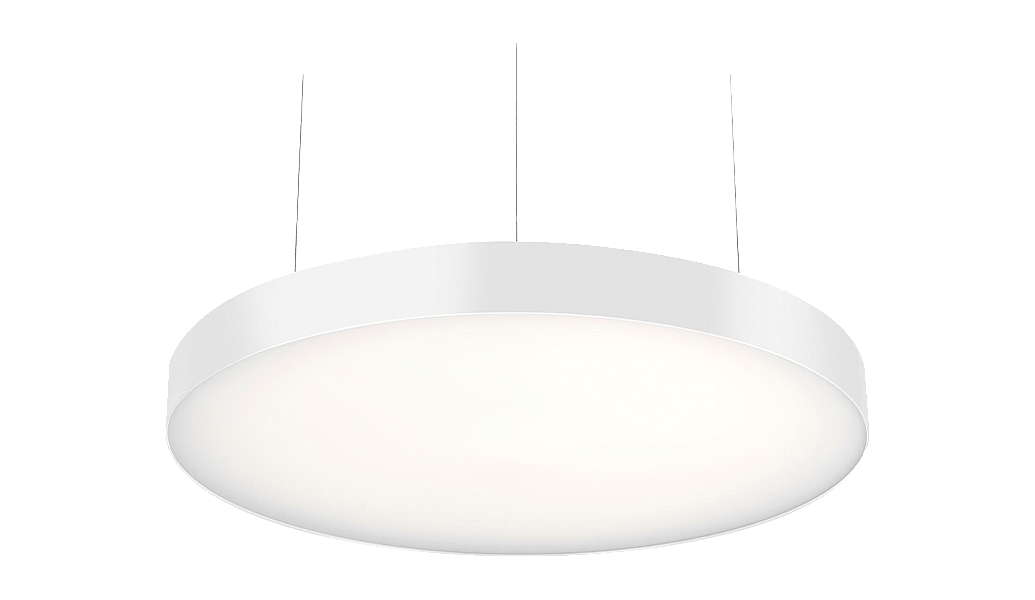

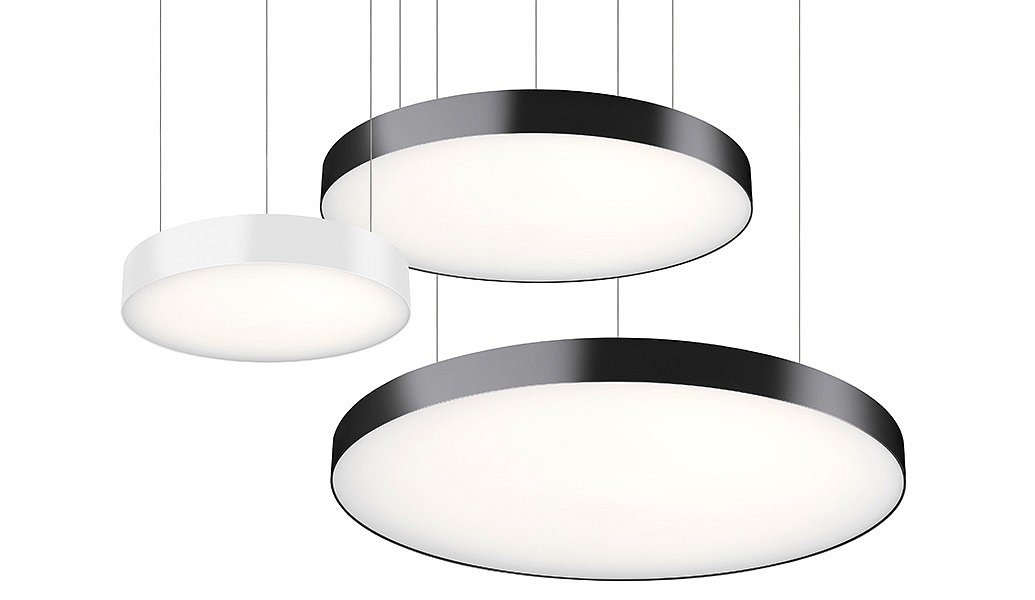

Product Images

Technical

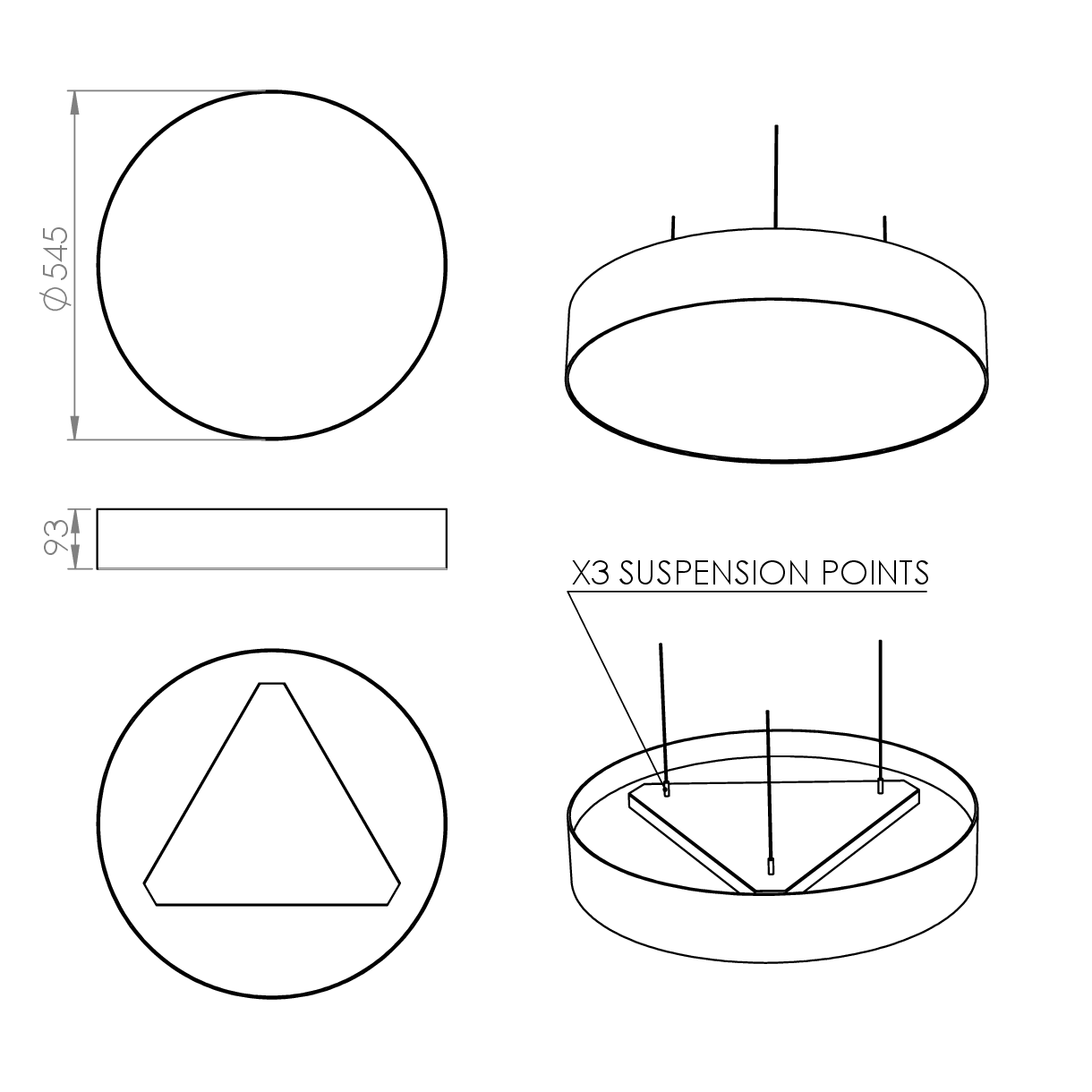

DexRota 545mm

DexRota 545mm

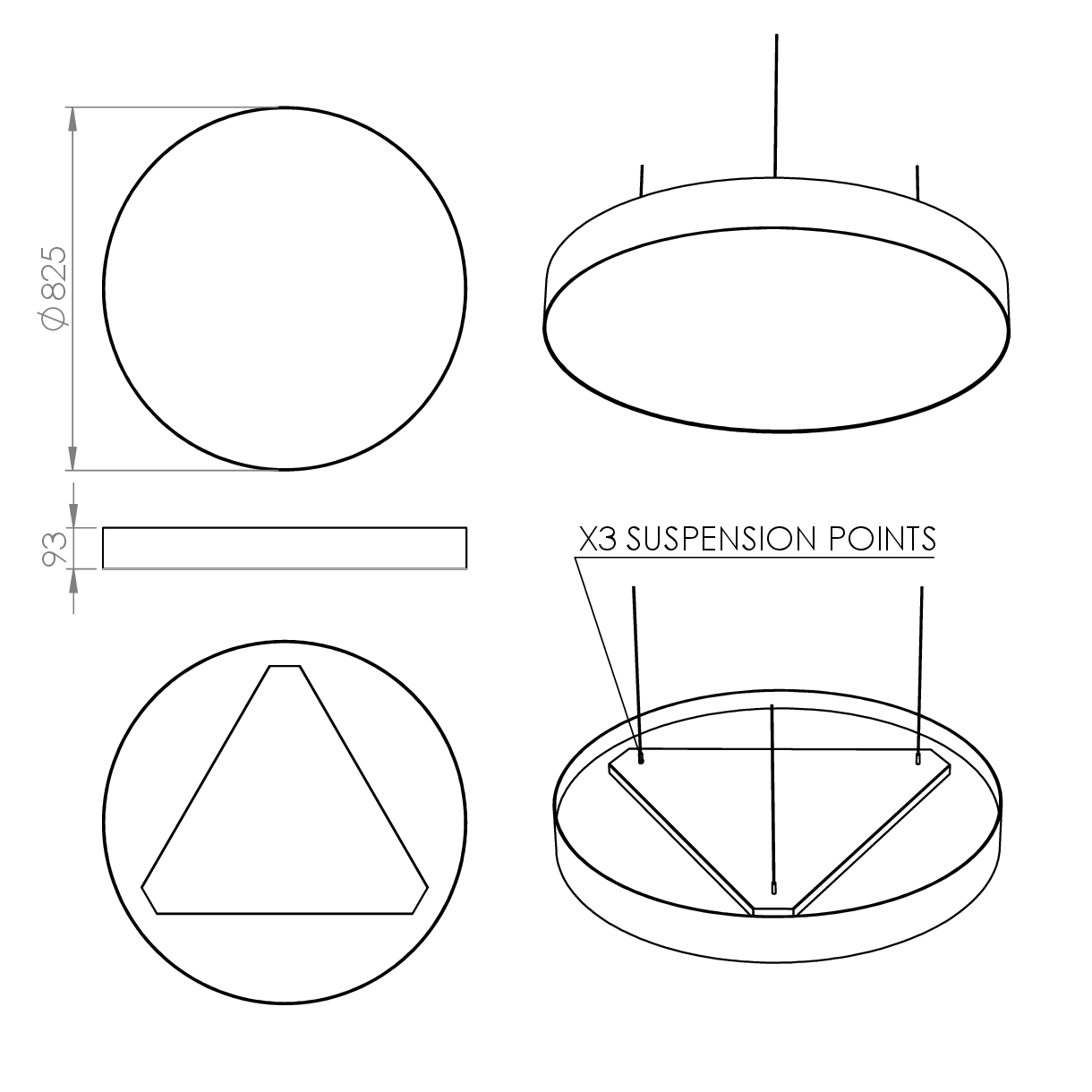

DexRota 825mm

DexRota 825mm

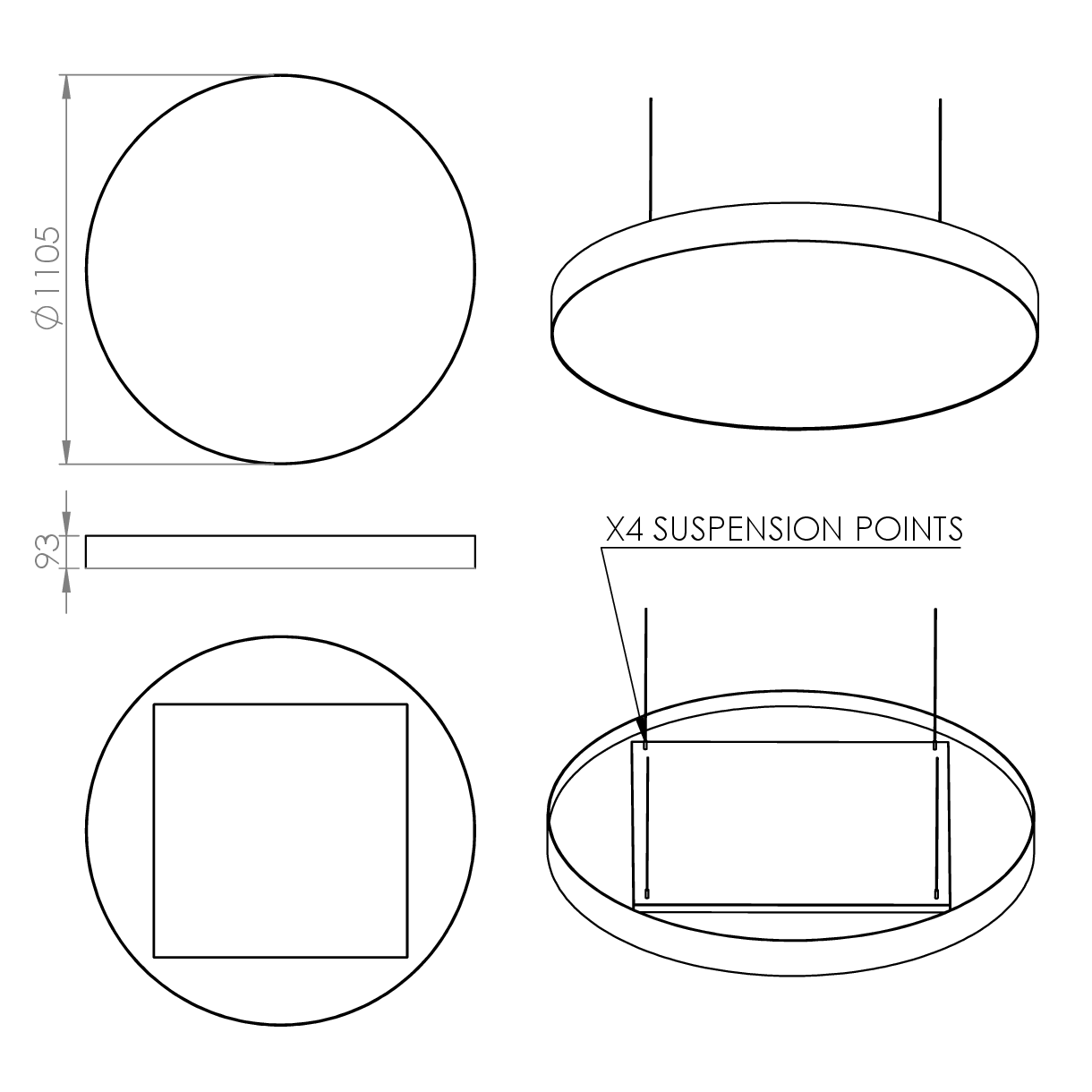

DexRota 1,105mm

DexRota 1,105mm

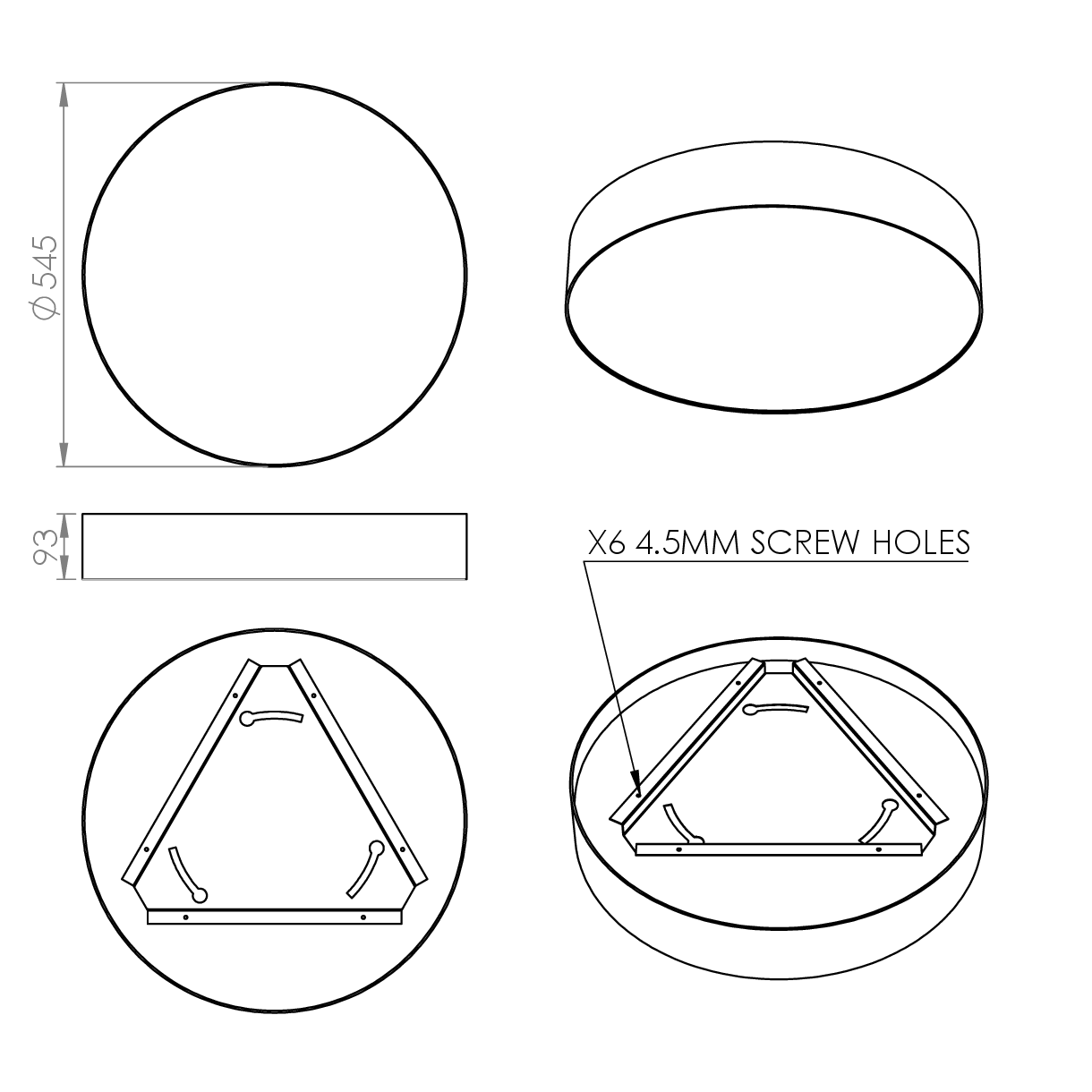

DexRota 545mm - Surface Mount

DexRota 545mm - Surface Mount

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
DRO 545 L62 A DexRota 545mm Downlight 4,743llm, DALI, Colour 84, 32.4W 146
DRO 825 L75 A DexRota 825mm Downlight 5,878llm, DALI, Colour 84 38.2W 154
DRO 1105 L87 A DexRota 1,105mm Downlight 6,728lm, DALI, Colour 84 44.0W 153
The luminaire lumen and luminaire lumen per watt values are based on the white finish product. Black and grey finishes will differ, please contact LEDextra for more information.

Bi-Directional versions available on request.

Dimming

Code Description
S Switch Dimming
H HFR Analogue 1-10v
WT White Tunable (Lumen Outputs Vary from Standard)
DMX Digital Multiplex available on request

Control

Code Description
RC Reacta-Control, Wireless Enabled Luminaire
RLI Reacta Link, Wireless Enabled Luminaire*
*RLI  is subject to limitations. Please contact LEDextra for information.

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour

Miscellaneous

Code Description
WH White Finish
BL Black Finish
GY Grey Finish
C** Select Colour Temperature and Rendering; C83, C84 (other options available on request)
HUB Hub Suspension
Please note power cable to be supplied by others

Downloads

Product Datasheet (Download PDF) Installation Guide Suspended (Download PDF) Installation Guide Surface (Download PDF) Revit Files Dialux Files Relux Files
