CONTINUOUS TRAYS

Retrofit gear trays to suit our continuous ranges

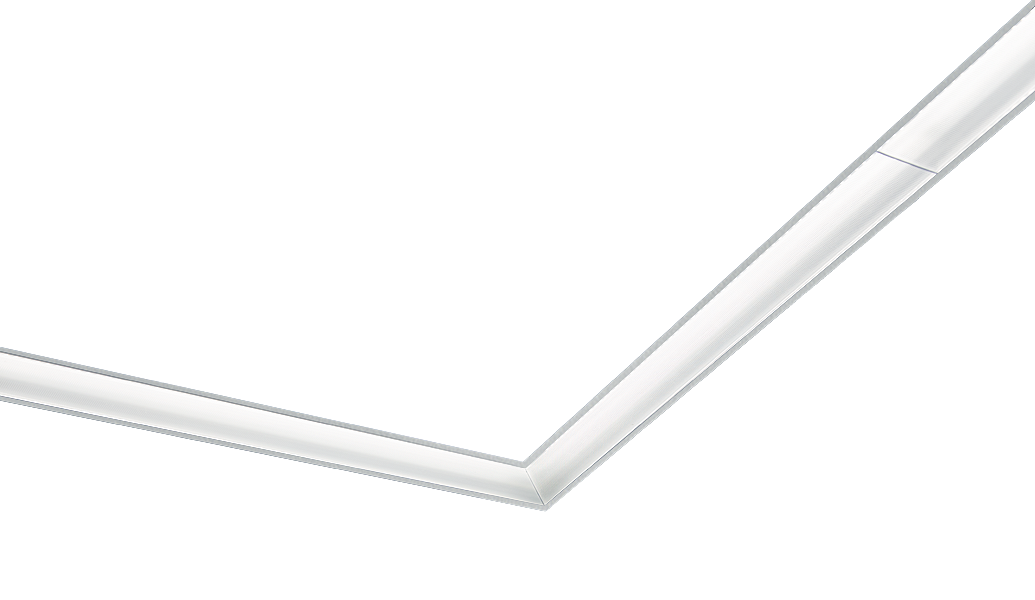

Runway Continuous Recessed Complete Luminaire

Introduction

We offer retrofit gear trays for several of our Continuous ranges including the Indeco, Indeco Sensor, Runway Continuous Recessed and Runway Continuous Surface/Suspended ranges. These trays enable luminaires to be either repaired or upgraded at end of life to use the most efficient LED sources. Replacing the gear tray can also enable you to upgrade luminaires to incorporate dimming, emergency and wireless controls in many cases should you wish to enhance the performance of your product. Please note that we can also offer replacement parts such as diffusers and accessory parts should these also need to be renewed.

To arrange replacement gear trays please contact us with the luminaire type and date of supply so that we can advise on the most suitable tray to upgrade your product. Each luminaire contains a 7 digit number on the product labelled prefixed with IJN which will allow us to trace the exact product details for your installation. Please be aware that we will need to understand the age and condition of the product to determine if replacement gear trays are feasible, the style of gear tray that will be required and if any additional parts such as the diffuser will also require replacement.

Complies with:

UKCA | CE | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Product Images

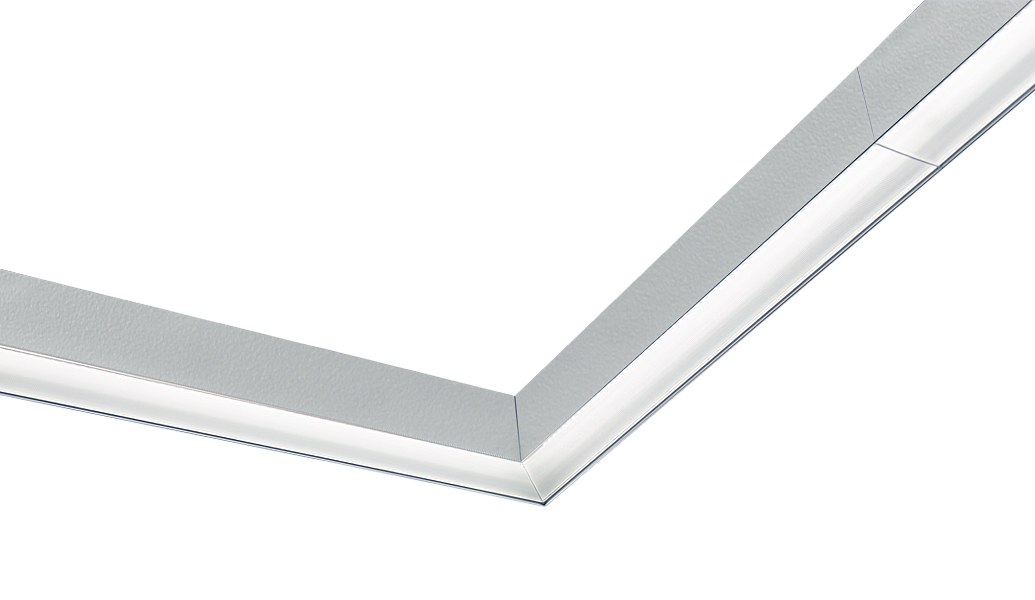

Runway Continuous Surface Complete Luminaire

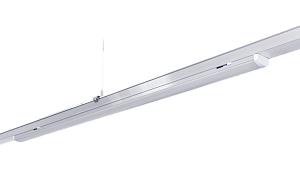

Indeco Complete Luminaire

Indeco Sensor Complete Luminaire

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Indeco

Code	Description
IND L35 OP	Indeco 1500mm, 3,010llm, Opal, Tray
IND L45 OP	Indeco 1500mm, 3,870llm, Opal, Tray
IND L54 OP	Indeco 1500mm, 4,644llm, Opal ,Tray
IND L63 OP	Indeco 1500mm, 5,418llm, Opal, Tray
IND L80 OP	Indeco 1500mm, 6,880llm, Opal, Tray
IND L96 OP	Indeco 1500mm, 8,256llm, Opal, Tray
IND L35 OA	Indeco 1500mm, 3,245llm, Open Area, Tray
IND L45 OA	Indeco 1500mm, 4,172llm, Open Area, Tray
IND L54 OA	Indeco 1500mm, 5,006llm, Open Area, Tray
IND L63 OA	Indeco 1500mm, 5,840llm, Open Area, Tray
IND L80 OA	Indeco 1500mm, 7,415llm, Open Area, Tray
IND L96 OA	Indeco 1500mm, 8,899llm, Open Area, Tray
IND L120 OA	Indeco 1500mm, 11,124llm, Open Area, Tray
IND L150 OA	Indeco 1500mm, 14,580llm, Open Area, Tray
IND L35 HR	Indeco 1500mm, 3,308llm, High Rack, Tray
IND L45 HR	Indeco 1500mm, 4,253llm, High Rack, Tray
IND L54 HR	Indeco 1500mm, 5,103llm, High Rack, Tray
IND L63 HR	Indeco 1500mm, 5,954llm, High Rack, Tray
IND L80 HR	Indeco 1500mm, 7,560llm, High Rack
IND L96 HR	Indeco 1500mm, 9,072llm, High Rack, Tray
IND L120 HR	Indeco 1500mm, 11,340llm, High Rack, Tray
IND L150 HR	Indeco 1500mm, 14,175lm, High Rack, Tray
Please specify original product type and IJN when querying replacement tray options Available in dimming, emergency, wireless and a selection of colour temperature options

Indeco Sensor

Code	Description
IND L35 R44 OP	Indeco 1500mm, 3,010llm, R44 Sensor, Opal, Tray
IND L45 R44 OP	Indeco 1500mm, 3,870llm, R44 Sensor, Opal, Tray
IND L54 R44 OP	Indeco 1500mm, 4,644llm, R44 Sensor, Opal, Tray
IND L63 R44 OP	Indeco 1500mm, 5,418llm, R44 Sensor, Opal, Tray
IND L80 R44 OP	Indeco 1500mm, 6,880llm, R44 Sensor, Opal, Tray
IND L96 R44 OP	Indeco 1500mm, 8,256llm, R44 Sensor, Opal, Tray
IND L35 R44 OA	Indeco 1500mm, 3,245llm, R44 Sensor, Open Area, Tray
IND L45 R44 OA	Indeco 1500mm, 4,172llm, R44 Sensor, Open Area, Tray
IND L54 R44 OA	Indeco 1500mm, 5,006llm, R44 Sensor, Open Area, Tray
IND L63 R44 OA	Indeco 1500mm, 5,840llm, R44 Sensor, Open Area, Tray
IND L80 R44 OA	Indeco 1500mm, 7,415llm, R44 Sensor, Open Area, Tray
IND L96 R44 OA	Indeco 1500mm, 8,899llm, R44 Sensor, Open Area, Tray
IND L120 R44 OA	Indeco 1500mm, 11,124llm, R44 Sensor, Open Area, Tray
IND L150 R44 OA	Indeco 1500mm, 14,580llm, R44 Sensor, Open Area, Tray
IND L35 R44 HR	Indeco 1500mm, 3,308llm, R44 Sensor, High Rack, Tray
IND L45 R44 HR	Indeco 1500mm, 4,253llm, R44 Sensor, High Rack, Tray
IND L54 R44 HR	Indeco 1500mm, 5,103llm, R44 Sensor, High Rack, Tray
IND L63 R44 HR	Indeco 1500mm, 5,954llm, R44 Sensor, High Rack, Tray
IND L80 R44 HR	Indeco 1500mm, 7,560llm, R44 Sensor, High Rack, Tray
IND L96 R44 HR	Indeco 1500mm, 9,072llm, R44 Sensor, High Rack, Tray
IND L120 R44 HR	Indeco 1500mm, 11,340llm, R44 Sensor, High Rack, Tray
IND L150 R44 HR	Indeco 1500mm, 14,175lm, R44 Sensor, High Rack, Tray
Please specify original product type and IJN when querying replacement tray options Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

Runway Continuous Recessed & Runway Surface / Suspended

Code	Description
Low Output
RWY 1000 L14 ER	Runway Tray, 1000mm, 1,400lm, End of Run Tray, Colour 84
RWY 1000 L14 TW	Runway Tray, 1000mm, 1,400lm, Through Wire Tray, Colour 84
RWY 1500 L22 ER	Runway Tray, 1500mm, 2,200lm, End of Run Tray, Colour 84
RWY 1500 L22 TW	Runway Tray, 1500mm, 2,200lm, Through Wire Tray, Colour 84
RWY 2000 L29 ER	Runway Tray, 2000mm, 2,900lm, End of Run Tray, Colour 84
RWY 2000 L29 TW	Runway Tray, 2000mm, 2,900lm, Through Wire Tray, Colour 84

Medium Output
RWY 1000 L20 ER	Runway Tray, 1000mm, 2,000lm, End of Run Tray, Colour 84
RWY 1000 L20 TW	Runway Tray, 1000mm, 2,000lm, Through Wire Tray, Colour 84
RWY 1500 L30 ER	Runway Tray, 1500mm, 3,000lm, End of Run Tray, Colour 84
RWY 1500 L30 TW	Runway Tray, 1500mm, 3,000lm, Through Wire Tray, Colour 84
RWY 2000 L40 ER	Runway Tray, 2000mm, 4,000lm, End of Run Tray, Colour 84
RWY 2000 L40 TW	Runway Tray, 2000mm, 4,000lm, Through Wire Tray, Colour 84

High Output
RWY 1000 L30 ER	Runway Tray, 1000mm, 3,000lm, End of Run Tray, Colour 84
RWY 1000 L30 TW	Runway Tray, 1000mm, 3,000lm, Through Wire Tray, Colour 84
RWY 1500 L45 ER	Runway Tray, 1500mm, 4,500lm, End of Run Tray, Colour 84
RWY 1500 L45 TW	Runway Tray, 1500mm, 4,500lm, Through Wire Tray, Colour 84
RWY 2000 L60 ER	Runway Tray, 2000mm, 6,000lm, End of Run Tray, Colour 84
RWY 2000 L60 TW	Runway Tray, 2000mm, 6,000lm, Through Wire Tray, Colour 84

Very High Output
RWY 1500 L96 ER	Runway Tray, 1500mm, 9,600lm, End of Run Tray, Colour 84
RWY 1500 L96 TW	Runway Tray, 1500mm, 9,600lm, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options Available in dimming, emergency, wireless and a selection of colour temperature options

Downloads

Product Datasheet Revit Files Dialux Files Relux Files
