COMTEC SURFACE / SUSPENDED

The Comtec Surface / Suspended offers a downlight solution for suspended, track and surface mount applications

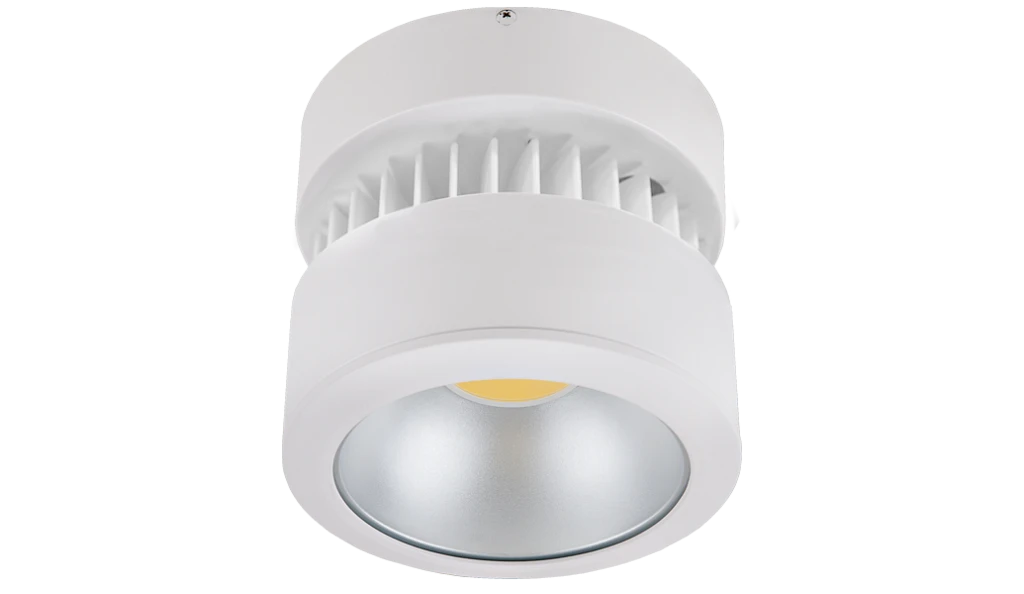

COMTEC SURFACE / SUSPENDED FEATURED

Introduction

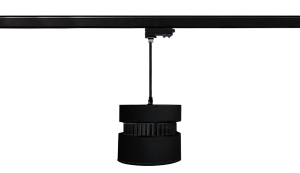

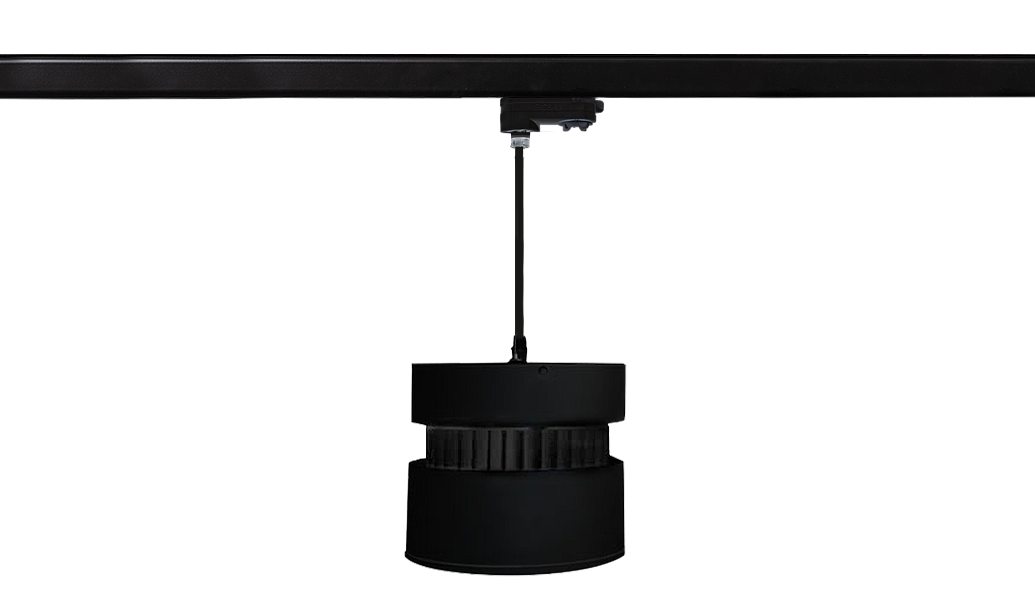

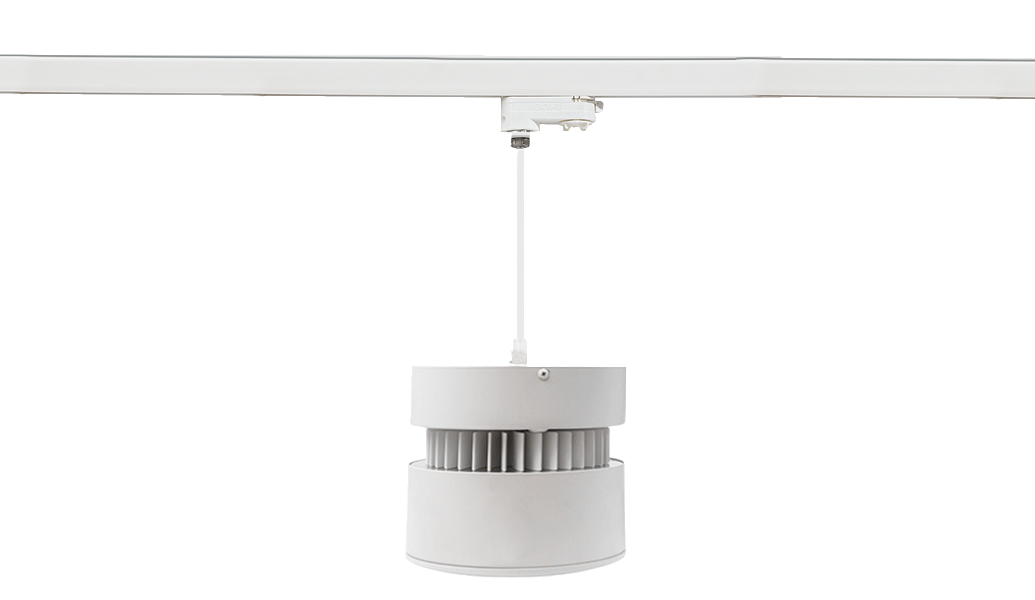

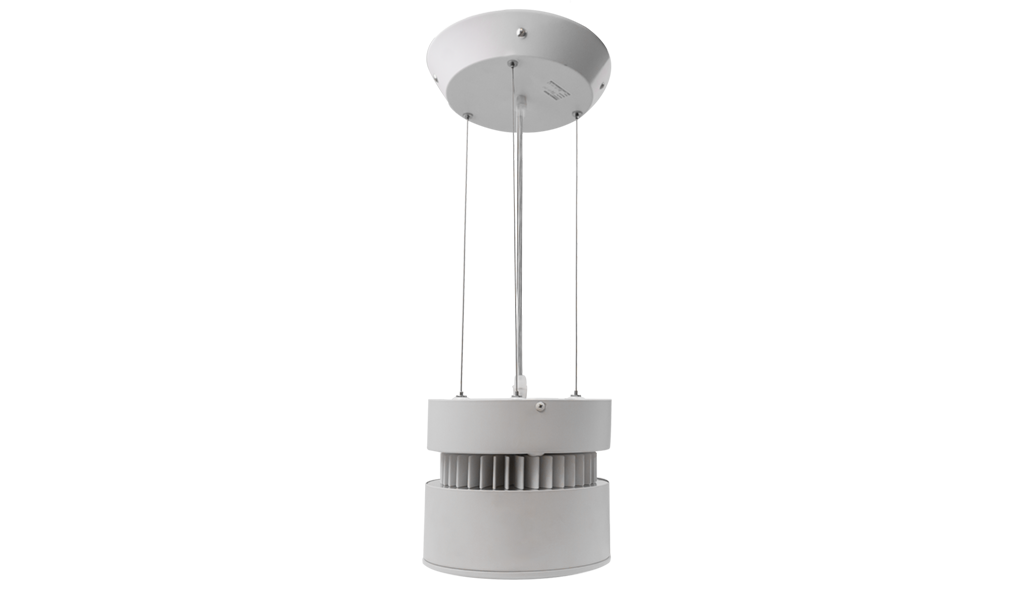

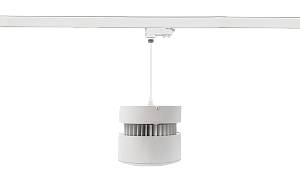

The Comtec Surface / Suspended is ideal for solid ceilings or where there is insufficient ceiling void for a recessed luminaire. With a range of options including 1100, 2000, 3000 and 4000 lumen outputs and all common dimming variants the Comtec Surface / Suspended is easily tailored to a range of applications and is supplied with a clear glass attachment as standard, opal glass attachments are available as an optional extra. Suspended versions come complete with suspension kit for ease of installation. A track mount option is also available for suspension from Track systems by a 300mm lead.

The Comtec Surface / Suspended is complimented with our LED4 surface mount standalone lithium emergency range which can be installed alongside this luminaire to ensure that your installation is compliant with health and safety requirements. We offer a range of wireless control systems providing localised grouping and control as well as comprehensive wireless solutions allowing both standard and emergency luminaires to be centrally monitored.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Canteen | Commercial / Offices | Corridor | Education | Healthcare / Social Housing | Hotel / Leisure | Industrial / Manufacturing | Office | Retail | Toilet | Transport | Warehousing

Specification

Construction

  • Housing: Spun aluminium
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Finish: Polyester powder painted RAL 9005 textura matt black
  • Reflector: Semi specular aluminium
  • IP20

Performance

  • Part L2 compliant
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Up to 143 luminaire lumens per circuit Watt.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Not available with emergency

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional integral Reacta-Link for integration with Reacta-Link wireless installations
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Installation

  • Suitable for three circuit track installation
  • Suitable for surface installation

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs

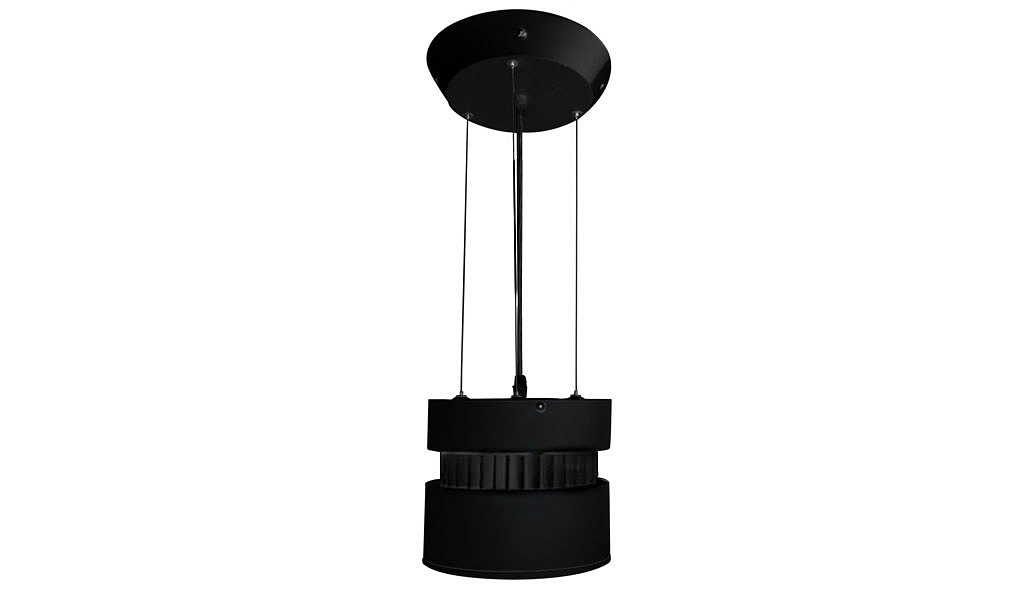

  • Available in white or black finishes
Find out more about our 5 year extended warranty
Arrow right

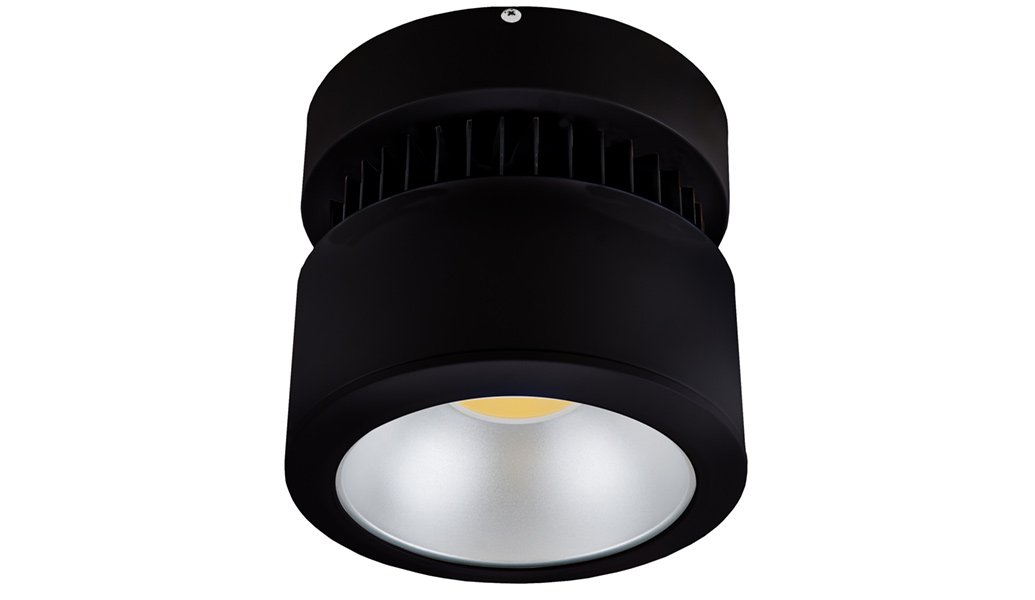

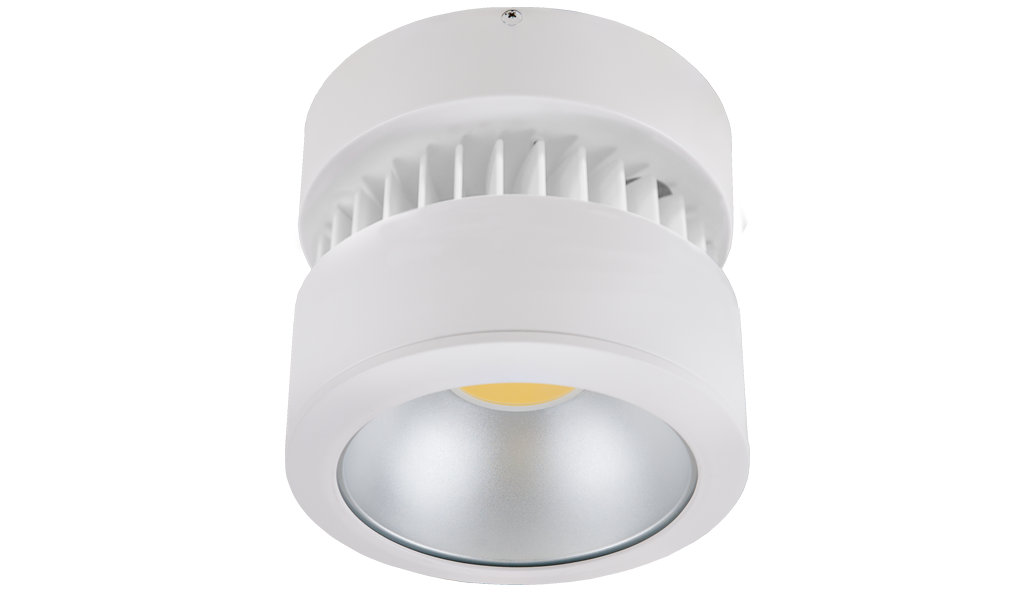

Product Images

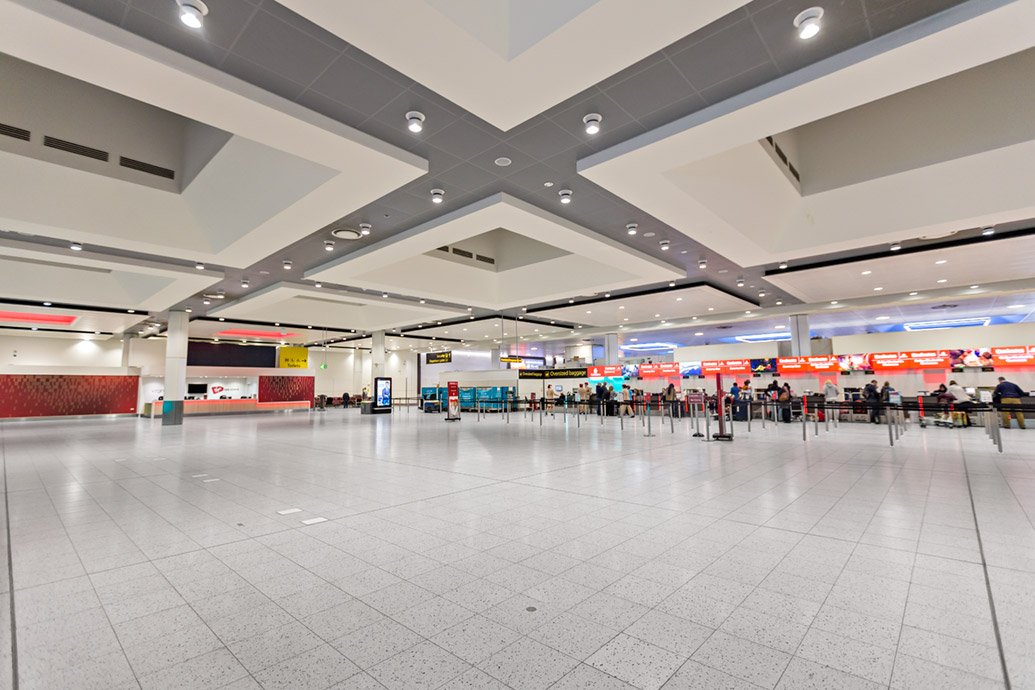

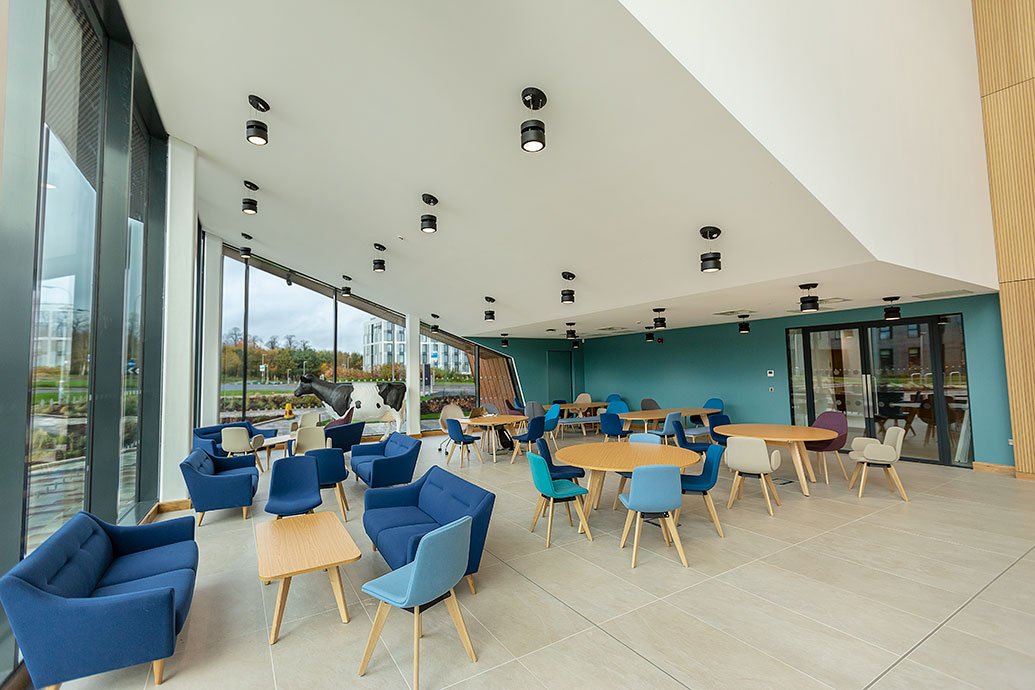

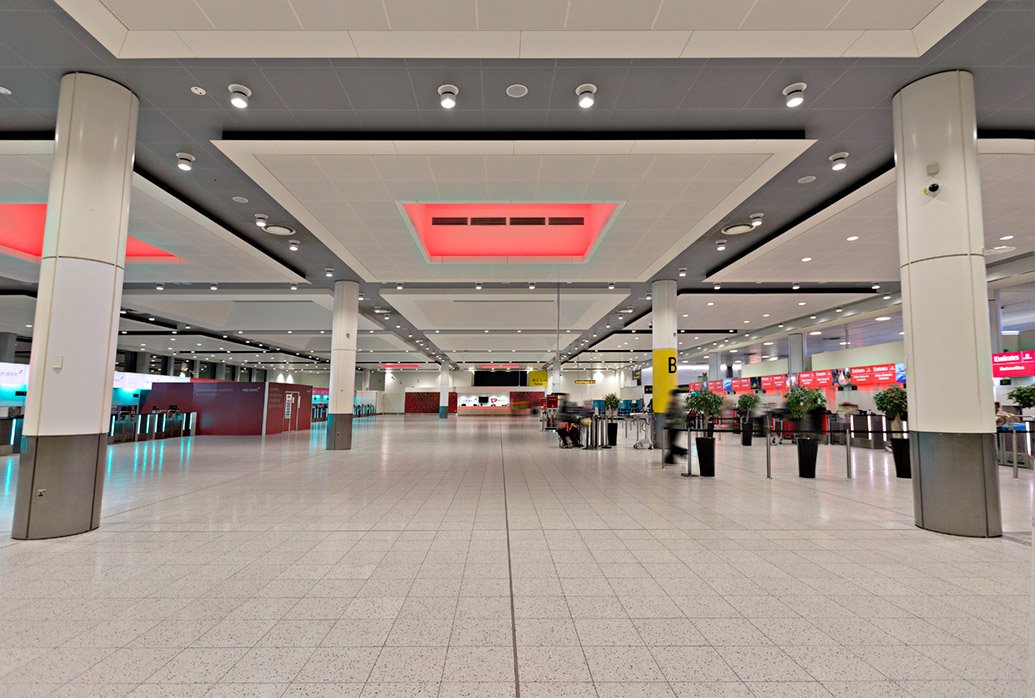

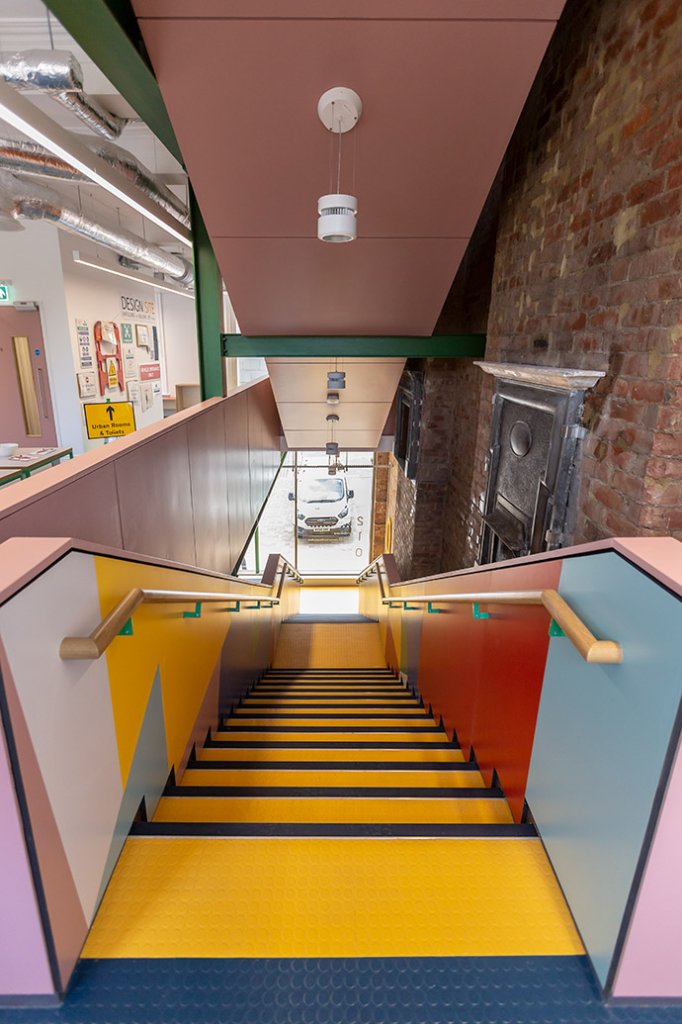

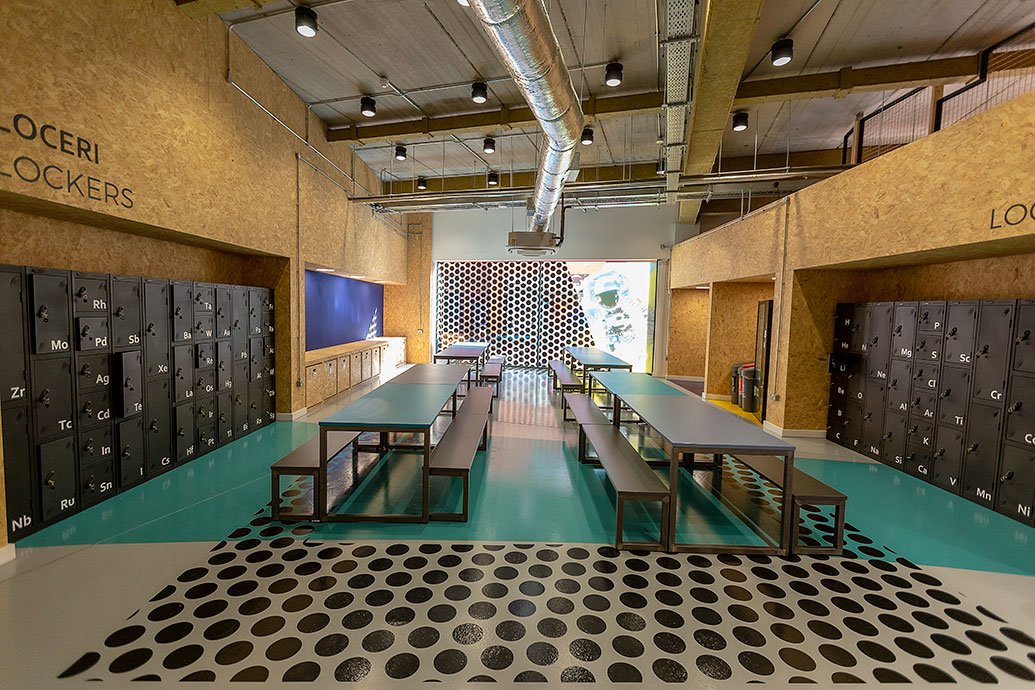

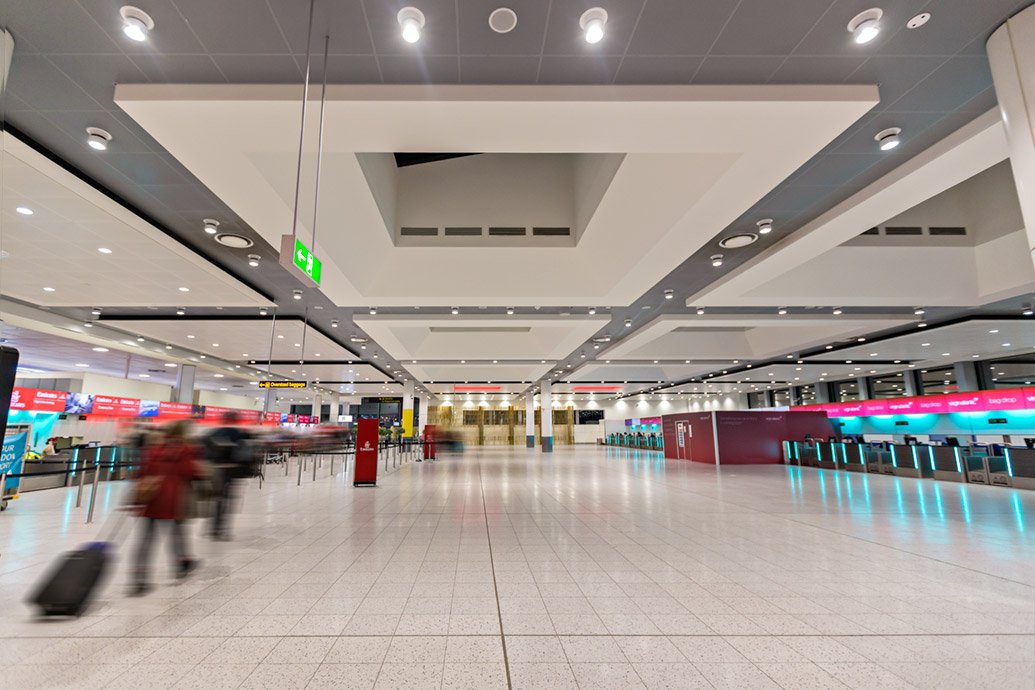

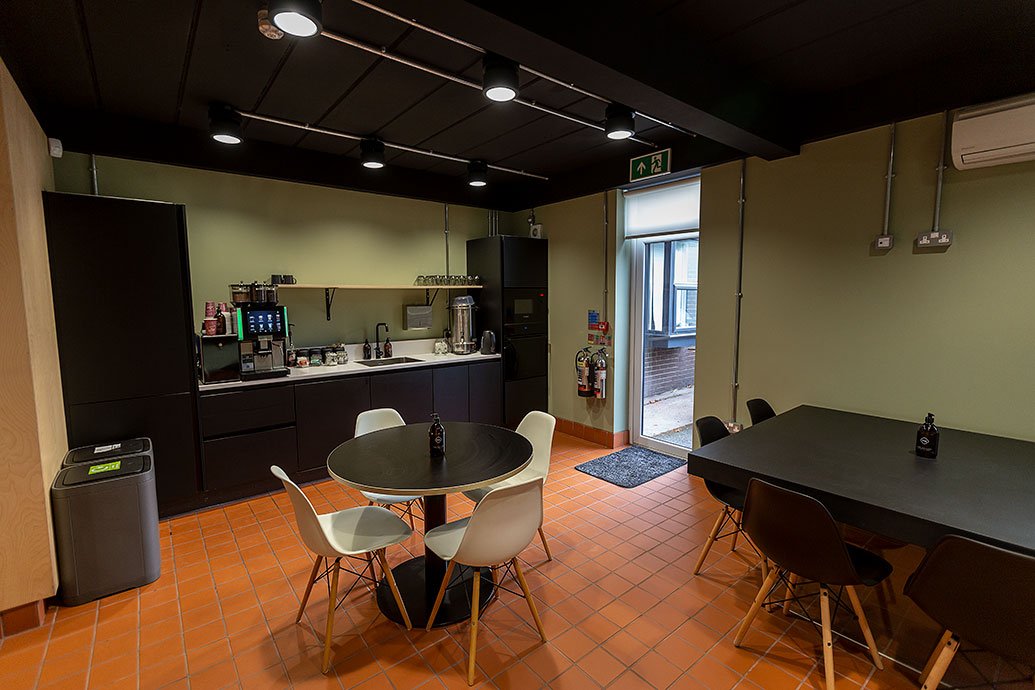

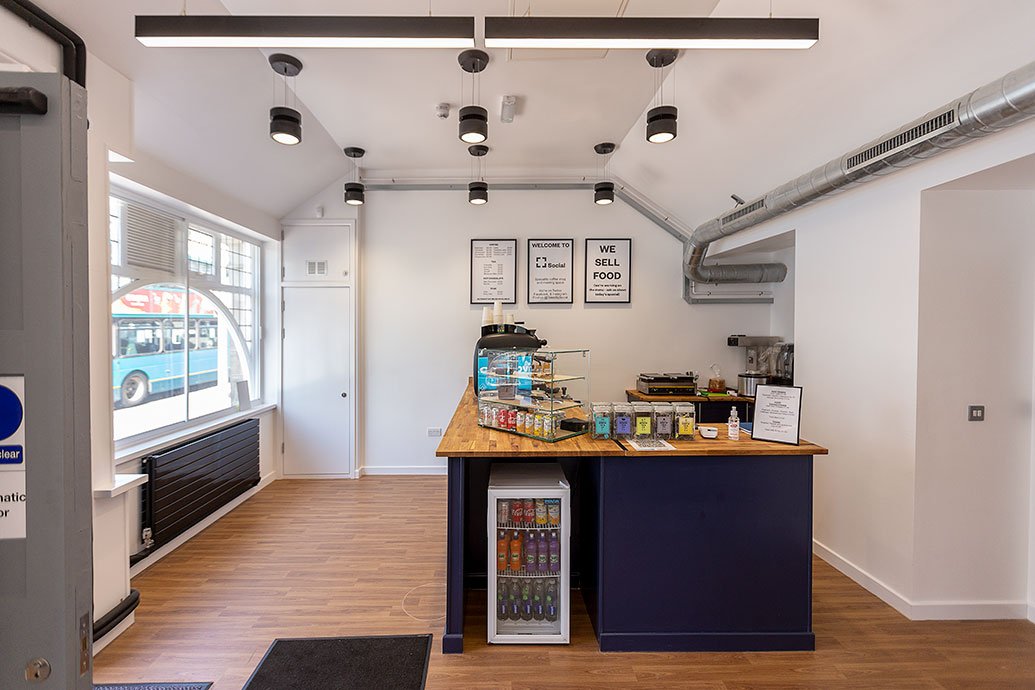

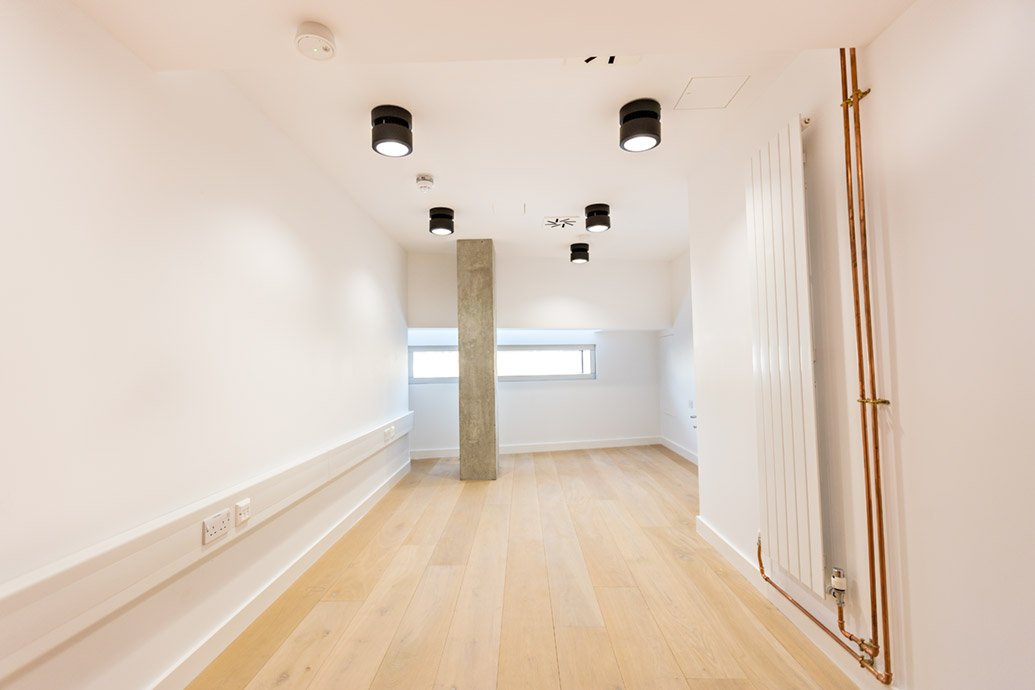

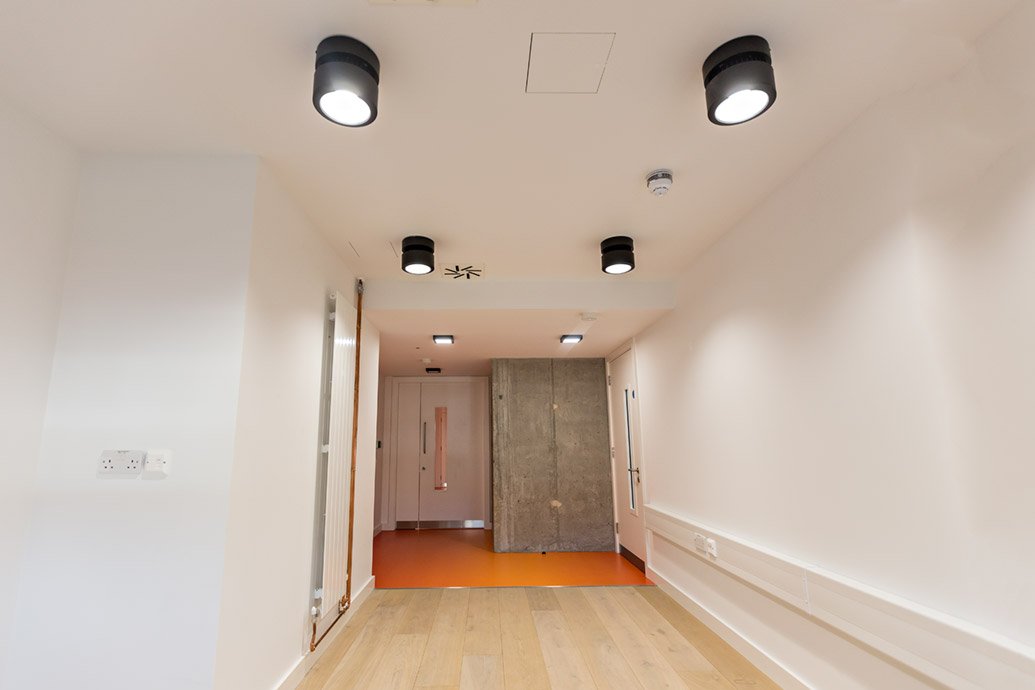

COMTEC SURFACE / SUSPENDED in action

Case studies

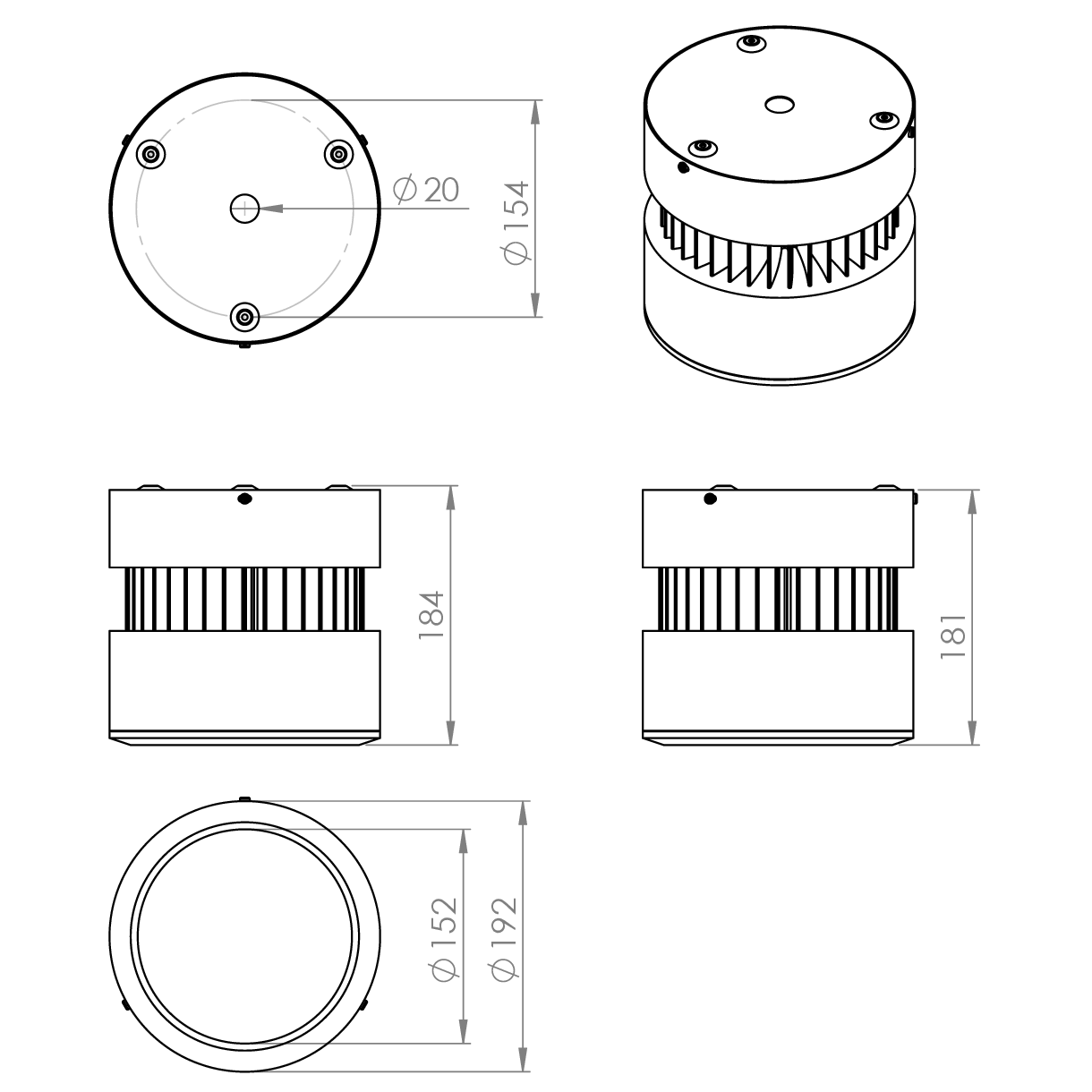

Technical

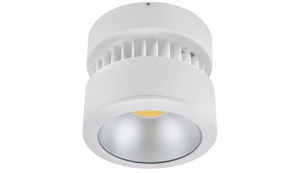

Comtec Surface

Comtec Surface

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
CTECS L11 Comtec Surface, 1,040llm, Clear Glass, Colour 84. 7.6W 137
CTECS L20 Comtec Surface, 1,928llm, Clear Glass, Colour 84. 13.5W 143
CTECS L30 Comtec Surface, 2,748llm, Clear Glass, Colour 84. 21.0W 131
CTECS L40 Comtec Surface, 3,760llm, Clear Glass, Colour 84. 29.4W 128
CTECS L11 SUSP Comtec Surface, 1,040llm, Suspension Kit, Clear Glass, Colour 84. 7.6W 137
CTECS L20 SUSP Comtec Surface, 1,928llm, Suspension Kit, Clear Glass, Colour 84. 13.5W 143
CTECS L30 SUSP Comtec Surface, 2,748llm, Suspension Kit, Clear Glass, Colour 84. 21.0W 131
CTECS L40 SUSP Comtec Surface, 3,760llm, Suspension Kit, Clear Glass, Colour 84. 29.4W 128
CTECS L11 GB Comtec Surface, 1,040llm, 3 Circuit Global 300mm Lead, Clear Glass, Colour 84. 7.6W 137
CTECS L20 GB Comtec Surface, 1,928llm, 3 Circuit Global 300mm Lead, Clear Glass, Colour 84. 13.5W 143
CTECS L30 GB Comtec Surface, 2,748llm, 3 Circuit Global 300mm Lead, Clear Glass, Colour 84. 21.0W 131
CTECS L40 GB Comtec Surface, 3,760llm, 3 Circuit Global 300mm Lead, Clear Glass, Colour 84. 29.4W 128

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
C Bi-Level Dimming For Standalone Switched Sensor

Control

Code Description
DN DexNET Node, Wireless Node only.
RLI Reacta-Link, Wireless Enabled Luminaire
RC Reacta-Control, Wireless Enabled Luminaire

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C827, C83, C85, C865, C93, C94
BL Black Finish
GB Global Track Adaptor
LSF Low Smoke Zero Halogen

Downloads

Product Datasheet (Download PDF) Document (Download PDF) Revit Files Dialux Files Relux Files
