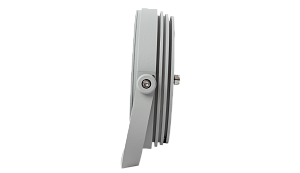

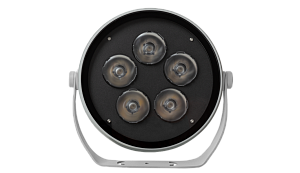

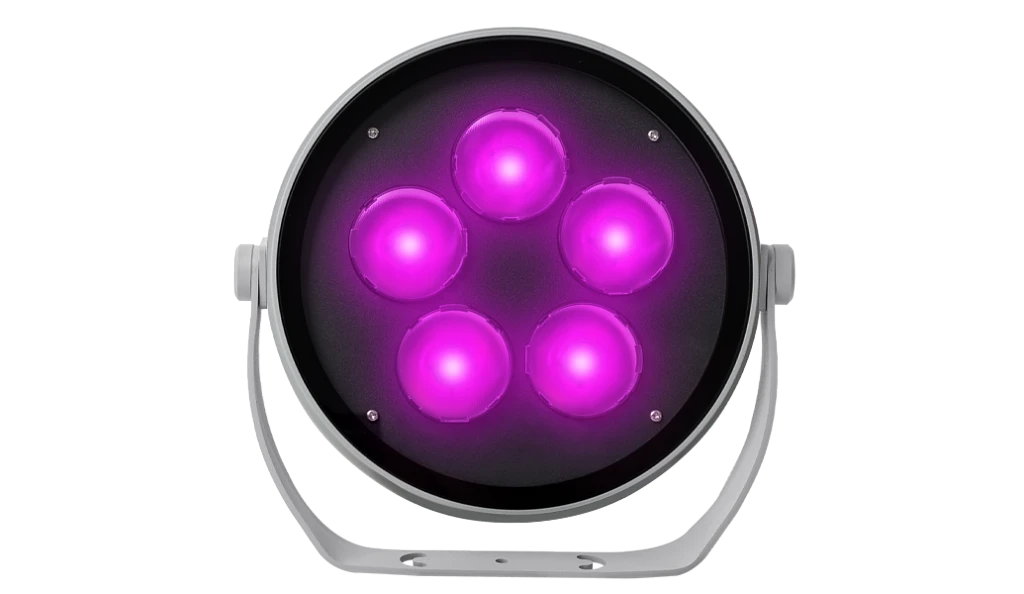

Chromix Point
Compact RGBW spot and flood light for all single point source colour applications
Introduction
The Chromix Point is an excellent solution for compact colour-changing spot and flood lighting applications. Featuring a remote DMX decoder and remote driver, the fixture maintains a clean, discreet, and compact luminaire design while still delivering powerful performance. Its reduced size compared to conventional fittings allows the Chromix Point to be installed in a wide variety of locations with ease.
With a standard 6.6° beam angle, the Chromix Point is supplied complete with a lens kit containing 10°, 20°, and 30° spread lenses, providing increased flexibility for a wide range of lighting applications.
Supplied complete with a DMX decoder as standard, the Chromix Point offers seamless lighting control and integration. Finished with a durable marine-grade paint coating, the fixture is suitable for both inland and coastal environments, ensuring long-term reliability even in demanding conditions.
Complies with:
UKCA | CE | IP67 | IK08 | 48V
Recommended applications:
Accent Lighting | Display Lighting | Exterior | Hotel & Leisure | Parking & Exterior | Retail
Specification
Construction
- Housing: High pressure die cast aluminium
- Finish: Polyester powder painted RAL 9006 matt grey, marine grade salt spray tested
- Diffuser: 5mm toughened glass
- Lens: Injection moulded PMMA lens
- IK08
- IP67 ingress protection
Environmental
- Powered by European branded drivers.
- Contains no single use plastics or polystyrene packaging.
- Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
- UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.
Emergency
- Not available with emergency
Control
- RGBW Colour Changing
- DMX dimming only
Installation
- Suitable for surface installation
- Suitable for external surface installation
Variations
- Available in a range of lens options offering multiple beam angles

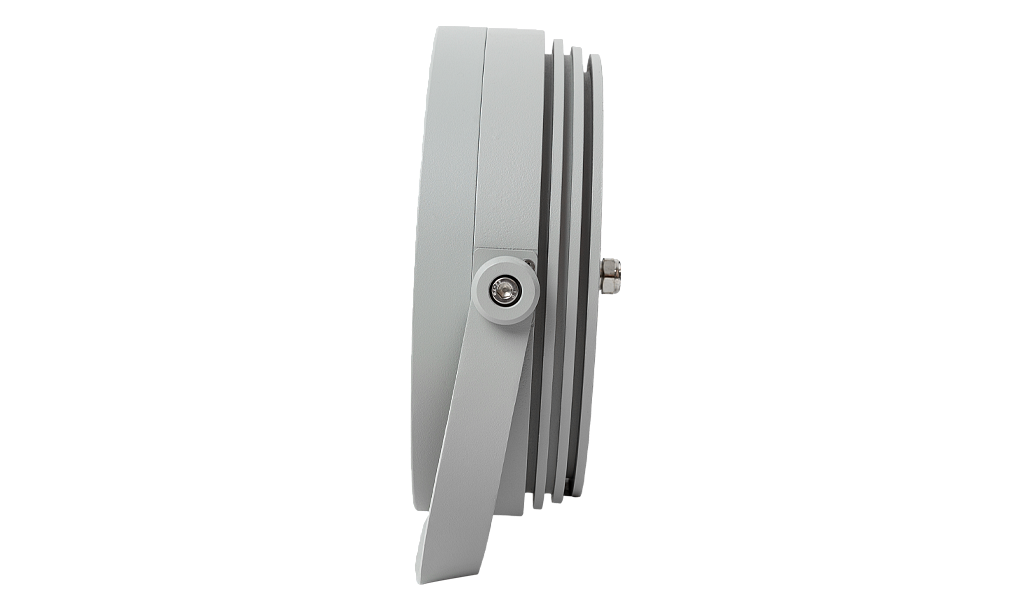

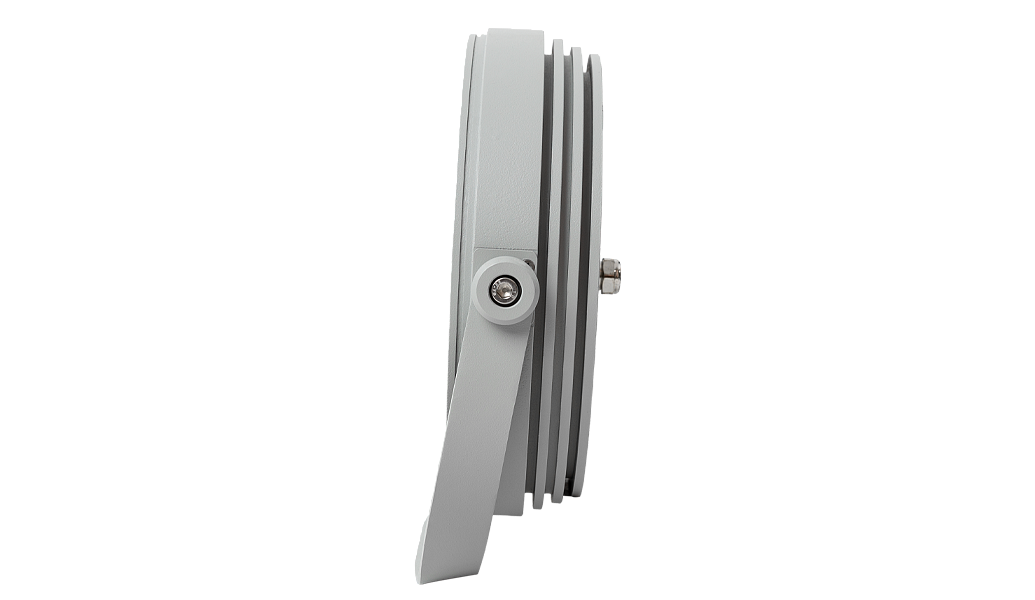

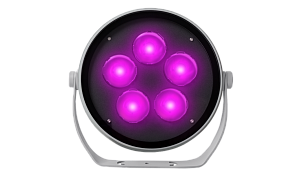

Product Images

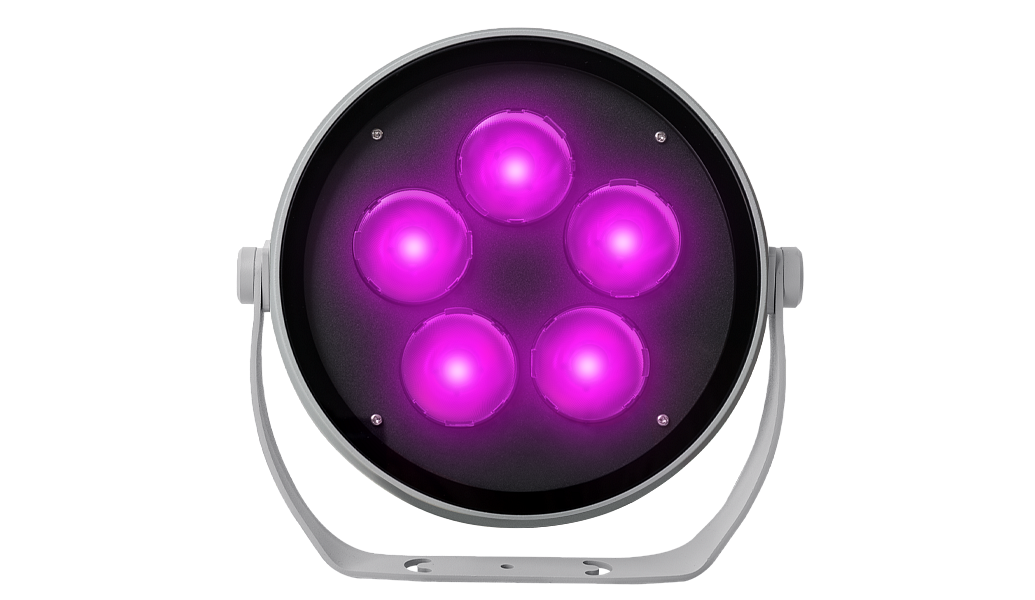

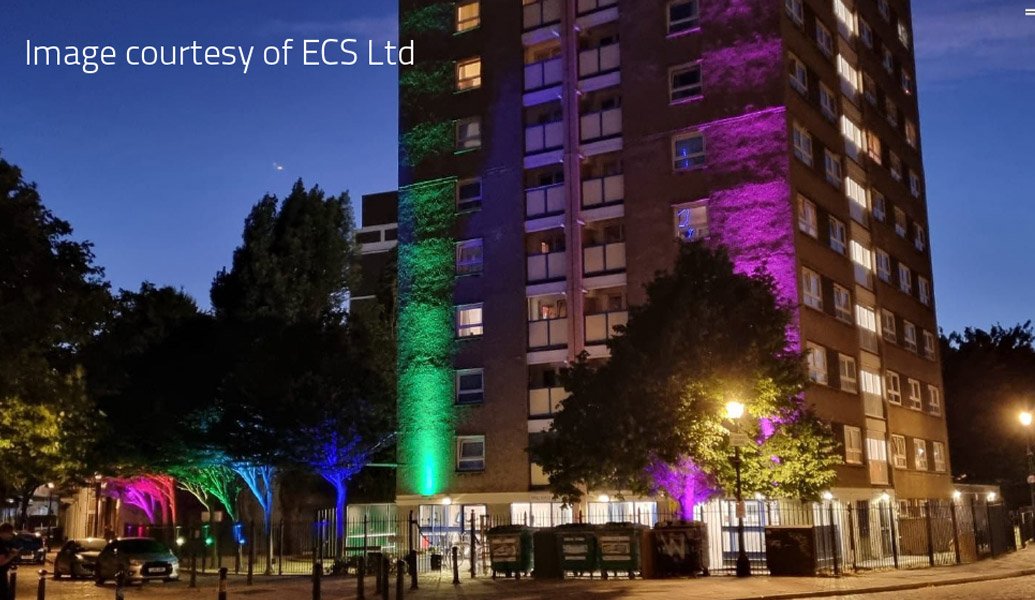

Chromix Point in action
Case studies featuring Chromix Point

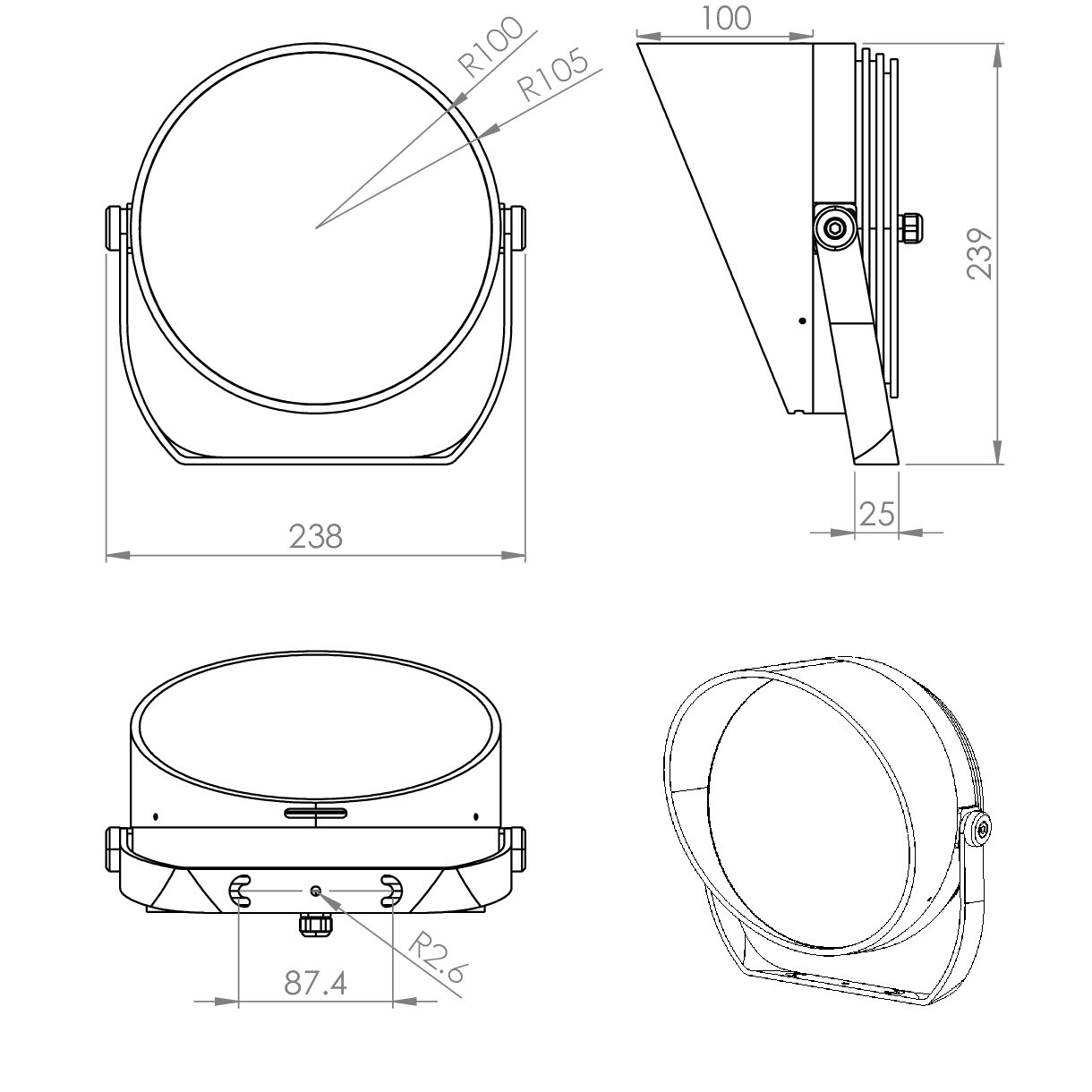

Technical

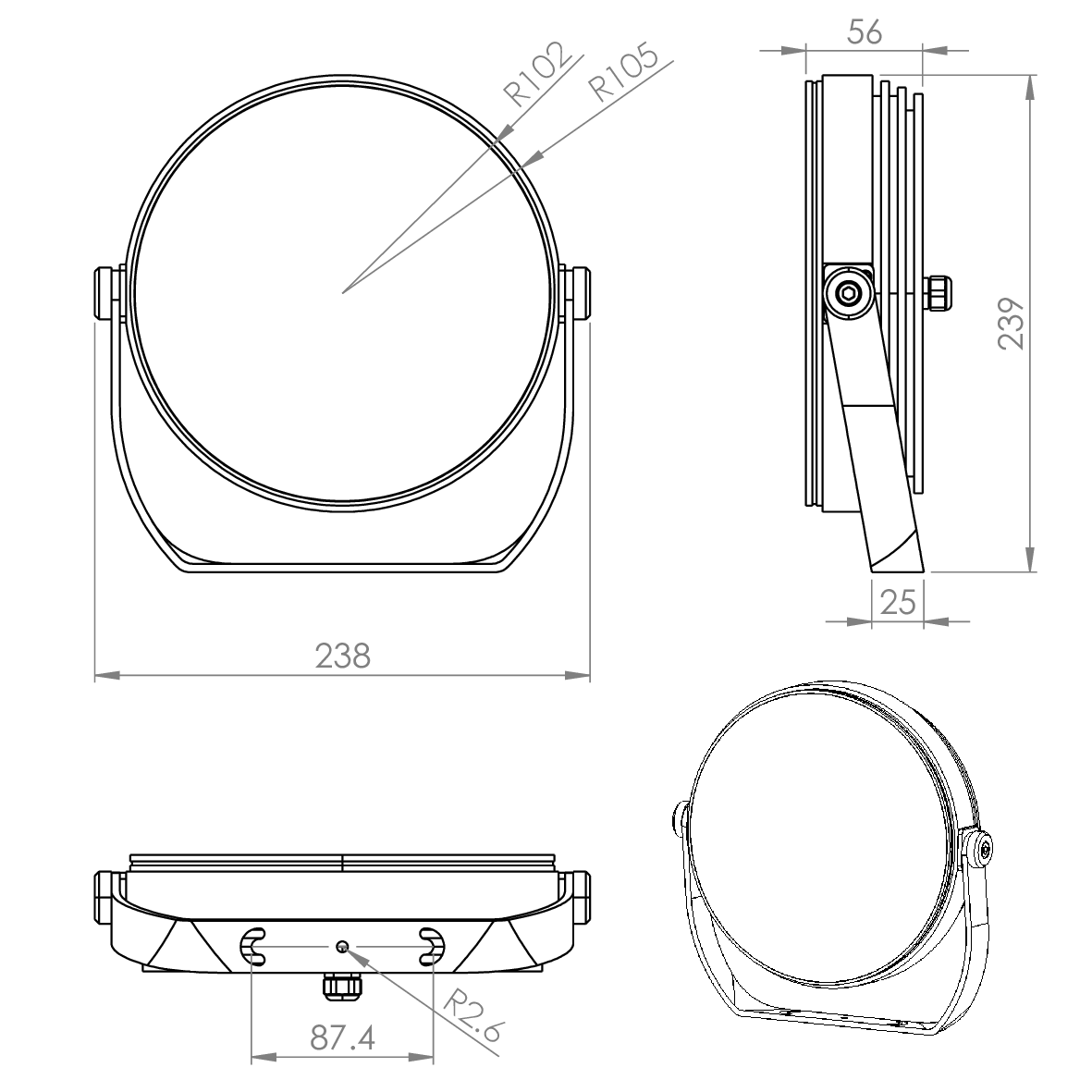

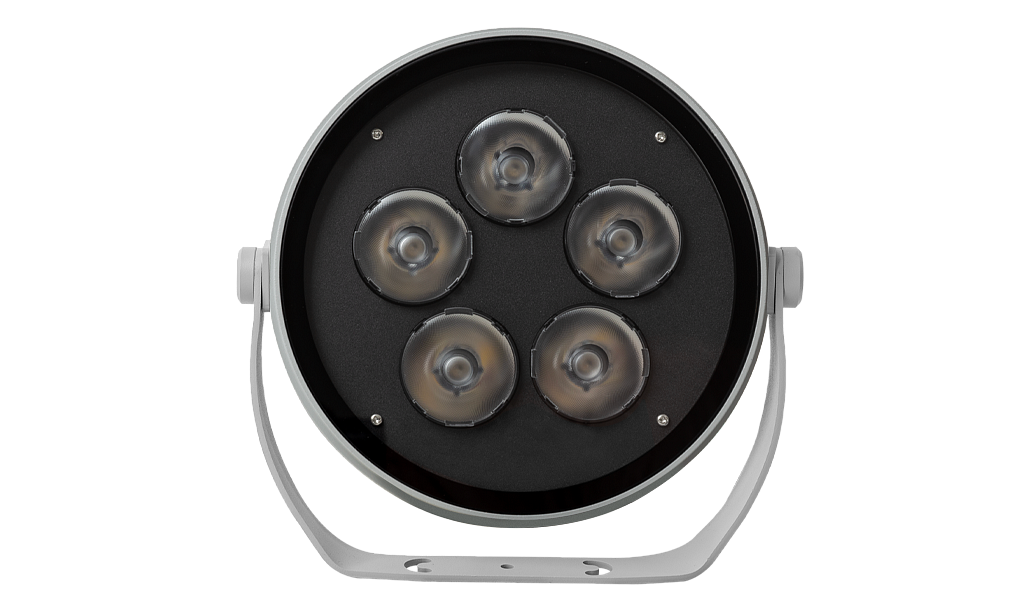

Chromix Point

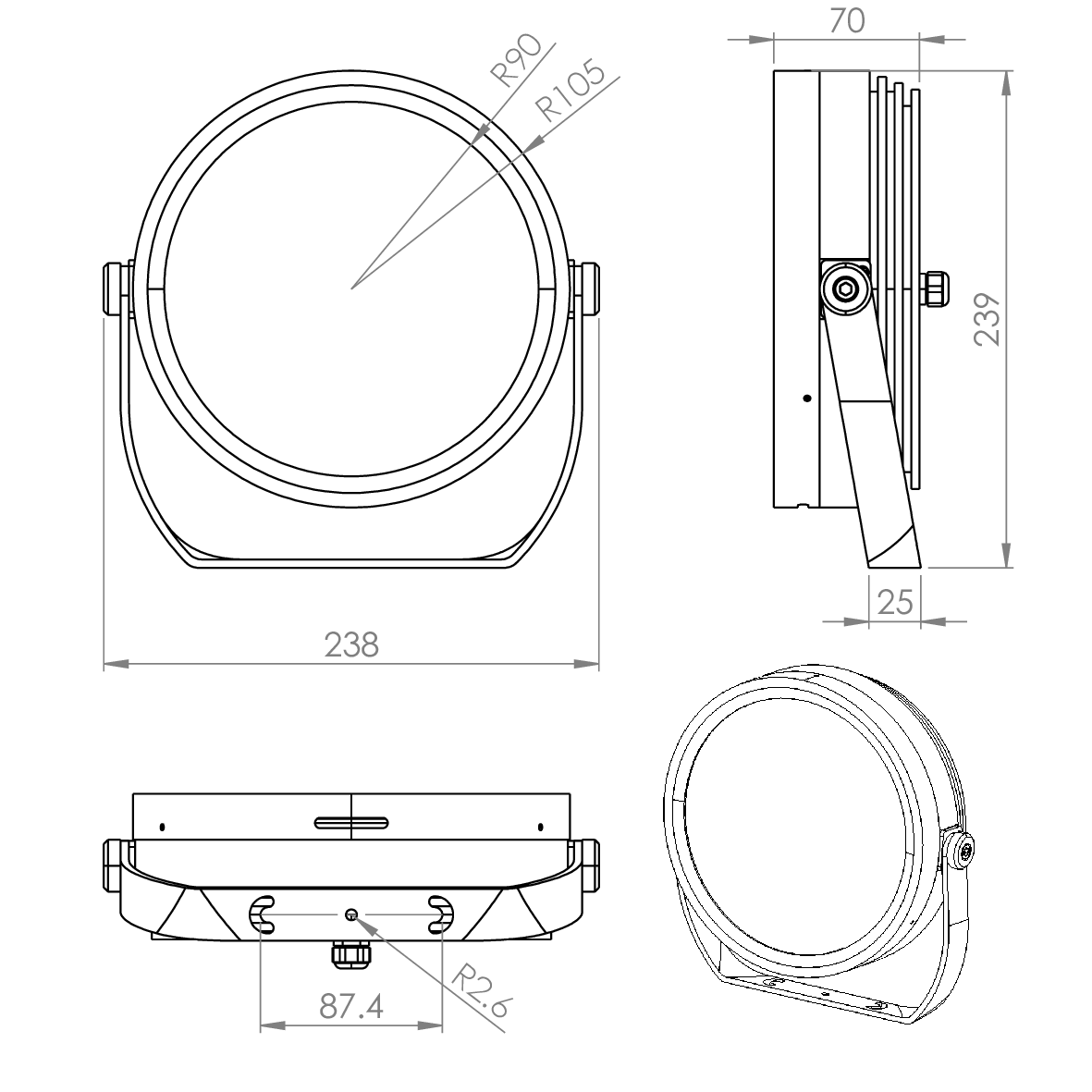

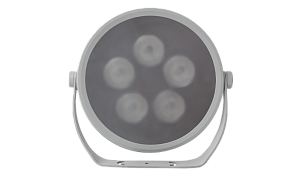

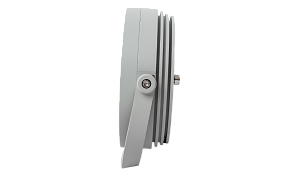

Chromix Point with Spread Lens

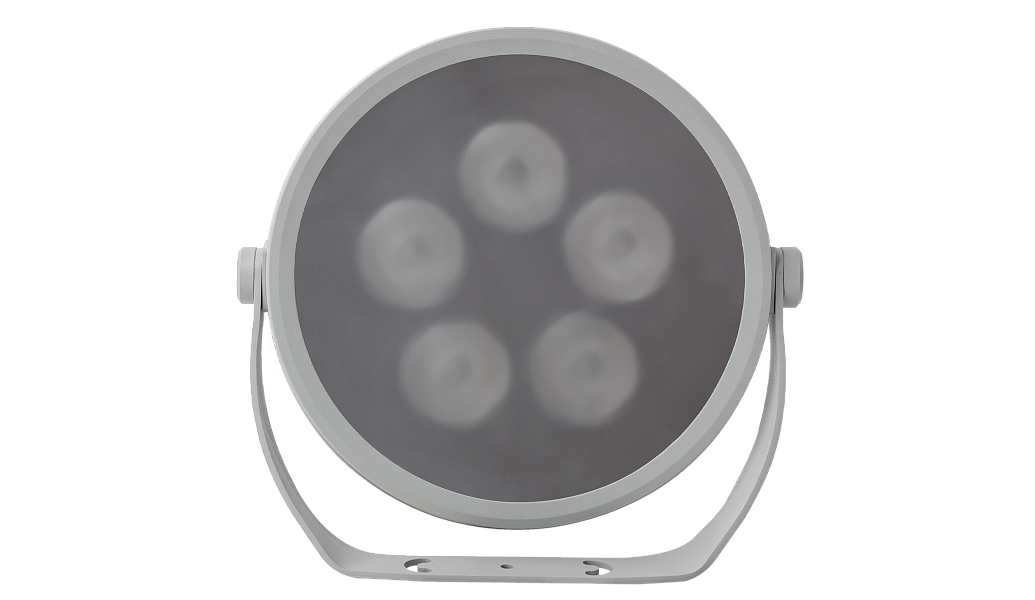

Chromix Point with Glare Shield
Ordering
To order this product simply select the code from each section to build your desired product.
Luminaires
|
||||||||||||||||||||||||||||||||
