AMENITY TRAYS

Retrofit gear trays to suit our amenity ranges

Amenity Decorative IP65 Complete Luminaire

Introduction

We offer retrofit gear trays for several of our Amenity ranges including the Amenity Decorative, Amenity Decorative Halo, Amenity Decorative IP65, Amenity Exterior, Amenity Plus Circular, Amenity Plus Square, Amenity Plus Metal Circular, Amenity Plus Square Metal & Discalo ranges. These trays enable luminaires to be either repaired or upgraded at end of life to use the most efficient LED sources. Replacing the gear tray can also enable you to upgrade luminaires to incorporate dimming, emergency and wireless controls in many cases should you wish to enhance the performance of your product. Please note that we can also offer replacement parts such as diffusers and accessory parts should these also need to be renewed.

 To arrange replacement gear trays please contact us with the luminaire type and date of supply so that we can advise on the most suitable tray to upgrade your product. Each luminaire contains a 7 digit number on the product labelled prefixed with IJN which will allow us to trace the exact product details for your installation. Please be aware that we will need to understand the age and condition of the product to determine if replacement gear trays are feasible, the style of gear tray that will be required and if any additional parts such as the diffuser will also require replacement.

Complies with:

UKCA | CE | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

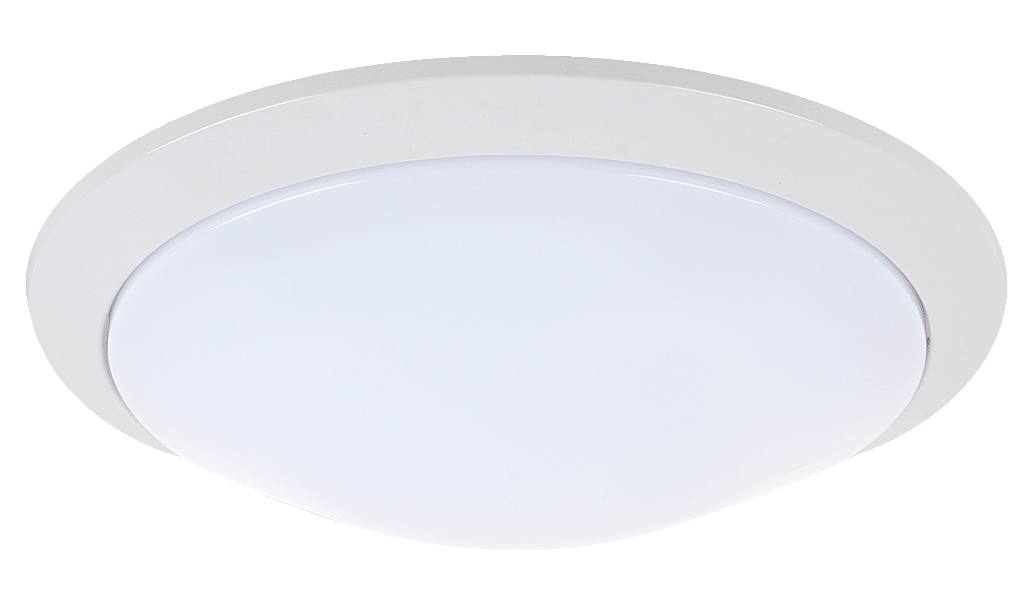

Amenity Decorative
Code Description
AMED L15 GT Amenity Decorative, 1,500lm, Tray, Colour 84
AMED L20 GT Amenity Decorative, 2,000lm, Tray, Colour 84
AMED L30 GT Amenity Decorative, 3,000lm, Tray, Colour 84
AMED L40 GT Amenity Decorative, 4,000lm, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

Amenity Decorative Halo
Code Description
AMEDH L15 GT Amenity Decorative Halo, 1,500lm, Tray, Colour 84
AMEDH L20 GT Amenity Decorative Halo, 2,000lm, Tray, Colour 84
AMEDH L30 GT Amenity Decorative Halo, 3,000lm, Tray, Colour 84
AMEDH L40 GT Amenity Decorative Halo, 4,000lm, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

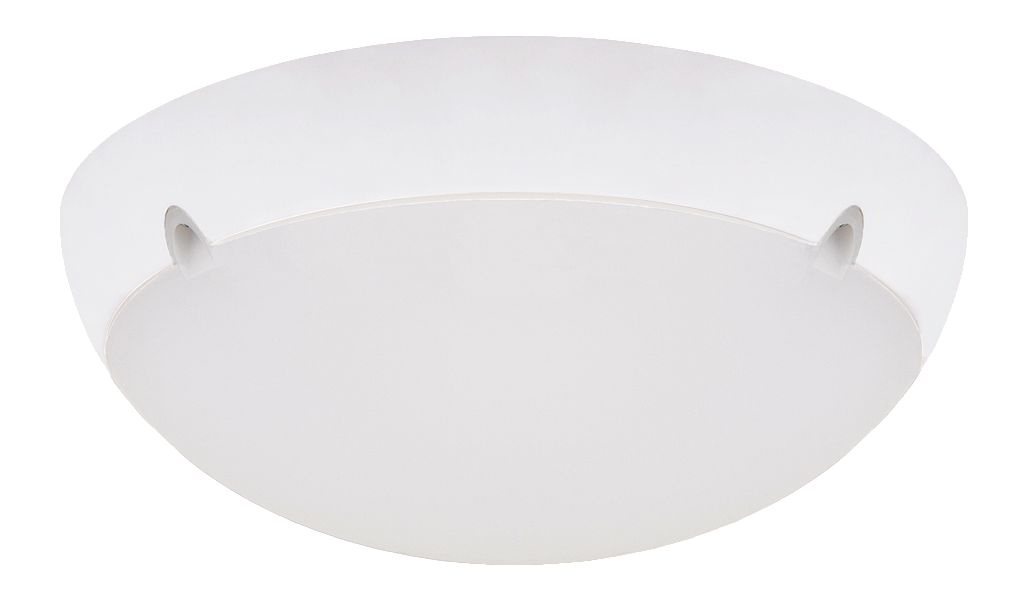

Amenity Decorative IP65
Code Description
AMEDIP65 L15 GT Amenity Decorative IP65, 1,500lm, Tray, Colour 84
AMEDIP65 L20 GT Amenity Decorative IP65, 2,000lm, Tray, Colour 84
AMEDIP65 L30 GT Amenity Decorative IP65, 3,000lm, Tray, Colour 84
AMEDIP65 L40 GT Amenity Decorative IP65, 4,000lm, Tray, Colour 84
AMEDIP65 L60 GT Amenity Decorative IP65, 6,000lm, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

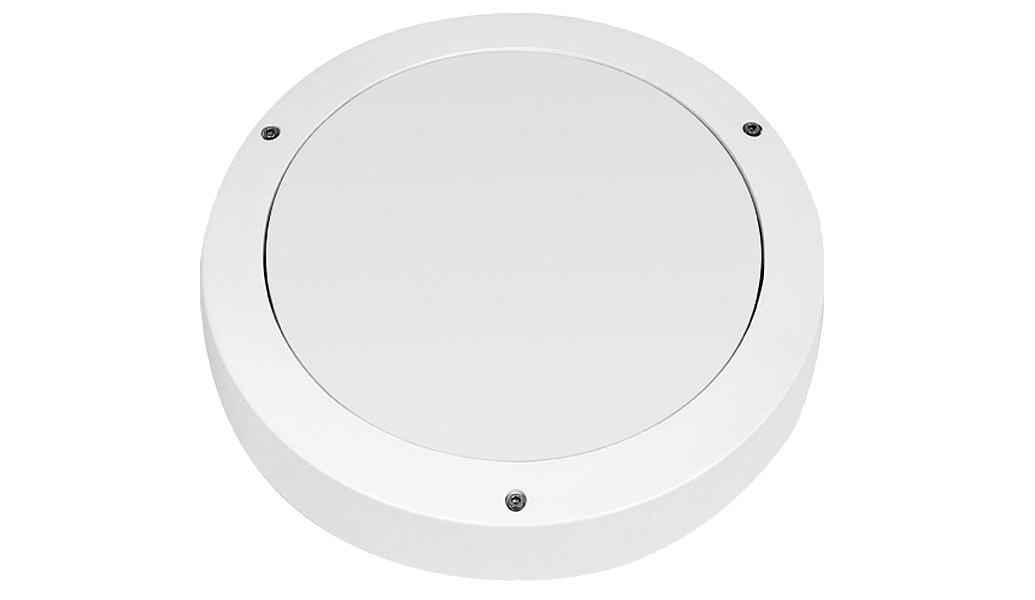

Amenity Exterior
Code Description Power
AMEX L8 E GT Amenity Exterior Gear Tray, 800lm, For Eyelid Housing, Colour 84 6.6W
AMEX L16 E GT Amenity Exterior Gear Tray, 1,600lm, For Eyelid Housing, Colour 84 9.5W
AMEX L8 GT Amenity Exterior Gear Tray, 800lm, For Open / Grille Housing, Colour 84 6.6W
AMEX L15 GT Amenity Exterior Gear Tray, 1,500lm, For Open / Grille Housing, Black Opal, Colour 84 9.5W
AMEX L20 GT Amenity Exterior Gear Tray, 2,000lm, For Open / Grille Housing, White Opal, Colour 84 13.5W
AMEX L30 GT Amenity Exterior Gear Tray, 3,000lm, For Open / Grille Housing, White Opal, Colour 84 20.0W
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

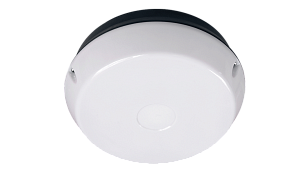

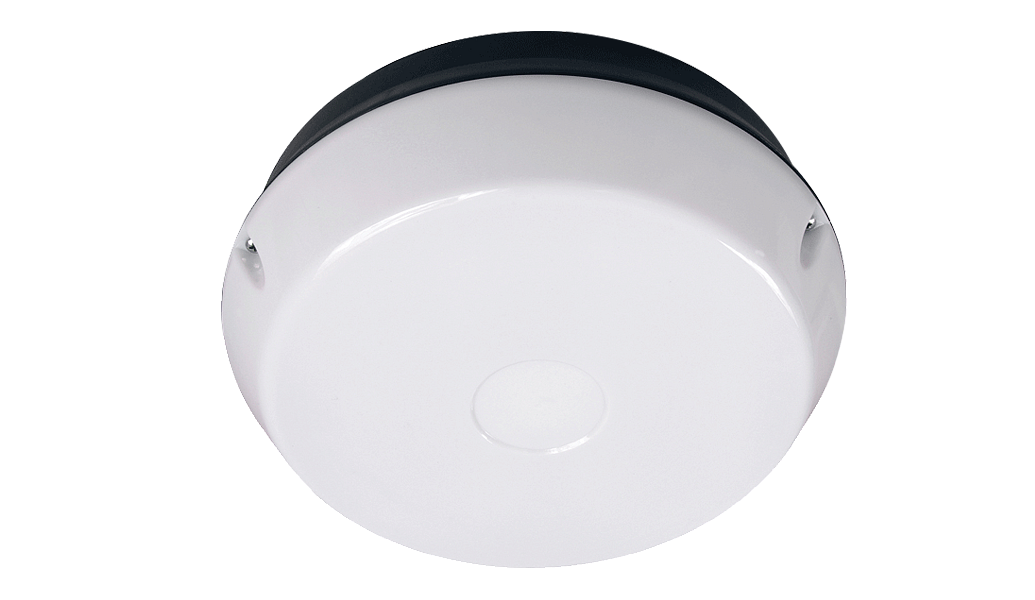

Amenity Plus Circular
Code Description
AMC L15 GT Amenity Plus, 1,500lm, Medium Square, Tray, Colour 84
AMS L20 GT Amenity Plus, 2,000lm, Medium Square, Tray, Colour 84
AMS L30 GT Amenity Plus, 3,000lm, Medium Square, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

Amenity Plus Circular Metal
Code Description
AMEC L15 MET GT Amenity Plus, 1,500lm, Large Circular Metal, Tray, Colour 84
AMEC L20 MET GT Amenity Plus, 2,000lm, Large Circular Metal, Tray, Colour 84
AMEC L30 MET GT Amenity Plus, 3,000lm, Large Circular Metal, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

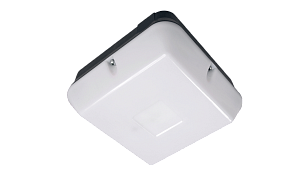

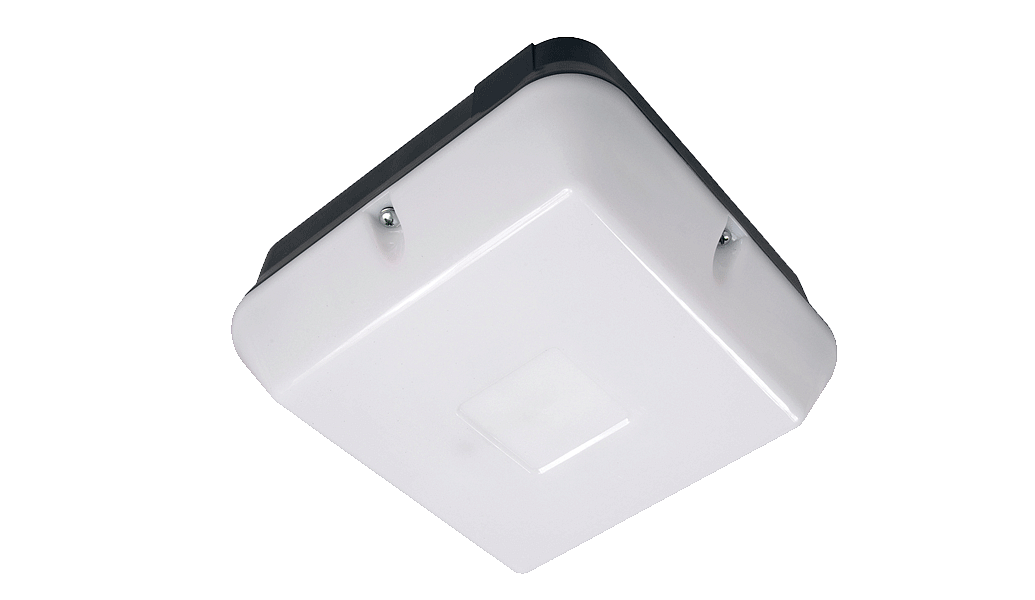

Amenity Plus Square Metal
Code Description
AMES L15 MET GT Amenity Plus, 1,500lm, Large Square Metal, Tray, Colour 84
AMES L20 MET GT Amenity Plus, 2,000lm, Large Square Metal, Tray, Colour 84
AMES L30 MET GT Amenity Plus, 3,000lm, Large Square Metal, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

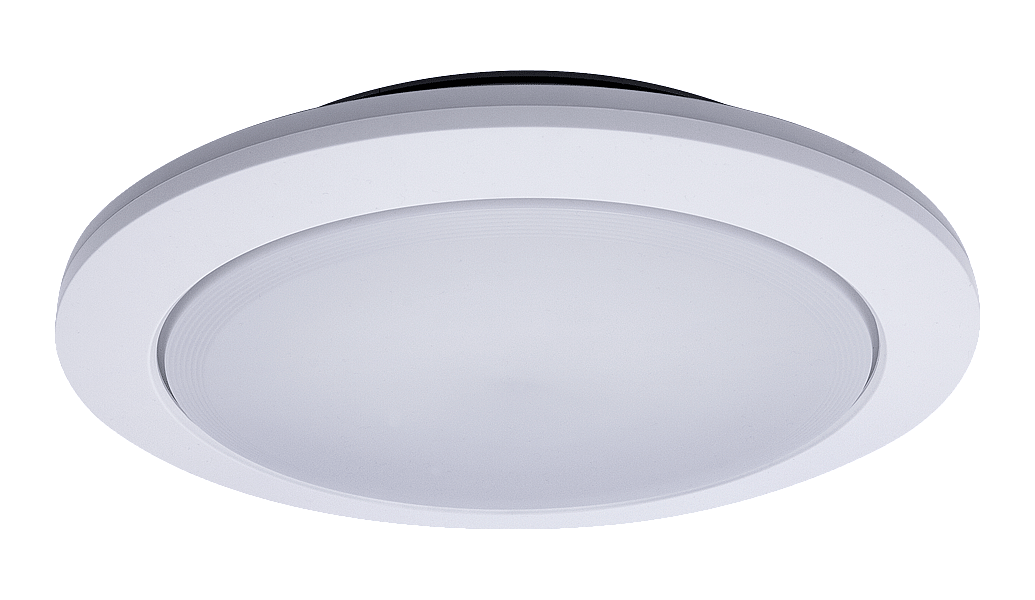

Discalo
Code Description
DSC L15 GT Discalo, 933llm, Opal Rear Diffuser, Tray, Colour 84
DSC L20 GT Discalo, 1,283llm, Opal Rear Diffuser, Tray, Colour 84
DSC L30 GT Discalo, 1,915llm, Opal Rear Diffuser, Tray, Colour 84
DSC L40 GT Discalo, 2,560llm, Opal Rear Diffuser, Tray, Colour 84
Please specify original product type and IJN when querying replacement tray options

Available in dimming, emergency, wireless, sensor controlled and a selection of colour temperature options

Find out more about
AMENITY TRAYS

For Sales and Technical Enquires call 01747 858100
