ACOUSTIC RAFT RETROFIT

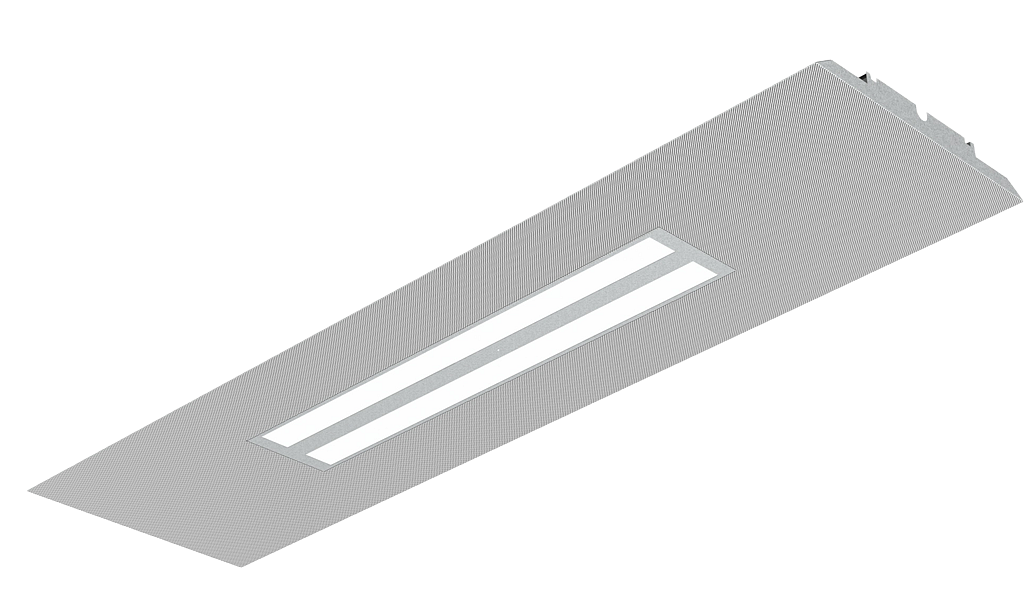

Acoustic Raft Retrofit

Introduction

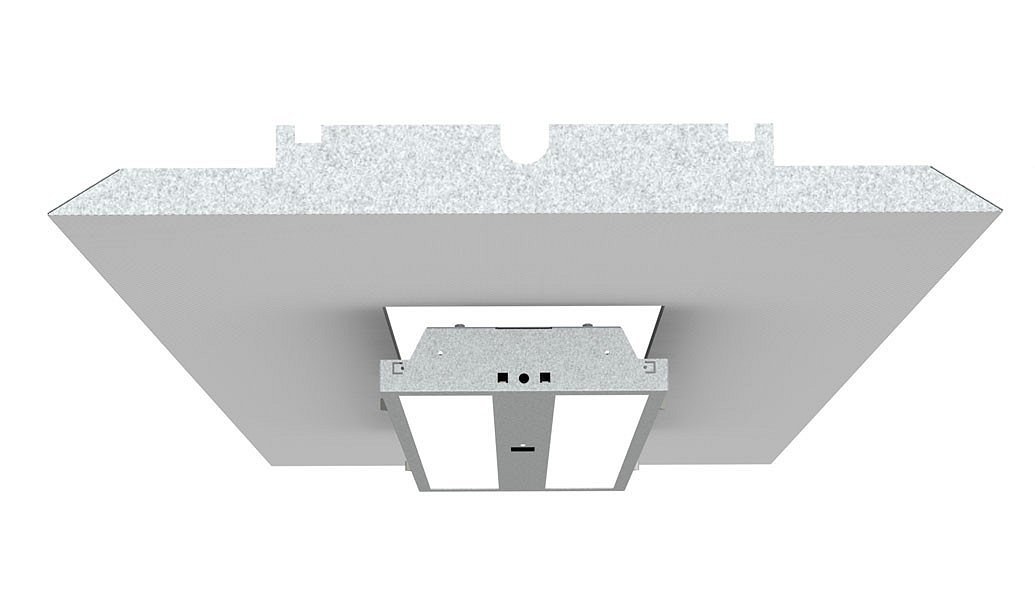

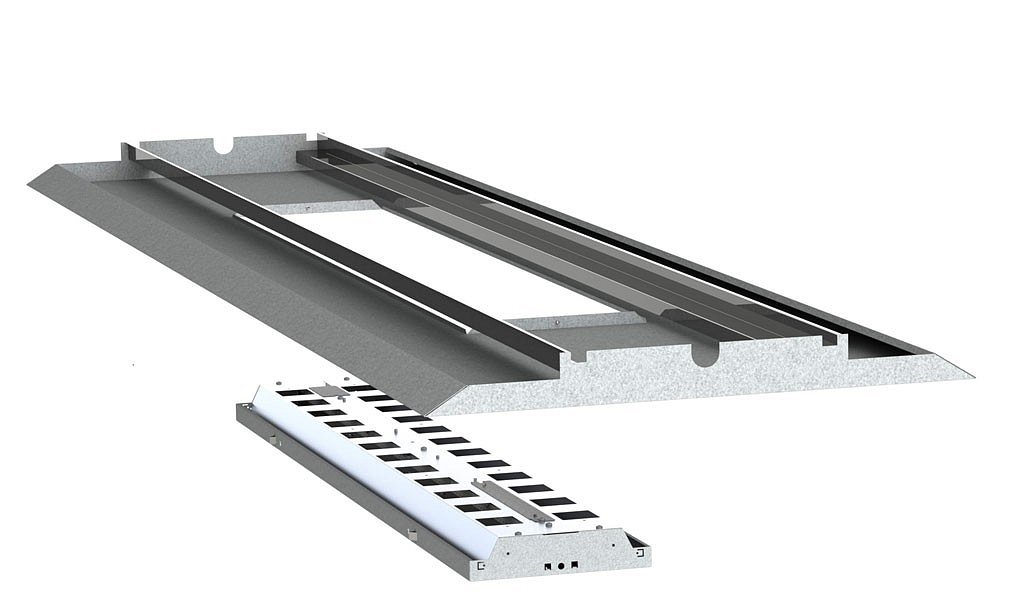

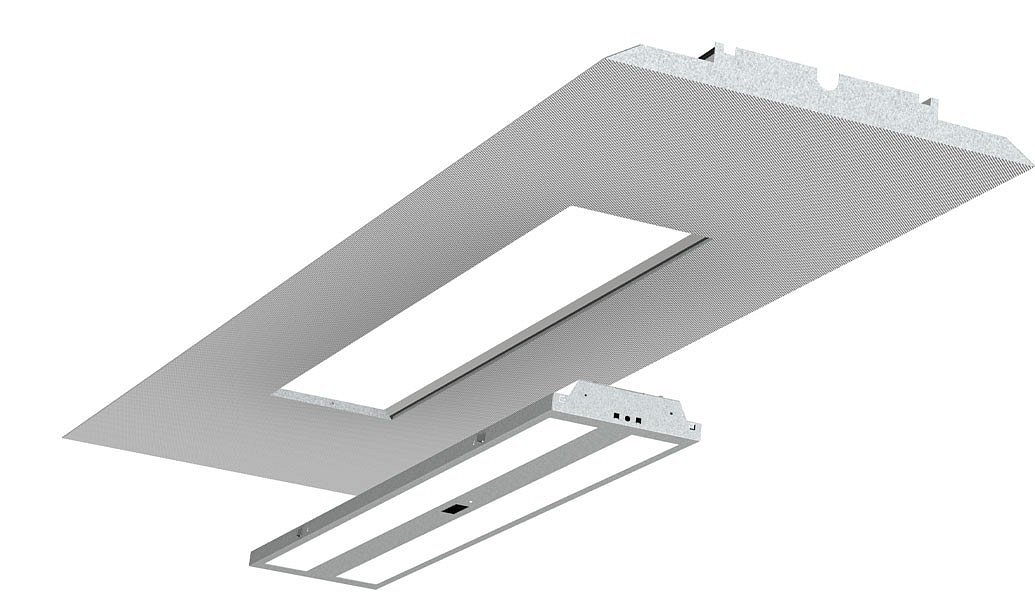

With a wide selection of acoustic raft luminaires on the market containing costly sound absorption material it makes economic and environmental sense to upgrade these luminaires with an LED cartridge allowing the housing and acoustic material to be retained and reused. At Dextra Group we offer a wide range of retrofit solutions for most products on the lighting market including retrofit LED cartridges for acoustic rafts allowing you to upgrade your installation to highly efficient long life LED. In these retrofit solutions we can also accommodate dimming, integral emergency, sensors and our wireless controls systems offering significant energy savings and automated emergency testing reducing ongoing maintenance costs.

 We offer effective retrofit solutions for all acoustic raft luminaires on the market regardless of size, lamp and optic type and we can offer solutions for both downlight and bidirectional variants. Please let us know the type of luminaire you have installed and we can advise on the most cost effective replacement available that will ensure effective performance without compromising the lux levels and uniformity of your installation. For peace of mind these solutions are fully certified with a CE mark and we provide our 5 year warranty against replacement LED cartridge as we do with all new luminaires.

Complies with:

UKCA | CE | IP20 | TM21: L90>60K HOURS / L80>100K HOURS | 3 STEP MACADAM ELLIPSE

Recommended applications:

Retrofit solution for existing acoustic rafts

Specification

Construction

  • Housing: 0.7mm CR4 steel
  • Finish: Polyester powder painted RAL 9016 textura matt white
  • Diffuser: 2mm high transmission opal polycarbonate TP(a) rated
  • IP20

Performance

  • Part L2 compliant
  • BSEN 12464-1:2011 3000 Candela 65° and UGR 19 compliance
  • 3SDCM Three step Macadams ellipse
  • TM21: L90>60K Hours / L80>100K Hours
  • Compliant with BSEN 12464 3000 candela glare requirements and therefore suitable for applications with monitors in use.

Environmental

  • Designed to allow simple replacement of components with commonly available tools in compliance with the Eco Design Directive, please see the installation leaflet for maintenance instructions.
  • Powered by European branded drivers and emergency modules ensuring replacement parts are easily sourced.
  • Every luminaire is labelled with a unique ID number allowing easy identification of spare parts for the lifetime of the product.
  • Contains no single use plastics or polystyrene packaging.
  • Supplied in plain card boxes with paper tape ensuring packaging is easily recycled.
  • Designed to allow simple disassembly for end of life recycling.
  • UK based manufacturing providing local support throughout the product lifetime and minimising transportation miles.

Emergency

  • Available with optional standard, self test and autotest integral emergency with lithium batteries for extended warranty and lifetime.
  • Optional Reacta-Link wireless emergency for automated centralised reporting.
  • Optional Reacta-Control wireless emergency for automated centralised reporting.
  • Optional central battery changeover relay

Control

  • Optional compatibility with a range of dimming systems including DALI, DSI and Switch Dimming
  • Optional Integral R44 presence and daylight sensor
  • Optional Integral Reacta-Air wireless presence and daylight regulations sensor
  • Optional integral Reacta-Control for integration with Reacta-Control wireless installations

Variations

  • Available with a wide range of colour temperatures and renderings
  • Available in a range of lumen outputs

Installation

  • Retrofit LED cartridges for a range of acoustic rafts, please specify existing luminaire type when enquiring.
Find out more about our 5 year extended warranty
Arrow right

Technical

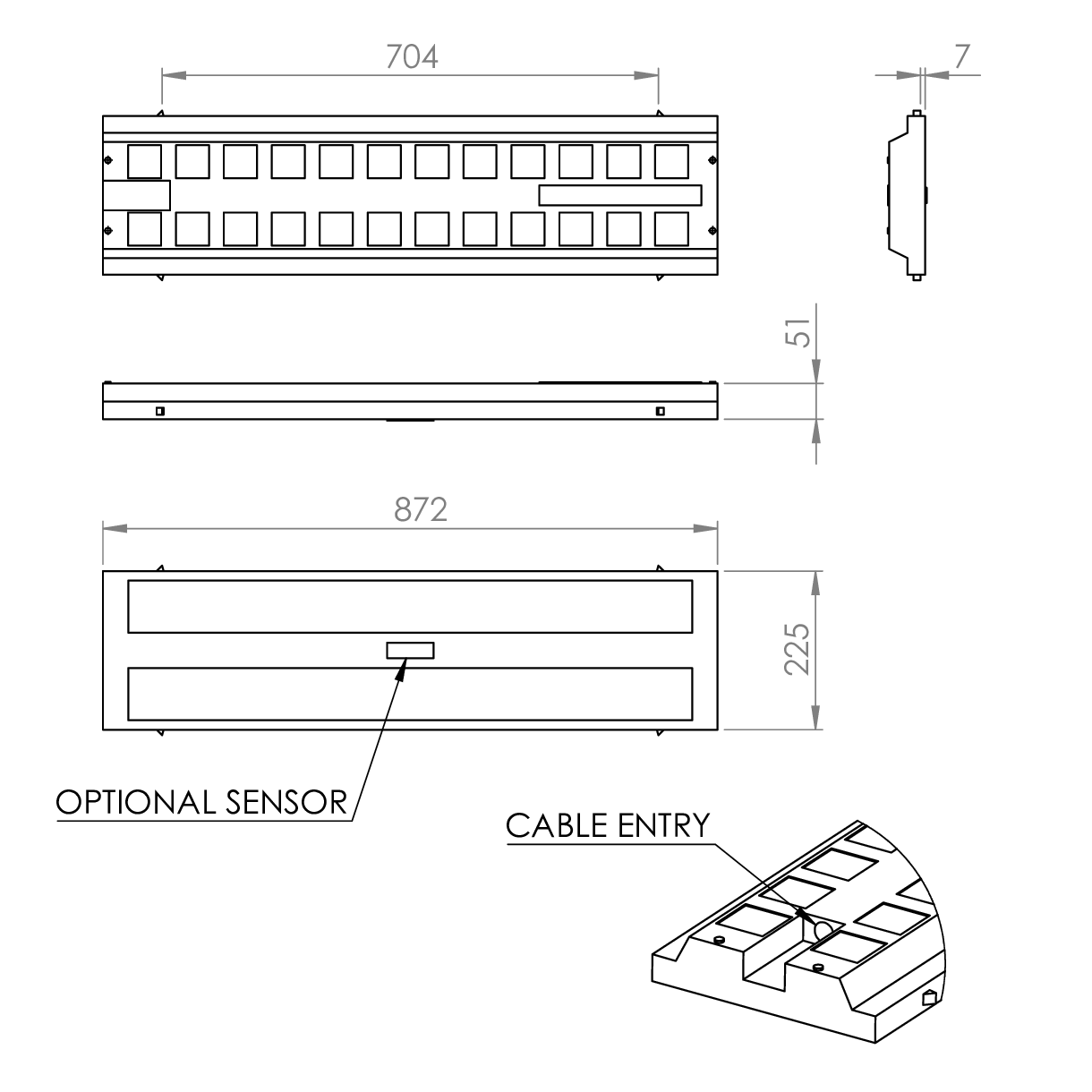

ARW 93A L**

ARW 93A L**

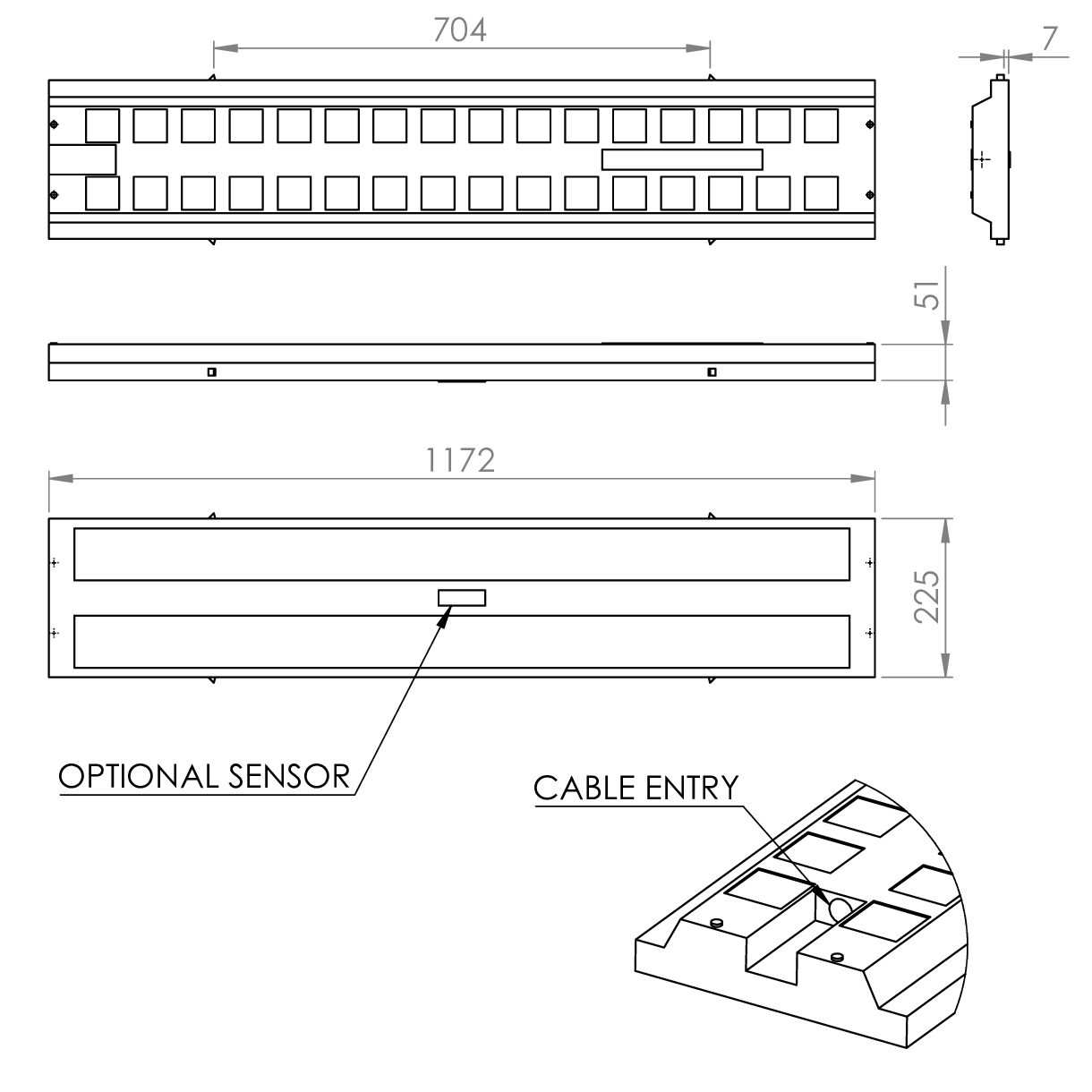

ARW 123A L**

ARW 123A L**

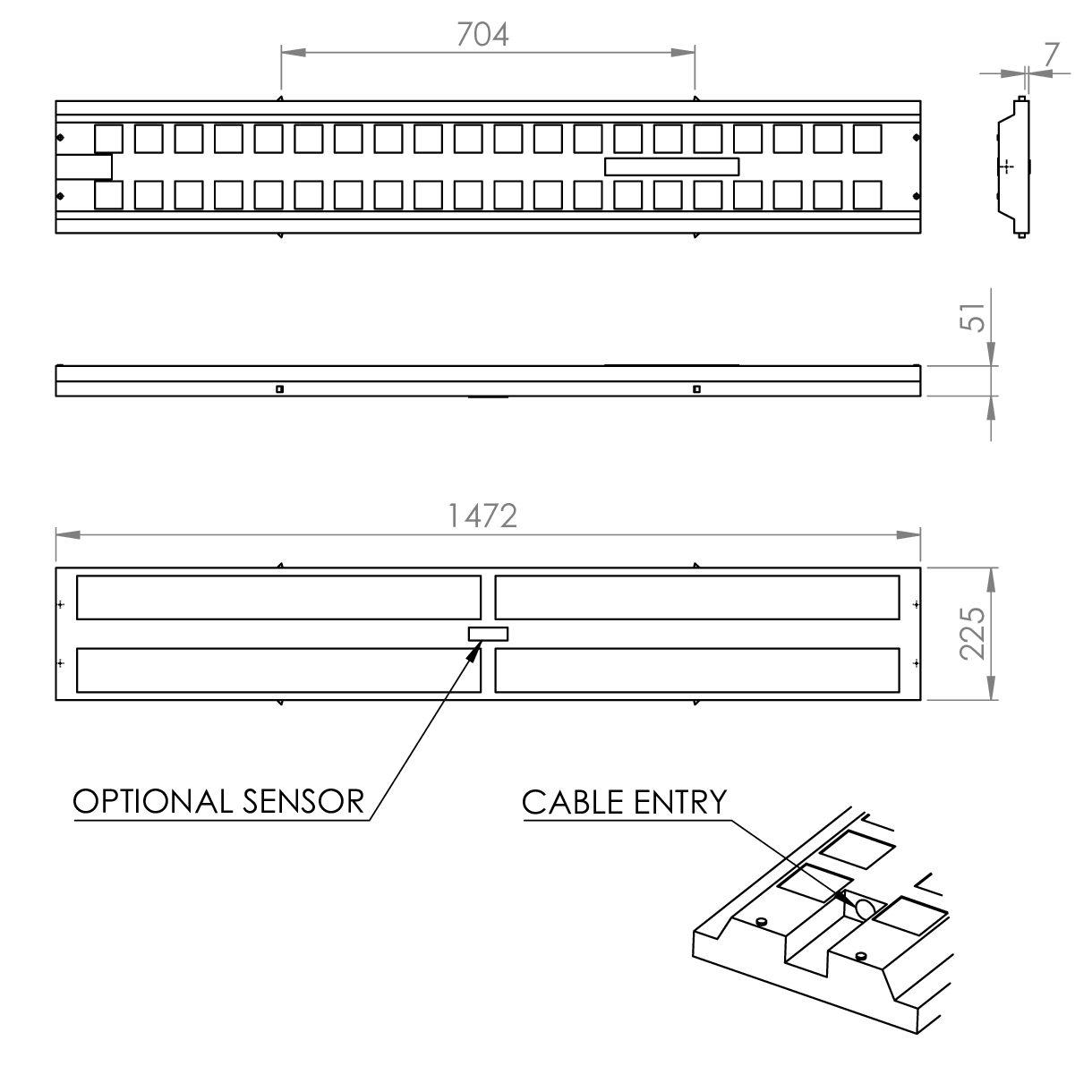

ARW 153A L**

ARW 153A L**

Ordering

To order this product simply select the code from each section to build your desired product.

Luminaires

Code Description Power Llm/W
AR* 093 L40 Acoustic Raft Retrofit, 900x300, Microprism Diffuser, Colour 84
AR* 123 L40 Acoustic Raft Retrofit, 1200x300, 4000lm, Microprism Diffuser, Colour 84
AR* 123 L60 Acoustic Raft Retrofit, 1200x300, 6000lm, Microprism Diffuser, Colour 84
AR* 153 L40 Acoustic Raft Retrofit, 1500x300, 4000lm, Microprism Diffuser, Colour 84
AR* 153 L60 Acoustic Raft Retrofit, 1500x300, 6000lm, Microprism Diffuser, Colour 84
AR* 093 L40 BD Acoustic Raft Retrofit, 900x300, Microprism Diffuser, Bi Directional, Colour 84
AR* 123 L40 BD Acoustic Raft Retrofit, 1200x300, 4000lm, Microprism Diffuser, Bi-Directional, Colour 84
AR* 123 L60 BD Acoustic Raft Retrofit, 1200x300, 6000lm, Microprism Diffuser, Bi-Directional, Colour 84
AR* 153 L40 BD Acoustic Raft Retrofit, 1500x300, 4000lm, Microprism Diffuser, Bi-Directional, Colour 84
AR* 153 L60 BD Acoustic Raft Retrofit, 1500x300, 6000lm, Microprism Diffuser, Bi-Directional, Colour 84
Acoustic raft retrofit trays can be customised in size, lumen output and optic to suit all existing raft systems. Please specify your raft type when ordering.

Dimming

Code Description
A DALI Digital Addressable Lighting Interface
S Switch Dimming
D DSI Digital Dimming
H HFR Analogue 1-10v

Control

Code Description
R44 Reacta 44, Presence & Daylight, 2.5-7M
D44 DexNET Sensor, Wireless, Presence & Daylight, 2.5-5M
DN DexNET Node, Wireless Node only.
RAS Reacta-Air Bluetooth, Wireless, Presence & Daylight, 2.5-3M
RLI Reacta-Link, Wireless Enabled Luminaire
RLS Reacta-Link Wireless, Presence & Daylight, 2.5M-5M
RC Reacta-Control, Wireless Enabled Luminaire
RCS Reacta-Control Wireless, Presence & Daylight, 2.5-4M

Emergency

Code Description
LE3 Lithium Standard Emergency 3 Hour
LS3 Lithium Selftest Emergency 3 Hour
LA3 Lithium Autotest Emergency 3 Hour
LA3D Lithium DexNET Emergency 3 Hour
LSTR Lithium Reacta-Link Emergency 3 Hour
LA3RC Lithium Reacta-Control Emergency 3 Hour
CB Central Battery, Please Specify 110V or 230V when Ordering

Miscellaneous

Code Description
C** Select Colour Temperature and Rendering; C83, C85, C865, C93, C94
4PM 4 Pole Panel Mount
6PM 6 Pole Panel Mount
4TW 4 Pole Through Wire Loom
6TW 6 Pole Through Wire Loom
6T 6 Pole T piece
LSF Low Smoke Zero Halogen
