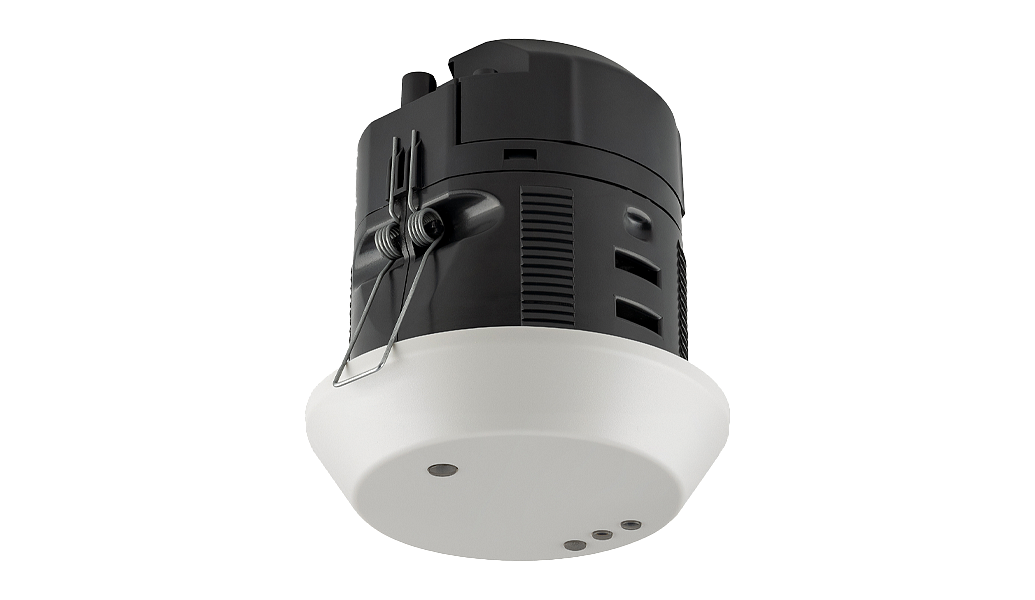

REAF 7 10A MW DUAL
The REAF 7 10A MW DUAL is a Semi-flush recessed mounting microwave occupancy sensor with two 10amp load switching relays, the secondary relay can be used for separate switching of a fan or solenoid control.
Introduction
The REAF 7 10A MW DUAL is a Semi-flush recessed mounting microwave occupancy sensor with two 10amp load switching relays, the secondary relay can be used for separate switching of a fan or solenoid control.
Features & Benefits
- Mounting Type: Recessed
- Wireless: No
- Maximum Mounting Height: 3.5m
- Occupancy Detection: Microwave
- Daylight Control: Bright Out
- Output: On/Off
- Supply Power Source: 230V
- IP Rating: IP4X
- Programmer: REA DPA
Adjustable Parameters
- Movement Sensitivity: Minimum / Very Low / Low, Medium / High / Very high / Maximum
- Occupied mode: Presence/Absence/Manual
- Occupied Time: up to 12 hours
- Bright Out Mode: Enabled/Disabled
- PIR: on/off
- More parameters available on programmer
Product Images
Diagrams

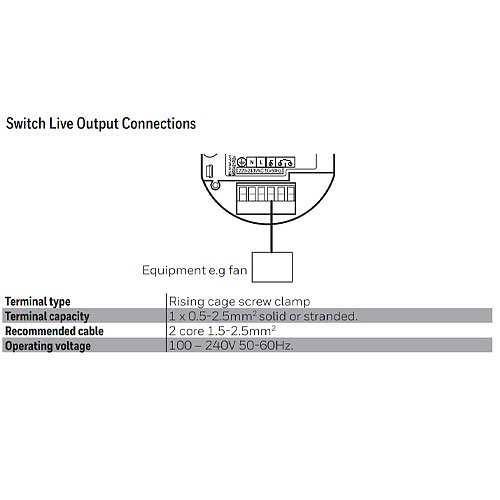

REAF-7-10A-MW-DUAL-Wiring-r
REAF-7-10A-MW-DUAL-detection-r

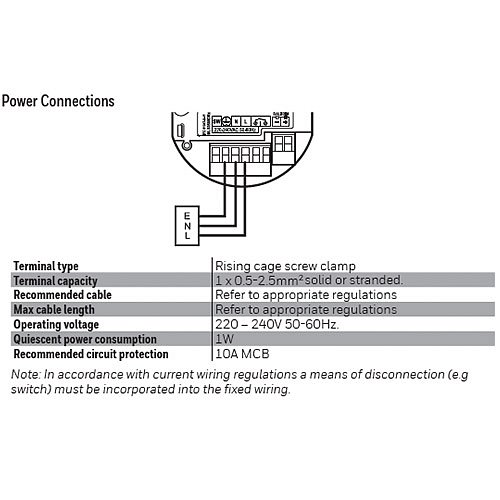

REAF-7-power-wiring-r

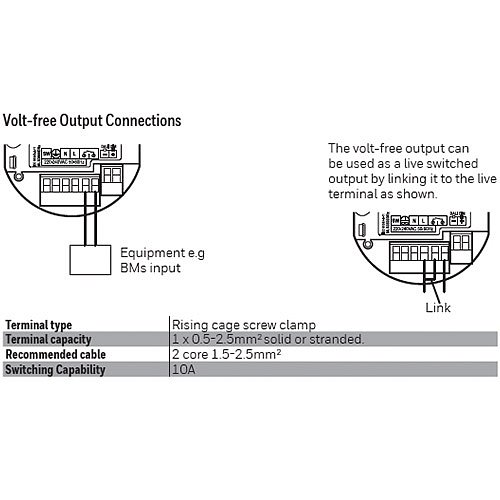

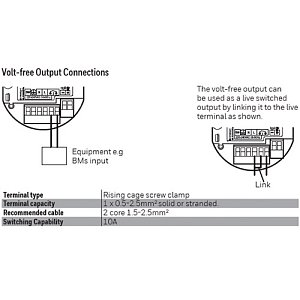

REAF-7-volt-free-wiring-r
Ordering
| Code | Description |
|---|---|
| REAF 7 10A MW DUAL | Flush Reacta 7 microwave with dual relay |
| REA 7 SURFMT | Reacta 7 Surface Mounting Kit |
